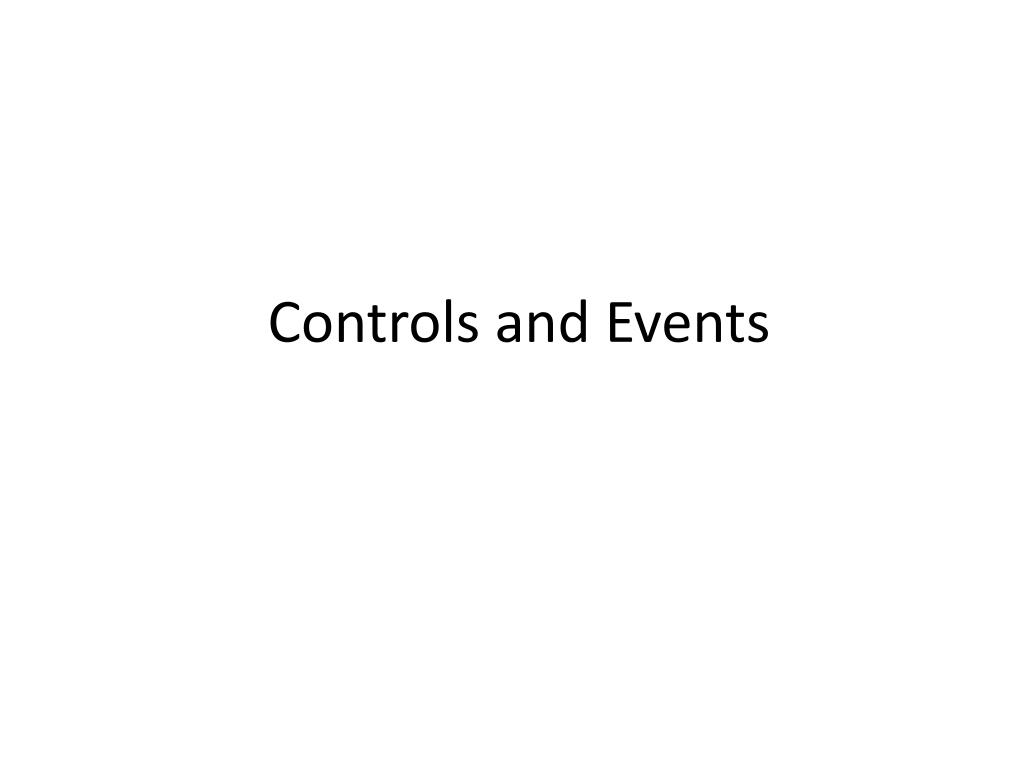

  1. Controls and Events

  2. The Next Step • In the first module, we discussed general problem solving • In this module, we’ll apply what we learned, from specification to design to implementation and testing, on a very simple process • Later we’ll gradually introduce VB features that let us implement more complex processes

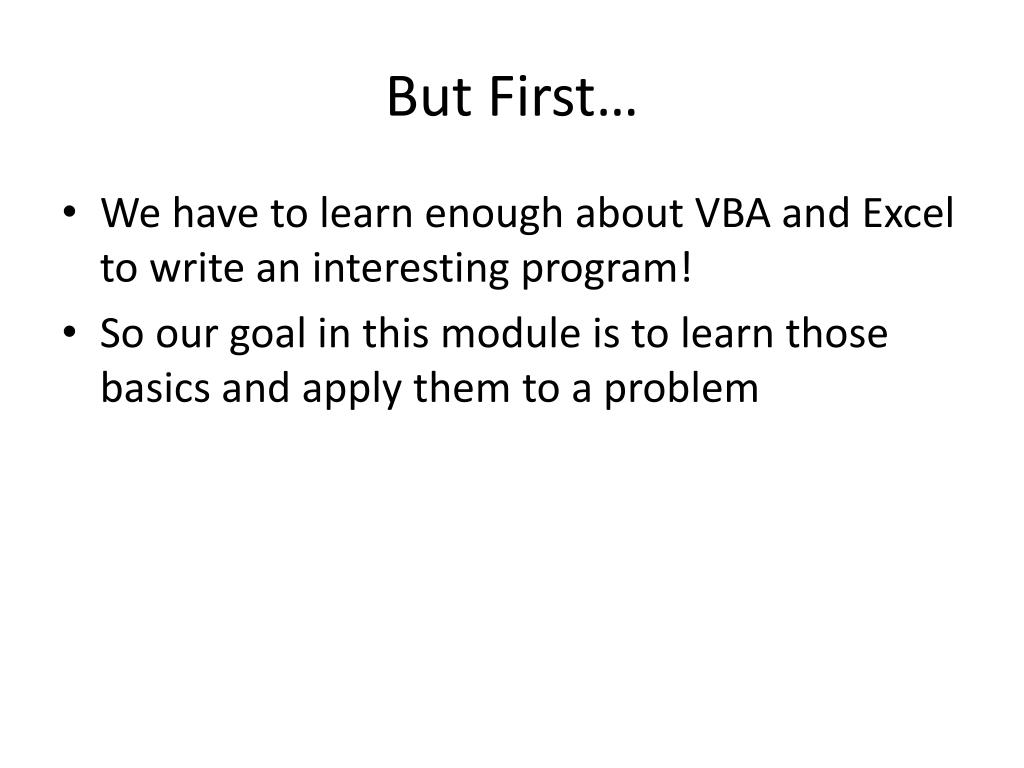

  3. But First… • We have to learn enough about VBA and Excel to write an interesting program! • So our goal in this module is to learn those basics and apply them to a problem

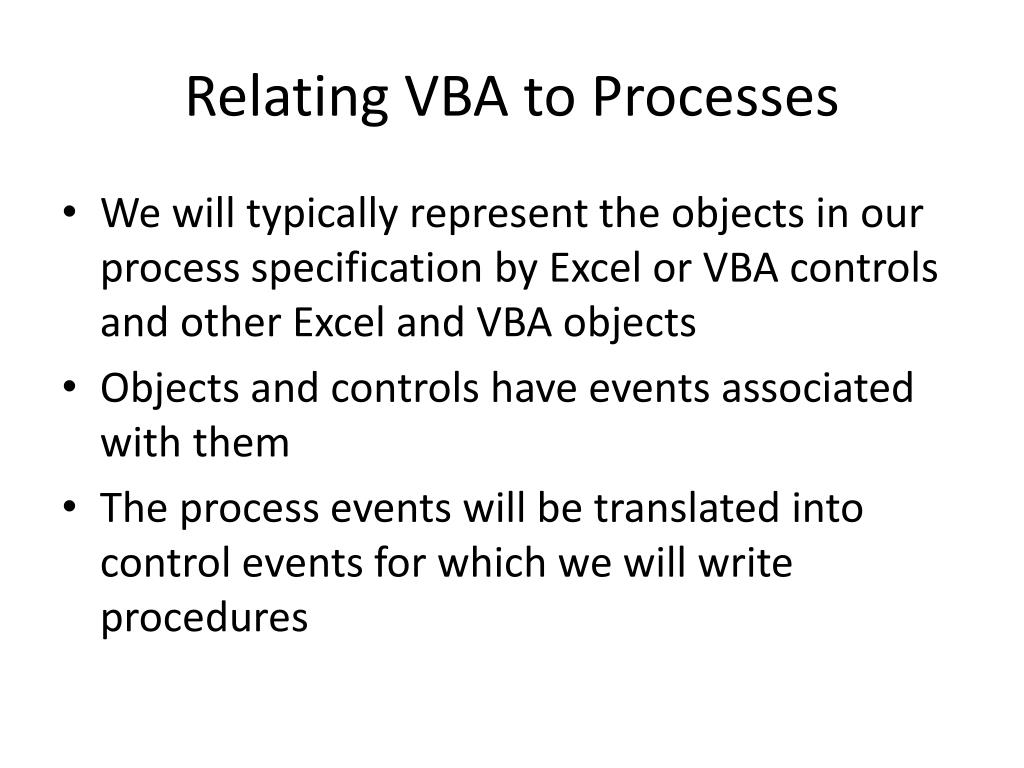

  4. Relating VBA to Processes • We will typically represent the objects in our process specification by Excel or VBA controls and other Excel and VBA objects • Objects and controls have events associated with them • The process events will be translated into control events for which we will write procedures

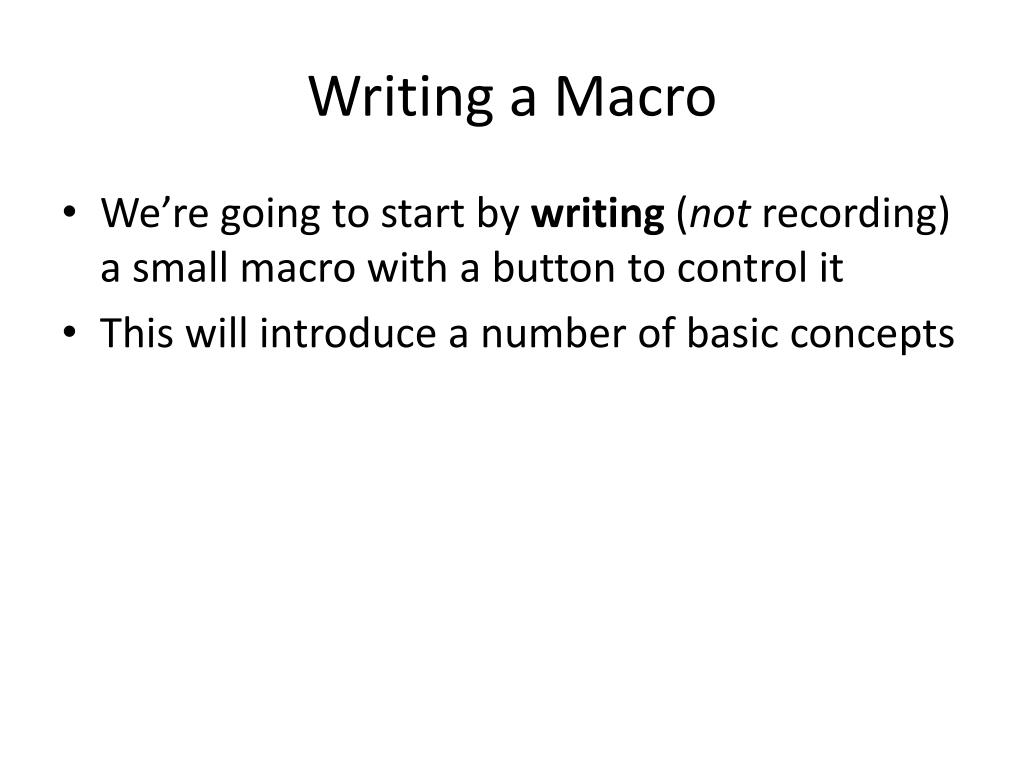

  5. Writing a Macro • We’re going tostart by writing (not recording) a small macro with a button to control it • This will introduce a number of basic concepts

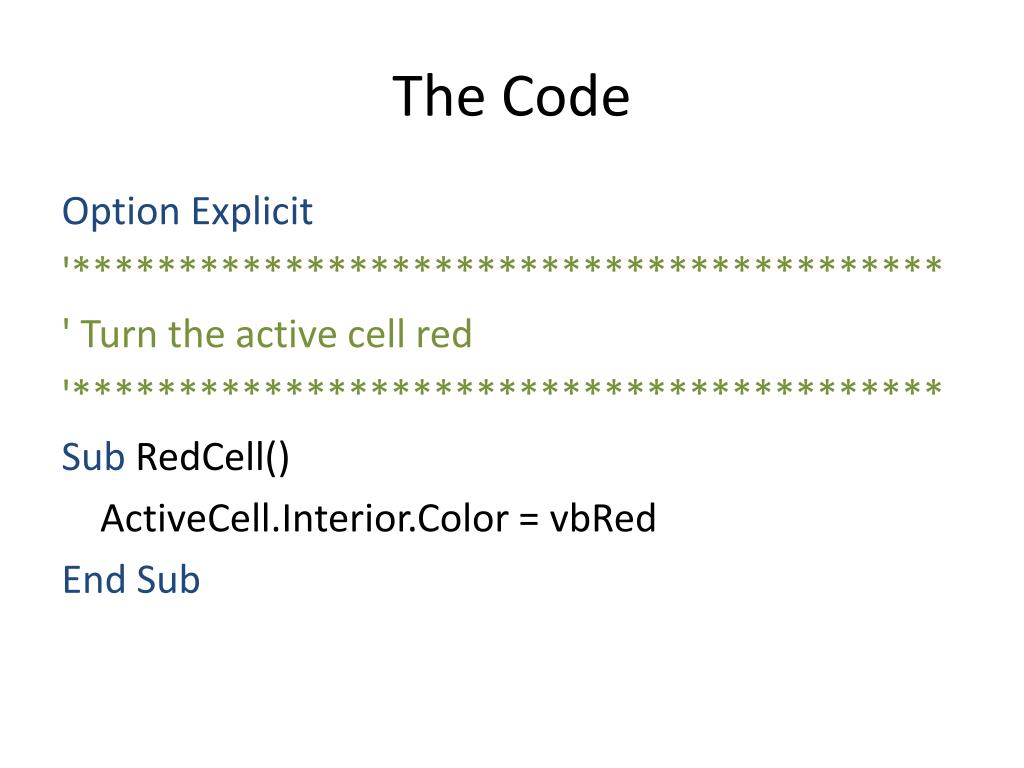

  6. The Code Option Explicit '***************************************** ' Turn the active cell red '***************************************** SubRedCell() ActiveCell.Interior.Color = vbRed End Sub

  7. The Video • You can watch the steps of writing the macro and adding the button on the video called Button Demo • The workbook is available on the class site • After you watch, try writing your own macro, say GreenButton, in the same worksheet. Give it a button and/or a piece of clip art to activate it

  8. Events • Clicking the button or the clip art is an event that triggers the execution of the macro • This is a pattern we will continue to follow: our macros will be triggered by events that happen in the spreadsheet • Later we will also write macros that can be called by other macros

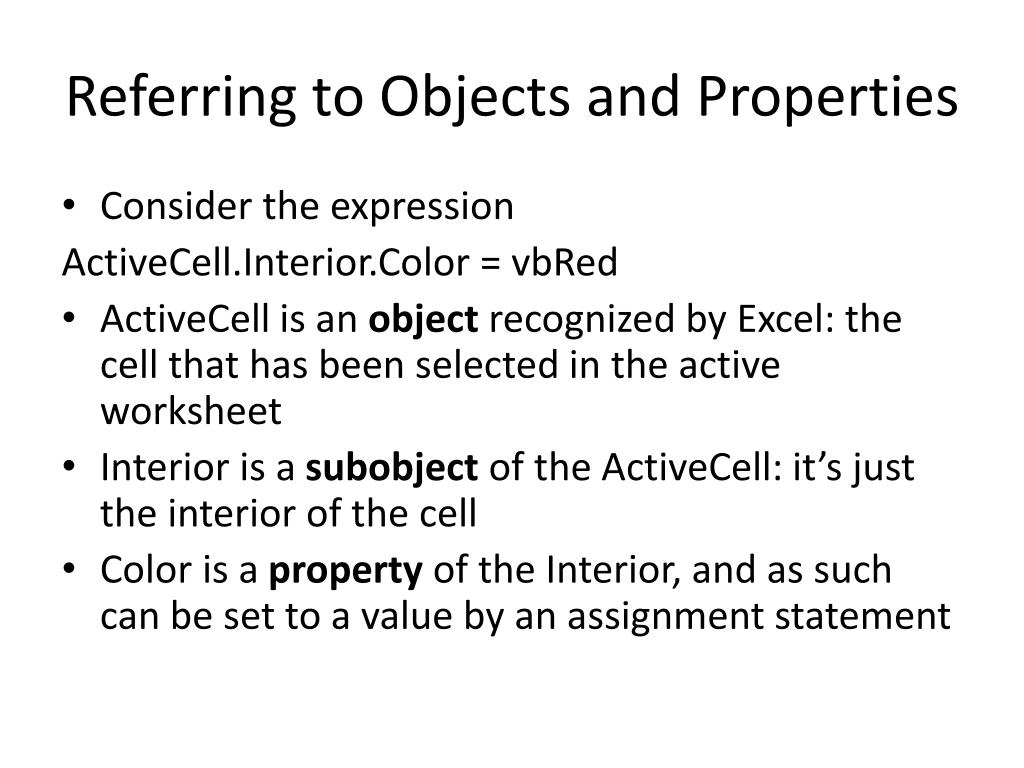

  9. Referring to Objects and Properties • Consider the expression ActiveCell.Interior.Color = vbRed • ActiveCell is an object recognized by Excel: the cell that has been selected in the active worksheet • Interior is a subobject of the ActiveCell: it’s just the interior of the cell • Color is a property of the Interior, and as such can be set to a value by an assignment statement

  10. Properties vs Variables • We’ll often be setting the values of properties of objects • Cells in particular have a property called the Value: ActiveCell.Value = 5 will make the number 5 show up in the cell • Besides properties of objects, we’ll also use more general variables for quantities we want our program to remember and work with
