Presentation Transcript

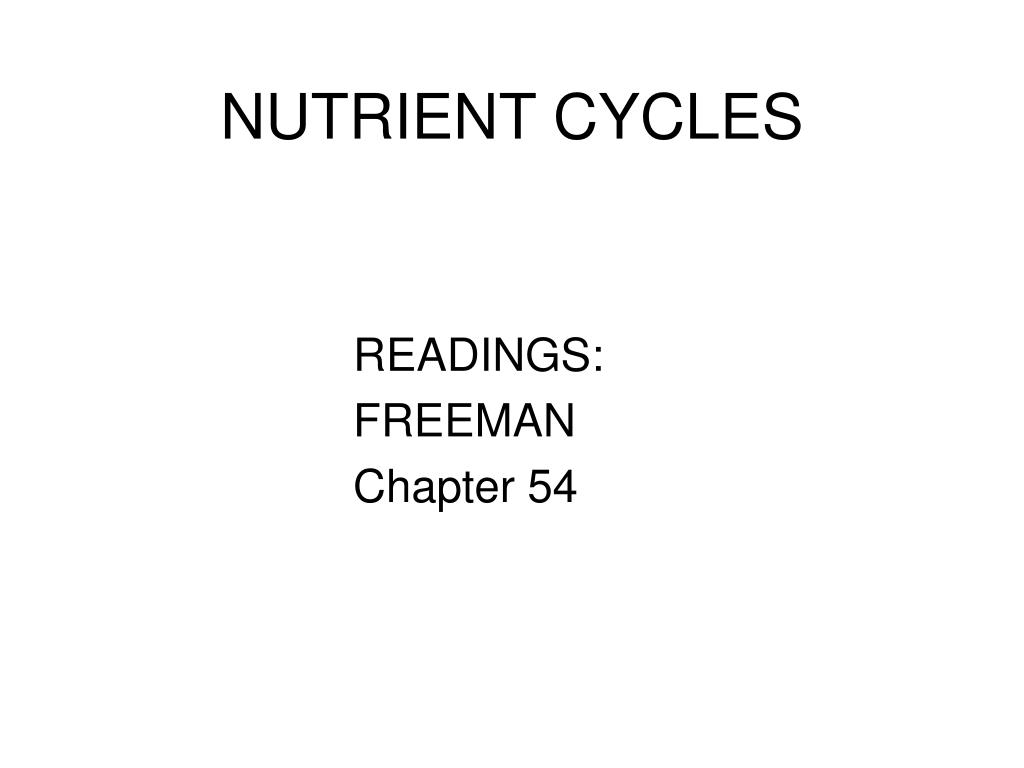

  1. NUTRIENT CYCLES READINGS: FREEMAN Chapter 54

  2. NUTRIENT CYCLES: ECOSYSTEM TO ECOSPHERE • Nutrient cycling occurs at the local level through the action of the biota. • Nutrient cycling occurs at the global level through geological processes, such as, atmospheric circulation, erosion and weathering.

  3. NUTRIENT CYCLES • The atoms of earth and life are the same; they just find themselves in different places at different times. • Most of the calcium in your bones came from cows, who got it from corn, which took it from rocks that were once formed in the sea. • The path atoms take from the living (biotic) to the non-living (abiotic) world and back again is called a biogeochemical cycle.

  4. Nutrients: The Elements of Life • Of the 50 to 70 atoms (elements) that are found in living things, only 15 or so account for the major portion of living biomass. • Only around half of these 15 have been studied extensively as they travel through ecosystems or circulate on a global scale.

  5. A GENERALIZED MODEL OF NUTRIENT CYCLING IN AN ECOSYSTEM • The cycling of nutrients in an ecosystem are interlinked by an a number of processes that move atoms from and through organisms and to and from the atmosphere, soil and/or rocks, and water. • Nutrients can flow between these compartments along a variety of pathways.

  6. Nutrient Compartments in a Terrestrial Ecosystem • The organic compartment consists of the living organisms and their detritus. • The available-nutrient compartment consists of nutrients held to surface of soil particles or in solution. • The third compartment consists of nutrients held in soils or rocks that are unavailable to living organisms. • The fourth compartment is the air which can be found in the atmosphere or in the ground.

  7. Uptake of Inorganic Nutrients from the Soil • With the exception of CO2 and O2 which enter though leaves, the main path of all other nutrients is from the soil through the roots of producers. • Even consumers which find Ca, P, S and other elements in the water they drink, obtain the majority of these nutrients either directly or indirectly from producers.

  8. The Atmosphere Is a Source of Inorganic Nutrients • The atmosphere acts as a reservoir for carbon dioxide (CO2), oxygen (O2) and water (H2O). • These inorganic compounds can be exchanged directly with the biota through the processes of photosynthesis and respiration. • The most abundant gas in the atmosphere is nitrogen (N2);about 80% by volume. Its entry into and exit from the biota is through bacteria.

  9. Some Processes By Which Nutrients Are Recycled • Cycling within an ecosystem involves a number of processes. • These are best considered by focusing attention on specific nutrients.

  10. CARBON, HYDROGEN AND OXYGEN CYCLES IN ECOSYSTEMS • C, H & O basic elements of life; making up from about 98% of plant biomass. • CO2 and O2 enter biota from the atmosphere. • Producers convert CO2 and H2O into carbohydrates (CH2O compounds) and release O2 from water. • Producers, consumers and decomposers convert CH2O compounds, using O2, back into CO2 and H2O.

  11. CARBON, HYDROGEN AND OXYGEN CYCLES IN ECOSYSTEMS • Carbon and oxygen cycle come out of the air as carbon dioxide during photosynthesis and are returned during respiration. • Oxygen is produced from water during photosynthesis and combines with the hydrogen to form water during respiration.

  12. PHOSPHOROUS CYCLE IN ECOSYSTEMS • Phosphorus, as phosphate (PO4-3), is an essential element of life. • It does not cycle through atmosphere, thus enters producers through the soil and is cycled locally through producers, consumers and decomposers. • Generally, small local losses by leaching are balanced by gains from the weathering of rocks. • Over very long time periods (geological time) phosphorus follows a sedimentary cycle.

  13. NITROGEN CYCLE IN ECOSYSTEMS • Nitrogen (N2) makes up 78% of the atmosphere. • Most living things, however, can not use atmospheric nitrogen to make amino-acids and other nitrogen containing compounds. • They are dependent on nitrogen fixing bacteria to convert N2 into NH3(NH4+).

  14. Sources of Nitrogen to the Soil • Natural ecosystems receive their soil nitrogen through biological fixation and atmospheric deposition. • Agricultural ecosystems receive additional nitrogen through fertilizer addition.

  15. Biological Sources of Soil Nitrogen • Only a few species of bacteria and cyanobacteria are capable of nitrogen fixation. • Some are fee-living and others form mutualistic associations with plants. • A few are lichens.

  16. Atmospheric Sources of Soil Nitrogen • Lightning was the major source of soil nitrogen until recent times when the burning of fossil fuels became a major source of atmospheric deposition. • Nitrogen oxides come from a variety of combustion sources that use fossil fuels. In urban areas, at least half of these pollutants come cars and other vehicles.

  17. Agricultural Supplements to Soil Nitrogen • Various forms of commercial fertilizer are added to agricultural fields to supplement the nitrogen lost through plant harvest. • Crop rotation with legumes such as soybeans or alfalfa is also practiced to supplement soil nitrogen.

  18. Biological Nitrogen Fixation • Nitrogen fixation is the largest source of soil nitrogen in natural ecosystems. • Free-living soil bacteria and cyanobacteria (blue-green “algae”) are capable of converting N2 into ammonia (NH3) and ammonium (NH4+). • Symbiotic bacteria (Rhizobium) in the nodules of legumes and certain other plants can also fix nitrogen.

  19. Nitrification • Several species of bacteria can convert ammonium (NH4+) into nitrites (NO2-). • Other bacterial species convert nitrites (NO2-) to nitrates (NO3-).

  20. Uptake of Nitrogen by Plants • Plants can take in either ammonium (NH4+) or nitrates (NO3-) and make amino acids or nucleic acids. • These molecules are the building blocks of proteins and DNA, RNA, ATP, NADP, respectively. • These building blocks of life are passed on to other trophic levels through consumption and decomposition.

  21. Ammonification • Decomposers convert organic nitrogen (CHON) into ammonia (NH3) and ammonium (NH4+). • A large number of species of bacteria and fungi are capable of converting organic molecules into ammonia.

  22. Denitrification • A broad range of bacterial species can convert nitrites, nitrates and nitrous oxides into molecular nitrogen (N2). • They do this under anaerobic conditions as a means of obtaining oxygen (O2). • Thus, the recycling of N is complete.

  23. NITROGEN CYCLE IN ECOSYSTEMS • Molecular nitrogen in the air can be fixed into ammonia by a few species of prokaryotes. • Other bacterial species convert NH4- into NO2- and others to N03-. • Producers can take up NH4- and to N03- use it to make CHON. • Decomposers use CHON and produce NH4-. • Recycling is complete when still other species convert N03- and NO2- into N2.

  24. NUTRIENT LOSS IN ECOSYSTEMS I • The role of vegetation in nutrient cycles is clearly seen in clear cut experiments at Hubbard Brook. • When all vegetation was cut from a 38-acre watershed, the output of water and loss of nutrients increased; 60 fold for nitrates, and at least 10 fold for other nutrients. • Freeman describes the experiments on page 1254 and in Figure 54.15.

  25. NUTRIENT LOSS IN ECOSYSTEMS II

  26. NUTRIENT LOSS IN ECOSYSTEMS III

  27. GLOBAL NUTRIENT CYCLES • The loss of nutrients from one ecosystem means a gain for another. (Remember the law of conservation of matter.) • When ecosystems become linked in this manor, attention shifts to a global scale. One is now considering the ECOSPHERE or the whole of planet earth.

  28. GLOBAL WATER CYCLE I • Water is the solvent in which all the chemistry of life takes place and the source of its hydrogen. • The earth’s oceans, ice caps, glaciers, lakes, rivers, soils and atmosphere contains about 1.5 billion cubic kilometers of H2O. • It has been estimated that all the earth’s water is split by plant cells and reconstituted by the biota about every 2,000,000 years.

  29. GLOBAL WATER CYCLE II • Oceans contain a little less than 98% of the earth’s water. • Around 1.8% is ice; found in the two polar ice caps and mountain glaciers. • Only 0.5% is found in the water table and ground water. • The atmosphere contains only 0.001% of the earth’s water, but is the major driver of weather.

  30. GLOBAL WATER CYCLE III • The rate at which water cycles is shown in Figure 54.16 (Freeman, 2005). • Evaporation exceeds precipitation over the oceans; thus there is a net movement of water to the land. • Nearly 60% of the precipitation that falls on land is either evaporated or transpired by plants; the remainder is runoff and ground water.

  31. GLOBAL WATER CYCLE IV

  32. GLOBAL CARBON CYCLE I • All but a small portion of the earth’s carbon (C) is tied up in sedimentary rocks; but the portion that circulates is what sustains life. • The active pool of carbon is estimated to be around 40,000 gigatons. • 93.2 % found in the ocean; 3.7% in soils; 1.7% in atmosphere; 1.4% in vegetation.

  33. GLOBAL CARBON CYCLE II • The rate at which the biota exchanges CO2 with atmosphere has been estimated to be every 300 years. • The rate at which carbon cycles through various components of the ecosphere is summarized in Figure 54.17 in Freeman (2005). • Since the industrial revolution, a new source of stored sedimentary carbon has been added to the atmosphere from the burning of fossil fuels causing a concern with respect to climate change.

  34. GLOBAL CARBON CYCLE III

  35. GLOBAL NITROGEN CYCLE I • 99.4% of exchangeable N is found in the atmosphere; 0.5% is dissolved in the ocean; 0.04% in detritus ; 0.006% as inorganic N sources; 0.0004% in living biota. • Figure 54.19 in Freeman (2005) gives major pathways and rates of exchange.

  36. GLOBAL NITROGEN CYCLE II • Humans are adding large amounts of N to ecosystems. Some estimates of are given in Figure 54.20 in Freeman (2005). • Among the fossil fuel sources, power plants and automobiles are important sources of atmospheric nitrogen deposition in the US. • Investigations of native plant and natural ecosystem responses to nitrogen deposition and global warming will be a focus of study.

  37. GLOBAL NITROGEN CYCLE III

  38. NUTRIENT CYCLES READINGS: FREEMAN Chapter 54
