Example : The center of mass of a seesaw.

m 2. m 1. y. x. O. l = 1 m. x. y. h = 2 m. O. Chapter 5 Kinetics of many particles. Example : The center of mass of a seesaw. Find C.G. when: m 1 = m 2 m 1 = 70 kg, m 2 = 80 kg m 1 = 80 kg, m 2 = 70 kg. An object can be regarded as a collection of point masses.

salene
Télécharger la présentation

Example : The center of mass of a seesaw.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. m2 m1 y x O l = 1 m x y h = 2 m O Chapter 5 Kinetics of many particles Example : The center of mass of a seesaw. • Find C.G. when: • m1 = m2 • m1 = 70 kg, m2 = 80 kg • m1 = 80 kg, m2 = 70 kg

  2. An object can be regarded as a collection of point masses. The center of gravity (C.G.) or center of mass (C.M.) is:

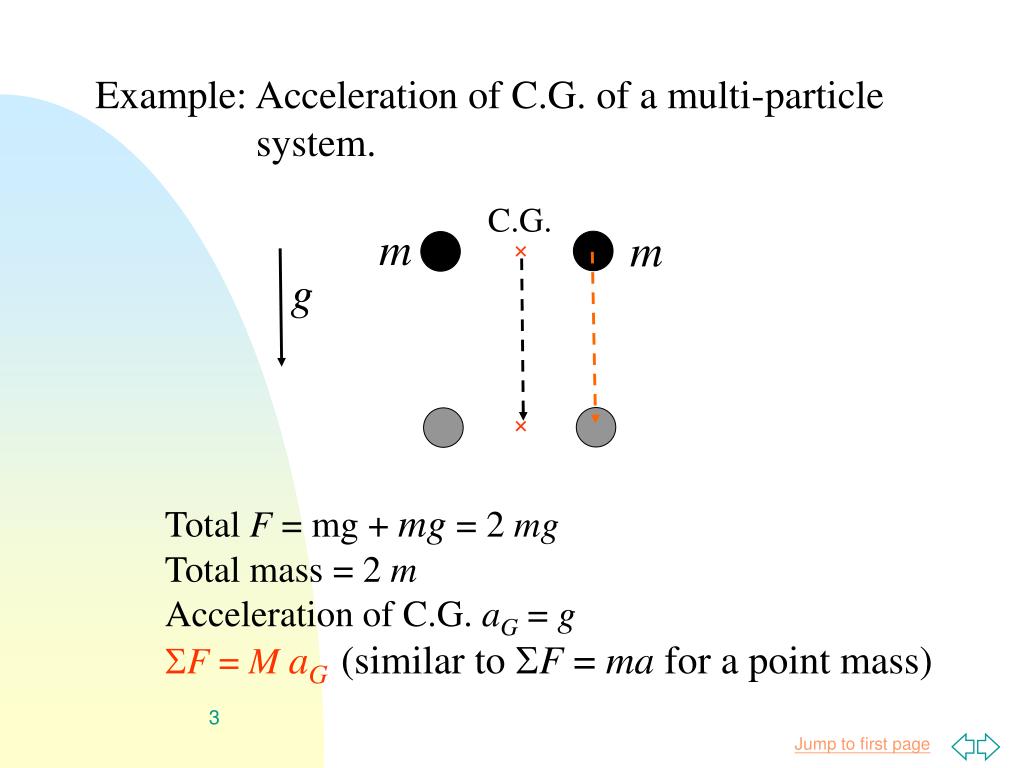

  3. C.G. m m  g  Example: Acceleration of C.G. of a multi-particle system. Total F = mg + mg = 2 mg Total mass = 2 m Acceleration of C.G. aG = g F = M aG(similar to F = ma for a point mass)

  4. 1 2 3 Prove that for a many particle system

  5. Total linear momentum of a many-particle system

  6. Impulse  change in linear momentum Fext max. tolerable force t Another form of Newton’s 2nd law: Example: Jumping down from an elevated position

  7. Shore B before 10m B after x 2 - x Example: A 20-kg girl on a 80-kg boat is 10 m from the shore. The C.G. of the boat and the girl approaches by 2 m. How far is the girl from the shore? Fext = 0. Take moment about CG: The distance from the shore is: = 10 - (2 – 0.4) = 8.4 m

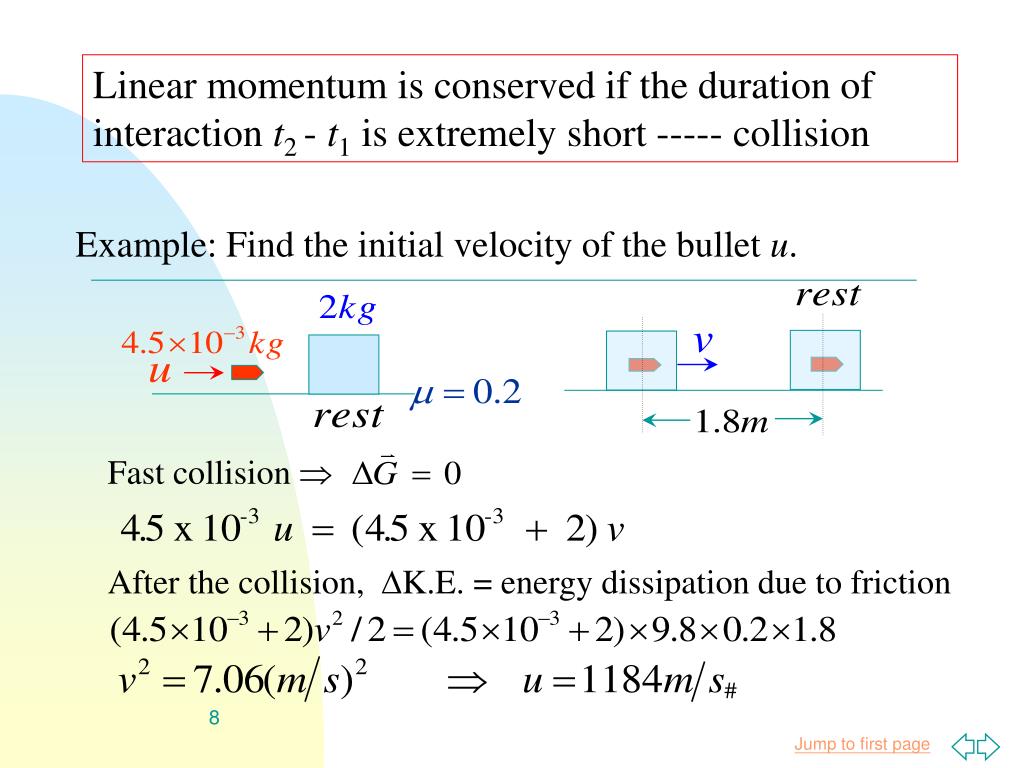

  8. Linear momentum is conserved if the duration of interaction t2 - t1 is extremely short ----- collision Example: Find the initial velocity of the bullet u. Fast collision  After the collision, K.E. = energy dissipation due to friction

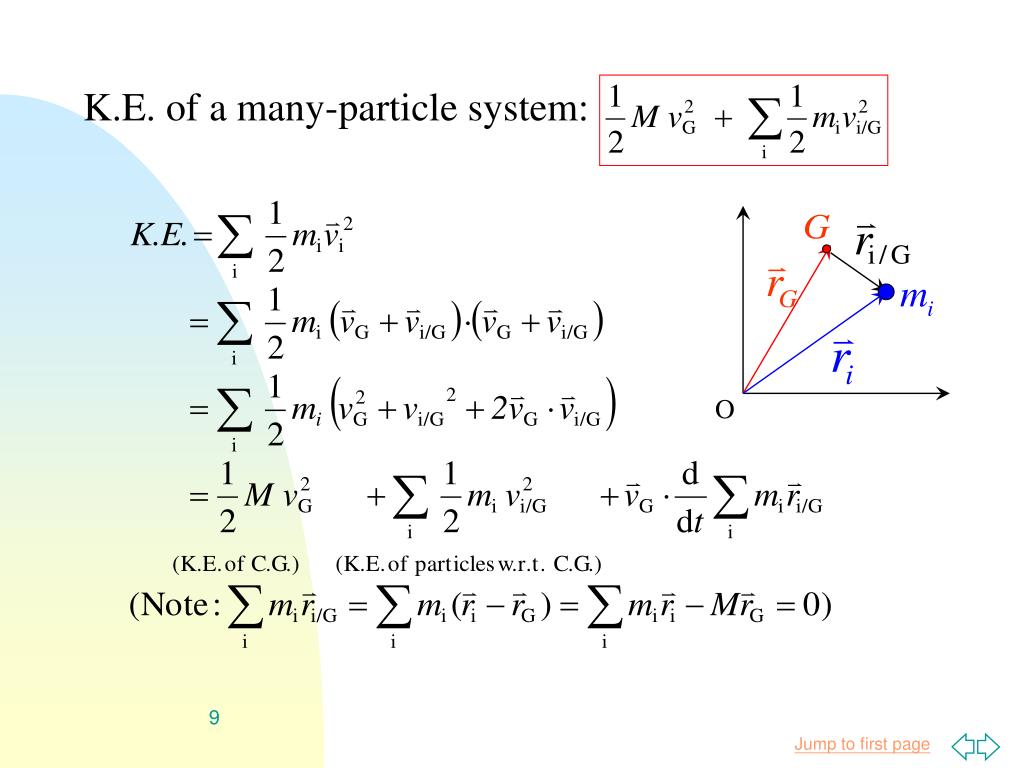

  9. K.E. of a many-particle system:

  10. F2-1 F1-2 Angular momentum of a many-particle system about P: O Moment about P

  11. If • The reference frame (P) is an inertial frame (aP = 0), or • P is the C.G., or • //

  12. Conservation of angular momentum occurs if: • Time of interaction is extremely short.
