  1. Things Every ASP.NET Developer Should Know Robert Boedigheimer

  2. About Me • MCPD ASP.NET Developer 3.5 • MCPD Web, Charter Member • MCSD .NET, Early Achiever • Web developer since 1995 • Columnist for aspalliance.com • Wrox Author • ASP.NET MVP • http://aspadvice.com/blogs/robertb/ • robertb@aspalliance.com

  3. Agenda • Tools/IIS • Fiddler • Network Monitor • IIS Logs, LogParser • IE Developer Toolbar • HTTP Compression • Content Expirations • Ajax Minifier • Etags • CSS Sprites • ASP.NET • Tracing • Configuration • Application_Error( ) • “Safe” Functions • Page Control Tree • Validation Controls • Caching • Session and Timeouts • Adapters • Techniques

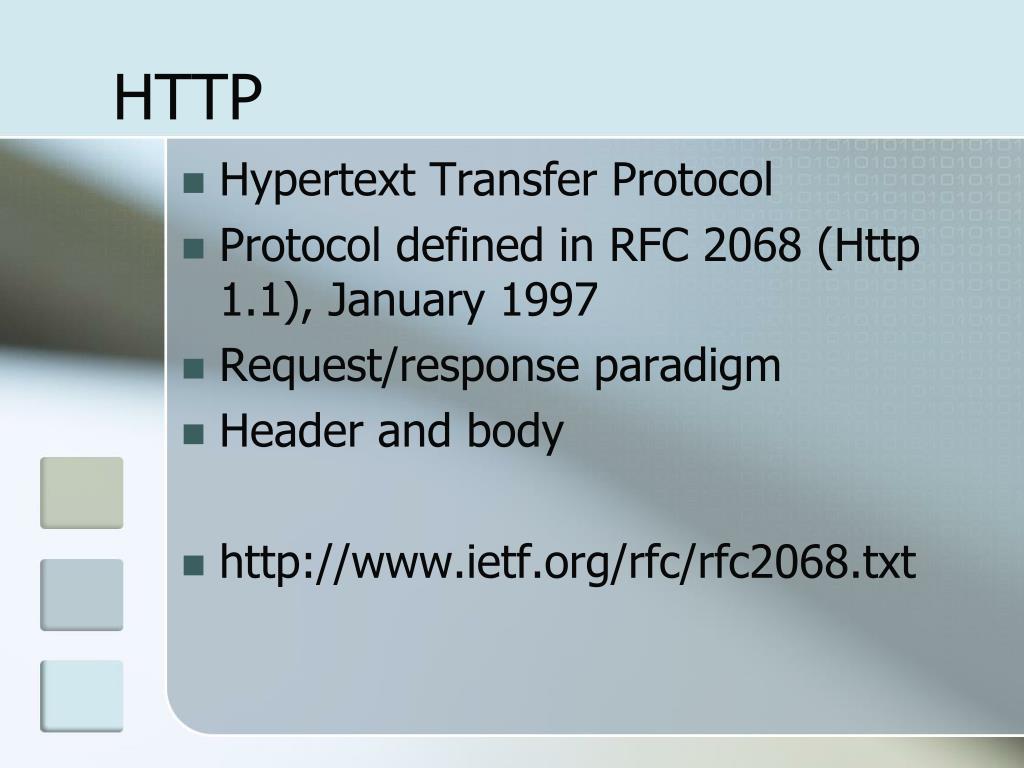

  4. HTTP • Hypertext Transfer Protocol • Protocol defined in RFC 2068 (Http 1.1), January 1997 • Request/response paradigm • Header and body • http://www.ietf.org/rfc/rfc2068.txt

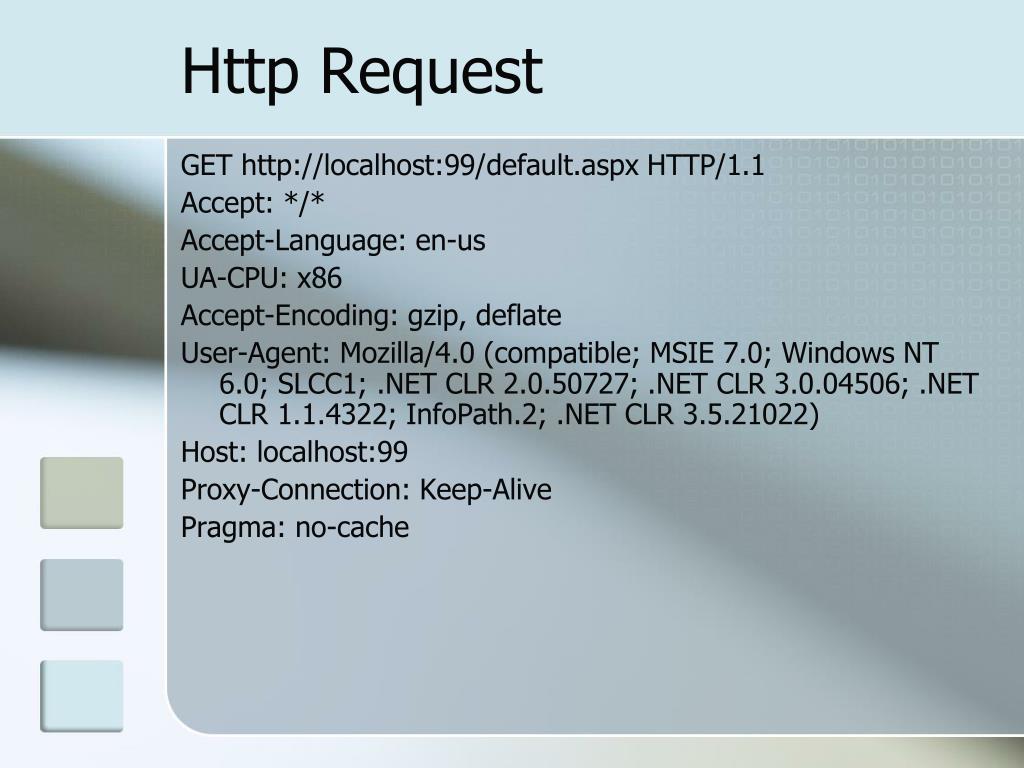

  5. Http Request GET http://localhost:99/default.aspx HTTP/1.1 Accept: */* Accept-Language: en-us UA-CPU: x86 Accept-Encoding: gzip, deflate User-Agent: Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.0; SLCC1; .NET CLR 2.0.50727; .NET CLR 3.0.04506; .NET CLR 1.1.4322; InfoPath.2; .NET CLR 3.5.21022) Host: localhost:99 Proxy-Connection: Keep-Alive Pragma: no-cache

  6. Http Response HTTP/1.1 200 OK Cache-Control: private Content-Type: text/html; charset=utf-8 Server: Microsoft-IIS/7.0 X-AspNet-Version: 2.0.50727 X-Powered-By: ASP.NET Date: Sun, 07 Mar 2010 19:22:19 GMT Content-Length: 686 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" > <head><title> Home Page </title><link type="text/css" href="Styles.css" /> <style type="text/css"> body {background-color:Green;} </style> </head> <body class="basic"> <form name="form1" method="post" action="default.aspx" id="form1"> <div> <input type="hidden" name="__VIEWSTATE" id="__VIEWSTATE" value="/wEPDwULLTE0MDkxNzYwNDNkZKn1tb3qjzVWNrSAgGULkE4nvHPg" /> </div> <div style="background-color:Blue"> <h3>Home</h3> </div> </form> </body> </html>

  7. Fiddler • Tracing tool specifically for HTTP • Shows complete request and response (not packets) • Can save archive of session • Can be used on own machine (ipv4.fiddler, ipv6.fiddler) • Can create own GET requests • Can decrypt SSL traffic! • http://tinyurl.com/3drk5t

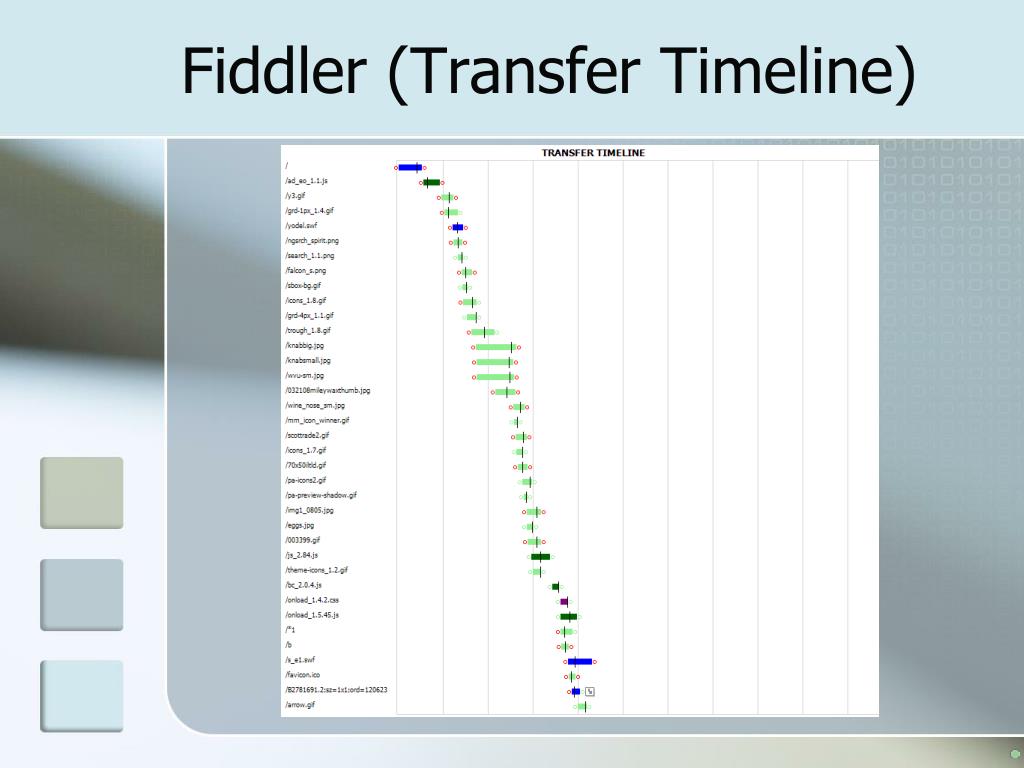

  8. Fiddler (Transfer Timeline)

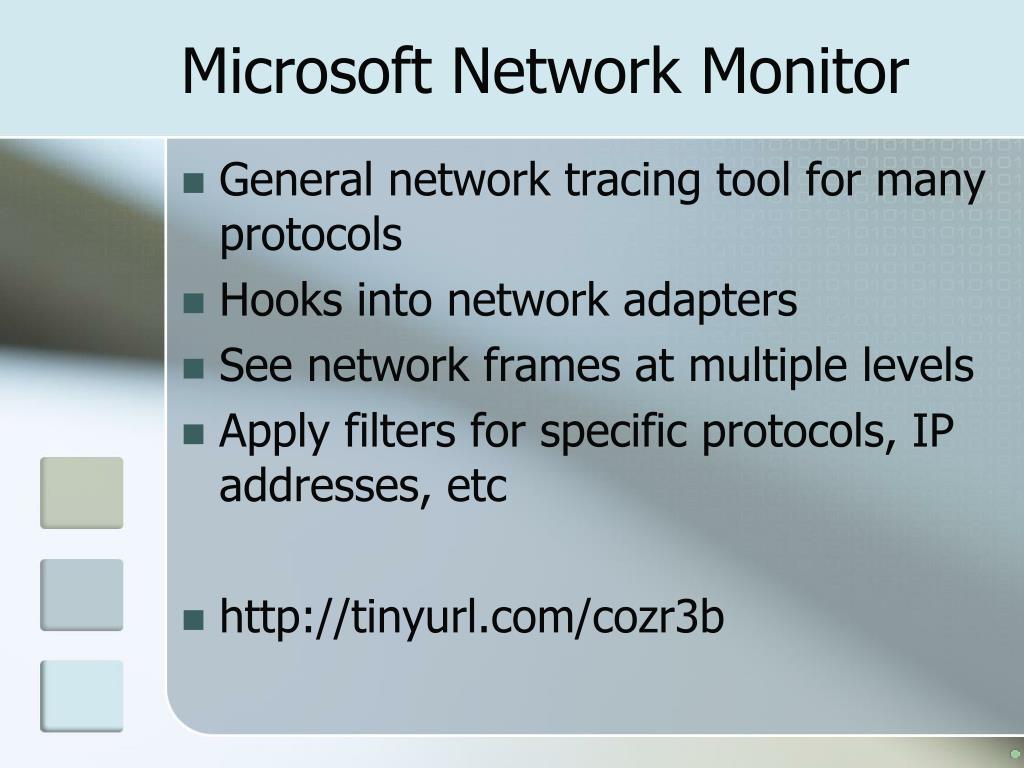

  9. Microsoft Network Monitor • General network tracing tool for many protocols • Hooks into network adapters • See network frames at multiple levels • Apply filters for specific protocols, IP addresses, etc • http://tinyurl.com/cozr3b

  10. IIS Log Files • Time Taken (execute, queue, and time to client – IIS 7/6) • Sub-status codes are very useful for indicating the exact problems • Log entries are made AFTER the page execution is complete • Log file entries are always in GMT • Setup cookie, referrer, bytes sent

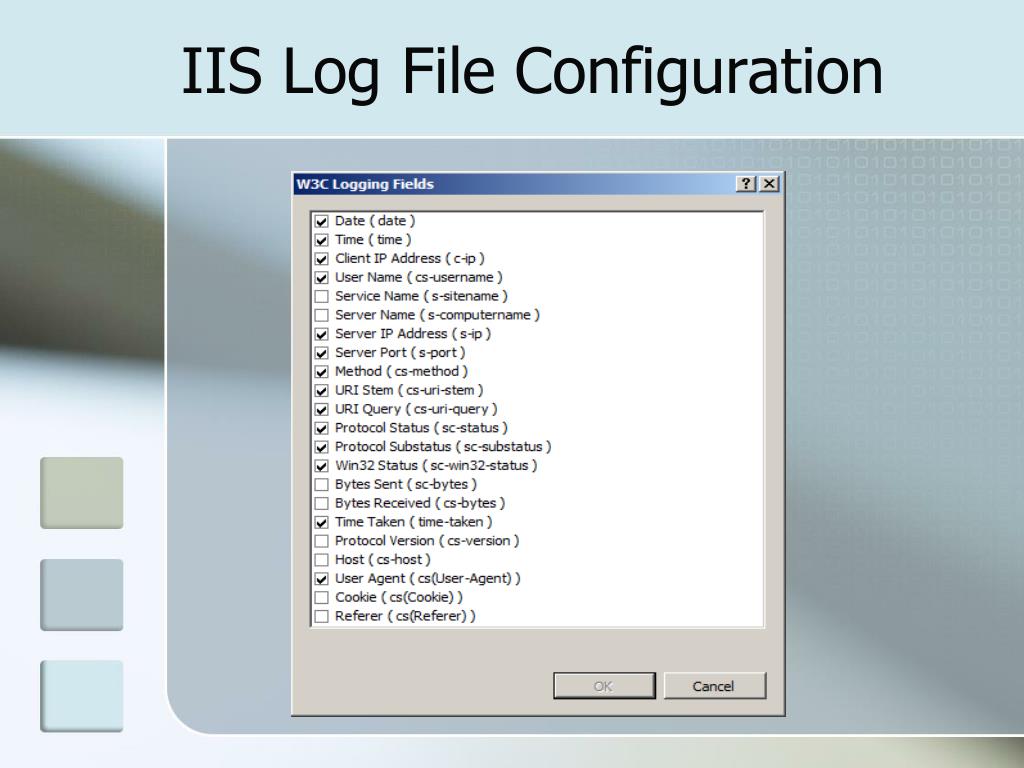

  11. IIS Log File Configuration

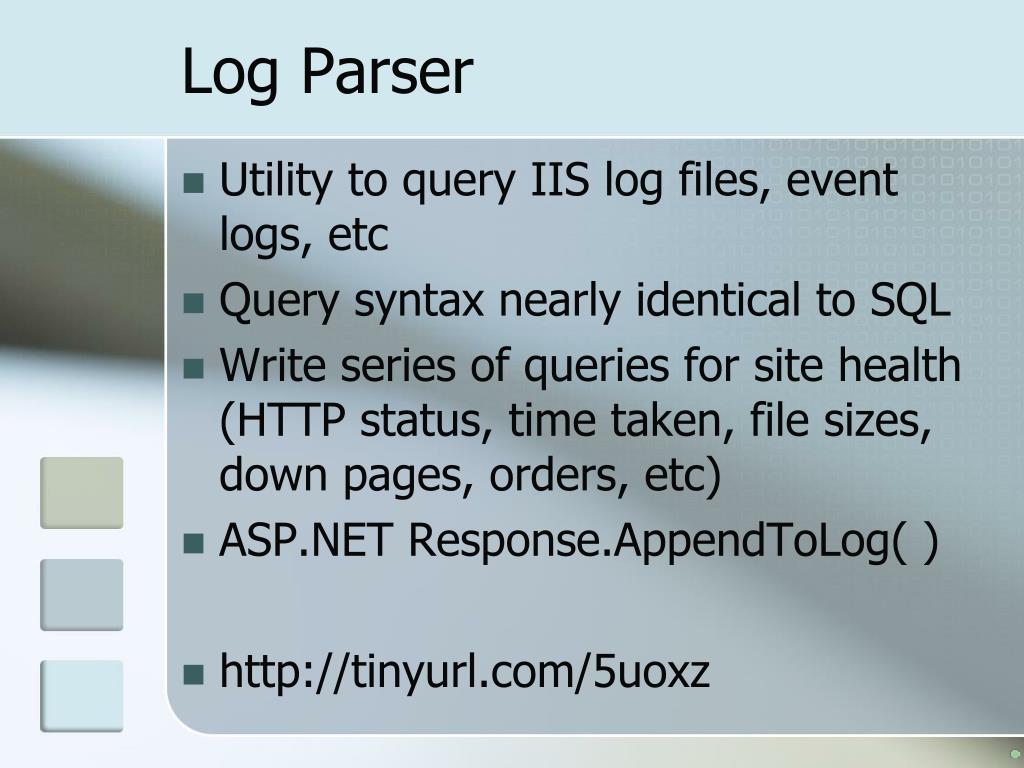

  12. Log Parser • Utility to query IIS log files, event logs, etc • Query syntax nearly identical to SQL • Write series of queries for site health (HTTP status, time taken, file sizes, down pages, orders, etc) • ASP.NET Response.AppendToLog( ) • http://tinyurl.com/5uoxz

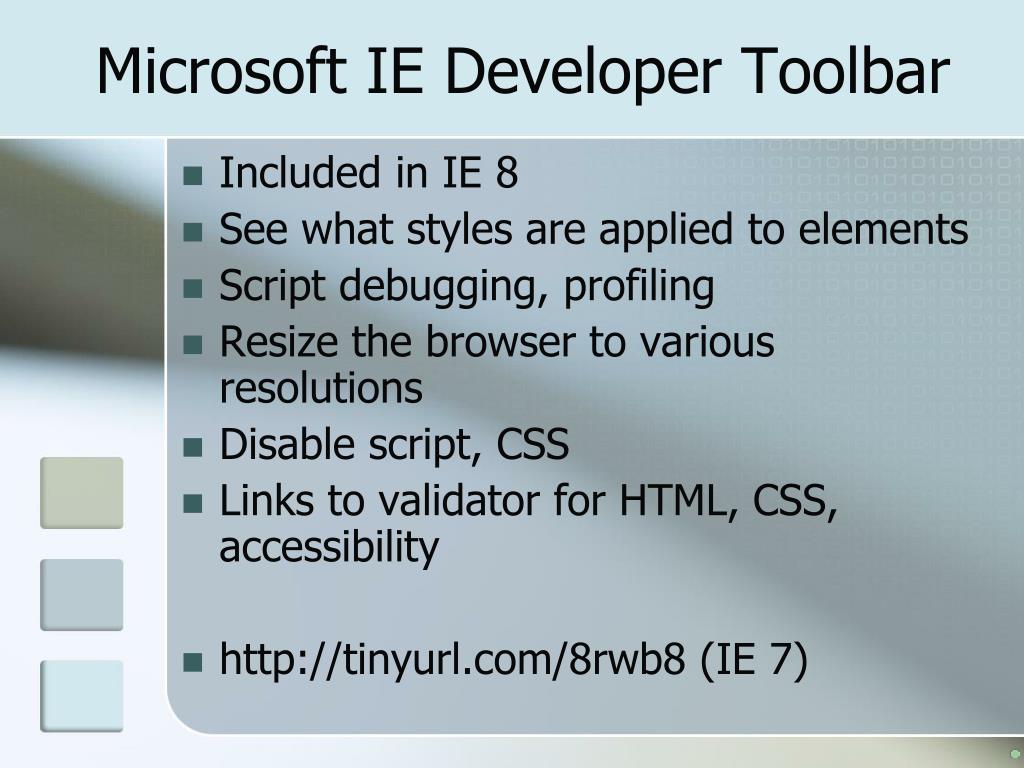

  13. Microsoft IE Developer Toolbar • Included in IE 8 • See what styles are applied to elements • Script debugging, profiling • Resize the browser to various resolutions • Disable script, CSS • Links to validator for HTML, CSS, accessibility • http://tinyurl.com/8rwb8 (IE 7)

  14. HTTP Compression • Server evaluates the “Accept-Encoding” header for request, compresses resulting response • largeGridView.aspx - 41 frames down to 7 • Implemented in February 2003 when about 3% of Fortune 1000 web sites utilized • Used 53% less bandwidth, ~25% faster Keynote measurements • Now use IIS Compression (free)

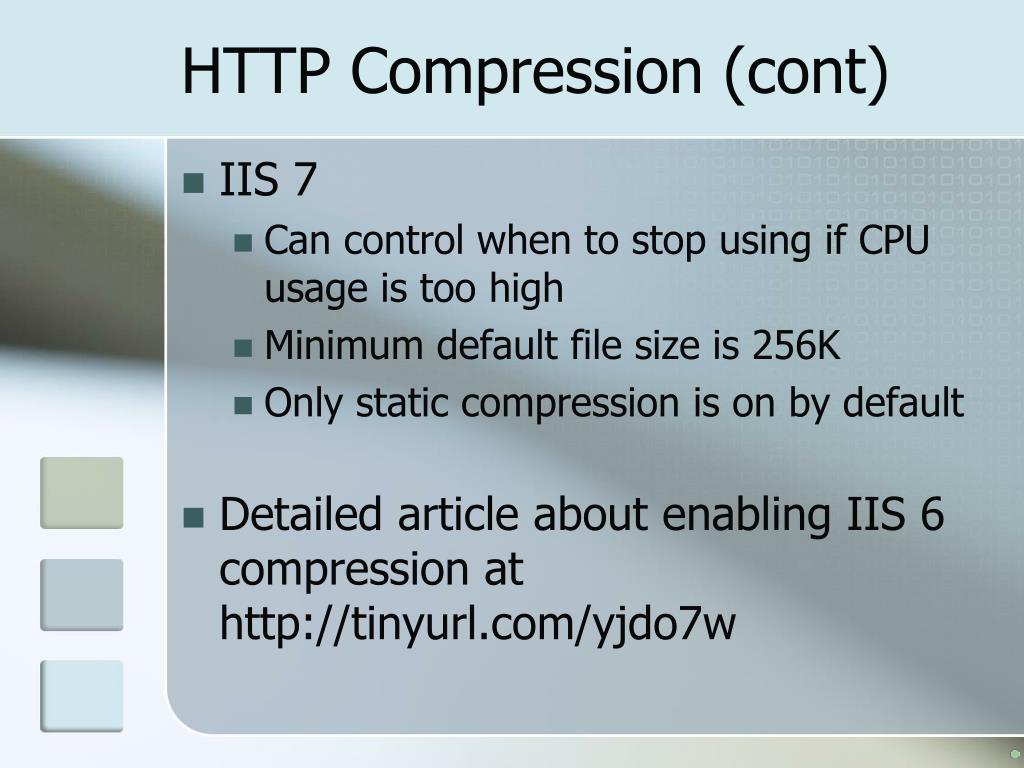

  15. HTTP Compression (cont) • IIS 7 • Can control when to stop using if CPU usage is too high • Minimum default file size is 256K • Only static compression is on by default • Detailed article about enabling IIS 6 compression at http://tinyurl.com/yjdo7w

  16. Content Expirations • Client asks “if-modified-since” • Small content files it is just as expensive to see if modified as to receive content • Setup expiration times for content folders • Avoid requests for files that seldom change (.js, .css, images, etc) • Rename the file if need to override browser caching

  17. Content Expirations (cont)

  18. Ajax Minifier • Microsoft Ajax Minifier (Codeplex.com) • Minimize CSS and JavaScript files • Remove whitespace, comments, excessive semicolons, etc • Command line, .dll, and build tasks • jQuery-1.4.2.js minimized 55.5% • Test after minimize! • MSBuild Extension Pack (version #)

  19. ETags • Used for cache validation • IIS sends the ETag header in response for static files • hash:changeNumber • IIS 6 • changeNumber – specific to server • Set to 0 with Metabase Explorer, http://tinyurl.com/2agsbtc • IIS 7 • changeNumber - 0 by default • Completely remove header with HttpModule

  20. CSS Sprites • Combine small images into a single image • Use CSS to “index” into the larger image • Often 70-95% of time taken for a user is time requesting components (images, .css, .js) • Reduce the number of requests • http://spritegen.website-performance.org/

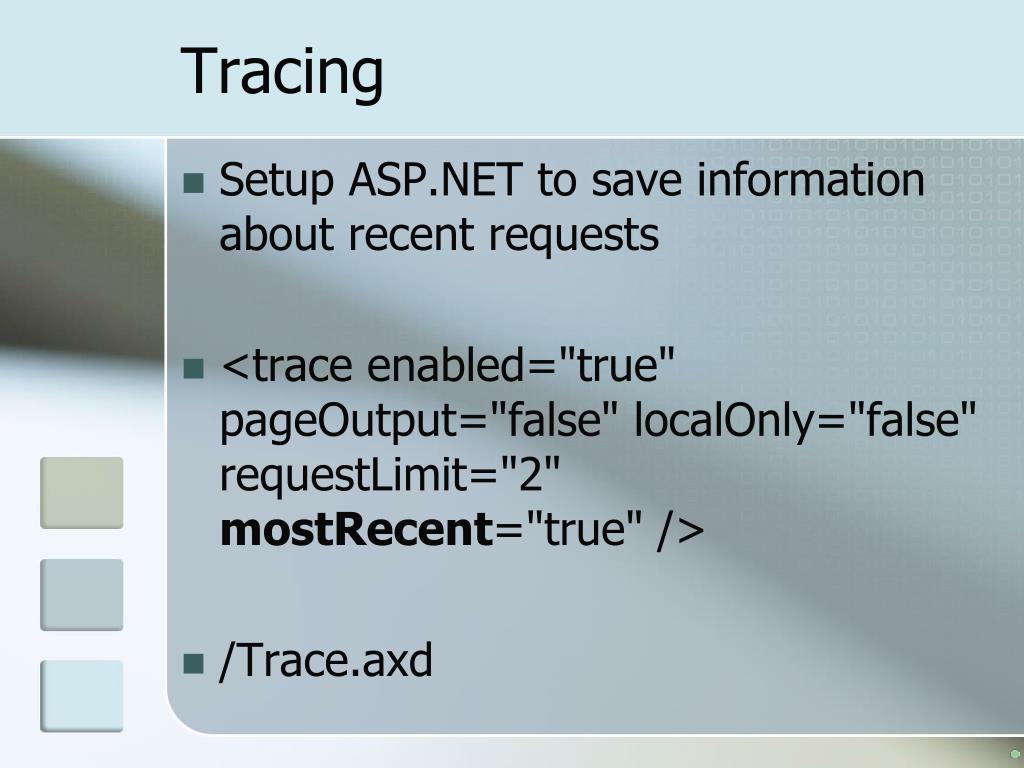

  21. Tracing • Setup ASP.NET to save information about recent requests • <trace enabled="true" pageOutput="false" localOnly="false" requestLimit="2" mostRecent="true" /> • /Trace.axd

  22. Configuration • <deployment retail=”true” /> (machine.config only) • <customErrors mode=”On” /> • <compilation debug=”false” /> • <tracing enabled=“false” /> • External config files (no restart)

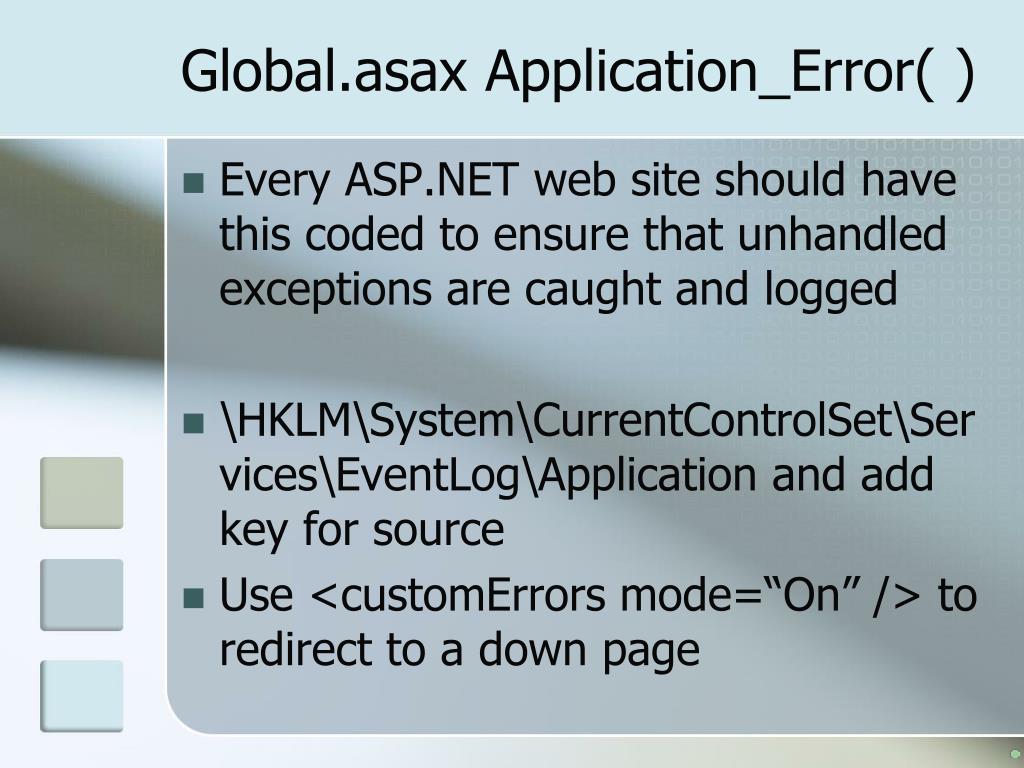

  23. Global.asaxApplication_Error( ) • Every ASP.NET web site should have this coded to ensure that unhandled exceptions are caught and logged • \HKLM\System\CurrentControlSet\Services\EventLog\Application and add key for source • Use <customErrors mode=“On” /> to redirect to a down page

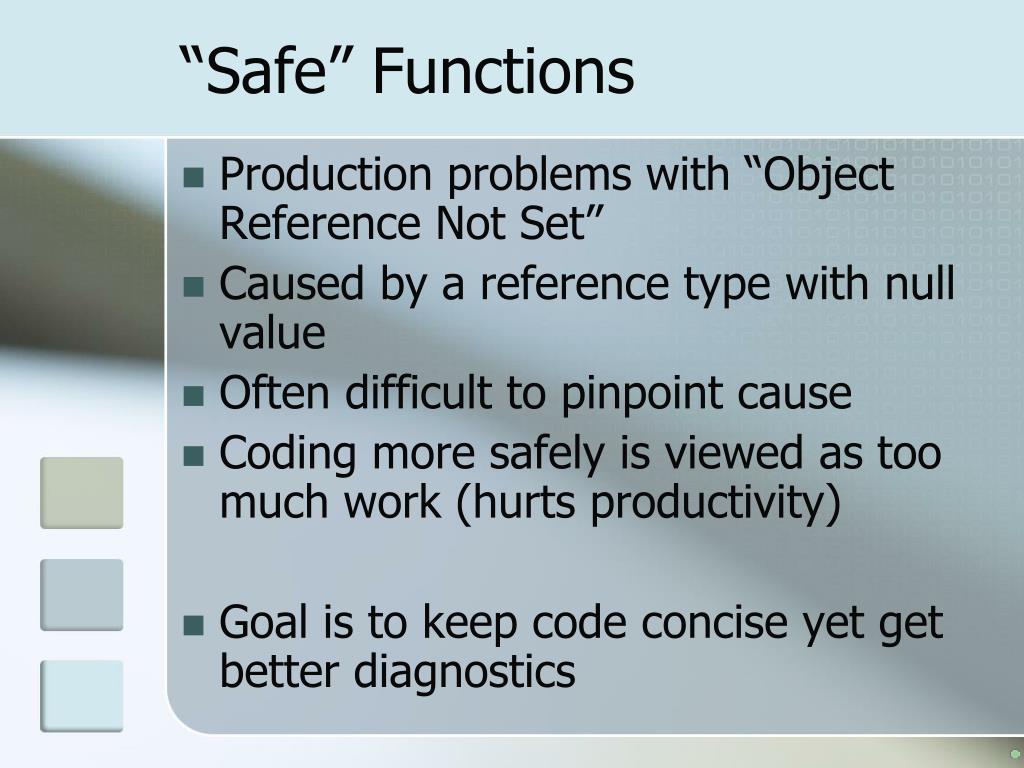

  24. “Safe” Functions • Production problems with “Object Reference Not Set” • Caused by a reference type with null value • Often difficult to pinpoint cause • Coding more safely is viewed as too much work (hurts productivity) • Goal is to keep code concise yet get better diagnostics

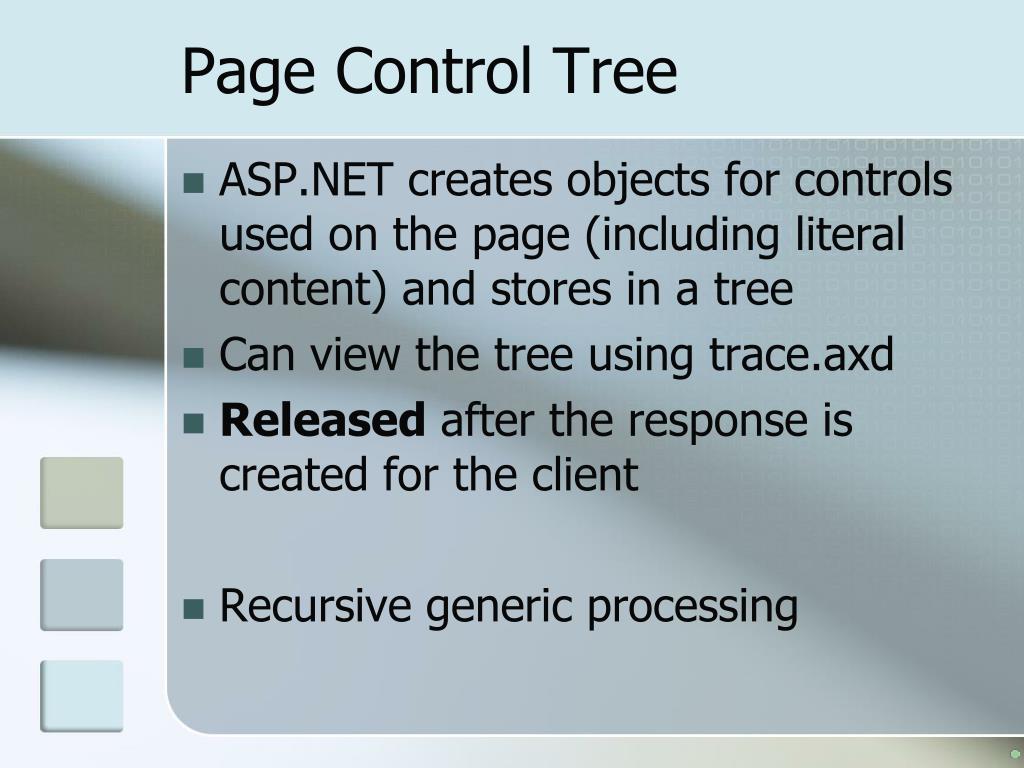

  25. Page Control Tree • ASP.NET creates objects for controls used on the page (including literal content) and stores in a tree • Can view the tree using trace.axd • Released after the response is created for the client • Recursive generic processing

  26. Validation Controls • OWASP Top 10 • XSS (Cross Site Scripting) • SQL Injection • All input from web controls needs to be verified • Leverage client validation for user experience but must validate on the server • Common validators • RequiredFieldValidator • RangeValidator • RegularExpressionValidator • CompareValidator • CustomValidator

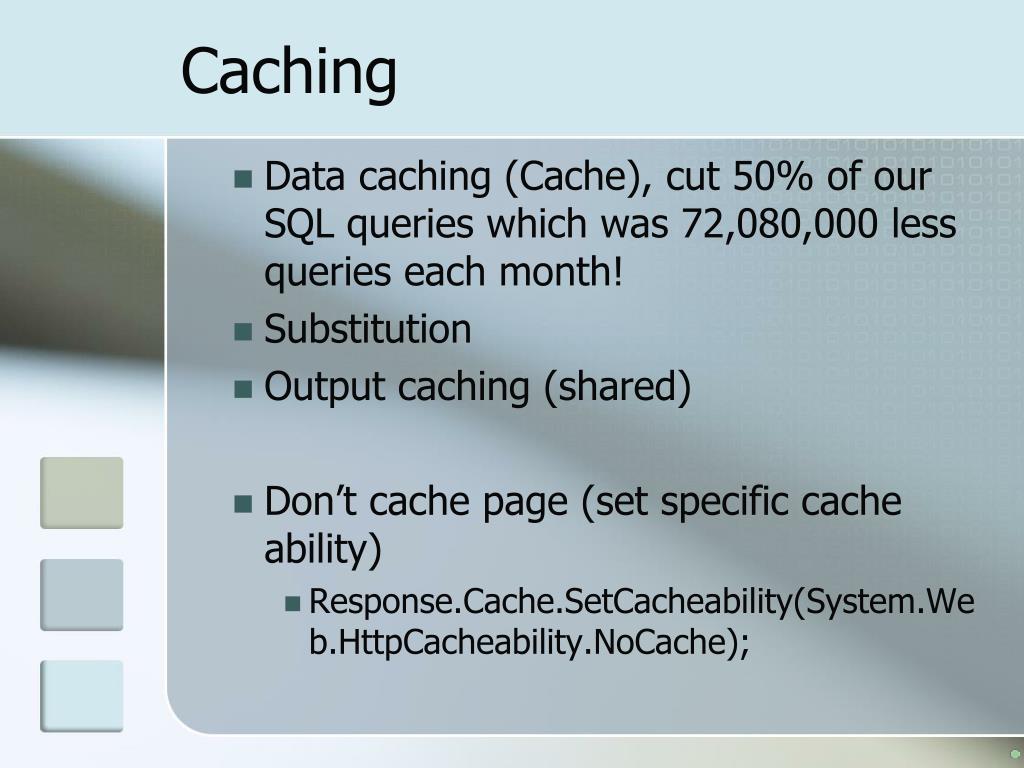

  27. Caching • Data caching (Cache), cut 50% of our SQL queries which was 72,080,000 less queries each month! • Substitution • Output caching (shared) • Don’t cache page (set specific cache ability) • Response.Cache.SetCacheability(System.Web.HttpCacheability.NoCache);

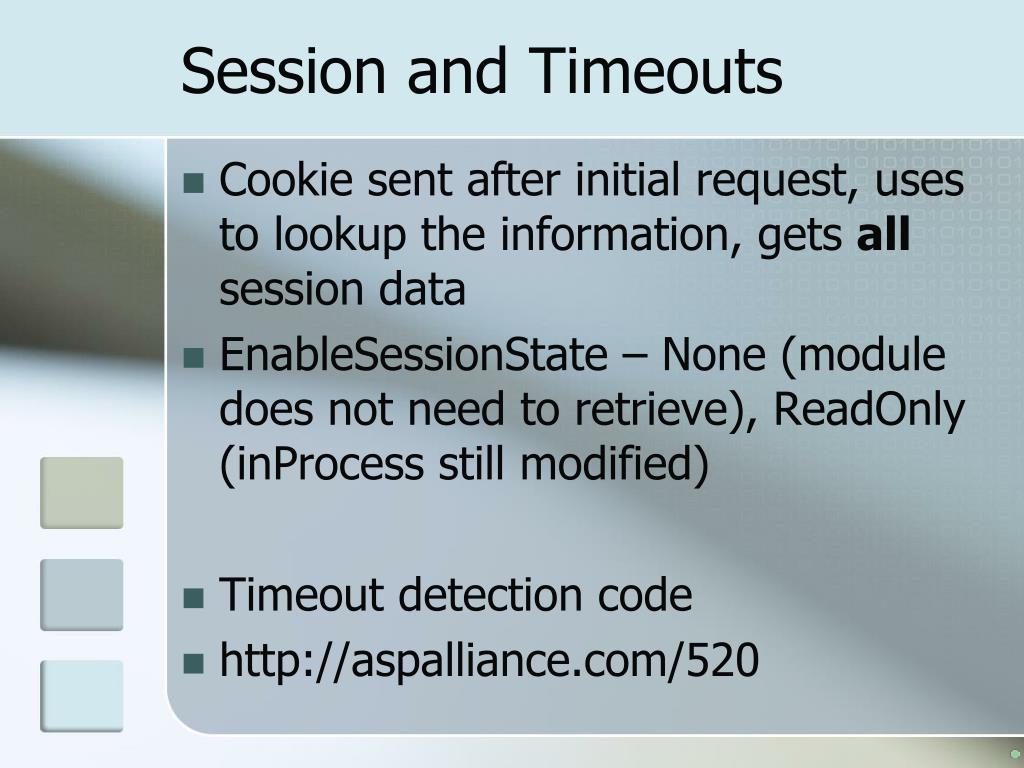

  28. Session and Timeouts • Cookie sent after initial request, uses to lookup the information, gets all session data • EnableSessionState – None (module does not need to retrieve), ReadOnly (inProcess still modified) • Timeout detection code • http://aspalliance.com/520

  29. Adapters • Provide an alternative rendering or behavior for controls or pages • Originally designed to facilitate development of mobile web sites • Wanted one set of controls that would render appropriately based on the user agent device • Dropped after ASP.NET 2.0 Beta 1 • Browser capabilities moved out to .browser files • Visual Studio designer does not display alternate rendering • Modify without altering existing code • http://www.asp.net/CSSAdapters/

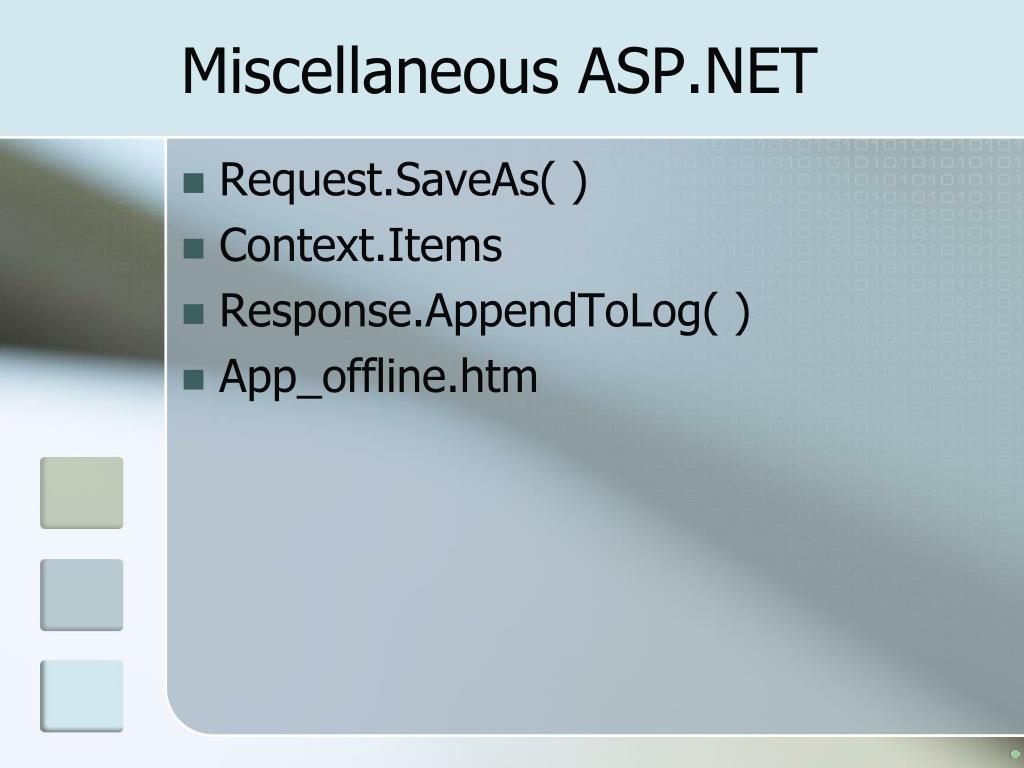

  30. Miscellaneous ASP.NET • Request.SaveAs( ) • Context.Items • Response.AppendToLog( ) • App_offline.htm

  31. Techniques • Prototype designs • Feedback before deep into design/implementation • Determine if riskier areas work • Take it out of the page and try in isolated area (MUCH easier to debug!) • “Stub” web service methods for data

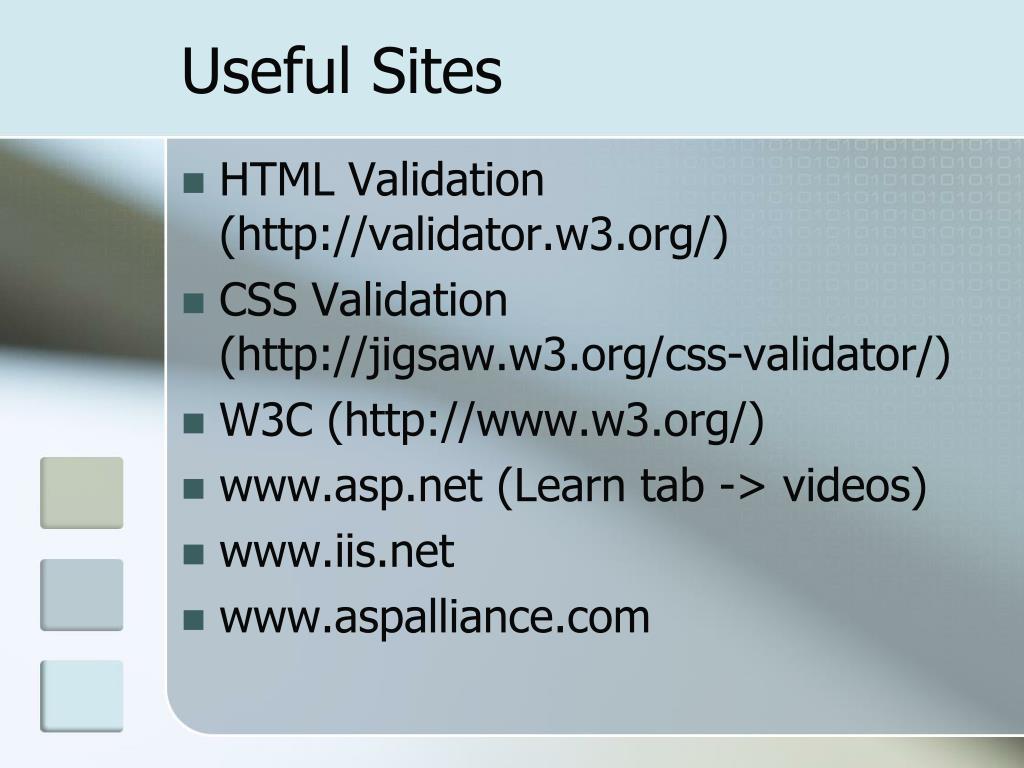

  32. Useful Sites • HTML Validation (http://validator.w3.org/) • CSS Validation (http://jigsaw.w3.org/css-validator/) • W3C (http://www.w3.org/) • www.asp.net (Learn tab -> videos) • www.iis.net • www.aspalliance.com

  33. Summary • Understand how HTTP works • Learn about IIS • Use compression and expirations • Leverage tools to debug and understand how things work (solve many of your own problems) • Utilize more ASP.NET techniques

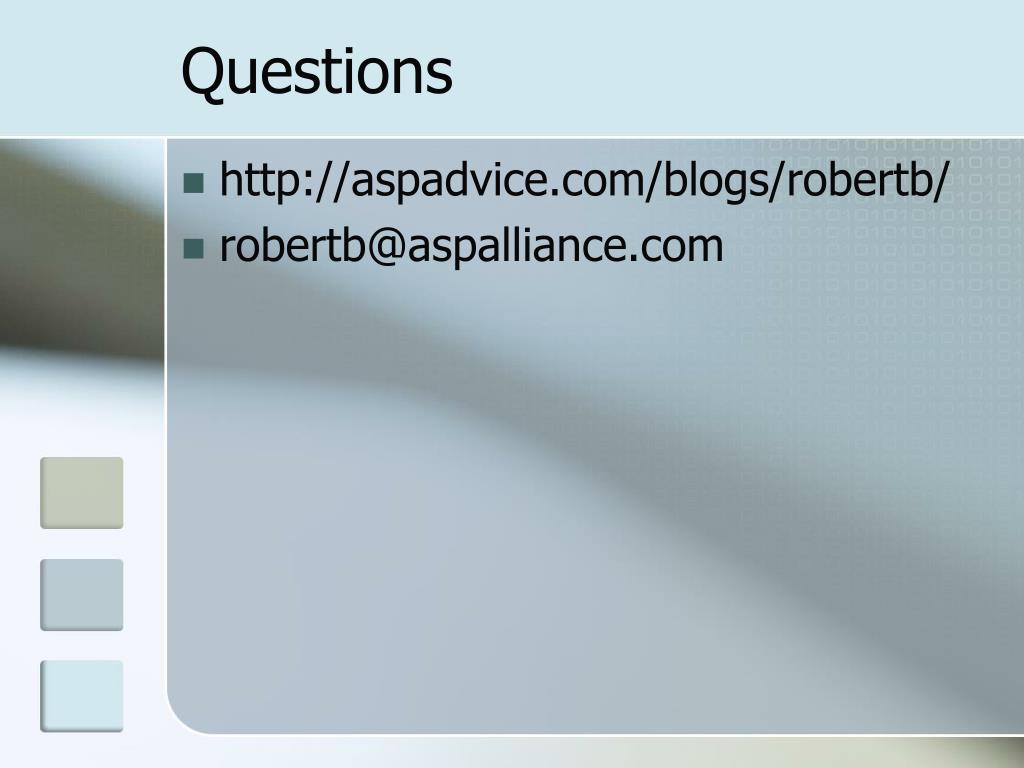

  34. Questions • http://aspadvice.com/blogs/robertb/ • robertb@aspalliance.com
