STRAP

1. Welcome to STRAP The Presentation of

2. Expert Model wizards To quickly define, Geometry, Loading and Load combinations Many Expert Model Wizards

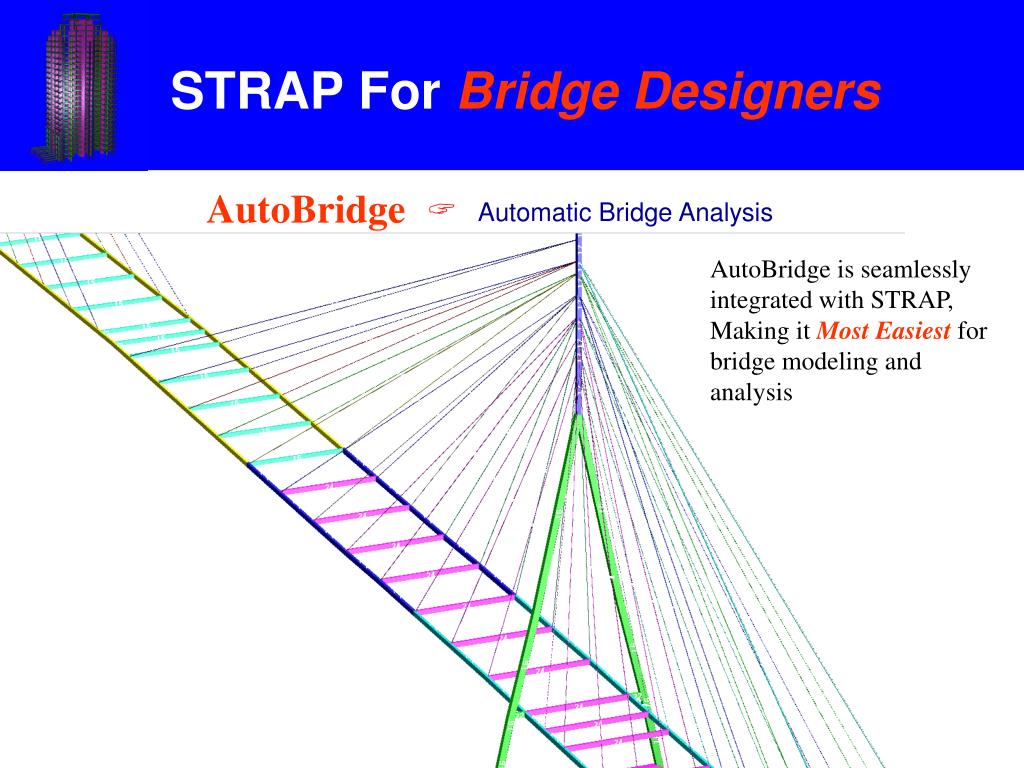

3. AutoBridge • Automatic Bridge Analysis STRAP For Bridge Designers AutoBridge is seamlessly integrated with STRAP, Making it Most Easiest for bridge modeling and analysis Rel 12.5 Highlights

4. STRAP Rel 12.5, provide total solution for bridge designers STRAP For Bridge Designers -1 • Parametric Section Property Developer for bridge Girders Thanks to enhanced version of CROSEC module, user can define cross section properties effortlessly. Apart from that, section can be imported to CROSEC through DXF option. CROSEC automatically calculate all the properties of the section and the same can be assigned to the members in STRAP. Rel 12.5 Highlights

5. Type of Bridges that can be modeled STRAP For Bridge Designers -2 • Post tension box girder bridges • Grillages • Beam + Slab bridges • Continuous bridges Straight/ curved • Bridge Loading • IRC loadings are in built. Apart from it, user can define his/her own vehicle loads. • User can define any number of lanes and choose the type of vehicle, program automatically move the loads for maximum and minimum effects • Program can also automatically shift the lanes • Lanes can be straight or curved.

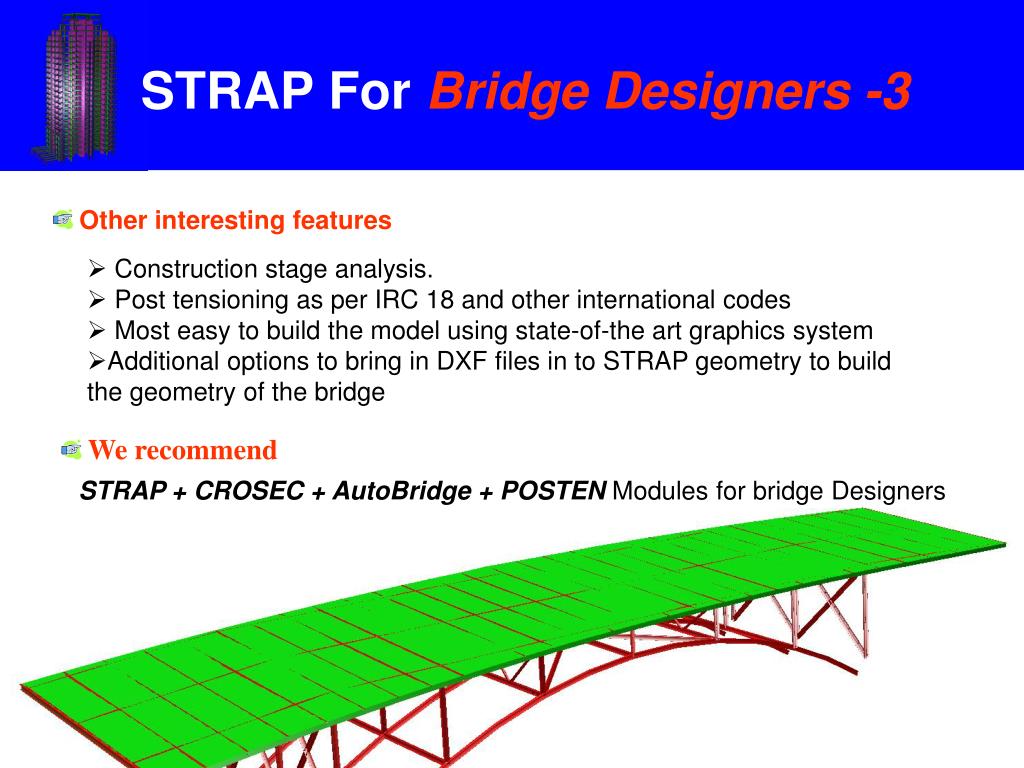

6. Otherinteresting features STRAP For Bridge Designers -3 • Construction stage analysis. • Post tensioning as per IRC 18 and other international codes • Most easy to build the model using state-of-the art graphics system • Additional options to bring in DXF files in to STRAP geometry to build the geometry of the bridge • We recommend STRAP + CROSEC + AutoBridge + POSTEN Modules for bridge Designers

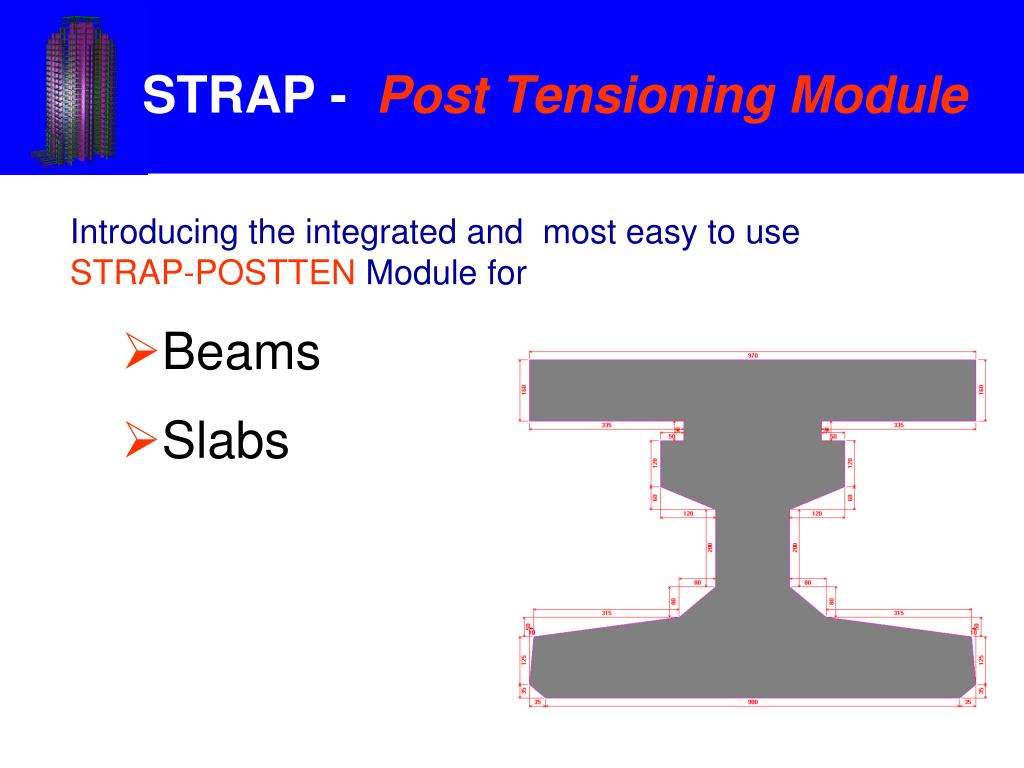

7. BEAMS Definition Introducing the integrated and most easy to use STRAP-POSTTEN Module for • Beams • Slabs STRAP - Post Tensioning Module

8. STRAP - Post Tensioning Module-1 BEAMS Definition POSTTEN- Cable input Cable input is much easier using Magnel diagrams

9. BEAMS Definition POSTTEN- Losses calculation STRAP - Post Tensioning Module-2 • Creep losses • shrinkage losses • Draw-in losses • Friction losses • Relaxation losses • Elastic shortening losses POSTTEN- Analysis Features • Automatic extraction of forces from load combination list for assigning various stages ( transfer/working ) • Consideration of different construction stages • Possibility to define various time steps

10. BEAMS Definition POSTTEN- Results STRAP - Post Tensioning Module-3 • Shear calculation • Ultimate moment calculation • Maximum/ Minimum deflection calculation • Stresses at top and bottom • Stresses at user defined location • Summary of losses POSTTEN- Design Codes • BS code 8110 , BS 5400 • Euro code • ACI & AASHTO code • Indian code ( IRC 18 & IS 1343)

11. STRAP ForSteel Designers • If you are serious in designingLeast Cost Steel Structuresthen STRAP is the best choice for you. Steel Design/Optimization

12. Automatic Calculation of unsupported lengths STRAP ForSteel Designers-2 Design of single/ star angles about principal axis.

13. COMPOSITE SECTIONS • Calculation of shear studs • Partial shear connection • Design for wet concrete condition • Calculation of short term and long term deflections • Option to account for negative moment reinforcement Composite column and beam design Built-up section design/ optimization. User can control flange orientation. STRAP ForSteel Designers-3 Tapered/Prismatic section design

14. For Cost Optimization Specify the deflection or drift, program automatically optimizes the whole structure - Engineer can get the least cost structure using STRAP!!! • Different cost factors can be assigned to various section types or member groups. • Selection of sections can be subject to user constraints. STRAP STRAP ForSteel Designers-4 • For Transmission Tower Designers • IS 802 is available for tower design • Automatic generation of wind load on towers/ Open structures.

15. Automatic GA drawing preparation and quantity calculations. STRAP ForSteel Designers-5 Export through DXF to any cad programs. Composite column and beam design

16. Standard Sections + user can create customized sections + import through DXF For Cold Formed Steel Designers Simple to most complicated sections can be analyzed and designed. STRAP ForSteel Designers-6 • Design for AISI, BS and Euro codes • New section types can be added to the library by defining the basic dimensions only. • Calculation of torsional flexural buckling for LTB • Design for reduced section according to the web thickness/depth ratio • Hot rolled sections can be used in the same model. • To define new sections apart from standard, CROSEC module is necessary. We recommend STRAP + Cold formed+ CROSEC for cold formed steel designers

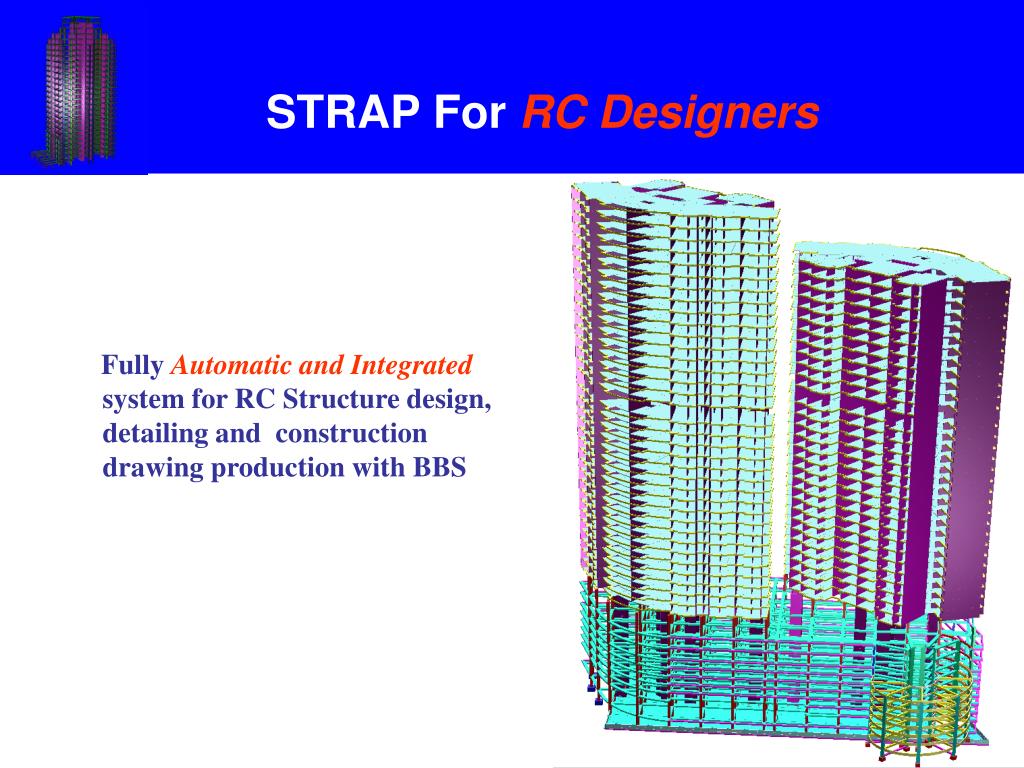

17. BEAMS Definition STRAP For RC Designers Fully Automatic and Integrated system for RC Structure design, detailing and construction drawing production with BBS

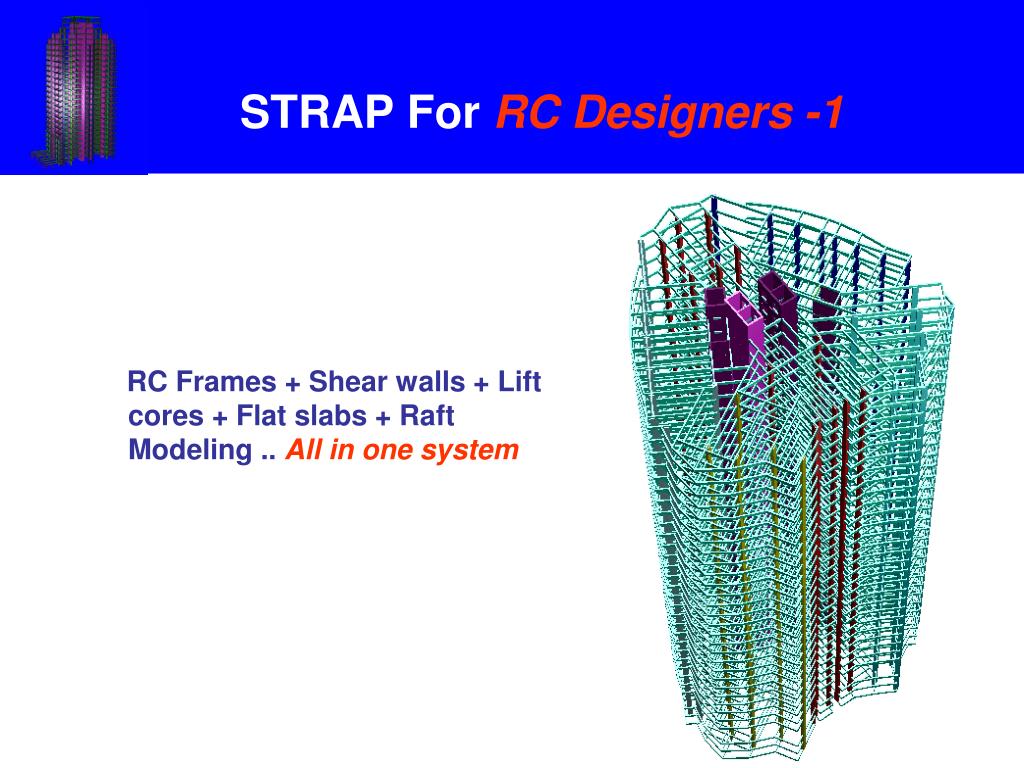

18. BEAMS Definition STRAP For RC Designers -1 RC Frames + Shear walls + Lift cores + Flat slabs + Raft Modeling .. All in one system

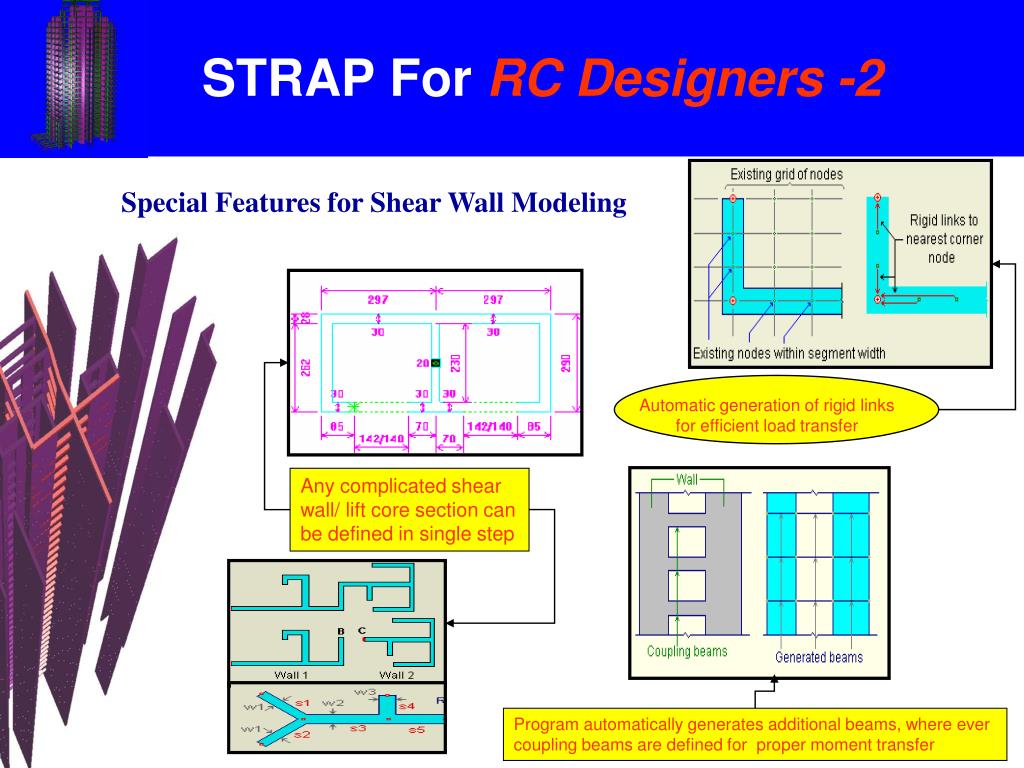

19. Automatic generation of rigid links for efficient load transfer Any complicated shear wall/ lift core section can be defined in single step Program automatically generates additional beams, where ever coupling beams are defined for proper moment transfer Special Features for Shear Wall Modeling STRAP ForRC Designers -2

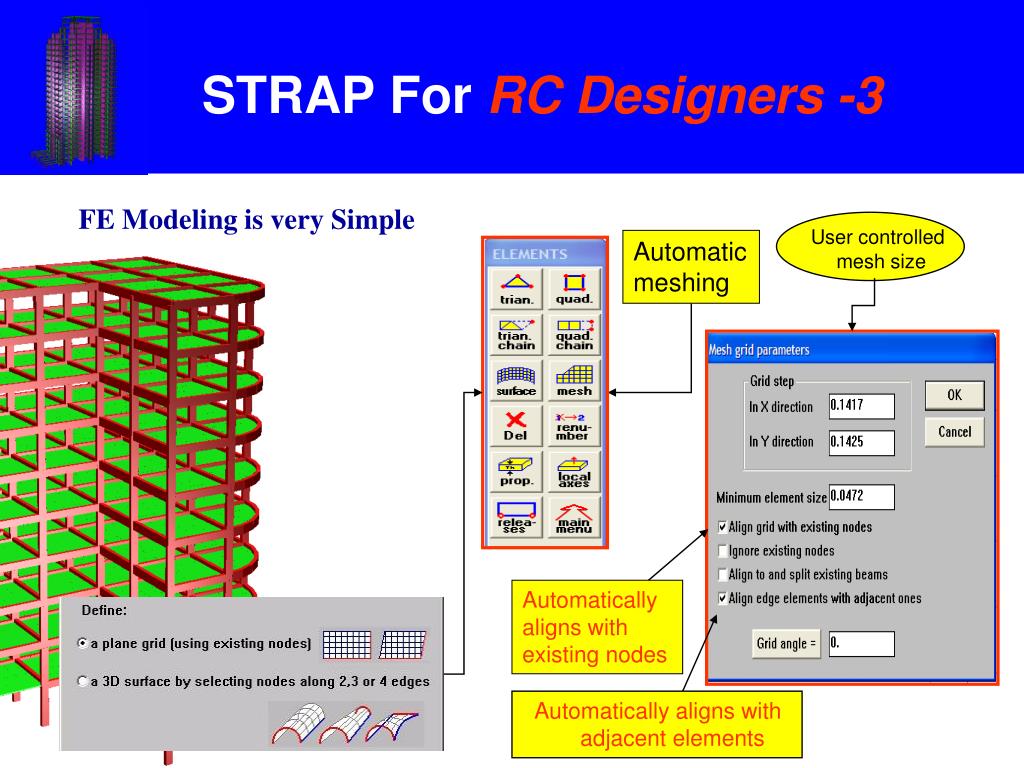

20. User controlled mesh size Automatic meshing Automatically aligns with existing nodes Automatically aligns with adjacent elements FE Modeling is very Simple STRAP ForRC Designers -3

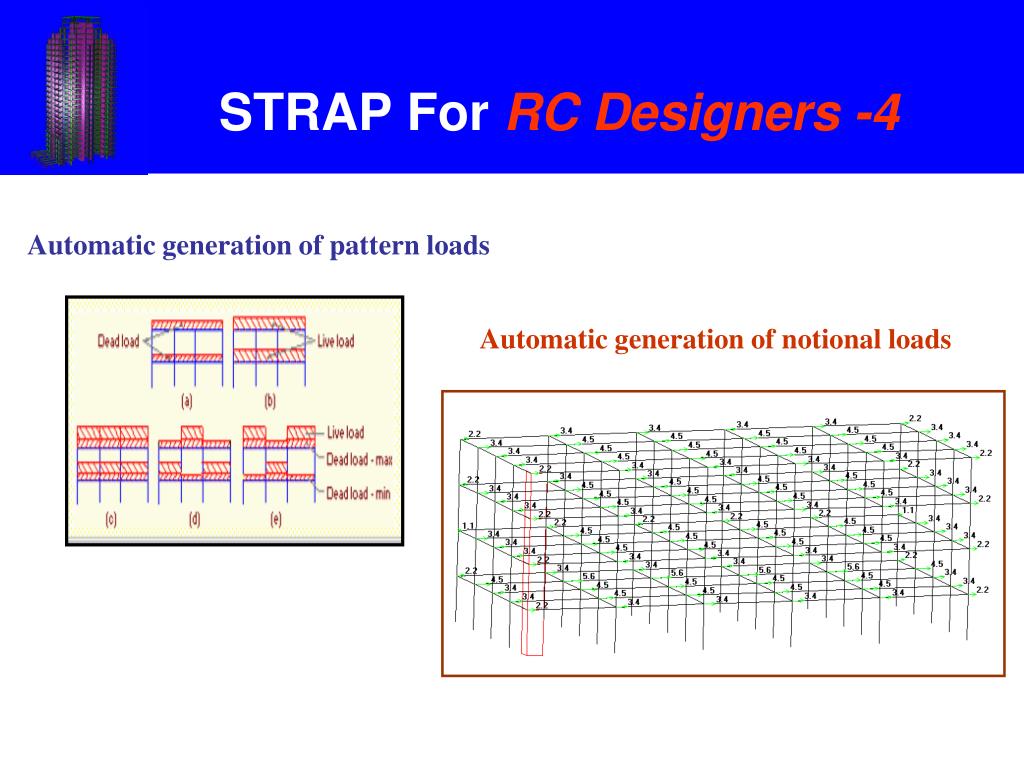

21. Automatic generation of pattern loads STRAP For RC Designers -4 Automatic generation of notional loads

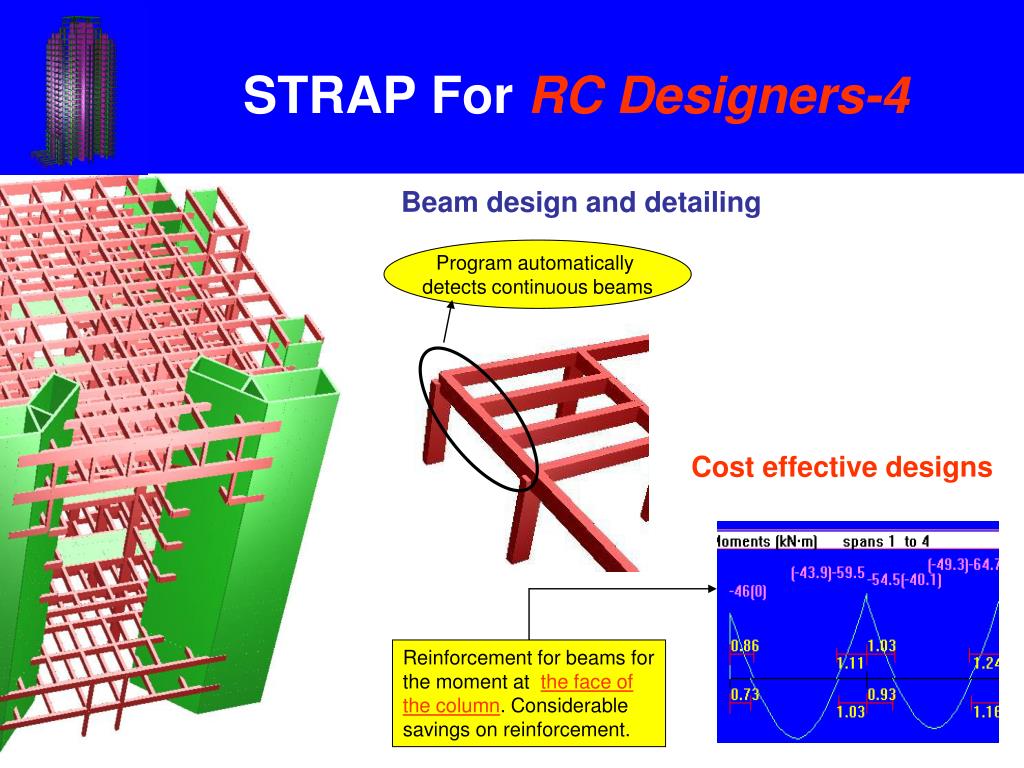

22. Program automatically detects continuous beams Reinforcement for beams for the moment at the face of the column. Considerable savings on reinforcement. Beam design and detailing STRAP ForRC Designers-4 Cost effective designs

23. Automatic Detection of un supported lengths for column design. Automatic Calculation of effective length factors STRAP ForRC Designers-5

24. Design for any shaped cross sections • Automatic Optimization of reinforcement for a given cross section. • The column capacity calculation is exact. Program calculates neutral axis and stress & strain in each bar from neutral axis. • Reinforcement can be grouped for different levels and different columns. • Graphical Display of reinforcement and column capacity factor. User can specify the reinforcement in the column RC Column Design features STRAP ForRC Designers-6

25. Reinforcement can be changed after detailing. The program automatically checks for codal provisions. Automatic drawing of cross sections Graphical display of Envelope of Required Rft • Beam design and detailing Beam Detailing STRAP ForRC Designers-7

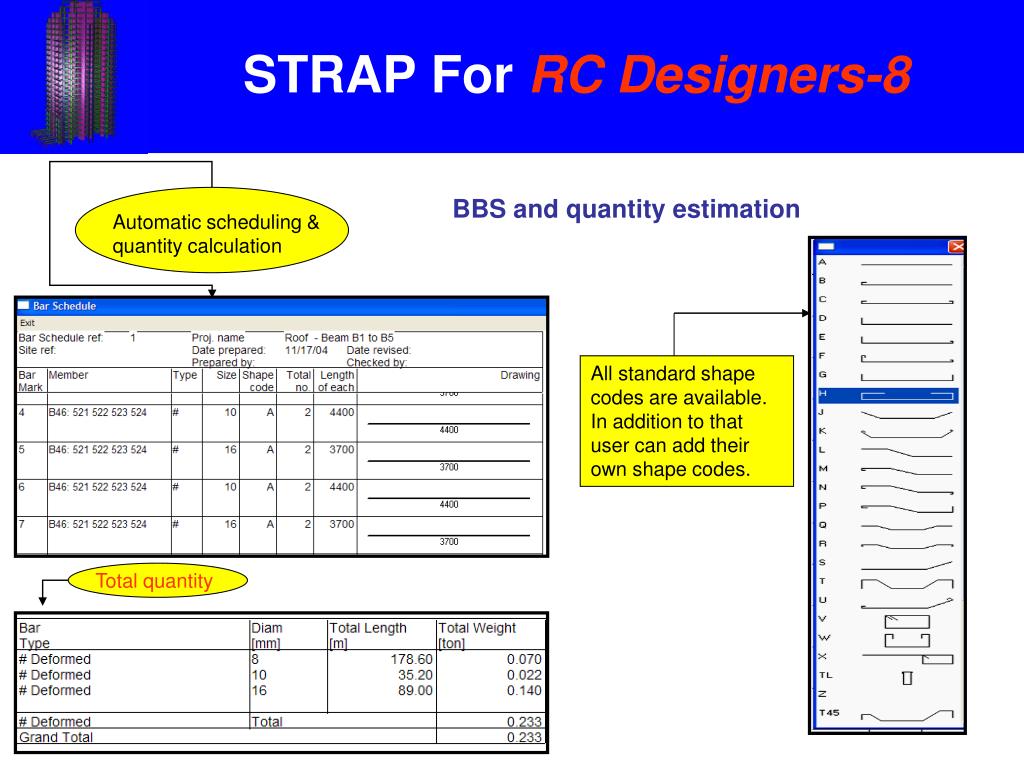

26. Automatic scheduling & quantity calculation All standard shape codes are available. In addition to that user can add their own shape codes. Total quantity BBS and quantity estimation STRAP ForRC Designers-8

27. Detail and draw all columns in tabular format Automatically calculates bar schedule for the total drawing Automatically draws elevation & Cross Section for selected column Column detailing & BBS STRAP ForRC Designers-8

28. SALB detailing & BBS STRAP ForRC Designers-8

29. Use AFES for Foundation design, detailing and drawing production For foundation Design – Transfer Support Reactions to AFES

30. Appendix A - "Calculation of minimum reinforcement, crack spacing and crack widths in relation to temperature and moisture effects“ • Appendix B - "Calculation of crack widths in mature concrete“ - The program calculates the reinforcement required to satisfy moment/force requirements • Calculate the reinforcement required to limit the crack width. • Calculate the crack width resulting from any arrangement of reinforcement Design based on BS 8007 STRAP Forwater retaining Structures design

31. For more details please visit www.ramcadds.in www.ramcadds.in Ram Caddsys Pvt Ltd #10/2, 50th Street,7th Avenue, Ashok Nagar, Chennai - 600 083, India.Ph: 044 23717641, 24743955 / 3966 Fax: 044 24896097Email: info@ramcadds.in
