X-Band RF Performance Requirements for 250 MeV with WR-100 and WC-293 Waveguides

This document focuses on the performance requirements for X-band RF systems operating at 250 MeV. It evaluates the specifications for 10 meters of WR-100 rectangular waveguide, requiring a maximum loss of 1.00 dB, and 10 meters of WC-293 circular waveguide with a maximum loss of 0.04 dB. Additionally, it outlines the pulse-to-pulse RMS stability tolerance necessary for effective operation. This vital information is essential for designing and implementing RF systems in advanced particle accelerators.

samson
Télécharger la présentation

X-Band RF Performance Requirements for 250 MeV with WR-100 and WC-293 Waveguides

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

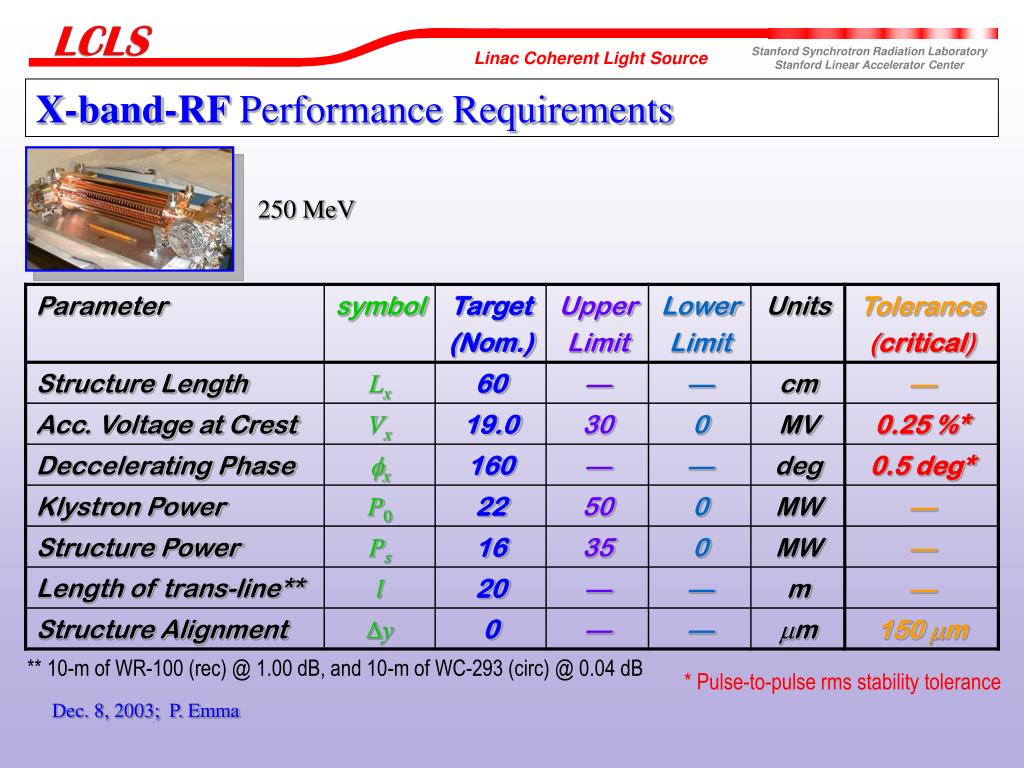

  1. X-band-RF Performance Requirements 250 MeV ** 10-m of WR-100 (rec) @ 1.00 dB, and 10-m of WC-293 (circ) @ 0.04 dB * Pulse-to-pulse rms stability tolerance Dec. 8, 2003; P. Emma
