  1. MSC.Patran The World Standard CAE Environment

  2. MSC.Patran • Directly Links Geometry and “Real World” Analysis • Unique Breadth of Robust Analysis Functionality • Customizable to Further Your Competitive Advantage

  3. MSC.DYTRAN MSC.MARC & MSC.ADVANCED FEA Pro/ENGINEER Integrating CADwith aComplete Analysis Solution MSC.FATIGUE CATIA MSC.Patran MSC.NASTRAN UNIGRAPHICS MSC.LAMINATE MODELER MSC.SUPERMODEL PTC/CADDS 5 MSC.THERMAL STEP ACIS IGES ABAQUS ANSYS and In-house codes

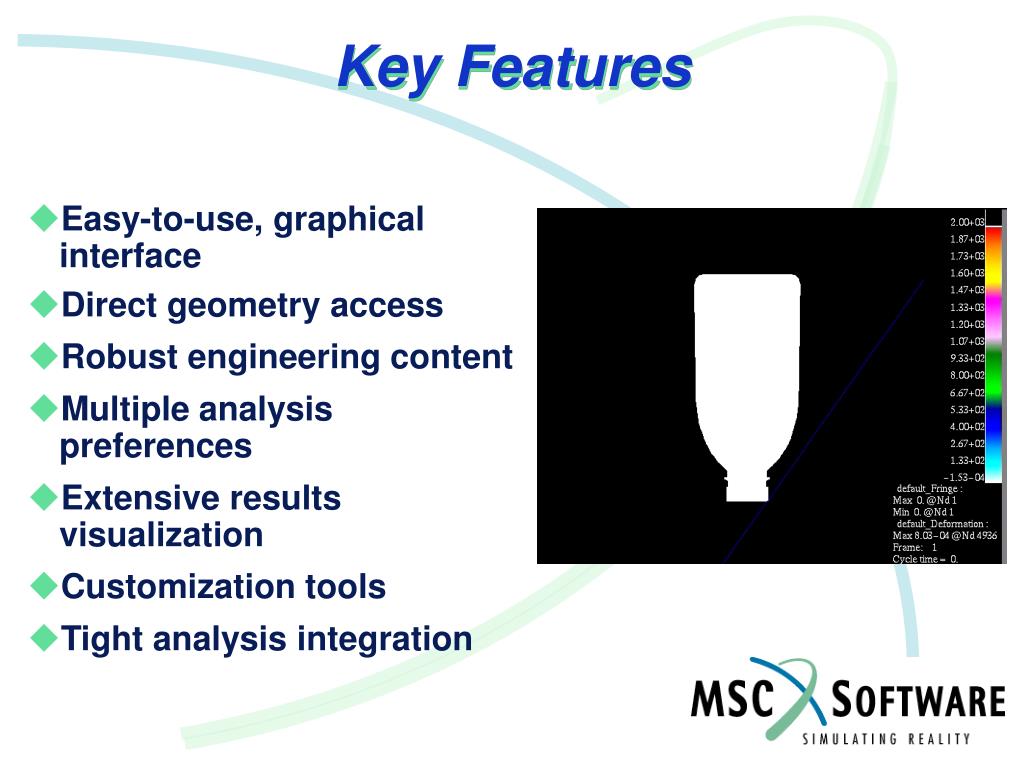

  4. Key Features • Easy-to-use, graphical interface • Direct geometry access • Robust engineering content • Multiple analysis preferences • Extensive results visualization • Customization tools • Tight analysis integration

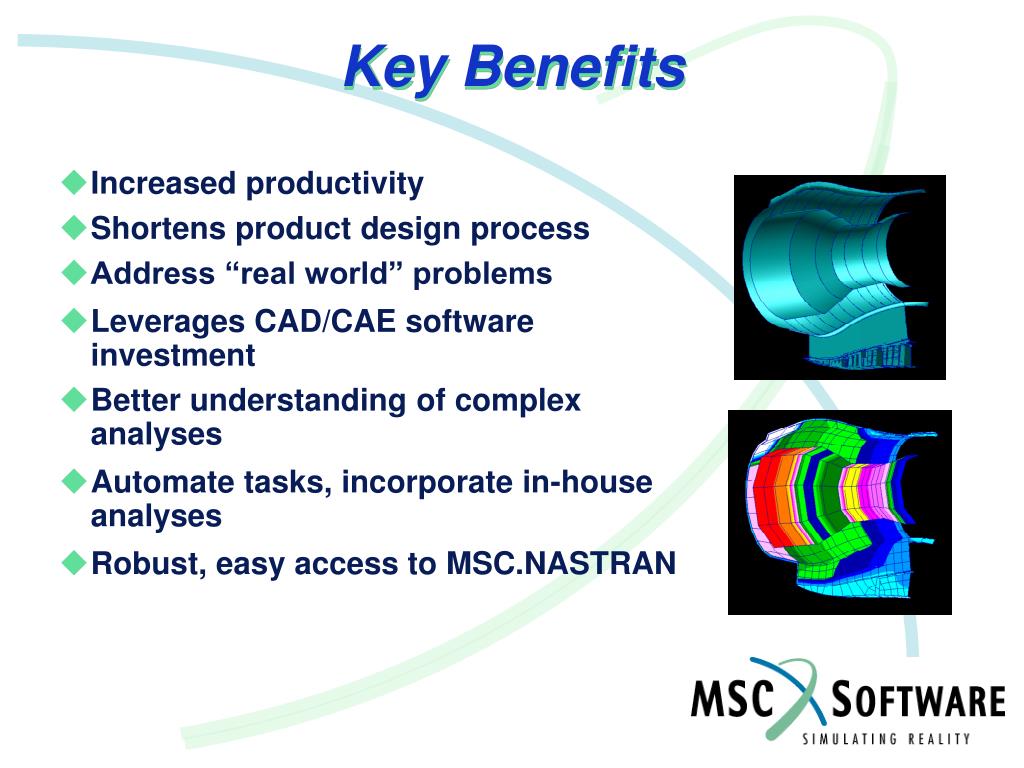

  5. Key Benefits • Increased productivity • Shortens product design process • Address “real world” problems • Leverages CAD/CAE software investment • Better understanding of complex analyses • Automate tasks, incorporate in-house analyses • Robust, easy access to MSC.NASTRAN

  6. CAD Access • Direct Geometry Access • CAD partnerships • UNIGRAPHICS • CATIA • PRO/ENGINEER • PTC/CADDS 5 • Import STEP, IGES, ACIS • Verification and clean-up tools Patran is the CAD integration system

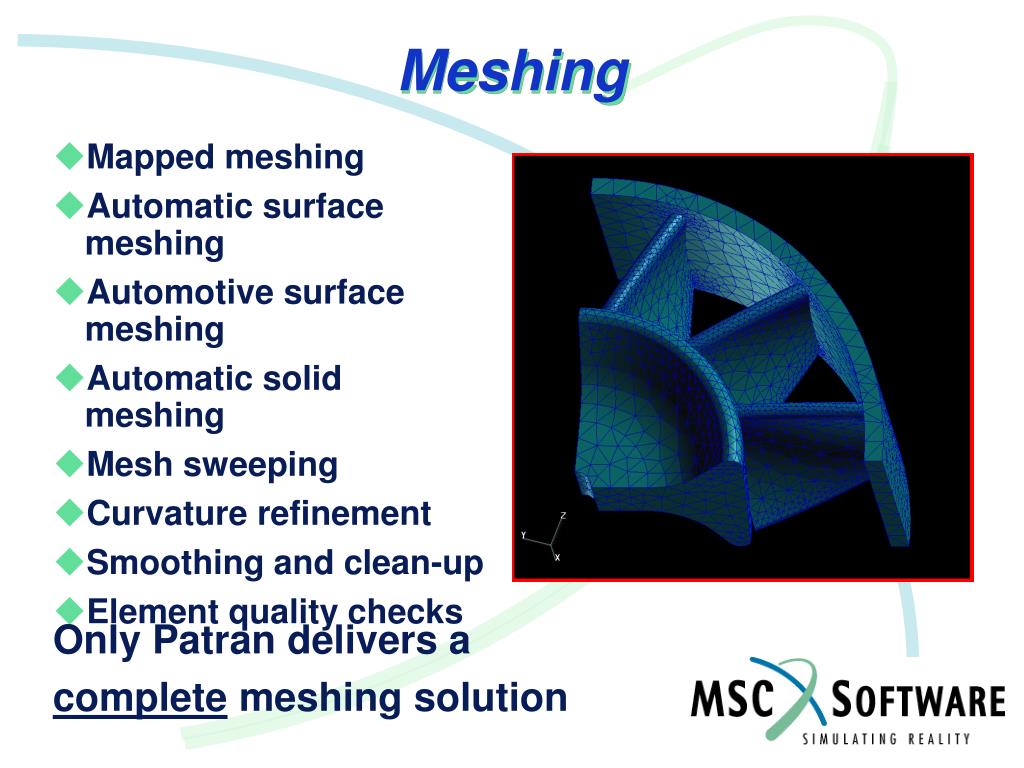

  7. Meshing • Mapped meshing • Automatic surface meshing • Automotive surface meshing • Automatic solid meshing • Mesh sweeping • Curvature refinement • Smoothing and clean-up • Element quality checks Only Patran delivers a complete meshing solution

  8. Model Environment • Properties, Loads & Boundary Conditions • Assigned to geometry or FEM • Analysis code specific • Supports time and temperature varying inputs • Material Selector Virtually any engineering environment can be simulated with Patran

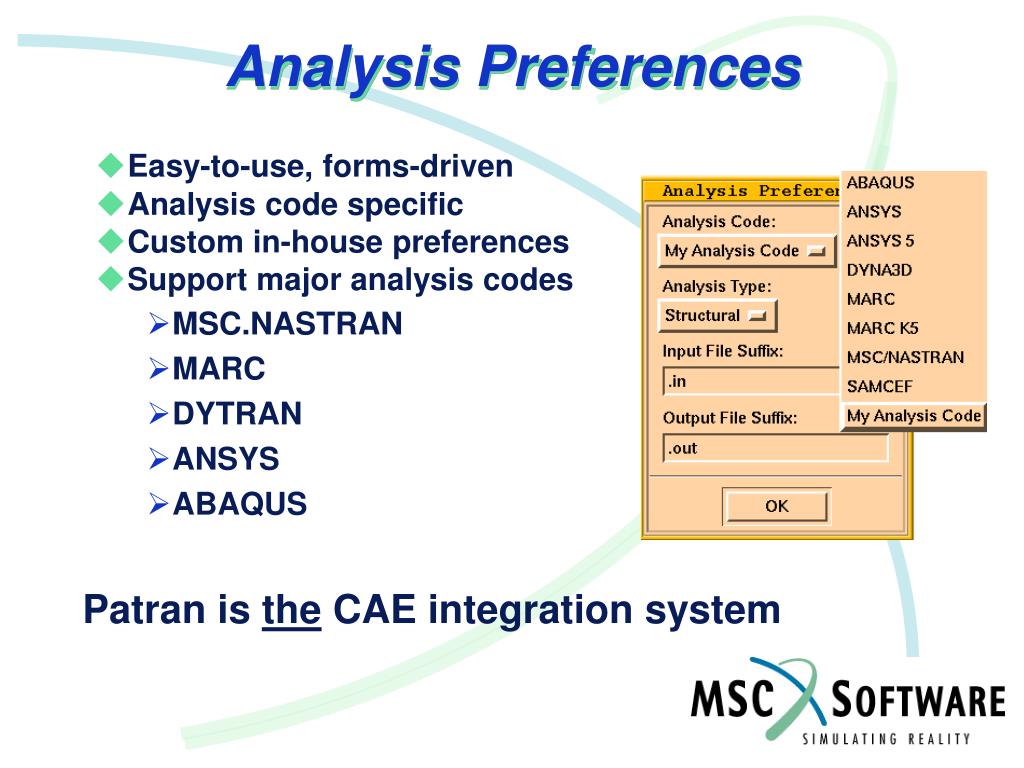

  9. Analysis Preferences • Easy-to-use, forms-driven • Analysis code specific • Custom in-house preferences • Support major analysis codes • MSC.NASTRAN • MARC • DYTRAN • ANSYS • ABAQUS Patran is the CAE integration system

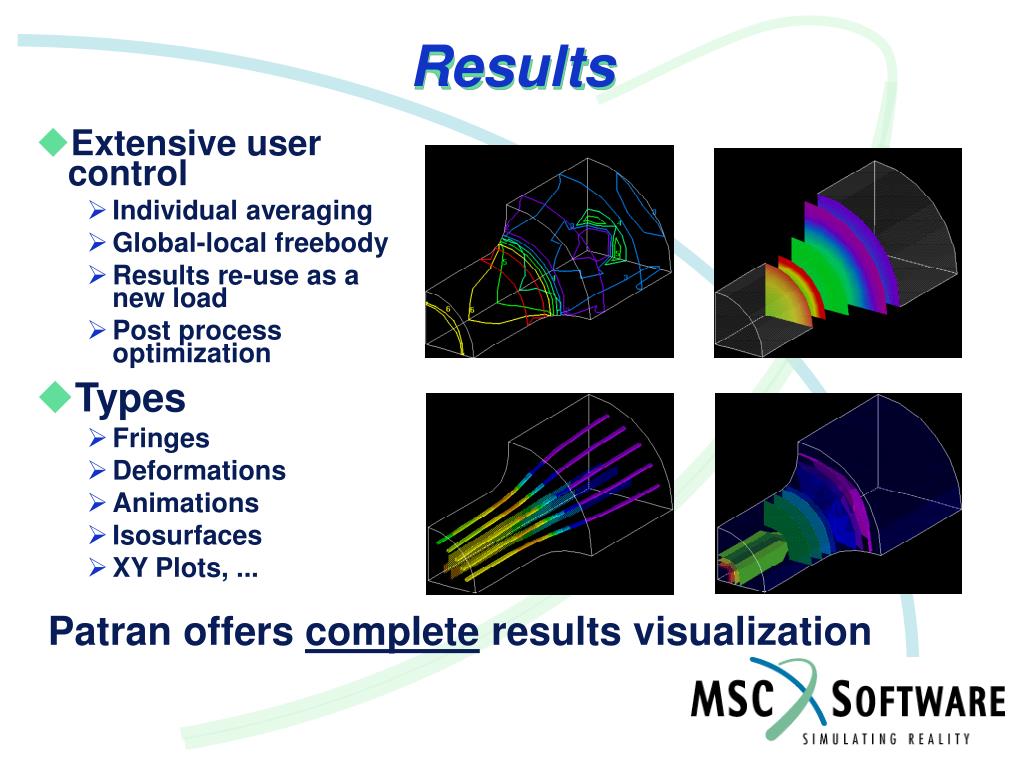

  10. Results • Extensive user control • Individual averaging • Global-local freebody • Results re-use as a new load • Post process optimization • Types • Fringes • Deformations • Animations • Isosurfaces • XY Plots, ... Patran offers complete results visualization

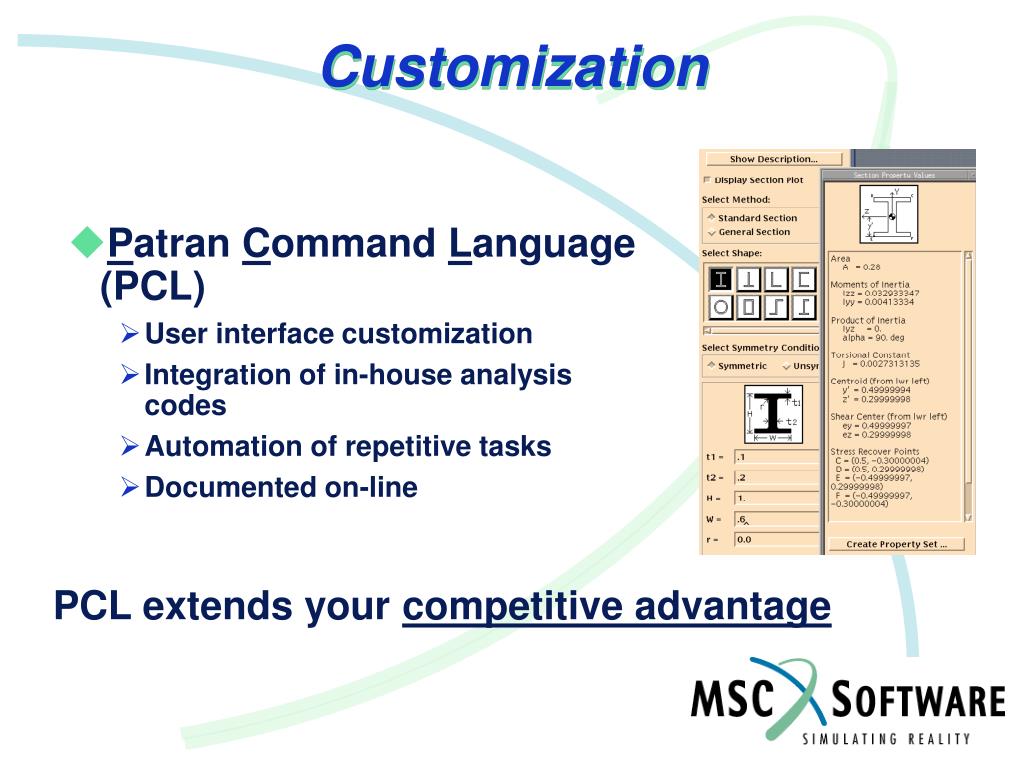

  11. Customization • Patran Command Language (PCL) • User interface customization • Integration of in-house analysis codes • Automation of repetitive tasks • Documented on-line PCL extends your competitive advantage

  12. MSC.Patran dramatically reduces your design process time by tightly integrating CAD with robust analysis
