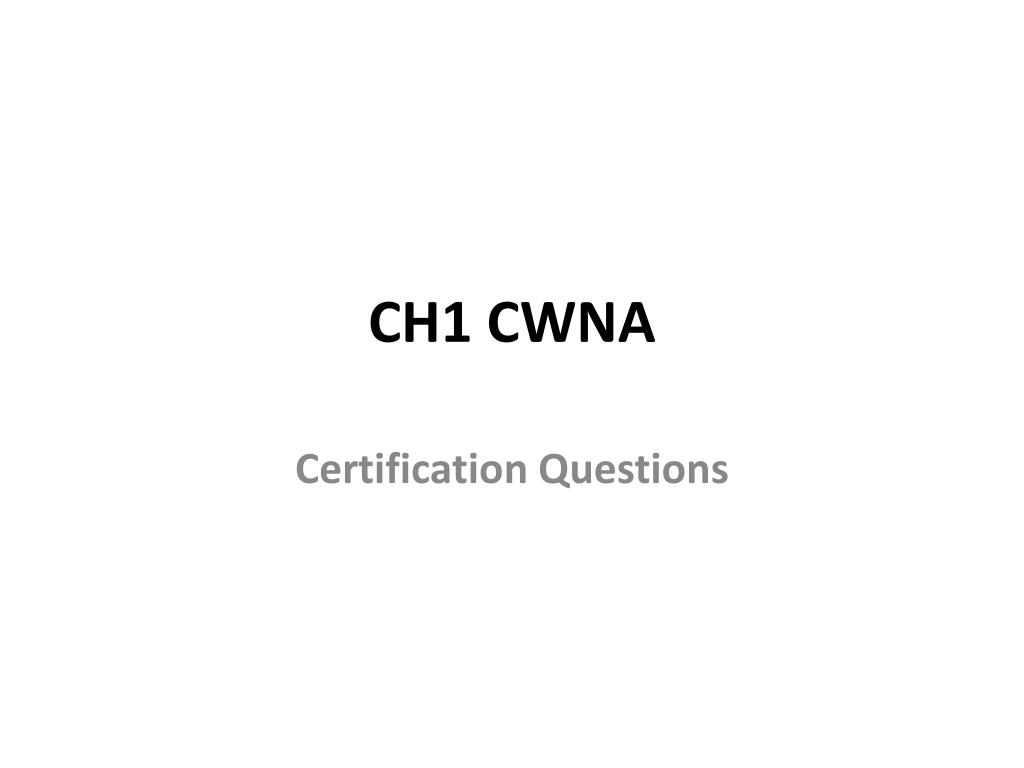

  1. CH1 CWNA Certification Questions

  2. Network Architecture Model • What are the layers of the Network Architecture Model? • Core • Distribution • Access

  3. Network Architecture Model • Where is 802.11 deployed in the network architecture model? • 802.11 technology is in the ACCESS layer

  4. Network Architecture Model • An 802.11 device in Bridge set up falls within what network architecture layer? • Distribution

  5. Organizations • What organization controls 802.11? • IEEE • Who control the maximum transmit power for unlicensed Wi-Fi? • Local authorities such as CRTC, FCC, provincial regulators • What organization ensures Wi-Fi interoperability? • Wi-Fi Alliance • Where is the IEEE 802.11 specification in the OSI model? • PHY layer and DL layer (One and two)

  6. Network Architecture Model • Where does the IEEE 802.11-2007 standard defines communication mechanisms (layer and sub-layer)? • Only the Physical layer and MAC sub-layer of the Data-Link layer of the OSI model. • The Logical Link Control (LLC) sub-layer of the Data-Link layer is not defined by the 802.11-2007 standard. • WPA is a security certification. • FSK is a modulation method.

  7. Organizations • What is the organization responsible for RFC documents? • The IETF is responsible for creation of RFC documents. • What is the organization responsible for 802 documents? • The IEEE is responsible for the 802 standards. • What is the organization responsible for certification tests? • The Wi-Fi Alliance is responsible for certification tests. The Wi-Fi Alliance used to be known as WECA, but changed their name to Wi-Fi Alliance in 2002. • What is the organization responsible for RF regulations? • The FCC is responsible for RF regulatory rules in the United States.

  8. Wi-Fi Alliance • What is the certification program that deal with QoS or quality of service? • Wi-Fi Multimedia (WMM) is a Wi-Fi Alliance certification program that enables Wi-Fi networks to prioritize traffic generated by different applications. • NOT ANSWERS: • 802.11-2007 is the IEEE standard, and WEP (Wired Equivalent Privacy) is defined as part of the IEEE 802.11-2007 standard. • 802.11i was the IEEE amendment that defined robust security network (RSN) and is not part of the 802.11-2007 standard. • PSK is not a standard; it is an encoding technique.

  9. Wi-Fi Alliance • What is the Wi-Fi method to allow easy interconnection between wireless devices? • Wi-Fi Direct is designed to provide easy setup for communications directly between wireless devices. • Wi-Fi Personal does not exist. • 802.11n will likely provide connectivity, but setup could be easy or difficult depending on the environment. • CWG-RF is designed for Wi-Fi and cellular radios in a converged handset. • Wi-Fi Protected Setup is designed to simplify security setup.

  10. Wi-Fi Alliance • What is the main objective of the Wi-Fi Alliance? • The Wi-Fi Alliance maintains certification programs to ensure vendor interoperability. • What is the certification program for voice over Wi-Fi? • Voice Personal is a certification program that defines enhanced support for voice applications in residential and small-business Wi-Fi networks. • What is the certification program that defines battery saving methods? • WMM-PSis a certification program that defines methods to conserve battery power for devices using Wi-Fi radios by managing the time the client device spends in sleep mode.

  11. Wi-Fi Alliance
