ODP V2 Data Provider package overview

DESCRIPTION

ODP V2 Data Provider package overview. Sergey Sukhonosov National Oceanographic Data Centre, Russia. Training course on establishment of the ODP regional node and data network for SNDM-Argentina ,7 - 11 October 2013, Buenos Aires, Argentina. FTP server on Partnership Centre for IODE ODP

1 / 11

Télécharger la présentation

ODP V2 Data Provider package overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

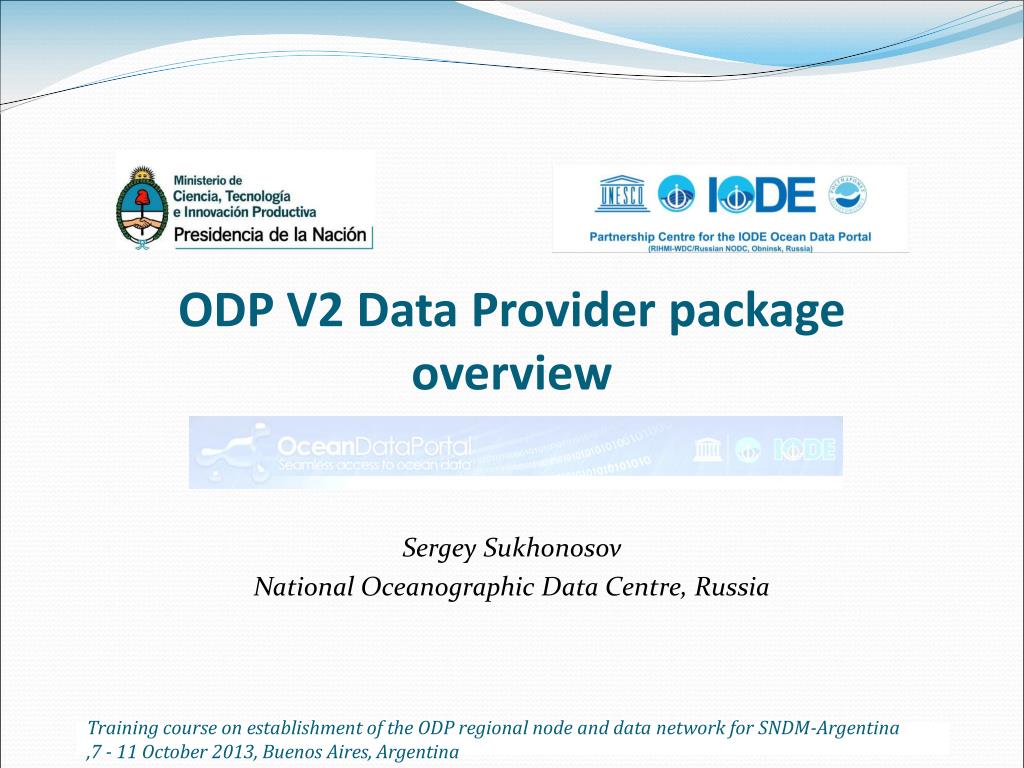

  1. ODP V2 Data Provider package overview Sergey Sukhonosov National Oceanographic Data Centre, Russia Training course on establishment of the ODP regional node and data network for SNDM-Argentina ,7 - 11 October 2013, Buenos Aires, Argentina

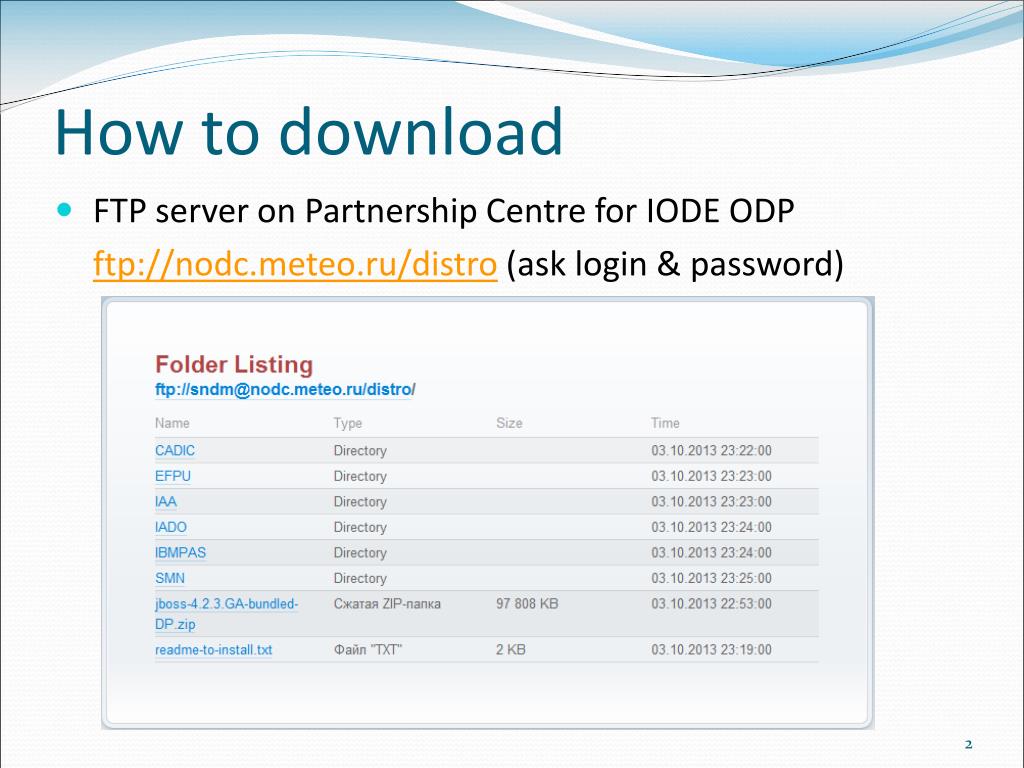

  2. FTP server on Partnership Centre for IODE ODP ftp://nodc.meteo.ru/distro (ask login & password) How to download

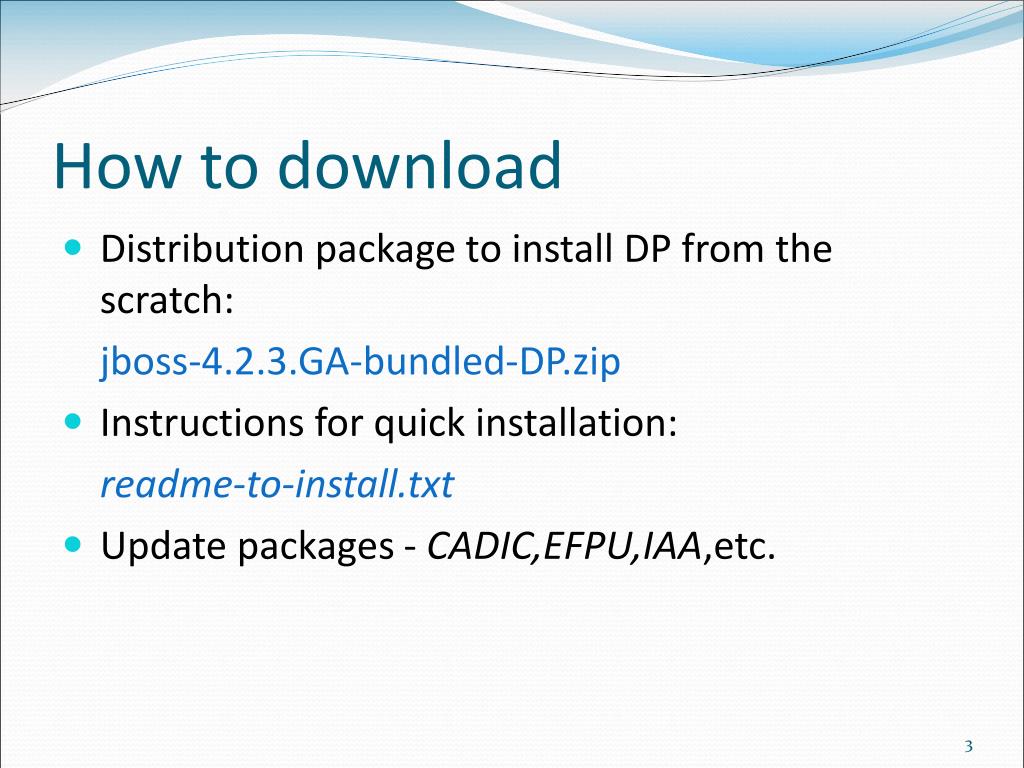

  3. How to download • Distribution package to install DP from the scratch: jboss-4.2.3.GA-bundled-DP.zip • Instructions for quick installation: readme-to-install.txt • Update packages - CADIC, EFPU, IAA, etc.

  4. Distribution content • VM image for VMWare and VirtualBox (OS Centos 6.2, JBoss with bundled DP v.2.1 + JOSSO client + configurations + db drivers) • JBoss-4.2.3.GA with bundled DP v.2.1 + JOSSO client + configurations + db drivers) • Database drivers: Oracle 9g-11g, MS SQL Server, MySQL, PostgreSQL

  5. VM image contents • CentOS 6.2 x64 • User & group “jboss”, files role policy applied • JDK 1.7 (/usr/bin/java) • JBoss 4.2.3.GA (/opt/dp/jboss-4.2.3.GA) • DP 2.1 (/opt/dp/jboss-4.2.3.GA/conf/dpms, /opt/dp/jboss-4.2.3.GA/server/default/deploy/dpms.sar) • Configurations for JBoss (see next slides)

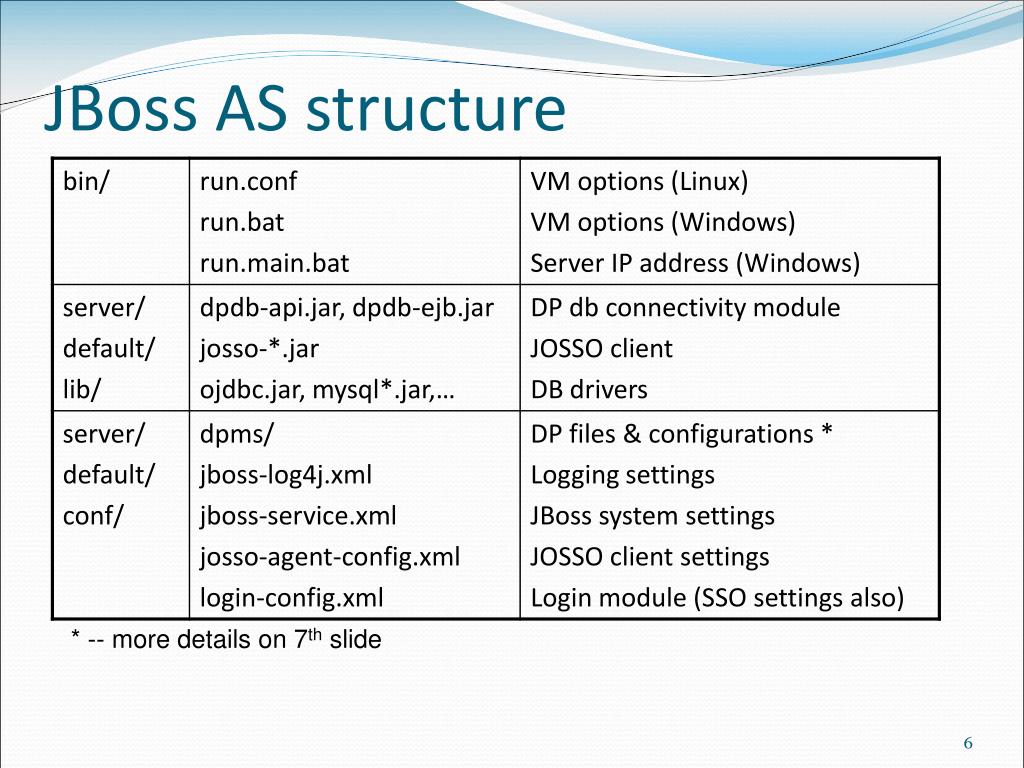

  6. JBoss AS structure * -- more details on 7th slide

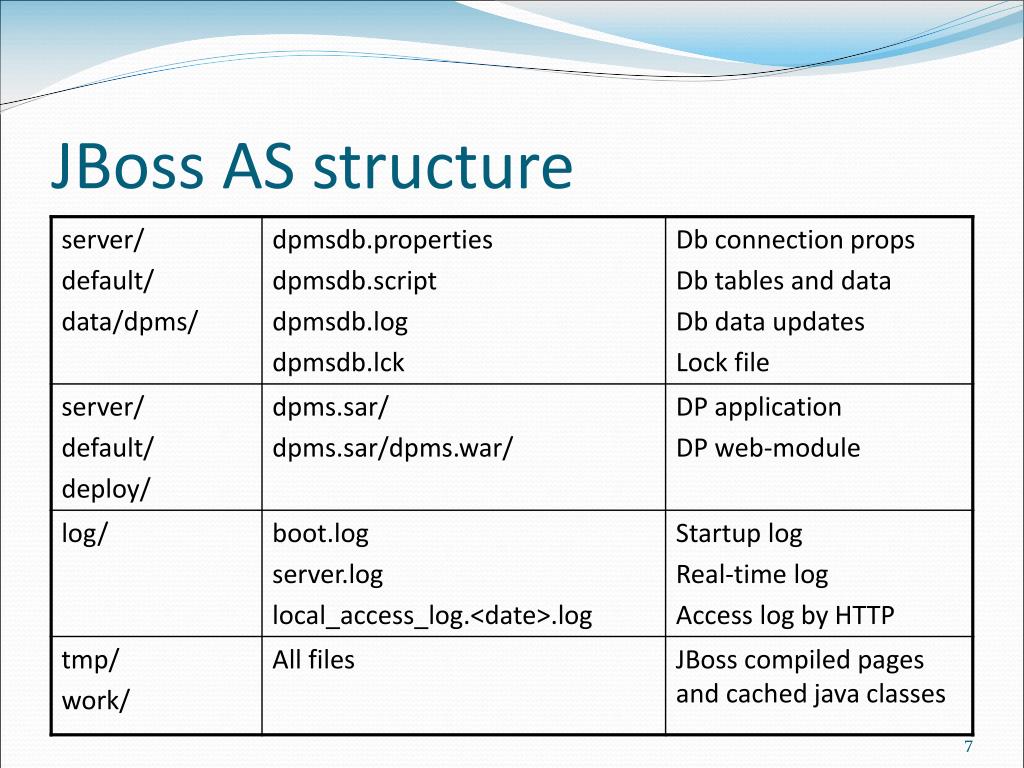

  7. JBoss AS structure

  8. DP configuration directory $JBOSS_HOME/server/default/conf/dpms

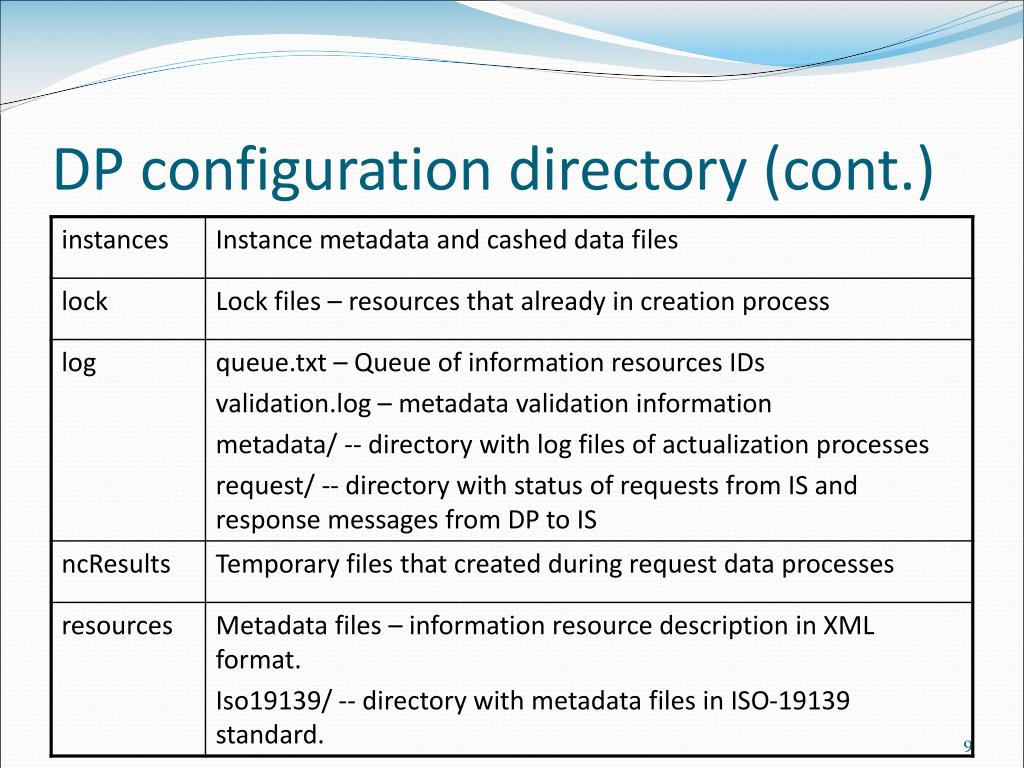

  9. DP configuration directory (cont.)

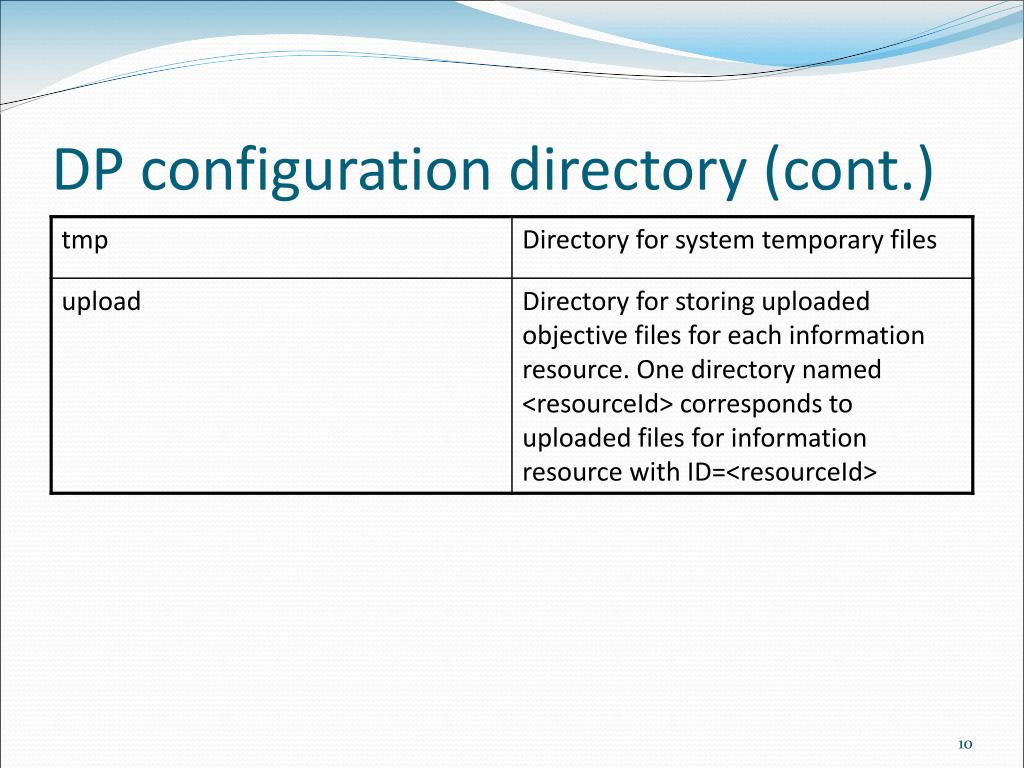

  10. DP configuration directory (cont.)

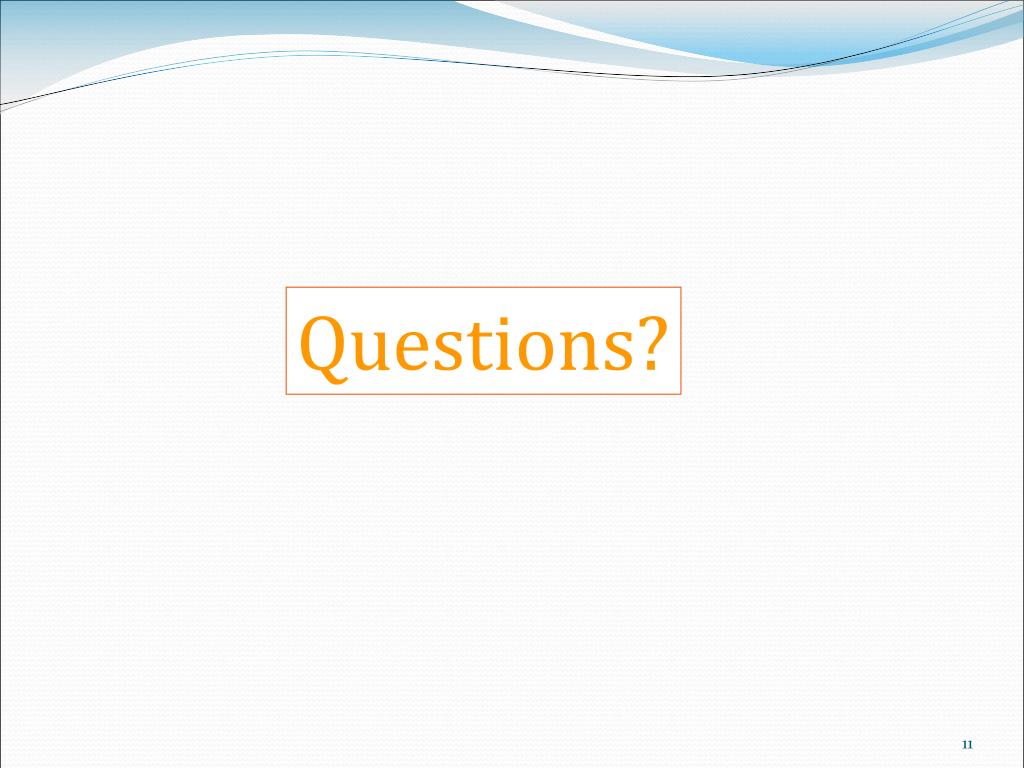

  11. Questions?
