Analyzing Inheritance

Interest Grabber. Section 11-1. Analyzing Inheritance. Offspring resemble their parents. Offspring inherit genes for characteristics from their parents. To learn about inheritance, scientists have experimented with breeding various plants and animals.

sarah-dejesus
Télécharger la présentation

Analyzing Inheritance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

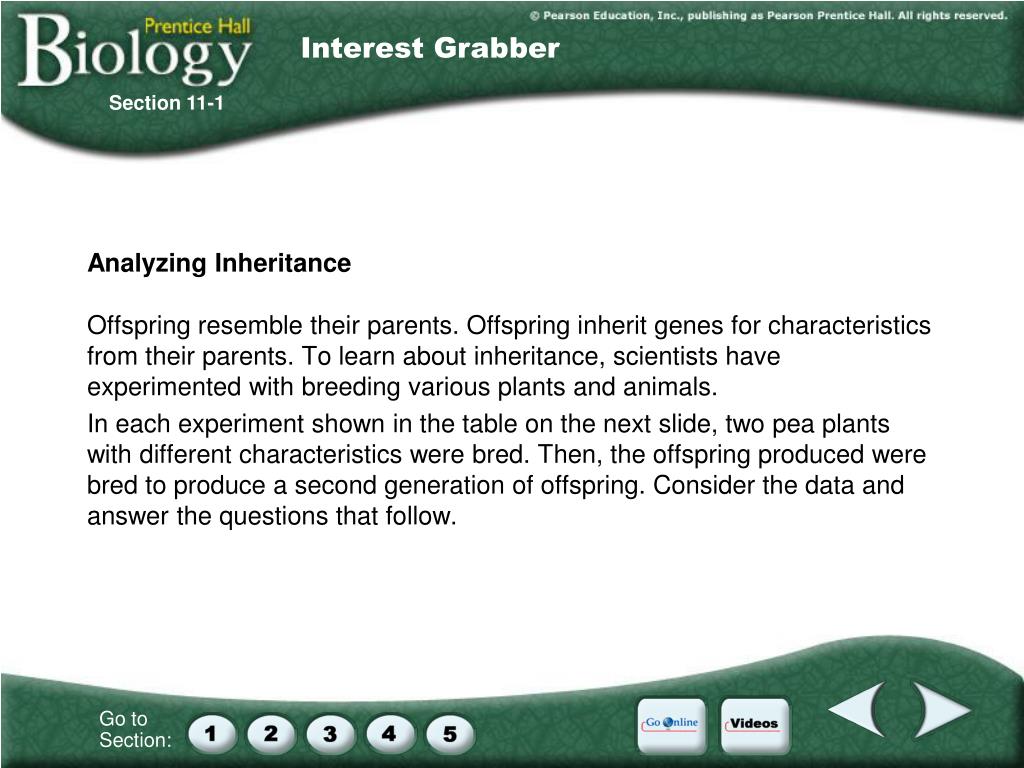

  1. Interest Grabber Section 11-1 Analyzing Inheritance • Offspring resemble their parents. Offspring inherit genes for characteristics from their parents. To learn about inheritance, scientists have experimented with breeding various plants and animals. • In each experiment shown in the table on the next slide, two pea plants with different characteristics were bred. Then, the offspring produced were bred to produce a second generation of offspring. Consider the data and answer the questions that follow.

  2. Parents Long stems  short stems Red flowers  white flowers Green pods  yellow pods Round seeds  wrinkled seeds Yellow seeds  green seeds First Generation All long All red All green All round All yellow Second Generation 787 long: 277 short 705 red: 224 white 428 green: 152 yellow 5474 round: 1850 wrinkled 6022 yellow: 2001 green Interest Grabber continued Section 11-1 • 1. In the first generation of each experiment, how do the characteristics of the offspring compare to the parents’ characteristics? • 2. How do the characteristics of the second generation compare to the characteristics of the first generation?

  3. Section Outline Section 11-1 • 11–1 The Work of Gregor Mendel • Heredity: the transmission of traits from parent to offspring. • II. Discovered by an Austrian Monk named Gregor Mendel in the garden of a monastery, by breeding garden peas. • Mendel was the son of peasants, born in Austria in 1822 in what is now part of the Czeck Republic. • In 1843 he entered an Austrian monastery. Three years later he went to the University of Vienna to study Science and Math. • Returned to the monastery and joined a Science research society. His experiments had 3 steps. • He used self-pollination to produce true breeding varieties of plants for each trait he was going to study. True-Breedingvarieties produce offspring that only display one form of a particular trait. He called these plants the parental generation or P1 generation.

  4. Section Outline Section 11-1 2. He cross-pollinated two varieties (with different traits) from the P1 generation. These offspring were called the first filial or F1 generation. 3. Mendel then crossed two of the F1 generation. These offspring were called the second filial or F2 generation. a. Mendel described the expressed traits as dominant (represented by capitol letters) and the trait that was not expressed as recessive (represented by lower case letters). b. In some of the F2 generation, the recessive traits reappeared. He counted the appearance of the traits and determined that they appeared in a 3 to 1 ratio (3:1). c. The patterns that Mendel found formed the basis of modern genetics: the branch of Biology that studies heredity.

  5. Section Outline Section 11-1 • III. Mendel’s theory of genetics has five elements or parts. • 1. Parents do not transmit traits directly to their offspring, instead they transmit units of information that operate in the offspring to produce that trait. He called these traits genes: a segment of a DNA molecule of chromosome that transmits hereditary information to an individual from each parent. • 2. Each trait of an individual has two factors, one from each parent. The two factors may or may not have the same information (example red vs. white flowers). If both genes have the same information they are said to be homozygous (PP or pp). If both genes have different information they are said to be heterozygous (Pp). Each copy of a gene is called an allele. Dominant alleles are represented as capitol letters, and recessive alleles are represented as lower case letters. • 3. The physical appearance of an individual or phenotype is determined by the alleles that code for that trait. The set of alleles an individual has for a trait is called the genotype. • 4. An individual receives one allele from each parent.

  6. Section Outline Section 11-1 • 5. The presence of an allele does not guarantee that a trait will be expressed in the individual that carries it. The dominant allele is expressed and the recessive allele is unexpressed • Mendel’s theory is referred to as the “Law of Segregation”: members of each pair of alleles separate when gametes are formed. Mendel went on to study how different genes are inherited. He developed the “Law of Independent Assortment”: which states that pairs of alleles separate independently from each other during gamete formation. One trait does not affect the inheritance of another trait. This helps produce the many genetic variations observed in organisms. • Probability: the likelihood that a certain event will occur. It can predict how genes will be distributed among children of certain parents.

  7. Principles of Dominance Section 11-1 P Generation F1 Generation F2 Generation Tall Short Tall Tall Tall Tall Tall Short

  8. Principles of Dominance Section 11-1 P Generation F1 Generation F2 Generation Tall Short Tall Tall Tall Tall Tall Short

  9. Principles of Dominance Section 11-1 P Generation F1 Generation F2 Generation Tall Short Tall Tall Tall Tall Tall Short

  10. Figure 11-3 Mendel’s Seven F1 Crosses on Pea Plants Section 11-1 Seed Shape Seed Color Seed Coat Color Pod Shape Pod Color Flower Position Plant Height Round Yellow Gray Smooth Green Axial Tall Wrinkled Green White Constricted Yellow Terminal Short Round Yellow Gray Smooth Green Axial Tall

  11. Interest Grabber Section 11-2 Tossing Coins • If you toss a coin, what is the probability of getting heads? Tails? If you toss a coin 10 times, how many heads and how many tails would you expect to get? Working with a partner, have one person toss a coin • ten times while the other person tallies the results on a sheet of paper. Then, switch tasks to produce a separate tally of the second set of 10 tosses.

  12. Interest Grabber continued Section 11-2 1. Assuming that you expect 5 heads and 5 tails in 10 tosses, how do the results of your tosses compare? How about the results of your partner’s tosses? How close was each set of results to what was expected? 2. Add your results to those of your partner to produce a total of 20 tosses. Assuming that you expect 10 heads and 10 tails in 20 tosses, how close are these results to what was expected? 3. If you compiled the results for the whole class, what results would you expect? 4. How do the expected results differ from the observed results?

  13. Section Outline Section 11-2 • 11–2 Probability and Punnett Squares A. Genetics and Probability B. Punnett Squares C. Probability and Segregation D. Probabilities Predict Averages

  14. Tt X Tt Cross Section 11-2

  15. Tt X Tt Cross Section 11-2

  16. Interest Grabber Section 11-3 Height in Humans • Height in pea plants is controlled by one of two alleles; the allele for a tall plant is the dominant allele, while the allele for a short plant is the ecessive one. What about people? Are the factors that determine height more complicated in humans?

  17. Interest Grabber continued Section 11-3 • 1. Make a list of 10 adults whom you know. Next to the name of each adult, write his or her approximate height in feet and inches. • 2. What can you observe about the heights of the ten people? • 3. Do you think height in humans is controlled by 2 alleles, as it is in pea plants? Explain your answer.

  18. Section Outline Section 11-3 • 11–3 Exploring Mendelian Genetics A. Independent Assortment 1. The Two-Factor Cross: F1 2. The Two-Factor Cross: F2 B. A Summary of Mendel’s Principles C. Beyond Dominant and Recessive Alleles 1. Incomplete Dominance 2. Codominance 3. Multiple Alleles 4. Polygenic Traits D. Applying Mendel’s Principles E. Genetics and the Environment

  19. Alleles are separated during gamete formation “Factors” determine traits Some alleles are dominant, and some alleles are recessive Pea plants Law of Dominance Law of Segregation Concept Map Section 11-3 Gregor Mendel concluded that experimented with which is called the which is called the

  20. Figure 11-10 Independent Assortment in Peas Section 11-3

  21. Figure 11-11 Incomplete Dominance in Four O’Clock Flowers Section 11-3

  22. Figure 11-11 Incomplete Dominance in Four O’Clock Flowers Section 11-3

  23. Interest Grabber Section 11-4 How Many Chromosomes? • Normal human body cells each contain 46 chromosomes. The cell division process that body cells undergo is called mitosis and produces daughter cells that are virtually identical to the parent cell. Working with a partner, discuss and answer the questions that follow.

  24. Interest Grabber continued Section 11-4 • 1. How many chromosomes would a sperm or an egg contain if either one resulted from the process of mitosis? • 2. If a sperm containing 46 chromosomes fused with an egg containing 46 chromosomes, how many chromosomes would the resulting fertilized egg contain? Do you think this would create any problems in the developing embryo? • 3. In order to produce a fertilized egg with the appropriate number of chromosomes (46), how many chromosomes should each sperm and egg have?

  25. Section Outline Section 11-4 • 11–4 Meiosis A. Chromosome Number B. Phases of Meiosis 1. Meiosis I 2. Meiosis II C. Gamete Formation D. Comparing Mitosis and Meiosis

  26. Crossing-Over Section 11-4

  27. Crossing-Over Section 11-4

  28. Crossing-Over Section 11-4

  29. Figure 11-15 Meiosis Section 11-4 Meiosis I

  30. Figure 11-15 Meiosis Section 11-4 Meiosis I Meiosis I

  31. Figure 11-15 Meiosis Section 11-4 Meiosis I Meiosis I

  32. Figure 11-15 Meiosis Section 11-4 Meiosis I

  33. Figure 11-15 Meiosis Section 11-4 Meiosis I

  34. Figure 11-17 Meiosis II Section 11-4 Meiosis II Prophase II Metaphase II Anaphase II Telophase II Meiosis I results in two haploid (N) daughter cells, each with half the number of chromosomes as the original. The chromosomes line up in a similar way to the metaphase stage of mitosis. The sister chromatids separate and move toward opposite ends of the cell. Meiosis II results in four haploid (N) daughter cells.

  35. Figure 11-17 Meiosis II Section 11-4 Meiosis II Prophase II Metaphase II Anaphase II Telophase II Meiosis I results in two haploid (N) daughter cells, each with half the number of chromosomes as the original. The chromosomes line up in a similar way to the metaphase stage of mitosis. The sister chromatids separate and move toward opposite ends of the cell. Meiosis II results in four haploid (N) daughter cells.

  36. Figure 11-17 Meiosis II Section 11-4 Meiosis II Prophase II Metaphase II Anaphase II Telophase II Meiosis I results in two haploid (N) daughter cells, each with half the number of chromosomes as the original. The chromosomes line up in a similar way to the metaphase stage of mitosis. The sister chromatids separate and move toward opposite ends of the cell. Meiosis II results in four haploid (N) daughter cells.

  37. Figure 11-17 Meiosis II Section 11-4 Meiosis II Prophase II Metaphase II Anaphase II Telophase II Meiosis I results in two haploid (N) daughter cells, each with half the number of chromosomes as the original. The chromosomes line up in a similar way to the metaphase stage of mitosis. The sister chromatids separate and move toward opposite ends of the cell. Meiosis II results in four haploid (N) daughter cells.

  38. Figure 11-17 Meiosis II Section 11-4 Meiosis II Prophase II Metaphase II Anaphase II Telophase II Meiosis I results in two haploid (N) daughter cells, each with half the number of chromosomes as the original. The chromosomes line up in a similar way to the metaphase stage of mitosis. The sister chromatids separate and move toward opposite ends of the cell. Meiosis II results in four haploid (N) daughter cells.

  39. Interest Grabber Section 11-5 Forever Linked? • Some genes appear to be inherited together, or “linked.” If two genes • are found on the same chromosome, does it mean they are linked forever? • Study the diagram, which shows four genes labeled A–E and a–e, and then answer the questions on the next slide.

  40. Interest Grabber continued Section 11-5 • 1. In how many places can crossing over result in genes A and b being on the same chromosome? • 2. In how many places can crossing over result in genes A and c being on the same chromosome? Genes A and e? • 3. How does the distance between two genes on a chromosome affect the chances that crossing over will recombine those genes?

  41. Section Outline Section 11-5 • 11–5 Linkage and Gene Maps A. Gene Linkage B. Gene Maps

  42. Comparative Scale of a Gene Map Section 11-5 Mapping of Earth’s Features Mapping of Cells, Chromosomes, and Genes Cell Earth Chromosome Country Chromosome fragment State Gene City People Nucleotide base pairs

  43. Figure 11-19 Gene Map of the Fruit Fly Section 11-5 Exact location on chromosomes Chromosome 2

  44. Videos Video Contents • Click a hyperlink to choose a video. • Meiosis Overview • Animal Cell Meiosis, Part 1 • Animal Cell Meiosis, Part 2 • Segregation of Chromosomes • Crossing Over

  45. Video 1 Video 1 Meiosis Overview • Click the image to play the video segment.

  46. Video 2 Video 2 Animal Cell Meiosis, Part 1 • Click the image to play the video segment.

  47. Video 3 Video 3 Animal Cell Meiosis, Part 2 • Click the image to play the video segment.

  48. Video 4 Video 4 Segregation of Chromosomes • Click the image to play the video segment.

  49. Video 5 Video 5 Crossing Over • Click the image to play the video segment.

  50. Go Online Internet • The latest discoveries in genetics • Interactive test • Articles on genetics • For links on Punnett squares, go to www.SciLinks.org and enter the Web Code as follows: cbn-4112. • For links on Mendelian genetics, go to www.SciLinks.org and enter the Web Code as follows: cbn-4113. • For links on meiosis, go to www.SciLinks.org and enter the Web Code as follows: cbn-4114.
