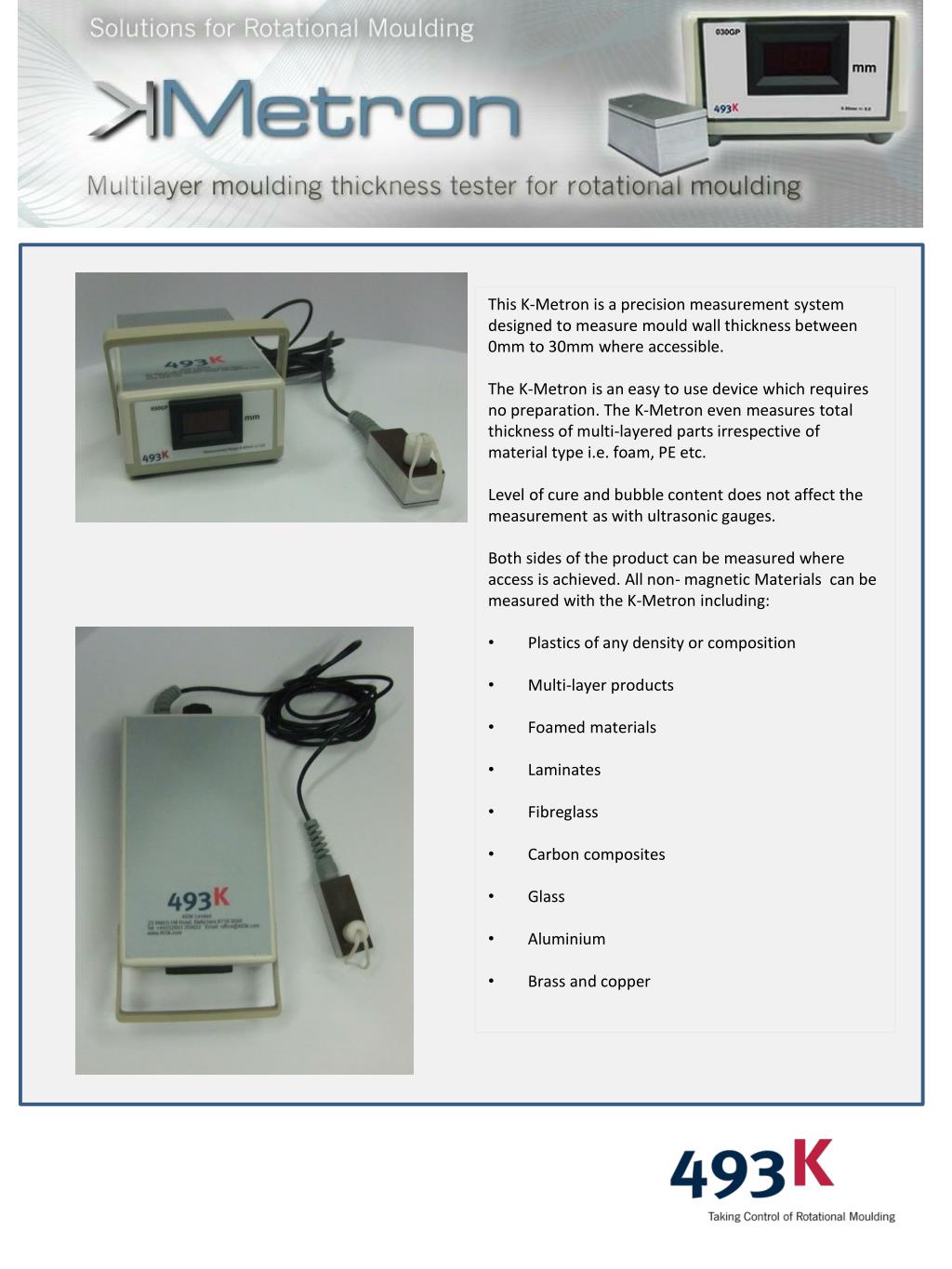

  1. This K-Metron is a precision measurement system designed to measure mould wall thickness between 0mm to 30mm where accessible. • The K-Metron is an easy to use device which requires no preparation. The K-Metron even measures total thickness of multi-layered parts irrespective of material type i.e. foam, PE etc. • Level of cure and bubble content does not affect the measurement as with ultrasonic gauges. • Both sides of the product can be measured where access is achieved. All non- magnetic Materials can be measured with the K-Metron including: • Plastics of any density or composition • Multi-layer products • Foamed materials • Laminates • Fibreglass • Carbon composites • Glass • Aluminium • Brass and copper

  2. Lets go to work K-Metron K-Metron is a portable device, designed, developed and built specifically for those requiring fast gauging of wall thickness. With particular value to rotomoulders this highly versatile system is a superior and cost effective alternative to many other measurement methods. Magnetic Transducer (Dropped inside the Mould) String Sensor Head Thickness Tester Outside the Mould Technical specification Range 0mm to 25mm with magnetic couple ( maximum calibration:30mm) Display Resolution 0.1mm Accuracy Max +/- 0.5mm with sensor head in vertical plane Range Error Better than +/- 0.5mm (@30mm) Operating Temperature Range 15< 40 degrees C Minimum radius measured 22mm *Power supply 110Vac/230Vac to 12V DC 800ma *Rechargeable battery version is supplied complete with charger 493K Limited, 23 Watch Hill Road, Ballyclare, Co. Antrim, BT39 9QW e: solutions@493K.com w: www.493k.com t: +44 (0) 28 9335 9922
