Windmill Design Project: Harnessing Energy Efficiently

In our windmill design project, we explored multiple ideas to generate electricity sustainably. Ultimately, we created an efficient design using a fan propeller to capture wind energy, spinning magnets arranged in a four-position setup around a coil of wire. Despite some construction challenges regarding current generation, we successfully lit a bulb after thorough trials. Our budget-friendly materials totaled around $25, and through teamwork and applied concepts from our EF 152 class, we achieved our goal in a ten-hour build process.

sasha
Télécharger la présentation

Windmill Design Project: Harnessing Energy Efficiently

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Molino de Viento del Diablo Bryan Schow Trey Farmer Brent Fiddler Des Seay

  2. Design Process • When we first began this project, we considered several ideas. • One idea for our windmill consisted of a complex gear system to generate a significant amount of current to light the bulb. • Our group also considered having several magnets spinning in the middle of two large coils of magnet wire. • Ultimately, we settled on our design because we wanted a design that would not be extremely difficult to construct or cause time and money restraints.

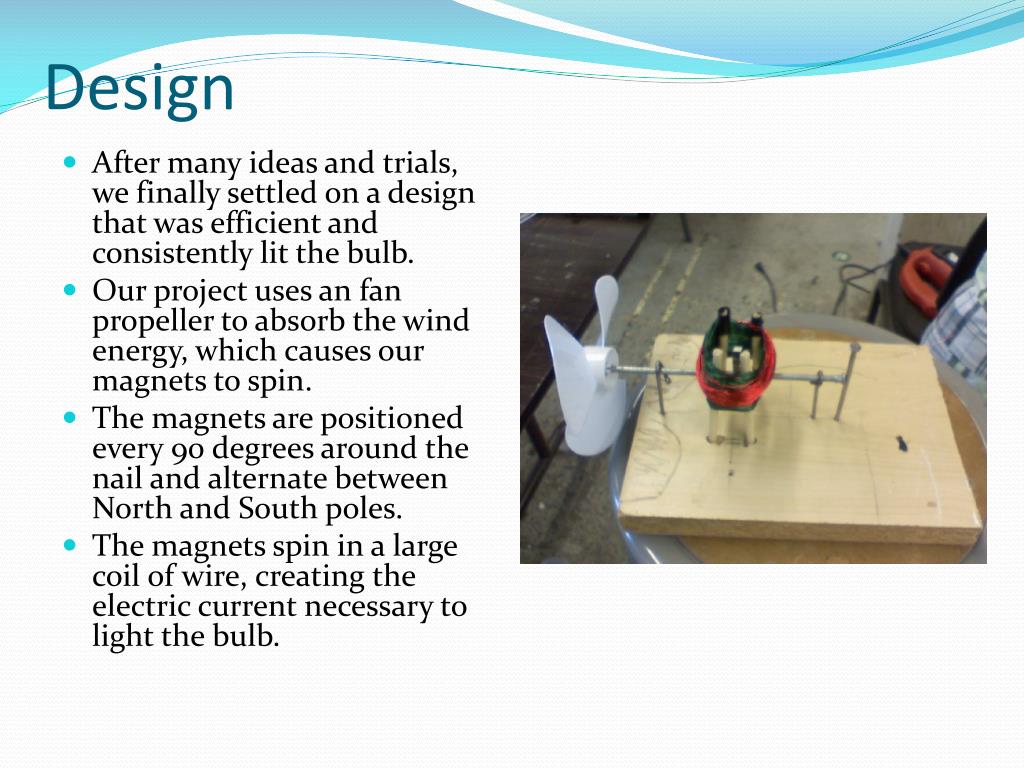

  3. Design • After many ideas and trials, we finally settled on a design that was efficient and consistently lit the bulb. • Our project uses an fan propeller to absorb the wind energy, which causes our magnets to spin. • The magnets are positioned every 90 degrees around the nail and alternate between North and South poles. • The magnets spin in a large coil of wire, creating the electric current necessary to light the bulb.

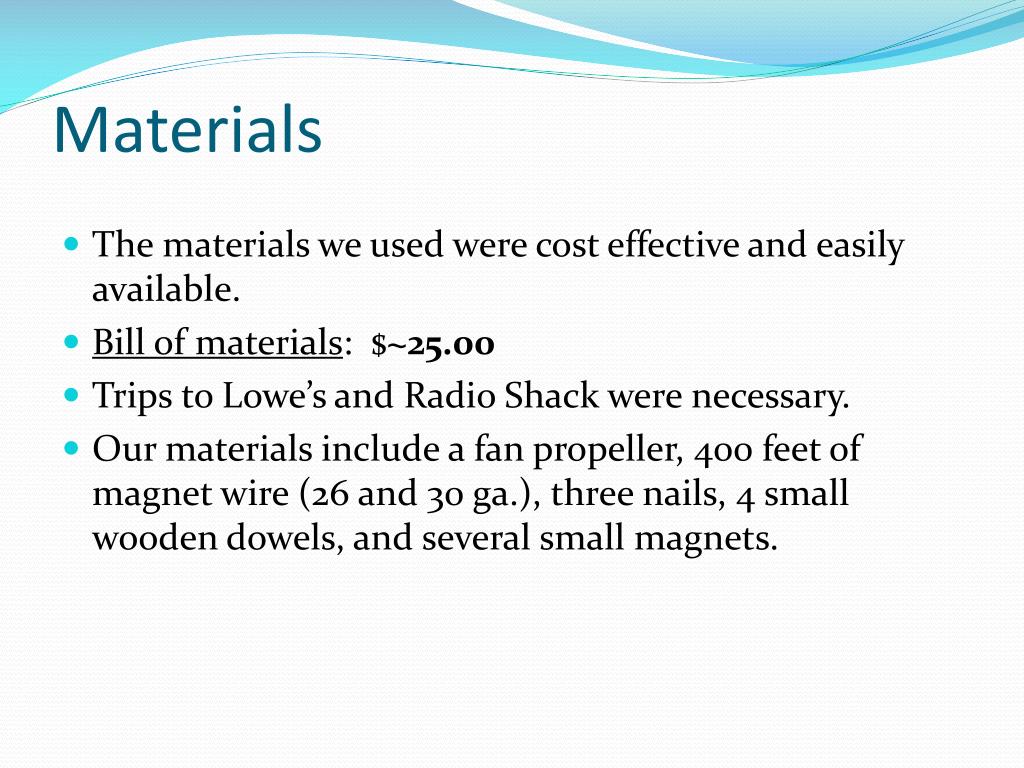

  4. Materials • The materials we used were cost effective and easily available. • Bill of materials: $~25.00 • Tripsto Lowe’s and Radio Shack were necessary. • Our materials include a fan propeller, 400 feet of magnet wire (26 and 30 ga.), three nails, 4 small wooden dowels, and several small magnets.

  5. Construction Issues • One main issue we had during our construction process was that our project was not generating enough current or voltage to light the bulb. • We tried using more wire, but the bulb still did not light. We also tried adjusting the wires and magnets to increase current flow but neither fixed the problems. • However, on Monday night, we were finally able to fix all these issues to create a project that could complete our task. • Overall, our design took ~10hours to construct. (coiling wire is tedious!)

  6. Calculations • For our calculations of power, we used the equations: • Powerin = ½ ρair Av3 and Powerout = Voltage x Amps • For efficiency, we used E = (Powerout / Powerin) x 100. • The radius of the propeller is 3 in. = .0762 m; the density of air (ρair) is 1.2 kg/m3. • Pin= 7.82 Watts • Pout= .117 Watts • Efficiency = 1.5%

  7. Conclusions • During this project, our team worked well together to accomplish the task presented. • As a team, we spent several hours coming up with sketches, ideas, and materials, then we used these to achieve our goal. • We applied several concepts we learned in EF 152 lectures and recitations. • Overall, we worked together, applied EF 152 concepts, and hopefully, fulfilled all requirements for this project.
