  1. Verifying a Two-LockConcurrent Queue Hussain Tinwala Fall 2007

  2. Overview • Simulation Review • Searching for Deadlocks • Race Conditions • Queue Verification

  3. Reviewing the Simulation

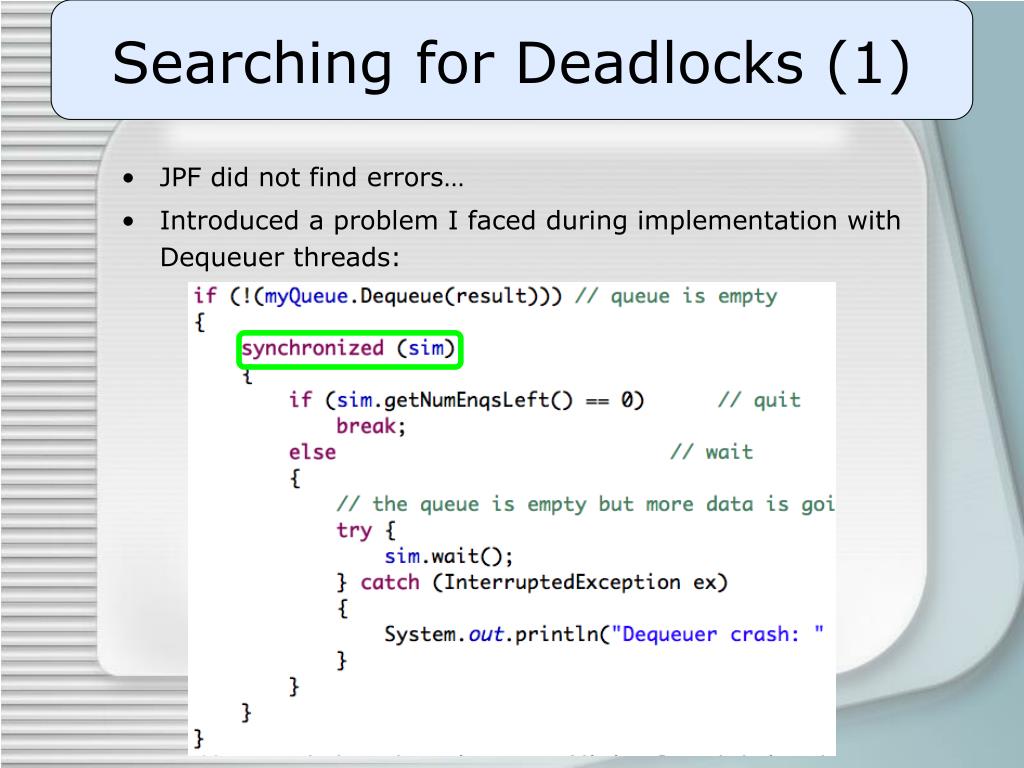

  4. Searching for Deadlocks (1) • JPF did not find errors… • Introduced a problem I faced during implementation with Dequeuer threads:

  5. Searching for Deadlocks (2)

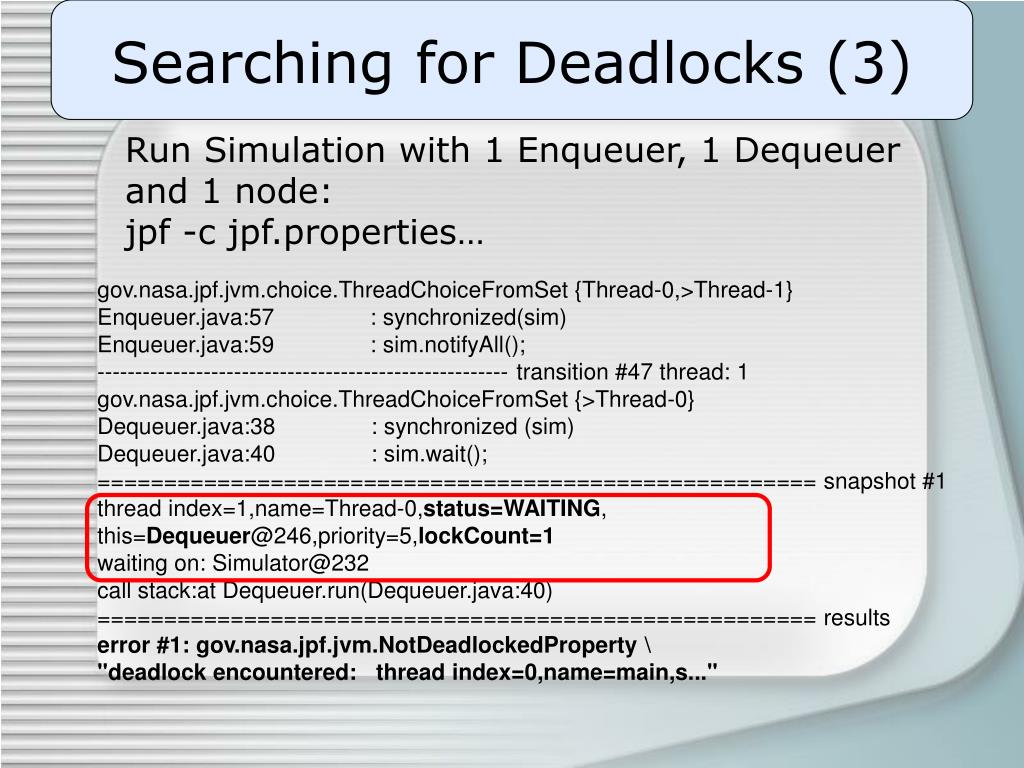

  6. Searching for Deadlocks (3) gov.nasa.jpf.jvm.choice.ThreadChoiceFromSet {Thread-0,>Thread-1} Enqueuer.java:57 : synchronized(sim) Enqueuer.java:59 : sim.notifyAll(); ------------------------------------------------------ transition #47 thread: 1 gov.nasa.jpf.jvm.choice.ThreadChoiceFromSet {>Thread-0} Dequeuer.java:38 : synchronized (sim) Dequeuer.java:40 : sim.wait(); ====================================================== snapshot #1 thread index=1,name=Thread-0,status=WAITING, this=Dequeuer@246,priority=5,lockCount=1 waiting on: Simulator@232 call stack:at Dequeuer.run(Dequeuer.java:40) ====================================================== results error #1: gov.nasa.jpf.jvm.NotDeadlockedProperty \ "deadlock encountered: thread index=0,name=main,s..." Run Simulation with 1 Enqueuer, 1 Dequeuer and 1 node: jpf -c jpf.properties…

  7. Race Conditions (1) Two types: - Critical: different outcomes - Non-critical: eventual outcome of the program is the same modify Both are synchronized methods read

  8. Race Conditions (2) • prompt> jpf -c jpf.properties … • - Removed `synchronized’ • jpf with 1 Enqueuer and 1 Dequeuer --> no error • jpf with 1 Enqueuer and n Dequeuers --> no error • jpf with >1 Enqueuer --> error • Enqueuer threads use both methods • modifies a value • reads a value • Dequeuer threads only use `getNumEnqsLeft’ • reads a value • Potential for a race condition…

  9. Race Conditions (3) • name=Thread-1,status=RUNNING,this=Enqueuer@136,priority=5,lockCount=0 • at Simulator.getNumEnqsLeft(Simulator.java:57) • at Enqueuer.run(Enqueuer.java:52) • Name=Thread-2,status=RUNNING,this=Enqueuer@137,priority=5,lockCount=0 • owned locks:Simulator@232 (because method is synchronized) • at Simulator.decrementNumEnqsLeft(Simulator.java:53) • at Enqueuer.run(Enqueuer.java:51) • =========================================== results • error #1: gov.nasa.jpf.tools.PreciseRaceDetector "race for: "int Simulator.numEnqsLeft" Thread-1 and Thread-2...” • =========================================== results • error #1: RaceDetector "potential field race: Simulator@232.numEnqsLeft" So we have 2 Enqueuers - One is updating the value - The other is attempting to read it • Using JPF to detect race conditions: • Add to configuration file: • # listeners • jpf.listener=gov.nasa.jpf.tools.precise.PreciseRaceDetector • Running JPF with 2 Enqueuers and 1 Dequeuer • jpf -c jpf.properties…

  10. Race Conditions (4) • Adding `synchronized’ to the methods removes the race condition • Question: Do both methods need to be synchronized? • Yes: To get rid of the race condition • No: A race does not have to be bad • Synchronizing the method that modifies a value may be sufficient • Added `synchronized’ only to the decrementNumEnqsLeft method which is used by Enqueuer threads. • getNumEnqsLeft method left without `synchronized’ • Tested again: jpf -c jpf.properties …

  11. Race Conditions (5) • JPF finds no deadlocks or errors but it does find a race condition • But that is okay… it is a non-critical race condition • No matter what order the execution takes, there will always be AT LEAST one Enqueuer thread that will find • getNumEnqsLeft() == 0 • And so, it will be able to notify any waiting Dequeuer threads. • Overall Advantage: There is less blocking in the Enqueuer thread

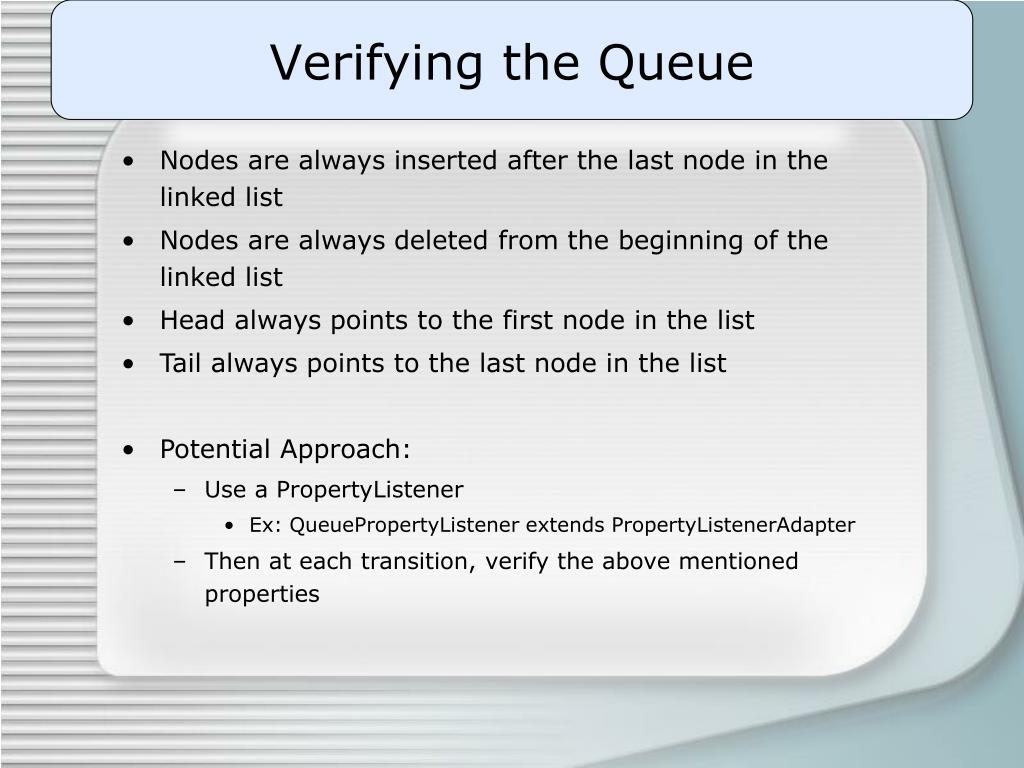

  12. Verifying the Queue • Nodes are always inserted after the last node in the linked list • Nodes are always deleted from the beginning of the linked list • Head always points to the first node in the list • Tail always points to the last node in the list • Potential Approach: • Use a PropertyListener • Ex: QueuePropertyListener extends PropertyListenerAdapter • Then at each transition, verify the above mentioned properties

  13. Thank you Questions?
