  1. Breeze Boat Lifts • Galvanized Lift Piling Placement • All measurements Are To Center of Piling • Two Thirds of the Boat Will Normally Extend Forward • From the Center of the Lift 6000# 4000# 120” 132” BOAT BOAT 122” 8” Diameter Pilings 122” 10000# 8000# BOAT BOAT 128” 140” 146” 132” 8” Diameter Pilings 12000# 16000# BOAT BOAT 156” 164” 10” Diameter Pilings 84” 84” 168”

  2. Breeze Boat Lifts • Galvanized Lift Piling Placement • All measurements Are To Center of Piling • Two Thirds of the Boat Will Normally Extend Forward • From the Center of the Lift 20,000# to 40,000# Lifts 192” OR AS NEEDED BOAT ORIENTATION 50” 50” 106” 8” Diameter Pilings

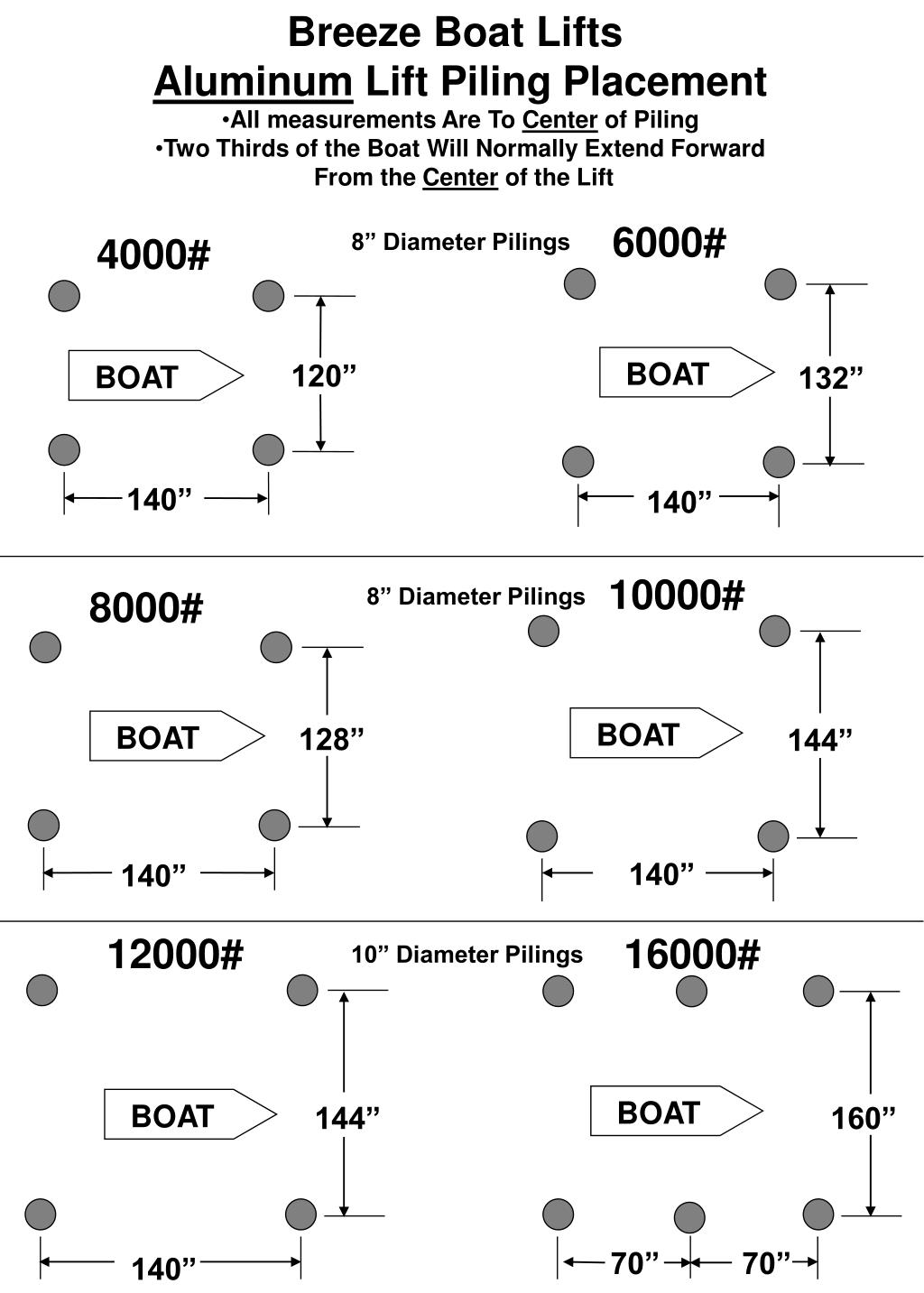

  3. Breeze Boat Lifts • Aluminum Lift Piling Placement • All measurements Are To Center of Piling • Two Thirds of the Boat Will Normally Extend Forward • From the Center of the Lift 6000# 8” Diameter Pilings 4000# BOAT 120” BOAT 132” 140” 140” 10000# 8” Diameter Pilings 8000# BOAT BOAT 128” 144” 140” 140” 12000# 16000# 10” Diameter Pilings BOAT BOAT 144” 160” 70” 70” 140”

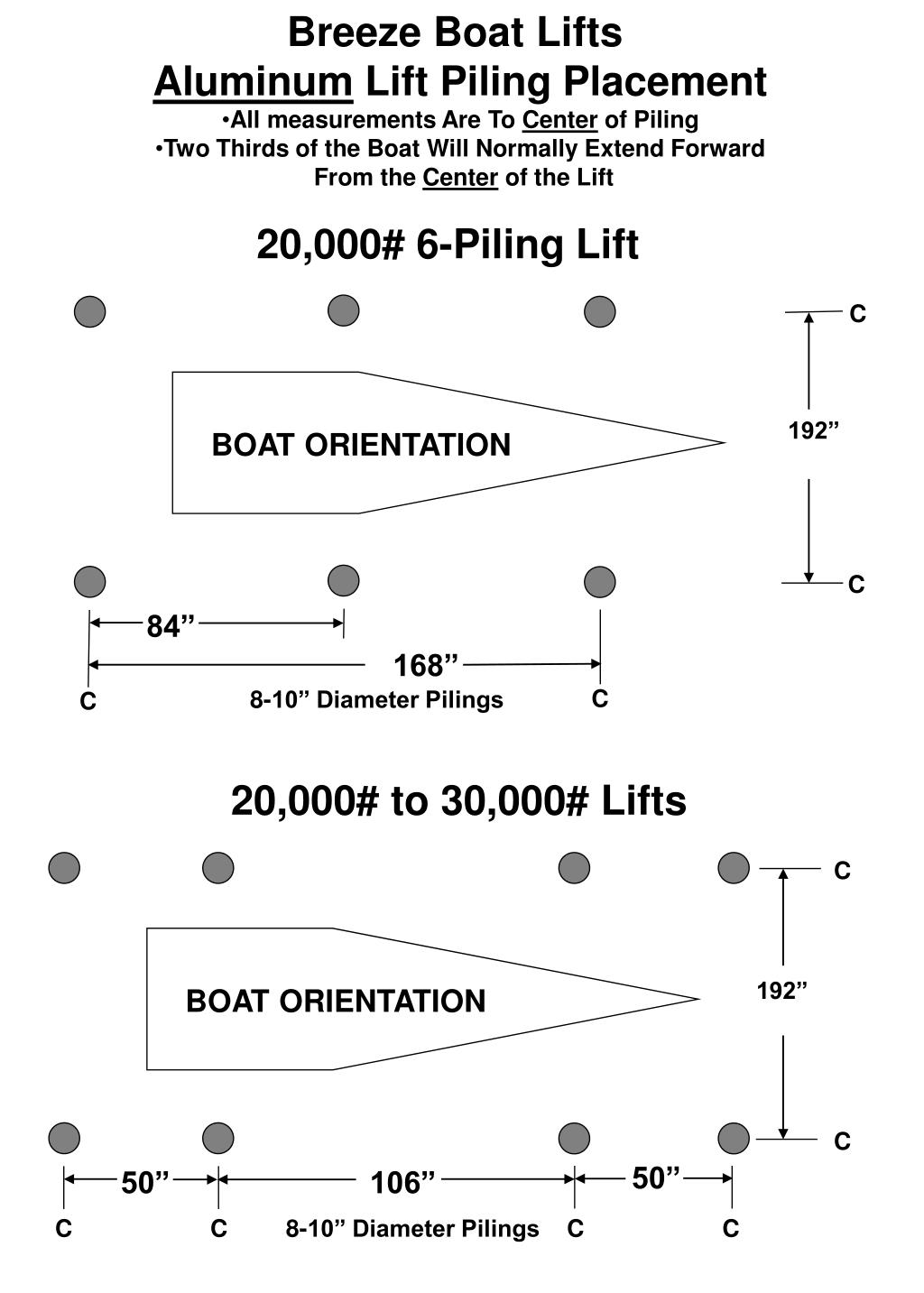

  4. Breeze Boat Lifts • Aluminum Lift Piling Placement • All measurements Are To Center of Piling • Two Thirds of the Boat Will Normally Extend Forward • From the Center of the Lift 20,000# 6-Piling Lift C 192” BOAT ORIENTATION C 84” 168” C 8-10” Diameter Pilings C 20,000# to 30,000# Lifts C 192” BOAT ORIENTATION C 50” 50” 106” C C 8-10” Diameter Pilings C C
