  1. GDC Workshop Session 2 - DVR System 2003/11

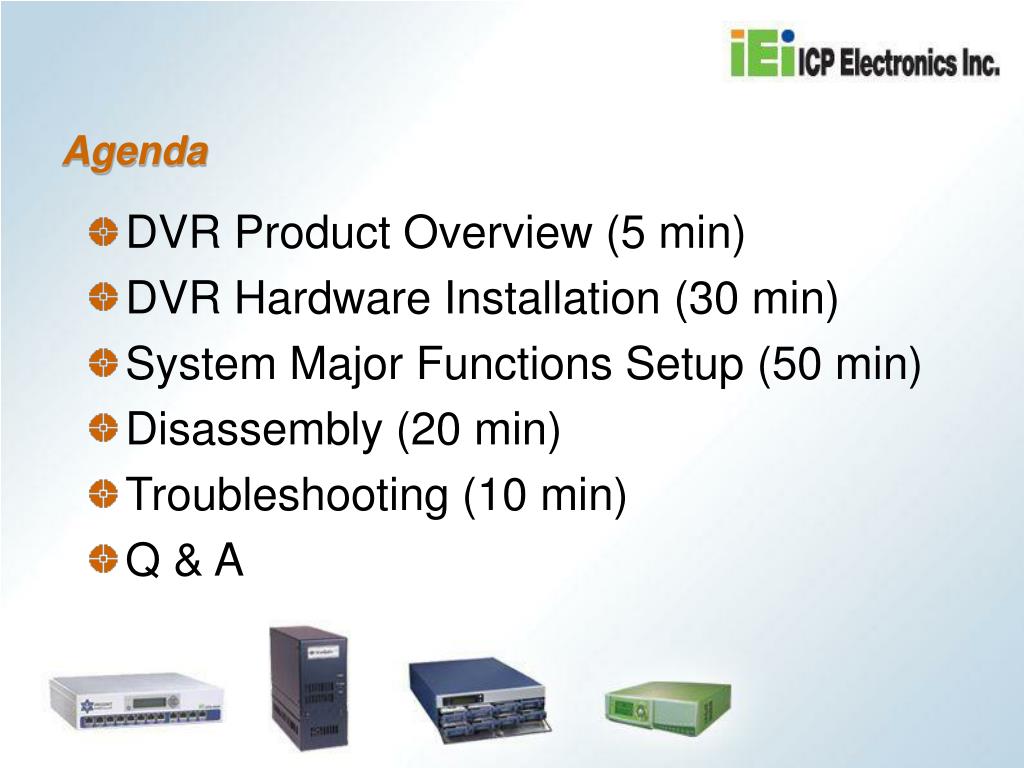

  2. Agenda • DVR Product Overview (5 min) • DVR Hardware Installation (30 min) • System Major Functions Setup (50 min) • Disassembly (20 min) • Troubleshooting (10 min) • Q & A

  3. DVR Product Overview • Team Members-James, Toby, Jam, Ralph, Sharon • IEI DVR Series Product Line-VioGate-100/120, VioCard-100 • Workshop Environment Introduction-Network DVR System

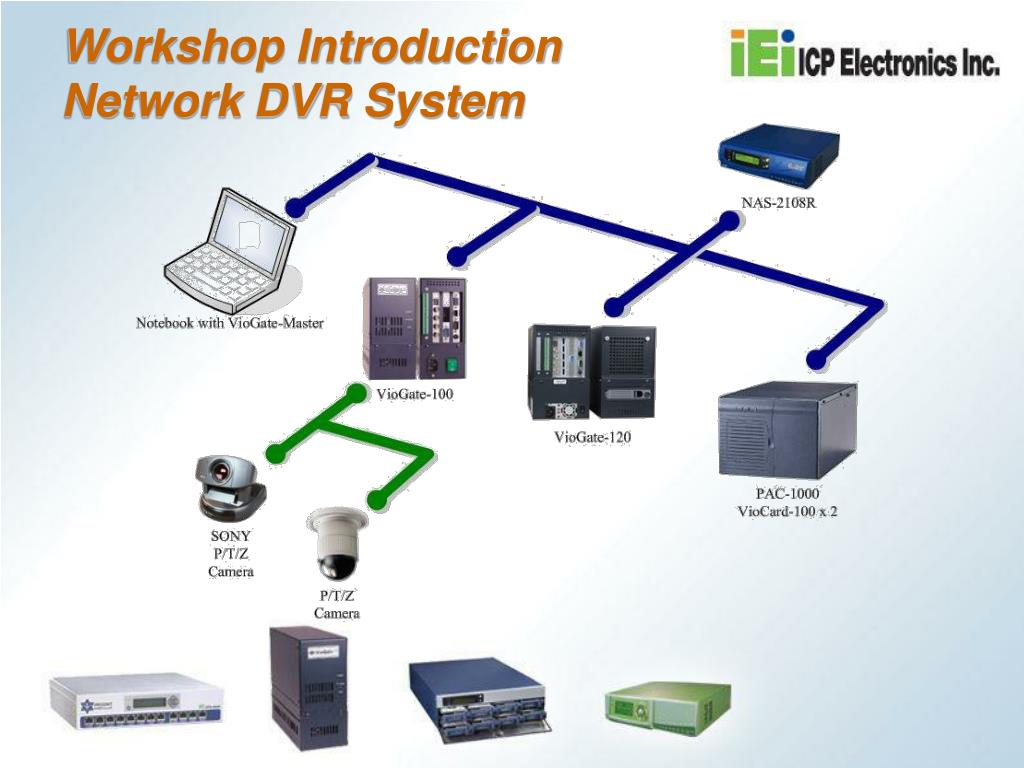

  4. Workshop IntroductionNetwork DVR System

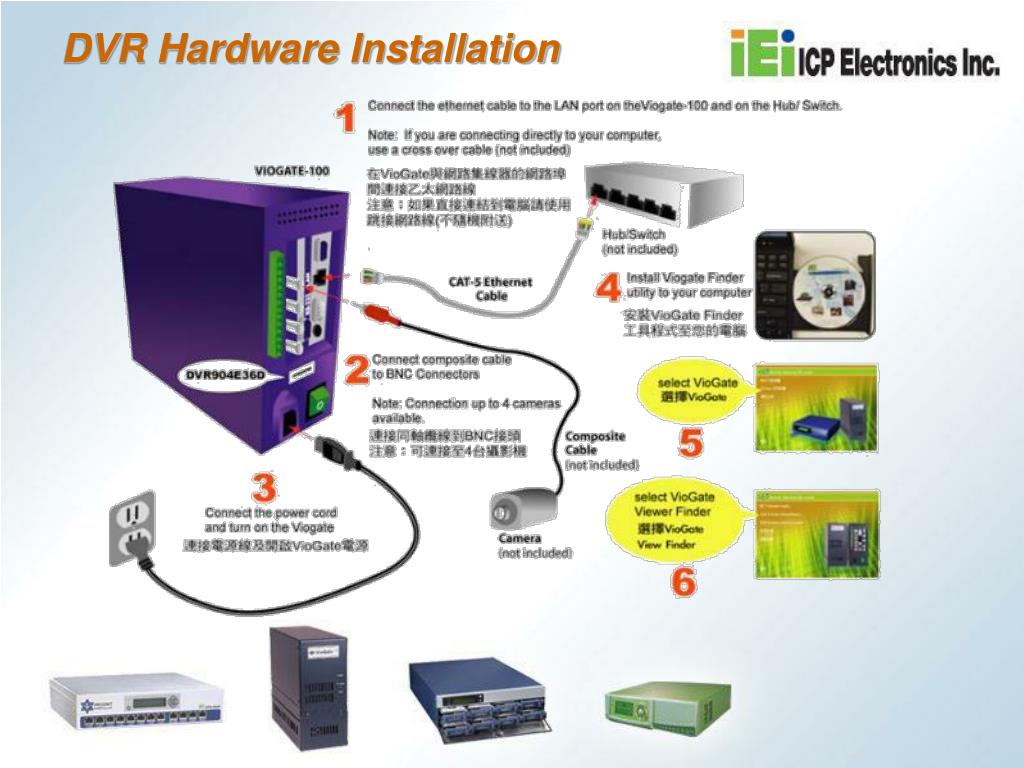

  5. DVR Hardware Installation

  6. Input 1 Ground 1 Input 2 Ground 2 Input 3 Ground 3 Input 4 Ground 4 Input Connector DVR Hardware Installation • Install PTZ Camera Connector • Install Emergency Button VioGate GPI Input Ground Ground DC 0.5~24V POWER COM NC NO Sensor

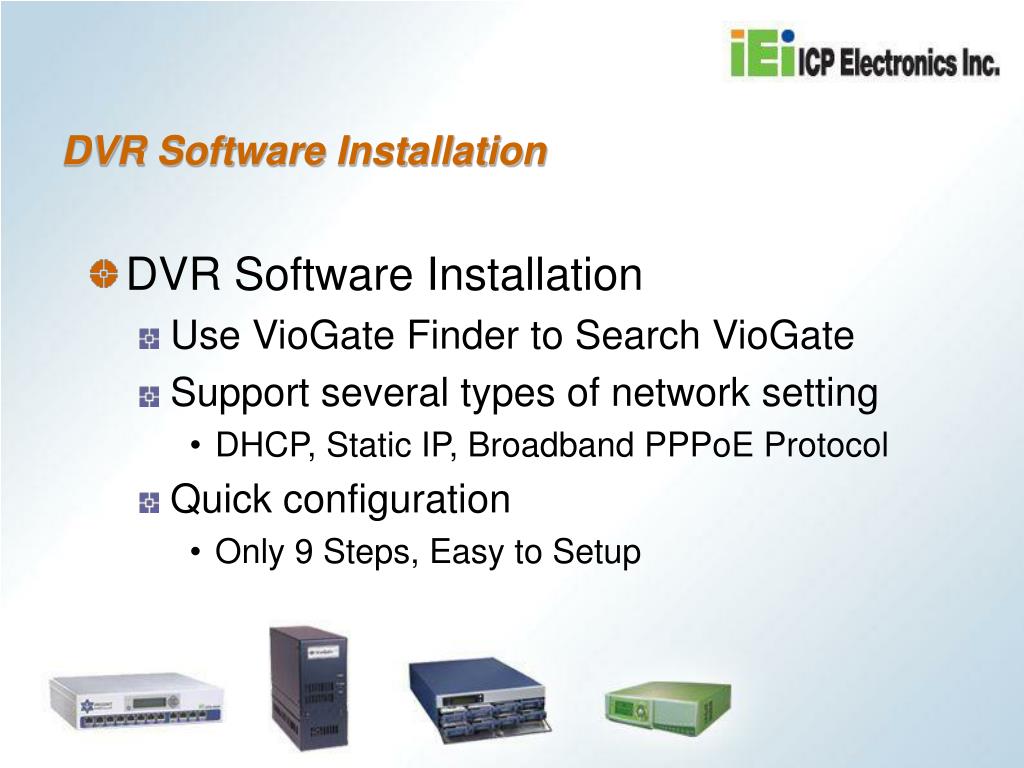

  7. DVR Software Installation • DVR Software Installation • Use VioGate Finder to Search VioGate • Support several types of network setting • DHCP, Static IP, Broadband PPPoE Protocol • Quick configuration • Only 9 Steps, Easy to Setup

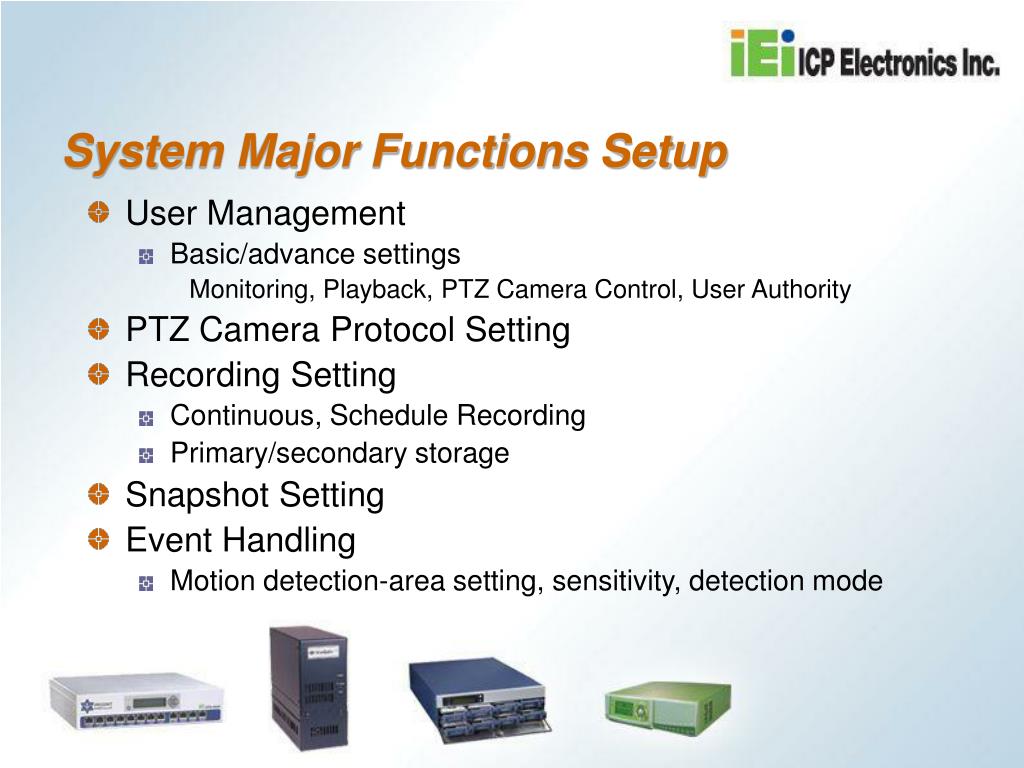

  8. System Major Functions Setup • User Management • Basic/advance settings Monitoring, Playback, PTZ Camera Control, User Authority • PTZ Camera Protocol Setting • Recording Setting • Continuous, Schedule Recording • Primary/secondary storage • Snapshot Setting • Event Handling • Motion detection-area setting, sensitivity, detection mode

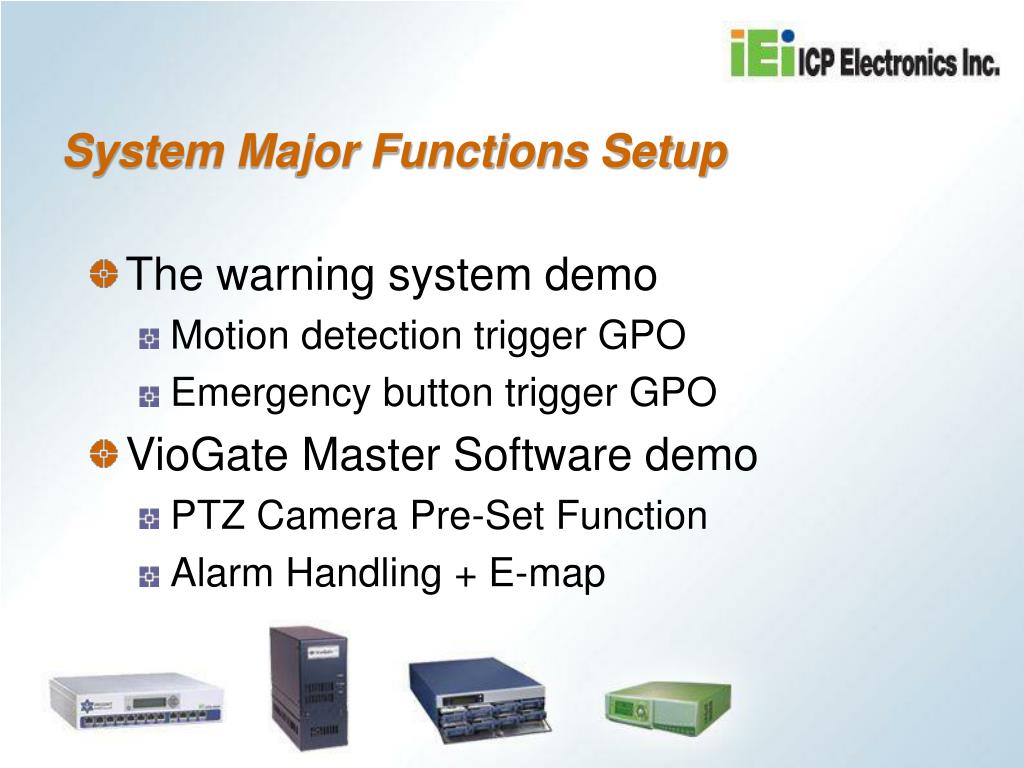

  9. System Major Functions Setup • The warning system demo • Motion detection trigger GPO • Emergency button trigger GPO • VioGate Master Software demo • PTZ Camera Pre-Set Function • Alarm Handling + E-map

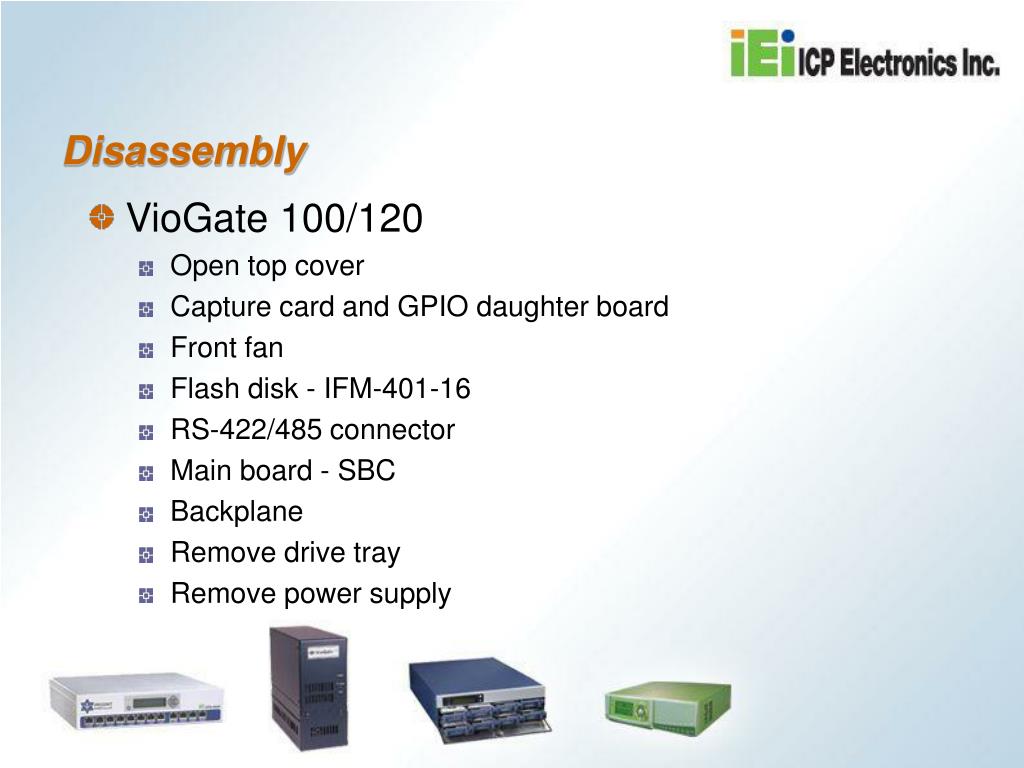

  10. Disassembly • VioGate 100/120 • Open top cover • Capture card and GPIO daughter board • Front fan • Flash disk - IFM-401-16 • RS-422/485 connector • Main board - SBC • Backplane • Remove drive tray • Remove power supply

  11. Troubleshooting

  12. Q & A
