Why Developing?

Why Developing?. Restore aquifer, following damage due to drilling Reduce head loss by increasing permeability Increase well efficiency Reduce drawdown and cost of extracting groundwater Restore/Rehabilitate well due to gradual clogging and biofouling. How to reduce head loss?.

saxon
Télécharger la présentation

Why Developing?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

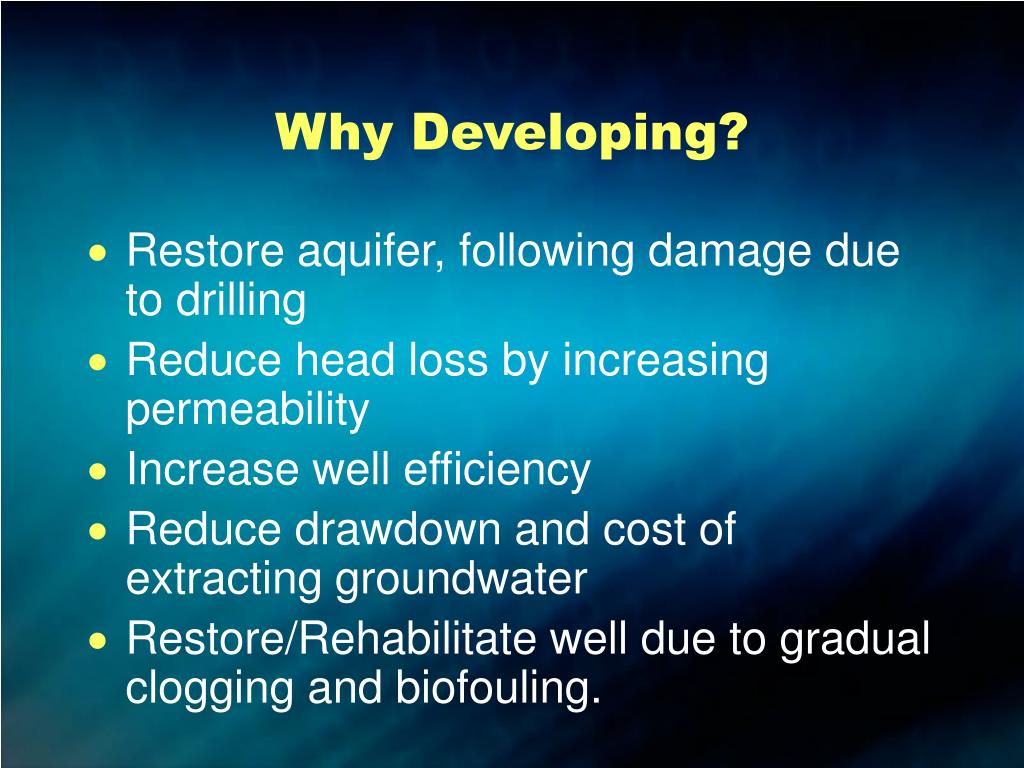

  1. Why Developing? • Restore aquifer, following damage due to drilling • Reduce head loss by increasing permeability • Increase well efficiency • Reduce drawdown and cost of extracting groundwater • Restore/Rehabilitate well due to gradual clogging and biofouling.

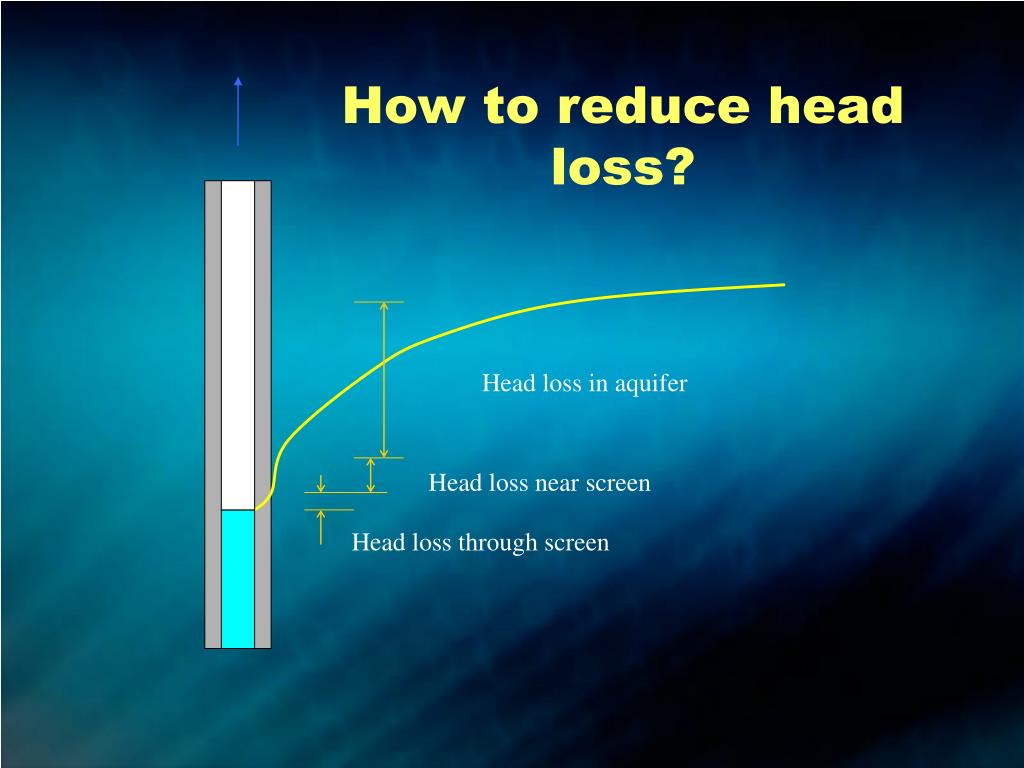

  2. How to reduce head loss? Head loss in aquifer Head loss near screen Head loss through screen

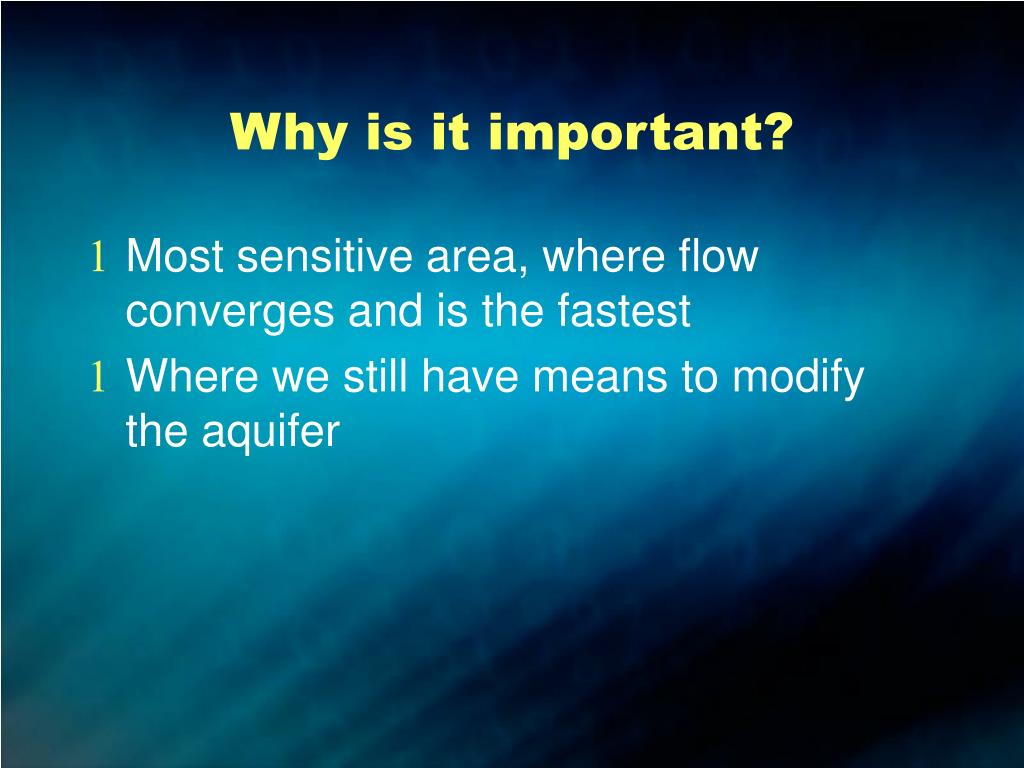

  3. Why is it important? • Most sensitive area, where flow converges and is the fastest • Where we still have means to modify the aquifer

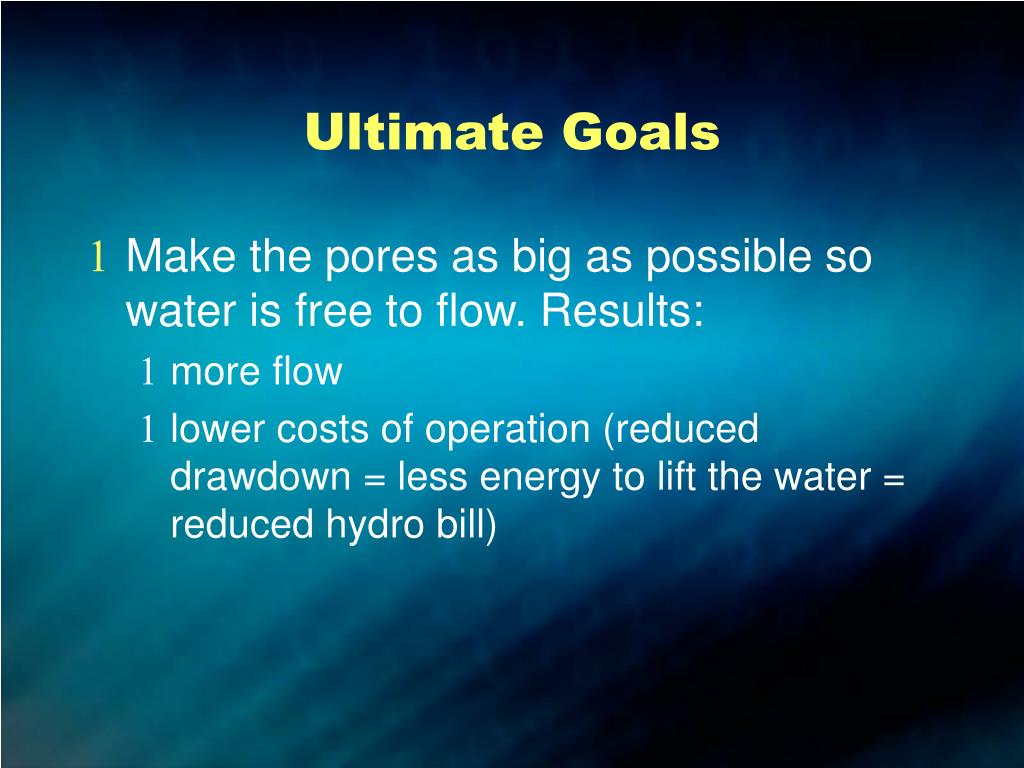

  4. Ultimate Goals • Make the pores as big as possible so water is free to flow. Results: • more flow • lower costs of operation (reduced drawdown = less energy to lift the water = reduced hydro bill)

  5. Other goals • Removes fines • Water quality • Minimize abrasion on equipment (extend life of pumping and piping equipment) • Creates zone of Autofiltration

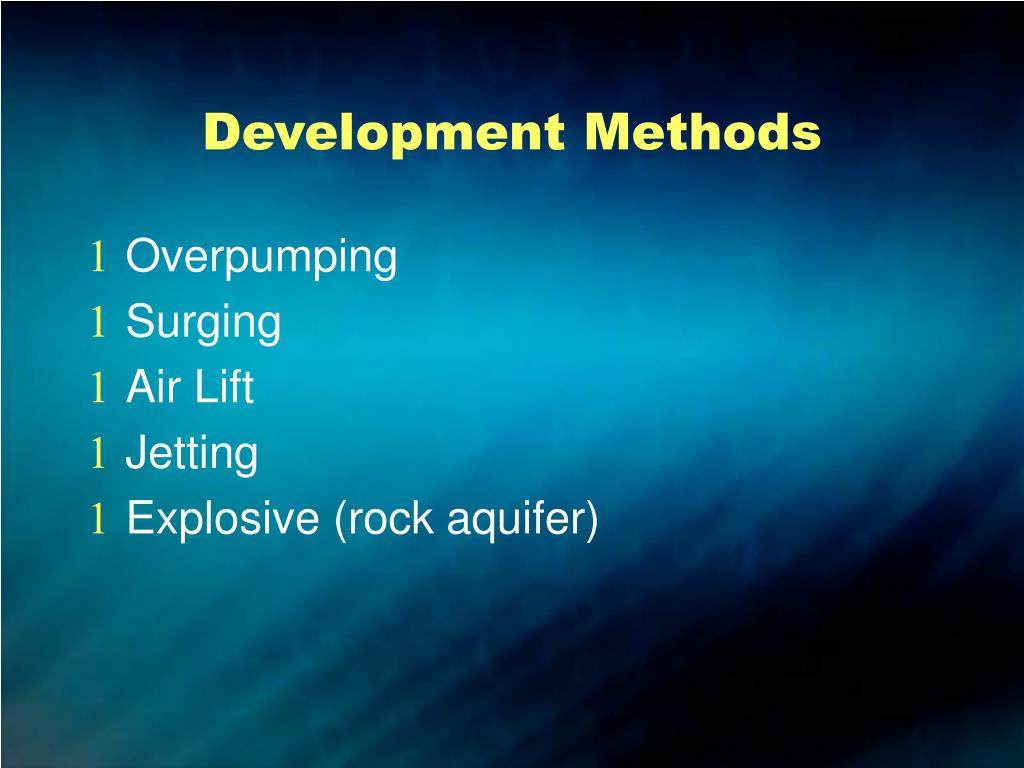

  6. Development Methods • Overpumping • Surging • Air Lift • Jetting • Explosive (rock aquifer)

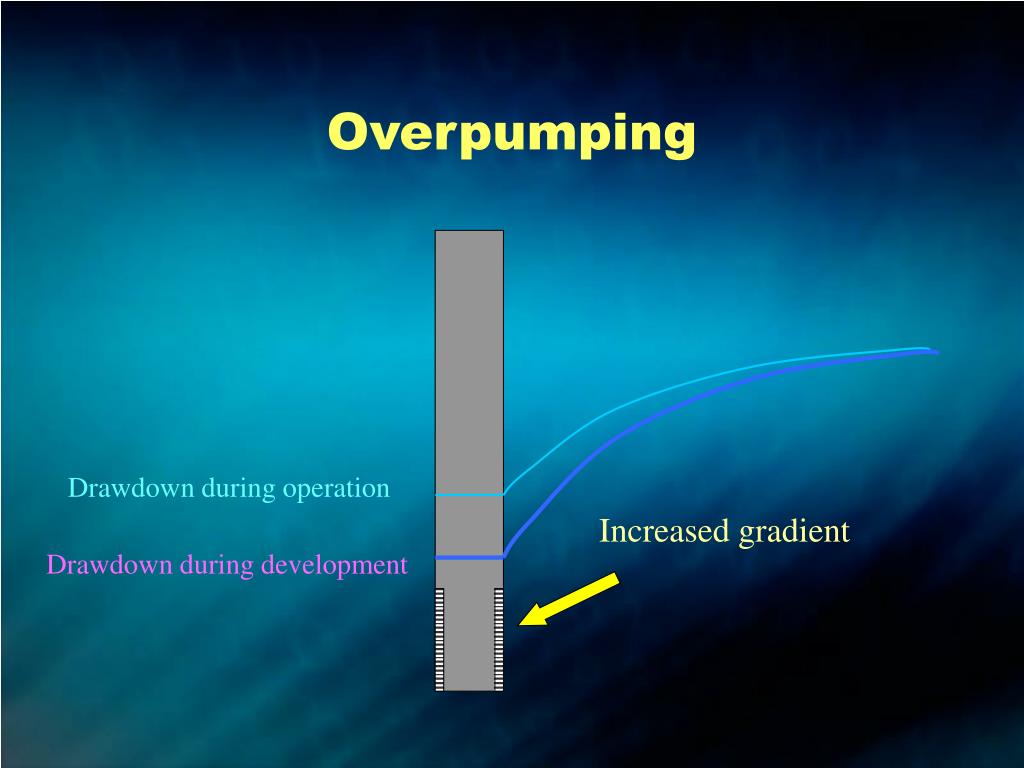

  7. Overpumping Drawdown during operation Increased gradient Drawdown during development

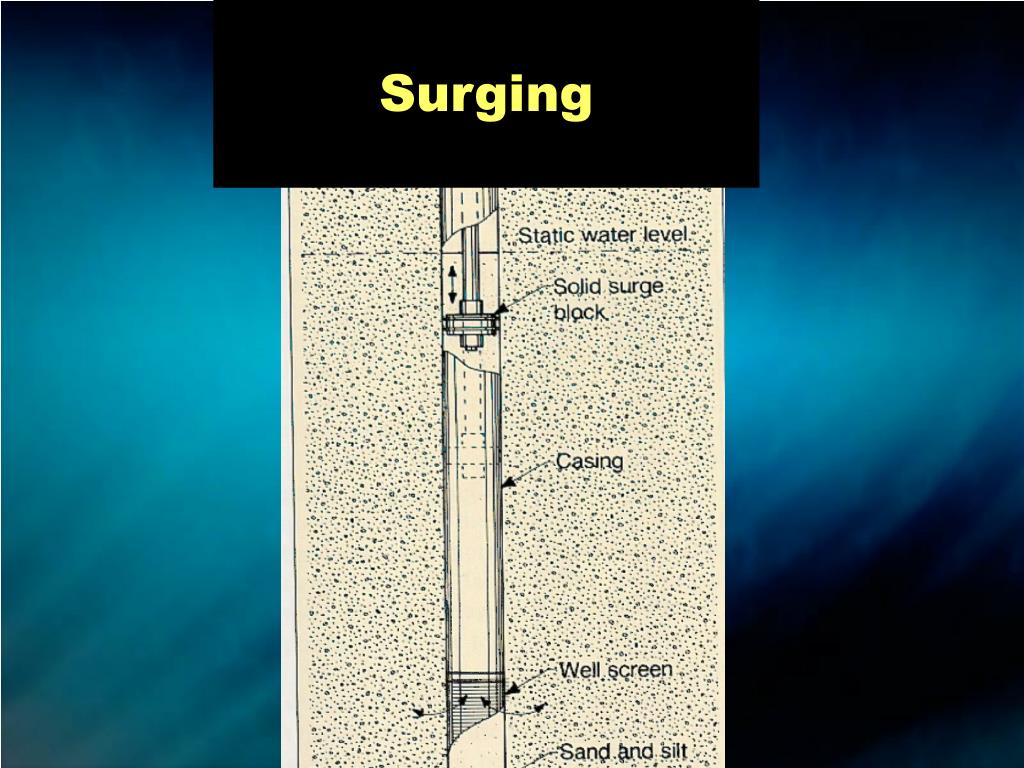

  8. Surging

  9. Air lift

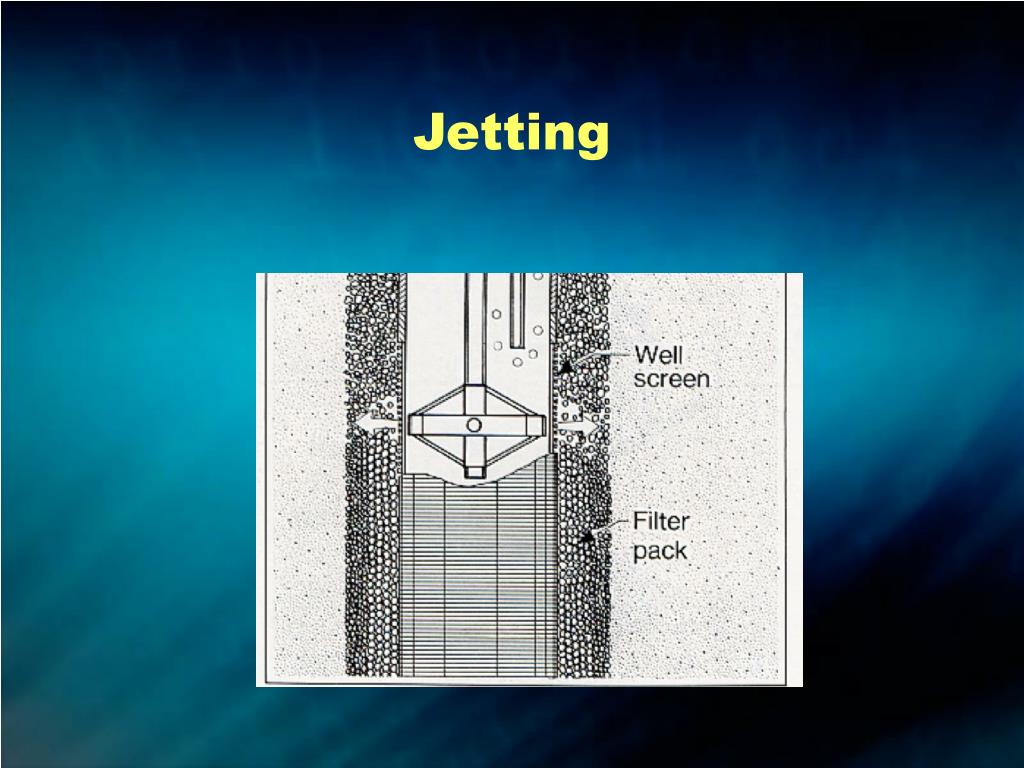

  10. Jetting

  11. Simple No special equiment No reverse flow No agitation of soil particles Low energy impact Low efficiency Requires removal of fines Overpumping Pros Cons

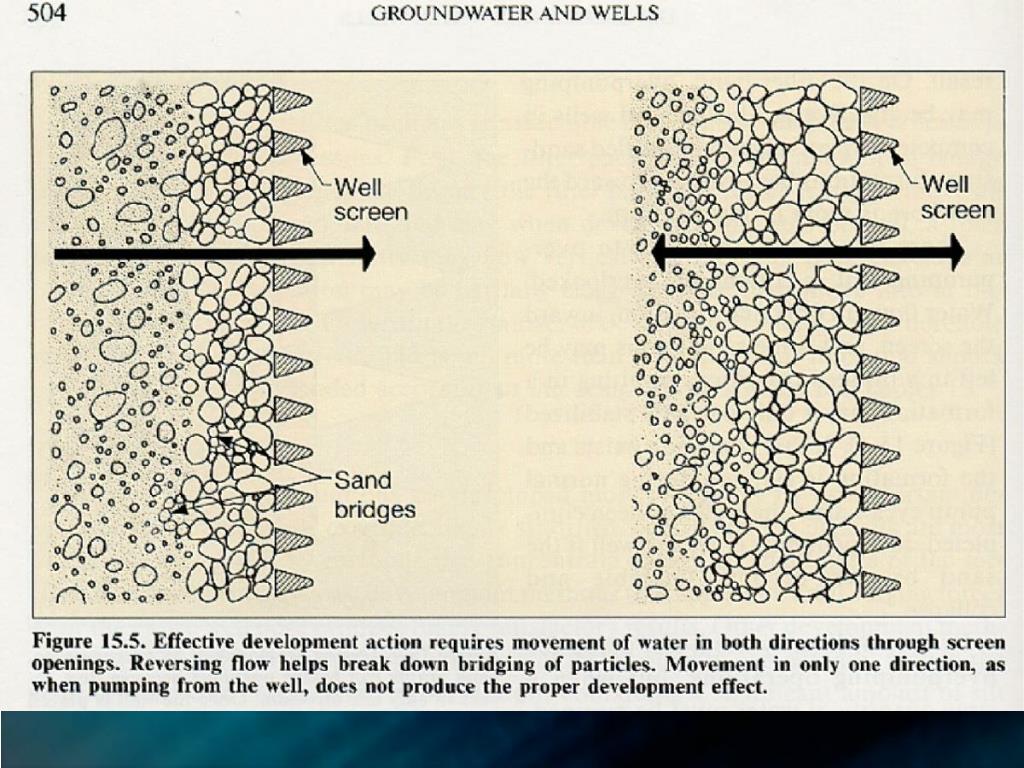

  12. Autofiltration

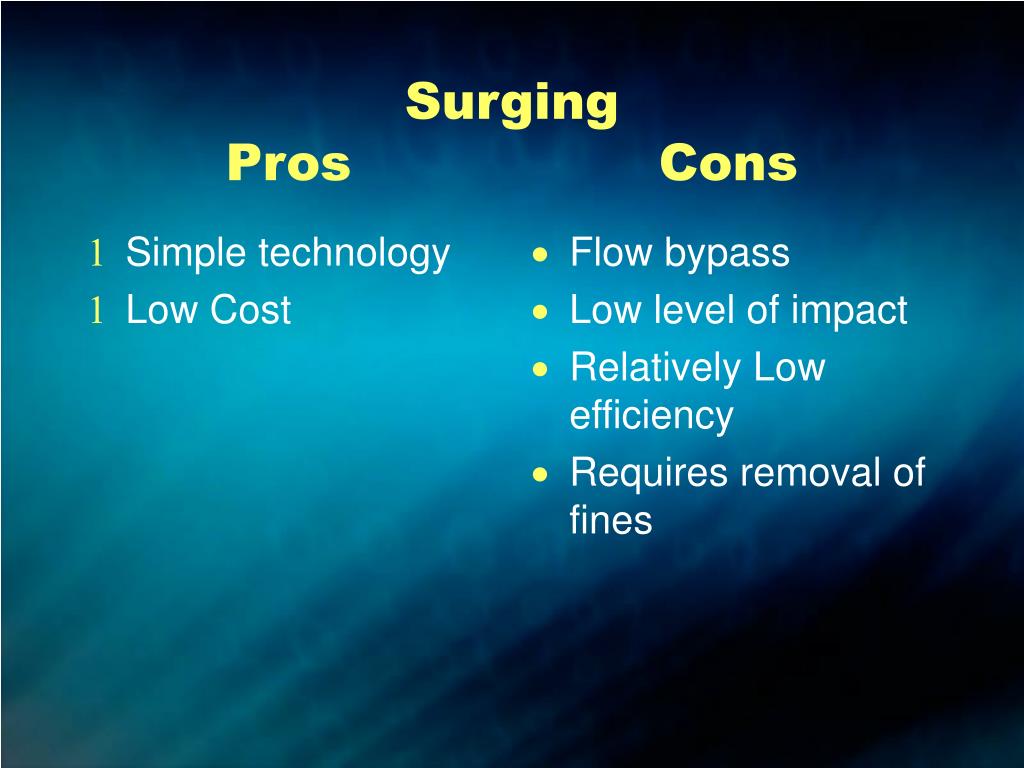

  13. Simple technology Low Cost Flow bypass Low level of impact Relatively Low efficiency Requires removal of fines Surging Pros Cons

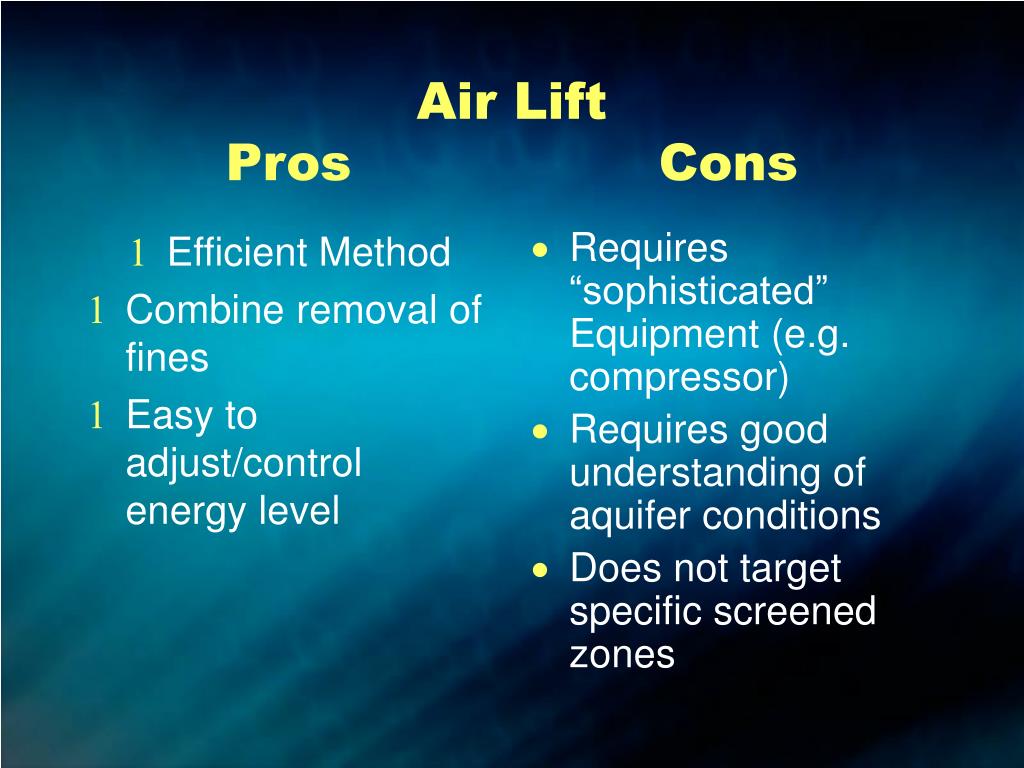

  14. Efficient Method Combine removal of fines Easy to adjust/control energy level Requires “sophisticated” Equipment (e.g. compressor) Requires good understanding of aquifer conditions Does not target specific screened zones Air Lift Pros Cons

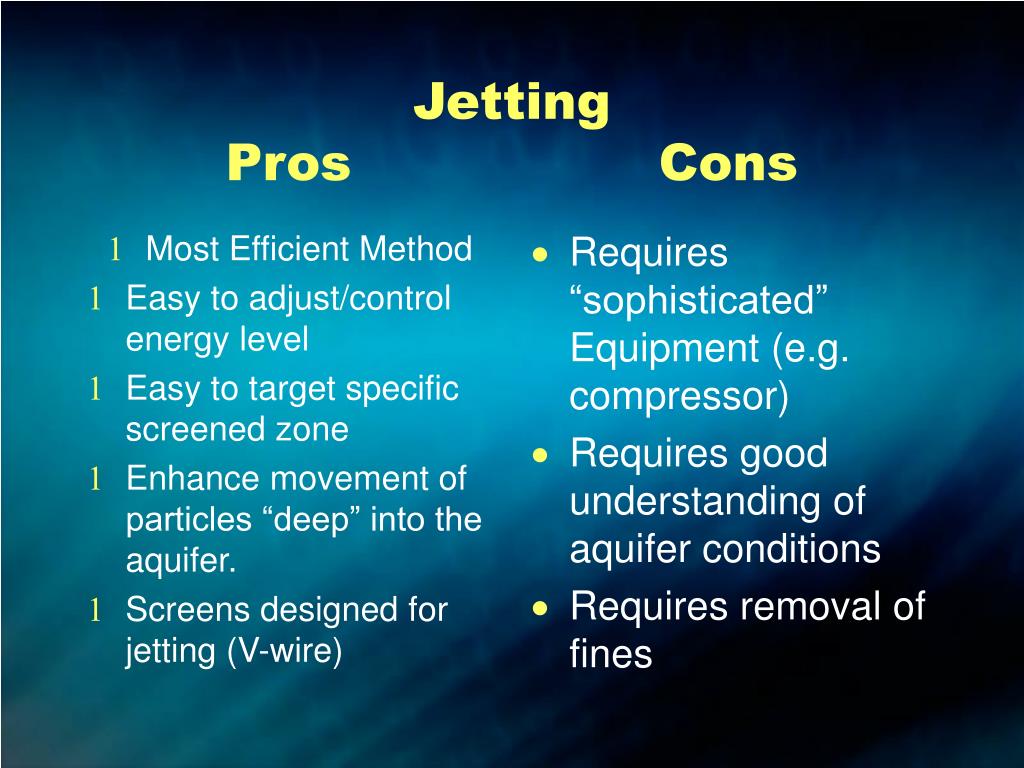

  15. Most Efficient Method Easy to adjust/control energy level Easy to target specific screened zone Enhance movement of particles “deep” into the aquifer. Screens designed for jetting (V-wire) Requires “sophisticated” Equipment (e.g. compressor) Requires good understanding of aquifer conditions Requires removal of fines Jetting Pros Cons

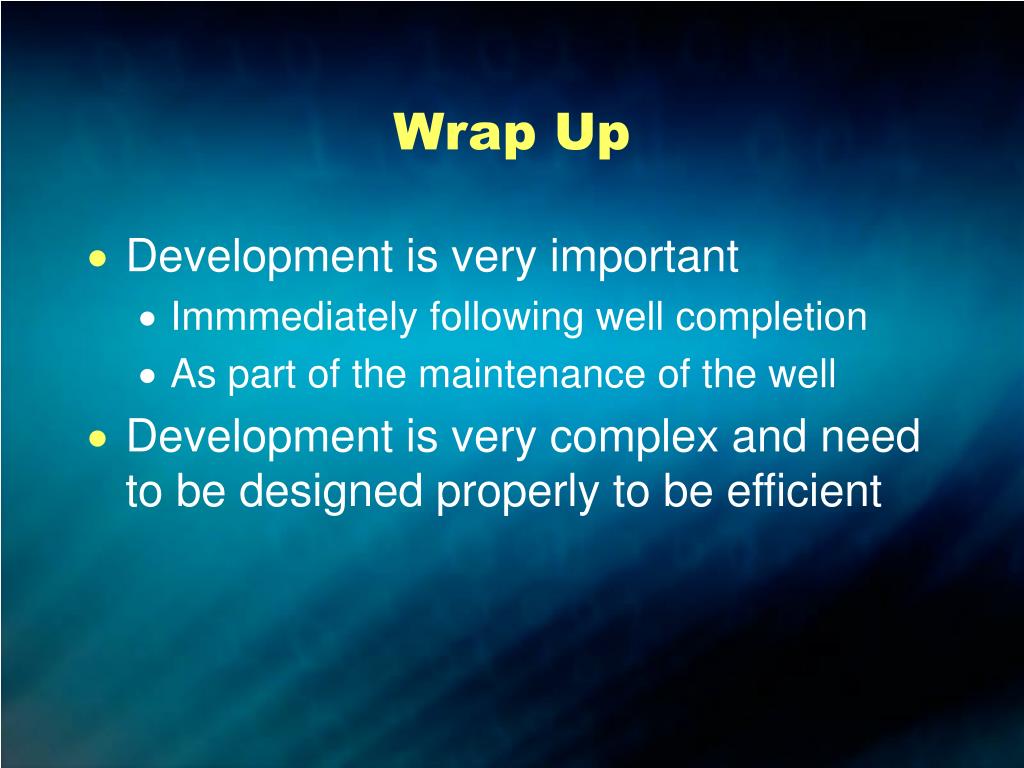

  16. Wrap Up • Development is very important • Immmediately following well completion • As part of the maintenance of the well • Development is very complex and need to be designed properly to be efficient
