An Algorithm to Align Words for Historical Comparison

1. An Algorithm to Align Wordsfor Historical Comparison Michael A. Covington (The University of Georgia) Journal of Computational Linguistics 1996 February 09, 2011 Hyojin Song

2. Contents • Introduction • Algorithm • Experiment • Conclusion

3. Introduction 음성인식을 좀 더 잘 할 수 없을까?? Mami’s here!! Maumi …… ..Why…...mam……..

4. Introduction • The goal of this paper is to apply the comparative method to a pair of words suspected of being cognate • An algorithm for finding probably correct alignments on the basis of phonetic similarity • An evaluation metric • A guided search procedure • For example, the correct alignment of Latin “do” with Greek “didomi” is

5. Introduction • The segments of two words may be misaligned • affixes (living or fossilized) • reduplication • sound changes • elision • Monophthongization • Motivation • A guided search algorithm for finding the best alignment of one word with another • Both words are given in a broad phonetic transcription • Only see surface forms, not sound laws or phonological rules

6. Contents • Introduction • Algorithm • Alignment • The Search Space • The Full Evaluation Metric • Experiment • Conclusion

7. AlgorithmAlignment • Inexact string matching • Same words are only exact string matching • Finding the alignment that minimizes the difference between the two words • Dynamic programming algorithm • Well known for inexact string matching • However we do not use it, for several reasons • The string being aligned are relatively short • The efficiency of dynamic programming on long strings is not needed • It gives only one alignment for each pair of strings, not n best alternatives a b c b d e a b ─ c ─ b d e

8. AlgorithmAlignment • An alignment can be viewed as • A way of stepping through two words concurrently • Consuming all the segments of each • The aligner can perform either a match or skip • A match: when the aligner consumes a segment from each of the two words in a single step • A skip: when it consumes a segment from one word while leaving the other word alone a b ─ c ─ b d e

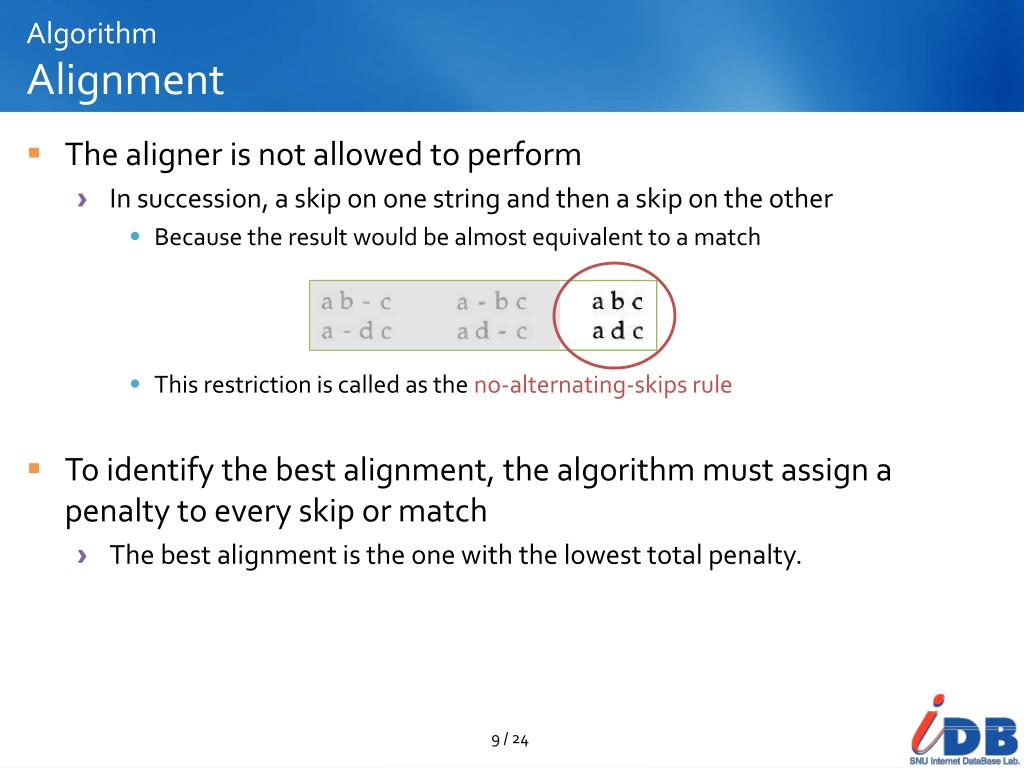

9. AlgorithmAlignment • The aligner is not allowed to perform • In succession, a skip on one string and then a skip on the other • Because the result would be almost equivalent to a match • This restriction is called as the no-alternating-skips rule • To identify the best alignment, the algorithm must assign a penalty to every skip or match • The best alignment is the one with the lowest total penalty.

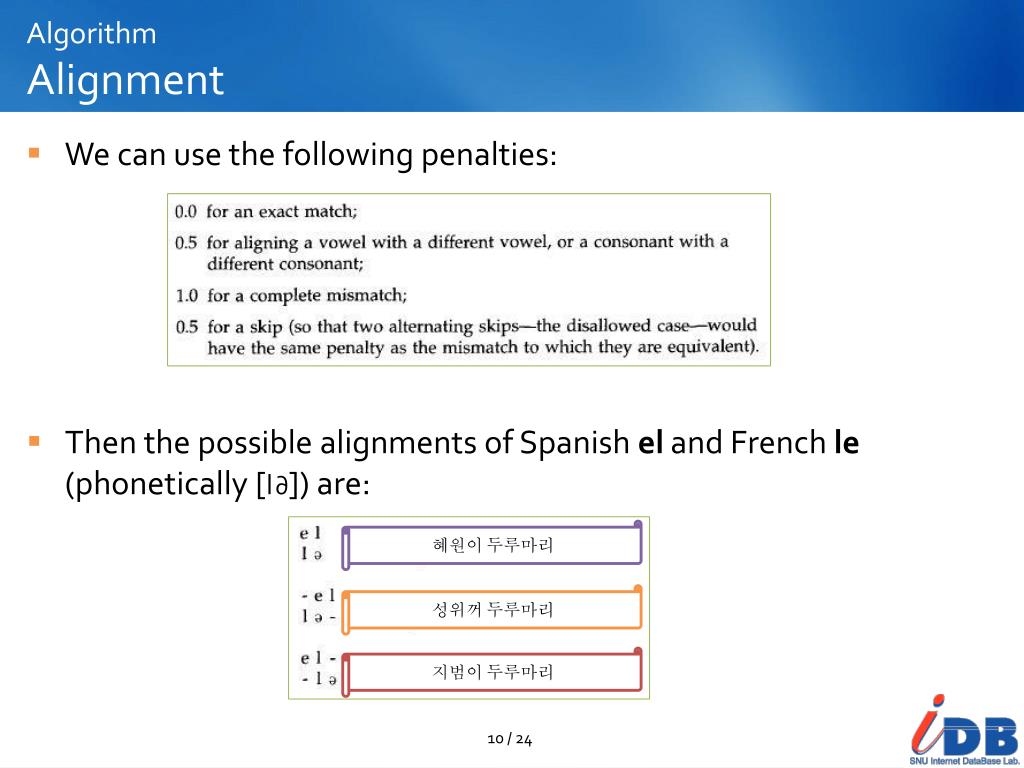

10. AlgorithmAlignment • We can use the following penalties: • Then the possible alignments of Spanish el and French le (phonetically [l∂]) are: 혜원이 두루마리 성위꺼 두루마리 지범이두루마리

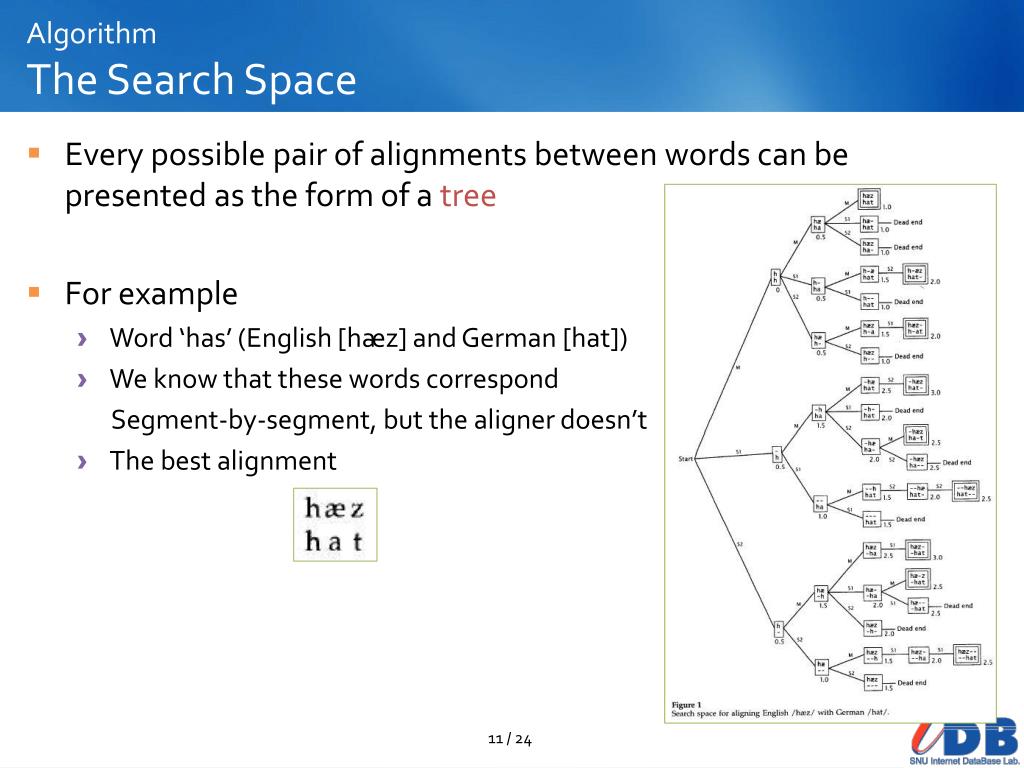

11. AlgorithmThe Search Space • Every possible pair of alignments between words can be presented as the form of a tree • For example • Word ‘has’ (English [haez] and German [hat]) • We know that these words correspond Segment-by-segment, but the aligner doesn’t • The best alignment

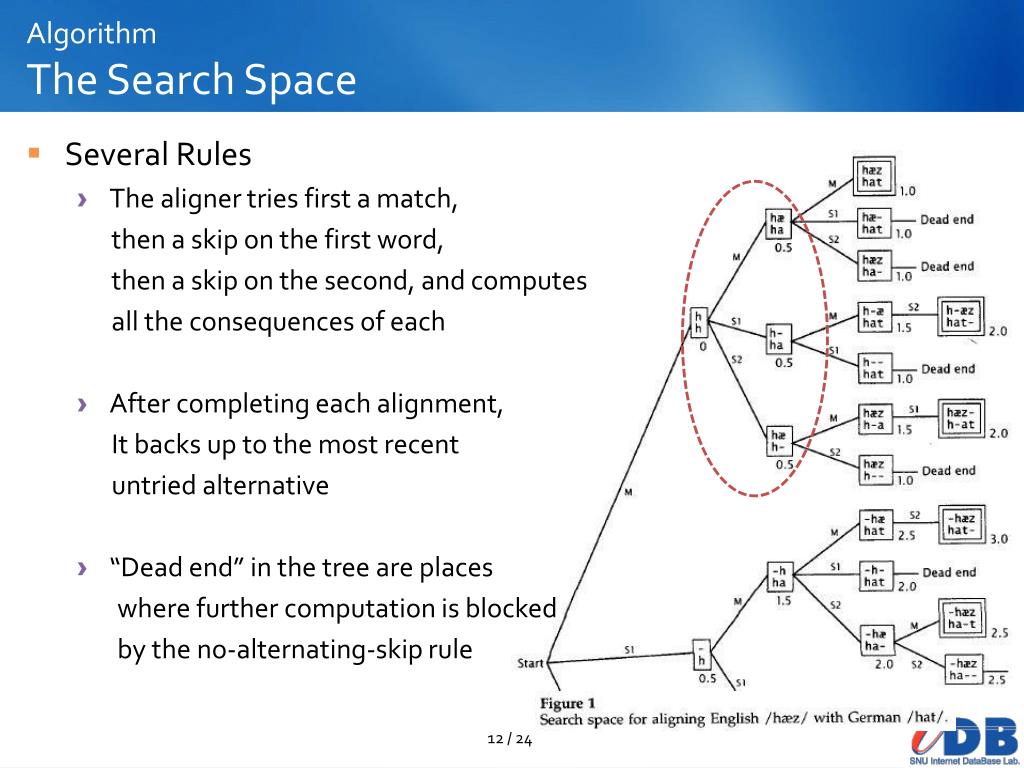

12. AlgorithmThe Search Space • Several Rules • The aligner tries first a match, then a skip on the first word, then a skip on the second, and computes all the consequences of each • After completing each alignment, It backs up to the most recent untried alternative • “Dead end” in the tree are places where further computation is blocked by the no-alternating-skip rule

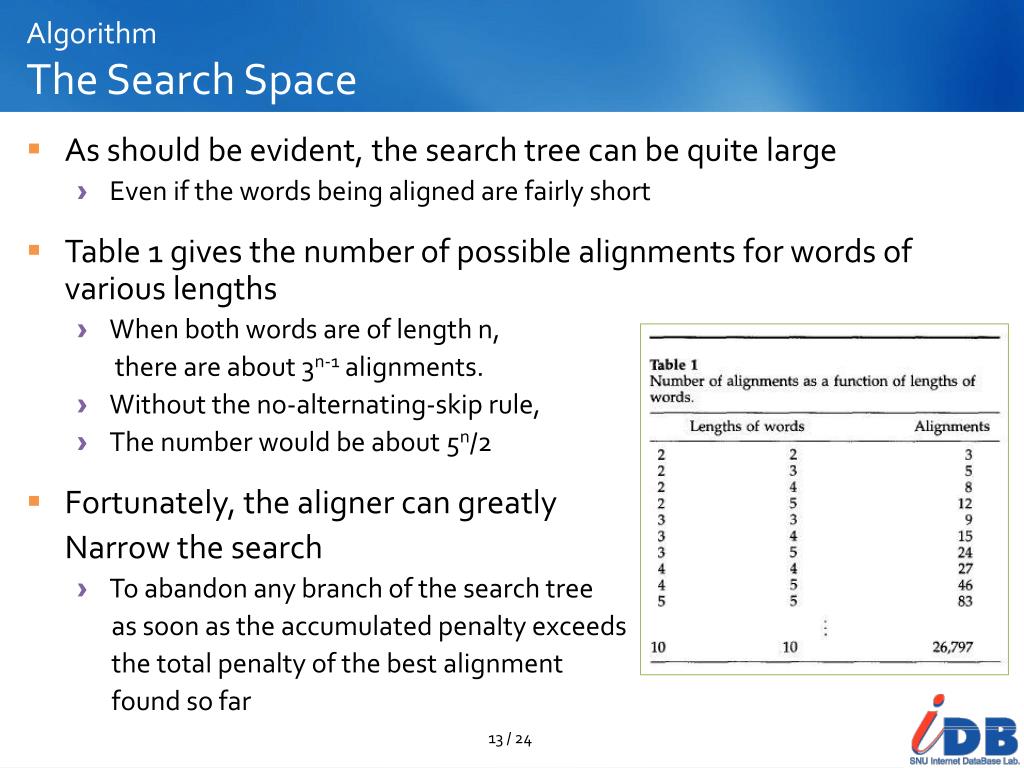

13. AlgorithmThe Search Space • As should be evident, the search tree can be quite large • Even if the words being aligned are fairly short • Table 1 gives the number of possible alignments for words of various lengths • When both words are of length n, there are about 3n-1 alignments. • Without the no-alternating-skip rule, • The number would be about 5n/2 • Fortunately, the aligner can greatly Narrow the search • To abandon any branch of the search tree as soon as the accumulated penalty exceeds the total penalty of the best alignment found so far

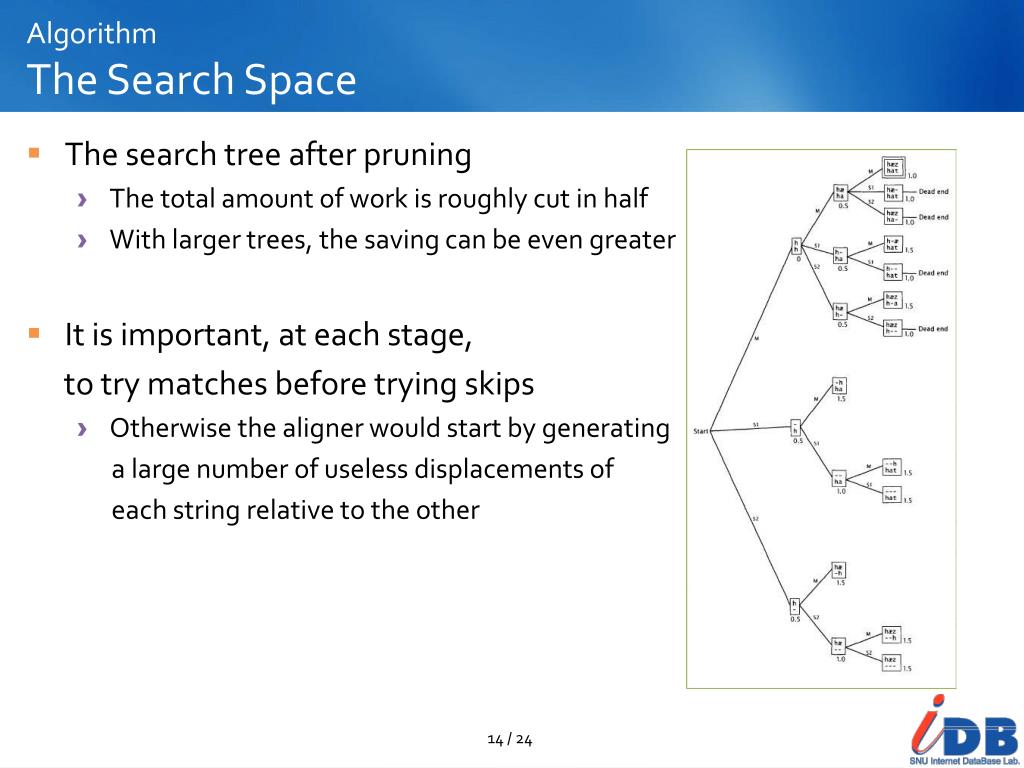

14. AlgorithmThe Search Space • The search tree after pruning • The total amount of work is roughly cut in half • With larger trees, the saving can be even greater • It is important, at each stage, to try matches before trying skips • Otherwise the aligner would start by generating a large number of useless displacements of each string relative to the other

15. AlgorithmThe Full Evaluation Metric • Table 2 shows an evaluation metric • Developed by trial and error • Using the 82 cognate pairs • For example • Maumi VS Mami m a u m i m a - m i 0 + 5 + 50 + 0 + 5 = 60

16. Contents • Introduction • Algorithm • Experiment • Results on Actual Data • Conclusion

17. ExperimentResults on Actual Data • Table 3 to 10 show how the aligner performed on 82 cognate pairs in various languages • Tables 5-8 are loosely based on the Swadesh word lists of Ringe 1992 • Table 3, 4: test set of Spanish-French cognate pairs • This test set is chosen because they are historically close but phonologically very different • The aligner performed almost flawlessly

18. ExperimentResults on Actual Data • Table 5, 6: test set of English and German cognate pairs • With English and German it did almost as well • The s in this is aligned with the wrong s in dieses because that alignment gave greater phonetic similarity • Taking off the inflectional ending would have prevented this mistake

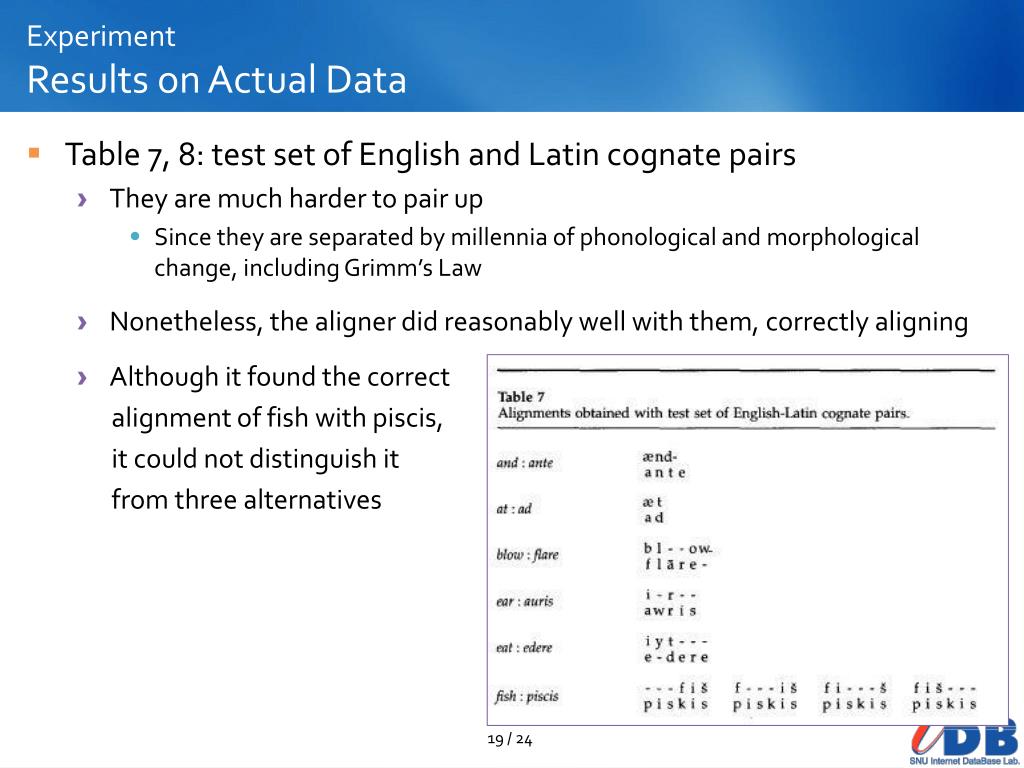

19. ExperimentResults on Actual Data • Table 7, 8: test set of English and Latin cognate pairs • They are much harder to pair up • Since they are separated by millennia of phonological and morphological change, including Grimm’s Law • Nonetheless, the aligner did reasonably well with them, correctly aligning • Although it found the correct alignment of fish with piscis, it could not distinguish it from three alternatives

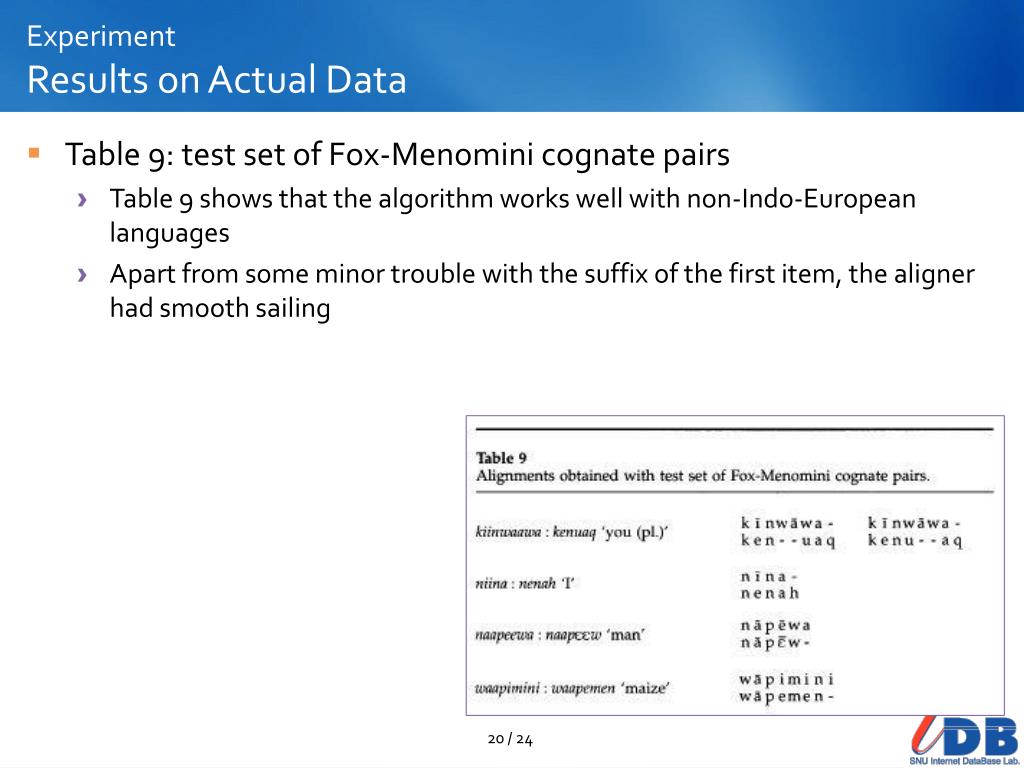

20. ExperimentResults on Actual Data • Table 9: test set of Fox-Menomini cognate pairs • Table 9 shows that the algorithm works well with non-Indo-European languages • Apart from some minor trouble with the suffix of the first item, the aligner had smooth sailing

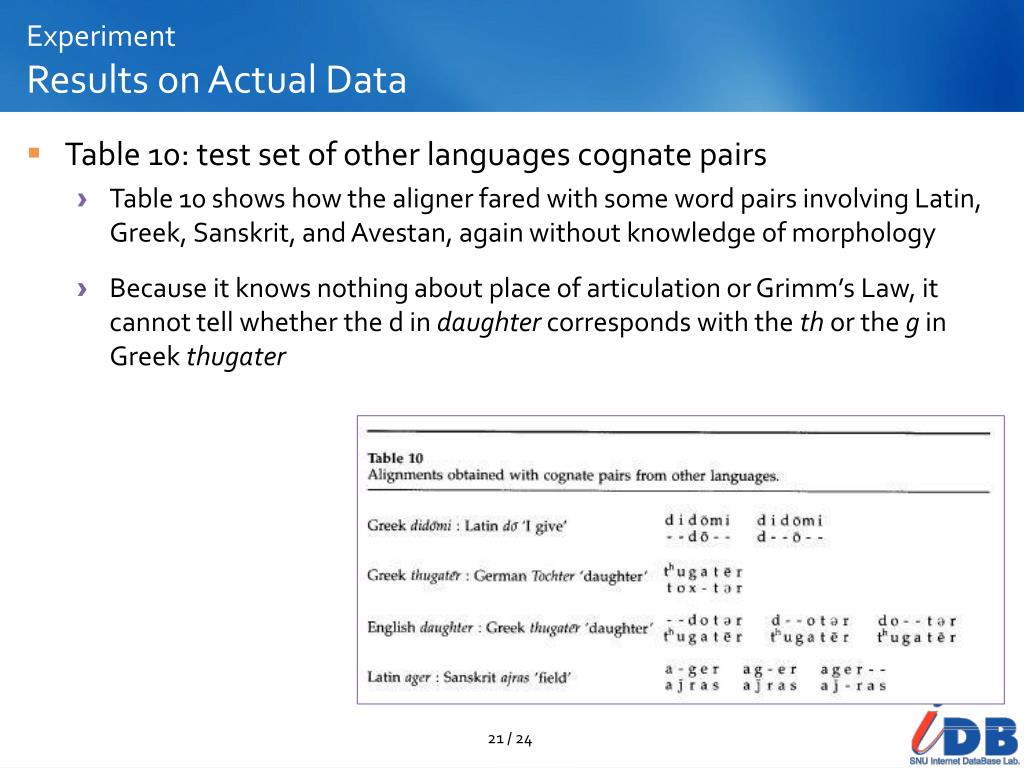

21. ExperimentResults on Actual Data • Table 10: test set of other languages cognate pairs • Table 10 shows how the aligner fared with some word pairs involving Latin, Greek, Sanskrit, and Avestan, again without knowledge of morphology • Because it knows nothing about place of articulation or Grimm’s Law, it cannot tell whether the d in daughter corresponds with the th or the g in Greek thugater

22. Contents • Introduction • Algorithm • Experiment • Conclusion

23. Conclusion • An algorithm for finding probably correct alignments on the basis of phonetic similarity • An evaluation metric • A guided search procedure • This alignment algorithm and its evaluation metric are, in effect, a formal reconstruction of something that historical linguists do intuitively. • Extended algorithm would be to enable the aligner to recognize assimilation, metathesis, and even reduplication • can assign lower penalties to words than to arbitrary mismatches

24. Thank You! Any question or comment?
