  1. XML and Web Services CS409 Application Services Even Semester 2007

  2. XML Primer • Extensible Markup Language was introduced in 1998. • Similar to HTML, but contains an infinite set of elements and attributes. • All key web services technology are based on XML.

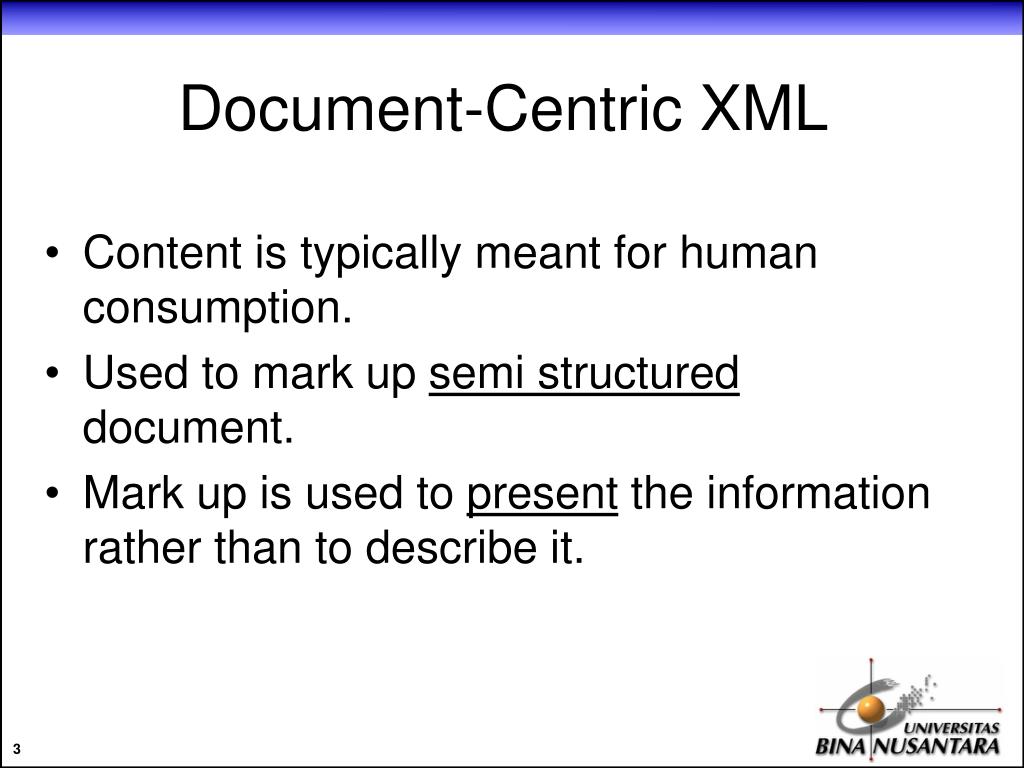

  3. Document-Centric XML • Content is typically meant for human consumption. • Used to mark up semi structured document. • Mark up is used to present the information rather than to describe it.

  4. Document-Centric XML (2) • Example, a user guide: <H1>Skateboard Usage Requirements</H1> <P>To use the <B>SuperFast</B> skateboard you have to have:</P> <LIST> <ITEM>A <U>strong</U> pair of legs.</ITEM> <ITEM>Reasonably long stretch of road surface.</ITEM> <ITEM>Impulse to <I>impress</I> others.</ITEM> </LIST> <P>If you have all of the above, you can proceed to: <LINK HREF=“Chapter2.xml”>Getting Started</LINK></P>

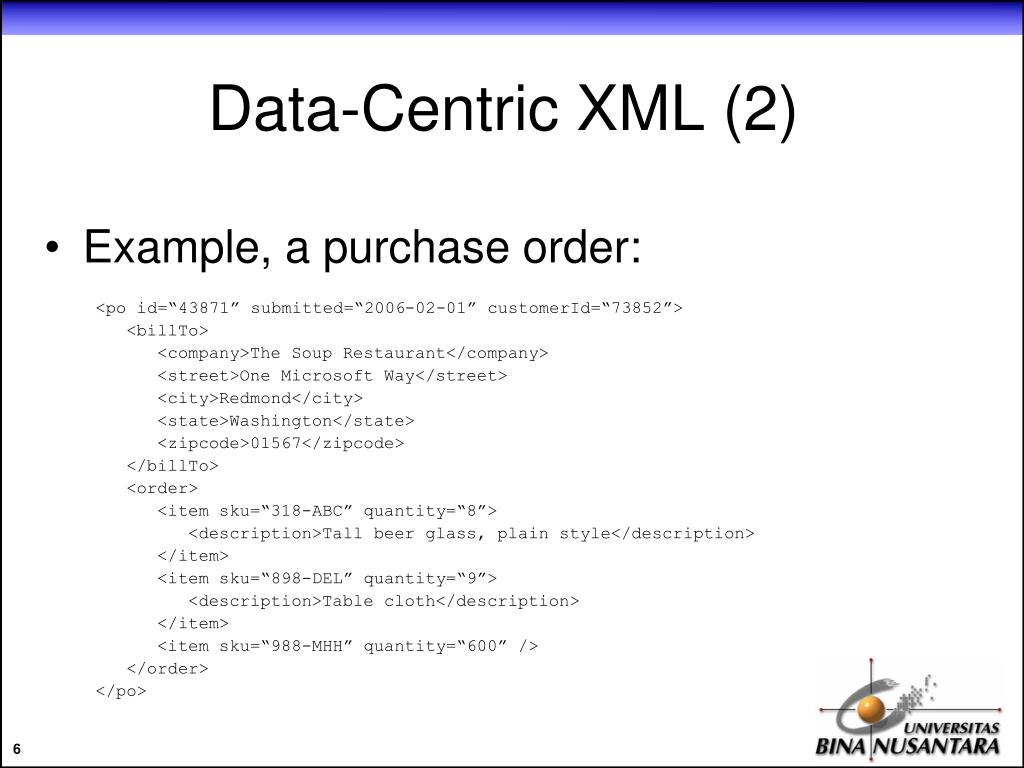

  5. Data-Centric XML • Content is typically meant for machine consumption. • Used to mark up highly structured information. • Includes many types of tags, organized in a highly-structured manner. • Order and positioning of tags matter, relative to other tags.

  6. Data-Centric XML (2) • Example, a purchase order: <po id=“43871” submitted=“2006-02-01” customerId=“73852”> <billTo> <company>The Soup Restaurant</company> <street>One Microsoft Way</street> <city>Redmond</city> <state>Washington</state> <zipcode>01567</zipcode> </billTo> <order> <item sku=“318-ABC” quantity=“8”> <description>Tall beer glass, plain style</description> </item> <item sku=“898-DEL” quantity=“9”> <description>Table cloth</description> </item> <item sku=“988-MHH” quantity=“600” /> </order> </po>

  7. XML Standards for Web Services • XML instances • Rules for creating syntactically correct XML. • XML Schema • Enables detailed validation and specification of its data types. • XML Namespaces • Mechanisms for combining multiple sources XML in a single document. • XML processing • Creating, parsing, and manipulating XML from programming languages.

  8. XML Instances • Anatomy of instance: • Declaration • Comments • Elements • Attributes • CDATA section

  9. XML Instance (2) • Declaration • Describe the version of XML. • Defined the character encoding. • Comments • Will be ignored by processing application. • Example: <?xml version=“1.0” encoding=“UTF-8”> <!-- Created by Doddy Lukito for example only --> <po id=“43871” submitted=“2006-02-01” customerId=“73852”> <!-- The rest of the contents are similar to previous example --> </po>

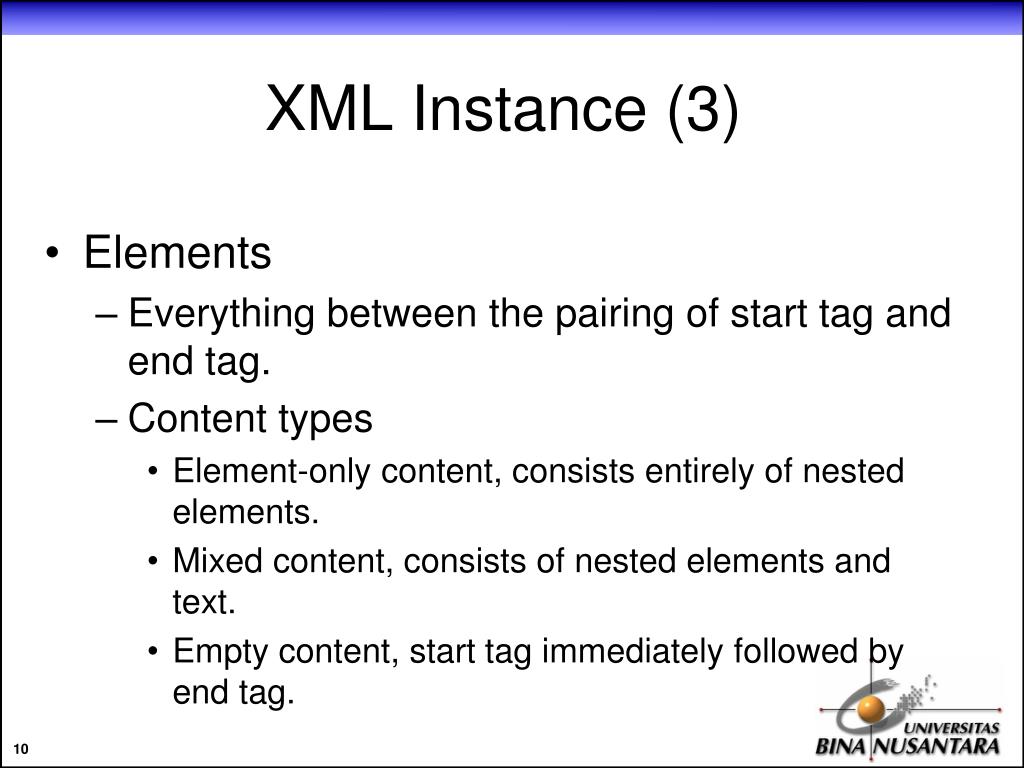

  10. XML Instance (3) • Elements • Everything between the pairing of start tag and end tag. • Content types • Element-only content, consists entirely of nested elements. • Mixed content, consists of nested elements and text. • Empty content, start tag immediately followed by end tag.

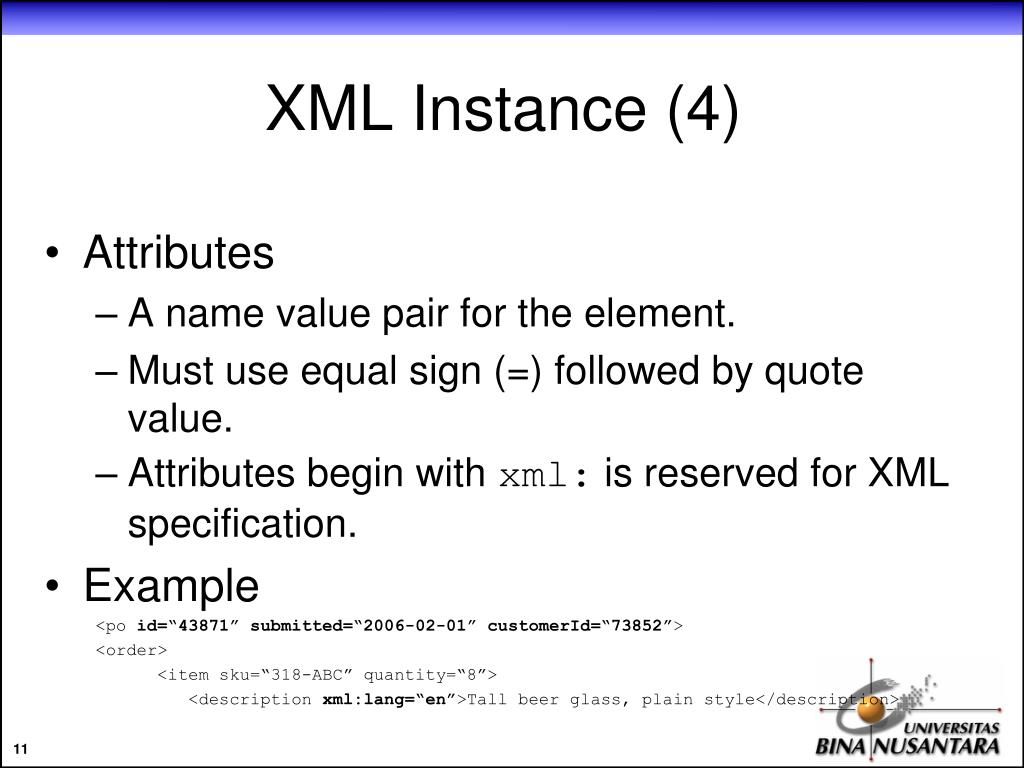

  11. XML Instance (4) • Attributes • A name value pair for the element. • Must use equal sign (=) followed by quote value. • Attributes begin with xml: is reserved for XML specification. • Example <po id=“43871” submitted=“2006-02-01” customerId=“73852”> <order> <item sku=“318-ABC” quantity=“8”> <description xml:lang=“en”>Tall beer glass, plain style</description>

  12. XML Instance (5) • CDATA section • Mark a section of text as literal, so it won’t be parsed as tags and symbols. • The section will be treated as a string of characters. • Example: <![CDATA [ <HTML> <BODY> <P>Please don’t treat this as <B>tags</B> but just <U>literal</U></P> </BODY> </HTML> ]]>

  13. XML Namespaces • Created to solve recognition and collision problem in XML. • Is an additional identifier for XML element within a document. • Namespaces uses Uniform Resource Identifiers (URIs) as identifier.

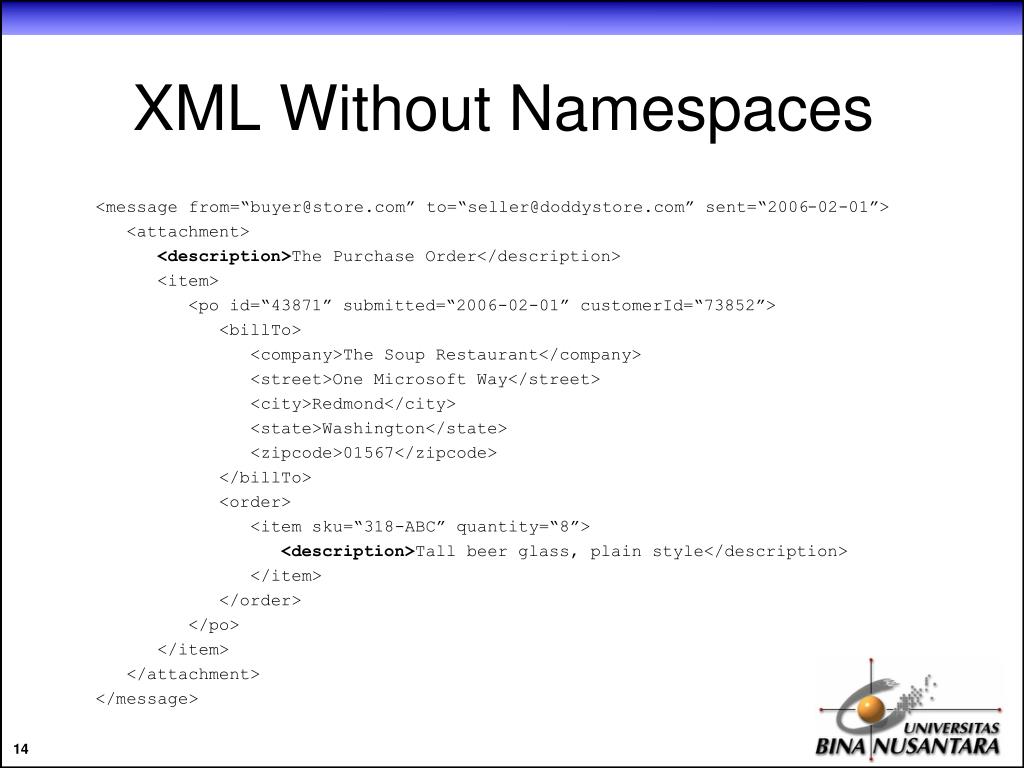

  14. XML Without Namespaces <message from=“buyer@store.com” to=“seller@doddystore.com” sent=“2006-02-01”> <attachment> <description>The Purchase Order</description> <item> <po id=“43871” submitted=“2006-02-01” customerId=“73852”> <billTo> <company>The Soup Restaurant</company> <street>One Microsoft Way</street> <city>Redmond</city> <state>Washington</state> <zipcode>01567</zipcode> </billTo> <order> <item sku=“318-ABC” quantity=“8”> <description>Tall beer glass, plain style</description> </item> </order> </po> </item> </attachment> </message>

  15. XML With Namespaces <message from=“buyer@store.com” to=“seller@mystore.com” sent=“2006-02-01” xmlns=“http://www.xcommerce.com/ns/message”> <attachment> <description>The Purchase Order</description> <item> <po:po id=“43871” submitted=“2006-02-01” customerId=“73852” xmlns:po=“http://www.doddystore.com/ns/po”> <billTo> <company>The Soup Restaurant</company> <street>One Microsoft Way</street> <city>Redmond</city> <state>Washington</state> <zipcode>01567</zipcode> </billTo> <order> <item sku=“318-ABC” quantity=“8”> <description>Tall beer glass, plain style</description> </item> </order> </po:po> </item> </attachment> </message>

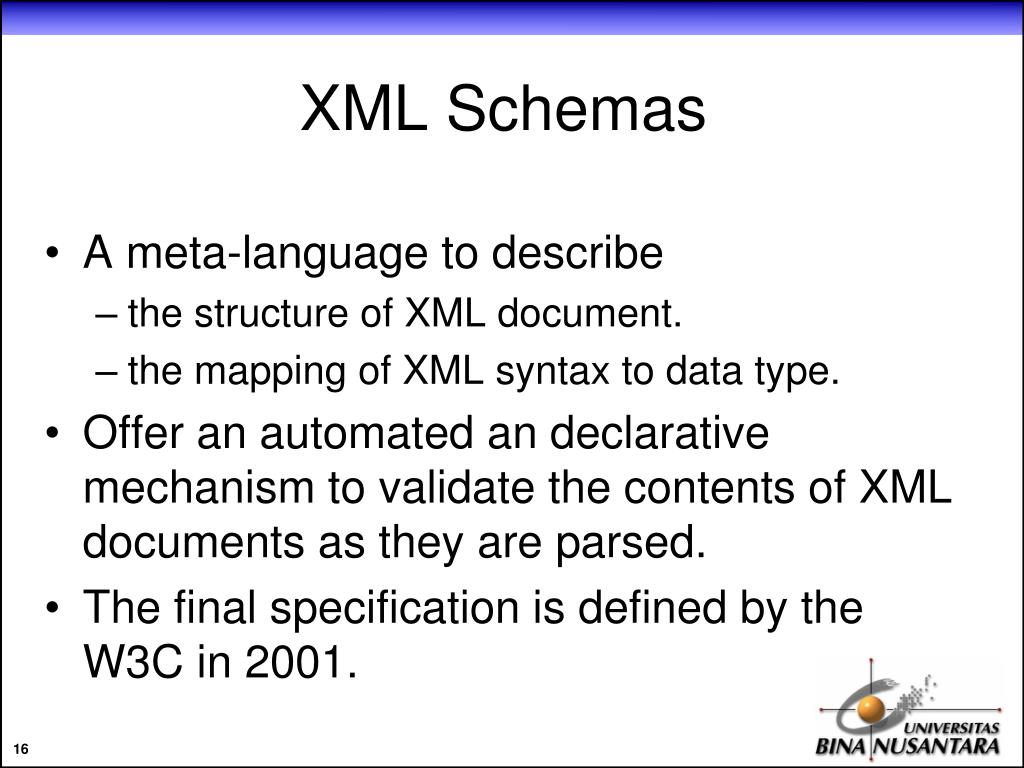

  16. XML Schemas • A meta-language to describe • the structure of XML document. • the mapping of XML syntax to data type. • Offer an automated an declarative mechanism to validate the contents of XML documents as they are parsed. • The final specification is defined by the W3C in 2001.

  17. Basic XML Schema Structure <?xml version=“1.0” encoding=“UTF-8”> <xsd:schema xmlns=“http://www.doddystore.com/ns/po” xmlns:xsd=“http://www.w3.org/2001/XMLSchema” targetNamespace=“http://www.doddystore.com/ns/po” <xsd:anotation> <xsd:documentation xml:lang=“en”> Purchase order schema for Doddy’s online store </xsd:documentation> </xsd:annotation> <xsd:complexType name=“billTo”> <xsd:sequence> <xsd:element name=“company” type=“xsd:string” /> <xsd:element name=“street” type=“xsd:string” /> <xsd:element name=“city” type=“xsd:string” /> <xsd:element name=“state” type=“xsd:string” /> <xsd:element name=“zipcode” type=“xsd:integer” /> </xsd:sequence> </xsd:complexType> </xsd:schema>

  18. Associating Schema to Document <?xml version=“1.0” encoding=“UTF-8”> <po:po xmlns:po=“http://www.doddystore.com/ns/po” xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance” xsi:schemaLocation=“http://www.doddystore.com/ns/po http://www.doddystore.com/schema/po.xsd” id=“43871” submitted=“2006-02-01” customerId=“73852” <billTo> <company>The Soup Restaurant</company> <street>One Microsoft Way</street> <city>Redmond</city> <state>Washington</state> <zipcode>01567</zipcode> </billTo> <order> <item sku=“318-ABC” quantity=“8”> <description>Tall beer glass, plain style</description> </item> </order> </po:po>

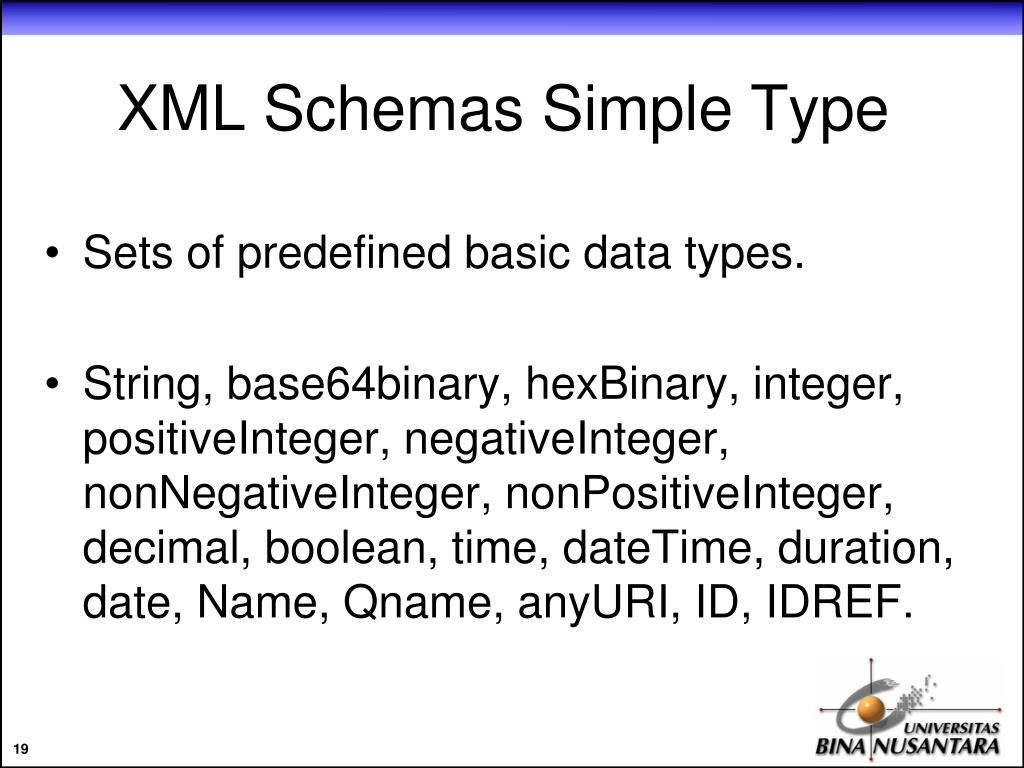

  19. XML Schemas Simple Type • Sets of predefined basic data types. • String, base64binary, hexBinary, integer, positiveInteger, negativeInteger, nonNegativeInteger, nonPositiveInteger, decimal, boolean, time, dateTime, duration, date, Name, Qname, anyURI, ID, IDREF.

  20. XML Schemas Simple Type (2) • Characteristics of simple type (facets): • Length, minLength, maxLength, pattern, enumeration, whiteSpace, minInclusive, maxInclusive, minExclusive, maxExclusive, totalDigits, fractionDigits. • Example: <xsd:simpleType name=“poID”> <xsd:restriction base=“xsd:integer”> <xsd:minExclusive value=“100”> <xsd:maxExclusive value=“10000”> </xsd:restriction> </xsd:simpleType>

  21. XML Schemas Complex Type • Define complex content model, possibly have attributes and nested children. • Example: <xsd:complexType name=“poType”> <xsd:sequence> <xsd:element name=“billTo” type=“addressType” /> <xsd:element name=“order”> <xsd:sequence> <xsd:element name=“item” type=“itemType” maxOccurs=“unbounded” /> <xsd:sequence> </xsd:element> </xsd:sequence> <xsd:attribute name=“customerId” use=“required” type=“xsd:positiveInteger” /> <xsd:attribute name=“submitted” use=“required” type=“xsd:date” /> </xsd:complexType>

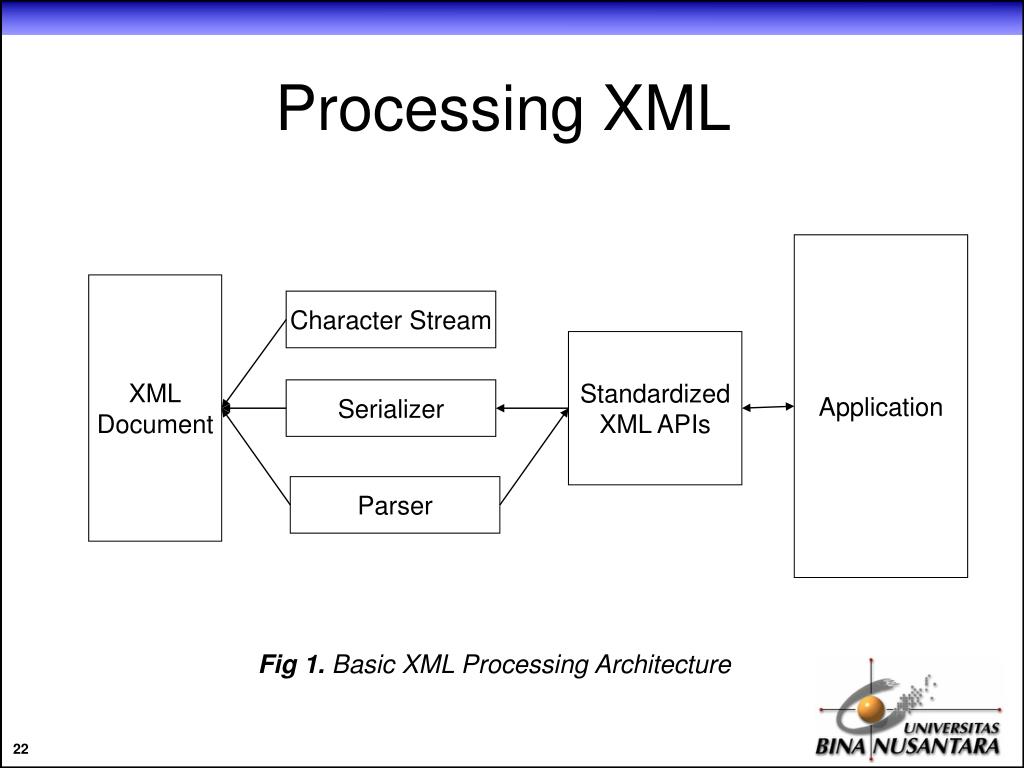

  22. Processing XML Application XML Document Character Stream Standardized XML APIs Serializer Parser Fig 1. Basic XML Processing Architecture

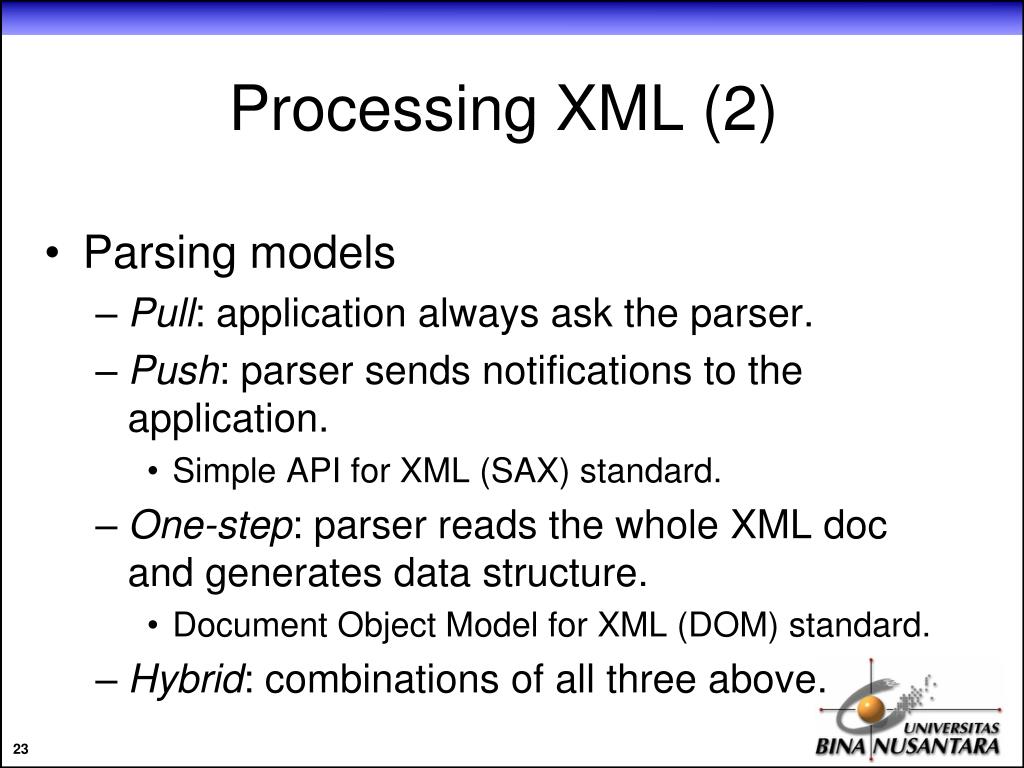

  23. Processing XML (2) • Parsing models • Pull: application always ask the parser. • Push: parser sends notifications to the application. • Simple API for XML (SAX) standard. • One-step: parser reads the whole XML doc and generates data structure. • Document Object Model for XML (DOM) standard. • Hybrid: combinations of all three above.

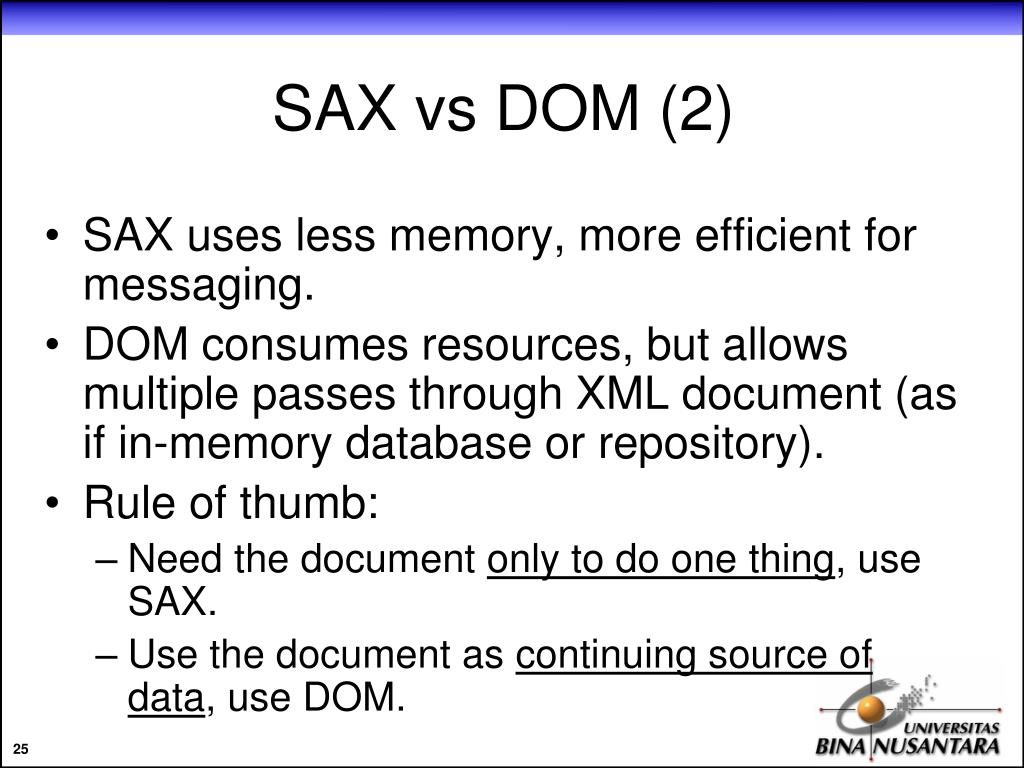

  24. SAX vs DOM • DOM provides generic object model to represent XML document plus set of interfaces to manipulate it. • SAX fires callback events into application as it parsed the XML document element by element. • Both are supported by Java and Microsoft development communities.

  25. SAX vs DOM (2) • SAX uses less memory, more efficient for messaging. • DOM consumes resources, but allows multiple passes through XML document (as if in-memory database or repository). • Rule of thumb: • Need the document only to do one thing, use SAX. • Use the document as continuing source of data, use DOM.

  26. XML Transformation • Procedure to interpret contained information in XML document. • Transformation activities: • Put data into XML document. • Extract data from XML document. • Transform XML document from one schema format to another.

  27. XML Transformation (2) • Standard specification : Extensible Stylesheet Language Transformation (XSLT). • XSLT is part of XSL (used to transform XML into presentation formats). • XSLT works with DOM and SAX.

  28. XML Transformation (3) • XML Path Language (XPath) • Expression language to link multiple XML documents. • Used to define search for locating specific element in XML document, calculation, string manipulations, and evaluating boolean expressions.

  29. Sample XSLT <?xml version=“1.0” encoding=“UTF-8”> <!-- This style sheet transform XML document into ASCII text --> <xsl:stylesheet xmlns:”http://www.w3.org/1999/XSL/Transform” version=“1.0”> <xsl:output method=“text” indent=“yes”> <xsl:template match=“*”> <xsl:apply-templates /> </xsl:template> <xsl:template match=“company”> Company Name: <xsl:value-of-select=“.” /> </xsl:template> <xsl:template match=“street”> Street Address: <xsl:value-of-select=“.” /> </xsl:template> <xsl:template match=“zipcode”> Postal Code: <xsl:value-of-select=“.” /> </xsl:template>

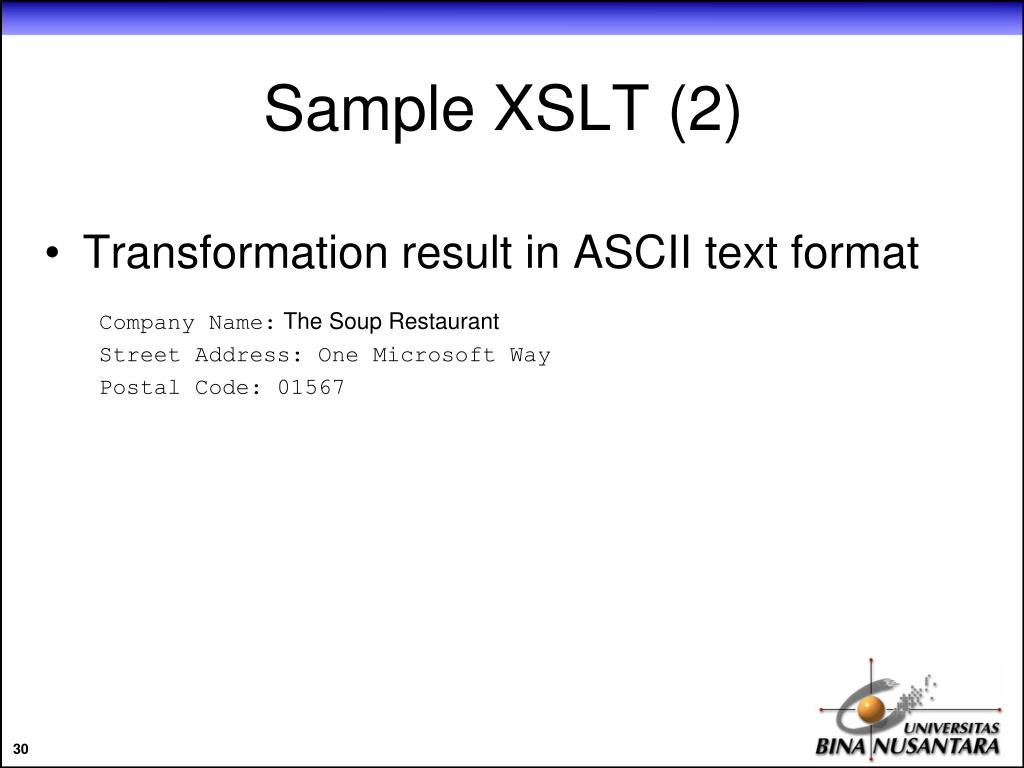

  30. Sample XSLT (2) • Transformation result in ASCII text format Company Name: The Soup Restaurant Street Address: One Microsoft Way Postal Code: 01567

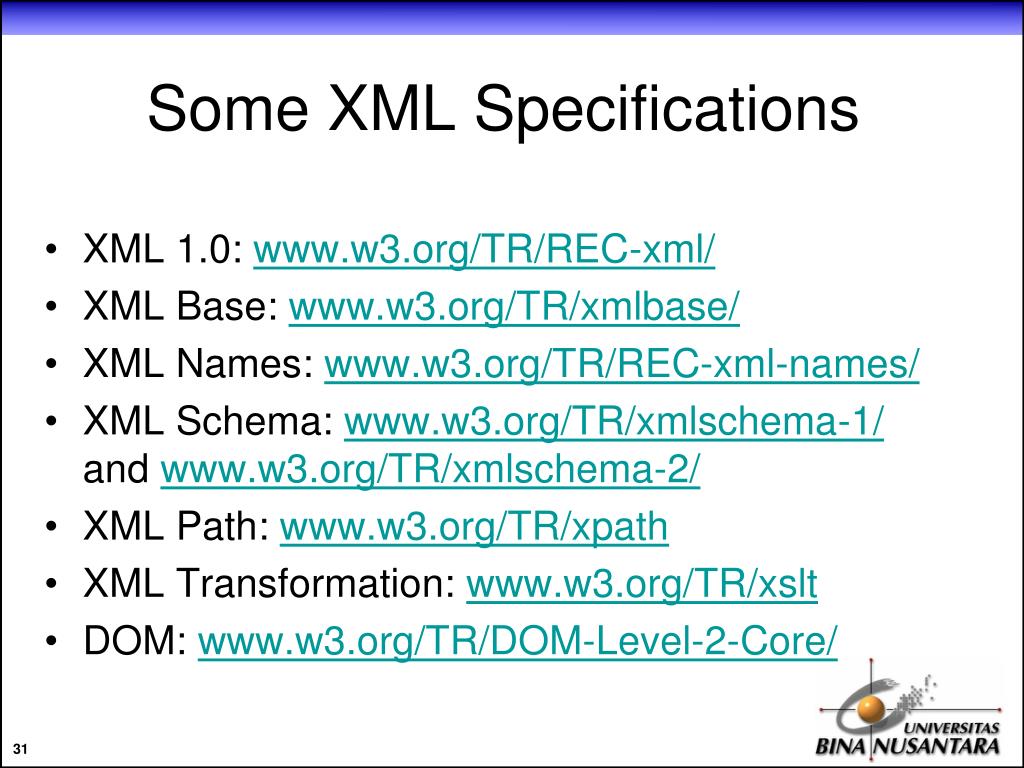

  31. Some XML Specifications • XML 1.0: www.w3.org/TR/REC-xml/ • XML Base: www.w3.org/TR/xmlbase/ • XML Names: www.w3.org/TR/REC-xml-names/ • XML Schema: www.w3.org/TR/xmlschema-1/ and www.w3.org/TR/xmlschema-2/ • XML Path: www.w3.org/TR/xpath • XML Transformation: www.w3.org/TR/xslt • DOM: www.w3.org/TR/DOM-Level-2-Core/

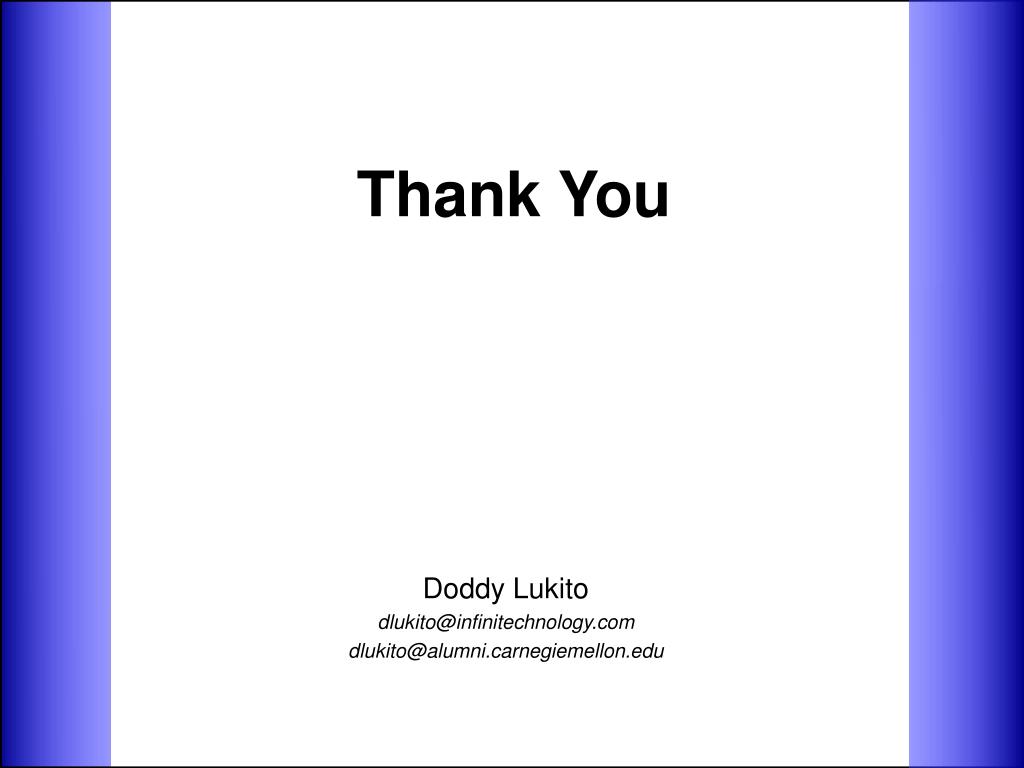

  32. Thank You Doddy Lukito dlukito@infinitechnology.com dlukito@alumni.carnegiemellon.edu
