  1. Battery Watering Technologies

  2. The Centurion Valves! And now introducing…

  3. Centurion Valve • Low profile design. • Reinforced barbs eliminate the need for clamps. • Push in style valve for easy installation and removal. • All working parts are above the cell.

  4. Centurion Valve • Indicator eye visible from top and side. • Angled barbs to help navigate around connectors. • Solid polypropylene float. • No more flip top lid. • Ample spacing between the float and encapsulation.

  5. Centurion Valve Widest Pressure Range in the Business.

  6. Solid Polypropylene float Technology Won’t allow Electrolyte to leach Into the float

  7. Part #: DF72G (Direct Fill Gun)

  8. Part # NT2000G (5 gallon gravity tank) Part #: NT2212GF (2.5 gallon gravity tank)

  9. Part #: NC5080P (8 gallon aqua sub) Part #: NC5250P (25 gallon push cart)

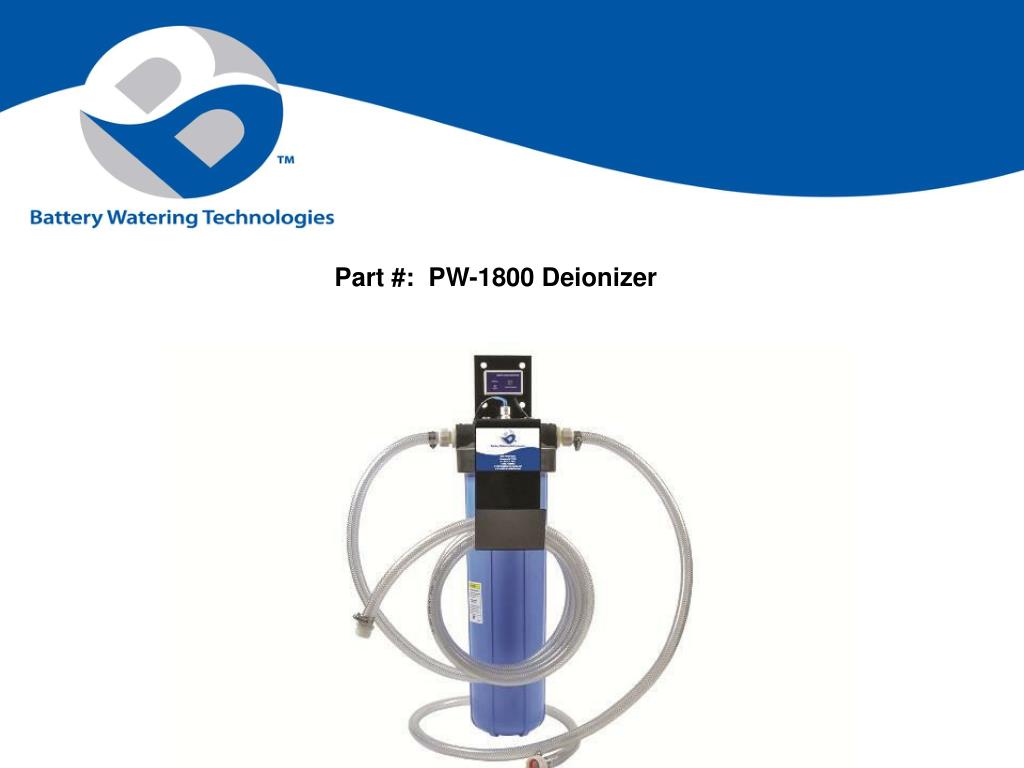

  10. Part #: PW-1800 Deionizer

  11. Superior Warranty We offer a full five year warranty that covers all aspects of a failure. If the cell fails due to a defect in our product, we pay for the repair!

  12. MADE IN THE USA! Manufacturing Manufactured in the USA

  13. We Control the Process. • Better Products. • Superior Manufacturing. • Highest Quality Standards.

  14. State of the art ISO 9000 certified Manufacturing Facility ISO/TS 16949 Approved 2010 ISO14001 Approved 2010

  15. Diversified • 170 Employees • 24 Hour Operation • 85 To 1000 Ton Injection Molding Machines • Ford Tier 1 Supplier • Chrysler Tier 1 Supplier • GM Tier 1 Supplier • Mercedes Approved Source

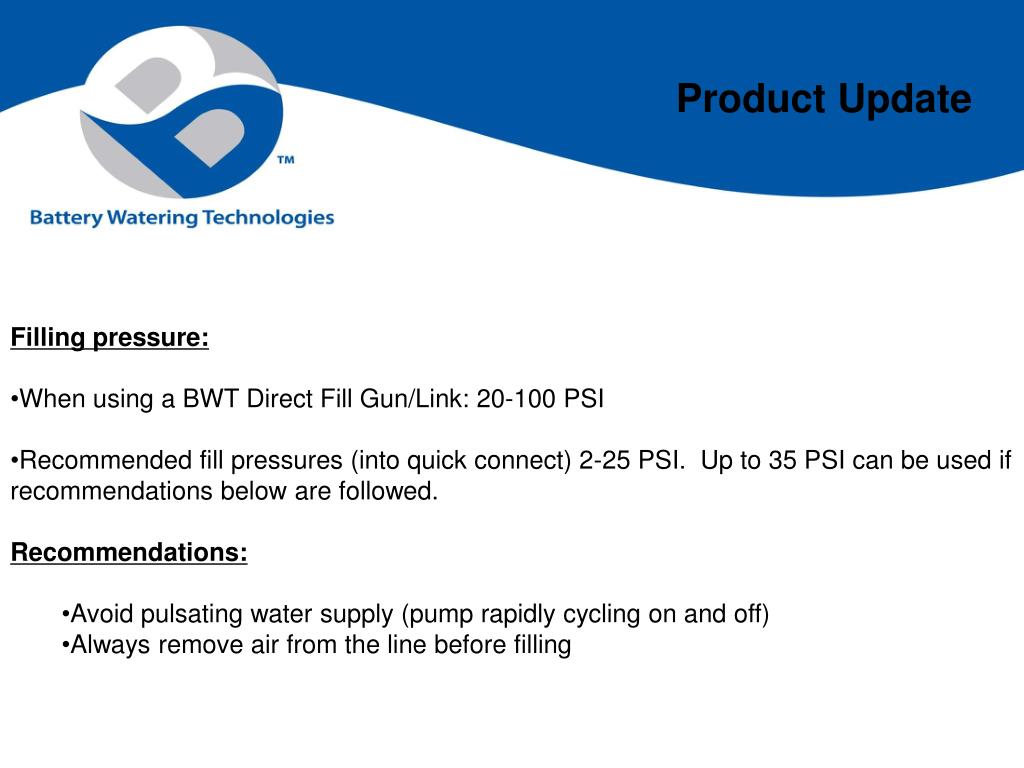

  16. Product Update Filling pressure: • When using a BWT Direct Fill Gun/Link: 20-100 PSI • Recommended fill pressures (into quick connect) 2-25 PSI. Up to 35 PSI can be used if recommendations below are followed. Recommendations: • Avoid pulsating water supply (pump rapidly cycling on and off) • Always remove air from the line before filling

  17. Product Update Filling outside of recommended pressure: • If below 2 PSI: Valves will continue to perform but filling time increases. • If above 25 PSI: Filling time will be reduced. It is possible that the final valve/cell to complete filling may close prematurely.

  18. Filling Flow Rate Single valve filling flow rate vs. fill pressure Filling Flow Rate Chart:

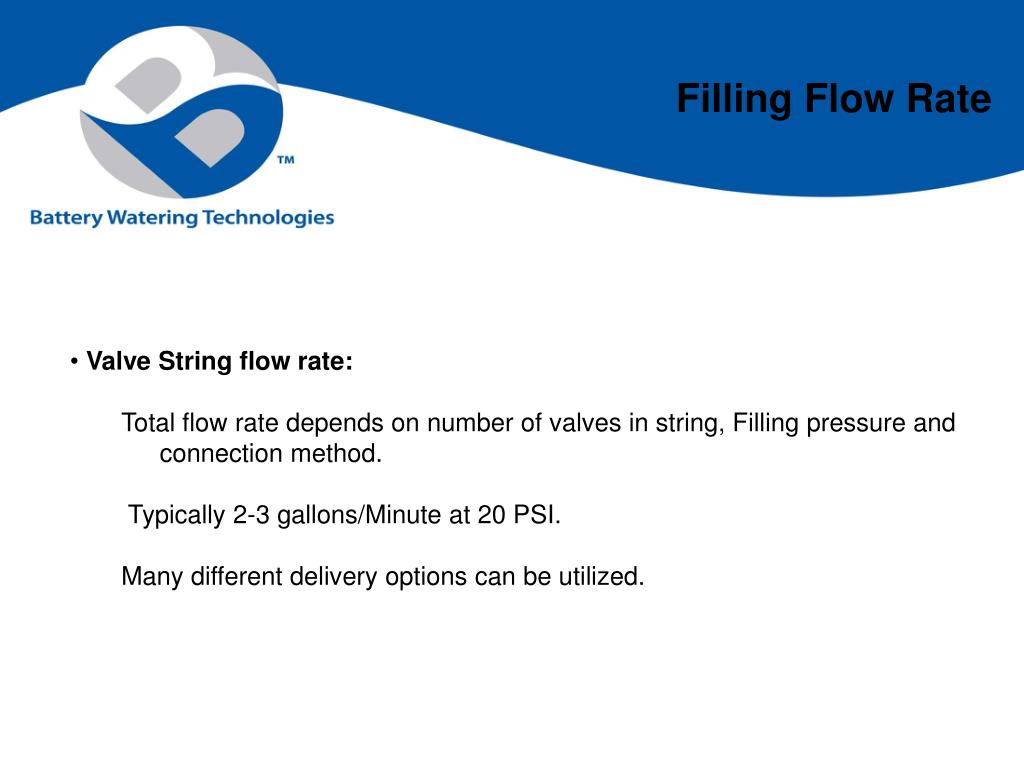

  19. Filling Flow Rate • Valve String flow rate: Total flow rate depends on number of valves in string, Filling pressure and connection method. Typically 2-3 gallons/Minute at 20 PSI. Many different delivery options can be utilized.

  20. Quality Control Manufacturing is ISO-9001, ISO/TS-16949 certified. • Each component part has a specific molding specification and testing procedure used during manufacture. • Each valve tested for shutoff, flow and mechanical freedom during the assembly process. • Sampling and water testing performed on each box of valves at manufacturing. • Incoming sampling and testing done on each box at BWT. Inventory is in quarantine until released by QC. • Valves visually inspected during kit assembly.

  21. Spark Propagation/Spark Arresting All valves have built in water trap (P Trap) to avoid cell-to-cell vapor transfer/Spark propagation. Valves for electric vehicles have spark arrestor to avoid external spark from involving cell.

  22. Technology

  23. Technology

  24. Technology

  25. Technology

  26. Technology

  27. Indemnification BWT carries a five million dollar product liability policy.Other Required Documents?

  28. Thank You Great Customers, Great Partners • The Highest Quality Products • Exceptional, personal customer service • Unmatched Support • Five Year Cell Replacement Warranty • Private Label Options
