Optical path length

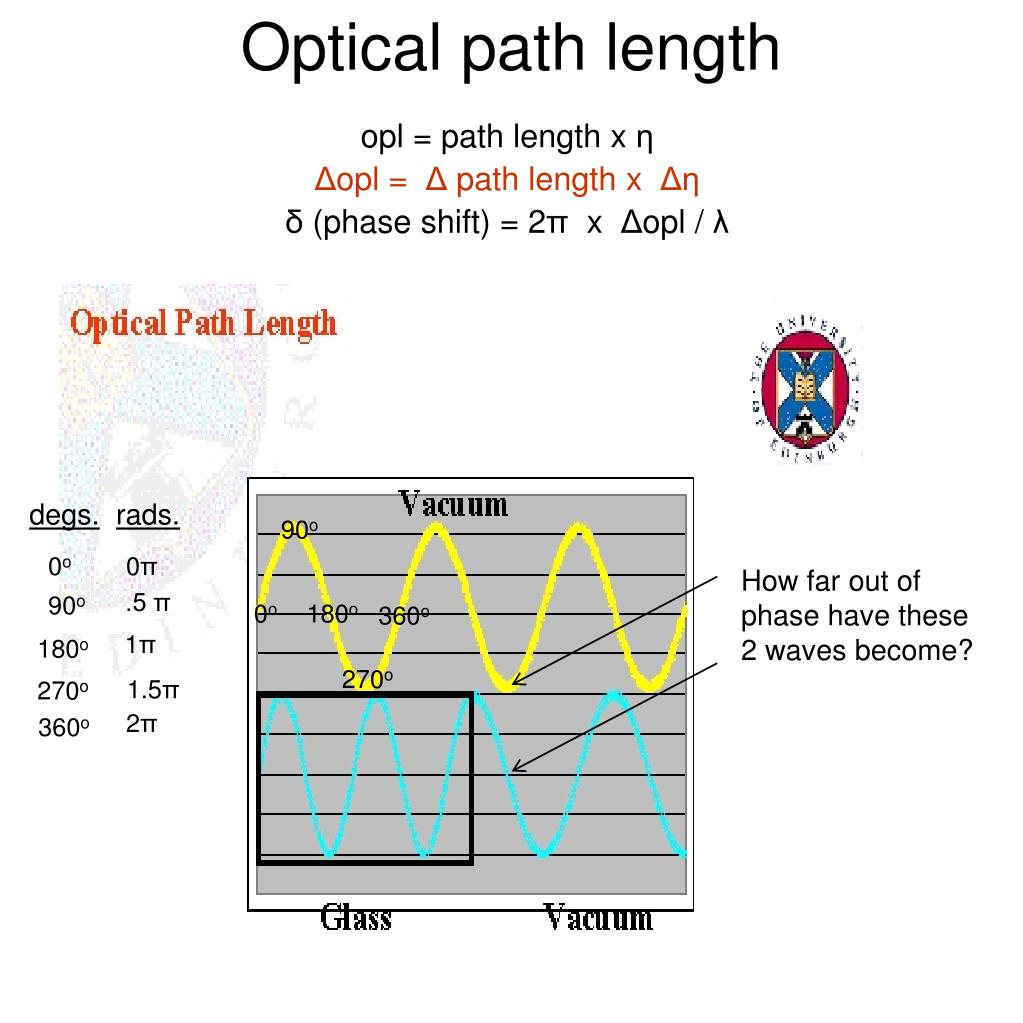

Optical path length. degs. rads. 90 o. 0 o. 0π. How far out of phase have these 2 waves become?. opl = path length x η Δ opl = Δ path length x Δη δ (phase shift) = 2 π x Δ opl / λ. .5 π. 90 o. 0 o. 180 o. 360 o. 1π. 180 o. 270 o. 1.5π. 270 o. 2π. 360 o.

Télécharger la présentation

Optical path length

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Optical path length degs.rads. 90o 0o 0π How far out of phase have these 2 waves become? opl = path length x η Δopl = Δ path length x Δη δ (phase shift) = 2π x Δopl / λ .5 π 90o 0o 180o 360o 1π 180o 270o 1.5π 270o 2π 360o

  2. http://hyperphysics.phy-astr.gsu.edu/hbase/hframe.html

  3. One full wavelength λ, one full cycle, 360 degrees or 2 π Combine black ray or wave with grey one and derive resultant (orange). All are same wavelength, only relative phase and amplitude changes. Remember, this energy is not destroyed, only redistributed to another place in space (where is not always obvious). Relative phase difference of 1/4 λ or 1/2 π. resultant energy in space In a phase contrast microsccope, a ring at the back plane of the objective advances undiffracted rays (those that do not interact with the specimen) by one quarter wavelength. This shift combined with a ~one quarter λ retardation at the sample leads to 1/2 λ difference or destructive interference at the image plane; differences in phase shifting properties of sample can become amplitude differences. Relative phase difference of 1/2 λ of π. resultant energy in space

  4. One full wavelength λ, one full cycle, 360 degrees or 2 π Relative phase difference of 1 λ or 2π. resultant energy in space

  5. See text on next slide. resultant reflection 1 2r polymer, η =2, thickness = 312.5 nm 3r 4 2t glass, η =1.5 3t resultant transmitted Solve for following wavelengths: Wavelengths of light maximally reflectedWavelengths of light maximally transmitted Wavelengths of light minimally reflectedWavelengths of light minimally transmitted What thickness of polymer would give maximum reflection at 580nm?

  6. t-transmitted, r-reflected 1 is a ray of white light When 1 hits polymer surface, it is split into 2t and 2r, 2r is phase shifted relative to 2t by 1/2 λ or π (low to high η interface). 2t continues on and is split into 3t and 3r at the glass surface, there is no phase shift with this reflection because it is a high to low η interface. 3r (in phase with 2t) will combine and interfere with 2r ( 3r + 2r = resultant, constructive + or destructive - depends on the λ). Since 2r has already shifted relative to 2t by 1/2 λ, for + interference to occur, 3r must be shifted in phase by 1/2 λ , 1 1/2 λ , 2 1/2 λ, etc. For - interference to occur, 3r must be shifted in phase by 0 λ , 1 λ , 2 λ, etc. So to solve this for maximum constructive reflective interference, we take: OPL (2t + 3r) must equal 1/2 λ or 1 1/2 λ or 2 1/2 λ OPL (2t + 3r) = 2(thickness of polymer x η polymer) so.... 1/2 λ or 1 1/2 λ or 2 1/2 λ = 2(thickness of polymer x η polymer) So to solve for this in maximum destructive reflective interference, we take: OPL (2t + 3r) must equal 0 λ or 1 λ or 2 λ OPL (2t + 3r) = 2(thickness of polymer x η polymer) so.... 0 λ or 1 λ or 2 λ or 3λ = 2(thickness of polymer x η polymer) Now try one in transmission: 2t is split into 3t and 3r; at this point, all these rays are in phase (no shift high to low η). 3r reflects back as 4 within polymer, its phase then changes relative to 2t. 3t + 4 = resultant, constructive + or destructive - depends on the λ. So to solve this for max. constructive transmitted interference, we take: OPL (3r + 4) must equal 0 λ or 1 λ or 2 λ OPL (3r + 4) = 2(thickness of polymer x η polymer) so.... 0 λ or 1 λ or 2 λ or 3 λ = 2(thickness of polymer x η polymer) These integer values (1, 2, 3, etc.) for wavelengths are called 'orders' . As we can see, we lose energy with each reflection so that the most important orders (with regard to amplitude) are usually the lowest order effects.

  7. single semi-silvered surfaces reflect 50% and transmit 50% of light (all λ ) η - hi This diagram may help you solve the extra credit question on the midterm exam. η - air η - hi for phase shifts on reflection: low to high, shift in π high to low, no shift in π air = whiteglass = bluelight rays = blacksemi-silvered surfaces = greyresultant waves/rays = orange

  8. http://hyperphysics.phy-astr.gsu.edu/hbase/hframe.html They won’t let you use their calculator for normal (90 degree) incidence so to try their calculator use a 30 degree angle (answers are close to those for 90). WOW! Murphy 2001

  9. out of phase by π,3π ,5π , etc. resources.yesican-science.ca www.jasondoucette.com/ graphics/interfrs.gif Note that energy is neither destroyed nor created during interference.

  10. Laser design inc. Phase change of 180 deg (pi) when reflection is rare (low refractive index) to dense (high refractive index), no phase change when reflection is dense to rare as in TIR or total internal reflection.

  11. Oil on water AR coating Georgia State U. http://hyperphysics.phy-astr.gsu.edu/hbase/hph.html
