  1. ITERATION

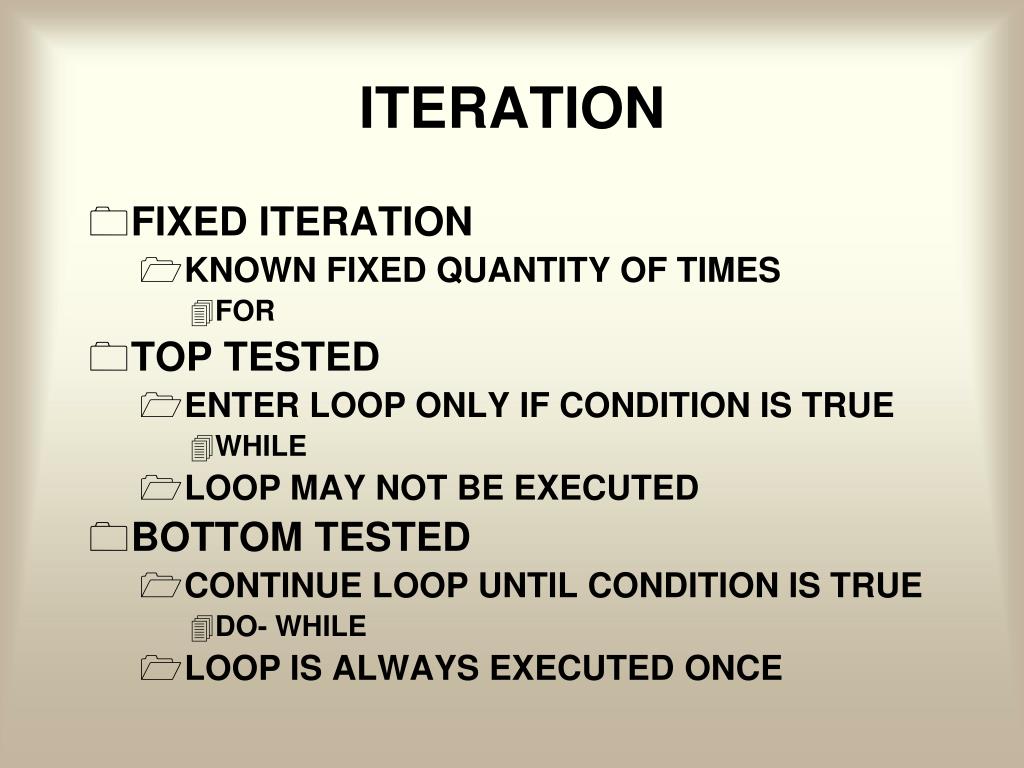

  2. ITERATION • FIXED ITERATION • KNOWN FIXED QUANTITY OF TIMES • FOR • TOP TESTED • ENTER LOOP ONLY IF CONDITION IS TRUE • WHILE • LOOP MAY NOT BE EXECUTED • BOTTOM TESTED • CONTINUE LOOP UNTIL CONDITION IS TRUE • DO- WHILE • LOOP IS ALWAYS EXECUTED ONCE

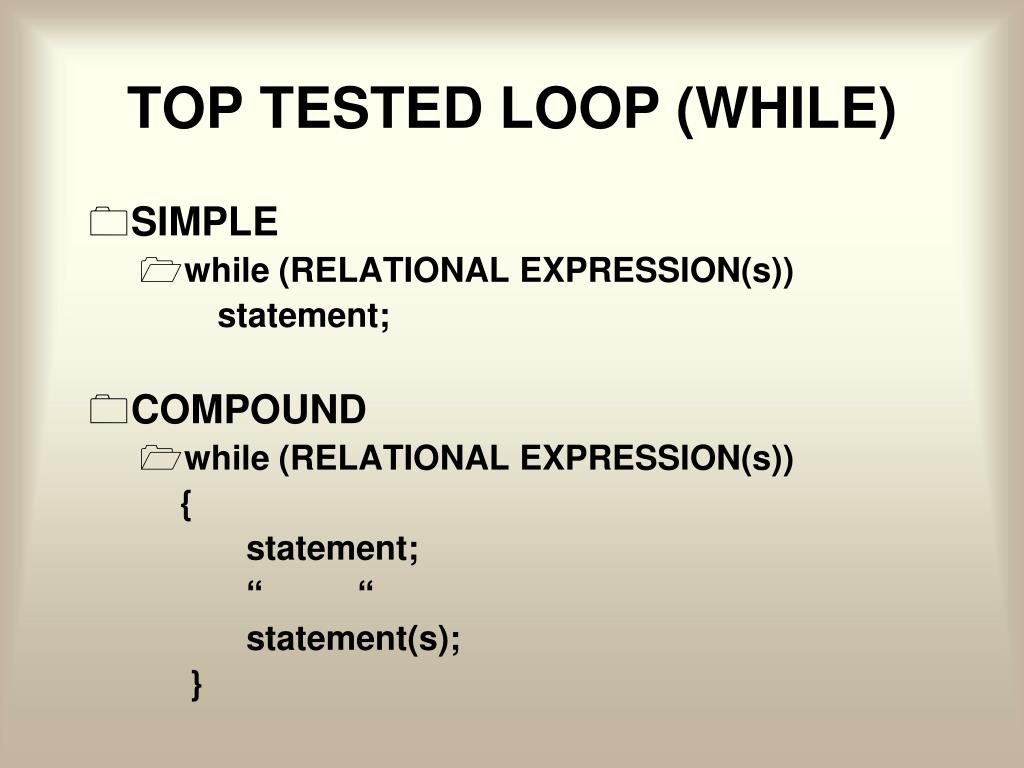

  3. TOP TESTED LOOP (WHILE) • SIMPLE • while (RELATIONAL EXPRESSION(s)) statement; • COMPOUND • while (RELATIONAL EXPRESSION(s)) { statement; “ “ statement(s); }

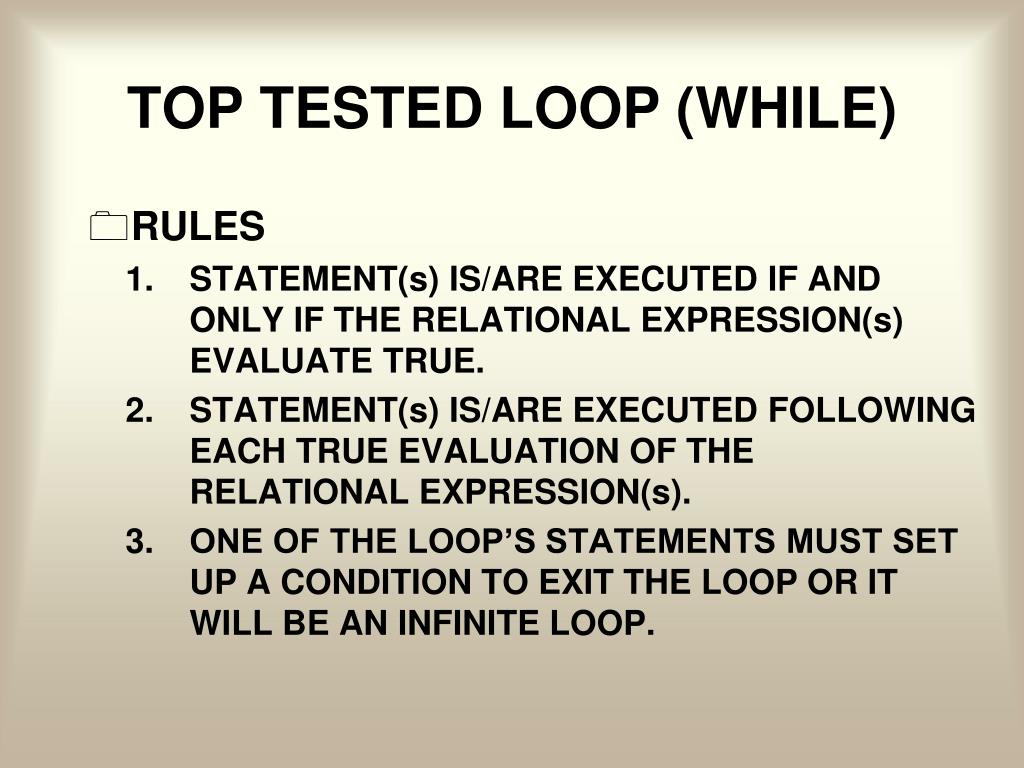

  4. TOP TESTED LOOP (WHILE) • RULES 1. STATEMENT(s) IS/ARE EXECUTED IF AND ONLY IF THE RELATIONAL EXPRESSION(s) EVALUATE TRUE. 2. STATEMENT(s) IS/ARE EXECUTED FOLLOWING EACH TRUE EVALUATION OF THE RELATIONAL EXPRESSION(s). 3. ONE OF THE LOOP’S STATEMENTS MUST SET UP A CONDITION TO EXIT THE LOOP OR IT WILL BE AN INFINITE LOOP.

  5. TOP TESTED LOOP (WHILE) • TYPICAL VARIATIONS • COUNTER CONTROLLED • DESIGNED TO RUN A FIXED NUMBER OF TIMES • SENTINEL CONTROLLED • SENTINEL VALUE CONTROLLED • READ FIRST INPUT & TEST • VALID EXECUTE LOOP • INVALID (MATCHES SENTINEL) DO NOT EXECUTE LOOP • CONTINUE UNTIL INPUT MATCHES SENTINEL • FLAG CONTROLLED • BOOLEAN FLAG CONTROLLED • FLAG IS INITIALIZED TO FALSE • LOOP EXECUTES UNTIL FLAG IS TRUE • FLAG IS SET TO TRUE BY STATEMENTS IN BODY OF WHILE • EOF CONTROLLED • CONTROLLED BY RESULT OF EOF FUNCTION • MORE TO COME IN CS362

  6. TOP TESTED LOOP (WHILE) • EXAMPLES int main( ) { char answer; float score, total, avg; int count; count = 0; total = 0; answer = ‘Y’; while (answer == ‘Y’ || answer == ‘y’) { cout << “Enter the students’s score.” << endl; cin >> score; total = total + score; count ++; cout << “Is there another score to enter? Y/N” << endl; cin >> answer; } avg = total / count; cout << fixed << setprecision(2); cout << “The class average is ‘ << avg << endl; cout << endl; system(“Pause”); }

  7. TOP TESTED LOOP (WHILE) • EXAMPLES int main ( ) { char answer; float score, total, avg; int quantity; cout << “Enter the number of students in the class.” << endl; cin >> quantity; count = 1; total = 0; while (count <= quantity) { cout << “Enter the students score.” << endl; cin >> score; total = total + score; count ++; } avg = total / quantity; cout << fixed << setprecision(2); cout << “The class average is “ << avg << endl; cout << endl; system(“Pause”); }

  8. FIXED ITERATION(FOR) • SIMPLE • for (initialization; condition; update) statement; • COMPOUND • for (initialization; condition; update) { statement; statement: statement(s); }

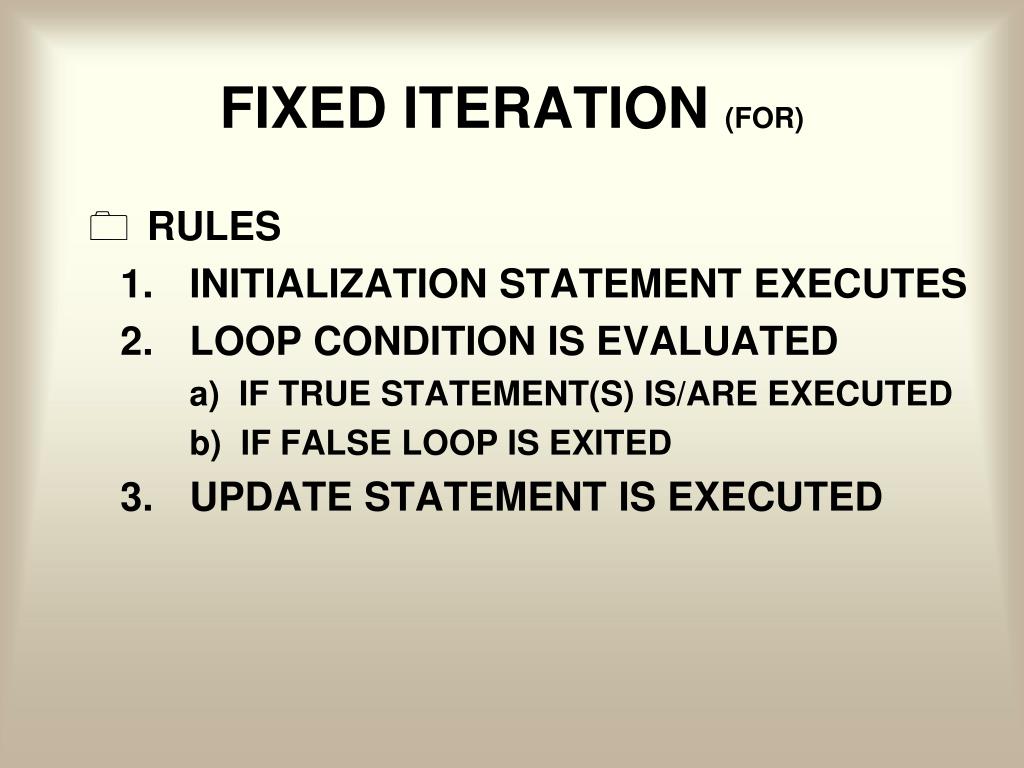

  9. FIXED ITERATION (FOR) • RULES 1. INITIALIZATION STATEMENT EXECUTES 2. LOOP CONDITION IS EVALUATED a) IF TRUE STATEMENT(S) IS/ARE EXECUTED b) IF FALSE LOOP IS EXITED 3. UPDATE STATEMENT IS EXECUTED

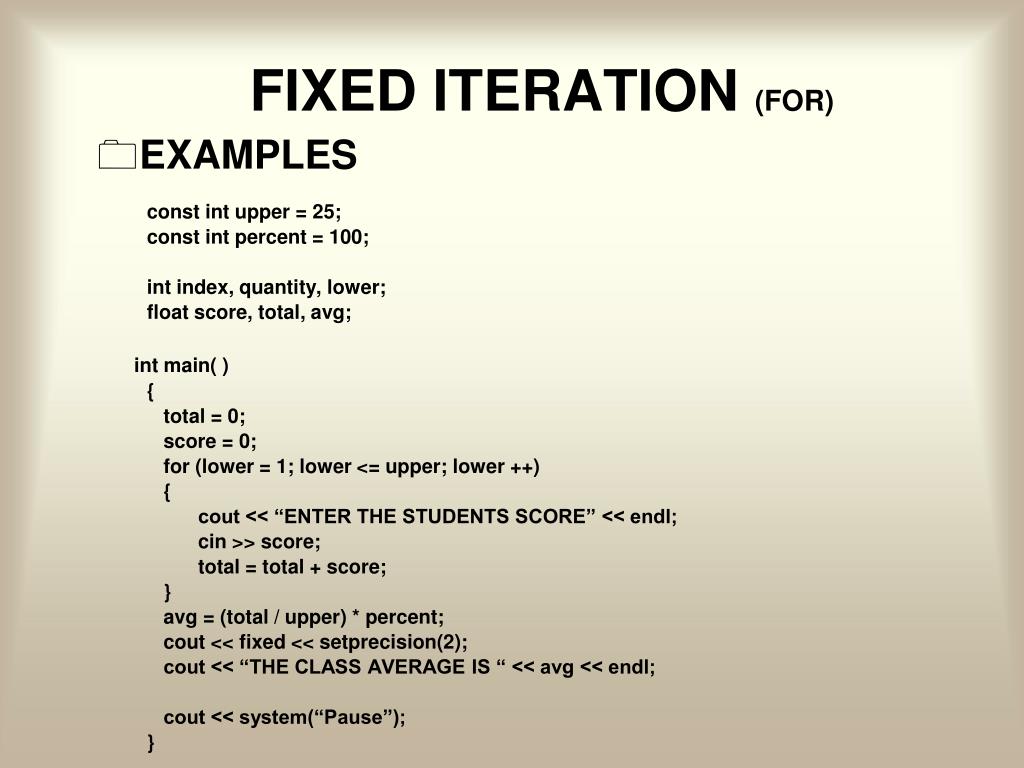

  10. FIXED ITERATION (FOR) • EXAMPLES const int upper = 25; const int percent = 100; int index, quantity, lower; float score, total, avg; int main( ) { total = 0; score = 0; for (lower = 1; lower <= upper; lower ++) { cout << “ENTER THE STUDENTS SCORE” << endl; cin >> score; total = total + score; } avg = (total / upper) * percent; cout << fixed << setprecision(2); cout << “THE CLASS AVERAGE IS “ << avg << endl; cout << system(“Pause”); }

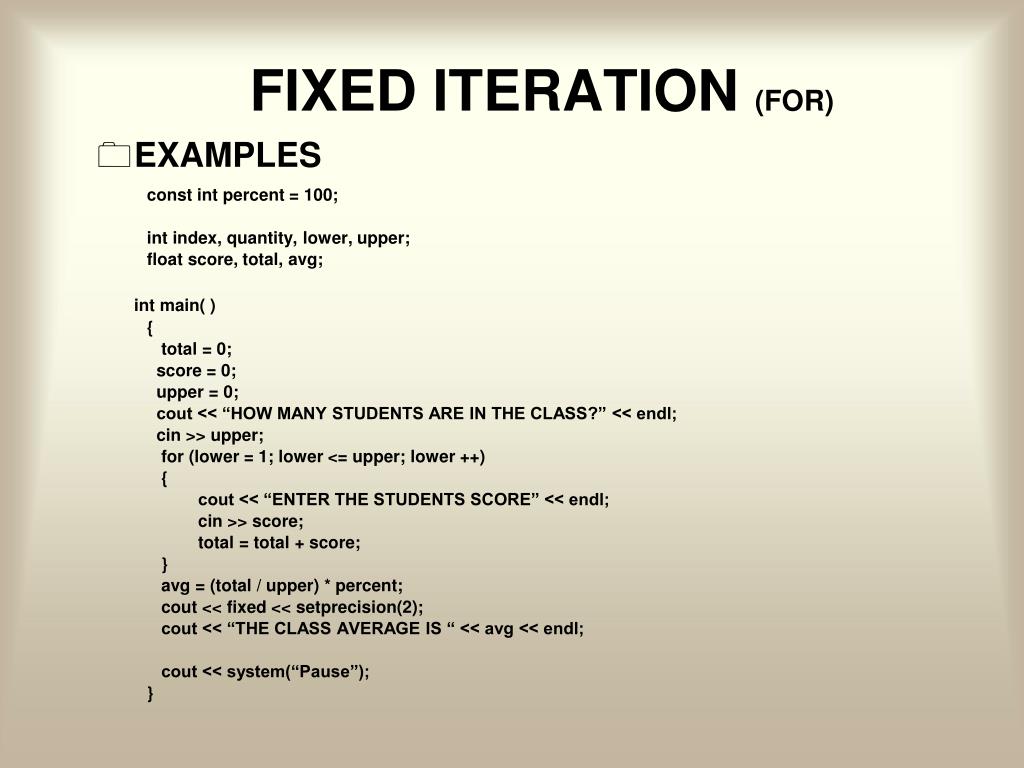

  11. FIXED ITERATION (FOR) • EXAMPLES const int percent = 100; int index, quantity, lower, upper; float score, total, avg; int main( ) { total = 0; score = 0; upper = 0; cout << “HOW MANY STUDENTS ARE IN THE CLASS?” << endl; cin >> upper; for (lower = 1; lower <= upper; lower ++) { cout << “ENTER THE STUDENTS SCORE” << endl; cin >> score; total = total + score; } avg = (total / upper) * percent; cout << fixed << setprecision(2); cout << “THE CLASS AVERAGE IS “ << avg << endl; cout << system(“Pause”); }

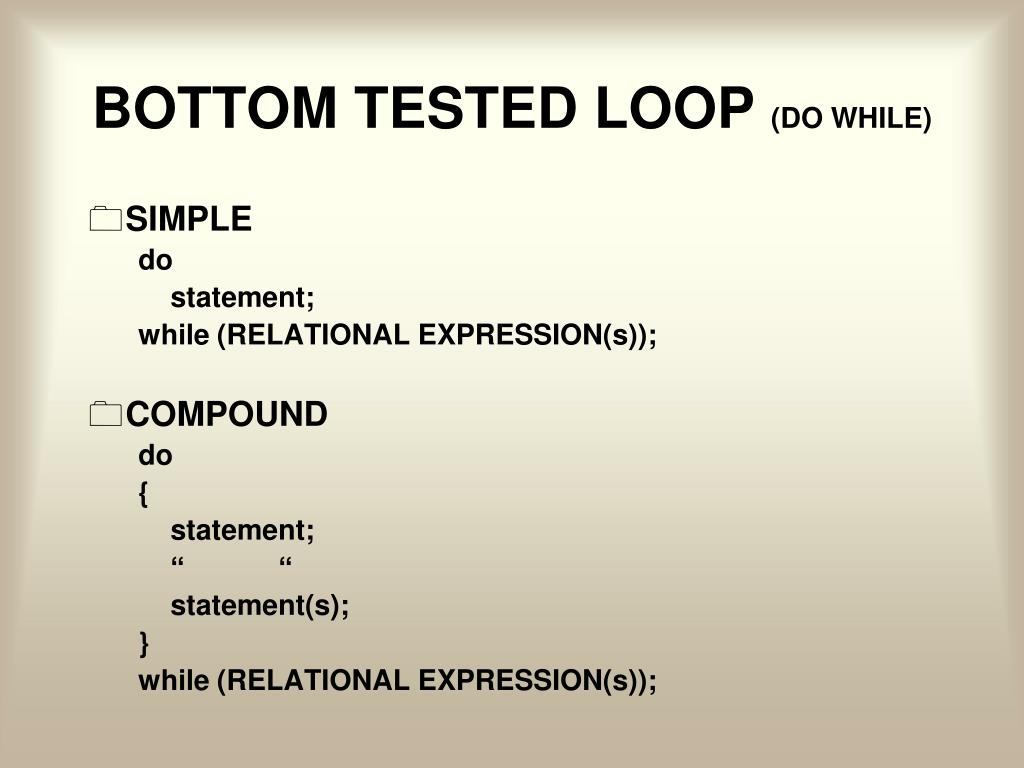

  12. BOTTOM TESTED LOOP (DO WHILE) • SIMPLE do statement; while (RELATIONAL EXPRESSION(s)); • COMPOUND do { statement; “ “ statement(s); } while (RELATIONAL EXPRESSION(s));

  13. BOTTOM TESTED LOOP (DO WHILE) • RULES 1. STATEMENT(s) IS/ARE ALWAYS EXECUTED AT LEAST ONCE. 2. STATEMENT(s) CONTINUE TO BE EXECUTED UNTIL THE RELATIONAL EXPRESSION(s) EVALUATES TO FALSE.

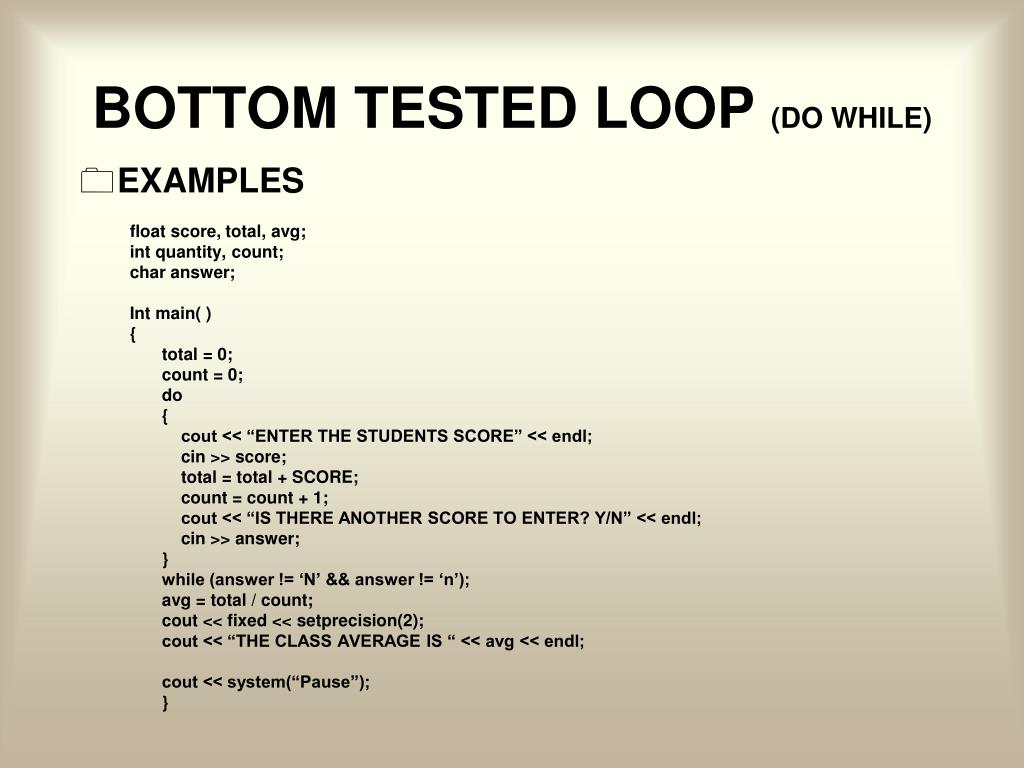

  14. BOTTOM TESTED LOOP (DO WHILE) • EXAMPLES float score, total, avg; int quantity, count; char answer; Int main( ) { total = 0; count = 0; do { cout << “ENTER THE STUDENTS SCORE” << endl; cin >> score; total = total + SCORE; count = count + 1; cout << “IS THERE ANOTHER SCORE TO ENTER? Y/N” << endl; cin >> answer; } while (answer != ‘N’ && answer != ‘n’); avg = total / count; cout << fixed << setprecision(2); cout << “THE CLASS AVERAGE IS “ << avg << endl; cout << system(“Pause”); }

  15. BOTTOM TESTED LOOP (REPEAT) • EXAMPLES float score, total, avg; int quantity, cnt; char answer; Int main( ) { quantity = 0; total = 0; cnt = 1; cout << “ENTER THE NUMBER OF STUDENTS: “ << endl; cin >> quantity; do { cout << “ENTER THE STUDENTS SCORE” << endl; cin >> score; total = total + score; cnt = cnt + 1; } while (cnt <= quantity); avg = total / quantity; cout << fixed << setprecision(2); cout << “THE CLASS AVERAGE IS “ << avg << endl; cout << system(“Pause”); }
