3.5/3.6 Overlapping Triangles & Types of Triangles

I can use overlapping triangles in proofs. I can name the various types of triangles and their parts. 3.5/3.6 Overlapping Triangles & Types of Triangles. Day 5. Example 1. Given: ∠OTR≅∠HRT, Prove: . N. H. O. R. T. Classifying Triangles by angles.

sef
Télécharger la présentation

3.5/3.6 Overlapping Triangles & Types of Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. I can use overlapping triangles in proofs. I can name the various types of triangles and their parts. 3.5/3.6 Overlapping Triangles & Types of Triangles Day 5

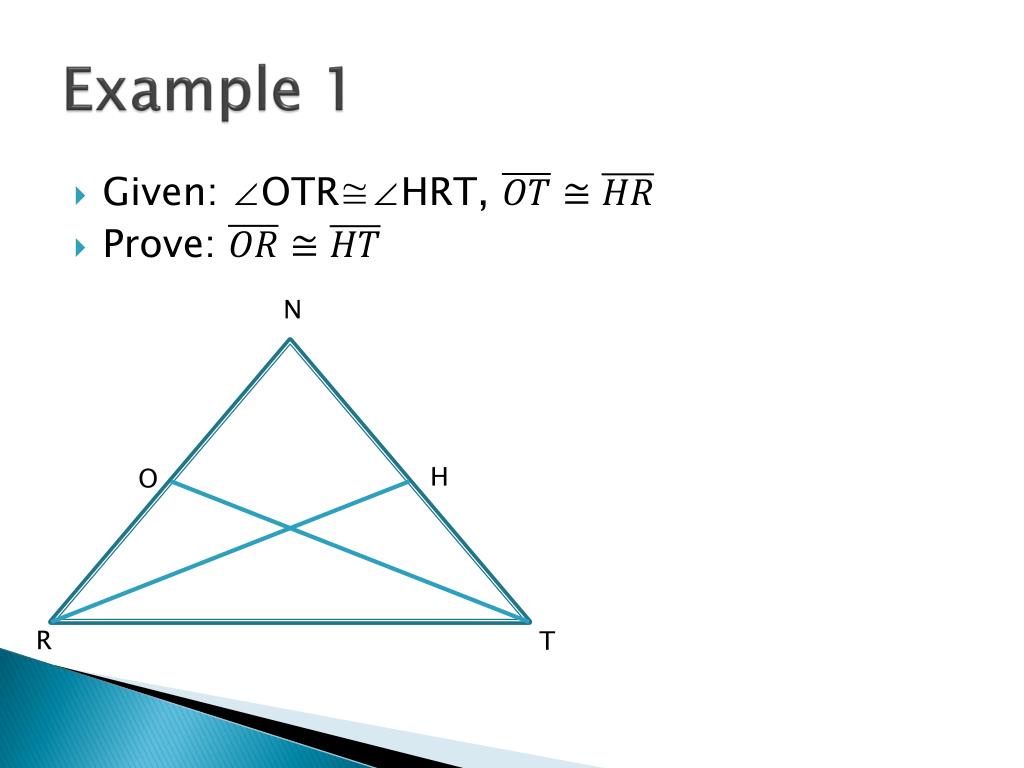

  2. Example 1 • Given: ∠OTR≅∠HRT, • Prove: N H O R T

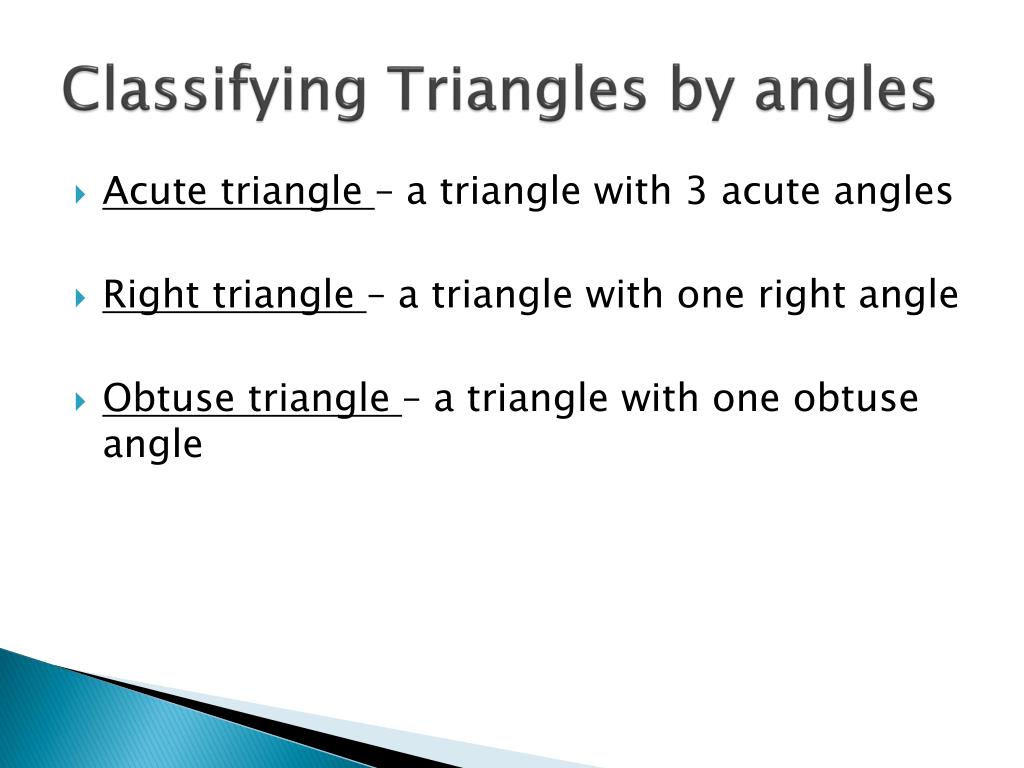

  3. Classifying Triangles by angles • Acute triangle – a triangle with 3 acute angles • Right triangle – a triangle with one right angle • Obtuse triangle – a triangle with one obtuse angle

  4. Parts of a right triangle hypoteneuse leg leg

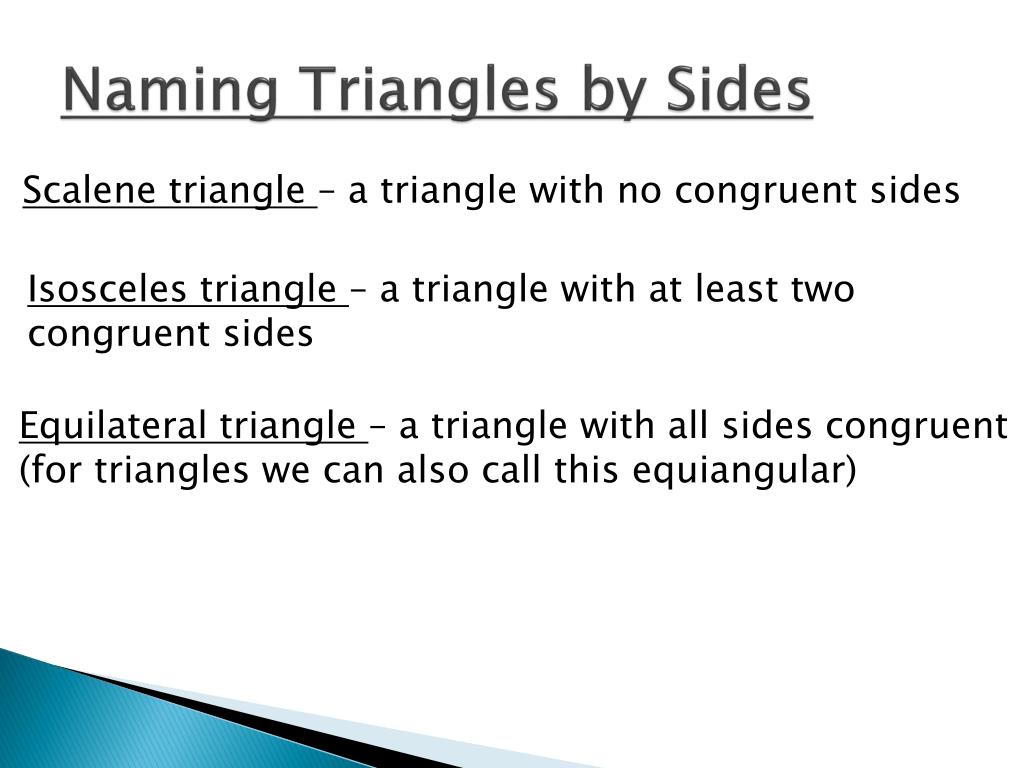

  5. Naming Triangles by Sides Scalene triangle – a triangle with no congruent sides Isosceles triangle – a triangle with at least two congruent sides Equilateral triangle – a triangle with all sides congruent (for triangles we can also call this equiangular)

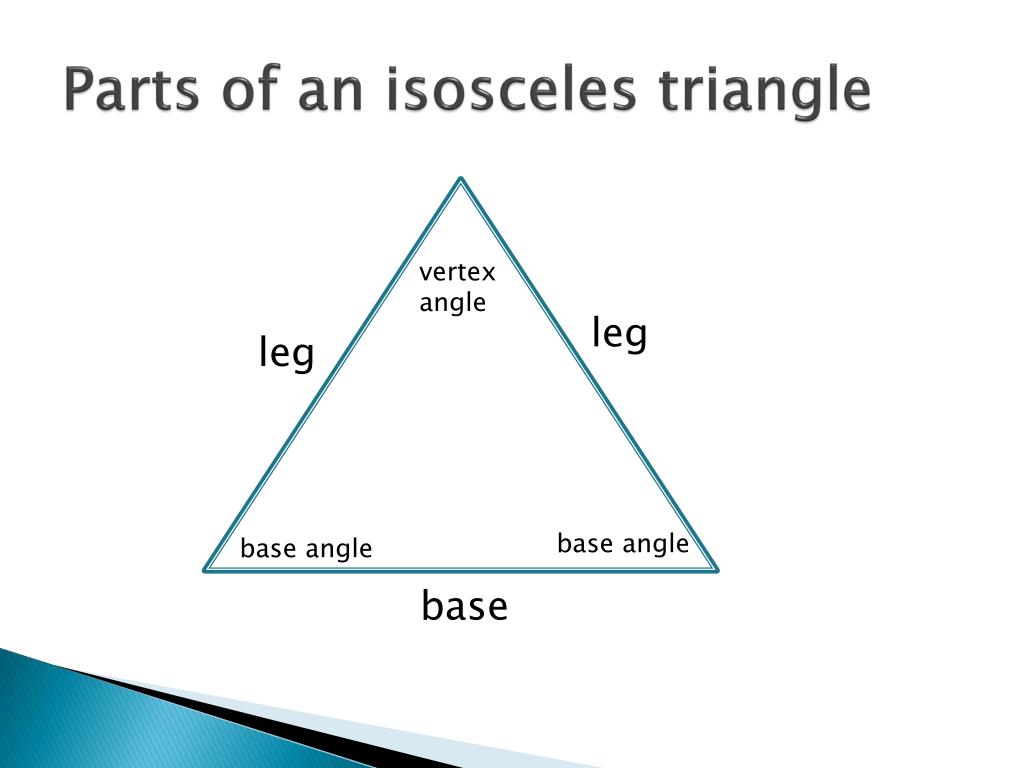

  6. Parts of an isosceles triangle vertex angle leg leg base angle base angle base

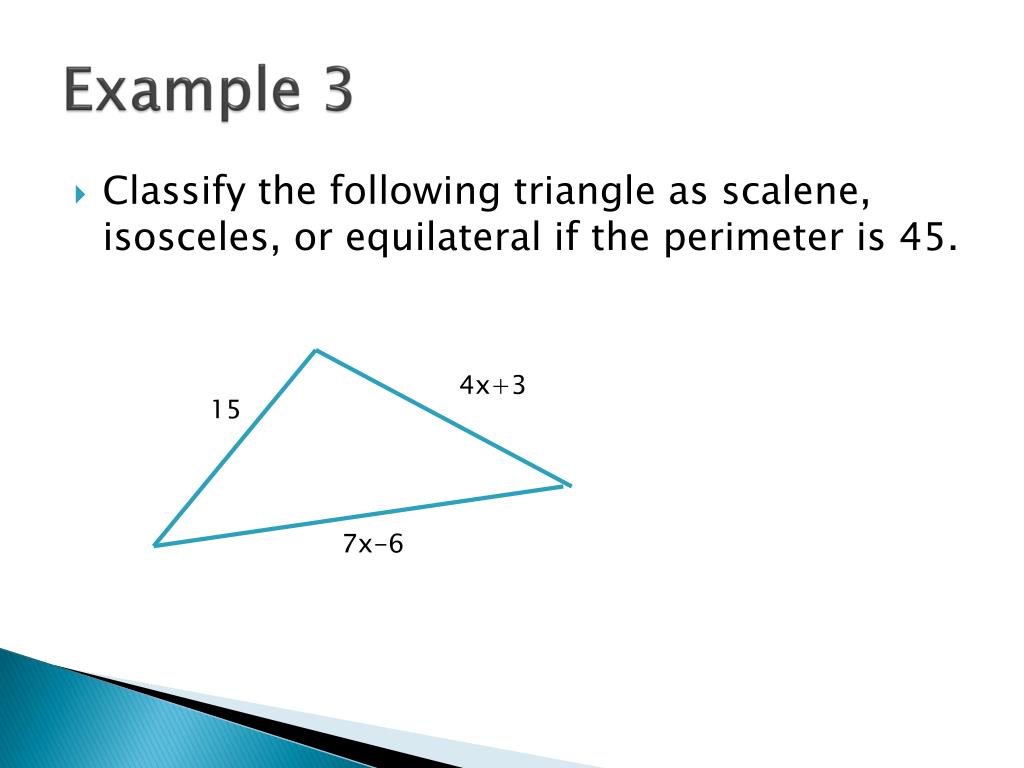

  7. Example 3 • Classify the following triangle as scalene, isosceles, or equilateral if the perimeter is 45. 4x+3 15 7x-6

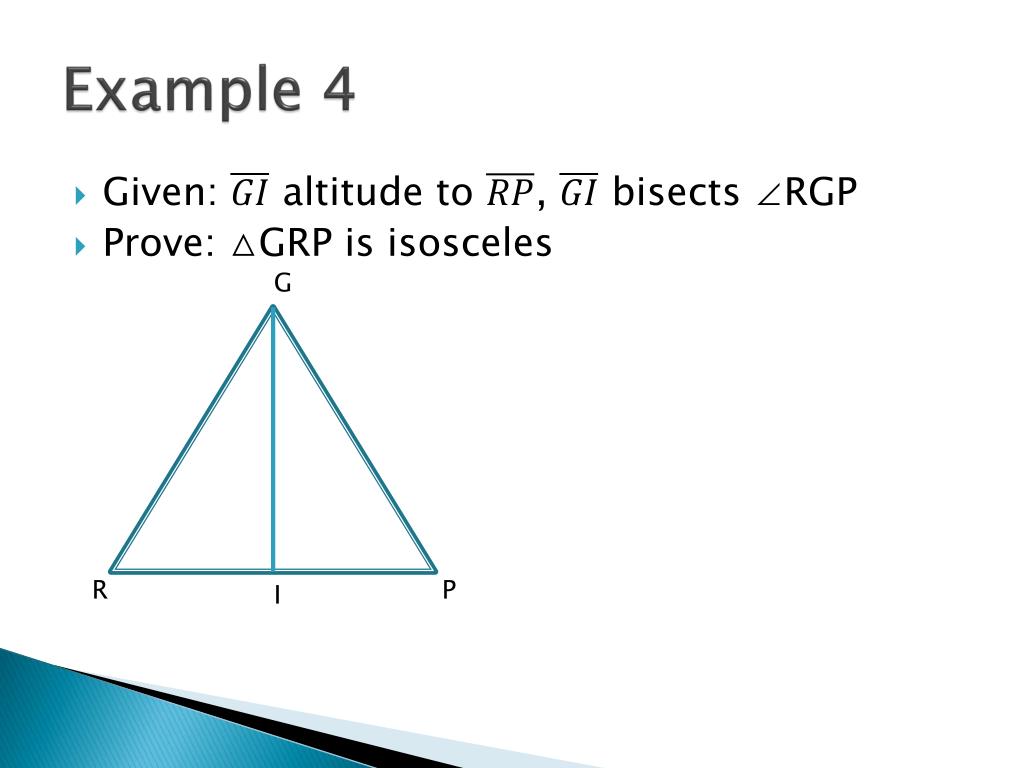

  8. Example 4 • Given: altitude to , bisects ∠RGP • Prove: △GRP is isosceles G R P I

  9. Always, Sometimes, Never • A right triangle is isosceles. • An isosceles triangle is equilateral. • An equilateral triangle is isosceles. • A scalene triangle is isosceles. • An equilateral triangle is equiangular. • A right triangle has two right angles.
