Zebra Analysis Tool: Enhanced Data Integration and Visualization for Scientific Operations

The Zebra Analysis Tool (ZAT) is a sophisticated system designed for time-based data integration, analysis, and visualization, specifically for scientific operations. It seamlessly overlays various data types, including satellite imagery, radar outputs, flight track data, and meteorological models. Users can create detailed maps, vertical cross-sections, and animations to aid in understanding complex data. Key features include real-time data flow tracking, data synthesis from Dual Doppler radar, and support for operational centers like RSMAS. This tool supports missions like IMPROVE-II and enhances predictive capabilities in meteorology.

sela
Télécharger la présentation

Zebra Analysis Tool: Enhanced Data Integration and Visualization for Scientific Operations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ZEBRA ANALYSIS TOOL

  2. A/C Coord Coord/Mission Summaries Zebra Models Support RSMAS SCIENCE OPERATIONS CENTER ATD & Dual Dop JOSS

  3. ZEBRA • Time-based, data integration, analysis, and display system • Overlays many types of data • Satellite • Radar • Flight track • Model • Maps • Vertical cross-sections • Animation (movie) capability

  4. Zebra – Satellite & Grnd Tracks(IMPROVE-II)

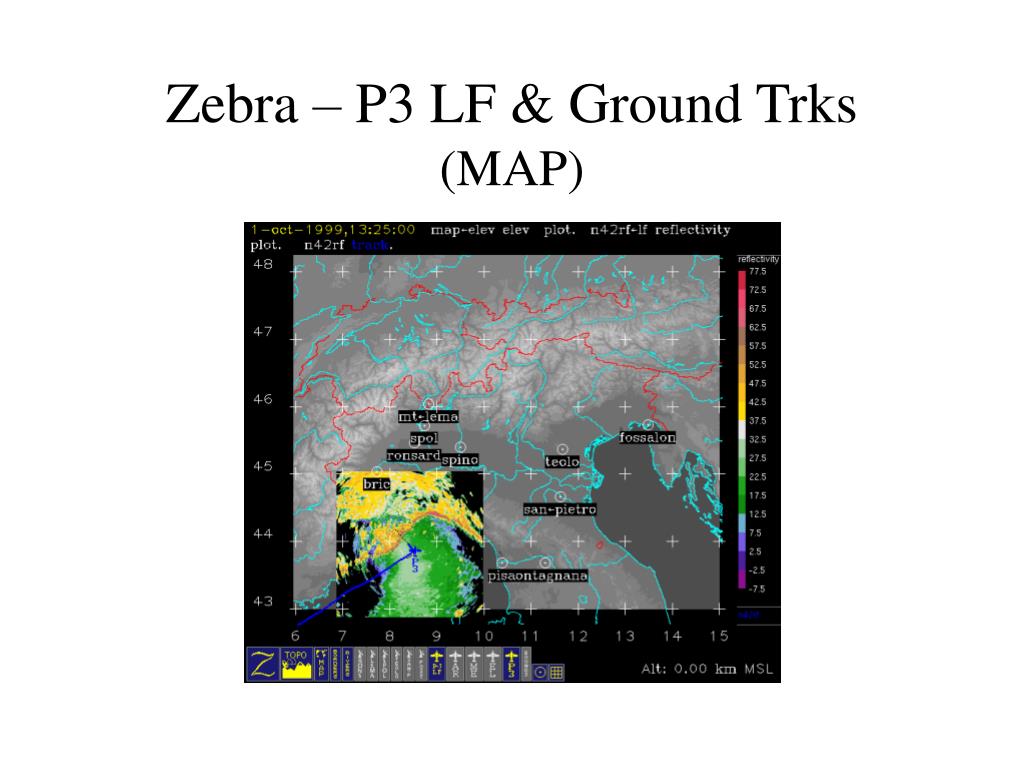

  5. Zebra – P3 LF & Ground Trks(MAP)

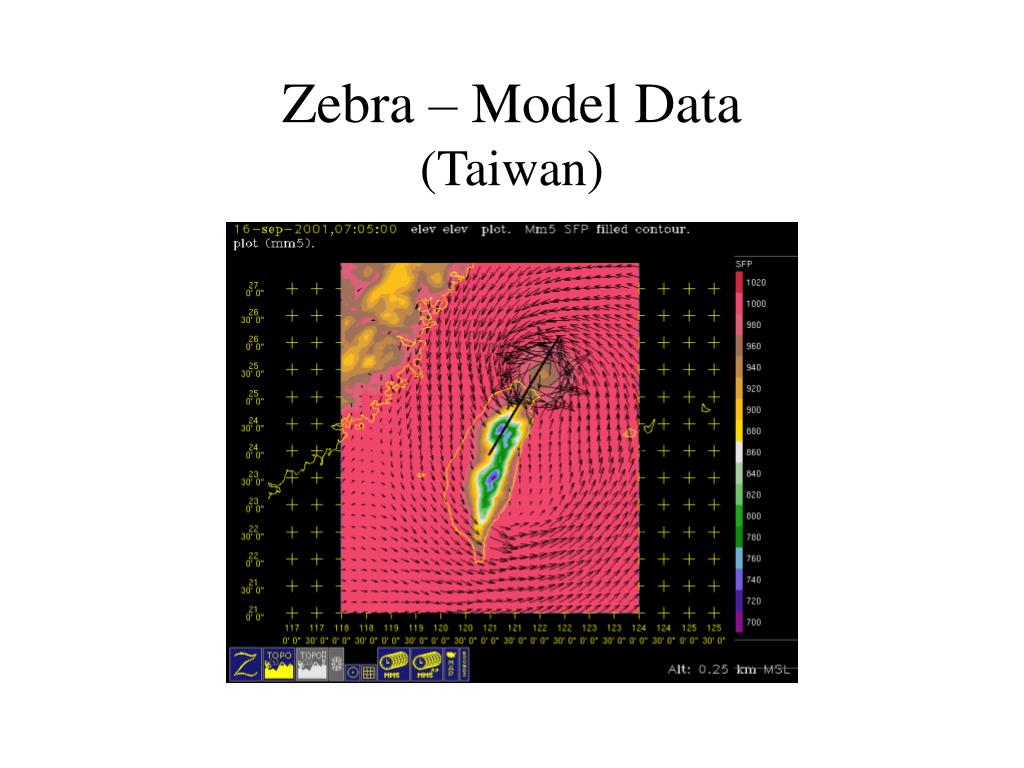

  6. Zebra – Model Data(Taiwan)

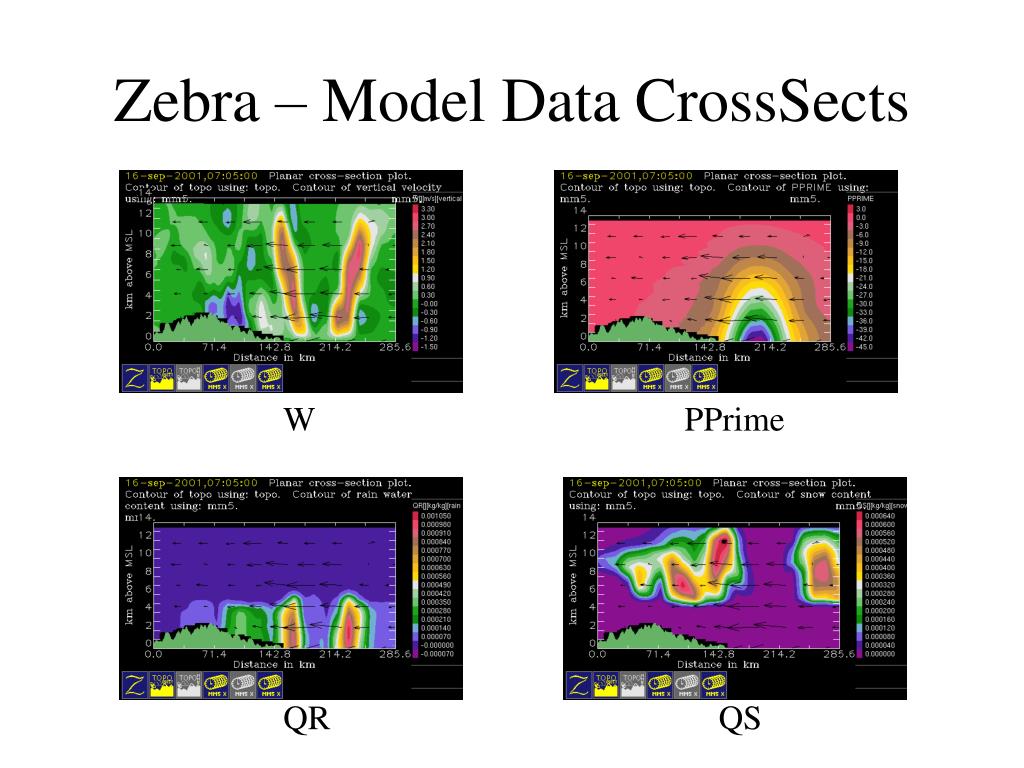

  7. Zebra – Model Data CrossSects W PPrime QR QS

  8. NOTE: Data in red indicates real-time flow NOAA/P3 #1 NOAA/P3 #2 NRL/P3 w/ELDORA G-IV/C-130 U. Miami/ HRD?? ?? LF Data Doppler radar Reflectivity, Radial Vel data Dropsonde data Flight track data Dropsonde data Model data Satellite data Lower fuselage images w/ ground tracks (via satellite link) Ops Center (Miami) Sat images w/ ground tracks (via satellite link) Dual Doppler synthesis Zebra JOSS PRELIMINARY RAINEX DATAFLOW FOR ZEBRA
