  1. CMFB 林維豪 2005. 5.25

  2. Outline • Introduction of CMFB • Some structure of CMFB

  3. Outline • Introduction of CMFB • Some structure of CMFB

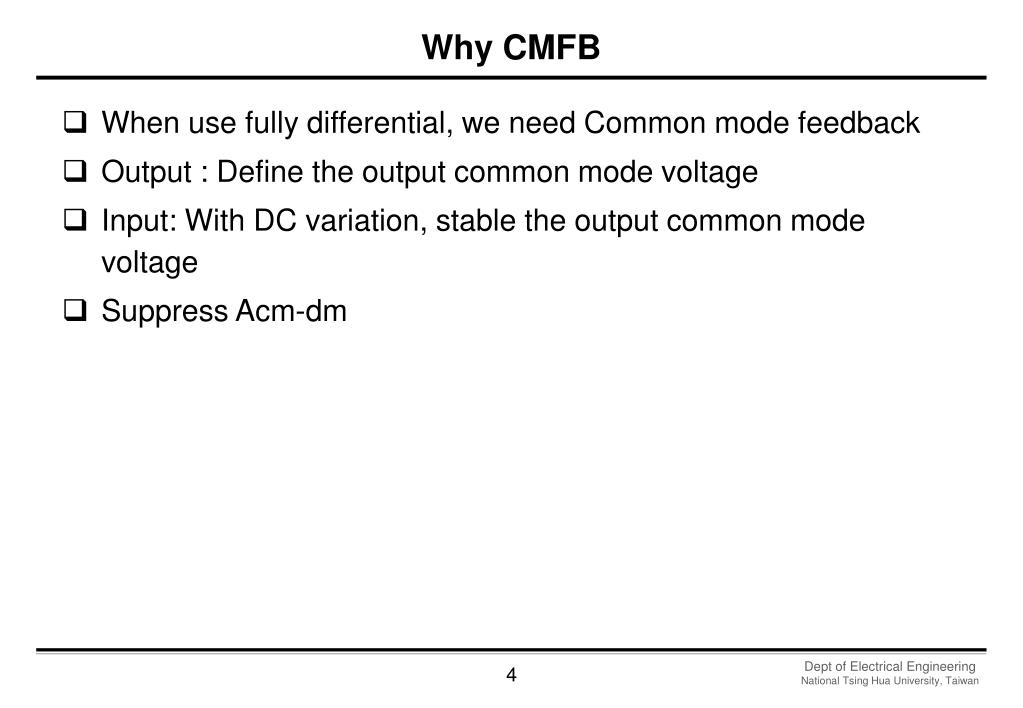

  4. Why CMFB • When use fully differential, we need Common mode feedback • Output : Define the output common mode voltage • Input: With DC variation, stable the output common mode voltage • Suppress Acm-dm

  5. The basic structure of CMFB Treated as small signal

  6. Small signal model • CMFB bandwidth should be larger than differential mode

  7. Outline • Introduction of CMFB • Some structure of CMFB

  8. Sense Amplifier • Advantage : Linear sense • Disadvantage : Loading effect • Advantage : Linear sense • Disadvantage : Limit swing

  9. Error Amplifier • Advantage : High Gain • Disadvantage :1.Limit swing 2.Suffer non-linearity and mismatch

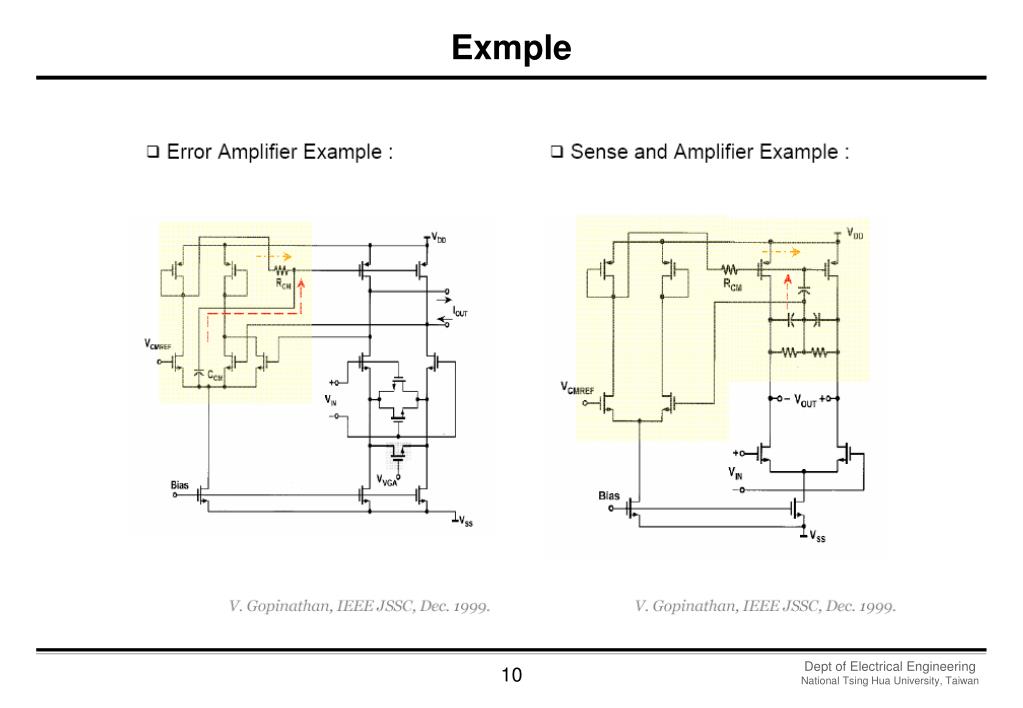

  10. Exmple

  11. Voltage control resistor • Advantage : Light loading effect • Disadvantage :1.Limit swing 2.Small gain

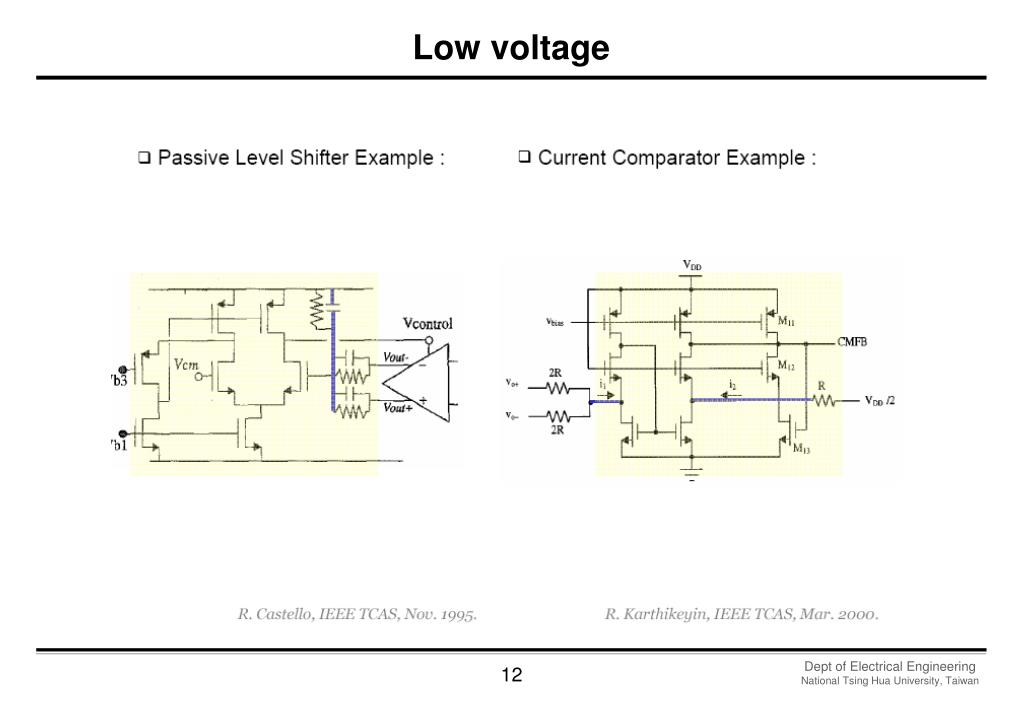

  12. Low voltage

  13. Switch capacitor • Advantage : 1.No swing limitation 2. Avoid R loading effect • Disadvantage :1.Longer settling time 2.Increase C output load 3.Need clock
