Instructions for Installing and Sealing End Caps on Ducts
This guide provides step-by-step instructions for properly installing end caps on ducts. It includes critical details such as cutting the ends at a 45-degree angle to ensure a secure fit, applying glue to all edges, and using aluminum tape for reinforcement. The process involves positioning the duct, applying adhesive, and securely closing each side at a 90-degree vertical angle. Key tips also include using silicone to seal joints effectively, ensuring a durable and air-tight finish. Follow these instructions for optimal results and longevity.
Instructions for Installing and Sealing End Caps on Ducts
E N D
Presentation Transcript

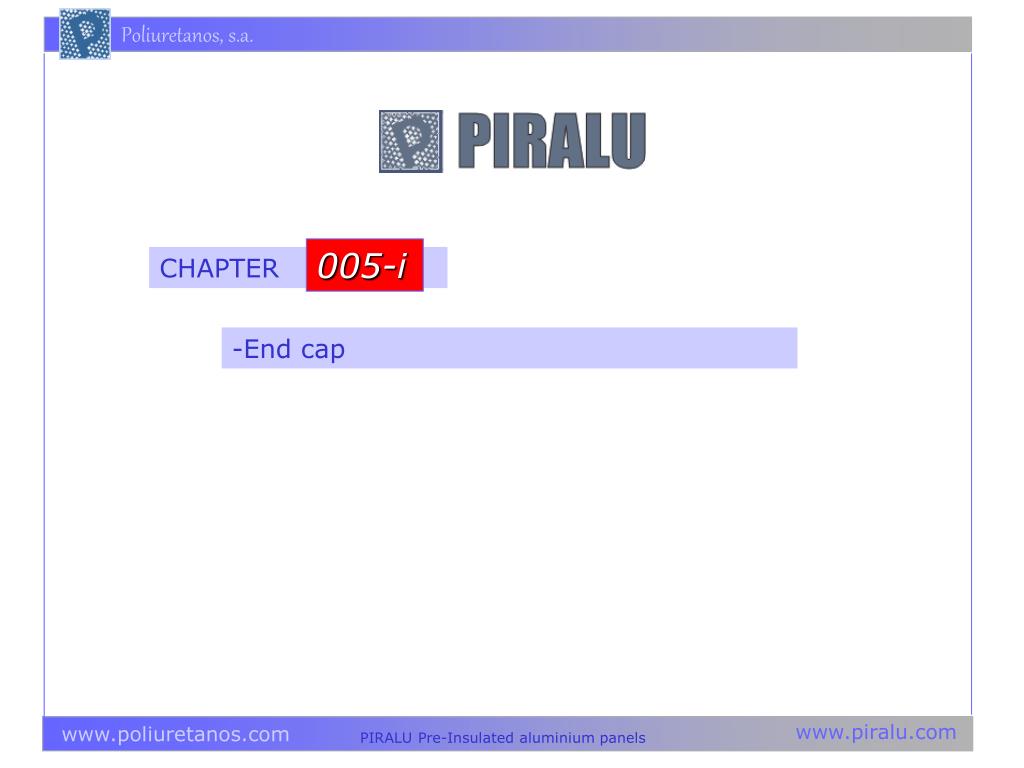

005-i CHAPTER -End cap
End cap 3.000mm 1 • Cut at 45º in the end for lodging of the end cap.
End cap Glue Glue 2 • Glue all the sides with cut at 45º
Aluminium tape End cap External face Level 3 • Unite the four sides with aluminum tape for the exterior.
End cap Interior face 4 • Rotate the duct in position with the interior face up.
End cap End cap 5 • Paste the Cover in position on the base.
End cap 1 6 • Close the first side in position 90º vertical.
End cap 2 7 • Also close the second side in position 90º vertical.
End cap Pressing 3 Pressing 8 • Close the third side and pressing the closing joint with the PVC pipe.
Silicon inside Aluminium tape Aluminium tape End cap 9 • Place the aluminum tape in the closing angle and the silicon.
