  1. Moonavators Team Members: Michael Mahlum Jake Conn Craig Craviotto Shane Duff Caitlin Flynn Hans Leidenfrost

  2. Outline • Background • First Semester Work • Mechanical • Overall • Base • Shoulder • Elbow • Wrist • Poker • Electrical • Control System Outline • Microcontroller • Motor Controllers • Control Interface

  3. Background • RLEP – NASA sponsored program to develop small scale robotics to aid in exploring the lunar surface • Purpose: Design a robotic manipulator device capable of effectively breaking through hard soil and chipping rocks. • Moonavators Team - 6 members

  4. K-10 Rover

  5. First Semester Work • L07 redesign • Stiffen arms • Add gearing to remove slop from system • Research/ Initial development

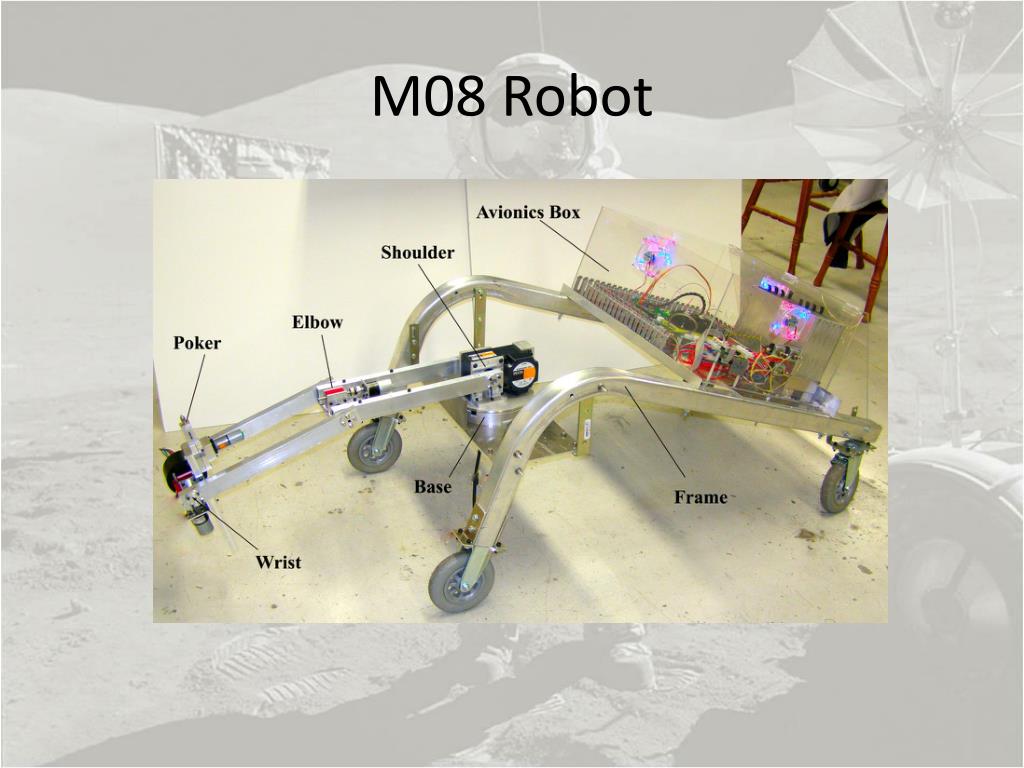

  6. M08 Robot

  7. Base • Direct Drive Motor Housing • Provide polar motion to robotic arm • Friction free motor

  8. Shoulder • Motor and gearbox are paired • High torque, light weight • Controls vertical arm movement

  9. Elbow • Small motor high torque, low speed • 60:1 gearbox for increased torque • Increase the precision of linear positioning

  10. Wrist • Small motor high torque, low speed • 120:1 gearbox for increased torque • End effecter positioning

  11. Shovel • Scooping • Pushing • Lifting • Impact Force

  12. Percussive Poker Development

  13. Poker • Purpose to chip rocks and break hard soil • Fracture with quick and repeated impact • Double impact cam action • High speed low torque motor • Heat treated components

  14. Electrical

  15. Control System Outline • User interface • Playstation controller • Microcontroller • Rabbit 4110 microprocessor • Types of motor controllers • BLH 450, shoulder motor • B15A8N, base motor • BH-25, elbow, wrist, poker motors

  16. Microcontroller • Rabbit 4110 • Replaces Two Basic Stamp’s, Mini-ITX

  17. Motor Controllers • BLH 50 K (Oriental Motor Co.) • Shoulder motor • B15A8N (Advanced Motion Control) • Base motor • HB-25 (Parallax) • Elbow, Wrist, Poker motors

  18. Control Interface • Human user interface • Playstation controller • Serial port interface • Can be externally controlled via serial port

  19. Thank You • NASA Ames • NASA Idaho Space Grant Consortium • Mentors: • Aaron Goodin • John Lacy • Russ Porter • UI Faculty: Steve Beyerlein, Jean Teasdale, Dave Atkinson, Becky Highfil, and others.
