  1. CCNA 4 v3.1 Module 4

  2. CCNA 4 v3.0 Module 4ISDN and DDR

  3. Objectives • ISDN concepts • ISDN configuration • DDR configuration

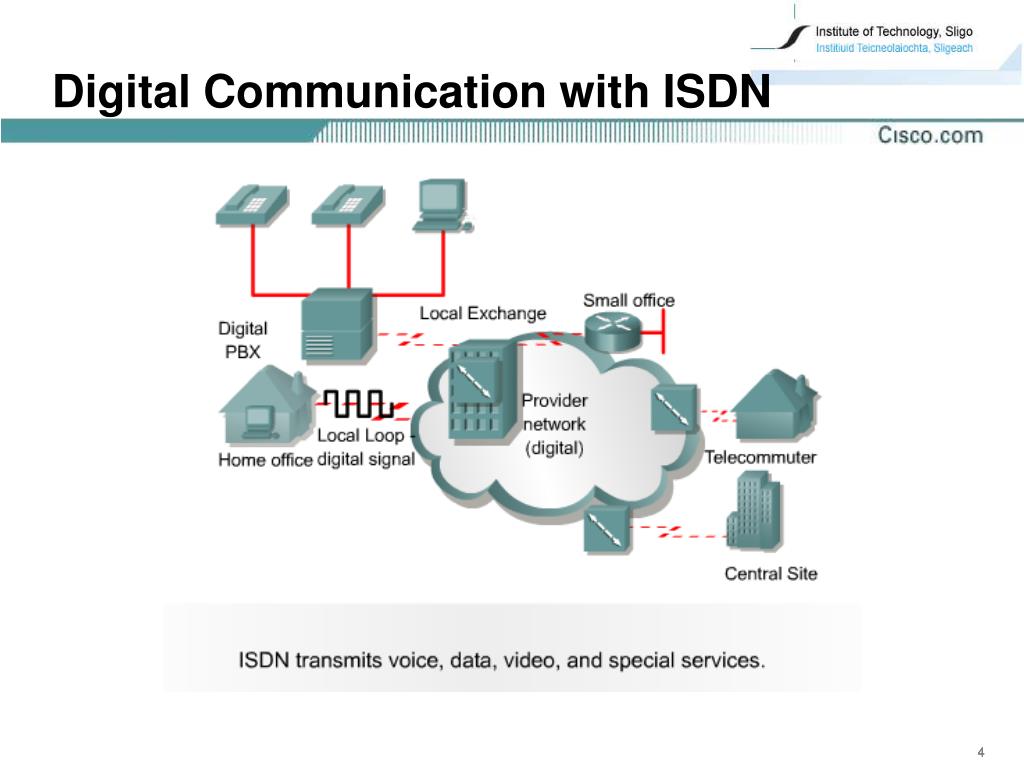

  4. Digital Communication with ISDN

  5. ISDN Benefits

  6. ISDN Standards

  7. ISDN Access Options

  8. ISDN 3-Layer Model

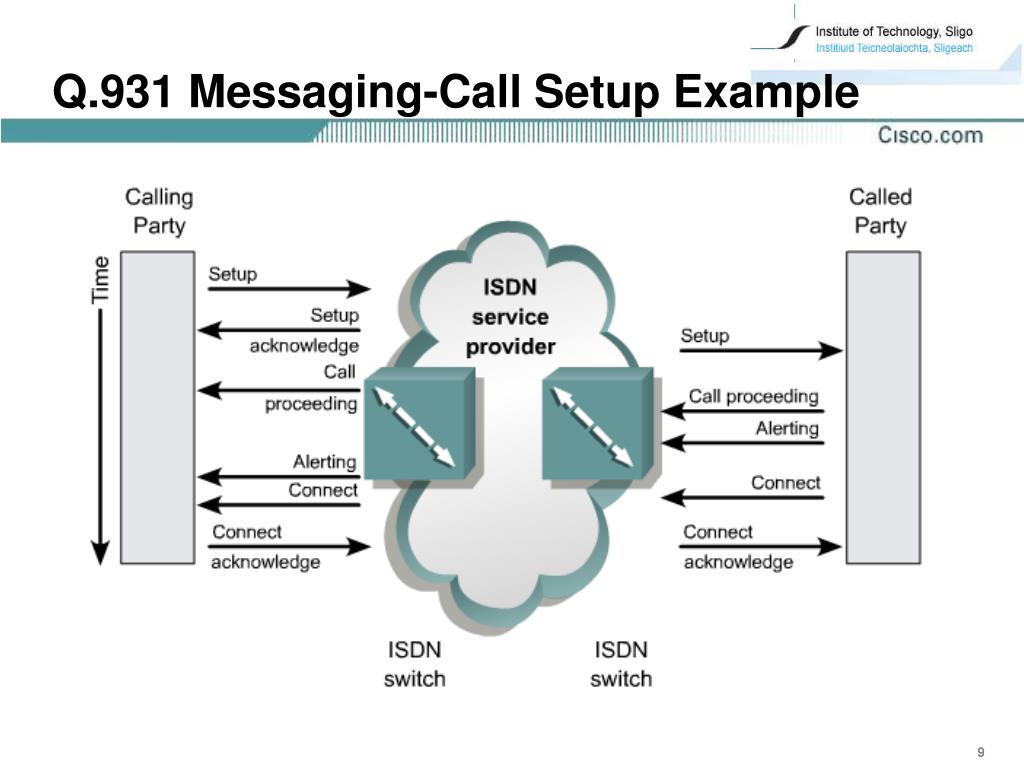

  9. Q.931 Messaging-Call Setup Example

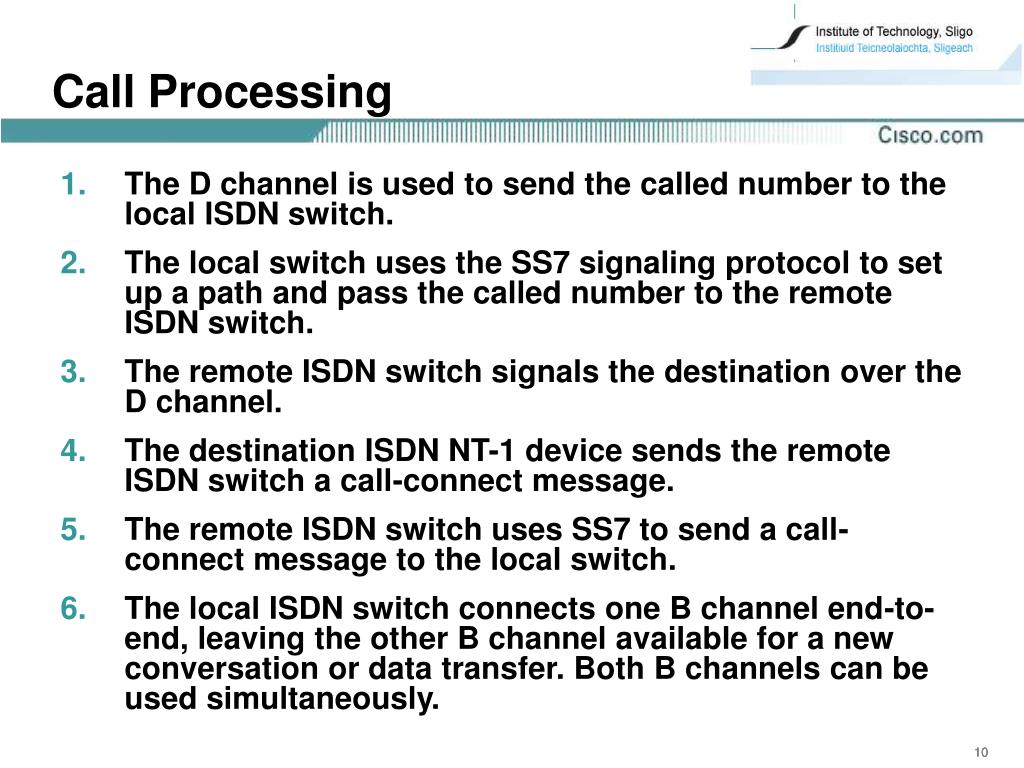

  10. Call Processing • The D channel is used to send the called number to the local ISDN switch. • The local switch uses the SS7 signaling protocol to set up a path and pass the called number to the remote ISDN switch. • The remote ISDN switch signals the destination over the D channel. • The destination ISDN NT-1 device sends the remote ISDN switch a call-connect message. • The remote ISDN switch uses SS7 to send a call-connect message to the local switch. • The local ISDN switch connects one B channel end-to-end, leaving the other B channel available for a new conversation or data transfer. Both B channels can be used simultaneously.

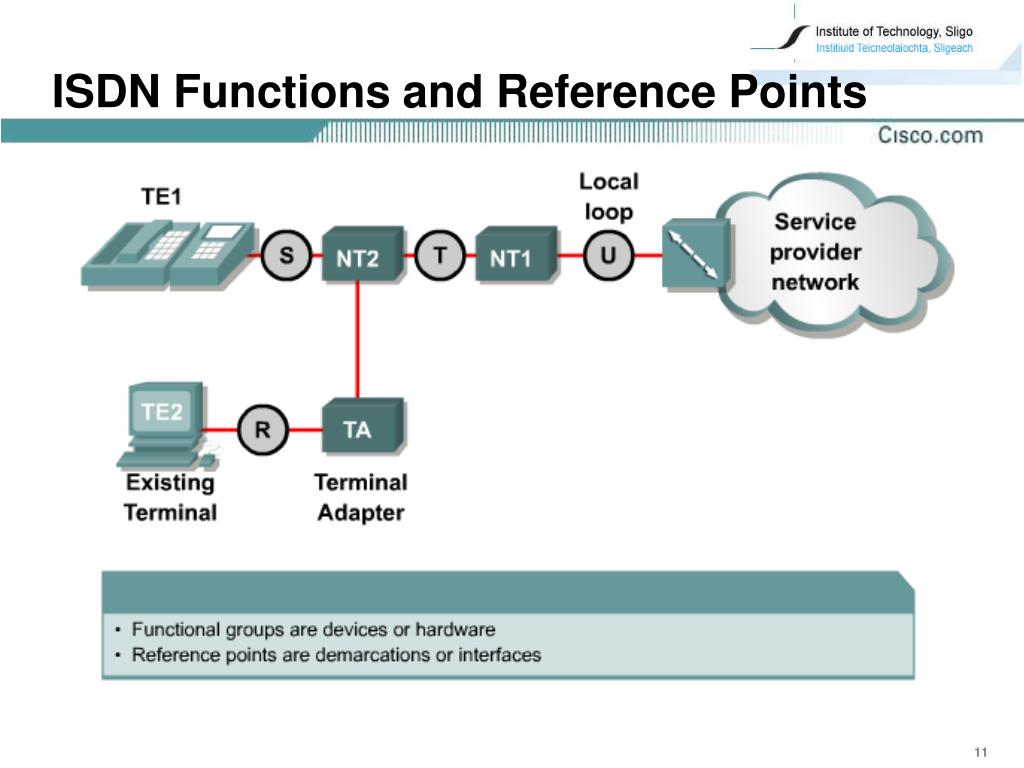

  11. ISDN Functions and Reference Points

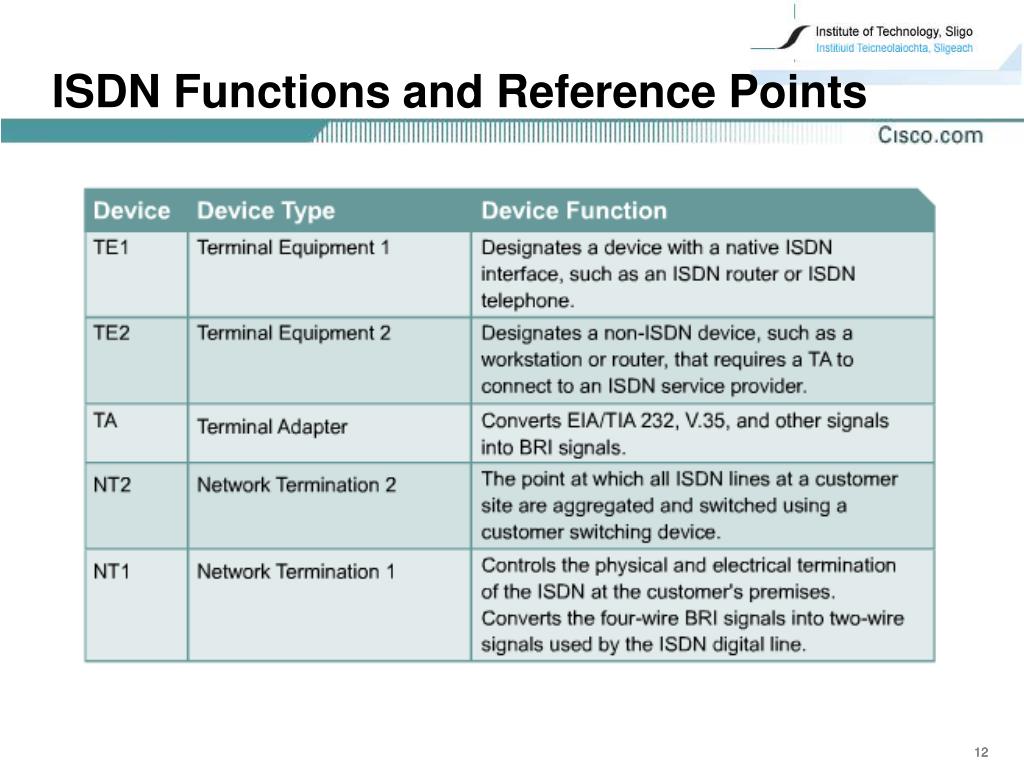

  12. ISDN Functions and Reference Points

  13. BRI Reference Points

  14. Cisco ISDN BRI Interfaces

  15. S/T ISDN Interface U ISDN Interface ISDN Interfaces

  16. ISDN Switch Types

  17. Configuring ISDN BRI

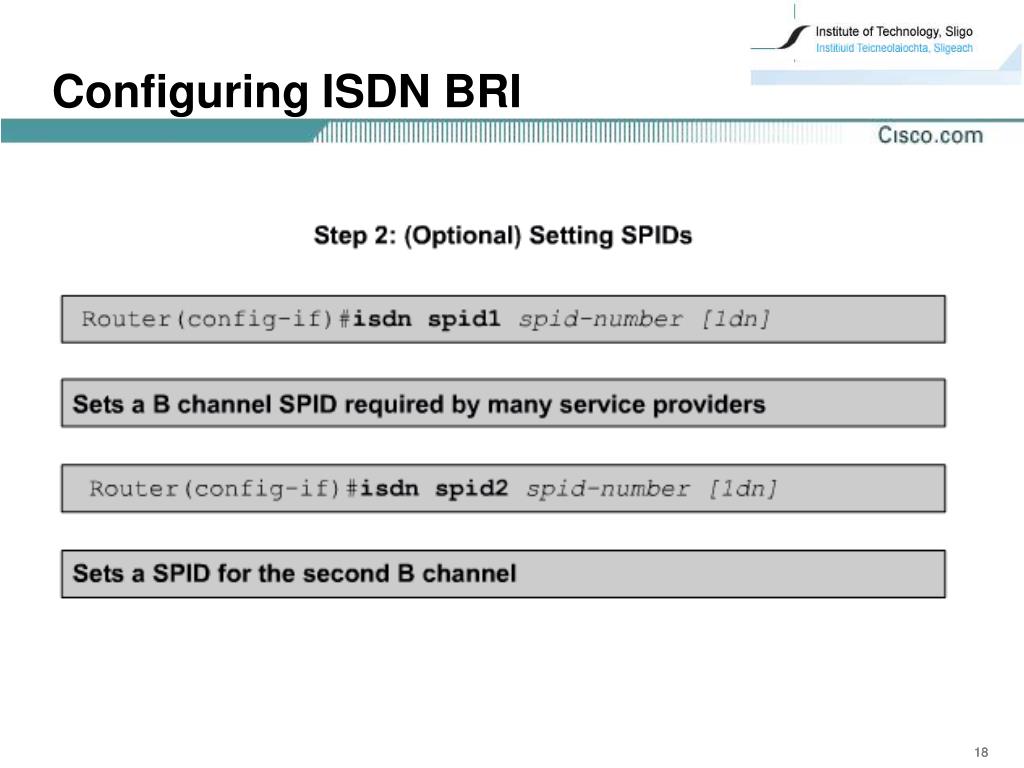

  18. Configuring ISDN BRI

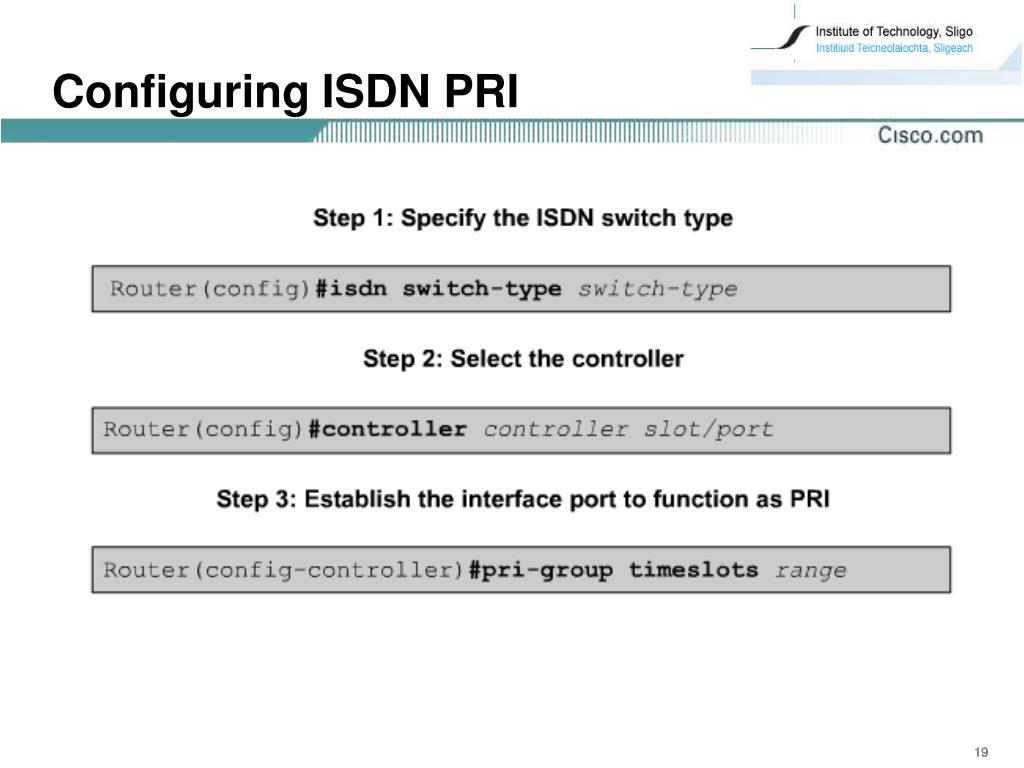

  19. Configuring ISDN PRI

  20. Switch Types Available for ISDN PRI Configuration

  21. ISDN PRI Examples

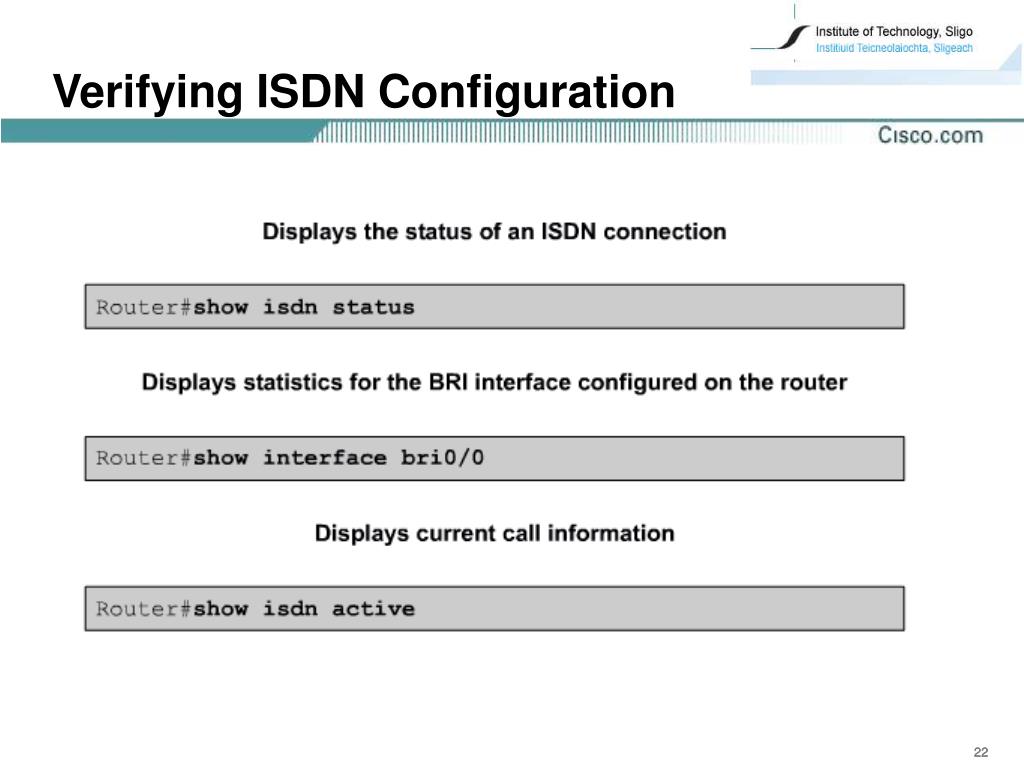

  22. Verifying ISDN Configuration

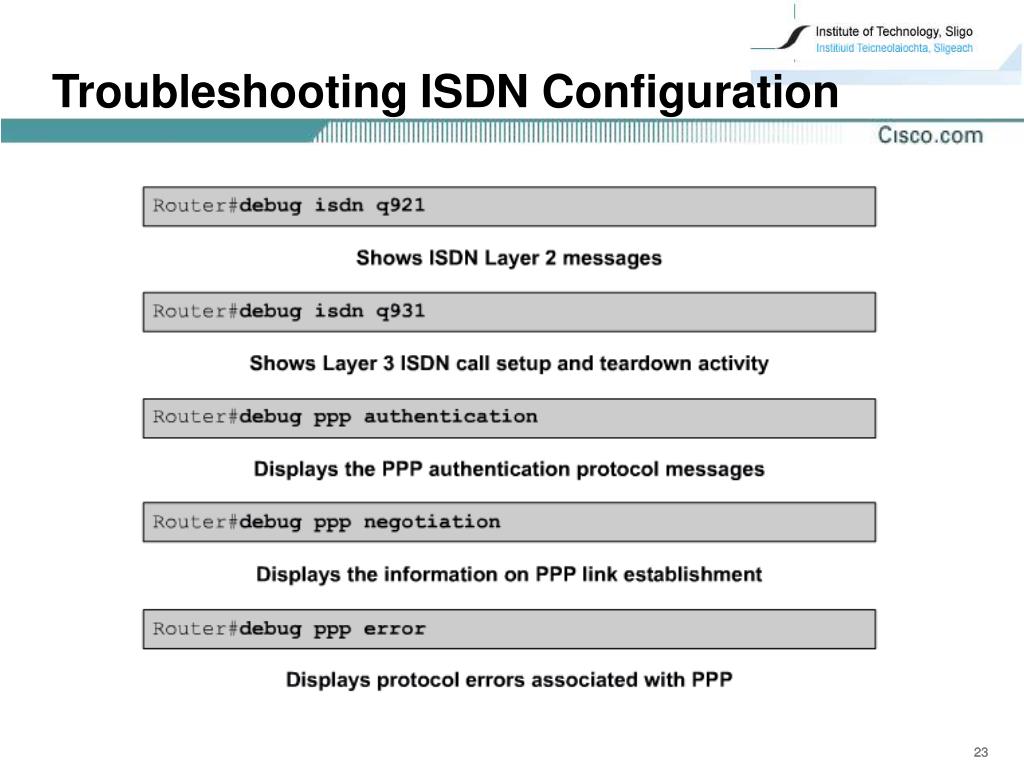

  23. Troubleshooting ISDN Configuration

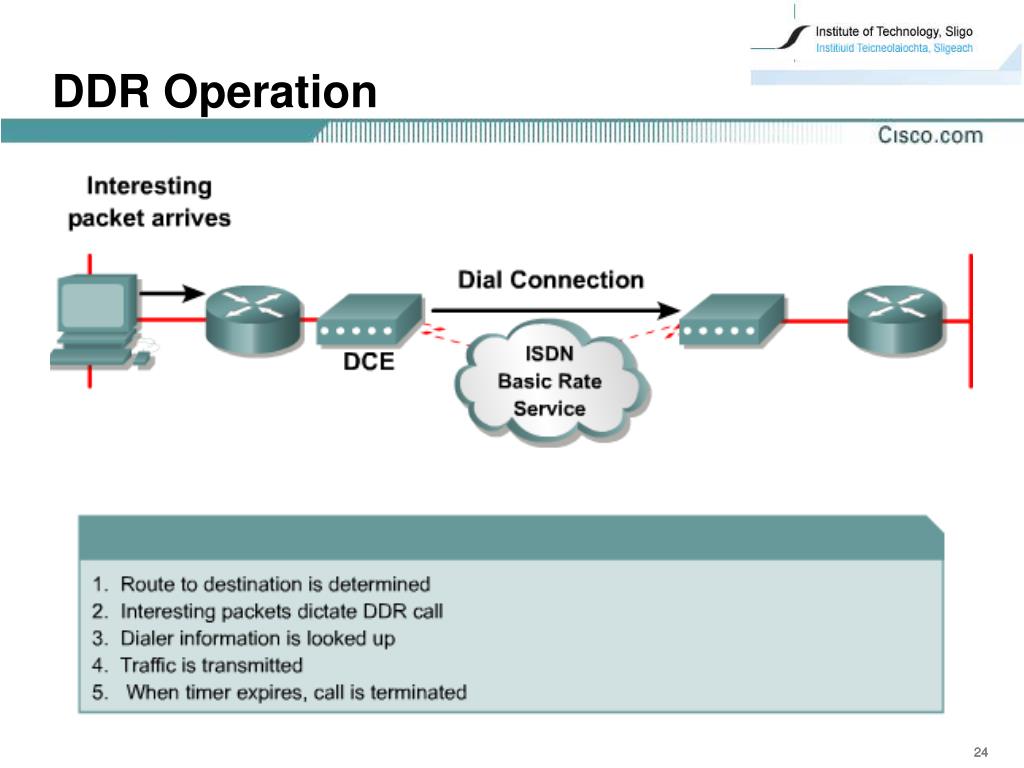

  24. DDR Operation

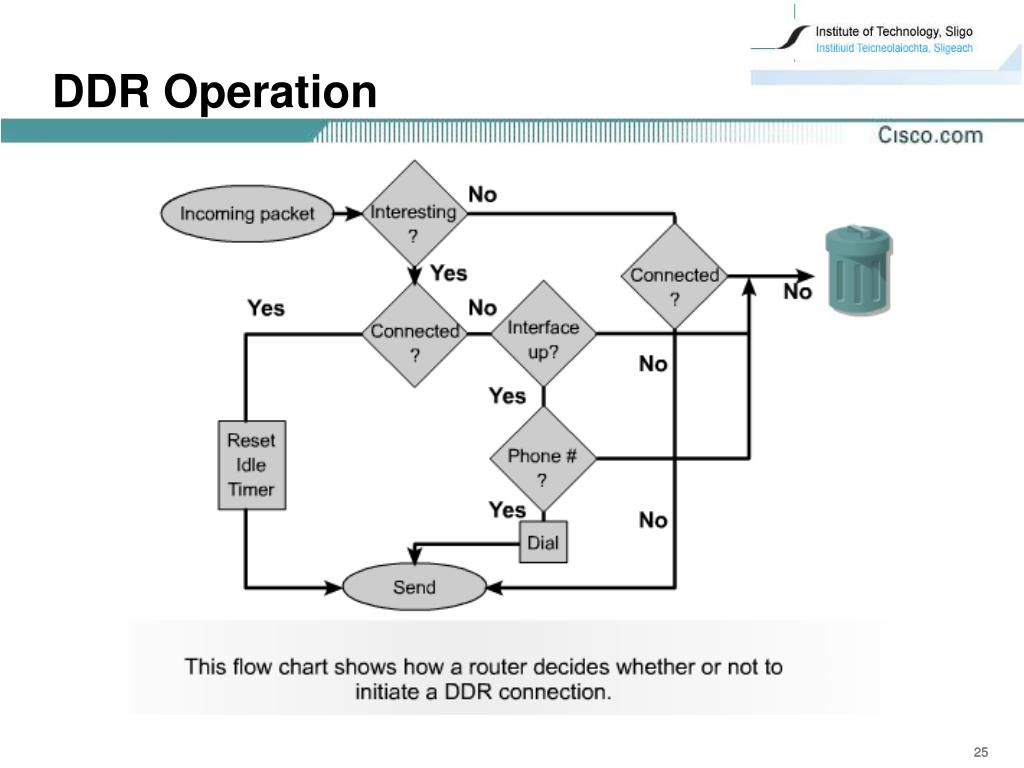

  25. DDR Operation

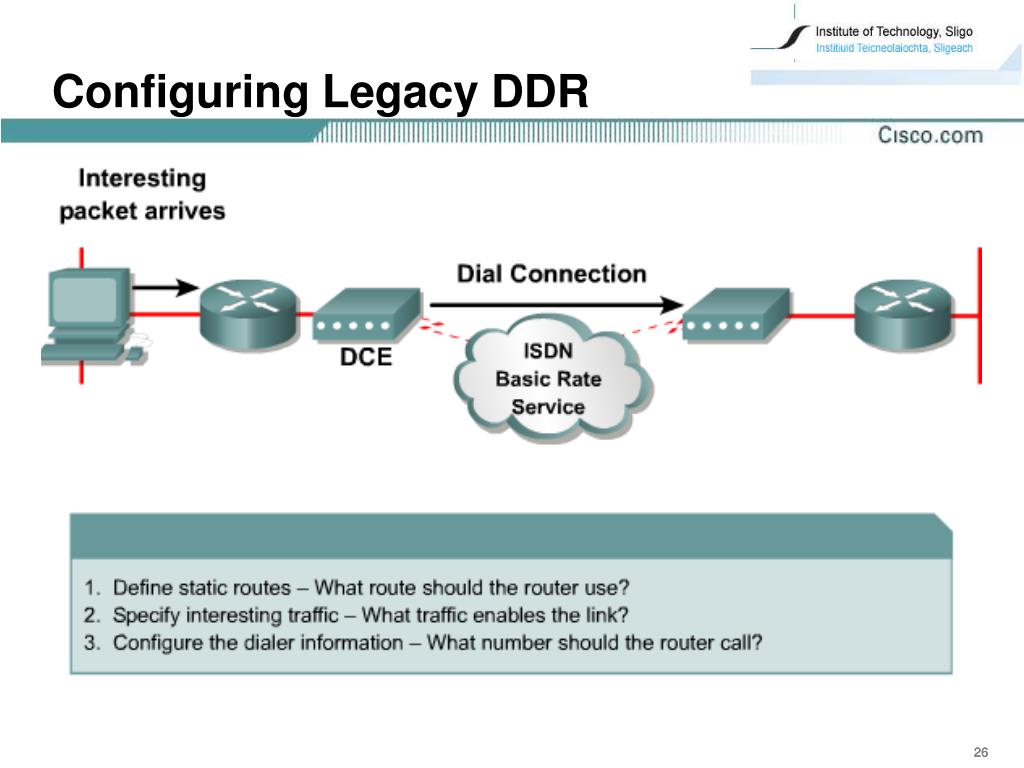

  26. Configuring Legacy DDR

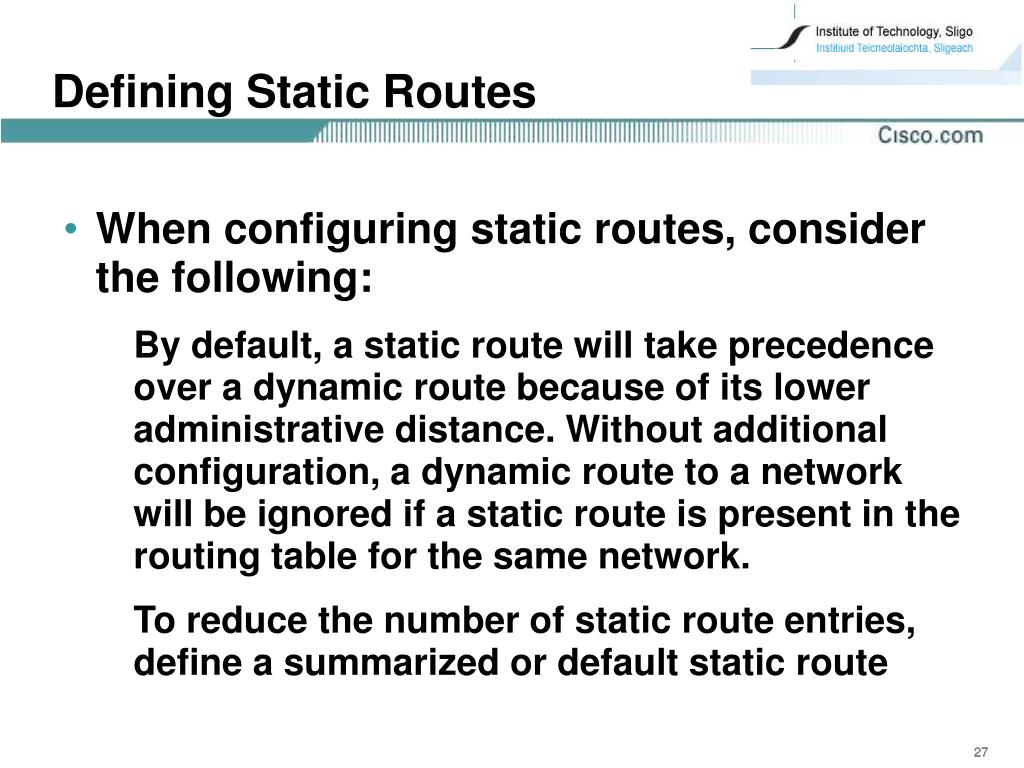

  27. Defining Static Routes • When configuring static routes, consider the following: • By default, a static route will take precedence over a dynamic route because of its lower administrative distance. Without additional configuration, a dynamic route to a network will be ignored if a static route is present in the routing table for the same network. • To reduce the number of static route entries, define a summarized or default static route

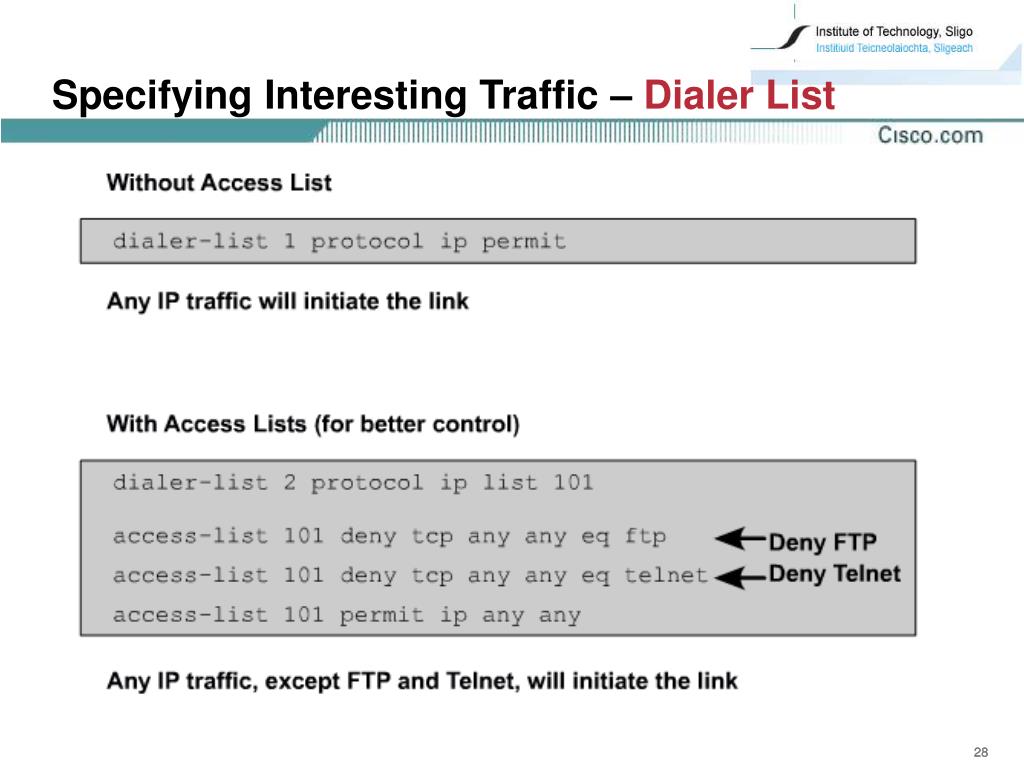

  28. Specifying Interesting Traffic – Dialer List

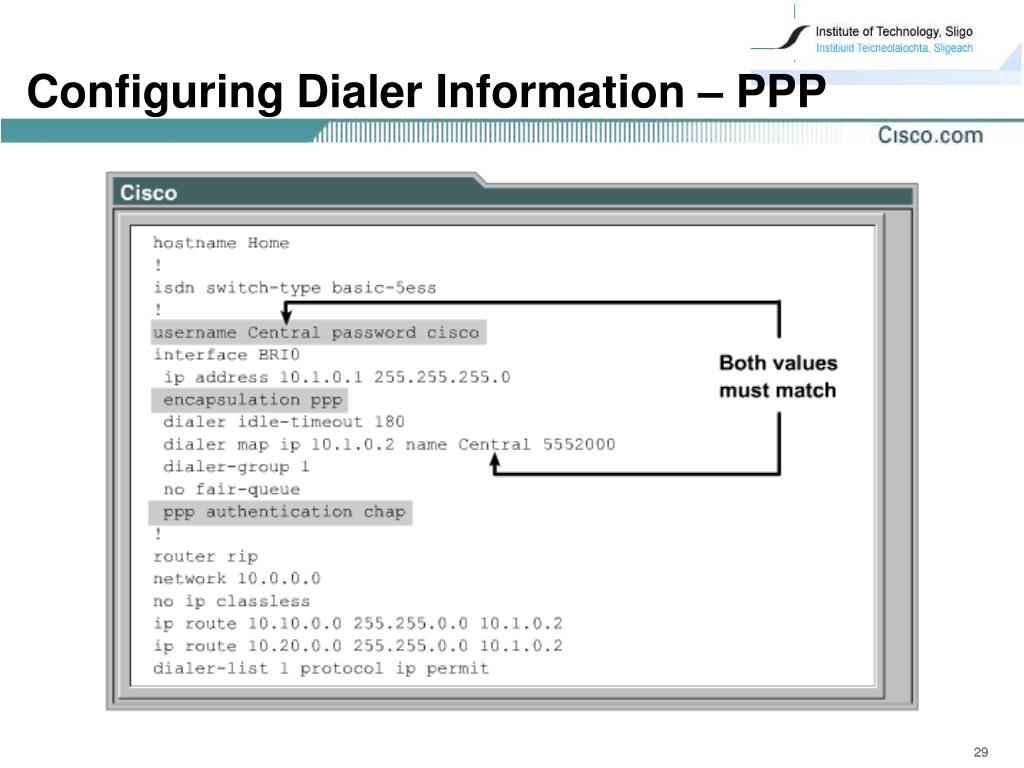

  29. Configuring Dialer Information – PPP

  30. The dialer-group Command

  31. The dialer-map Command

  32. The dialer idle-timeout Command

  33. Dialer Profiles Overview • Define encapsulation and access control lists • Determine minimum or maximum calls • Turn features on or off

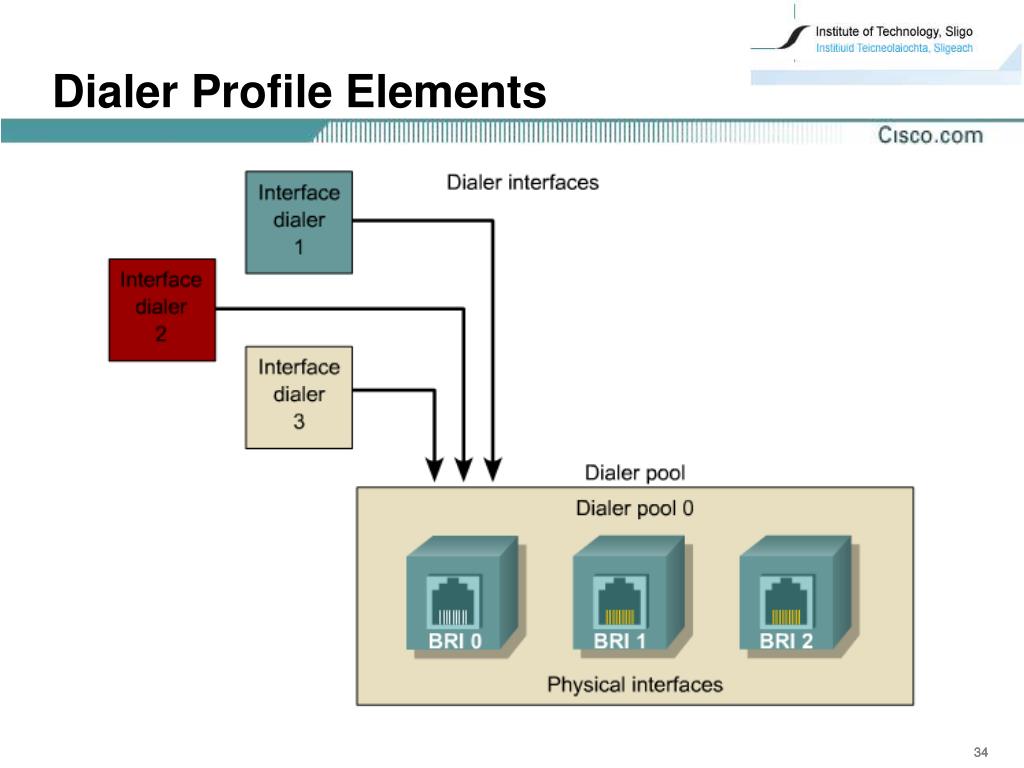

  34. Dialer Profile Elements

  35. Configuring Dialer Interfaces

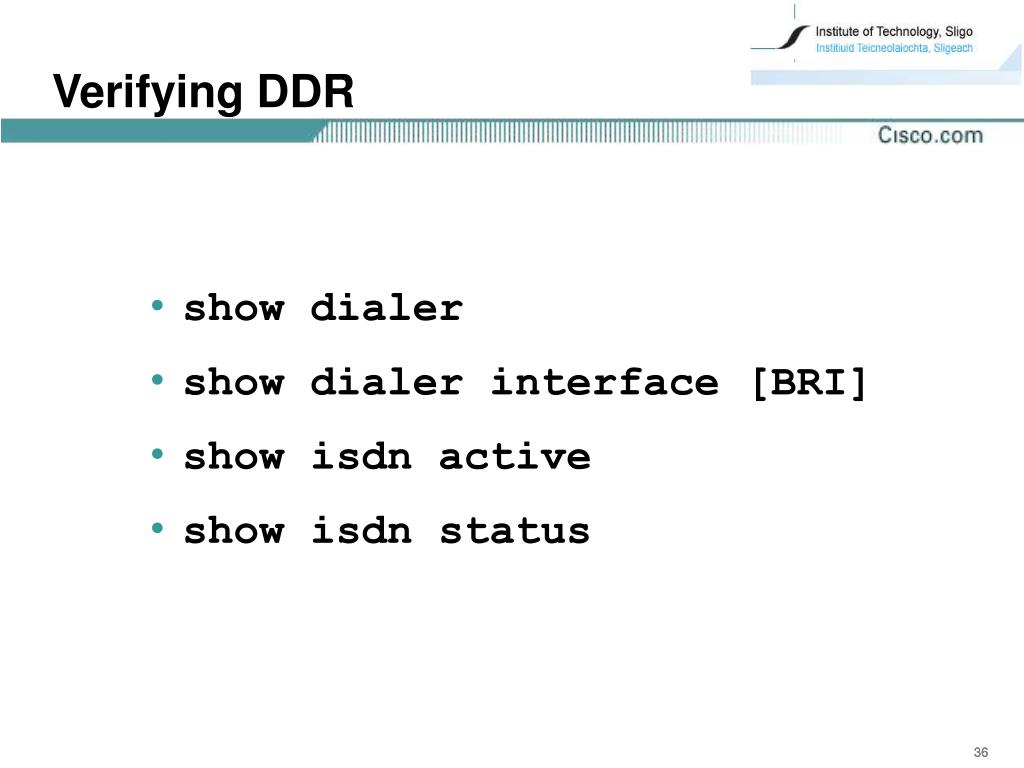

  36. Verifying DDR • show dialer • show dialer interface [BRI] • show isdn active • show isdn status

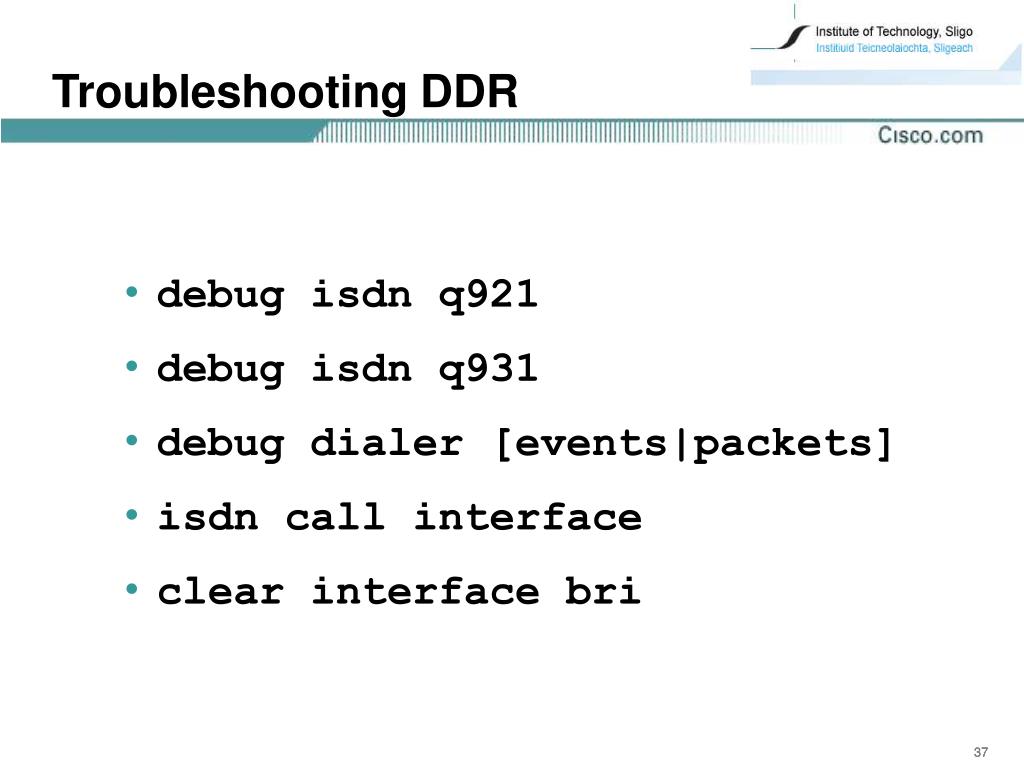

  37. Troubleshooting DDR • debug isdn q921 • debug isdn q931 • debug dialer [events|packets] • isdn call interface • clear interface bri
