POWER MANAGEMENT SYSTEM. Presentation overview. Hardware: PMS, generator controller, diesel starter & safety, speed controller & load sharing unit GENOP 71 System overview Power management system functions Operation and configuration - Screens. PMA 300 Components.

sereno
Télécharger la présentation

POWER MANAGEMENT SYSTEM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. POWER MANAGEMENT SYSTEM

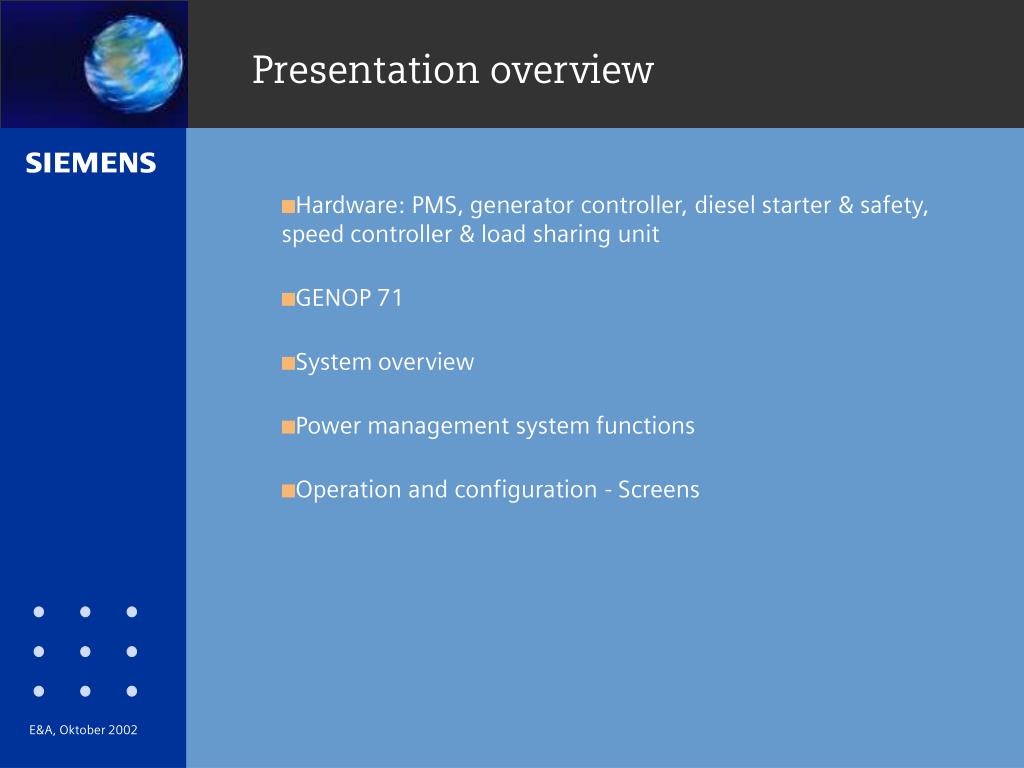

  2. Presentation overview • Hardware: PMS, generator controller, diesel starter & safety, speed controller & load sharing unit • GENOP 71 • System overview • Power management system functions • Operation and configuration - Screens

  3. PMA 300 Components • Simatic S7-300 components • Touch screen panel MP370 Touch • Generator Controller (GENOP 71) • Diesel Starter and Safety System EC-2(Not part of PMA300) • Speed Controller and Load Sharing unit (Not part of PMA300)

  4. GENOP 71

  5. GENOP 71 Functionality • Monitoring of overcurrent in all phases • Monitoring and trip on short circuit • Monitoring and trip on reverse power • Disconnection of unessential consumers • Automatic synchronisation of the generator breaker (to the bus bar) • Collection, processing and transfer of various measurements to PMA300 • - Active power • -Reactive power • -Generator and bus voltage, three phases • -Generator current, three phases • -Generator and bus frequency • -Power factor • -….

  6. System Overview (Double CPU System) S7 316-2DP S7 316-2DP HMI (Touch Screeen) Profibus MPI- bus Bus -bar system 1 Bus -bar system 2 Generator Generator Generator Generator Controller Controller Controller Controller Profibus -DP Profibus -DP GENOP 71 GENOP 71 GENOP 71 GENOP 71 G G G G DI/DO DI/DO DI/DO DI/DO Speed control Speed control Speed control Speed control and and and and load sharing load sharing load sharing load sharing Load sharing line

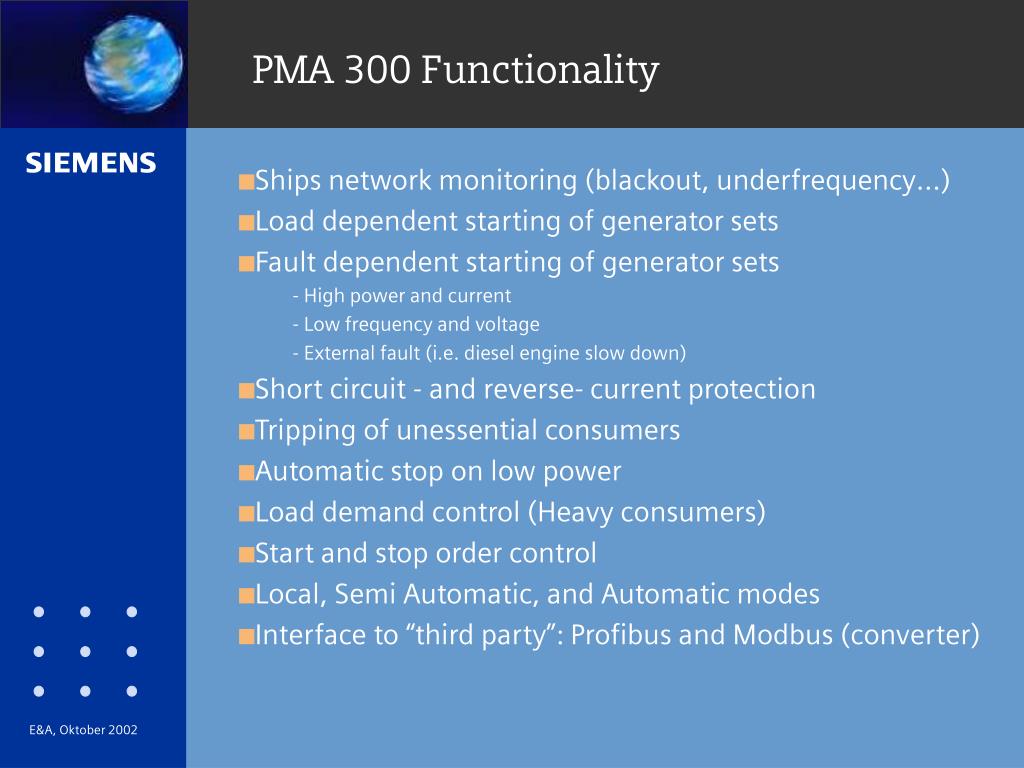

  7. PMA 300 Functionality • Ships network monitoring (blackout, underfrequency…) • Load dependent starting of generator sets • Fault dependent starting of generator sets • - High power and current • - Low frequency and voltage • - External fault (i.e. diesel engine slow down) • Short circuit - and reverse- current protection • Tripping of unessential consumers • Automatic stop on low power • Load demand control (Heavy consumers) • Start and stop order control • Local, Semi Automatic, and Automatic modes • Interface to “third party”: Profibus and Modbus (converter)

  8. PMA 300: MAP

  9. PMA 300: MAIN

  10. PMA 300: Individual Set Level 1

  11. PMA 300: Individual Set Level 1

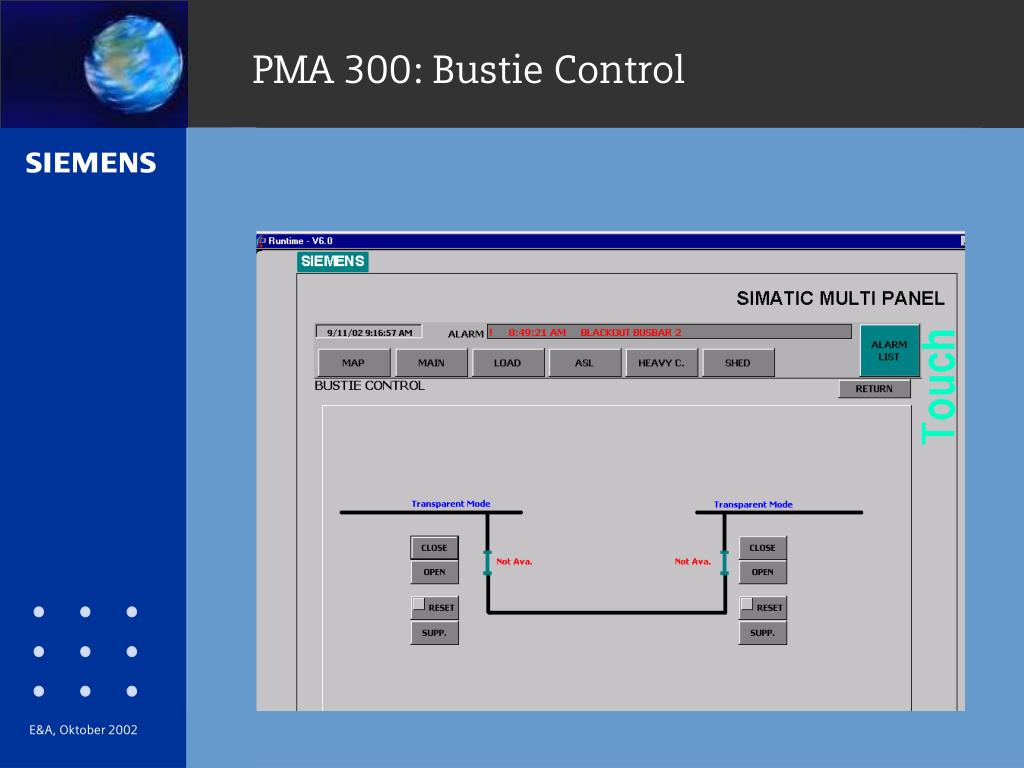

  12. PMA 300: Bustie Control

  13. PMA 300: Heavy Consumers

  14. PMA 300: Load Shedding

  15. PMA 300: Asymmetric Load

  16. PMA 300: Load Supervision

  17. PMA 300: Load Trend

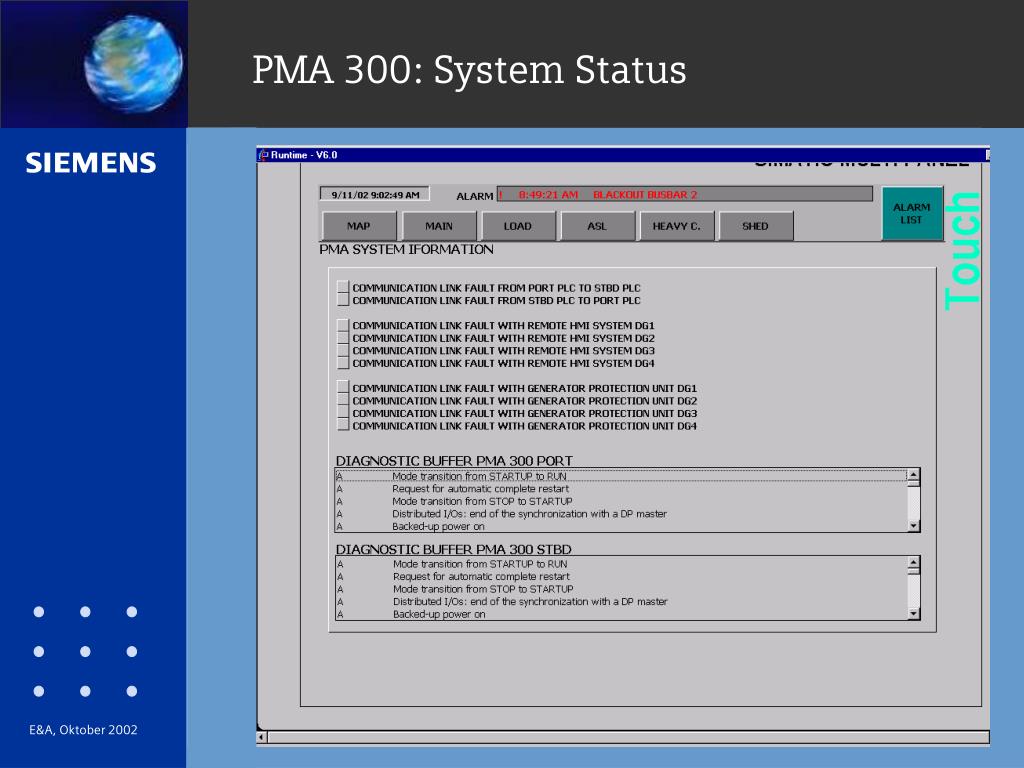

  18. PMA 300: System Status

  19. PMA 300: Alarms

  20. PMA 300 V4.0: Main

  21. PMA 300: Configuration
