  1. QoS in AB K12’s Todd Kennedy ATLE Building Bridges Conf

  2. About the Speaker • Married, three kids, oldest is 12, youngest is 3. • Director of Technology with Pembina Hills (11 years) • MSc. IT University of Liverpool

  3. Introduction • Mid 2004 - No SuperNet yet • Dissertation Project for MSc • Very few understood QoS • Project meant as QoS Cookbook • Technical Presentation

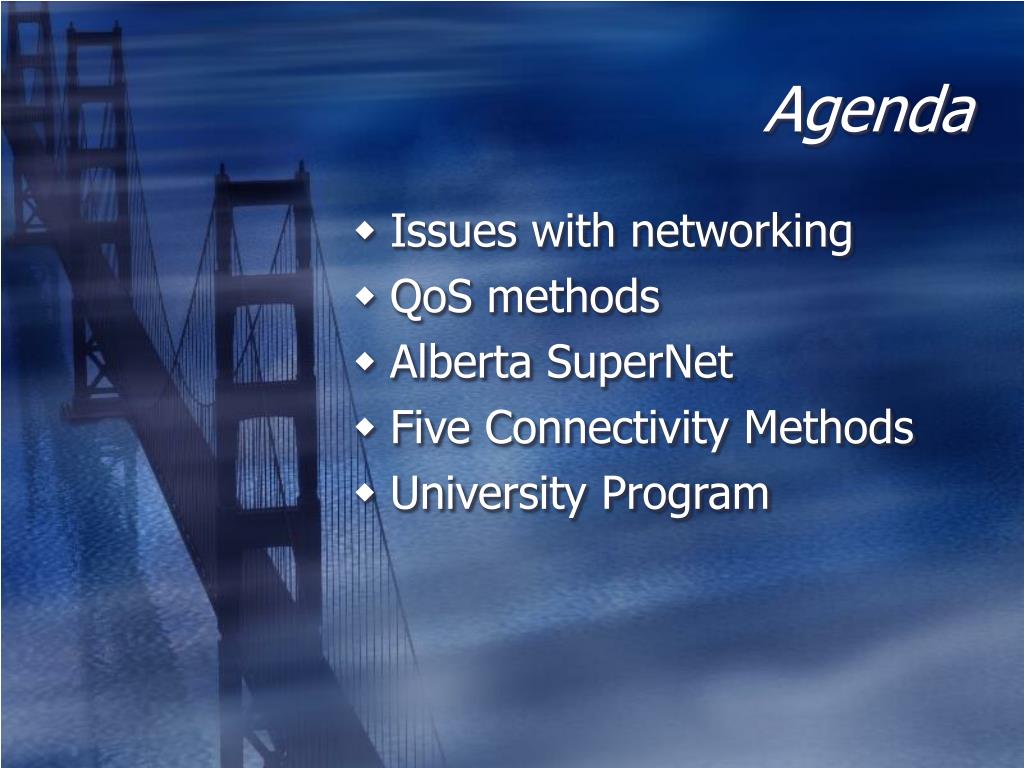

  4. Agenda • Issues with networking • QoS methods • Alberta SuperNet • Five Connectivity Methods • University Program

  5. Issues with Networking

  6. What is QoS? • The ability of the network to provide better or “special” sevice to a set of users/applications to the detriment of other users/applications. - Cisco

  7. Why do we need QoS? • We don’t, for file transfers, web browsing, e-mail, 99% of tasks that most users do • Except for Voice/Video or other delay/jitter sensitive traffic

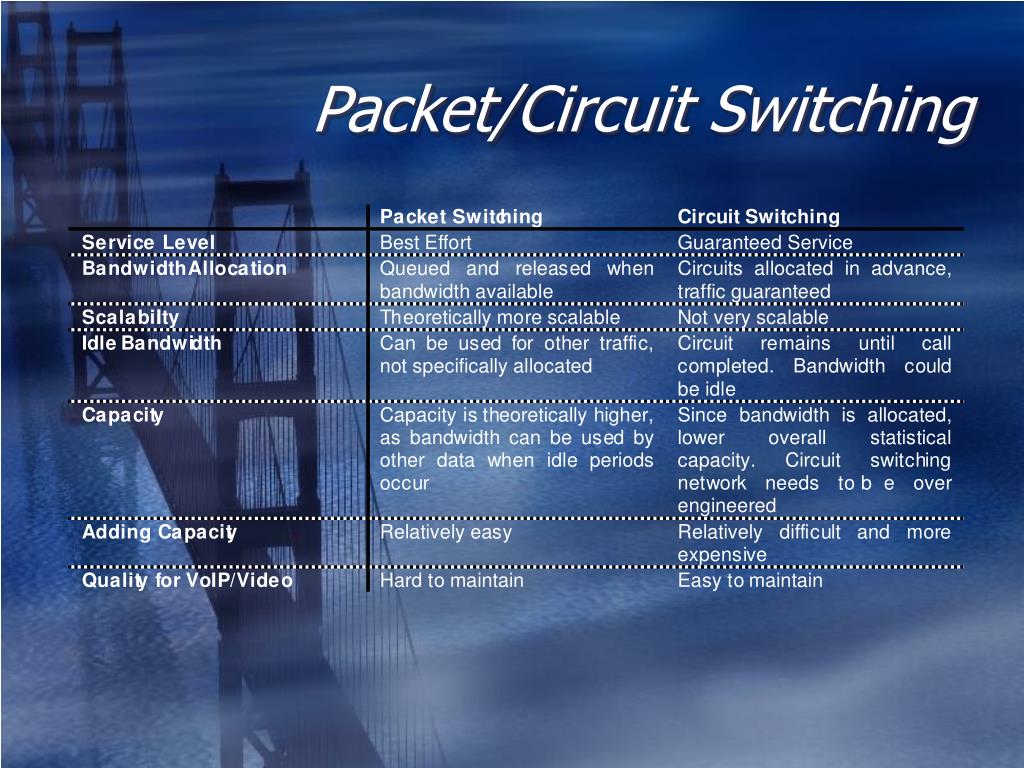

  8. Packet/Circuit Switching

  9. TCP/UDP IP • TCP - rudimentary QoS, will re-transmit if packet is lost. Has some congestion management, but tends to slow down traffic • UDP - connectionless, doesn’t verify receipt of data.

  10. So who cares? • Standard networks pass packets on FIFO • Non priority traffic can interfere with priority traffic • Voice and Video have some very specific requirements

  11. But I have tonnes of bandwidth? • Large amounts of bandwidth do not solve the simple problem of QoS • Video Example • No QoS over Internet

  12. Delay • Delay refers to the amount of time between when a packet begins it’s journey at the sender, and when it arrives at the receiver. • Video - frozen picture • Audio - Can’t tell if person has stopped talking, some VoIP will drop the call

  13. Delay

  14. Jitter • The amount of variation in delay of packets traveling across a data network • Ie. Packets sent at a rate of 1 every 20 ms. If a packet is late, jitter is increased, conversation is broken up • Some assume bandwidth fixes all of this.

  15. Packet Loss • Internet loses between 2 and 10% of all data traffic • Lost traffic causes re-transmission, which increases jitter • Voice and Video are unuseable with high packet loss

  16. Best Effort • Historically, all networks, and the Internet are Best Effort networks. That is, the network will do it’s best, but there is no guarantee • LAN design - we try to overengineer.

  17. What do we need? • In 2004/2005: • 64% of school jurisdictions were using or planning to start VC immediately • 24% using VoIP

  18. QoS Methods • Queuing • Initially routers had a single queue. • Now routers and switches have multiple queues • Best Effort Queue and other higher priority queues

  19. Queue Servicing • Priority Queuing • Four queues • Higher queue always served before lower queue • What if the high priority queue is always full?

  20. Queue Servicing • Weighted Fair Queuing • Up to 4096 queues • Queues with lower volume, and higher priority, serviced more frequently • Queue with higher volume, but lower priority, serviced less frequently • Ensures even low priority queues get serviced

  21. Queue Servicing • Low Latency Queuing • Traffic delivered first from the LLQ • Some devices will do policing via LLQ

  22. Queue Servicing • Random Early Detection and Weighted Random Early Detection • If a queue is getting too full, drop packets from the end of the queue, causing some senders to slow down • Some traffic is treated unfairly

  23. Traffic Classification • 802.1p - assign physical port to a queue priority • Very easy to do • Traffic only prioritized on local network • All traffic from the same device put in the same queue • Non-priority traffic will fill up the queue • Management issues

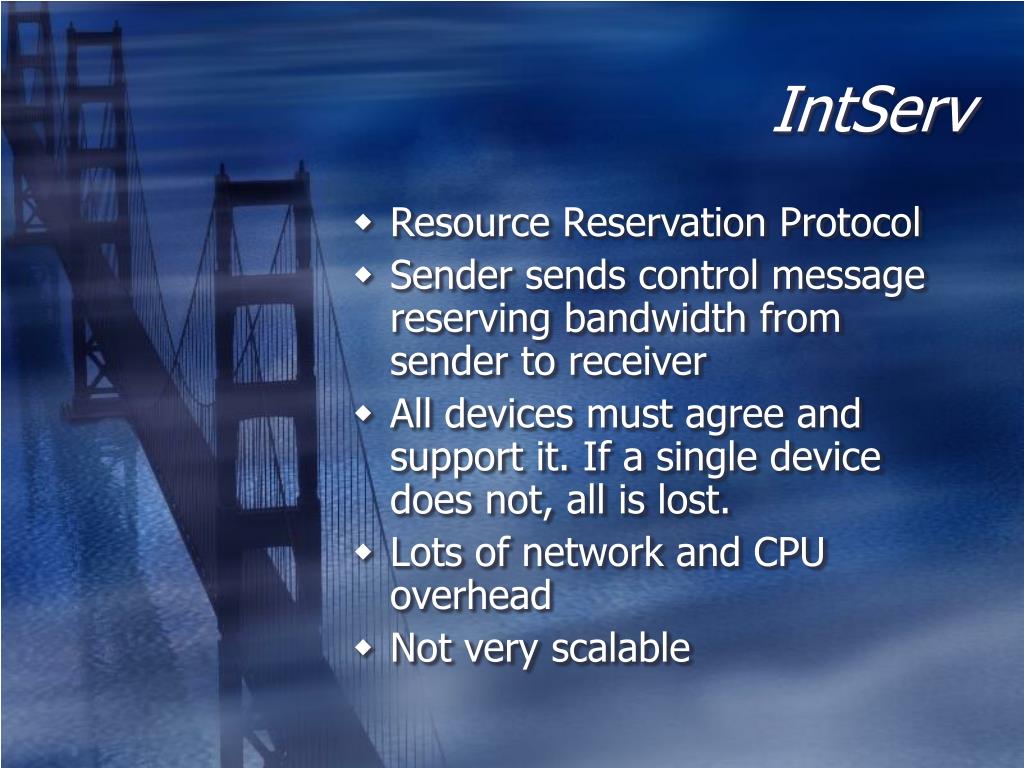

  24. IntServ • Resource Reservation Protocol • Sender sends control message reserving bandwidth from sender to receiver • All devices must agree and support it. If a single device does not, all is lost. • Lots of network and CPU overhead • Not very scalable

  25. Differentiated Services • Tag the packet on the edge, pass through the rest of the network • All devices must agree on ingress • All PHBs must be same throughout the network. • Traffic can be reclassified through Diffserv domains

  26. Differentiated Services • Call Admission Control becomes critical • Diffserv is sender control, not receiver control

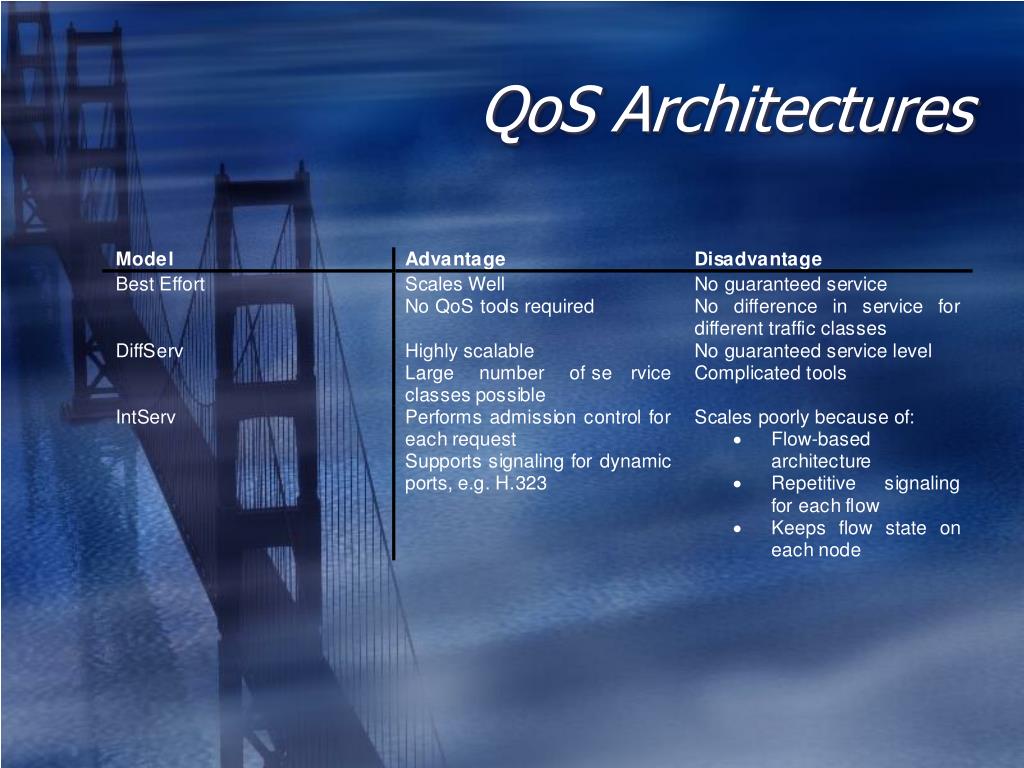

  27. QoS Architectures

  28. Alberta SuperNet • Diffserv Classification on ingress • MPLS Core • Standard classes for everyone

  29. SuperNet Service • Gold = max 150 ms one-way latency, max 50 ms jitter, < 0.1% packet loss • Silver = max 400 ms one-way latency, max 50 ms jitter, <0.1% packet loss • Bronze = max 1 second latency or jitter, <0.1% packet loss

  30. SLA’s

  31. MPLS in Simple • Packet given a label at the edge. • Switched appropriately based on label • Wire speeds, because switching can be done through an ASIC if necessary

  32. What are K12’s doing?

  33. What’s up? • Survey to all K12 Tech Contacts • Interviewed staff at 6 school jurisdictions • Found a number of setups

  34. Simple Setup • Local network connected directly to SED. • All traffic set to Bronze • No CED • No need for any QoS

  35. Simple Setup

  36. Cascading QoS Zones • CED will have some form of QoS • May have non-QoS devices connected to switches below the CED • QoS applications connected closer to CED • Assumes not all applications require QoS

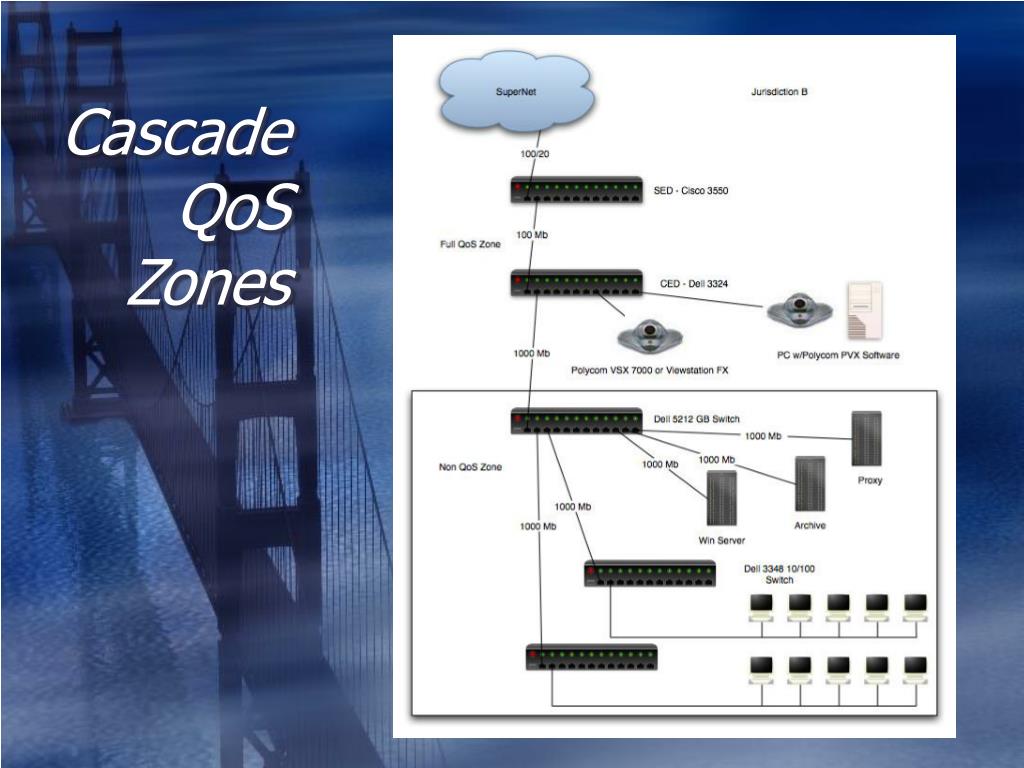

  37. CascadeQoSZones

  38. CascadeQoSZones

  39. Trusted Service V1 • Tag all traffic on your own • Lose 30% bonus traffic • But all bandwidth available all the time • QoS assigned by switches

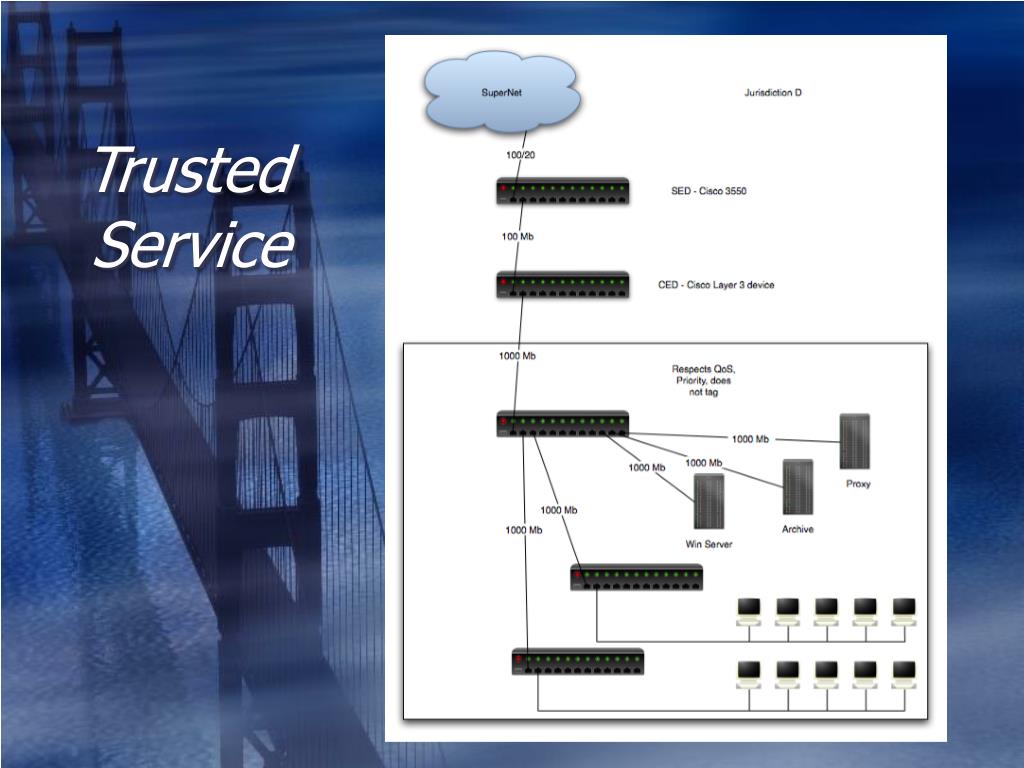

  40. TrustedService

  41. Hybrid IPSec • Existing IPSec VPN-based WAN • Plus SuperNet (IPSec tunnels) • Router passes non-QoS traffic to IPSec portion, QoS traffic to SuperNet portion • All is Bronze

  42. Hybrid IPSec

  43. End-to-End QoS • All switches support QoS (Diffserv tagging) • Relatively rare • Costly, when so much traffic doesn’t require QoS

  44. Trusted V2 • Newer Service • Allows self-tagging • Still must define amounts of Gold, Silver, Bronze • 30% bonus available

  45. Questions?

  46. University of Liverpool • http://www.uol.ohecampus.com/home/index.phtml • 100% online • Eight modules + Dissertation Project • Each module is 8 weeks long • Variety of topics, some programming, some security, etc.

  47. University of Liverpool • Diverse instructors, classmates • Different people each course • Lots of time required • MSc in • Internet Computing • Information Security • Software Engineering

  48. Thank you!
