Mastering Rational Rose Real-Time: Integrating External Code with C++

1. Mastering Rational Rose RealTimeIntegrating C++ External Code

2. Objectives • Describe the two methods of integrating external code • Define the terms • Sendable • Observable • Marshallable

3. Topics • Integrating External Code • Integrating External Data

4. Reasons for Integrating External Code There are several possible reasons for wanting to include external code in your Rose RealTime model: • Required to interface to legacy code • Required to interface to code that is being developed outside of the Rose RealTime toolset • A part of your system can be developed efficiently using third-party libraries

5. Integration Requirements • To integrate external code you need: • The name of the header file • The path to the header file • The path to the .obj file • It’s a good idea to use a variable instead of hard-coding the path and name

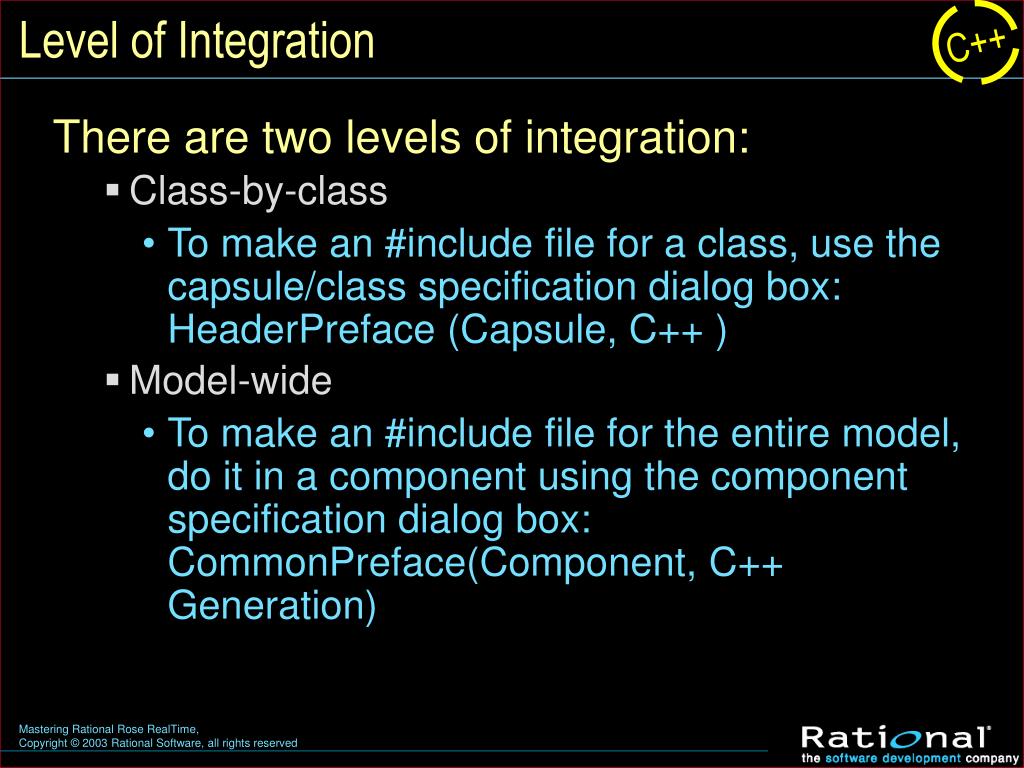

6. C++ Level of Integration There are two levels of integration: • Class-by-class • To make an #include file for a class, use the capsule/class specification dialog box: HeaderPreface (Capsule, C++ ) • Model-wide • To make an #include file for the entire model, do it in a component using the component specification dialog box: CommonPreface(Component, C++ Generation)

7. Topics • Integrating External Code • Integrating External Data

8. Model 3 Target Model 1 Model 2 Sendable, Observable, Marshallable Host Observable Sendable Marshallable (Injectable)

9. Auto-Magic • Data classes are automatically sendable, observable and marshallable if they don’t have attributes that are pointers • This section tells you how to use external data classes

10. Integration Types There are two options for integrating a passive class • Simple • Includes header files • Knows how to encode strings • Sendable • Observable or marshallable • Type descriptor for passive class needs to be created • Includes header files • Knows how to decode strings • Knows how to inject strings

11. Linking in External Code • If objects are: • Only used to store information within a single capsule instance • Only sent by reference never to be observed or injected • Then make the external class definitions visible to the compiler • Once the definition is visible to the compiler, you can use the class or type within any detail-level code

12. C++ Linking in External Code (cont.) To make the external class definitions visible to the compiler: • Add the include files to the HeaderPreface section in the C++ tab of the Capsule Specification dialog • Link the external code in with the model (from the component specification)

13. Integrating External Classes • If objects: • Need to be sent by value between capsule instances (sendable) • Need to be observed during debugging (observable) • Need to be encoded/decoded because they are injected or sent to other processes (marshallable) • Then create a type descriptor for the class to describe the types to the Services Library

14. C++ Generating Type Descriptors • Needed to inform the RTS of structure • Array • Multiple instances • Generate Descriptor • Generate Type Modifier

15. C++ Options for Integrating External Classes • There are three ways to handle an externally defined class or data type: • Create a class with the same attributes as the external class and let the Rose RealTime toolset generate the type descriptor • Add the code yourself for describing how to copy, initialize, destroy, encode, and decode an instance of this type • Use the C++ Analyzer (via Tools menu) to reverse engineer existing code • An external class can be made sendable by value without being observable and vice versa (encode/decode not needed)

16. C++ Option 1: Let RoseRT Create Type Descriptors

17. C++ Option 2: Defining Required Functions Yourself • To integrate classes in this manner, you must understand the usage of the 5 functions: • InitFunctionBody • CopyFunctionBody • DestroyFunctionBody • DecodeFunctionBody • EncodeFunctionBody • Defined in the C++ TargetRTS tab of the class specification
