Concave

. . . . . . . . . . 1. 2. . . 1. 2. 4. 4. 3. 3. . f. C. Object Located Beyond f and C.. object. image. . . . . . . . . . . . . . . . . . . . f. C. object. image. Concave Mirror Image Formation for an Object Less than f. 1. 2. 3. 4. Convex Mirror Image Formation. . . . . . . . . . . . . . . . . . f.

shae
Télécharger la présentation

Concave

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

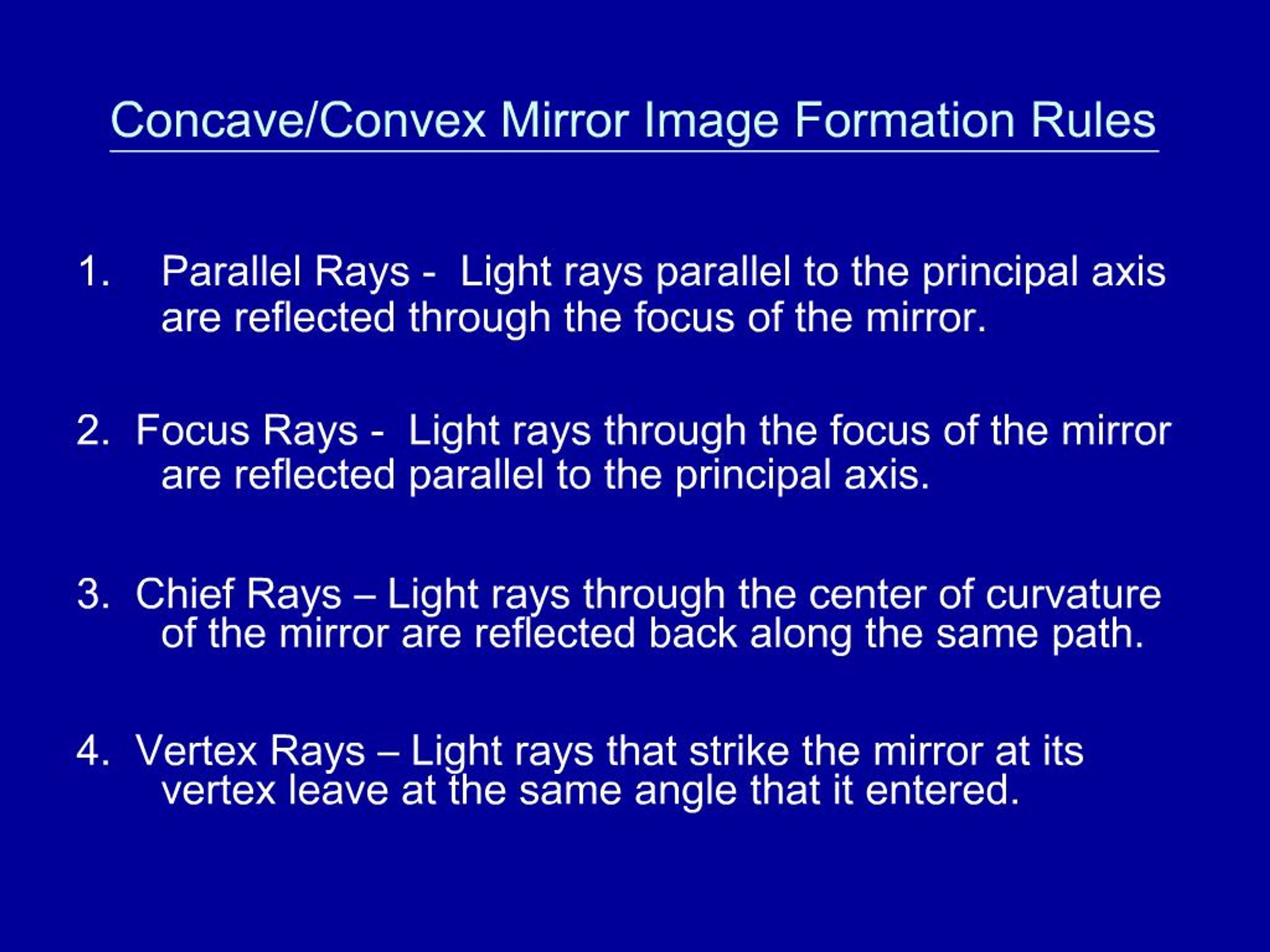

    1. Concave/Convex Mirror Image Formation Rules Parallel Rays - Light rays parallel to the principal axis are reflected through the focus of the mirror. 2. Focus Rays - Light rays through the focus of the mirror are reflected parallel to the principal axis. 3. Chief Rays Light rays through the center of curvature of the mirror are reflected back along the same path. 4. Vertex Rays Light rays that strike the mirror at its vertex leave at the same angle that it entered.
