  1. A preliminary investigation of an atmospheric bore and a waves atop a cold front that moved across northern Alabama on 4 December 2008 Patrick Gatlin ATS 651 Class Project Spring 2009

  2. NEXRAD Mosaic 03,06,07 UTC

  3. Mesoscale Analysis Dashed line represents cold front position

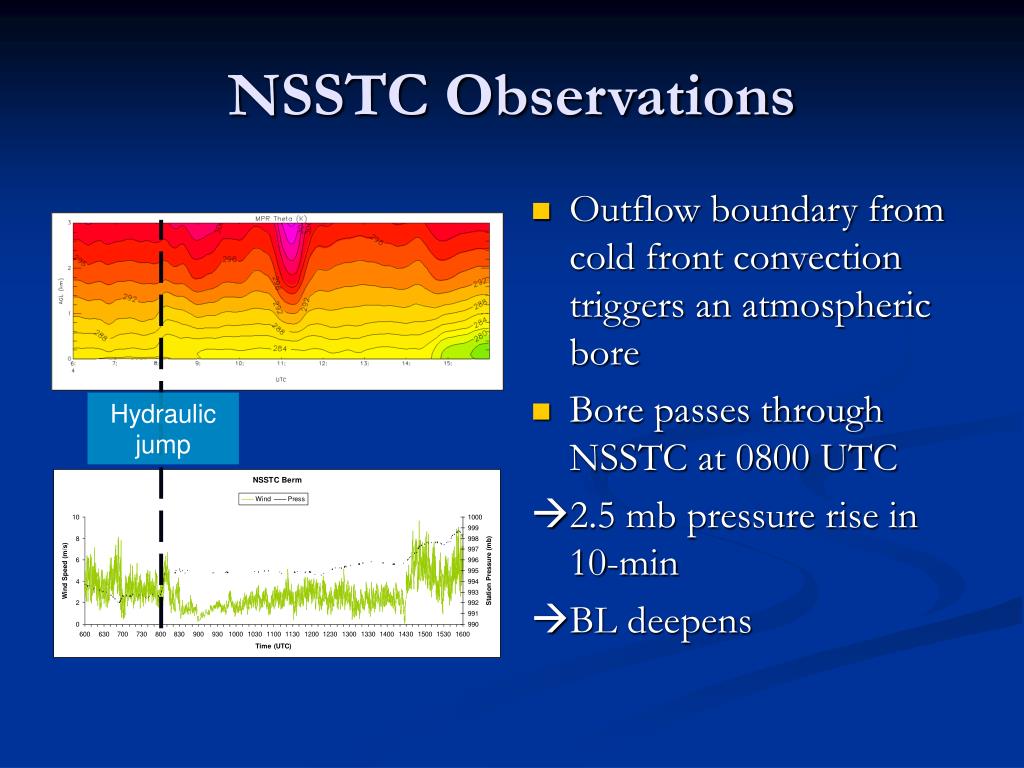

  4. NSSTC Observations • Outflow boundary from cold front convection triggers an atmospheric bore • Bore passes through NSSTC at 0800 UTC 2.5 mb pressure rise in 10-min BL deepens Hydraulic jump

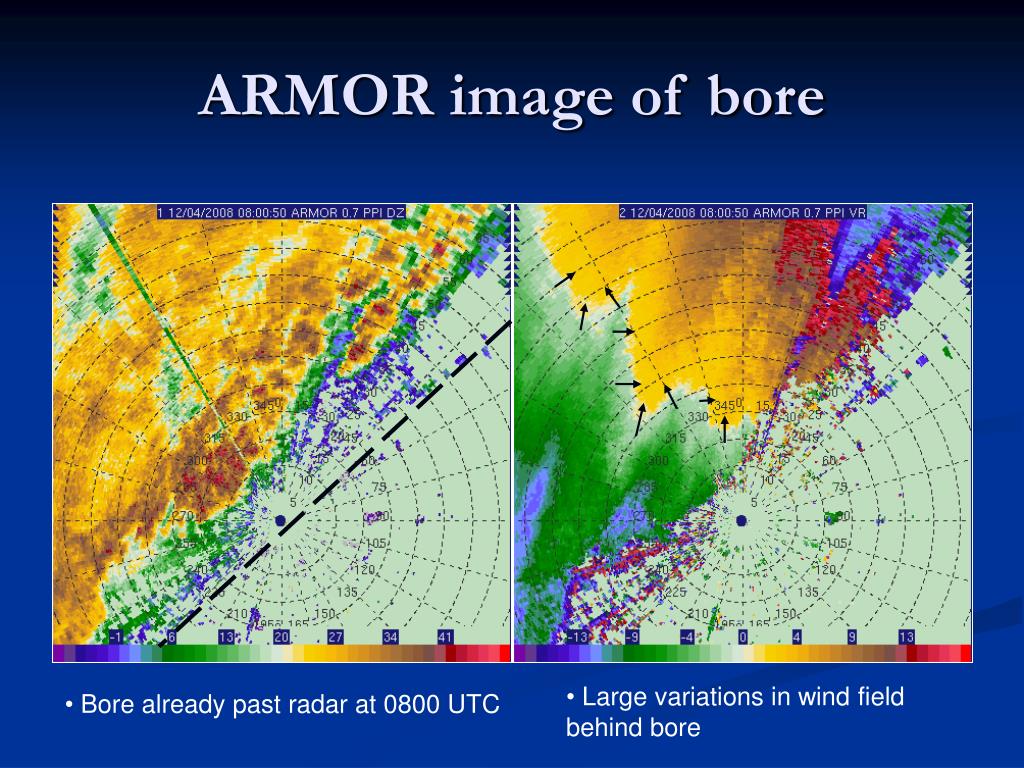

  5. ARMOR image of bore • Large variations in wind field behind bore • Bore already past radar at 0800 UTC

  6. Surface Observations Hydraulic jump Hydraulic jump cold fropa cold fropa Bore speed ~ SE @ 14 m s-1

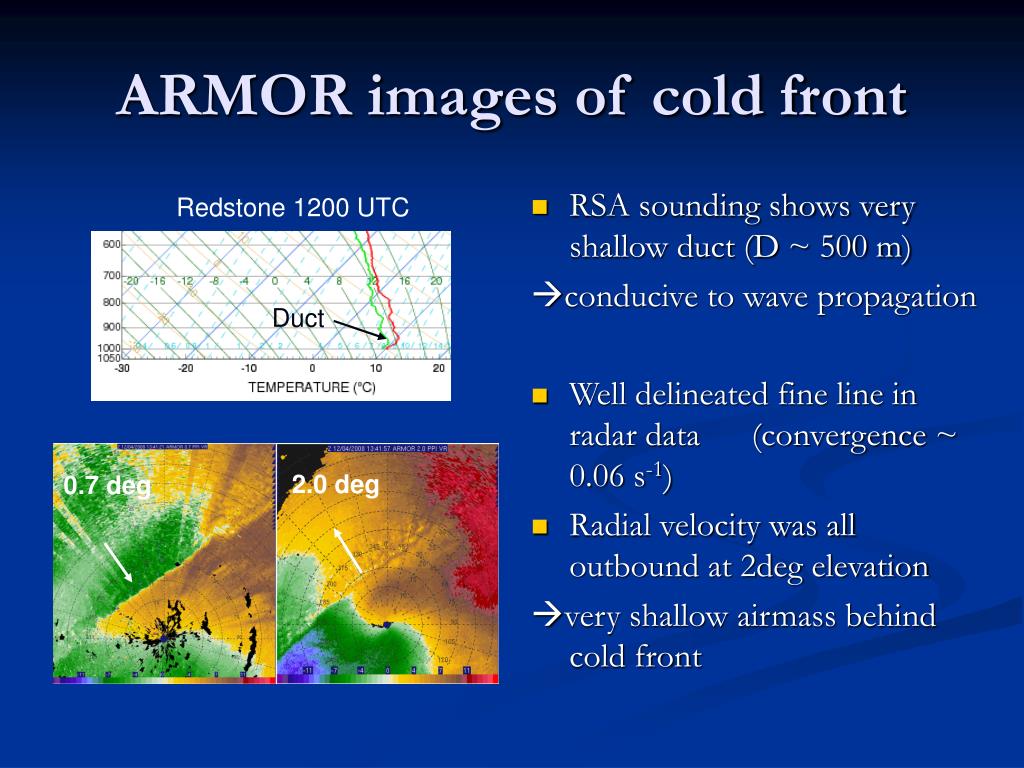

  7. ARMOR images of cold front • RSA sounding shows very shallow duct (D ~ 500 m) conducive to wave propagation • Well delineated fine line in radar data (convergence ~ 0.06 s-1) • Radial velocity was all outbound at 2deg elevation very shallow airmass behind cold front Redstone 1200 UTC Duct 2.0 deg 0.7 deg

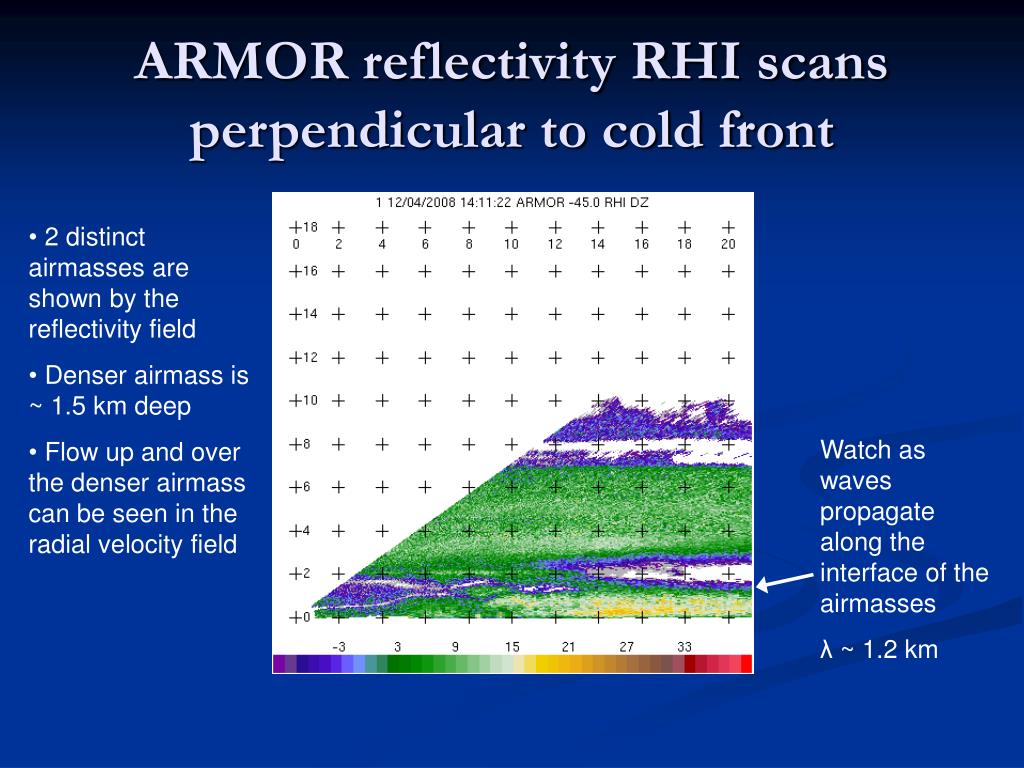

  8. ARMOR reflectivity RHI scans perpendicular to cold front • 2 distinct airmasses are shown by the reflectivity field • Denser airmass is ~ 1.5 km deep • Flow up and over the denser airmass can be seen in the radial velocity field Watch as waves propagate along the interface of the airmasses λ ~ 1.2 km
