  1. Lecture 4: PHOTOSYNTHESISLife’s grand device By Edgar Moctezuma

  2. TODAY… • Photosynthesis • Intro • Properties of light and pigments • Chloroplast structure and function • Light reactions • “Dark” or Carbon reactions • Summary and conclusions • Respiration • Energy and food chains • Carbon Cycle

  3. I. Introduction to photosynthesis • From the Greek PHOTO = produced by light SYNTHESIS = a whole made of parts put together. Definition: PHOTOSYNTHESIS is the process whereby plants, algae, some bacteria, use the energy of the sun to synthesize organic compounds (sugars) from inorganic compounds (CO2 and water).

  4. WHY IS PHOTOSYNTHESIS SO IMPORTANT? PHOTOSYNTHESIS is one of the most important biological process on earth! Provides the oxygen we breathe Consumes much of the CO2 Food Energy Fibers and materials

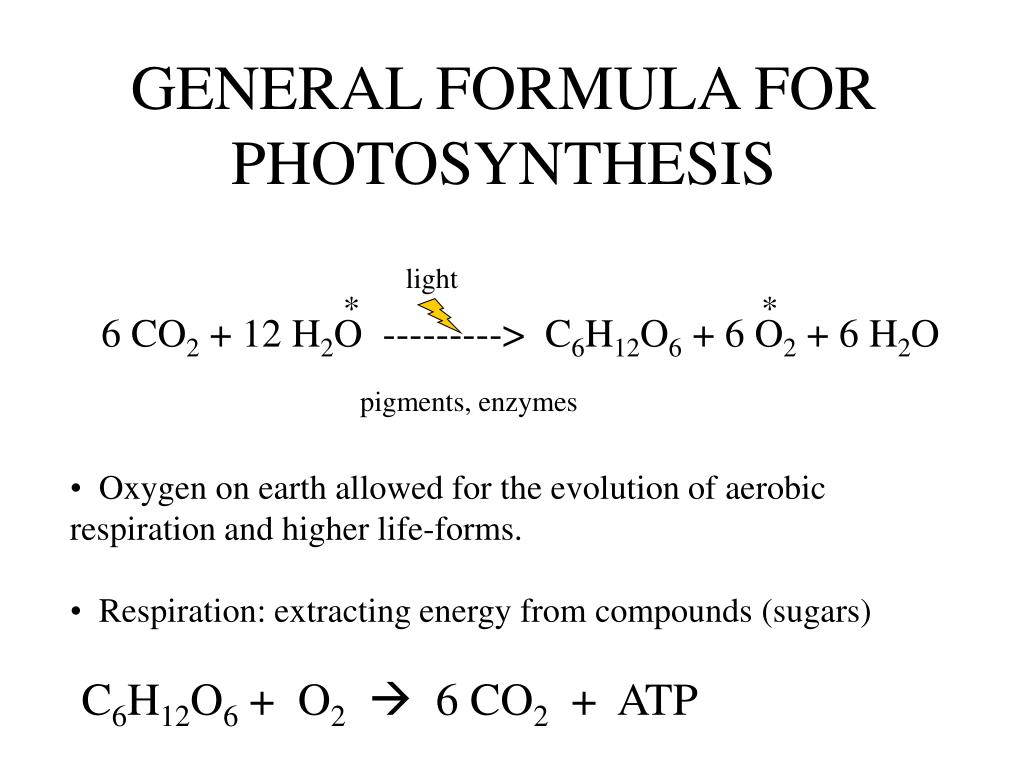

  5. GENERAL FORMULA FOR PHOTOSYNTHESIS * * light 6 CO2 + 12 H2O ---------> C6H12O6 + 6 O2 + 6 H2O pigments, enzymes • Oxygen on earth allowed for the evolution of aerobic respiration and higher life-forms. • Respiration: extracting energy from compounds (sugars) • C6H12O6 + O2 6 CO2 + ATP

  6. PROPERTIES OF LIGHTVirtually all life depends on it! • Light moves in waves, in energy units called PHOTONS • Energy of a PHOTON inversely proportional • to its wavelength • Visible light (between UV and IR) occurs in • a spectrum of colors

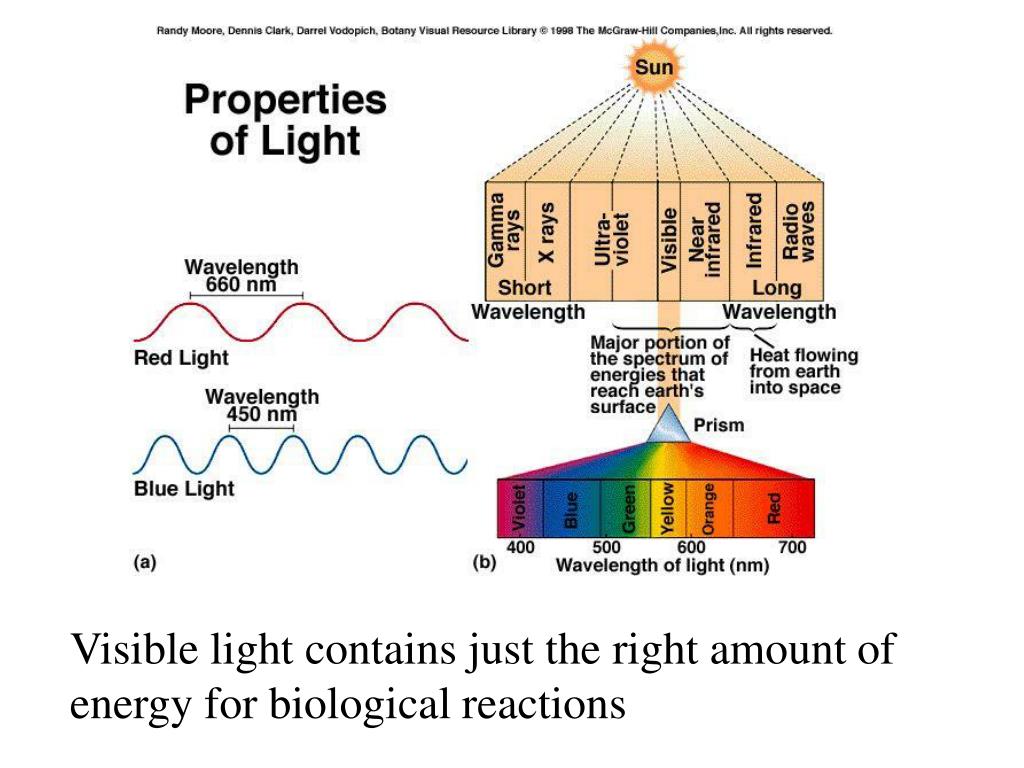

  7. Visible light contains just the right amount of energy for biological reactions

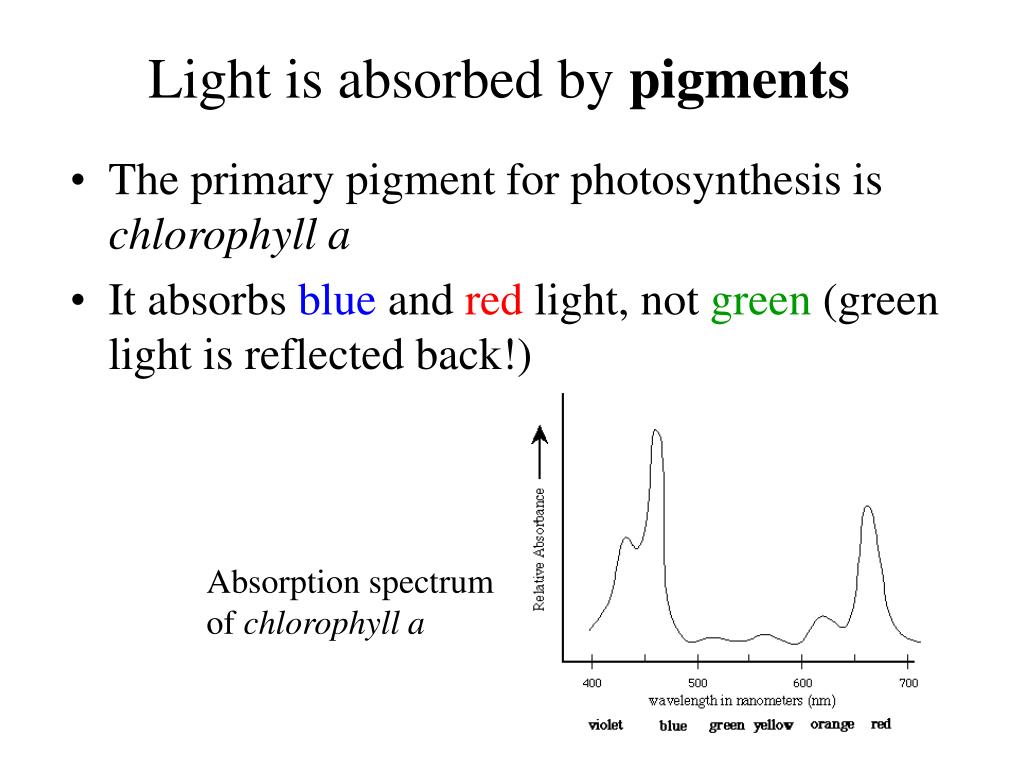

  8. Light is absorbed by pigments • The primary pigment for photosynthesis is chlorophyll a • It absorbs blue and red light, not green (green light is reflected back!) Absorption spectrum of chlorophyll a

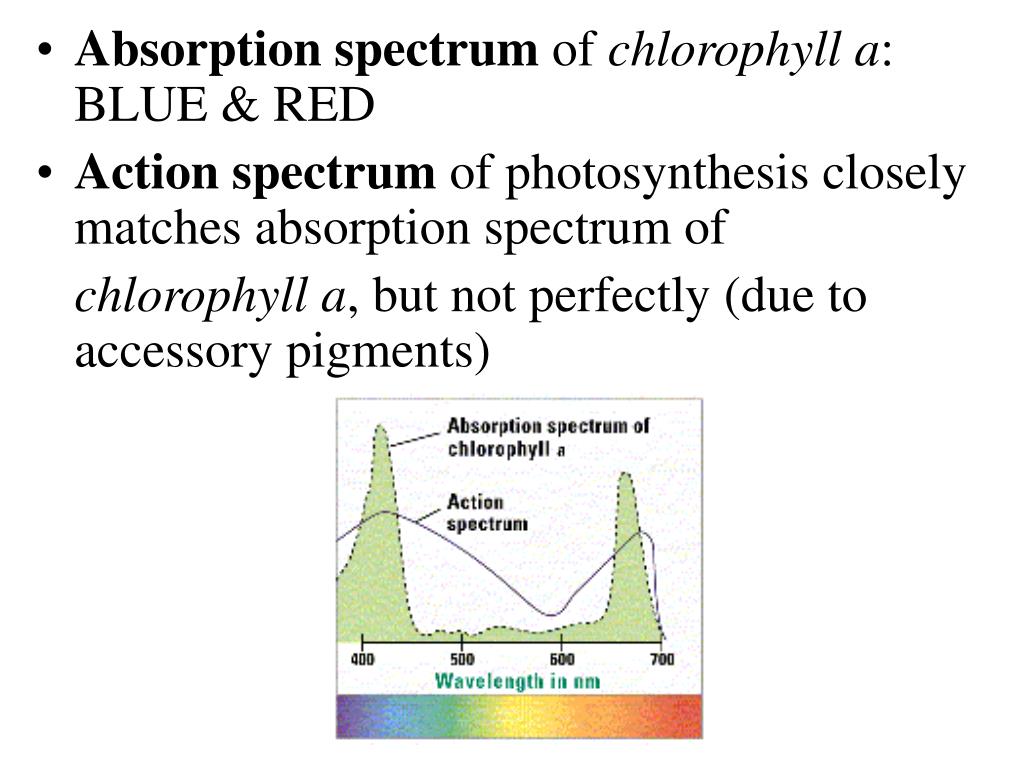

  9. Absorption spectrum of chlorophyll a: BLUE & RED • Action spectrum of photosynthesis closely matches absorption spectrum of chlorophyll a, but not perfectly (due to accessory pigments)

  10. Accessory pigments like chlorophyll b and carotenoids (beta-carotene, lycopene): absorb light at different wavelengths, (extending the absorption range) help transfer some energy to chlorophyll a protect cell from harmful byproducts

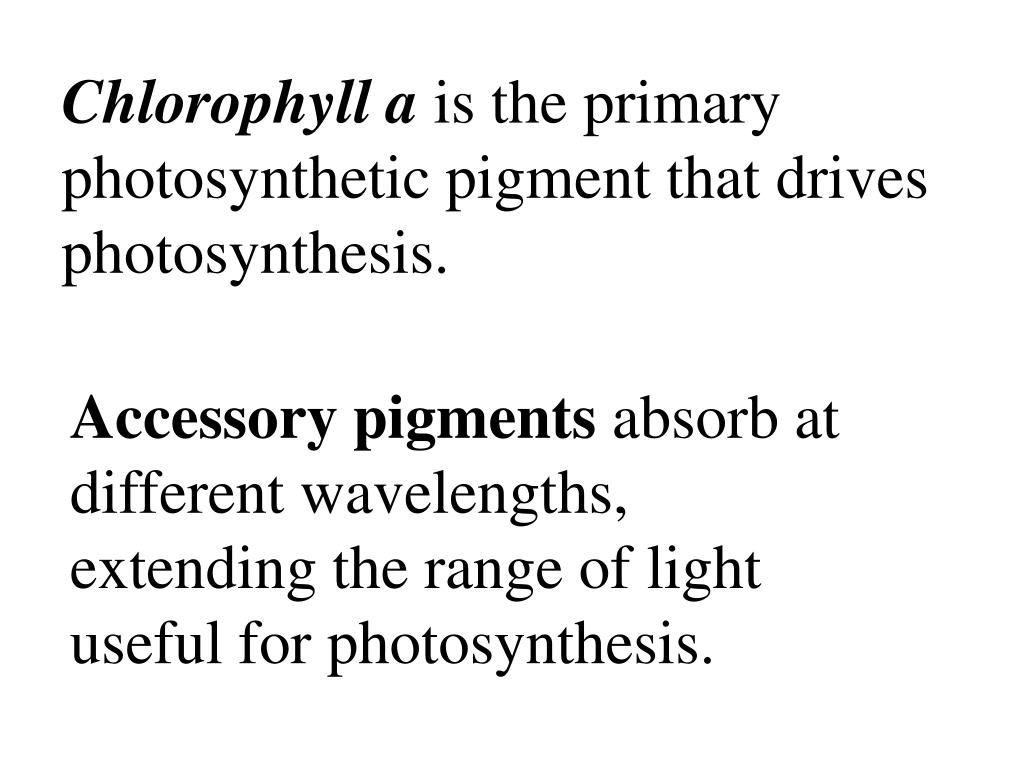

  11. Chlorophyll a is the primary photosynthetic pigment that drives photosynthesis. Accessory pigments absorb at different wavelengths, extending the range of light useful for photosynthesis.

  12. Where does photosynthesis occur?

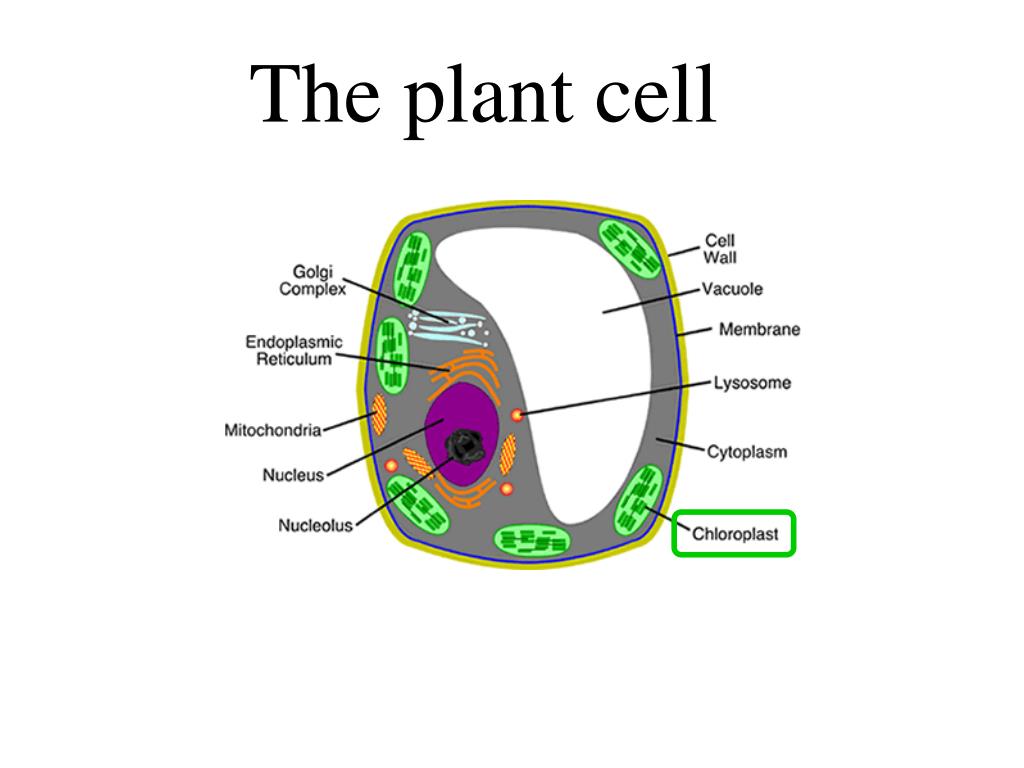

  13. The plant cell

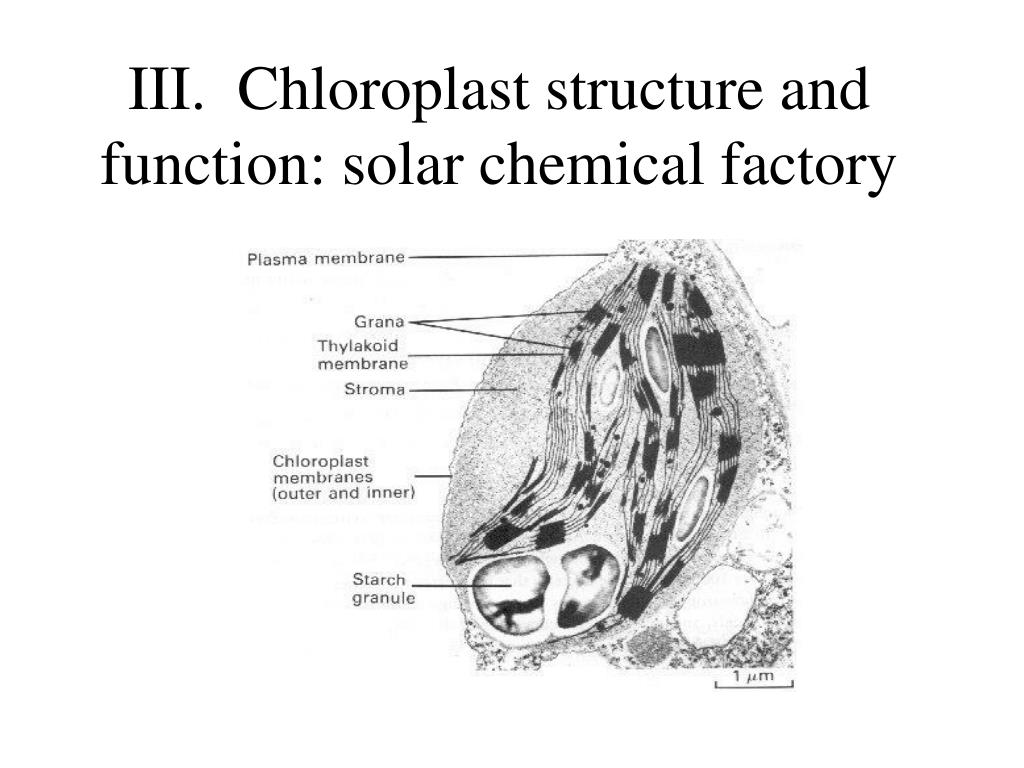

  14. III. Chloroplast structure and function: solar chemical factory

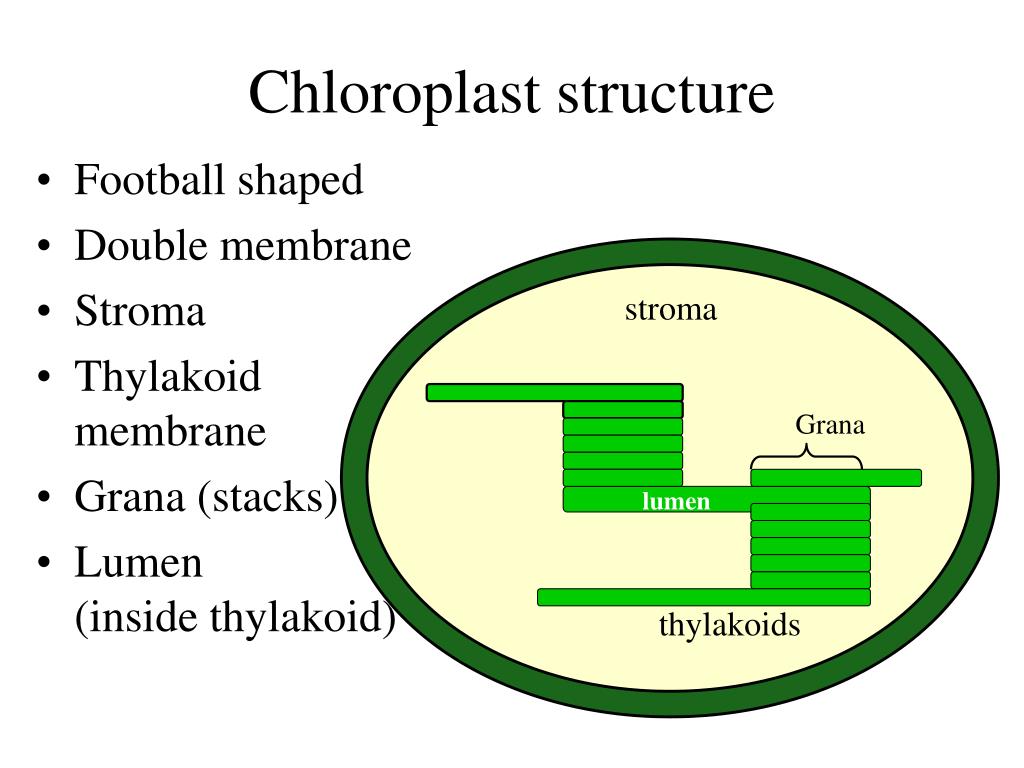

  15. Chloroplast structure • Football shaped • Double membrane • Stroma • Thylakoid membrane • Grana (stacks) • Lumen (inside thylakoid) stroma Grana lumen thylakoids

  16. Inside a Chloroplast • Remember: Structure correlates to function!

  17. Overview of photosynthesis: Note: The Light and “Dark”or Carbon reactions happen at different sites in the chloroplast H2O CO2 ATP NADPH (ENERGY) LIGHT REACTIONS (Thylakoids) “DARK” or CARBON REACTIONS (Stroma) light C6H12O6 (GLUCOSE) O2 (OXYGEN GAS)

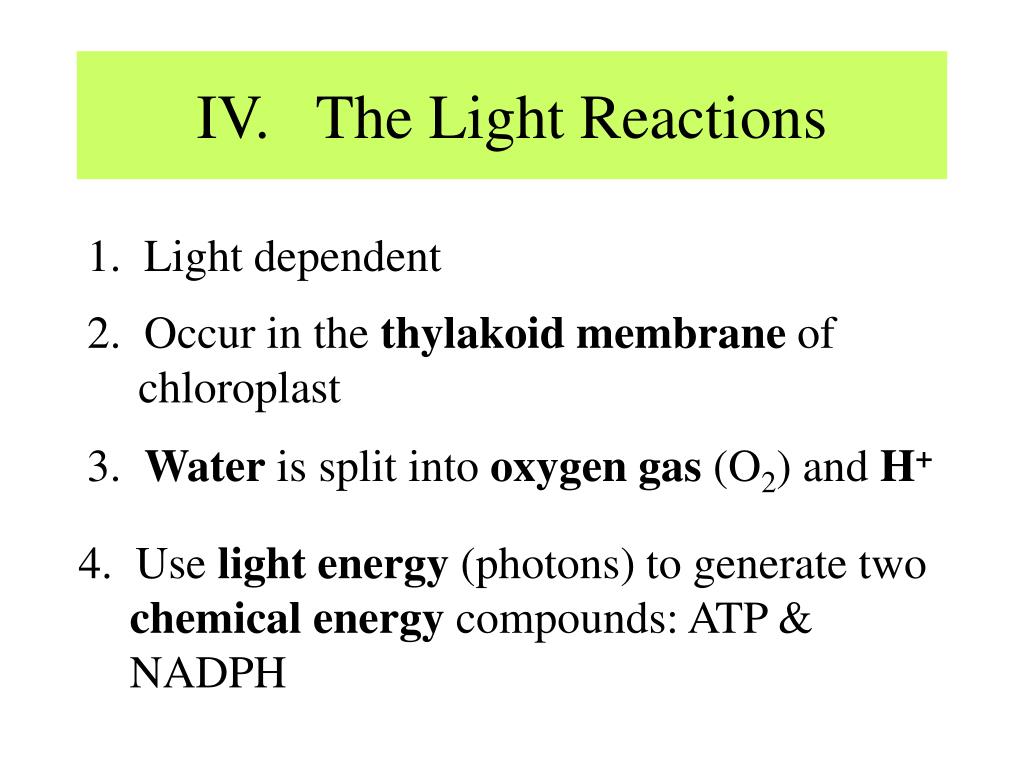

  18. IV. The Light Reactions 1. Light dependent 2. Occur in the thylakoid membrane of chloroplast 3. Water is split into oxygen gas (O2) and H+ 4. Use light energy (photons) to generate two chemical energy compounds: ATP & NADPH

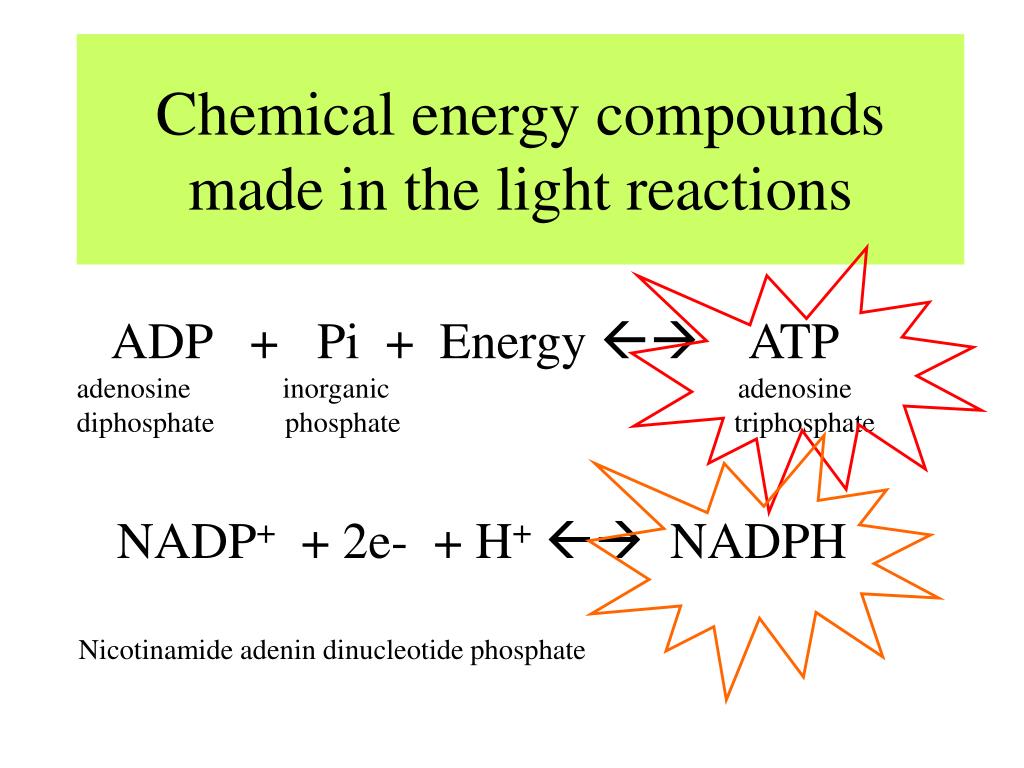

  19. Chemical energy compounds made in the light reactions ADP + Pi + Energy  ATP adenosine inorganic adenosine diphosphate phosphate triphosphate NADP+ + 2e- + H+ NADPH Nicotinamide adenin dinucleotide phosphate

  20. Sequence of events in the Light Reactions STROMA NADP+ + H+ NADPH ADP + Pi ATP ATPS PS II PS I e- H+ 2 H2O O2 + 4 H+ (gas) (protons) LUMEN (inside thylakoid)

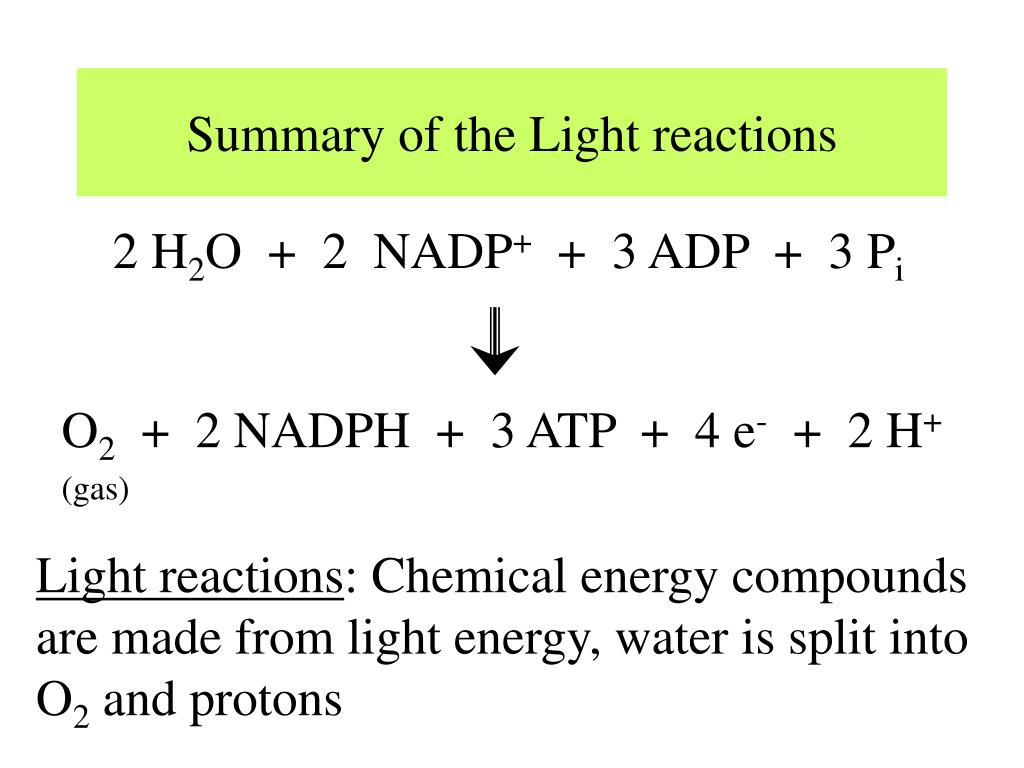

  21. Summary of the Light reactions 2 H2O + 2 NADP+ + 3 ADP + 3 Pi O2 + 2 NADPH + 3 ATP + 4 e- + 2 H+ (gas) Light reactions: Chemical energy compounds are made from light energy, water is split into O2 and protons

  22. V. The“Dark” or Carbon Reactions 1. Light independent (can occur in light or dark; some enzymes require activation by light) 2. Occur in the stroma of chloroplasts 3. Use the chemical energy produced in Light Reactions (ATP; NADPH) to reduce CO2 to carbohydrate (sugar). • CO2 is converted to sugar by entering the • Calvin Cycle

  23. Named for M. Calvin The Calvin Cycle RuBP Ribulose bisphosphate CO2 • 3 phases, 13 steps ADP • CO2 goes 6 cycles • to produce 1 glucose rubisco ATP carboxylation regeneration 3-PGA 3-phosphoglycerate reduction ATP ADP GAP Glyceraldehyde 3-phos. NADPH sugars NADP+ Pi

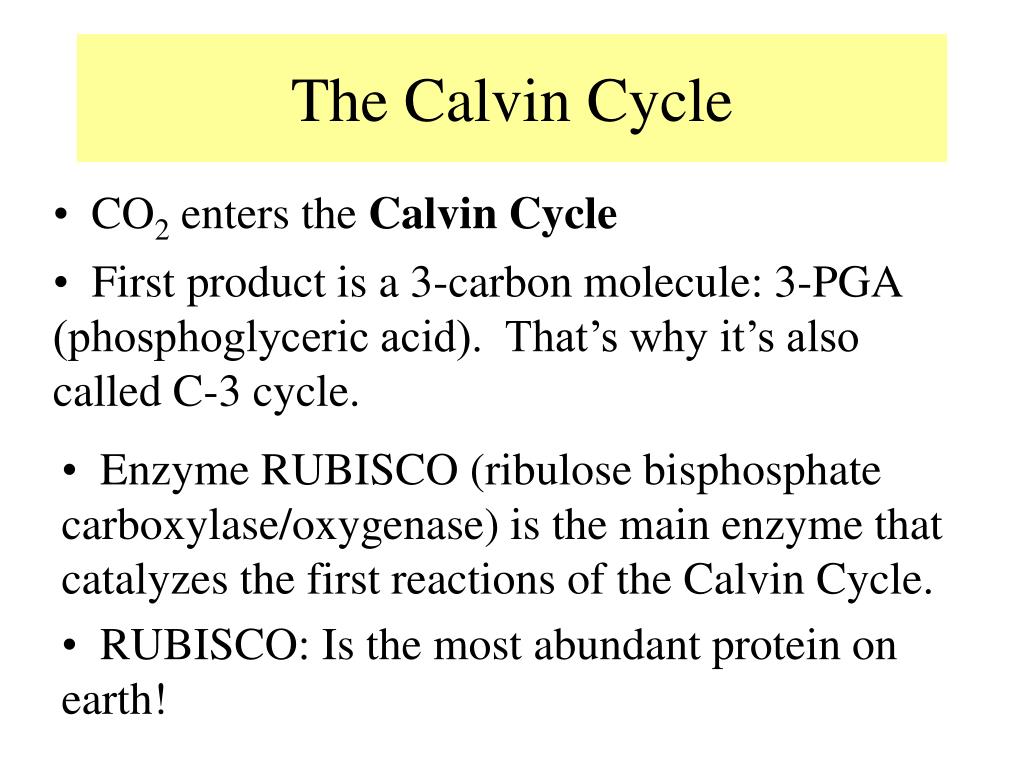

  24. The Calvin Cycle • CO2 enters the Calvin Cycle • First product is a 3-carbon molecule: 3-PGA (phosphoglyceric acid). That’s why it’s also called C-3 cycle. • Enzyme RUBISCO (ribulose bisphosphate carboxylase/oxygenase) is the main enzyme that catalyzes the first reactions of the Calvin Cycle. • RUBISCO: Is the most abundant protein on earth!

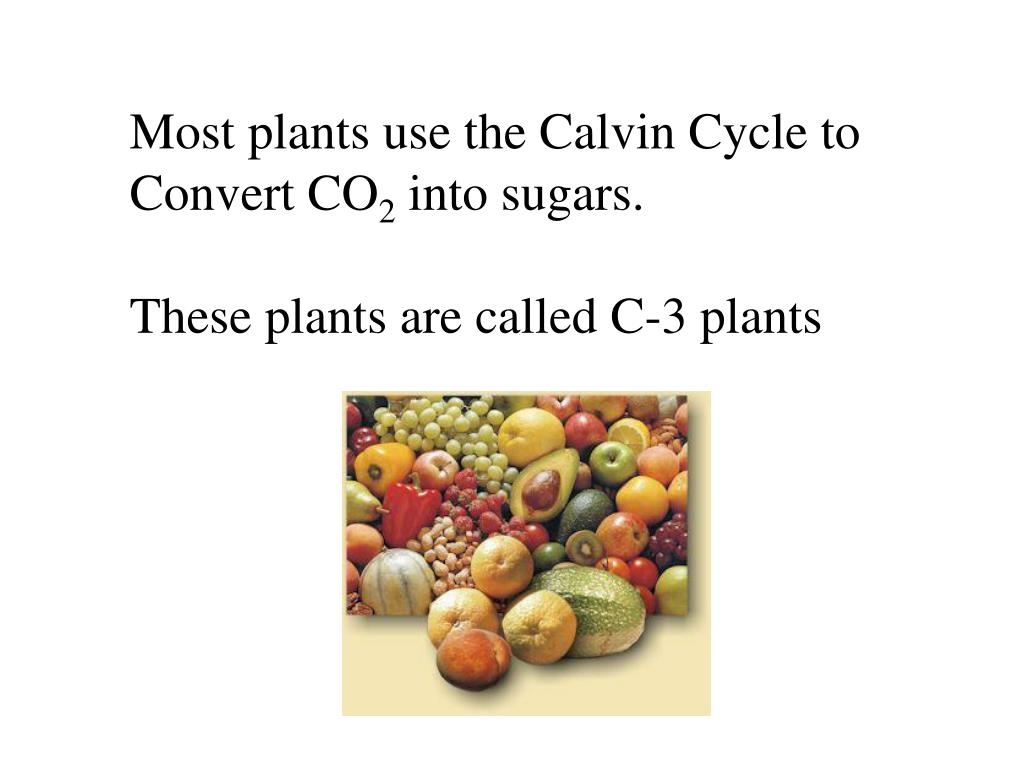

  25. Most plants use the Calvin Cycle to Convert CO2 into sugars. These plants are called C-3 plants

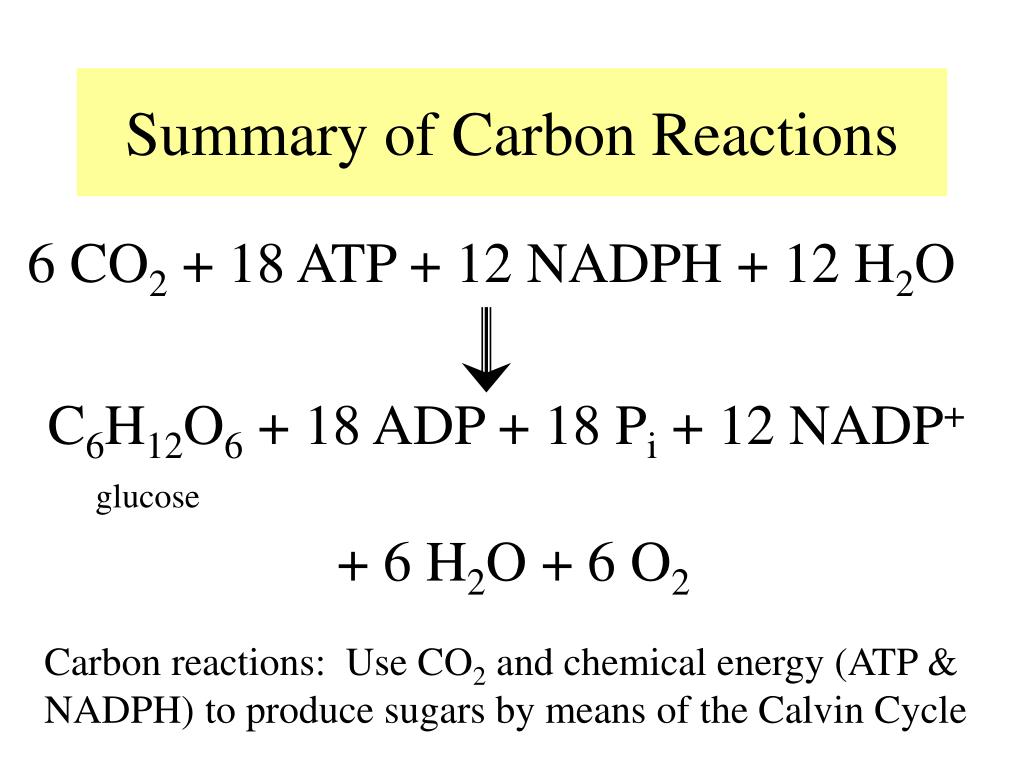

  26. Summary of Carbon Reactions 6 CO2 + 18 ATP + 12 NADPH + 12 H2O C6H12O6 + 18 ADP + 18 Pi + 12 NADP+ + 6 H2O + 6 O2 glucose Carbon reactions: Use CO2 and chemical energy (ATP & NADPH) to produce sugars by means of the Calvin Cycle

  27. Limitations on Photosynthesis • Photosynthesis is not perfect in C-3 plants, it is only 1 - 4 % efficient • Low efficiency due to photorespiration • Photorespiration occurs when internal CO2 • concentration becomes too low (drought); • rubisco begins fixing oxygen.

  28. C-4 plants are more efficient • C-4 plants first product is a 4-carbon molecule • The C-4 plants (sugar cane, corn, etc.), are more efficient than C-3 plants – they grow in hotter climates with more light. • For example, sugar cane’s photosynthetic efficiency is 7% • C-4 plants have a different leaf anatomy

  29. C-3 vs. C-4 leaf anatomy Net venation Parallel venation

  30. VI. Summary of Photosynthesis: • Light energy absorbed by chlorophyll a drives the reactions of photosynthesis. 2. Converts light energy into chemical energy to make organic compounds. 3. CO2 and H2O used to produce C6H12O6 (glucose) and O2 (gas).

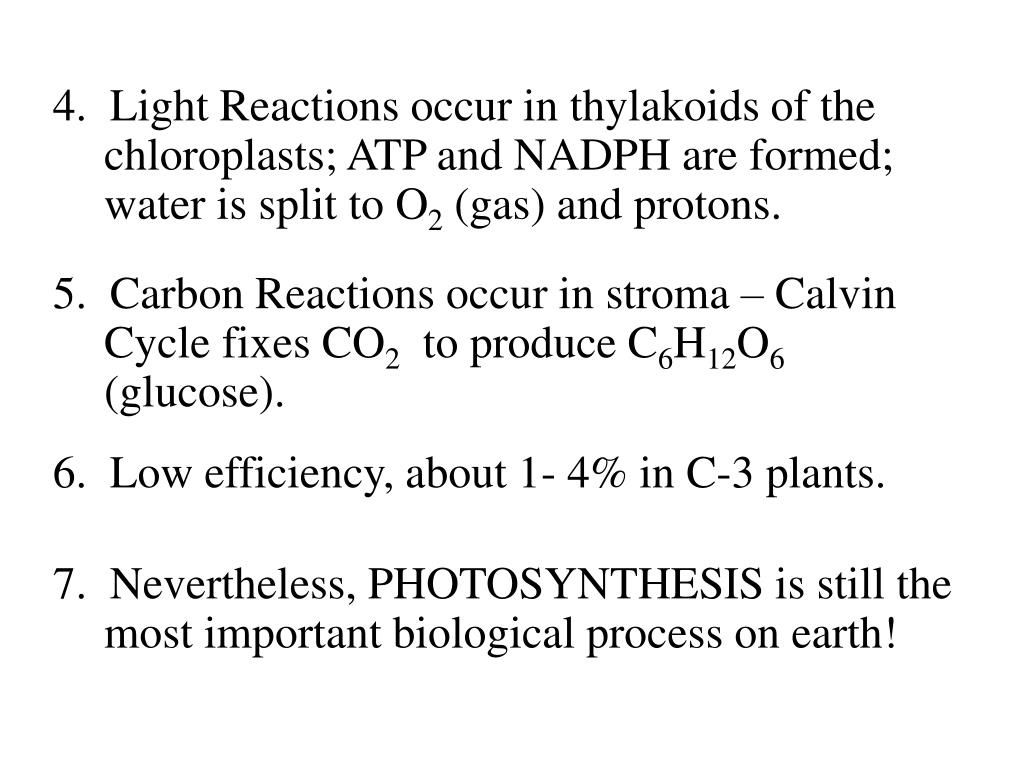

  31. 4. Light Reactions occur in thylakoids of the chloroplasts; ATP and NADPH are formed; water is split to O2 (gas) and protons. 5. Carbon Reactions occur in stroma – Calvin Cycle fixes CO2 to produce C6H12O6 (glucose). 6. Low efficiency, about 1- 4% in C-3 plants. 7. Nevertheless, PHOTOSYNTHESIS is still the most important biological process on earth!

  32. Importance of photosynthesis and the impact that it has in all our lives.Without photosynthesis, virtually all plants and animals would become extinct.

  33. Respiration, Energy & Carbon Cycle • Energy • Virtually all organisms require energy of food for: • Making chemicals (proteins, carbs, etc.) • Movement • Cell division • Heat, electricity and light production • The way living organisms obtain energy is throughCell respiration

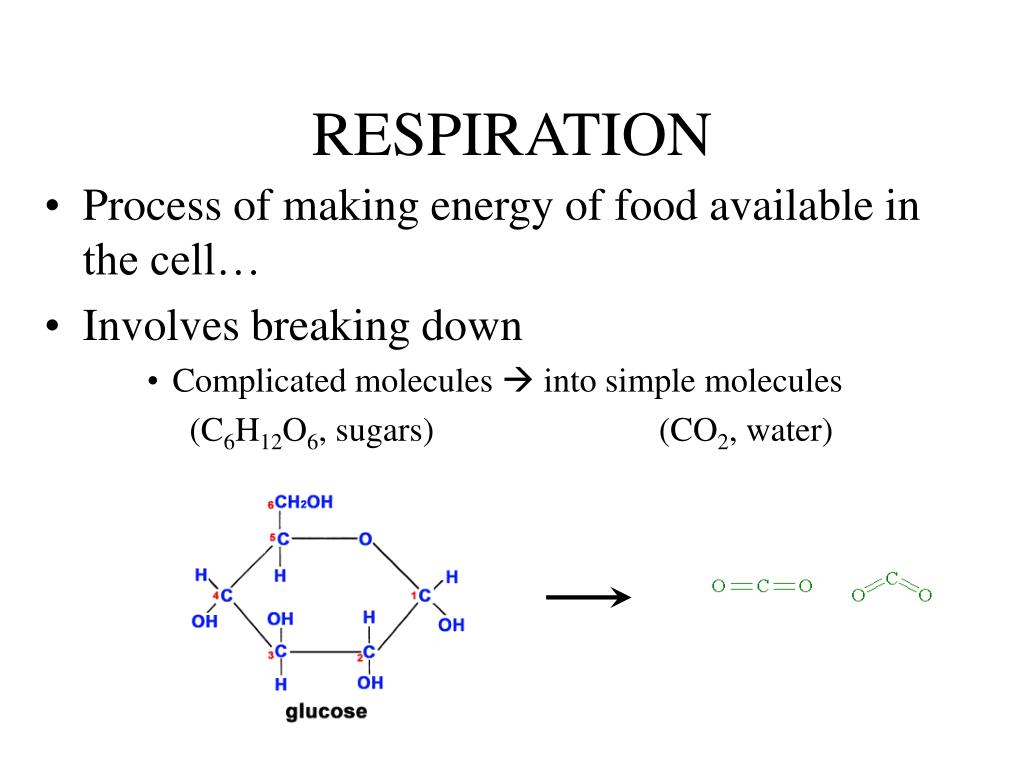

  34. RESPIRATION • Process of making energy of food available in the cell… • Involves breaking down • Complicated molecules  into simple molecules (C6H12O6, sugars) (CO2, water)

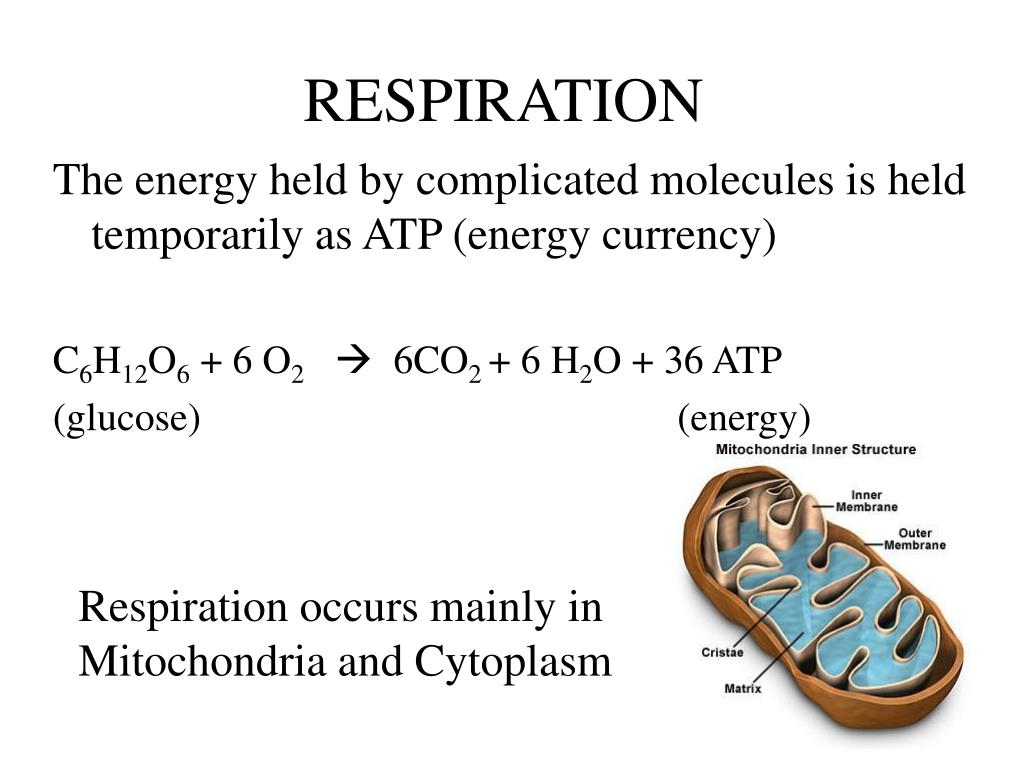

  35. RESPIRATION The energy held by complicated molecules is held temporarily as ATP (energy currency) C6H12O6 + 6 O2 6CO2 + 6 H2O + 36 ATP (glucose) (energy) Respiration occurs mainly in Mitochondria and Cytoplasm

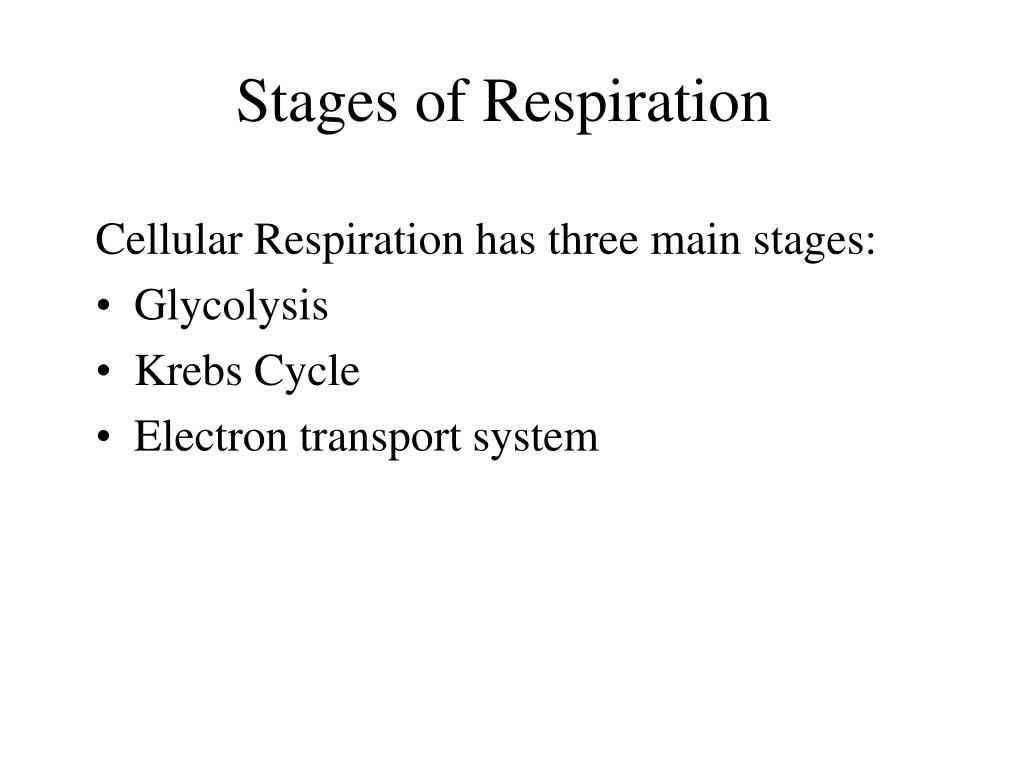

  36. Stages of Respiration Cellular Respiration has three main stages: • Glycolysis • Krebs Cycle • Electron transport system

  37. 3 Stages of cellular respiration • Glycolysis: Splitting of glucose – 2 net ATP generated • Krebs Cycle: Energy of glucose molecule is harvested as ATP (2) – it occurs in the mitochondria (matrix) • Electron Transport System: also happens in the mitochondria, more ATP are generated (32). • For each glucose molecule, total ATP = 36 • Only 39% efficient, rest is lost as heat.

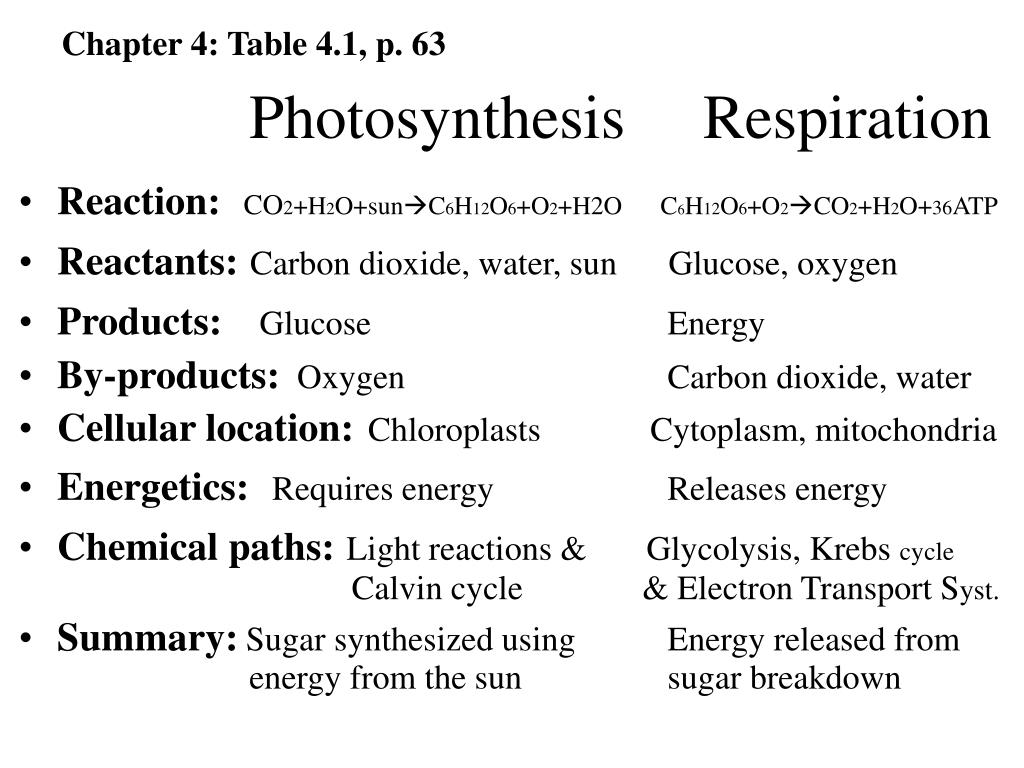

  38. Chapter 4: Table 4.1, p. 63 Photosynthesis Respiration • Reaction:CO2+H2O+sunC6H12O6+O2+H2O C6H12O6+O2CO2+H2O+36ATP • Reactants:Carbon dioxide, water, sun Glucose, oxygen • Products: Glucose Energy • By-products: Oxygen Carbon dioxide, water • Cellular location:Chloroplasts Cytoplasm, mitochondria • Energetics:Requires energy Releases energy • Chemical paths:Light reactions & Glycolysis, Krebs cycle Calvin cycle & Electron Transport Syst. • Summary:Sugar synthesized using Energy released from energy from the sun sugar breakdown

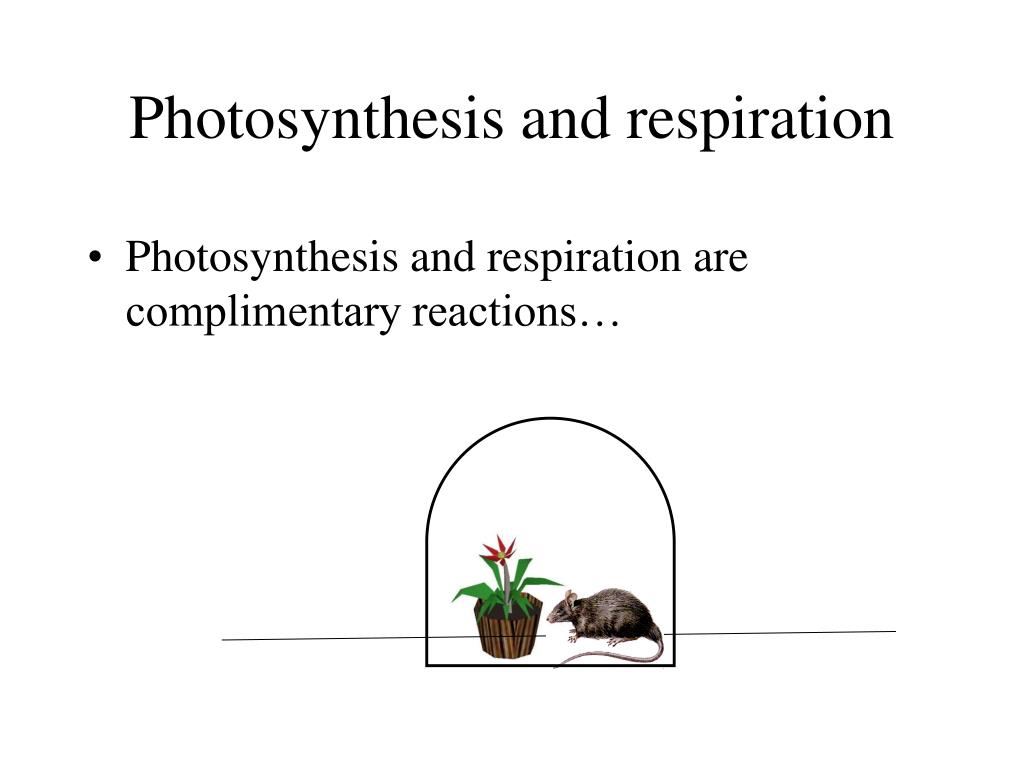

  39. Photosynthesis and respiration • Photosynthesis and respiration are complimentary reactions…

  40. PHOTOSYNTHESIS RESPIRATION CO2 + H2O  O2 + SUGARS SUGARS + O2  H2O + CO2 CO2 O2 O2 CO2 MOST LIVING ORGANISMS PLANTS, ALGAE, BACTERIA SUGARS H2O H2O Sunlight energy USEFUL CHEMICAL ENERGY (ATP)

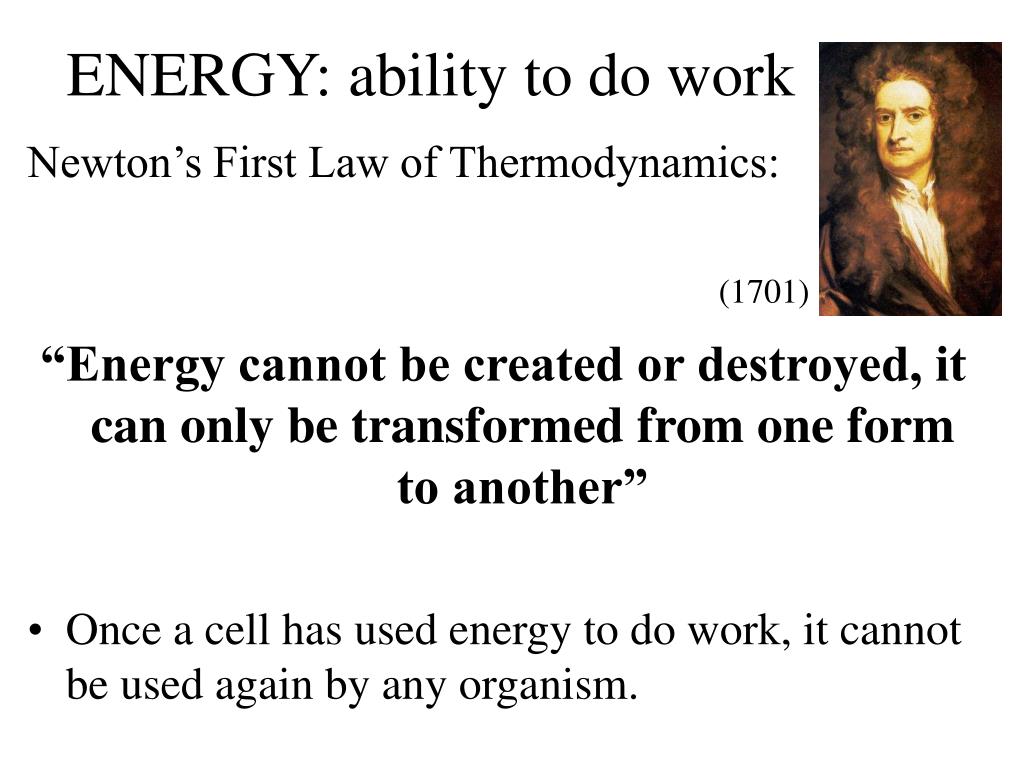

  41. ENERGY: ability to do work Newton’s First Law of Thermodynamics: “Energy cannot be created or destroyed, it can only be transformed from one form to another” • Once a cell has used energy to do work, it cannot be used again by any organism. (1701)

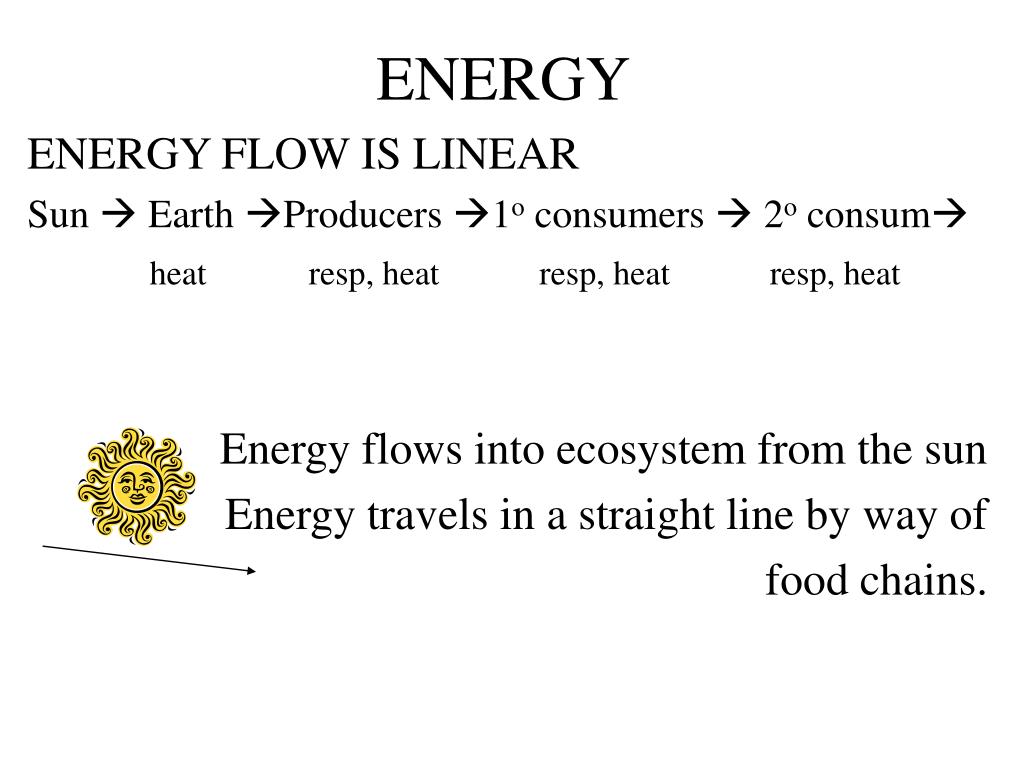

  42. ENERGY ENERGY FLOW IS LINEAR Sun  Earth Producers 1o consumers  2o consum heat resp, heat resp, heat resp, heat Energy flows into ecosystem from the sun Energy travels in a straight line by way of food chains.

  43. ENERGY However, much energy is lost as heat along the way – as a result of respiration. Approximately 90% energy is lost on each step! • Newton’s Second Law of Thermodynamics: “In any transfer of energy there is always a loss of useful energy to the system, usually in the form of heat”

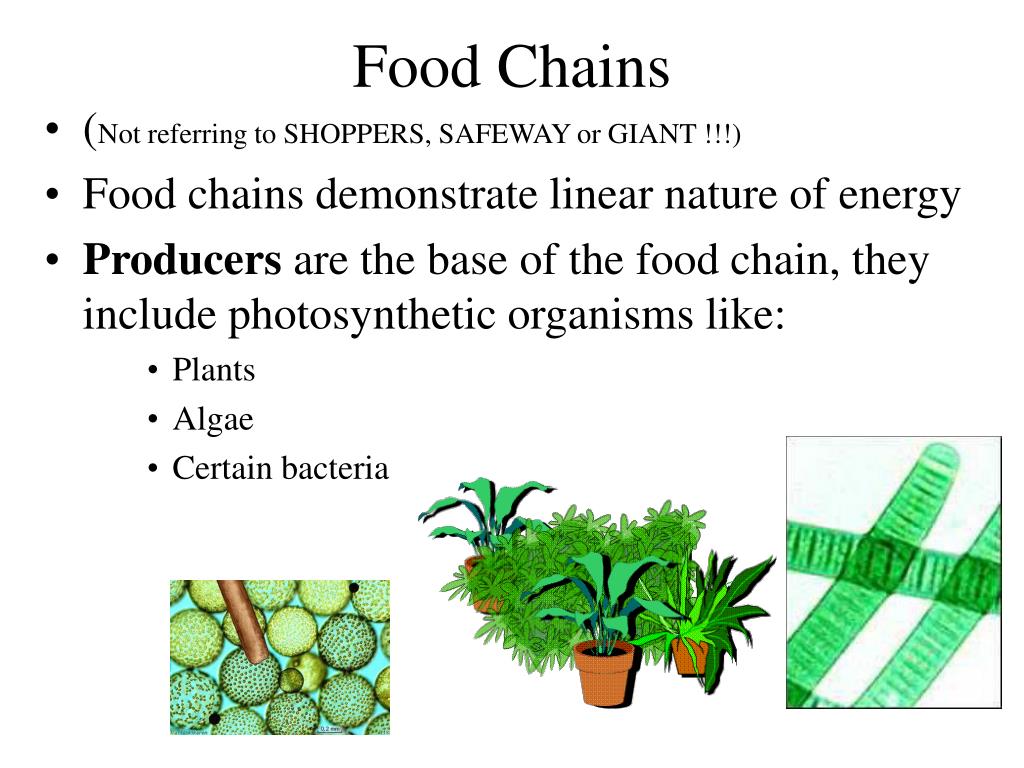

  44. Food Chains • (Not referring to SHOPPERS, SAFEWAY or GIANT !!!) • Food chains demonstrate linear nature of energy • Producers are the base of the food chain, they include photosynthetic organisms like: • Plants • Algae • Certain bacteria

  45. Food chains • Primary consumers – all plant eaters (herbivores). • Secondary consumers – Eat primary consumers, (carnivores)

  46. Food chains • Decomposers – obtain energy by breaking down remaining organic material of the other members of the food chain. • Fungi and bacteria.

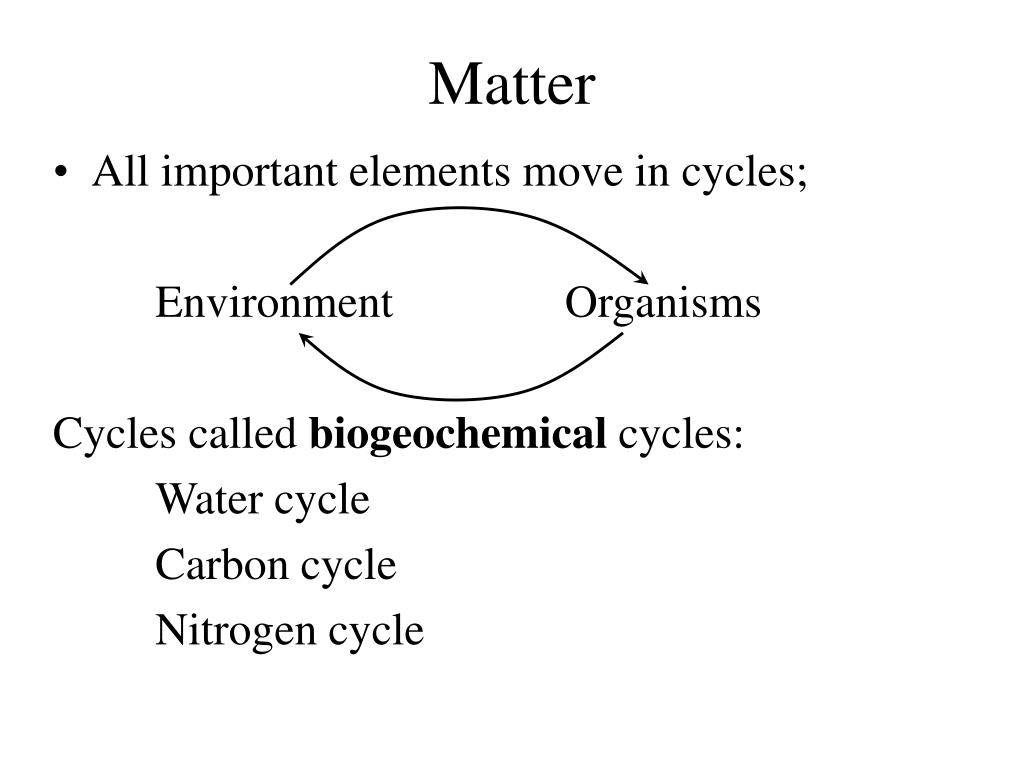

  47. Matter • All important elements move in cycles; Environment Organisms Cycles called biogeochemical cycles: Water cycle Carbon cycle Nitrogen cycle

  48. The Carbon Cycle • Carbon from the atmosphere (CO2) enters the biosphere by way of plants! • CO2 used in photosynthesis • Carbon moves into food chain • Carbon is released to the physical environment by respiration • Release CO2 during respiration • Amount CO2 fixed in photosynthesis = the amount released by respiration

  49. Carbon Cycle • Carbon moves from atmosphere to plants to animals and back to atmosphere.

  50. “Look deep into nature, and then you will understand everything better.” Albert Einstein
