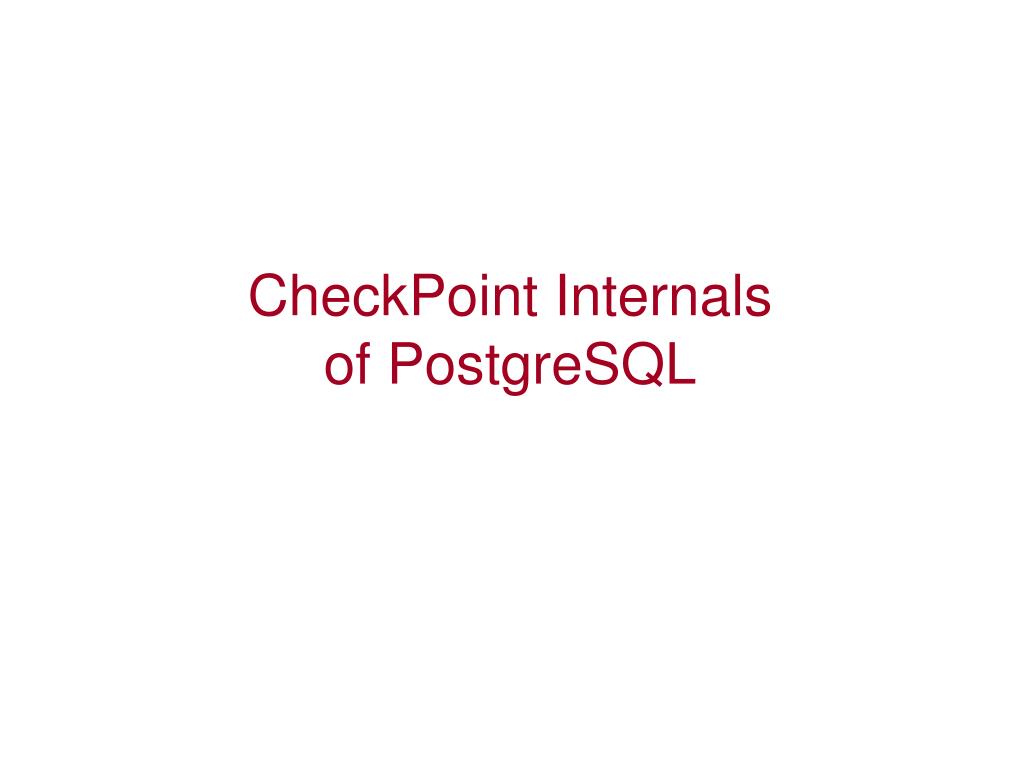

CheckPoint Internals of PostgreSQL

1. CheckPoint Internals of PostgreSQL

2. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

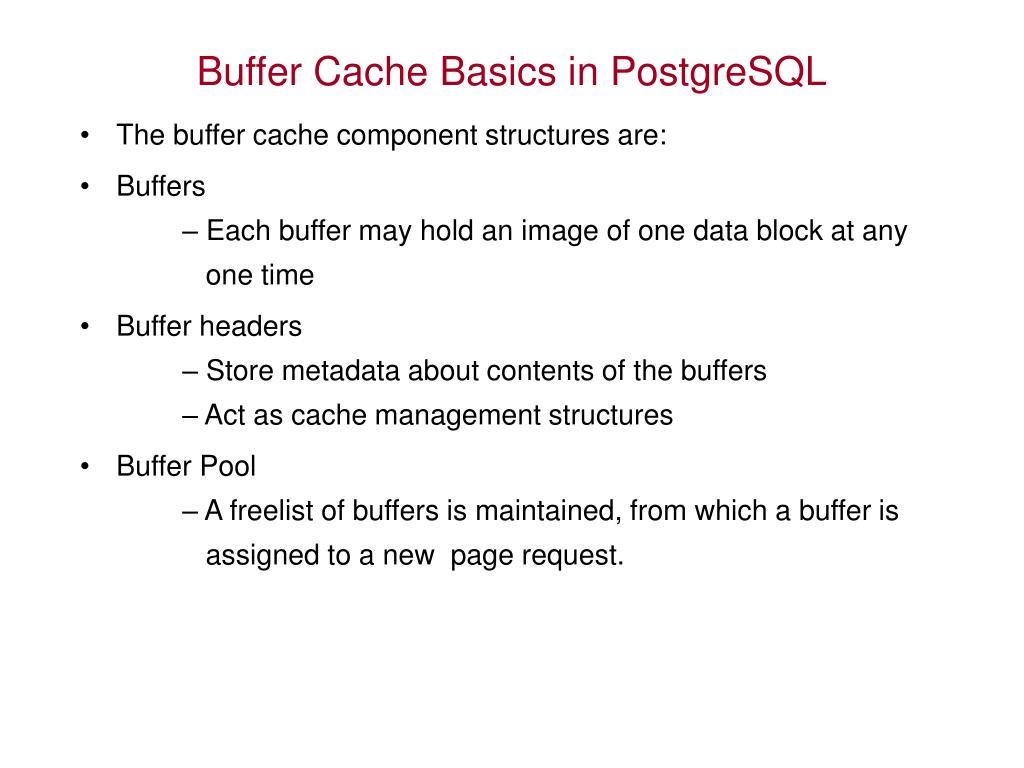

3. Buffer Cache Basics in PostgreSQL • The buffer cache component structures are: • Buffers – Each buffer may hold an image of one data block at any one time • Buffer headers – Store metadata about contents of the buffers – Act as cache management structures • Buffer Pool – A freelist of buffers is maintained, from which a buffer is assigned to a new page request.

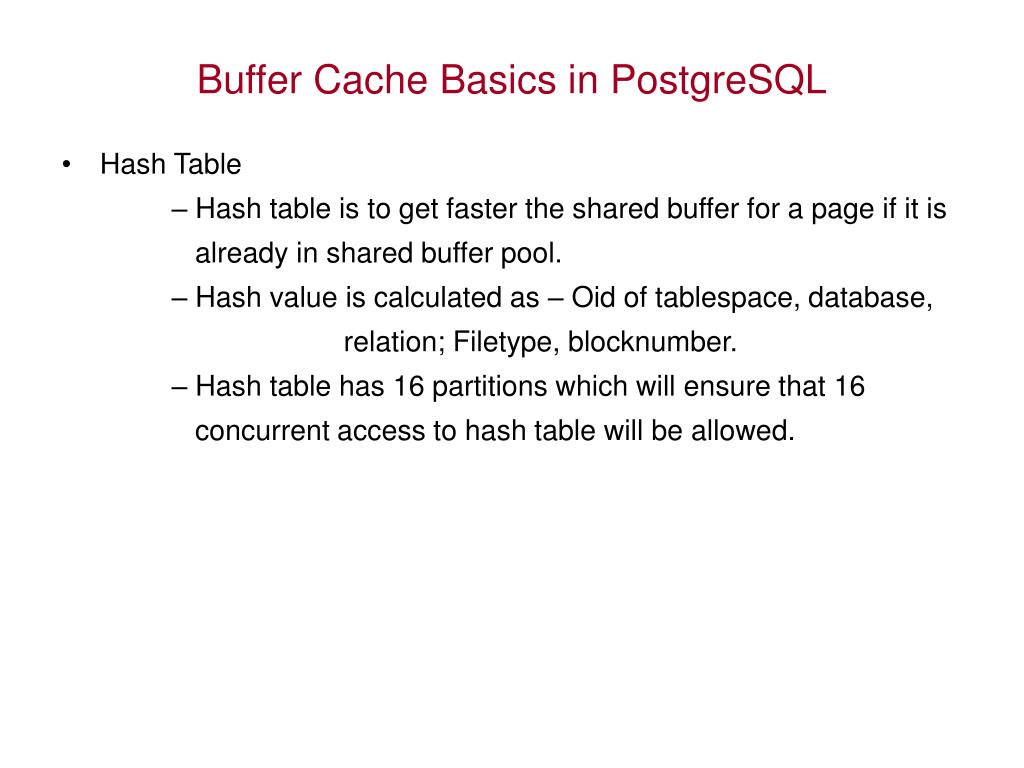

4. Buffer Cache Basics in PostgreSQL • Hash Table – Hash table is to get faster the shared buffer for a page if it is already in shared buffer pool. – Hash value is calculated as – Oid of tablespace, database, relation; Filetype, blocknumber. – Hash table has 16 partitions which will ensure that 16 concurrent access to hash table will be allowed.

5. Buffer Cache Basics in PostgreSQL • Usage count in buffer header tracks the usage of buffer based on which it is decided whether to flush particular buffer when no more free buffers are available. • Once freelist buffers are finished, backend runs the clock sweep algorithm to find a suitable buffer for reuse. • If that page is dirty, it is written out to disk. This can cause the backend trying to allocate that buffer to block as it waits for that write I/O to complete. • Clock sweep also marks nextvictim buffer which will be used to traverse the list next time backend wants a buffer for a new page request. • A buffer becomes dirty at a particular LSN (Log sequence number) which is a point in WAL file. • Dirty page images written by the background writer or checkpoint makes sure that corresponding part of WAL file is written flushing page.

6. 15 42 42 53 93 93 156 156 Search For Blocks Already In Buffer Pool Request For block with hash key 42 Request For block with hash key 156 Request For block with hash key 93 Request For block with hash key 183 Block not found in existing buffers. Search for a free buffer for block in buffer freelist.

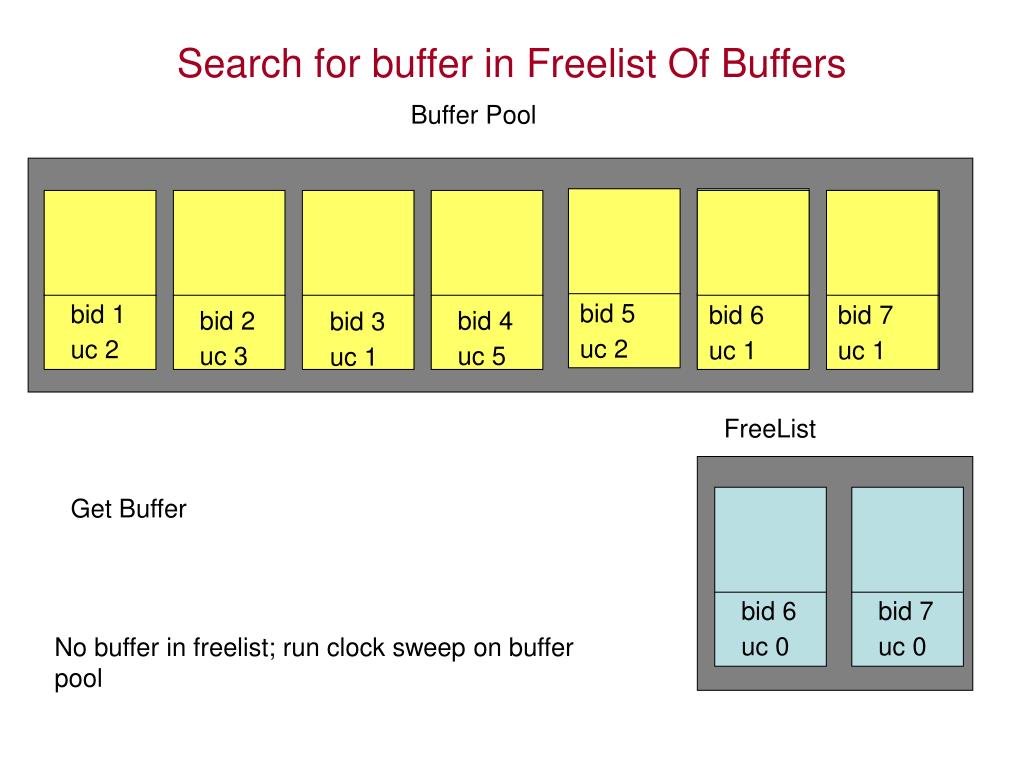

7. bid 6 uc 0 bid 5 uc 2 bid 7 uc 1 bid 6 uc 1 bid 1 uc 2 bid 6 uc 0 bid 7 uc 0 bid 2 uc 3 bid 4 uc 5 bid 7 uc 0 bid 3 uc 1 Search for buffer in Freelist Of Buffers Buffer Pool FreeList Get Buffer No buffer in freelist; run clock sweep on buffer pool

8. rcnt 0 uc 1 rcnt 0 uc 0 rcnt 0 uc 0 rcnt 0 uc 0 rcnt 2 uc 2 rcnt 1 uc 1 rcnt 1 uc 2 rcnt 0 uc 3 rcnt 0 uc 2 rcnt 0 uc 5 rcnt 0 uc 4 rcnt 0 uc 0 rcnt 0 uc 0 rcnt 1 uc 1 Clock Sweep for buffer in Buffer Pool Buffer Pool Check if victim buffer doesn’t have ref count 0; then move to next buffer Get Buffer If refcnt and usage cnt is 0 then return buff. If ref count is 0, then if Usage Cnt > 0 then decrement it and move to next buffer.

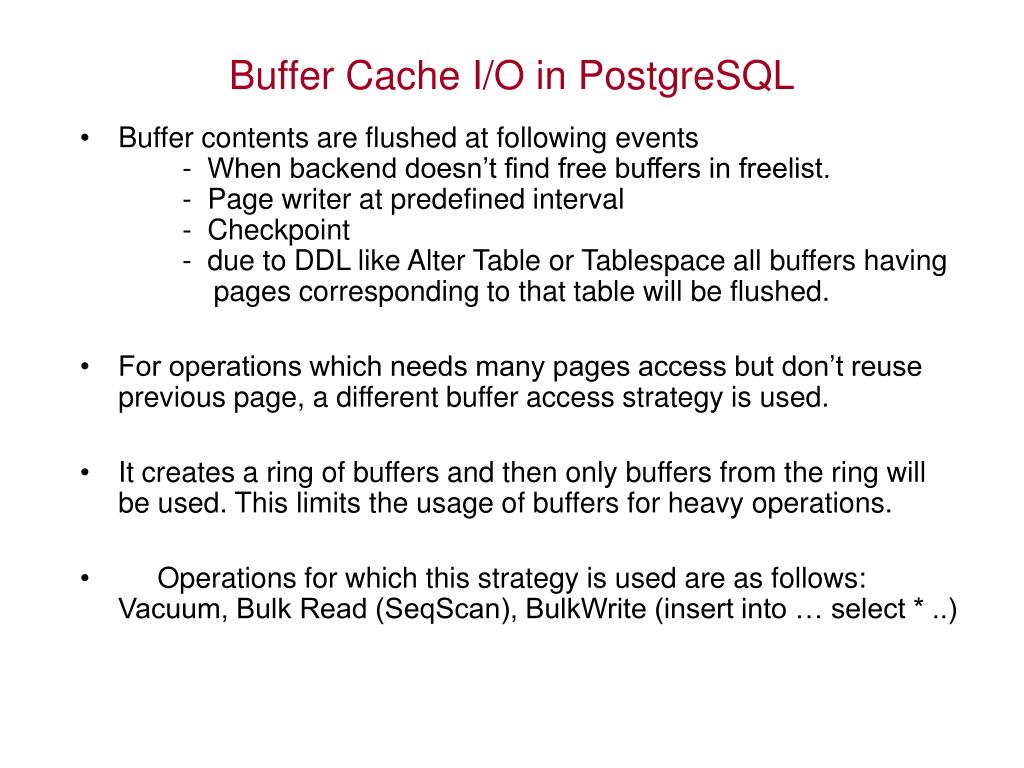

9. Buffer Cache I/O in PostgreSQL • Buffer contents are flushed at following events - When backend doesn’t find free buffers in freelist. - Page writer at predefined interval - Checkpoint - due to DDL like Alter Table or Tablespace all buffers having pages corresponding to that table will be flushed. • For operations which needs many pages access but don’t reuse previous page, a different buffer access strategy is used. • It creates a ring of buffers and then only buffers from the ring will be used. This limits the usage of buffers for heavy operations. • Operations for which this strategy is used are as follows: Vacuum, Bulk Read (SeqScan), BulkWrite (insert into … select * ..)

10. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

11. Checkpoint Definition • A checkpoint is a point in the transaction log sequence at which all data files have been updated to reflect the information in the log. • At checkpoint time, all dirty data pages are flushed to disk and a special point is noted to determine the point in the log from which it should start the REDO operation during CRASH recovery. • Checkpoint occurs at following events • When predefined log segment gets full • Checkpoint timeout interval • CHECKPOINT command

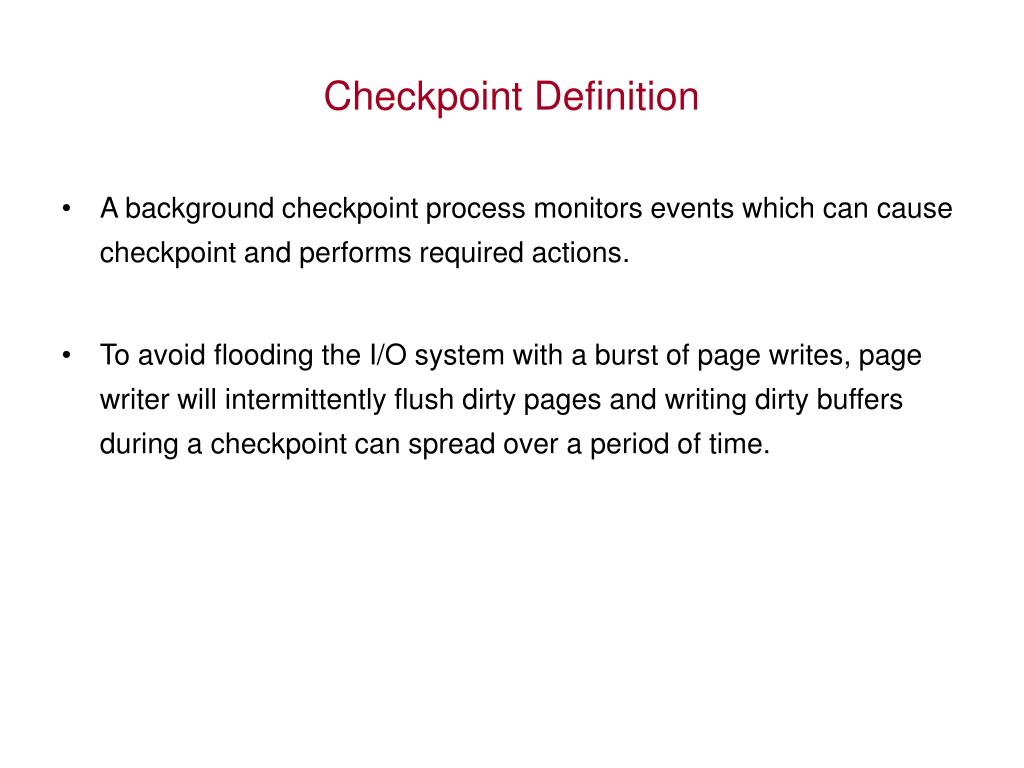

12. Checkpoint Definition • A background checkpoint process monitors events which can cause checkpoint and performs required actions. • To avoid flooding the I/O system with a burst of page writes, page writer will intermittently flush dirty pages and writing dirty buffers during a checkpoint can spread over a period of time.

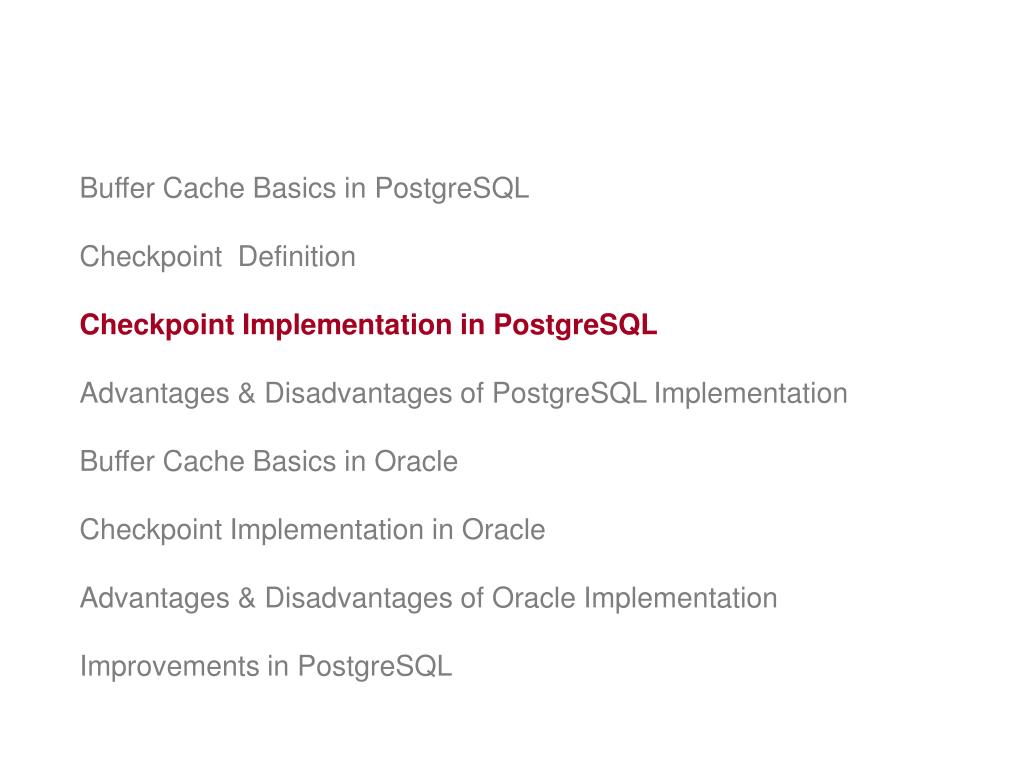

13. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

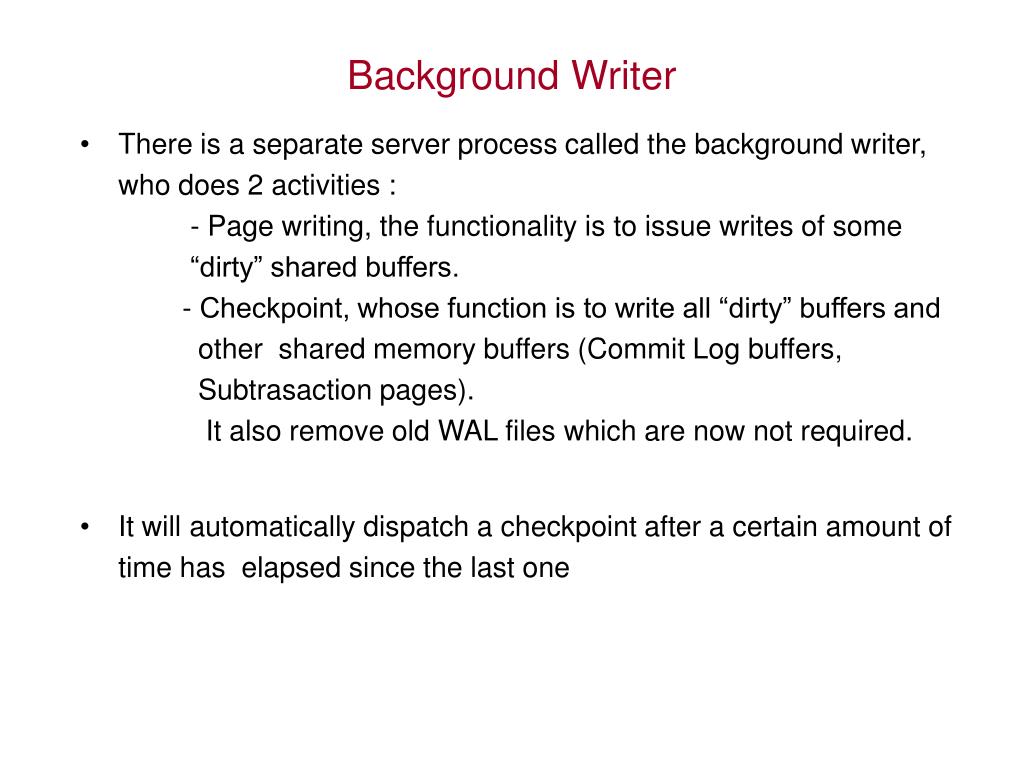

14. Background Writer • There is a separate server process called the background writer, who does 2 activities : - Page writing, the functionality is to issue writes of some “dirty” shared buffers. - Checkpoint, whose function is to write all “dirty” buffers and other shared memory buffers (Commit Log buffers, Subtrasaction pages). It also remove old WAL files which are now not required. • It will automatically dispatch a checkpoint after a certain amount of time has elapsed since the last one

15. Background Writer • It can be signaled to perform requested checkpoints as well. • Backends signal the bgwriter when they fill WAL segments to perform checkpoint. • If the bgwriter exits unexpectedly, the postmaster treats that the same as a backend crash: shared memory may be corrupted, so remaining backends should be killed by SIGQUIT and then a recovery cycle started.

16. Page Writing • Page writing is to ensure that sessions seldom or never have to wait for a write to occur, because the background writer will do it. However, regular backends (sessions) are still empowered to issue writes if the bgwriter fails to maintain enough clean shared buffers. • In general due to Page writer there is a net overall increase in I/O load, because a repeatedly-dirtied page might otherwise be written only once per checkpoint interval, but the background writer might write it several times in the same interval. • ‘bgwriter_delay’ specifies the delay between activity rounds for the background writer. In each round the writer issues writes for some number of dirty buffers • In each round, no more than ‘bgwriter_lru_maxpages’ buffers will be written by the background writer.

17. Page Writing Contd.. • The number of dirty buffers written in each round is based on the number of new buffers that have been needed by server processes during recent rounds. • It will also consider the number of reusable buffers from previous bgwriter run which are accumulated based on extra pages it has flushed than expected. • It will start from nextvictim buffer, which will be useful for backends as chances of getting them useful buffers is high. • It will flush the blocks one by one. There is no concept of grouping buffers for flushing. • Even in cases where there's been little or no buffer allocation activity, we want to make a small amount of progress through the buffer cache so that as many reusable buffers as possible are clean after an idle period.

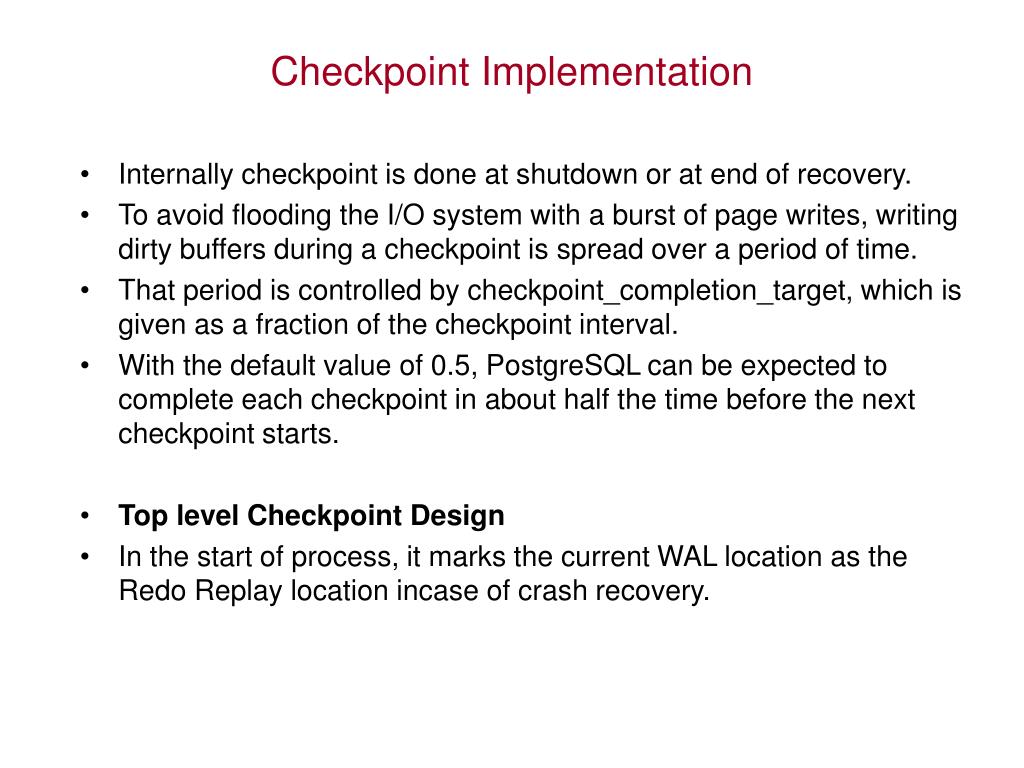

18. Checkpoint Implementation • Internally checkpoint is done at shutdown or at end of recovery. • To avoid flooding the I/O system with a burst of page writes, writing dirty buffers during a checkpoint is spread over a period of time. • That period is controlled by checkpoint_completion_target, which is given as a fraction of the checkpoint interval. • With the default value of 0.5, PostgreSQL can be expected to complete each checkpoint in about half the time before the next checkpoint starts. • Top level Checkpoint Design • In the start of process, it marks the current WAL location as the Redo Replay location incase of crash recovery.

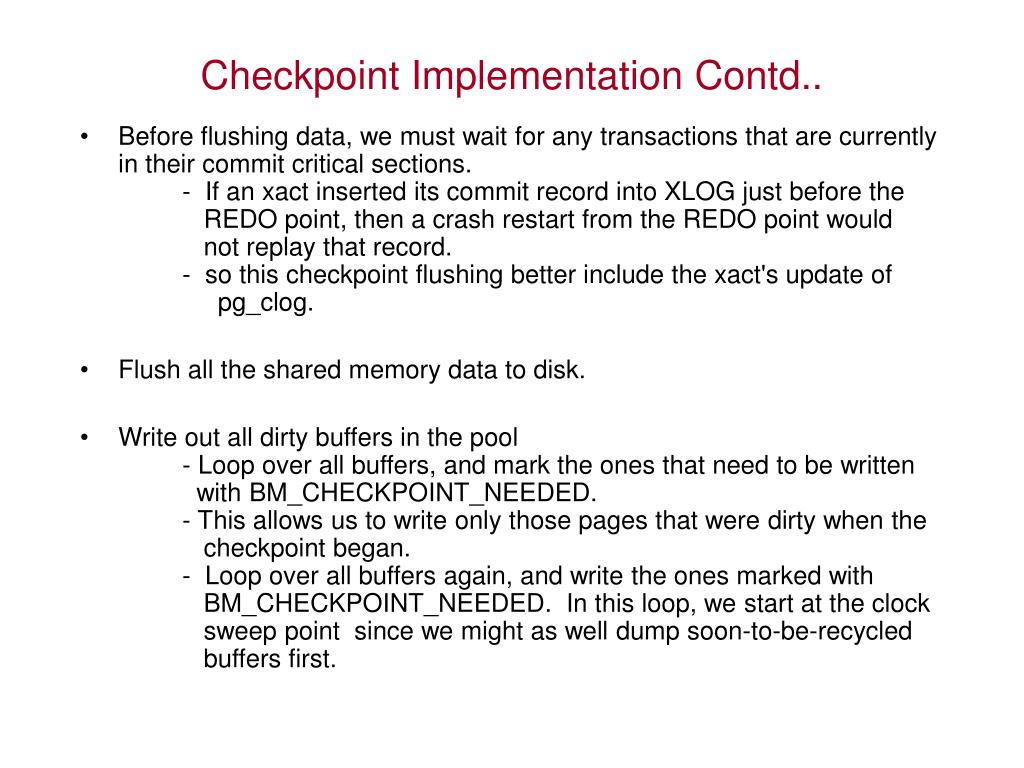

19. Checkpoint Implementation Contd.. • Before flushing data, we must wait for any transactions that are currently in their commit critical sections. - If an xact inserted its commit record into XLOG just before the REDO point, then a crash restart from the REDO point would not replay that record. - so this checkpoint flushing better include the xact's update of pg_clog. • Flush all the shared memory data to disk. • Write out all dirty buffers in the pool - Loop over all buffers, and mark the ones that need to be written with BM_CHECKPOINT_NEEDED. - This allows us to write only those pages that were dirty when the checkpoint began. - Loop over all buffers again, and write the ones marked with BM_CHECKPOINT_NEEDED. In this loop, we start at the clock sweep point since we might as well dump soon-to-be-recycled buffers first.

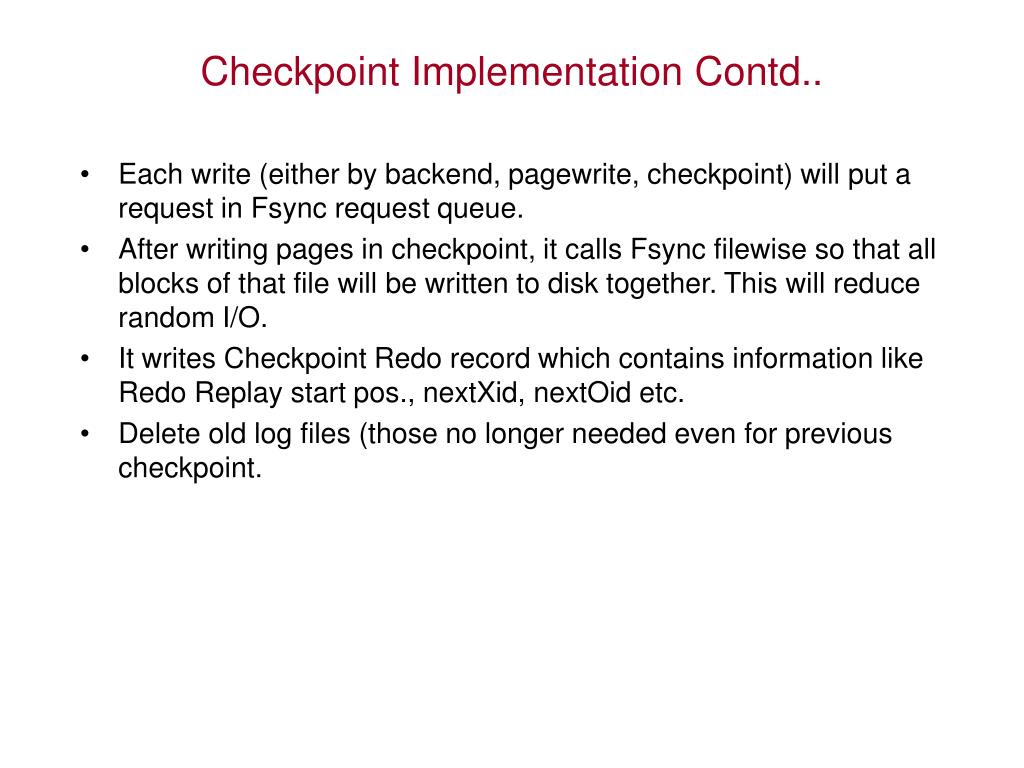

20. Checkpoint Implementation Contd.. • Each write (either by backend, pagewrite, checkpoint) will put a request in Fsync request queue. • After writing pages in checkpoint, it calls Fsync filewise so that all blocks of that file will be written to disk together. This will reduce random I/O. • It writes Checkpoint Redo record which contains information like Redo Replay start pos., nextXid, nextOid etc. • Delete old log files (those no longer needed even for previous checkpoint.

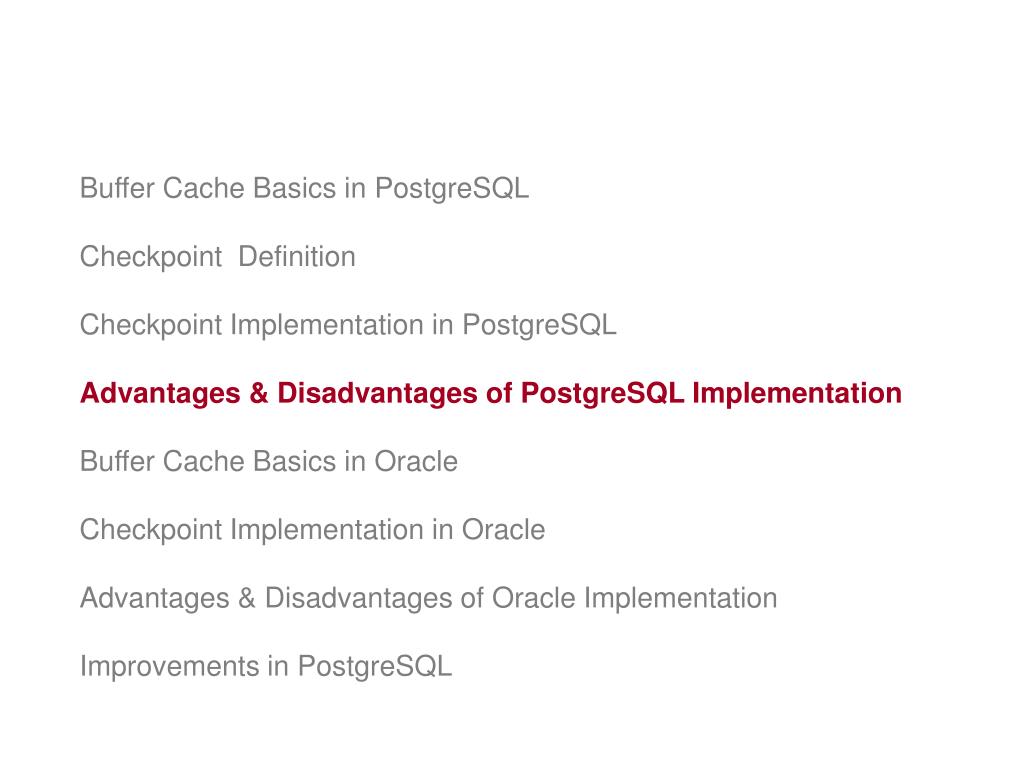

21. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

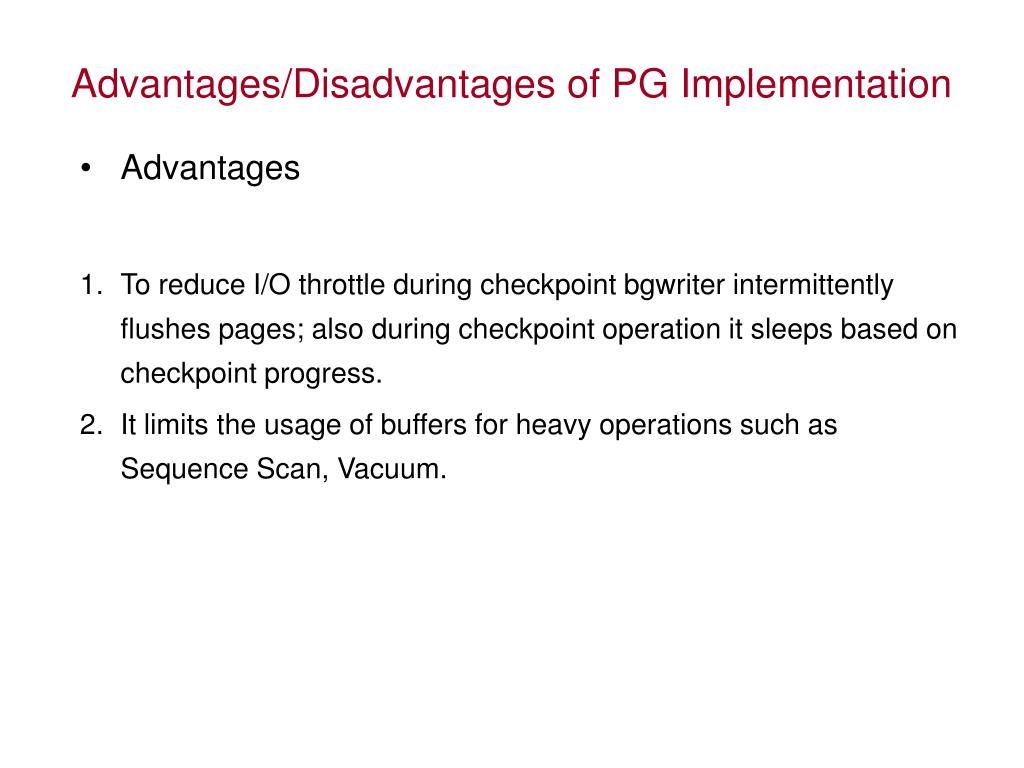

22. Advantages/Disadvantages of PG Implementation • Advantages • To reduce I/O throttle during checkpoint bgwriter intermittently flushes pages; also during checkpoint operation it sleeps based on checkpoint progress. • It limits the usage of buffers for heavy operations such as Sequence Scan, Vacuum.

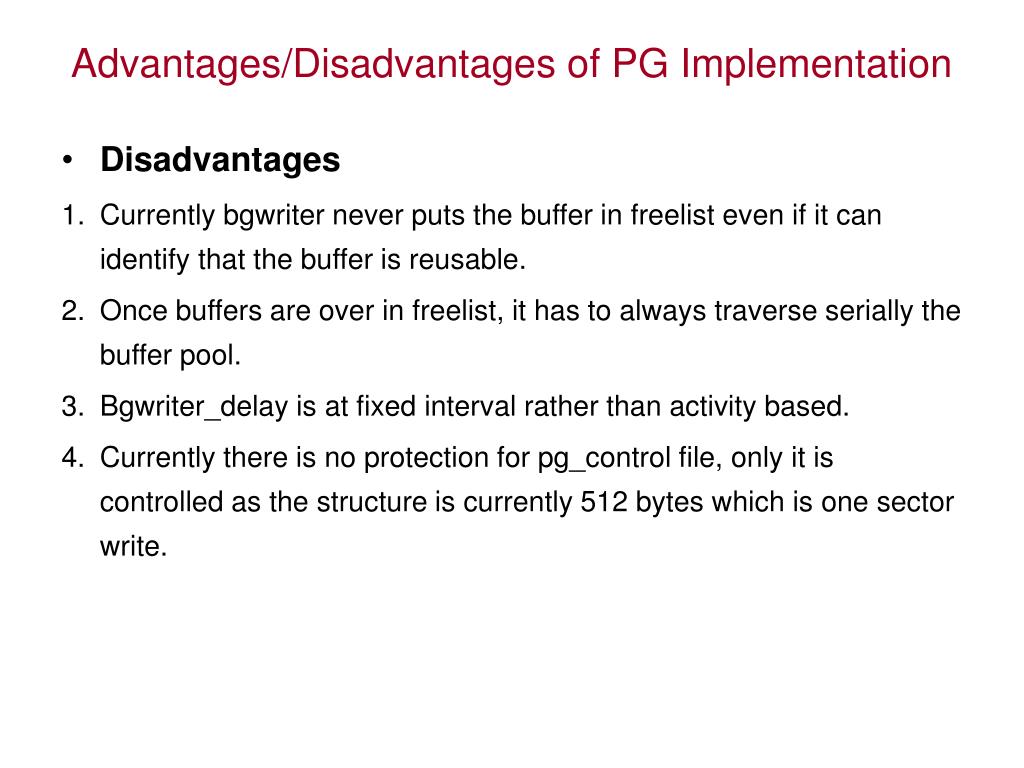

23. Advantages/Disadvantages of PG Implementation • Disadvantages • Currently bgwriter never puts the buffer in freelist even if it can identify that the buffer is reusable. • Once buffers are over in freelist, it has to always traverse serially the buffer pool. • Bgwriter_delay is at fixed interval rather than activity based. • Currently there is no protection for pg_control file, only it is controlled as the structure is currently 512 bytes which is one sector write.

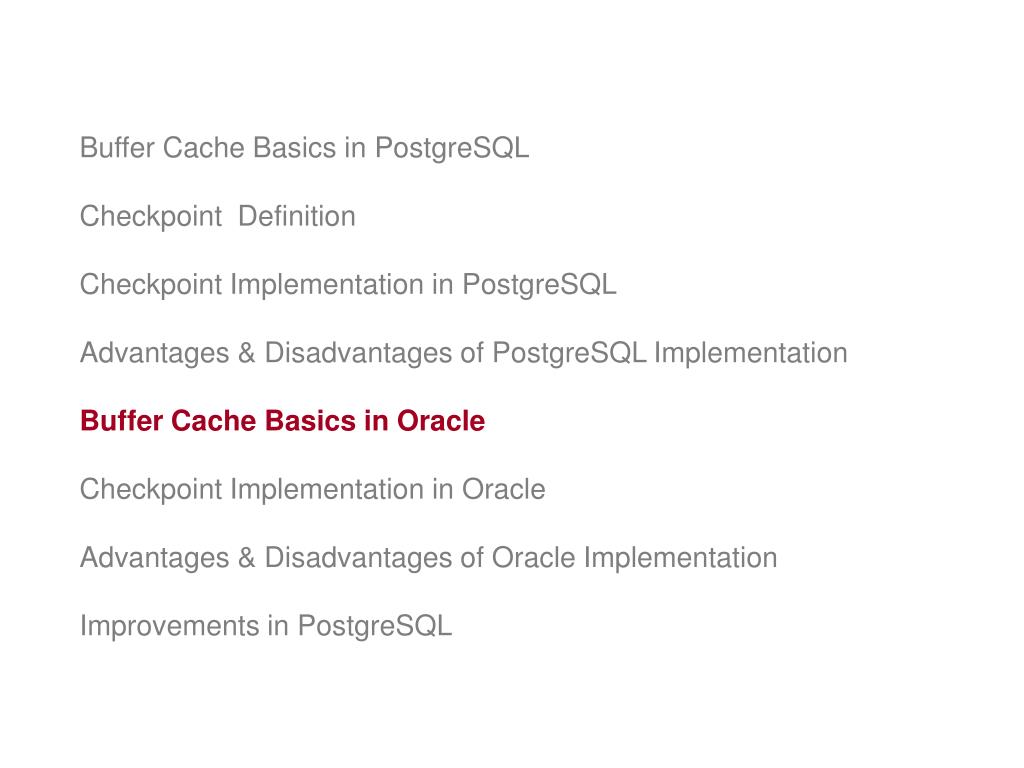

24. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

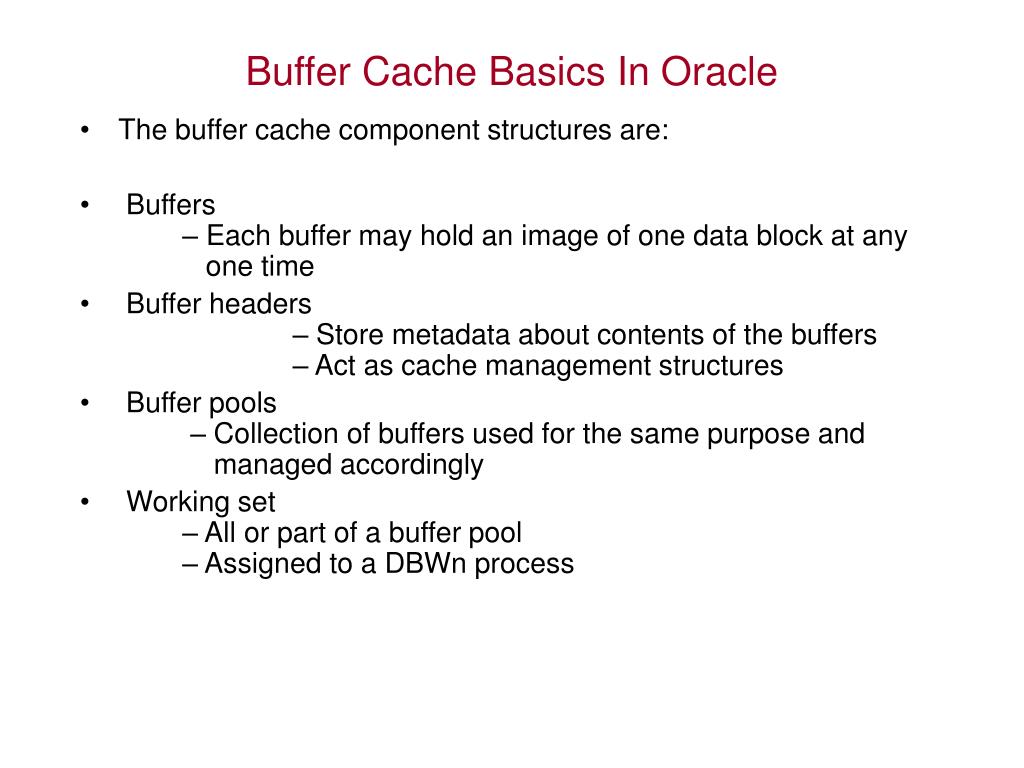

25. Buffer Cache Basics In Oracle • The buffer cache component structures are: • Buffers – Each buffer may hold an image of one data block at any one time • Buffer headers – Store metadata about contents of the buffers – Act as cache management structures • Buffer pools – Collection of buffers used for the same purpose and managed accordingly • Working set – All or part of a buffer pool – Assigned to a DBWn process

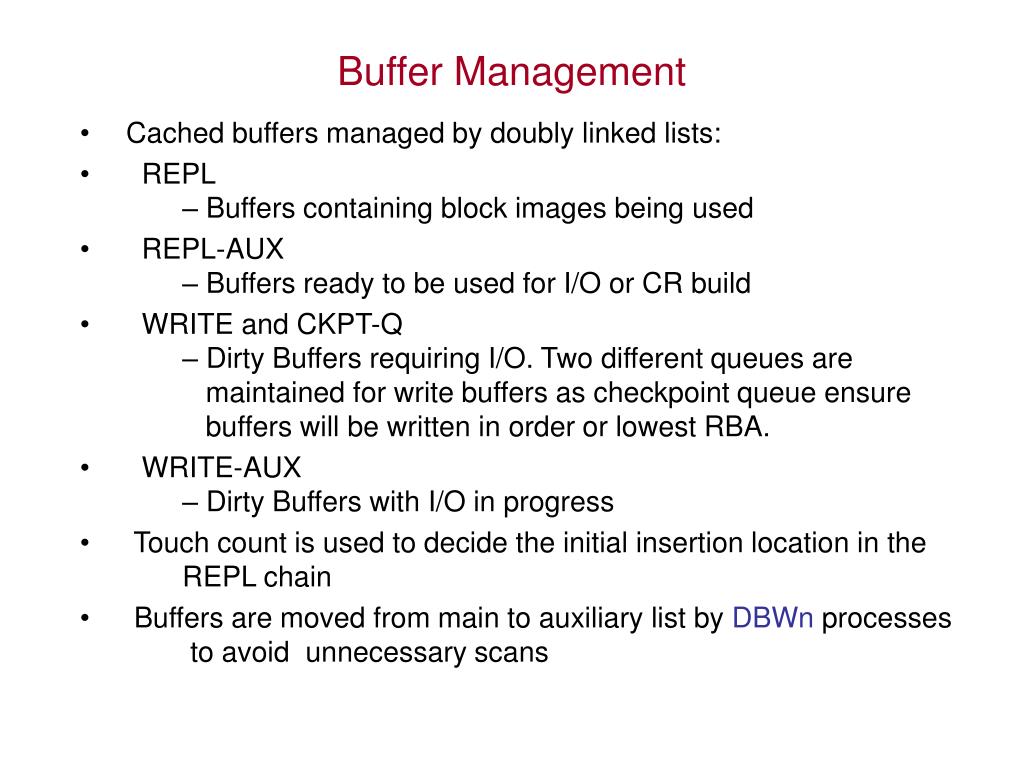

26. Buffer Management • Cached buffers managed by doubly linked lists: • REPL – Buffers containing block images being used • REPL-AUX – Buffers ready to be used for I/O or CR build • WRITE and CKPT-Q – Dirty Buffers requiring I/O. Two different queues are maintained for write buffers as checkpoint queue ensure buffers will be written in order or lowest RBA. • WRITE-AUX – Dirty Buffers with I/O in progress • Touch count is used to decide the initial insertion location in the REPL chain • Buffers are moved from main to auxiliary list by DBWn processes to avoid unnecessary scans

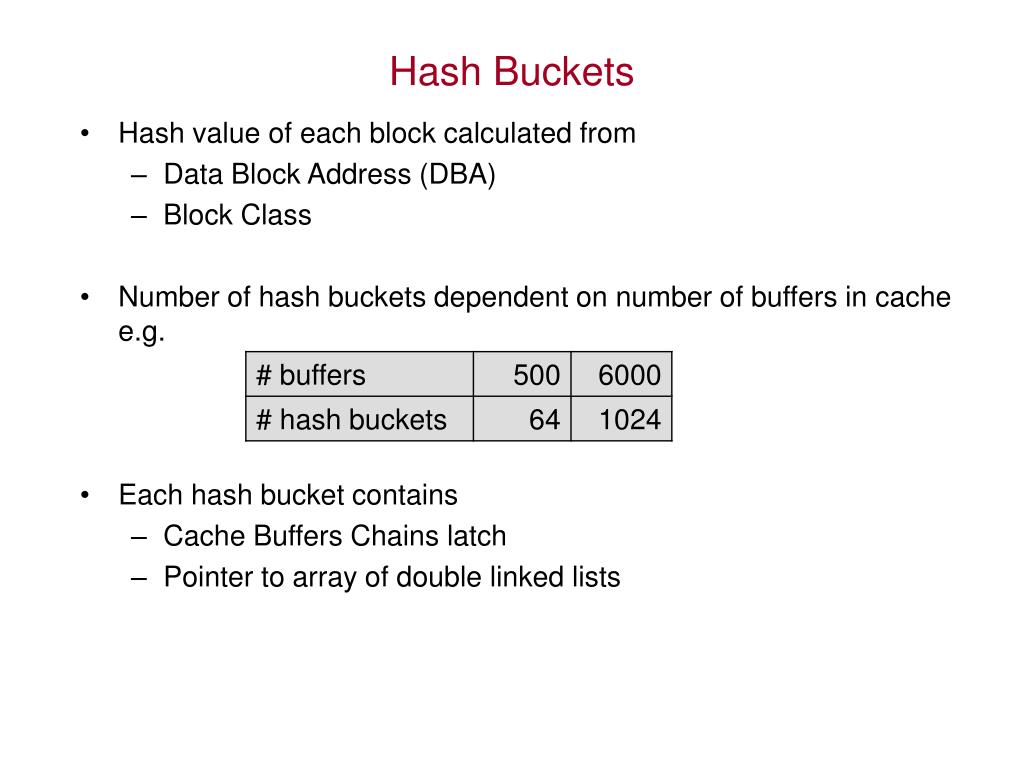

27. Hash Buckets • Hash value of each block calculated from • Data Block Address (DBA) • Block Class • Number of hash buckets dependent on number of buffers in cache e.g. • Each hash bucket contains • Cache Buffers Chains latch • Pointer to array of double linked lists

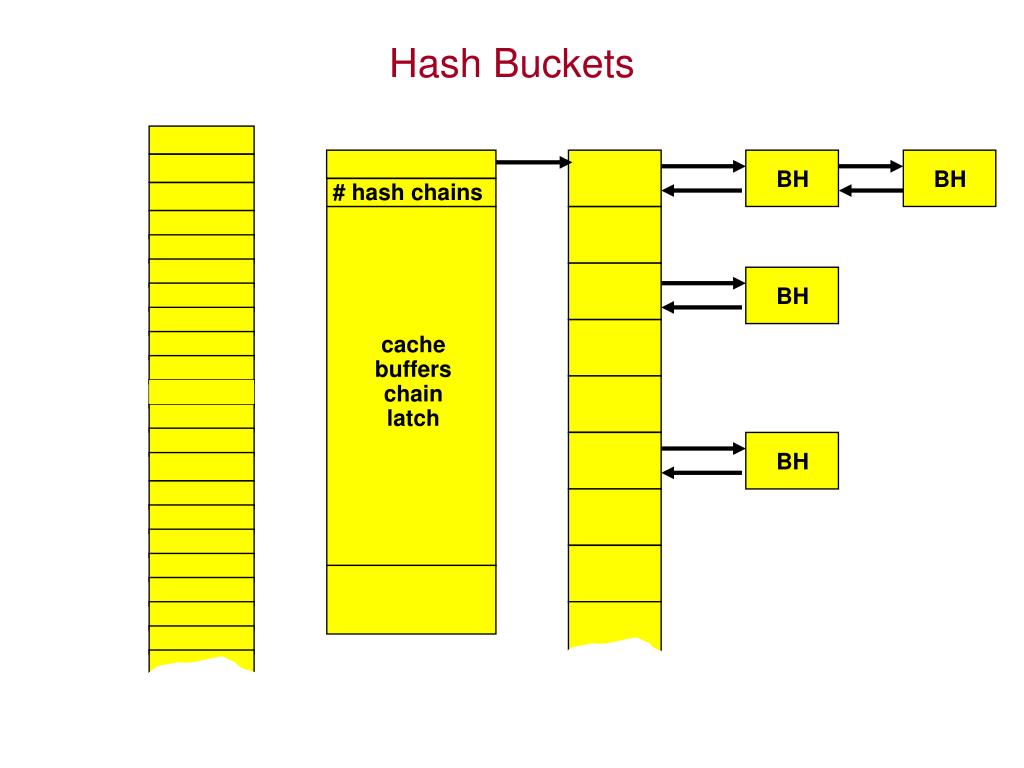

28. BH BH BH BH # hash chains cachebufferschainlatch Hash Buckets

29. Buffer Headers • Each buffer header describes contents of one buffer • All buffers accessed via buffer header • Buffer header contains pointers to • Buffer • Cache Buffers Chains latch • Buffer header includes double linked lists for • Cache Buffers Chain list • Replacement list • Users list • Waiters list

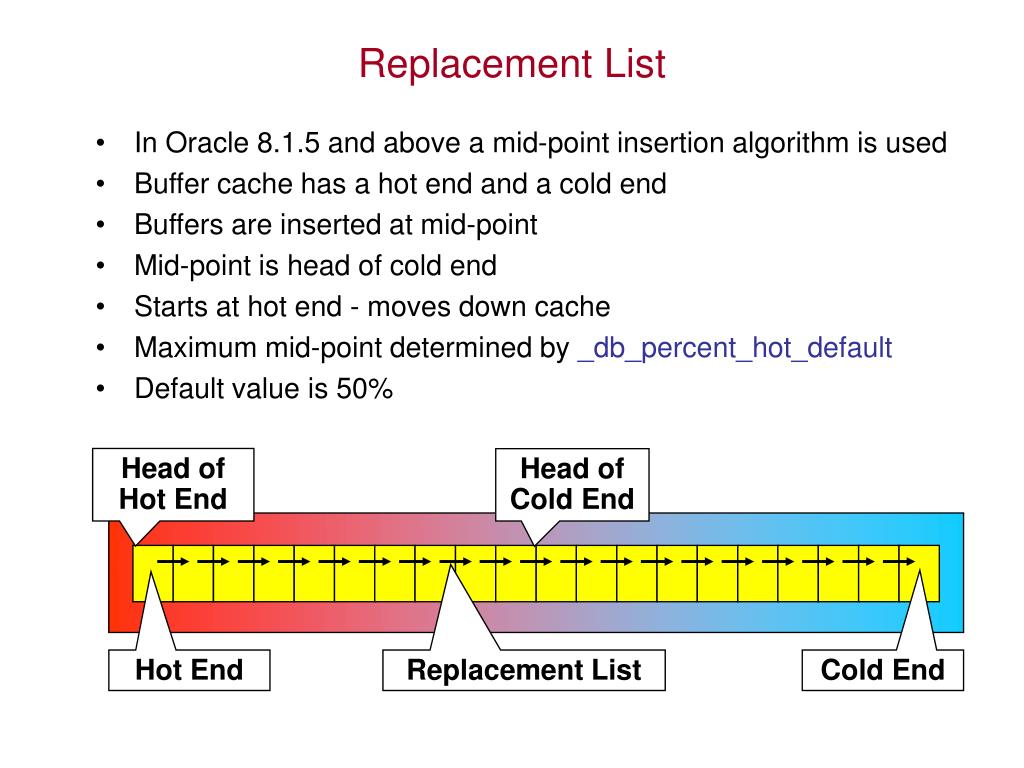

30. Replacement List • In Oracle 8.1.5 and above a mid-point insertion algorithm is used • Buffer cache has a hot end and a cold end • Buffers are inserted at mid-point • Mid-point is head of cold end • Starts at hot end - moves down cache • Maximum mid-point determined by _db_percent_hot_default • Default value is 50% Head of Hot End Head of Cold End Hot End Replacement List Cold End

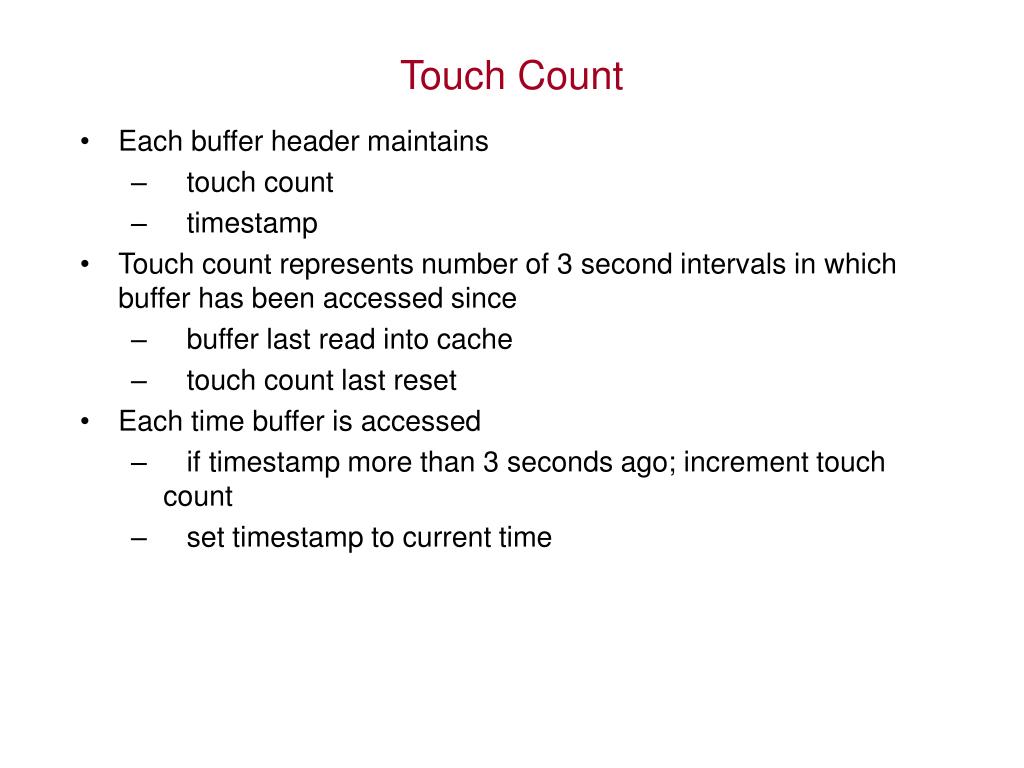

31. Touch Count • Each buffer header maintains • touch count • timestamp • Touch count represents number of 3 second intervals in which buffer has been accessed since • buffer last read into cache • touch count last reset • Each time buffer is accessed • if timestamp more than 3 seconds ago; increment touch count • set timestamp to current time

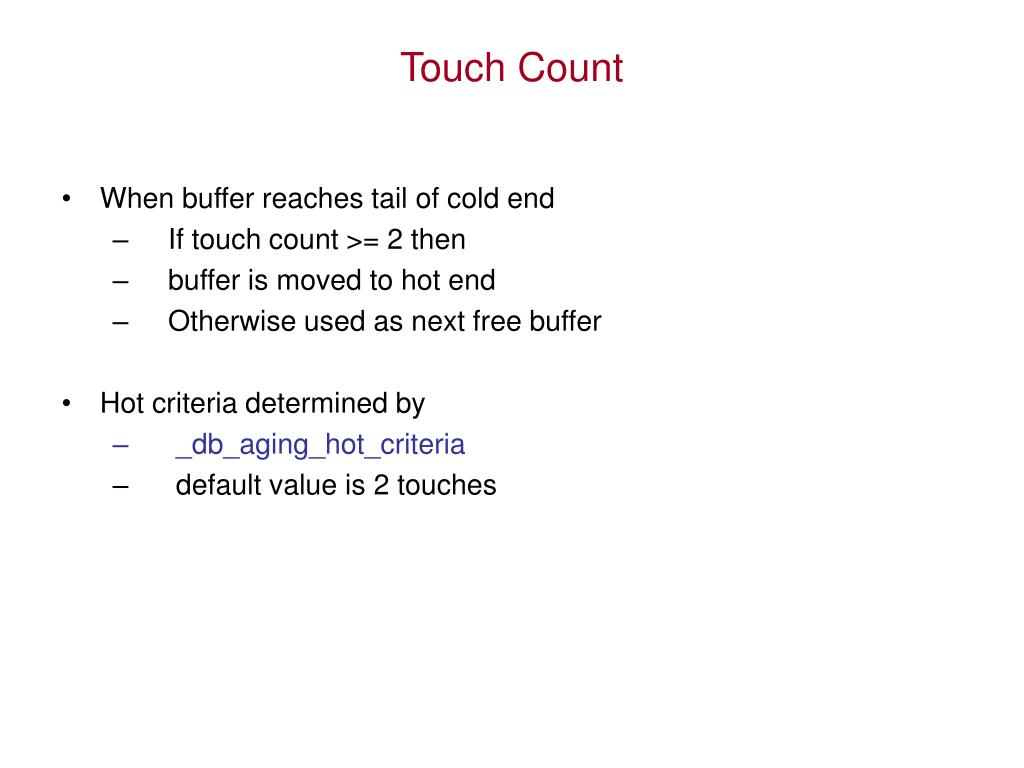

32. Touch Count • When buffer reaches tail of cold end • If touch count >= 2 then • buffer is moved to hot end • Otherwise used as next free buffer • Hot criteria determined by • _db_aging_hot_criteria • default value is 2 touches

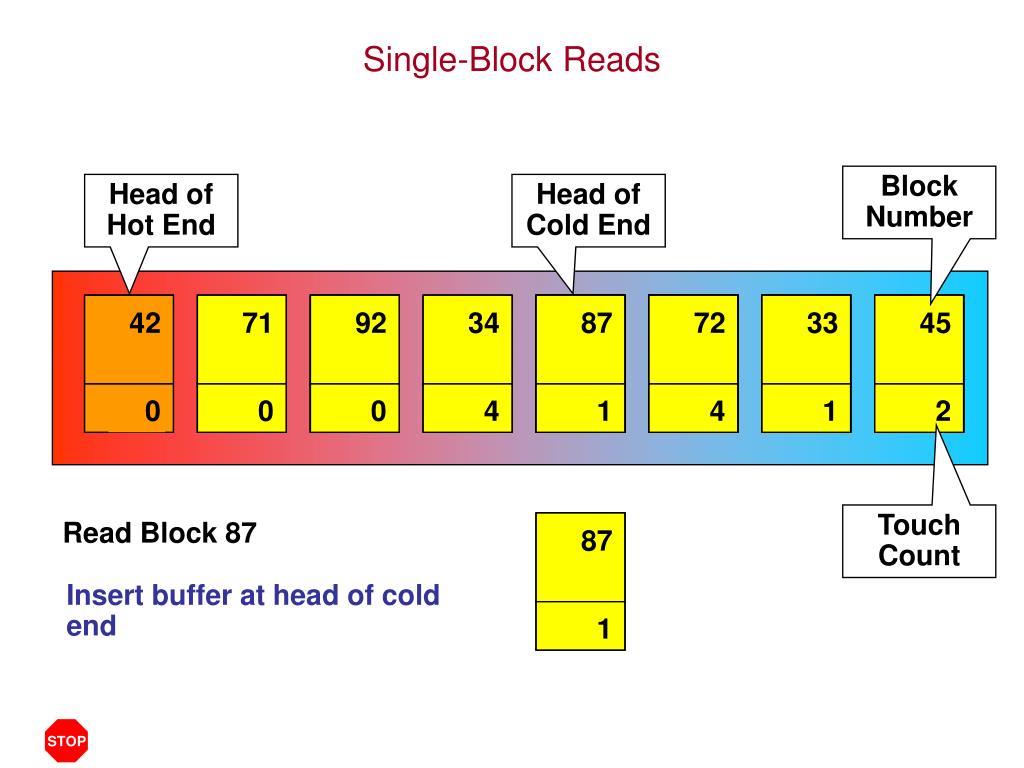

33. 45 33 42 11 52 72 71 66 34 66 42 49 92 87 45 45 52 71 71 42 72 33 33 87 42 33 11 42 52 71 11 11 45 42 71 42 52 92 34 34 72 45 92 11 72 34 2 1 1 1 1 2 1 1 0 1 2 0 0 3 4 2 1 1 2 1 0 2 0 4 1 1 1 2 2 4 4 0 1 4 1 2 0 1 0 1 2 4 0 3 1 2 Read Block 87 Read Block 34 Read Block 33 Read Block 42 Read Block 11 Update touch count for block 42 Update buffer contents Get first available buffer from cold end Update buffer contents Insert buffer at head of cold end Get first available buffer from cold end Insert buffer at head of cold end Insert buffer at head of coldend Update buffer contents Move block 71 to head of hot end Set touch count on block 71 to zero Get first available bufferfrom cold end Update buffer contents Set touch counton block 42 to zero Insert buffer at head of coldend Move block 42 to headof hot end Update touch countfor block 34 Get first available bufferfrom cold end STOP Single-Block Reads Block Number Head of Hot End Head of Cold End Touch Count Read Block 42

34. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

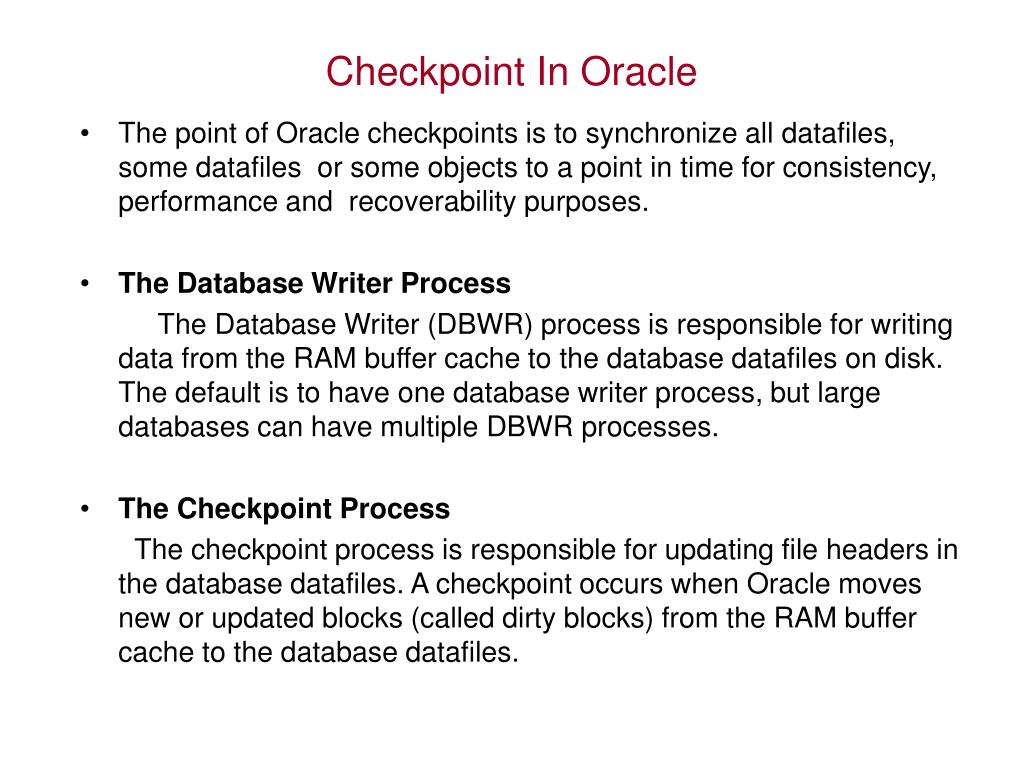

35. Checkpoint In Oracle • The point of Oracle checkpoints is to synchronize all datafiles, some datafiles or some objects to a point in time for consistency, performance and recoverability purposes. • The Database Writer Process The Database Writer (DBWR) process is responsible for writing data from the RAM buffer cache to the database datafiles on disk. The default is to have one database writer process, but large databases can have multiple DBWR processes. • The Checkpoint Process The checkpoint process is responsible for updating file headers in the database datafiles. A checkpoint occurs when Oracle moves new or updated blocks (called dirty blocks) from the RAM buffer cache to the database datafiles.

36. Dbwriter (DBWn) Process • If an Oracle user process searches the threshold limit of buffers without finding a free buffer, the process stops searching the LRU list and signals the DBW0 background process to write some of the dirty buffers to disk. • To allow buffer replacements to occur, it is necessary to write cold dirty buffers.Such writes are referred to as aging writes and are performed by DBWn processes. • The DBWn processes work to write enough cold buffers to guarantee a uniform supply of free buffers for replacement purposes. • Do forever { Scan lru list; Scan checkpoint queue; Accumulate batch of buffers to write; Issue writes; Wait for completion of writes; }

37. Multiple Dbwriters Set 0 Set 1 Set 2 Set 3 DBW0 DBW1 Writes to Datafiles A mechanism for increasing write throughput. Buffer cache is partitioned between dbwriters by working sets. Each DBWn process scans its own assigned working sets.

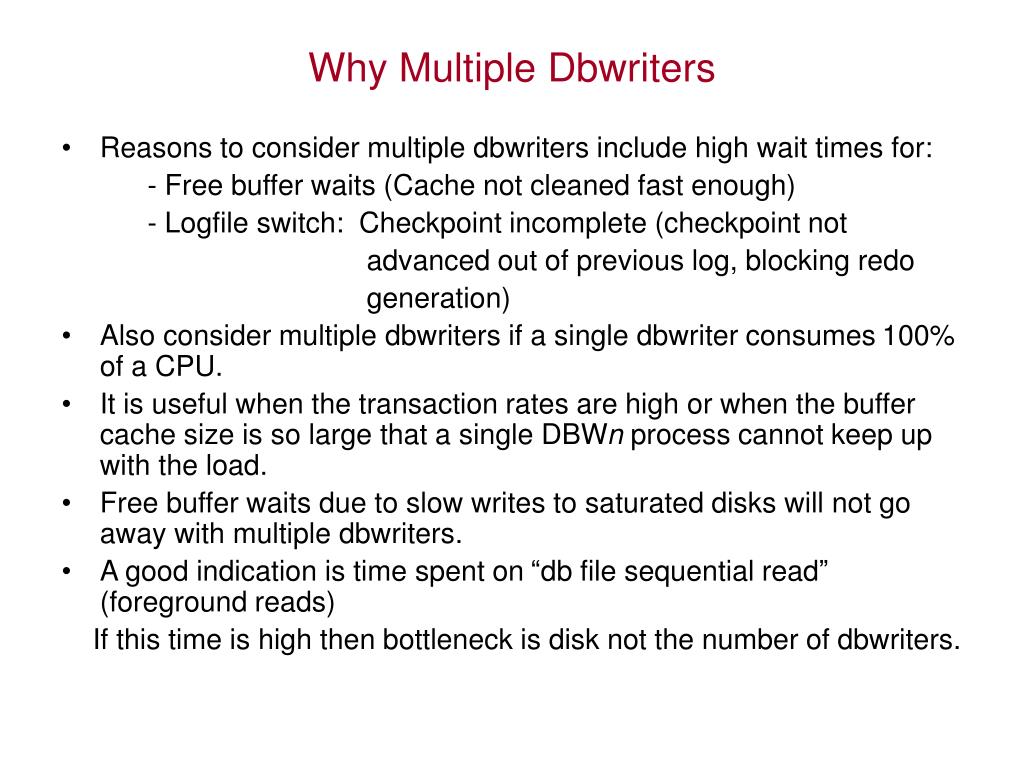

38. Why Multiple Dbwriters • Reasons to consider multiple dbwriters include high wait times for: - Free buffer waits (Cache not cleaned fast enough) - Logfile switch: Checkpoint incomplete (checkpoint not advanced out of previous log, blocking redo generation) • Also consider multiple dbwriters if a single dbwriter consumes 100% of a CPU. • It is useful when the transaction rates are high or when the buffer cache size is so large that a single DBWn process cannot keep up with the load. • Free buffer waits due to slow writes to saturated disks will not go away with multiple dbwriters. • A good indication is time spent on “db file sequential read” (foreground reads) If this time is high then bottleneck is disk not the number of dbwriters.

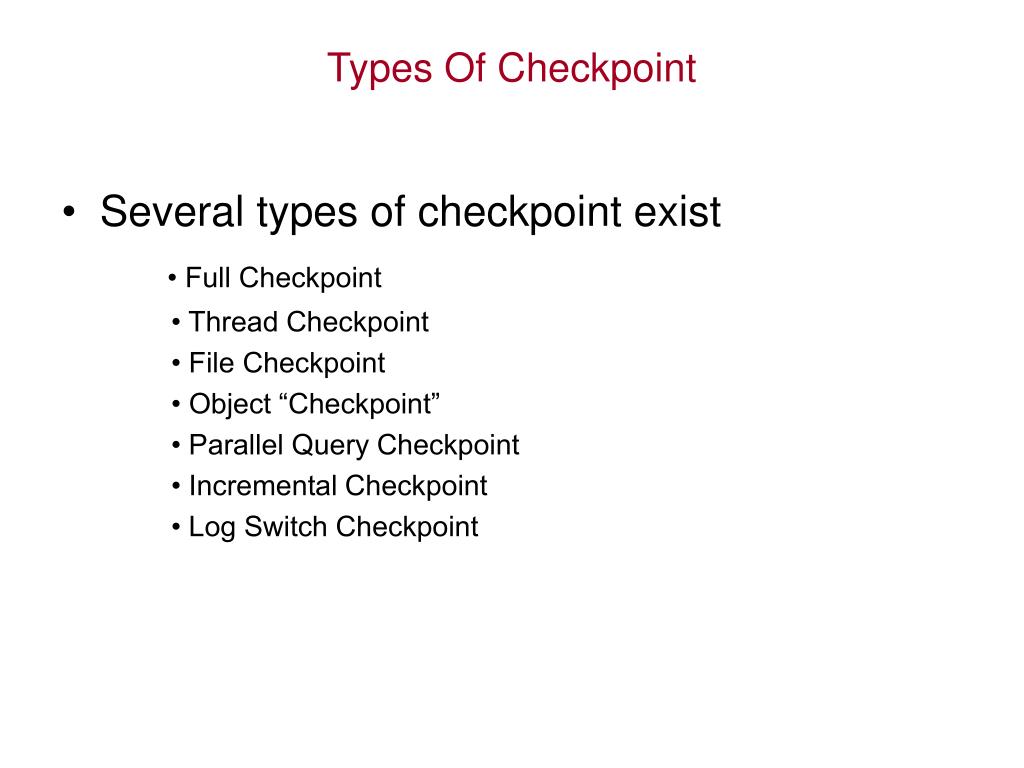

39. Types Of Checkpoint • Several types of checkpoint exist • Full Checkpoint • Thread Checkpoint • File Checkpoint • Object “Checkpoint” • Parallel Query Checkpoint • Incremental Checkpoint • Log Switch Checkpoint

40. Incremental Checkpoint • The objective was to make the algorithm scalable to very large buffer caches, and to facilitate frequent checkpointing for fast crash recovery. • Writes the contents of “some” dirty buffers to the database from CKPT-Q • Checkpoint RBA updated in SGA • Every 3 seconds CKPT calculates the checkpoint target RBA based on: ▫ The most current RBA ▫ log_checkpoint_timeout ▫ log_checkpoint_interval ▫ fast_start_mttr_target ▫ fast_start_io_target ▫ 90% of the size of the smallest online redo log file • LGWR flushes the redo buffer up to the target RBA

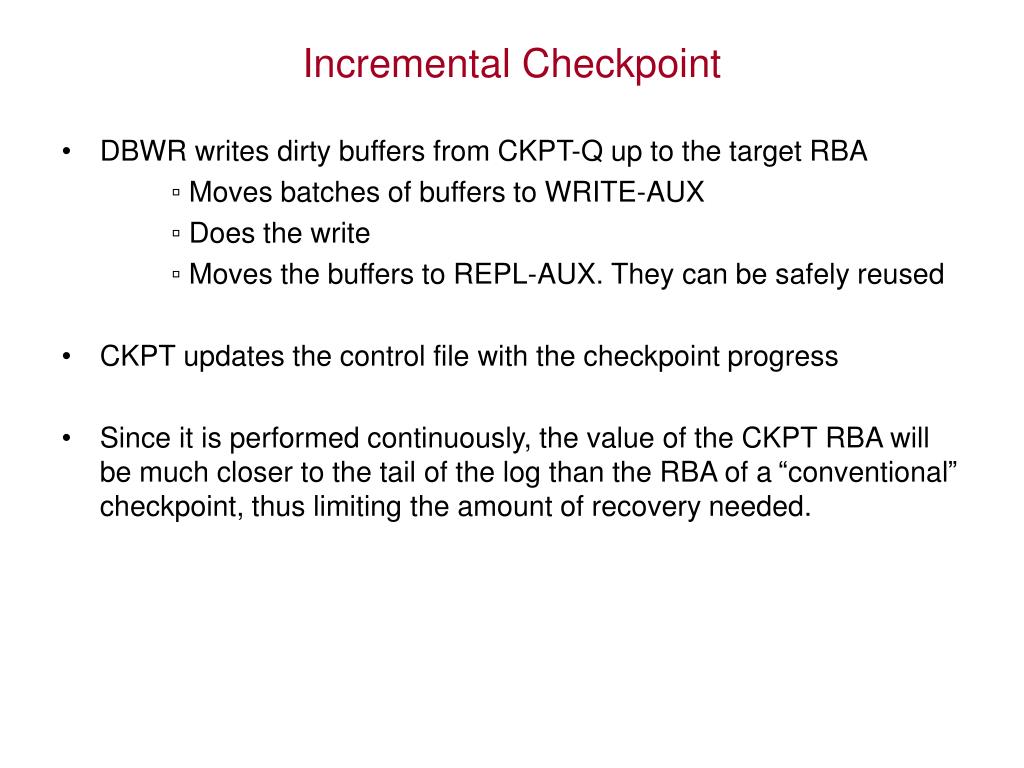

41. Incremental Checkpoint • DBWR writes dirty buffers from CKPT-Q up to the target RBA ▫ Moves batches of buffers to WRITE-AUX ▫ Does the write ▫ Moves the buffers to REPL-AUX. They can be safely reused • CKPT updates the control file with the checkpoint progress • Since it is performed continuously, the value of the CKPT RBA will be much closer to the tail of the log than the RBA of a “conventional” checkpoint, thus limiting the amount of recovery needed.

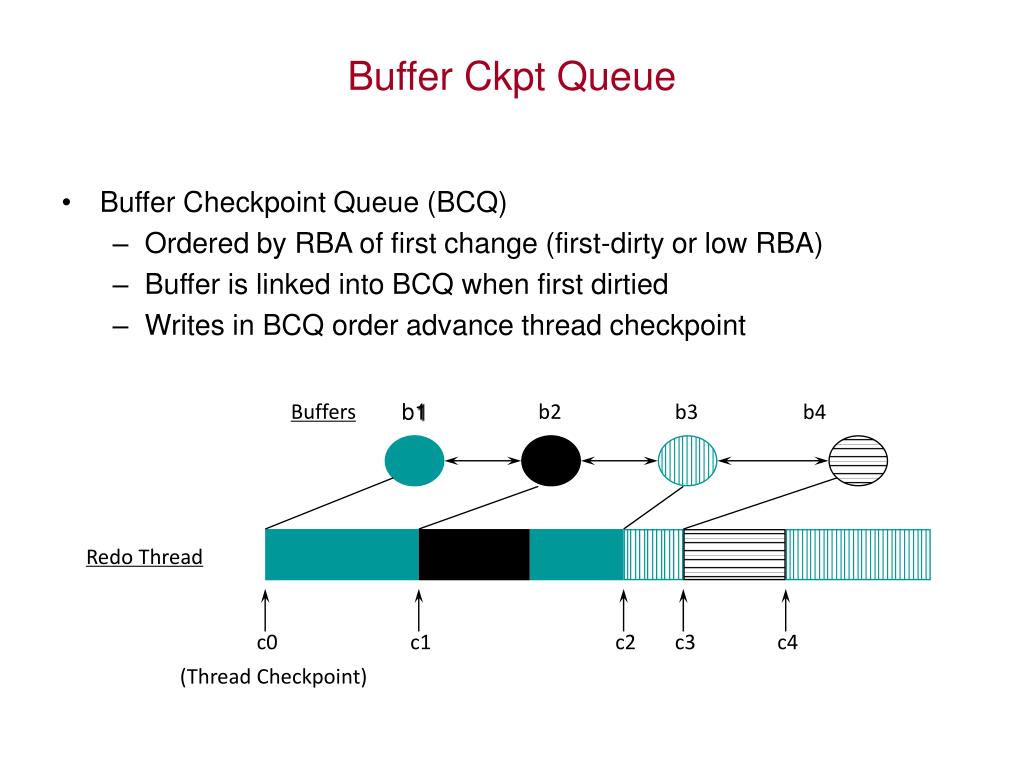

42. Buffer Ckpt Queue Buffers b1 b2 b3 b4 Redo Thread c0 c1 c2 c3 c4 (Thread Checkpoint) • Buffer Checkpoint Queue (BCQ) • Ordered by RBA of first change (first-dirty or low RBA) • Buffer is linked into BCQ when first dirtied • Writes in BCQ order advance thread checkpoint

43. Buffer Ckpt Queue (Write b1) c0 c2 c1 c3 c4 c1 c2 c2 c3 c4 (Write b2) b4 (Write b3) c3 c4 c3 c4 Each write in BCQ order advances the checkpoint b1 b2 b3 b4 b2 b3 b4 b3 b4

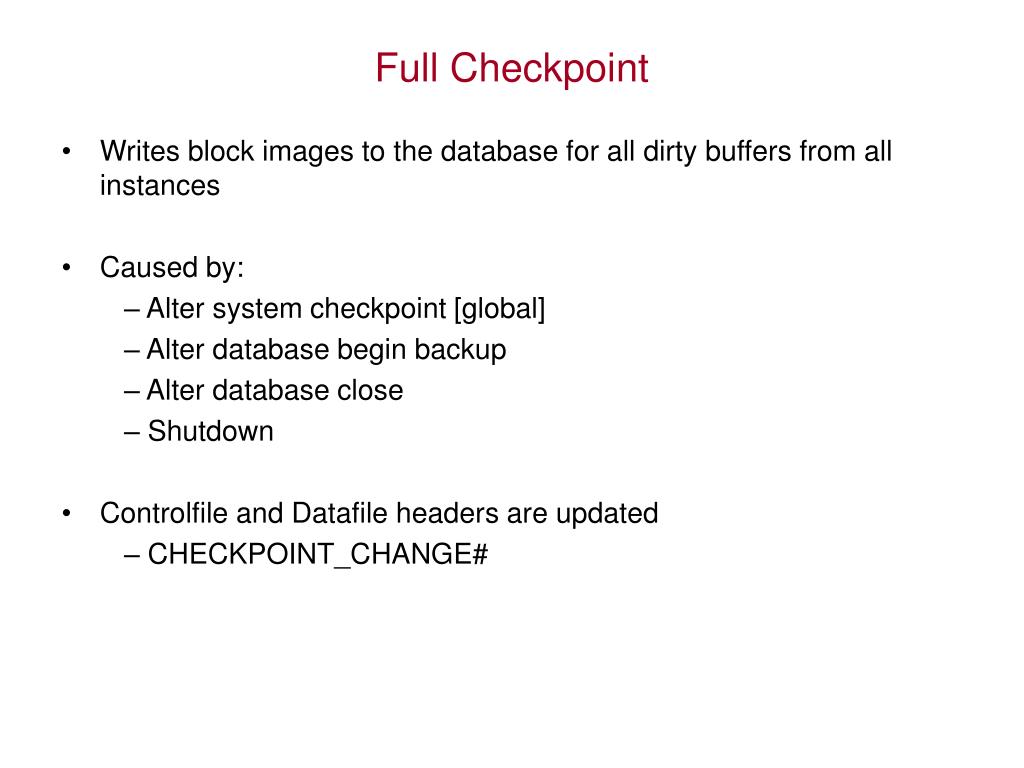

44. Full Checkpoint • Writes block images to the database for all dirty buffers from all instances • Caused by: – Alter system checkpoint [global] – Alter database begin backup – Alter database close – Shutdown • Controlfile and Datafile headers are updated – CHECKPOINT_CHANGE#

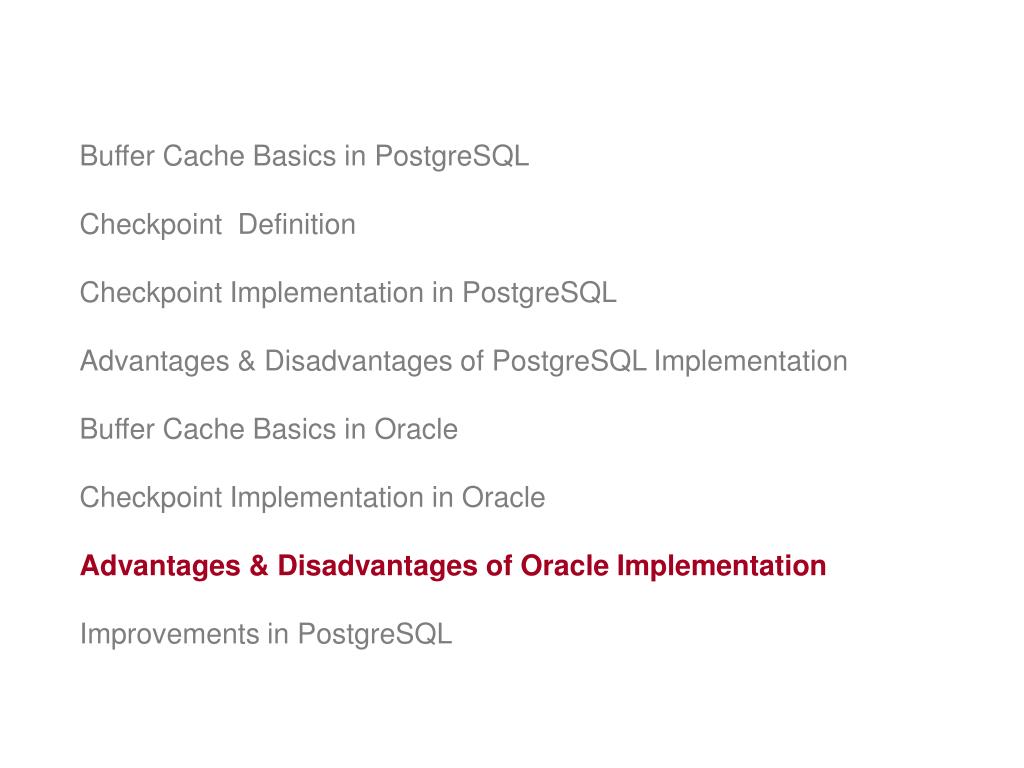

45. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

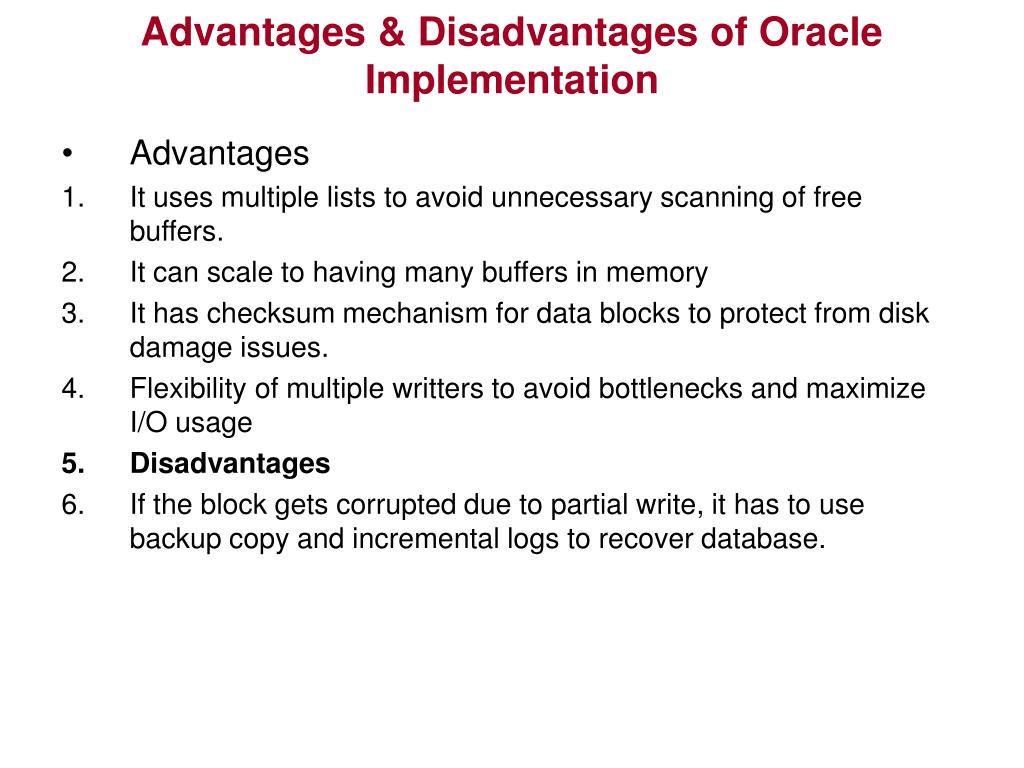

46. Advantages & Disadvantages of Oracle Implementation • Advantages • It uses multiple lists to avoid unnecessary scanning of free buffers. • It can scale to having many buffers in memory • It has checksum mechanism for data blocks to protect from disk damage issues. • Flexibility of multiple writters to avoid bottlenecks and maximize I/O usage • Disadvantages • If the block gets corrupted due to partial write, it has to use backup copy and incremental logs to recover database.

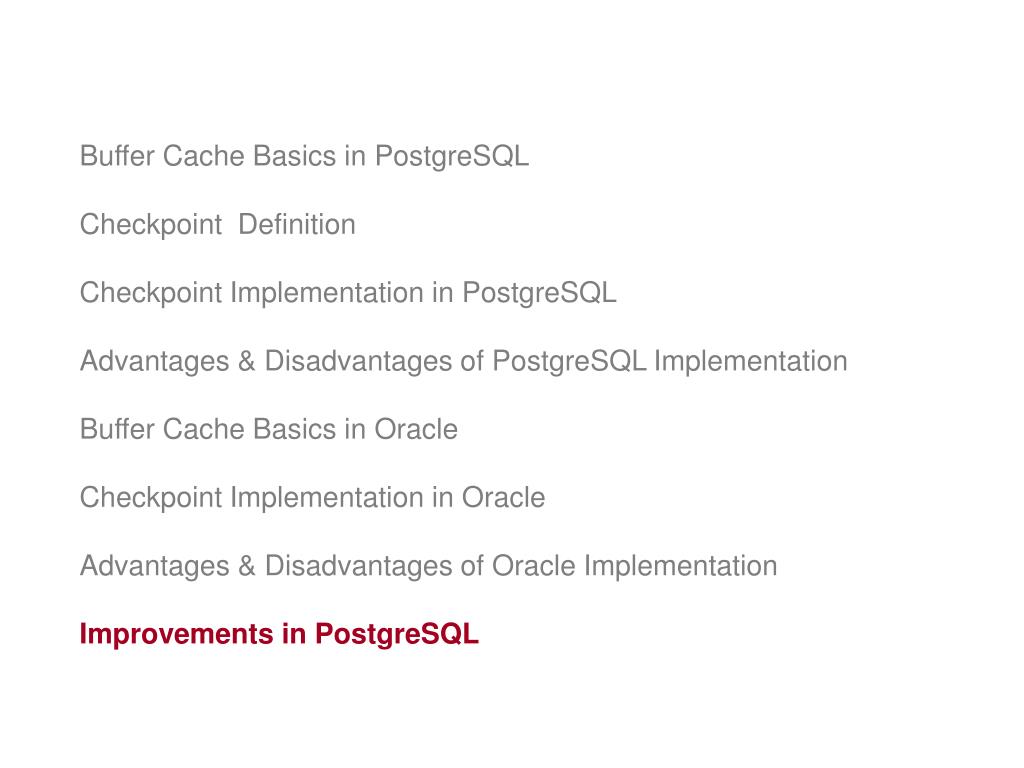

47. Buffer Cache Basics in PostgreSQL Checkpoint Definition Checkpoint Implementation in PostgreSQL Advantages & Disadvantages of PostgreSQL Implementation Buffer Cache Basics in Oracle Checkpoint Implementation in Oracle Advantages & Disadvantages of Oracle Implementation Improvements in PostgreSQL

48. Improvements in PostgreSQL • Can improve buffer management so that it can scale to large number of buffers and reduce buffer scanning. • Double-write using temp file for page corruption during checkpoint. • Checksum in pages to ensure if page is corrupted in disk due to disk torn or any other similar reason. • Bgwriter to write based on buffer usage, not only at fixed intervals. • Have the mechanism to recover pg_control file from disk corruption. • Can have Incremental checkpoint strategy to improve recovery time and make database scale to large number of buffers.
