E-Zapper Support Electronics. Note: Cabinets may be separated into two pieces (sideways), but vertical components are tightly coupled. C. Schnappinger & J. Ziegler 1/06/2006 # 1. E-Zapper Support Electronics. Pulse Forming Networks. Voltage-Drop Resistors and small P.S.

shay
Télécharger la présentation

E-Zapper Support Electronics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

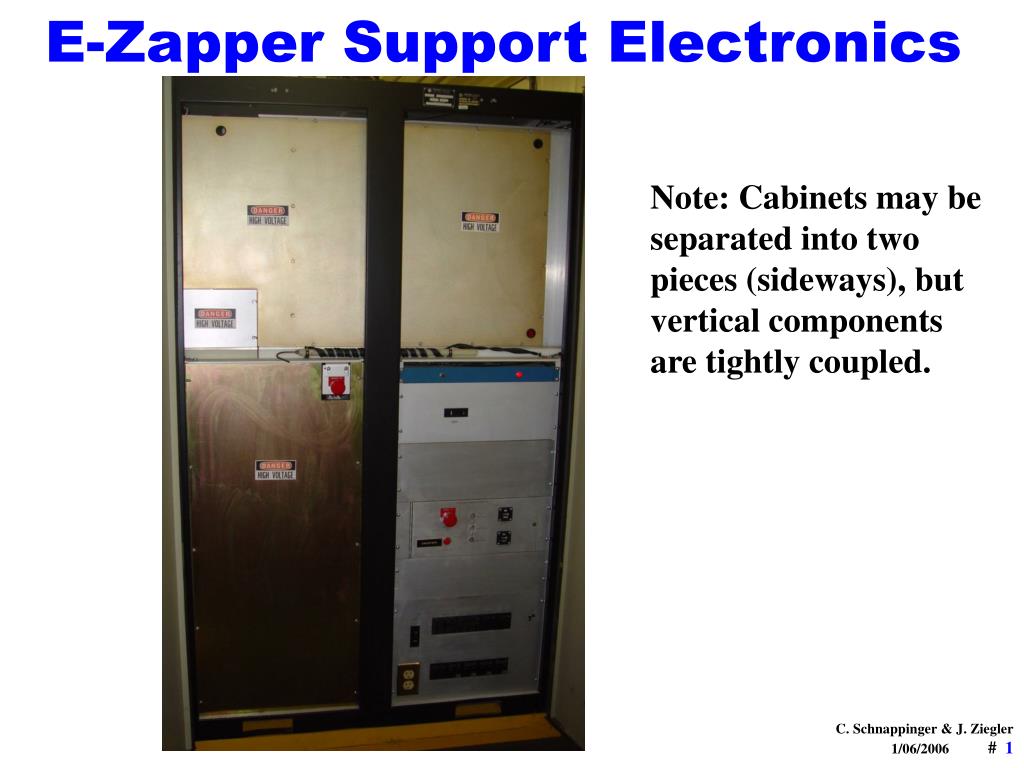

  1. E-Zapper Support Electronics Note: Cabinets may be separated into two pieces (sideways), but vertical components are tightly coupled. C. Schnappinger & J. Ziegler 1/06/2006 #1

  2. E-Zapper Support Electronics Pulse Forming Networks Voltage-Drop Resistors and small P.S. Left Side Right Side Power Dist. And 4 small Transformers Right Side (Side View) C. Schnappinger & J. Ziegler 1/06/2006 #2

  3. E-Zapper Support Electronics Thyratron + Power Supplies + Pulse Drive (excess of 14 kV) deQueing Deck and Voltage Regulator for Thyratron Blower for Cooling all Cabinets Left Side Right Side Left Side (Side View) C. Schnappinger & J. Ziegler 1/06/2006 #3

  4. E-Zapper Support Electronics RF Impedance Isolator RF Waveguides Klystron Tube Focusing Solenoid Pulse Transformer In = 25 kV Out = 125 kV Four valve system, so power is not directed back into Klystron, but two of the valves can be blocked with steel plates

  5. E-Zapper Support Electronics Vibration Specifications: Weak links are the Klystron and Tryratron. For specs, see: Klystron: CPI Industries (www.CPI.com) 5MW Klystron, 2.8 GHz Thyratron: E2V Co. (www.E2V.com) Tube = CS-1140
