Compact 4-Bay Storage Solution with Flex ATX PSU for Easy Installation and Excellent Thermal Performance

The IIS-7879ST is a compact 4-bay storage solution with a sleek design and excellent thermal performance. It supports NAS, RAID, and backup functions with different controller capabilities based on the OS. Featuring a Flex 200W ATX PSU, this solution offers easy assembly and good ventilation. The front panel includes convenient storage spacing and LED indicators for LAN1 and LAN2. Hot swap trays with EMI brackets and locks provide easy access and excellent airflow. Compatible with ITX motherboards and equipped with a standard PCI bracket for long VGA cards.

shay
Télécharger la présentation

Compact 4-Bay Storage Solution with Flex ATX PSU for Easy Installation and Excellent Thermal Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

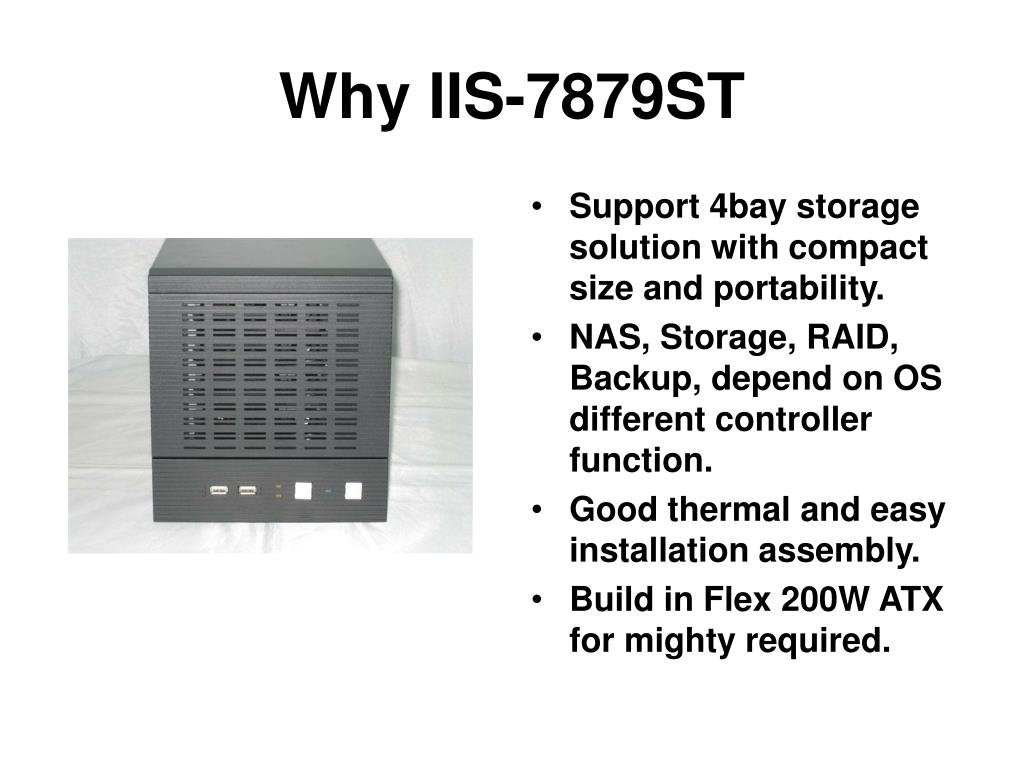

  1. Why IIS-7879ST • Support 4bay storage solution with compact size and portability. • NAS, Storage, RAID, Backup, depend on OS different controller function. • Good thermal and easy installation assembly. • Build in Flex 200W ATX for mighty required.

  2. Surface Finishing Special Finishing design 1 Material： SECC t=0.8mm 2 After Piano Coating, no more Painting 3 Hairline Black CFI-A7989CC Glossy Black CFI-A7879GG Matted Black CFI-A7989BB

  3. Front Panel Design Front USB*2 for convenient storage spacing. LED*2 shows LAN1 and LAN2 Backup or Copy buttons for easy operation You can decide if ventilation holes are needed for both side. Acrylic will be used for Early Market instead of door version Beginning Tray will not have Lock or LEDtransform light, 4 double color LED light will be on the front panel.

  4. How Swap Tray 4 pecies of hot swap Tray with EMI bracket and Lock Excellent airflow for the front door and Tray handle, Tray lighting can be seen Tray lighting shows 2 symbols The Tray is put in placed by the two rising point from the side to stabilize the HDD. HDD can be positioned from the side screws or bottom screws.

  5. Mother Board & Back Panel Support ITX MB, Back I/O bracket can be easily installed. Slim Cooler for easy installation. Equipped with 1:1 SATA backplane, total 2 bay PCB x2. Equipeed with 12cm low rotation /noise fan or options for 8, 9, 10cm fan. Standard PCI bracket that allows standard long VGA cards. Backplane PCB also support Fan (3pin) or DIO input.

  6. Flex ATX PSU Equipped with Flex ATX 200W PPFC ( Option ) AC110~220V Manual Switch Other Flex PSU comes with 150~250W APFC ( Other brand ) AC110~240V Auto Switch

  7. Specification
