Socio-Cognitive Robot Architectures. An Exploratory Overview. 15-12-2010. Lorentz Centre HART Workshop. work in progress. Koen V. Hindriks. Contact : k.v.hindriks@tudelft.nl Webpage : http://mmi.tudelft.nl/SocioCognitiveRobotics. Goal of this presentation.

shayla
Télécharger la présentation

Socio-Cognitive Robot Architectures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

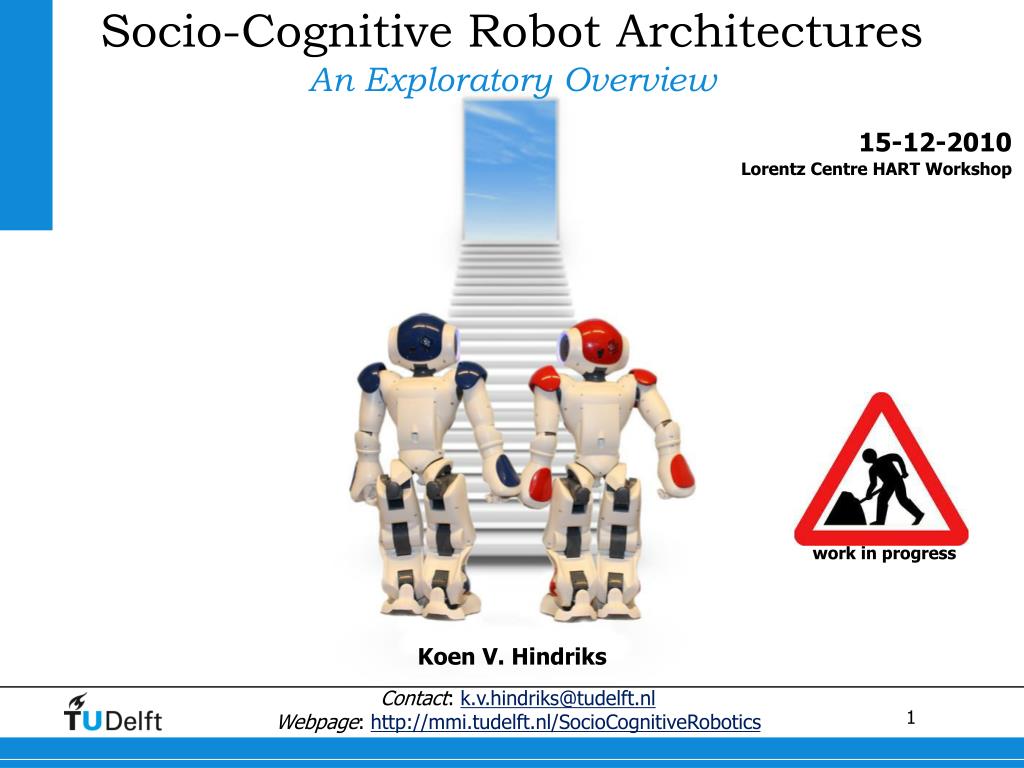

  1. Socio-Cognitive Robot Architectures An Exploratory Overview 15-12-2010 Lorentz Centre HART Workshop work in progress Koen V. Hindriks Contact: k.v.hindriks@tudelft.nl Webpage: http://mmi.tudelft.nl/SocioCognitiveRobotics

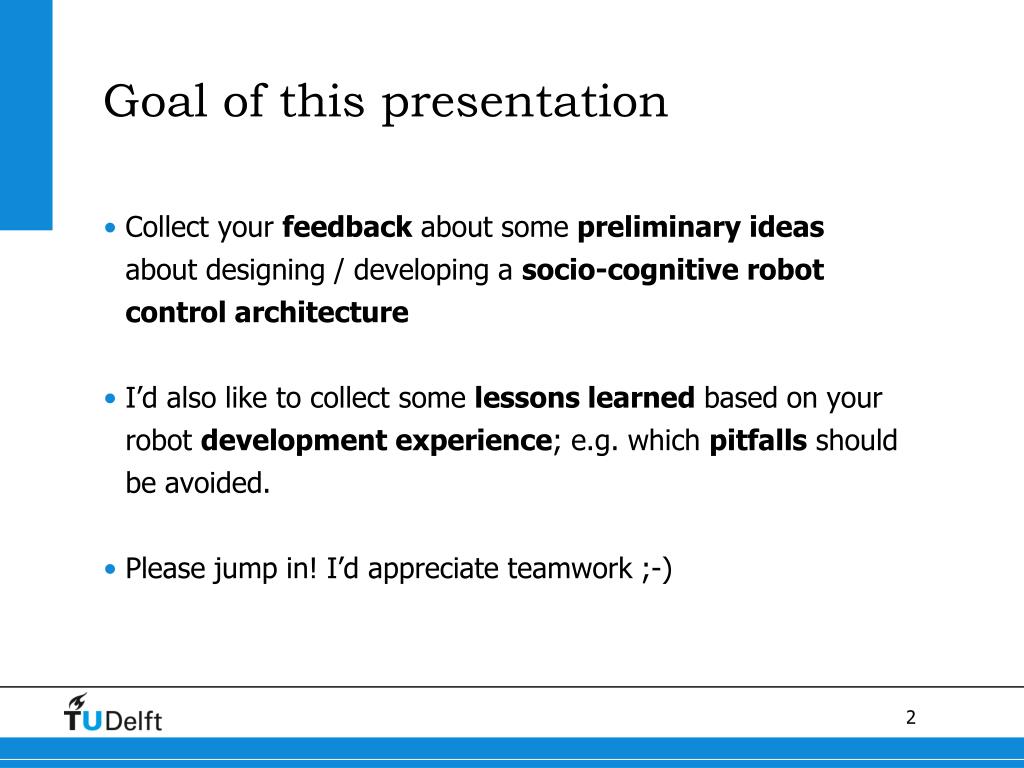

  2. Goal of this presentation • Collect your feedback about some preliminary ideas about designing / developing a socio-cognitive robot control architecture • I’d also like to collect some lessons learned based on your robot development experience; e.g. which pitfalls should be avoided. • Please jump in! I’d appreciate teamwork ;-)

  3. Overview • Exploratory overview of cognitive robot control architectures • Basic Abstract Architecture Design • Summarizing: Current understanding of some key challenges

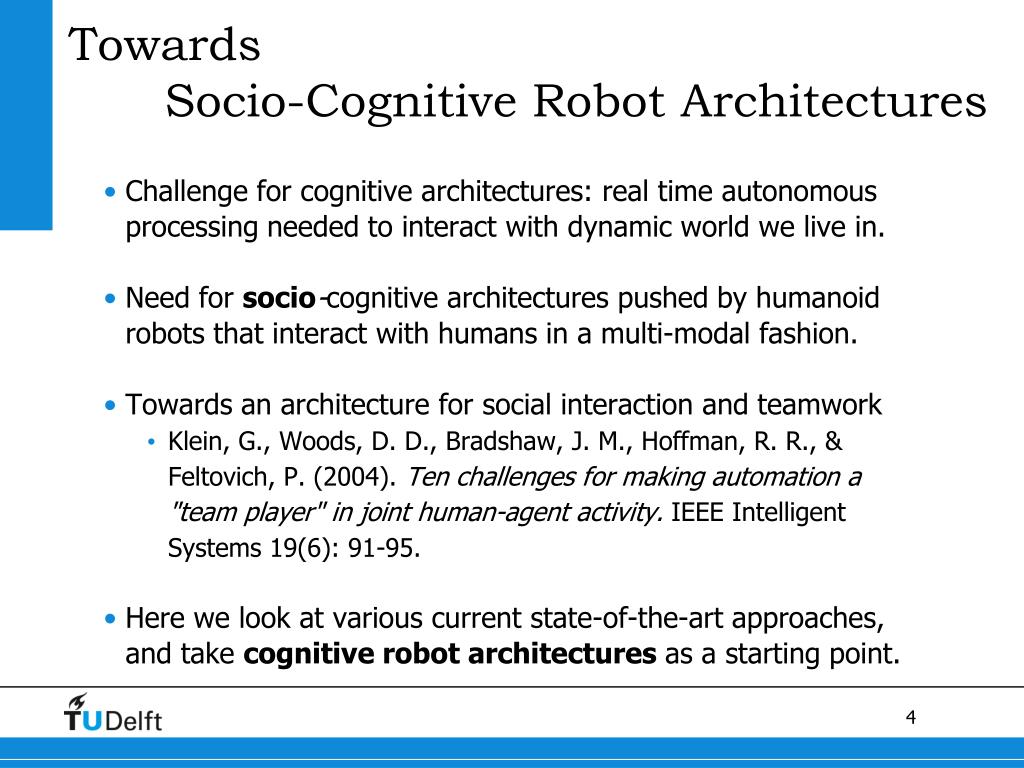

  4. TowardsSocio-Cognitive Robot Architectures • Challenge for cognitive architectures: real time autonomous processing needed to interact with dynamic world we live in. • Need for socio-cognitive architectures pushed by humanoid robots that interact with humans in a multi-modal fashion. • Towards an architecture for social interaction and teamwork • Klein, G., Woods, D. D., Bradshaw, J. M., Hoffman, R. R., & Feltovich, P. (2004). Ten challenges for making automation a "team player" in joint human-agent activity. IEEE Intelligent Systems 19(6): 91-95. • Here we look at various current state-of-the-art approaches, and take cognitive robot architectures as a starting point.

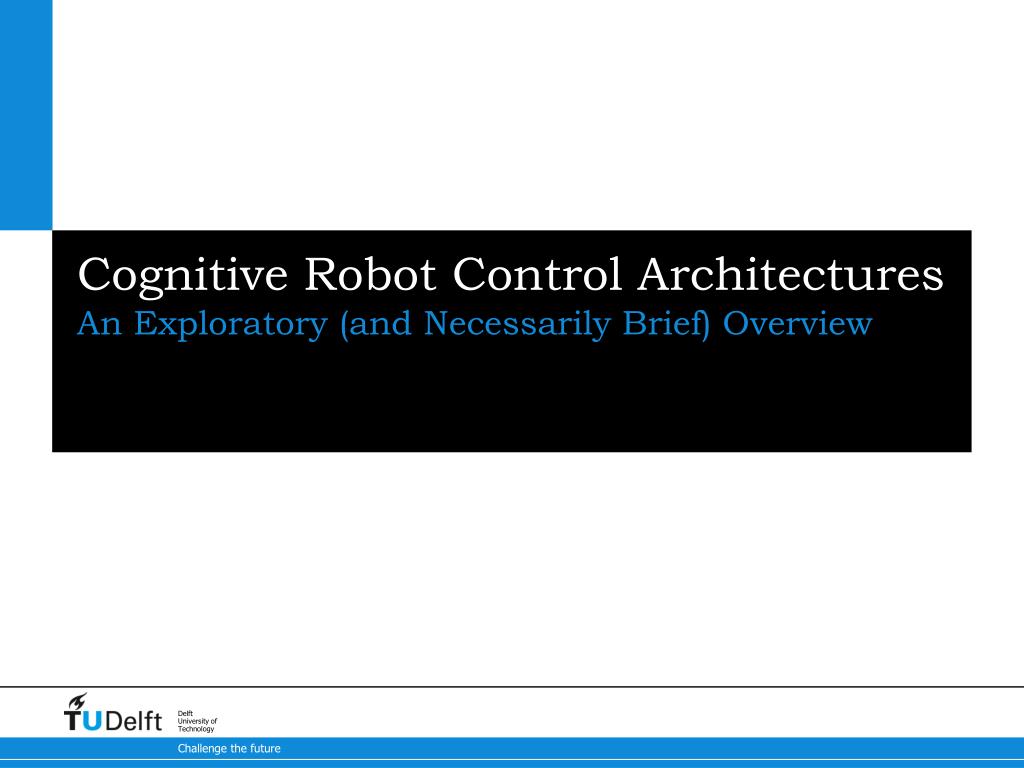

  5. Cognitive Robot Control Architectures An Exploratory (and Necessarily Brief) Overview

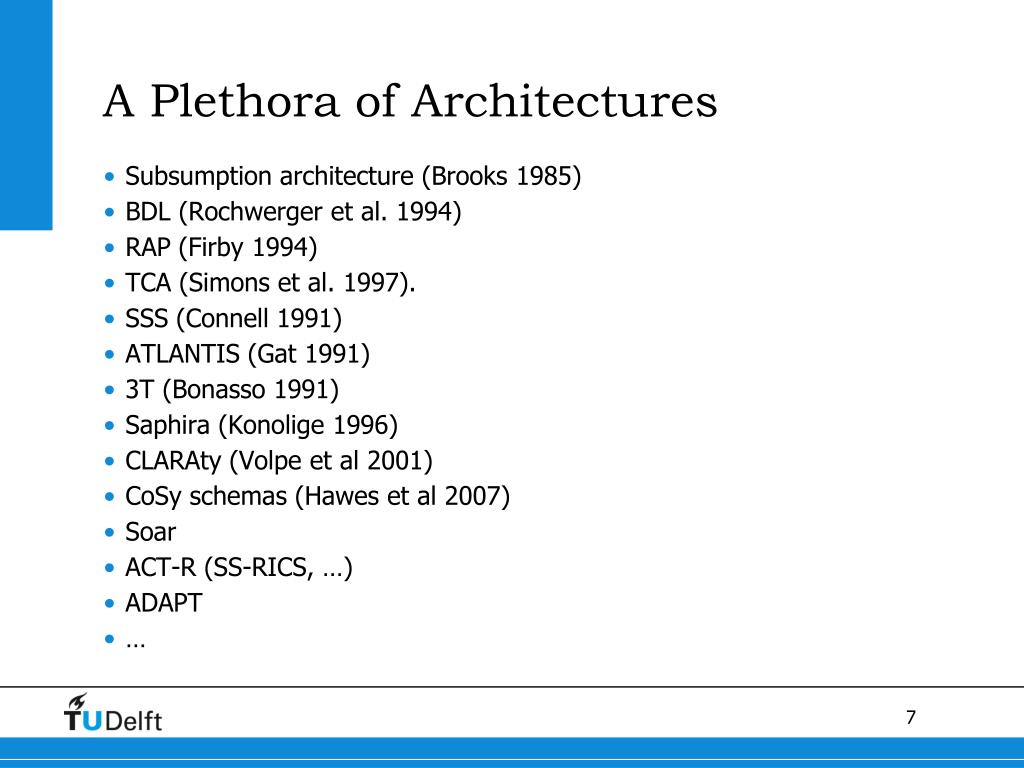

  6. A Plethora of Architectures • Subsumption architecture (Brooks 1985) • BDL (Rochwerger et al. 1994) • RAP (Firby 1994) • TCA (Simons et al. 1997). • SSS (Connell 1991) • ATLANTIS (Gat 1991) • 3T (Bonasso 1991) • Saphira (Konolige 1996) • CLARAty (Volpe et al 2001) • CoSy schemas (Hawes et al 2007) • Soar • ACT-R (SS-RICS, …) • ADAPT • …

  7. Stanford Cart Architecture TypesPipeline Architectures • Based on a horizontal decomposition of functional components Vision Model Plan Execute Control Robot Platform Sensors Motors Environment • Classic architecture, also used for symbolic robot control architectures. • Potential to exploit parallelism, but hard and (typically?) not used in practice.

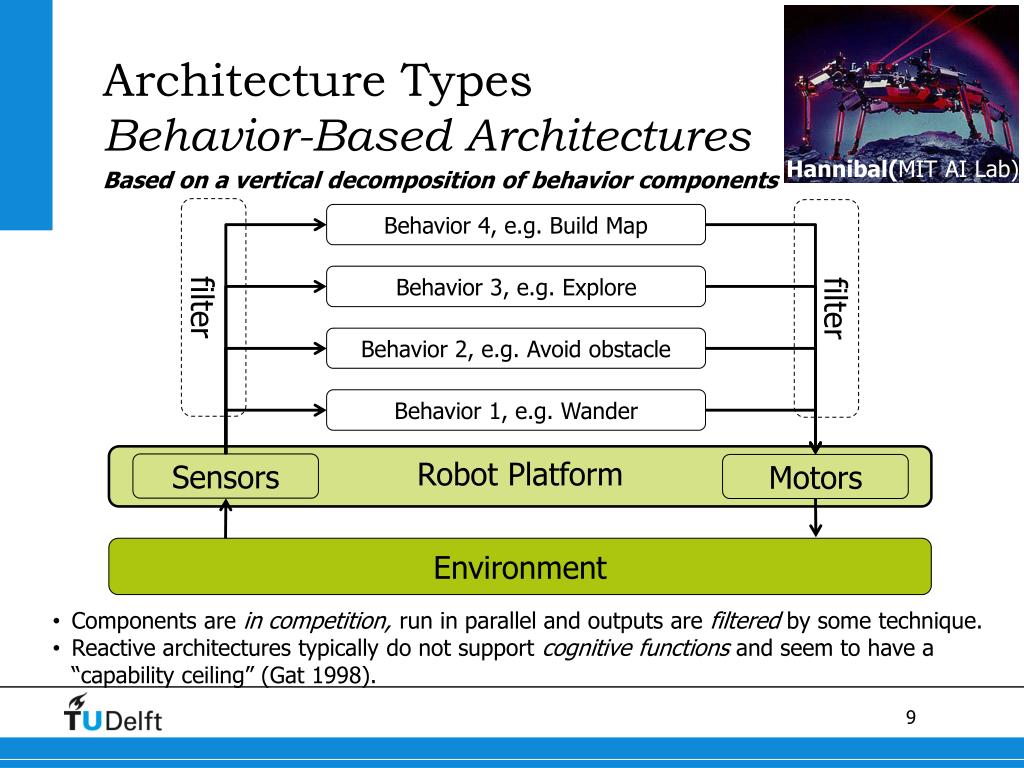

  8. Architecture TypesBehavior-Based Architectures Hannibal(MIT AI Lab) • Based on a vertical decomposition of behavior components filter filter Behavior 4, e.g. Build Map Behavior 3, e.g. Explore Behavior 2, e.g. Avoid obstacle Behavior 1, e.g. Wander Robot Platform Sensors Motors Environment • Components are in competition, run in parallel and outputs are filtered by some technique. • Reactive architectures typically do not support cognitive functions and seem to have a “capability ceiling” (Gat 1998).

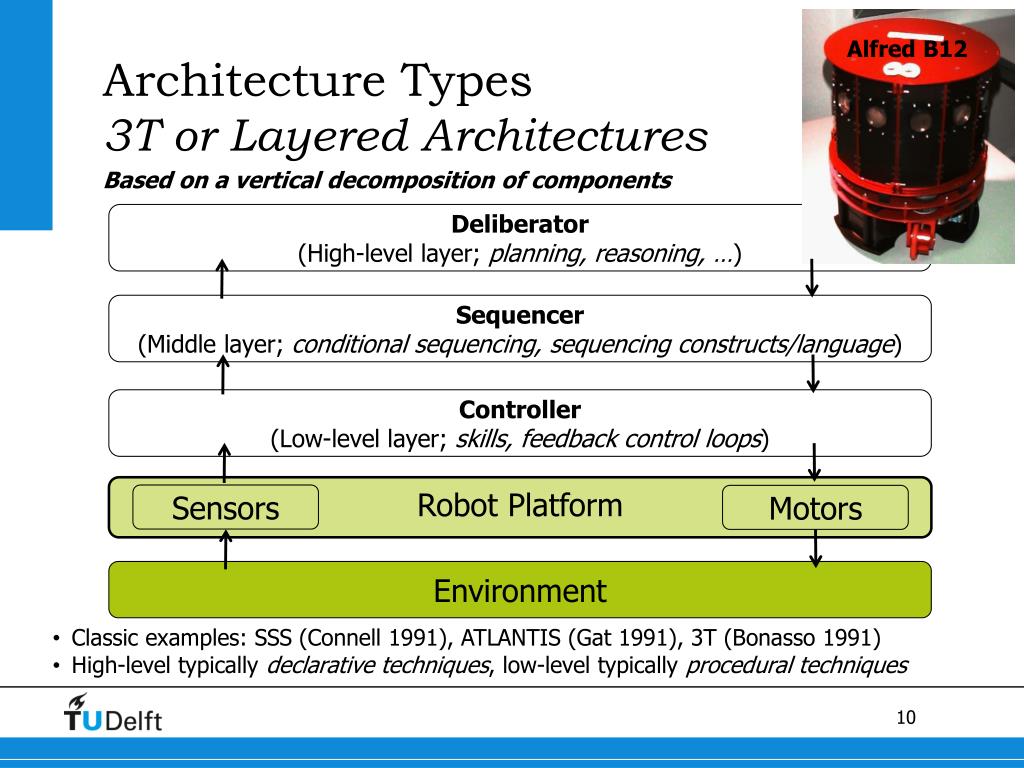

  9. Alfred B12 Architecture Types3T or Layered Architectures • Based on a vertical decomposition of components Deliberator (High-level layer; planning, reasoning, …) Sequencer (Middle layer; conditional sequencing, sequencing constructs/language) Controller (Low-level layer; skills, feedback control loops) Robot Platform Sensors Motors Environment • Classic examples: SSS (Connell 1991), ATLANTIS (Gat 1991), 3T (Bonasso 1991) • High-level typically declarative techniques, low-level typically procedural techniques

  10. Rationalizing 3T Architectures • Erann Gat (1998) rationalized three-layer architectures by arguing there is a correspondence between layers and the role of internal state. • Deliberator: state reflecting predictions about the future • Sequencer: state reflecting memories about the past • Controller: no state (stateless sensor-based algorithms) • Responsiveness, time scale also varies over components.

  11. BIRON • The Bielefeld Robot Companion (2004)

  12. Care-O-bot 3 (Fraunhofer IPA, 2008) Instruction model Care-O-bot II/3 (FF) (MySQL) (JAM Agents) (Realtime Framework; RTF)

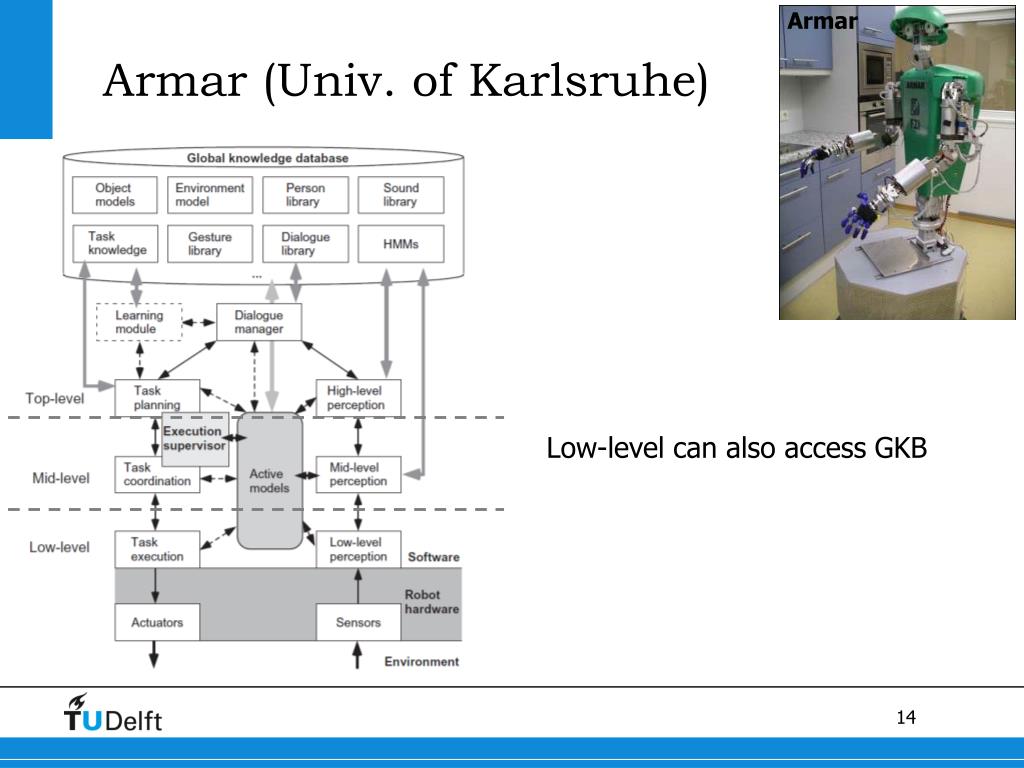

  13. Armar Armar (Univ. of Karlsruhe) Low-level can also access GKB

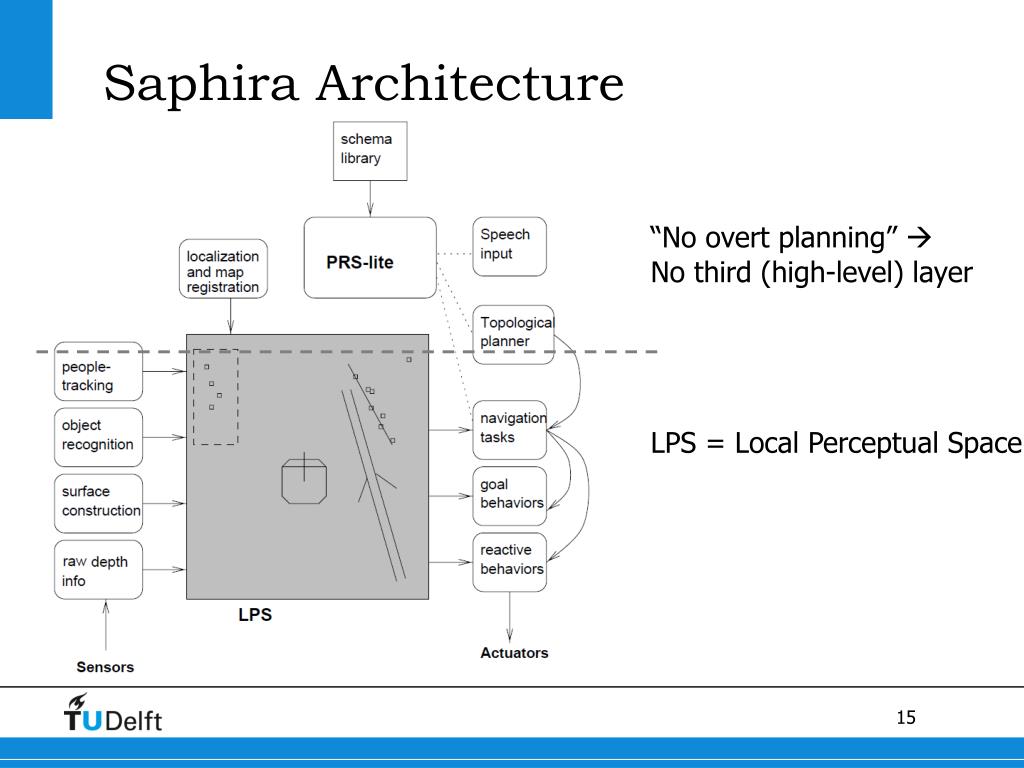

  14. Saphira Architecture “No overt planning”  No third (high-level) layer LPS = Local Perceptual Space

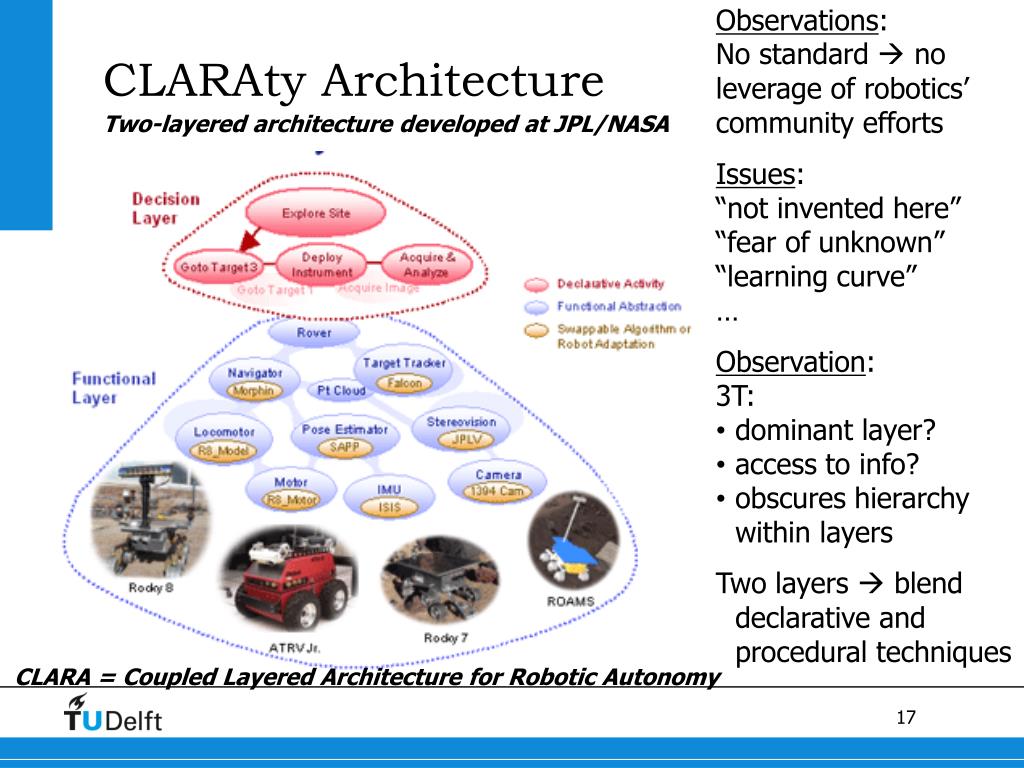

  15. Observations: • No standard  no leverage of robotics’ community efforts • Issues: • “not invented here” • “fear of unknown” • “learning curve” • … • Observation: • 3T: • dominant layer? • access to info? • obscures hierarchy within layers • Two layers  blend declarative and procedural techniques CLARAty Architecture • Two-layered architecture developed at JPL/NASA • CLARA = Coupled Layered Architecture for Robotic Autonomy

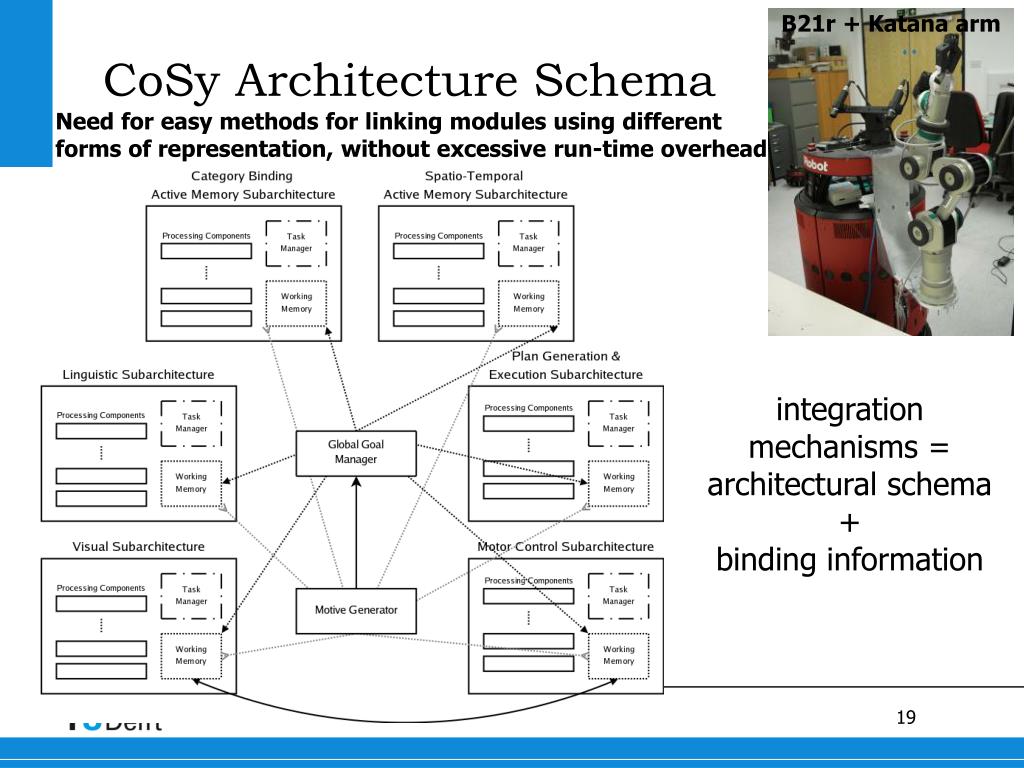

  16. B21r + Katana arm CoSy Architecture Schema Need for easy methods for linking modules using different forms of representation, without excessive run-time overhead integration mechanisms = architectural schema + binding information

  17. Summarizing: Some key challenges

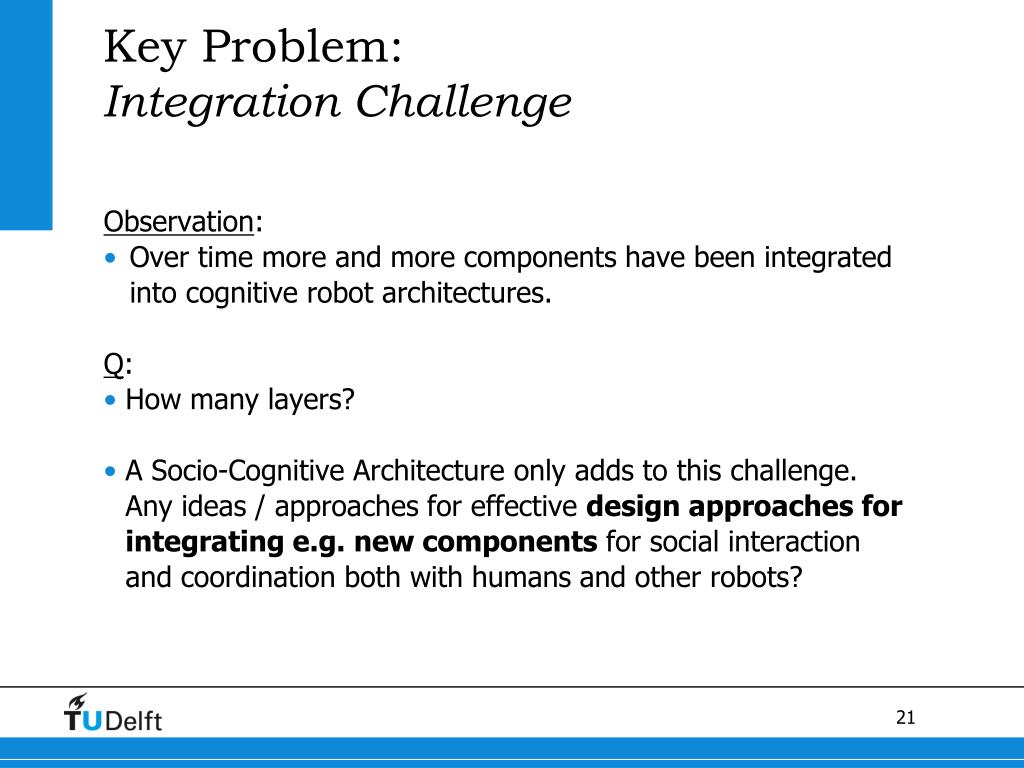

  18. Key Problem: Integration Challenge Observation: • Over time more and more components have been integrated into cognitive robot architectures. Q: • How many layers? • A Socio-Cognitive Architecture only adds to this challenge. Any ideas / approaches for effective design approaches for integrating e.g. new components for social interaction and coordination both with humans and other robots?

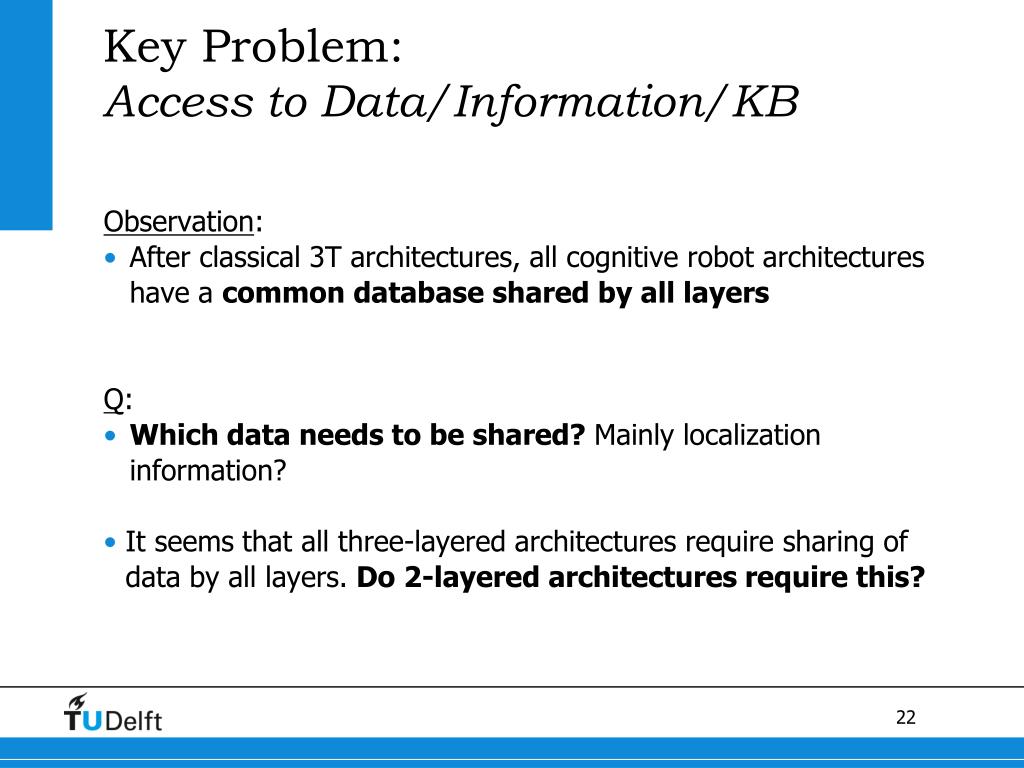

  19. Key Problem: Access to Data/Information/KB Observation: • After classical 3T architectures, all cognitive robot architectures have a common database shared by all layers Q: • Which data needs to be shared? Mainly localization information? • It seems that all three-layered architectures require sharing of data by all layers. Do 2-layered architectures require this?

  20. Well-defined Robot Architecture A well-defined architecture facilitates reuse and parallel development Q: • Do general software architectural principles apply? • What is a well-defined robot architecture? Any criteria? Example principles: • partition architecture into layers with well-defined interfaces • partition code into functional blocks with well-defined inputs and outputs • …

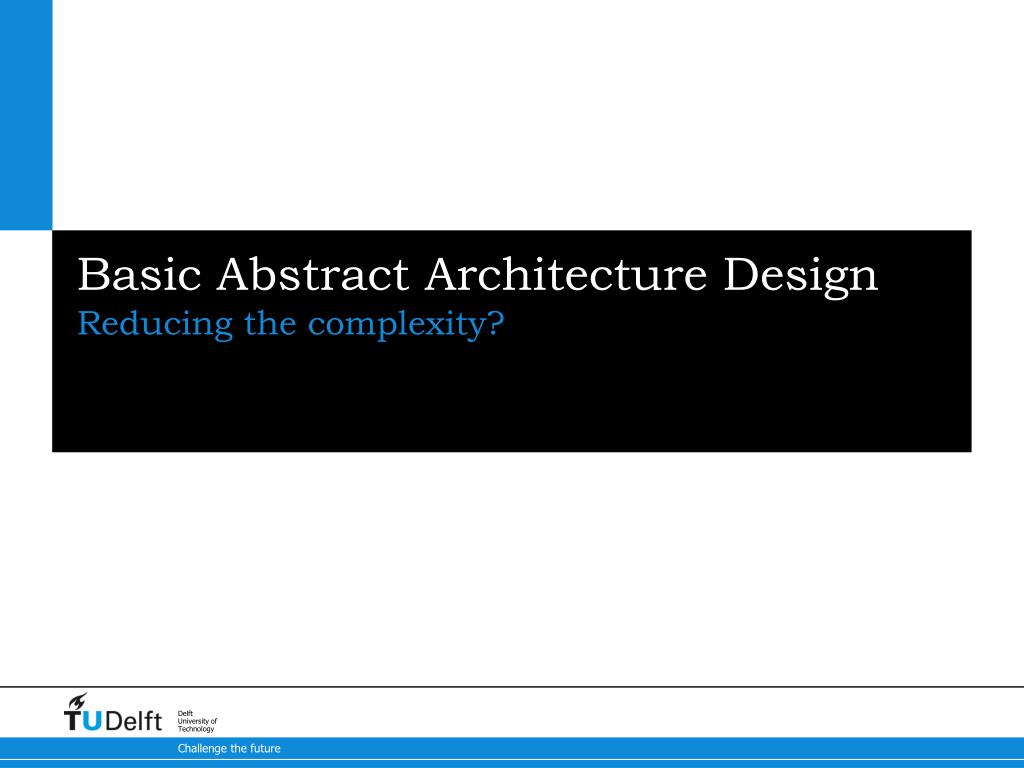

  21. Basic Abstract Architecture Design Reducing the complexity?

  22. Abstract Architecture (1/2) • Based on a vertical decomposition into functional layers Cognitive Layer Behavioral Layer P1 P2 … B1 B2 … Robot Platform Sensors Motors Environment • P1, P2, … = process 1, process 2, …; B1, B2, … = behavior 1, behavior 2, … • Cognitive functions supported in cognitive layer, e.g. reasoning, planning, memory, …

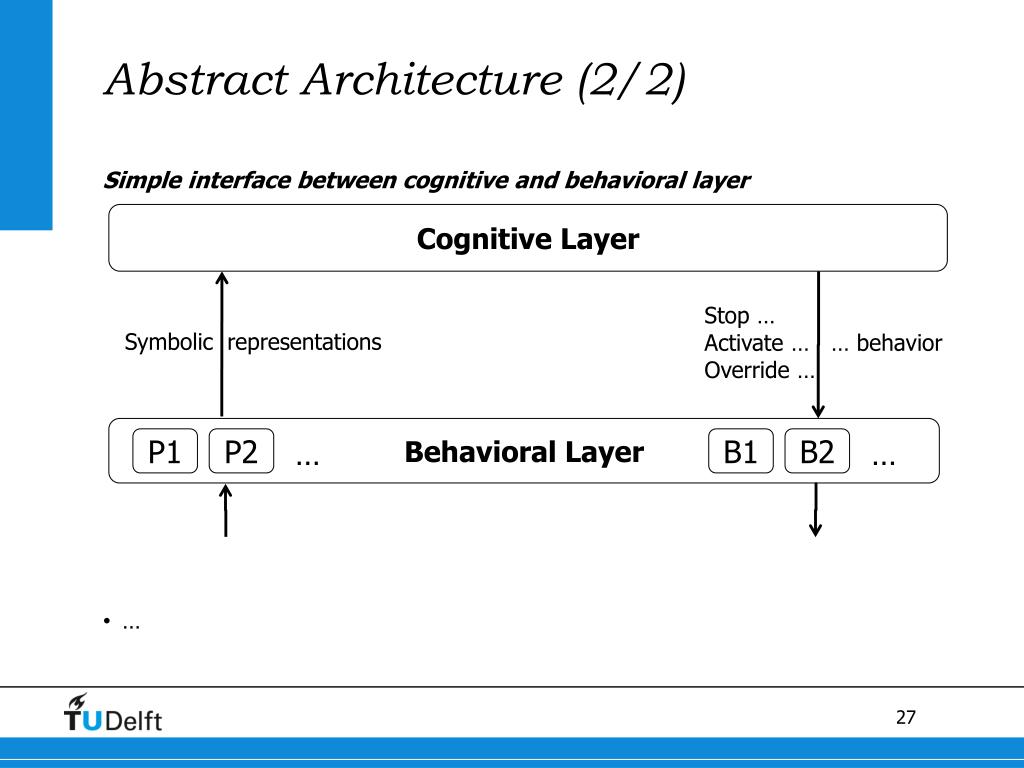

  23. Abstract Architecture (2/2) • Simple interface between cognitive and behavioral layer Cognitive Layer Stop … Activate … … behavior Override … Symbolic representations Behavioral Layer P1 P2 … B1 B2 … • …

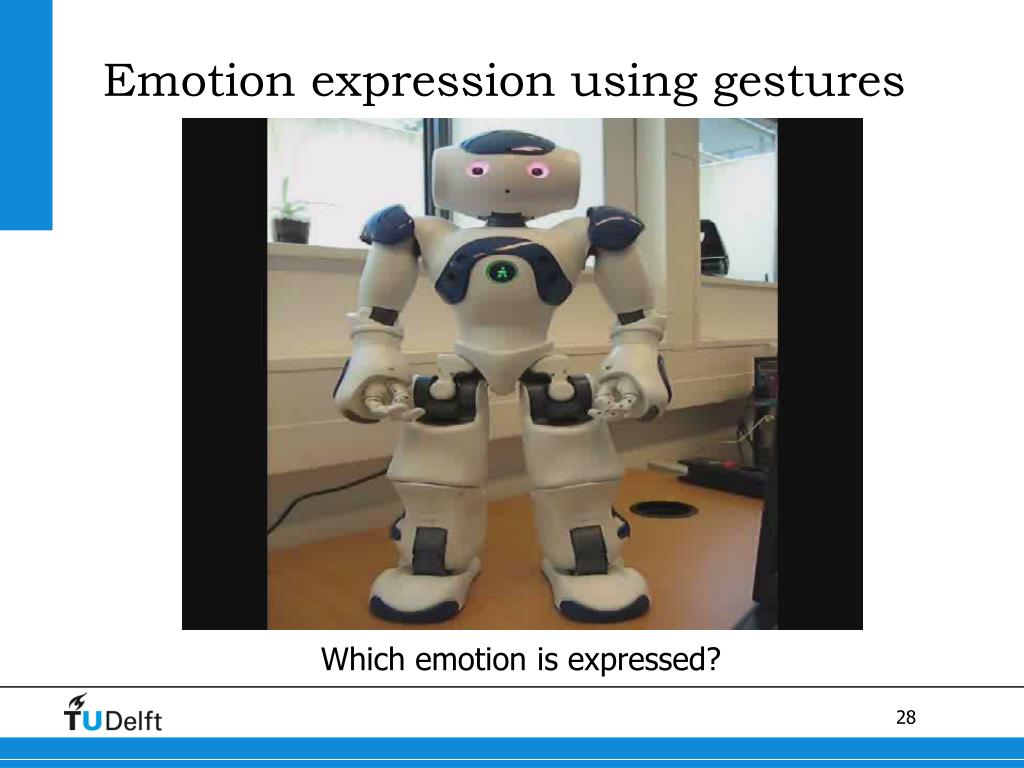

  24. Emotion expression using gestures Which emotion is expressed?

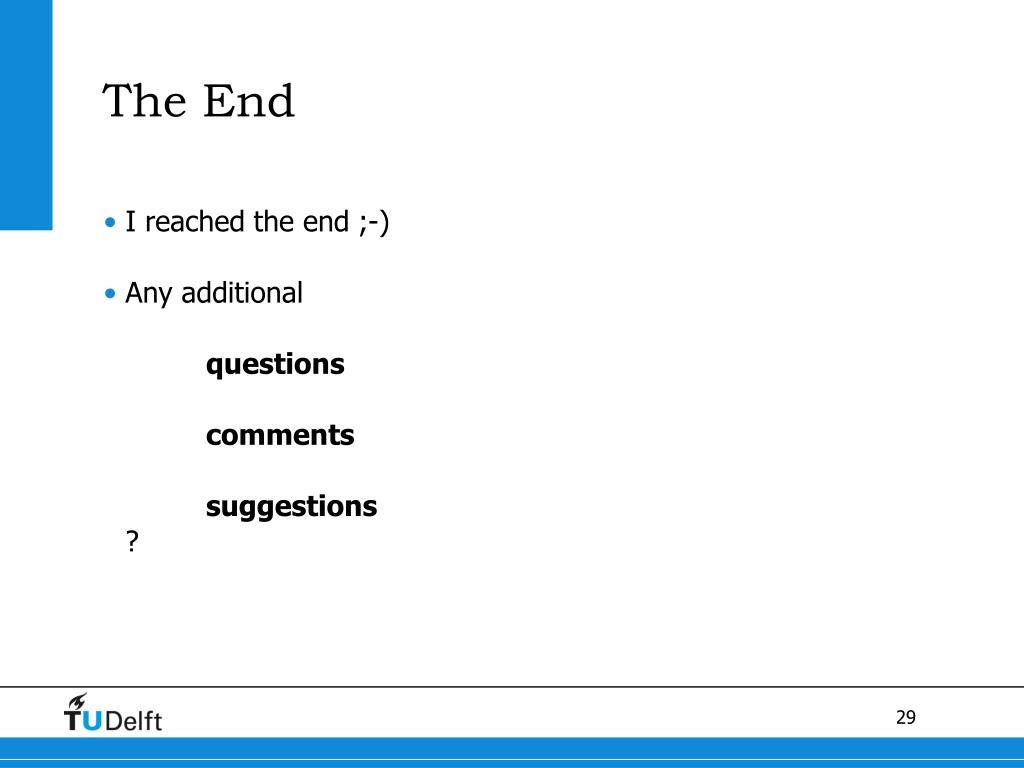

  25. The End • I reached the end ;-) • Any additional questions comments suggestions ?

  26. TODO • TeradaEtAl2008, A Cognitive Robot Architecture based on Tactile and Visual Information • Architectures don’t discuss plan repair, …?

  27. GOAL Agent Programming Language GOAL agent program Programming… …with mental models GOAL agent architecture See also: http://mmi.tudelft.nl/~koen/goal.html.

  28. DOD Levels of Autonomy http://www.fas.org/irp/program/collect/uav_roadmap2005.pdf

  29. Tooth: http://www.kipr.org/robots/tooth.html • Rocky III: http://www.kipr.org/robots/rocky.html • Herbert: http://www.ai.mit.edu/projects/mobilerobots/veterans.html • Robbie: http://www.magneticpie.com/LEGO/roverHistory/roverSize.html • B12 (Alfred): http://srufaculty.sru.edu/sam.thangiah/B12Robot.htm

  30. Cognitive Architectures Overview Soar Scott D. Hanford, Oranuj Janrathitikarn, and Lyle N. Long, 2009, Control of Mobile Robots Using the Soar Cognitive Architecture

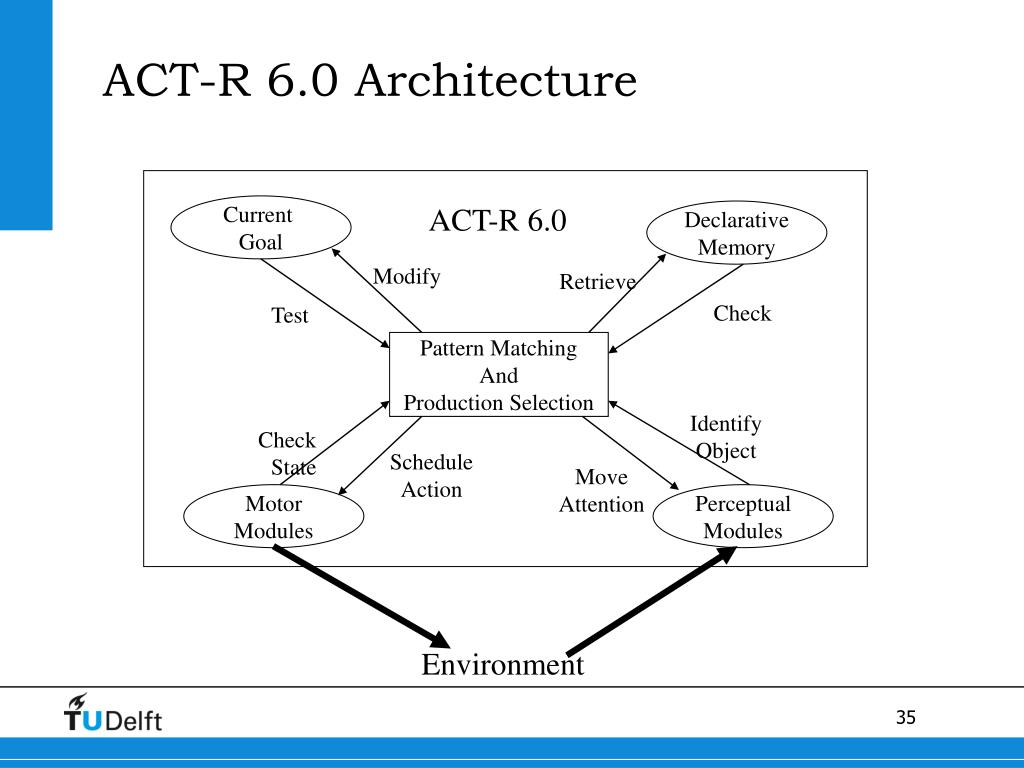

  31. ACT-R 6.0 Current Goal Declarative Memory Modify Retrieve Check Test Pattern Matching And Production Selection Identify Object Check State Schedule Action Move Attention Motor Modules Perceptual Modules Environment ACT-R 6.0 Architecture

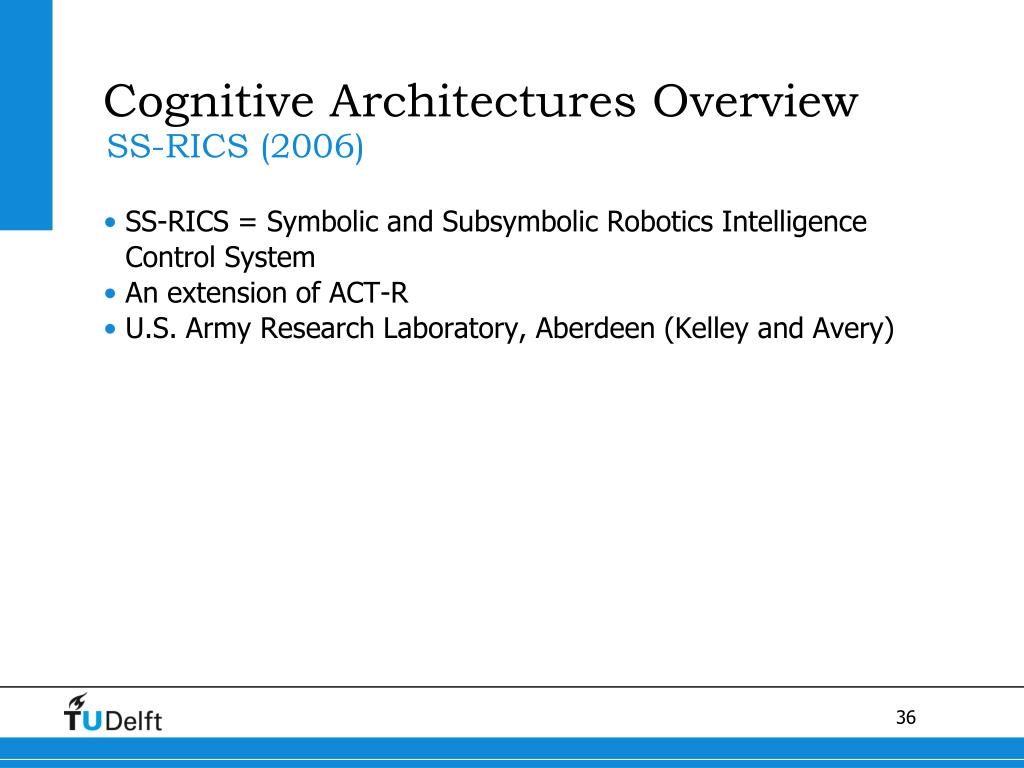

  32. Cognitive Architectures Overview SS-RICS (2006) • SS-RICS = Symbolic and Subsymbolic Robotics Intelligence Control System • An extension of ACT-R • U.S. Army Research Laboratory, Aberdeen (Kelley and Avery)

  33. Cognitive Architectures Overview ADAPT (2004) • ADAPT (Benjamin, Lyons, and Lonsdale 2004) Benjamin, P., Lyons, D., and Lonsdale, D., “Designing a Robot Cognitive Architecture with Concurrency and Active Perception,” Proceedings of the AAAI Fall Symposium on the Intersection of Cognitive Science and Robotics, October, 2004.
