Fundamentals of Physics. Chapter 10 Rotation Translation & Rotation Rotational Variables Angular Position Angular Displacement Angular Velocity Angular Acceleration Angular Vectors??? Rotation & Constant Angular Acceleration Relating Linear & Angular Variables

Télécharger la présentation
## Fundamentals of Physics

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

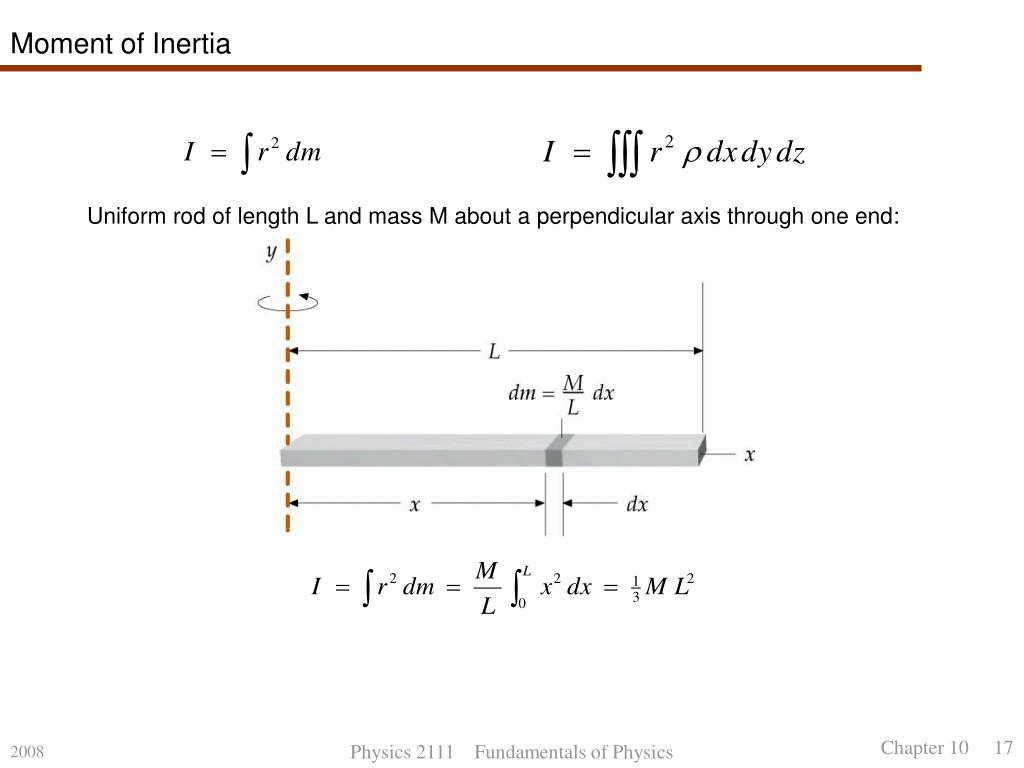

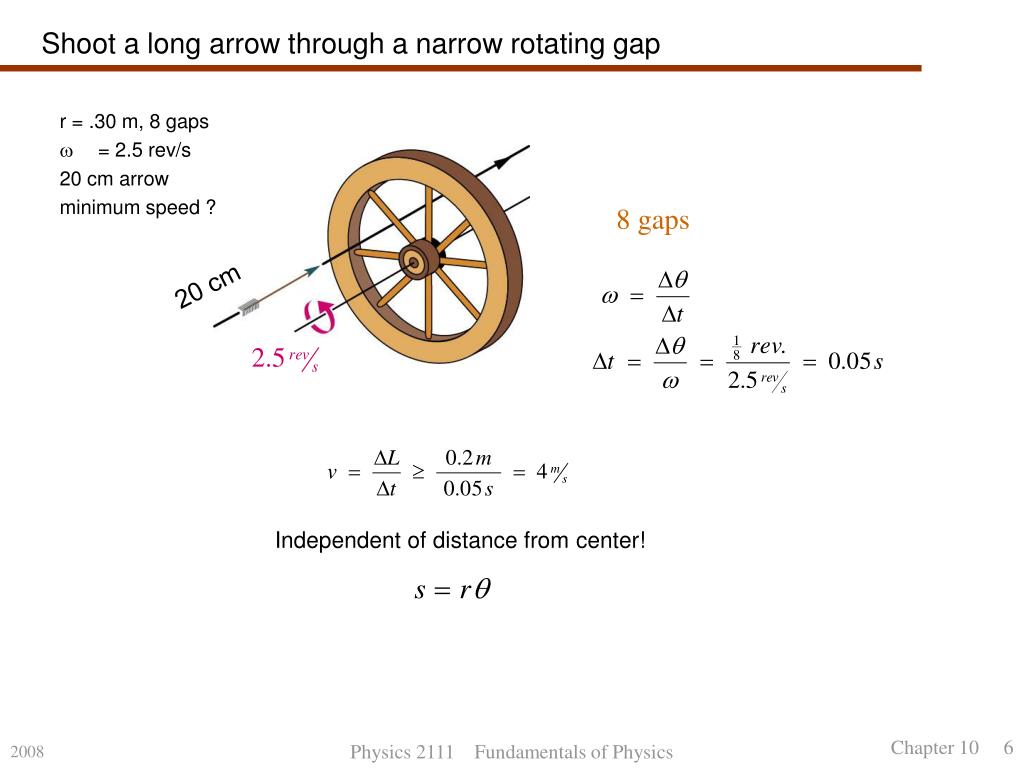

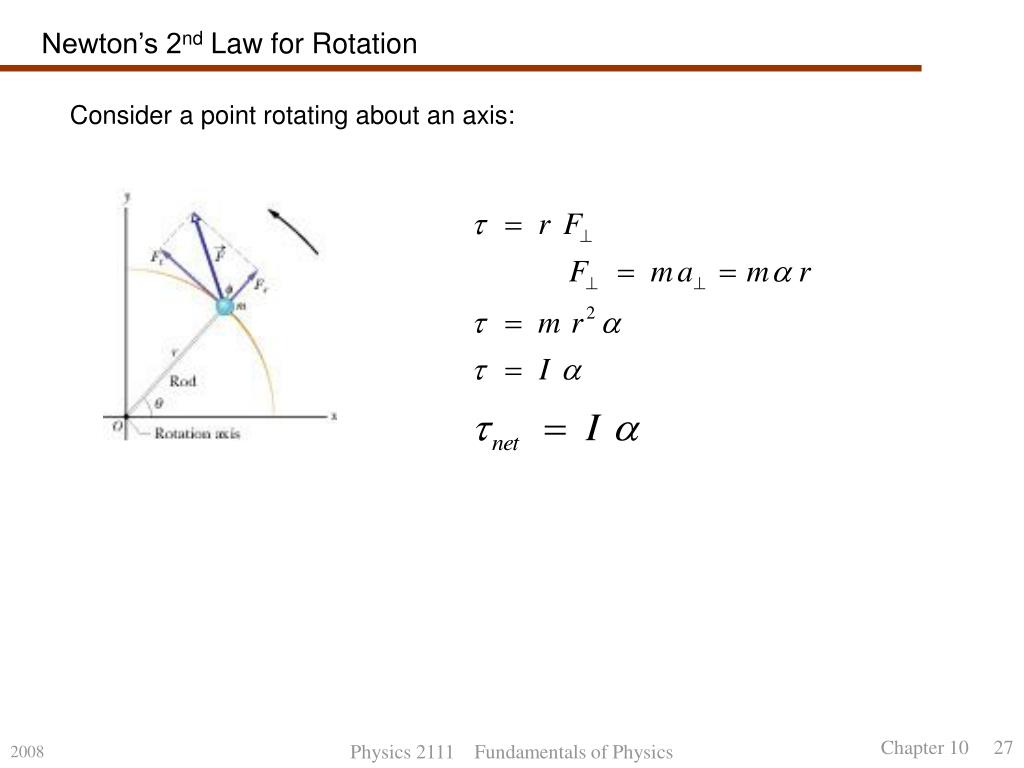

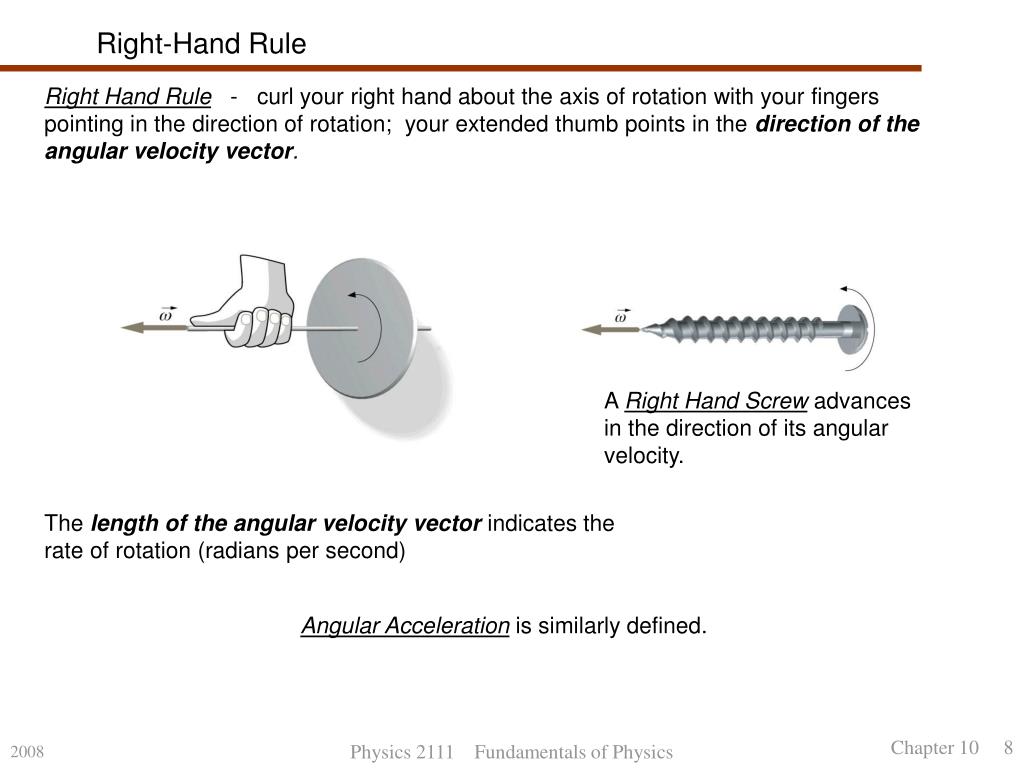

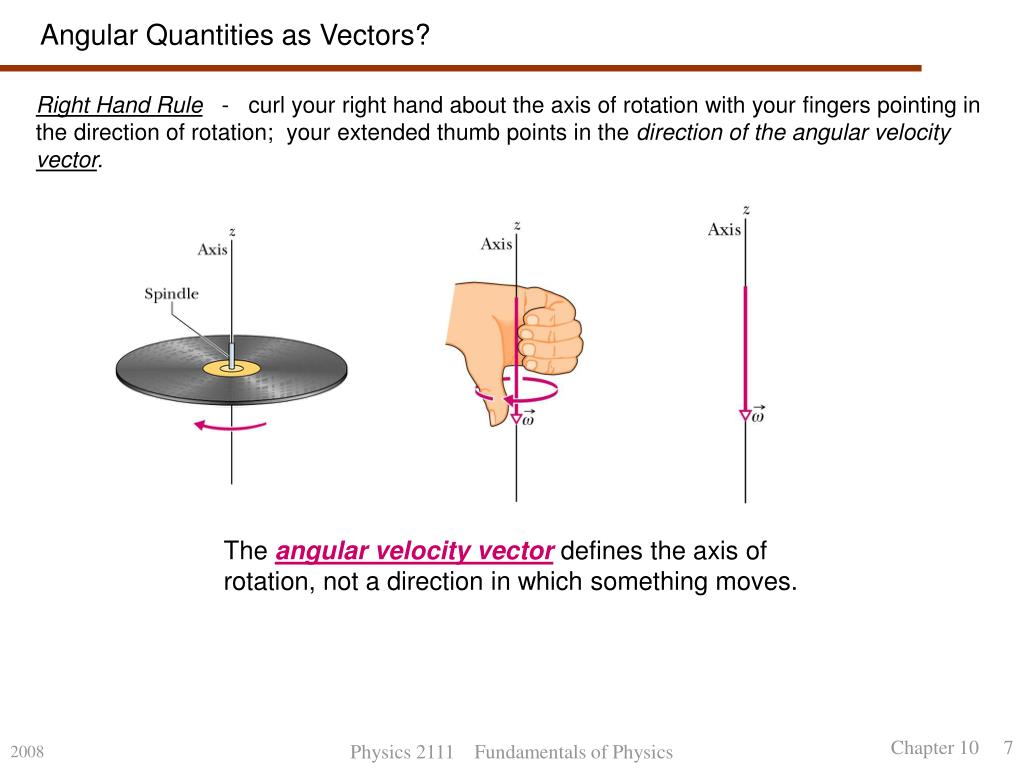

**Fundamentals of Physics**Chapter 10 Rotation • Translation & Rotation • Rotational Variables • Angular Position • Angular Displacement • Angular Velocity • Angular Acceleration • Angular Vectors??? • Rotation & Constant Angular Acceleration • Relating Linear & Angular Variables • Kinetic Energy of Rotation • Calculating the Rotational Inertia • Torque • Newton’s 2nd Law for Rotation • Work & Rotational Kinetic Energy Review & Summary Questions Exercises & Problems Physics 2111 Fundamentals of Physics**Motions**• Motions Translation - motion along a straight line Rotation - motion about an axis • Rigid Body - rotates without any change in shape • Rotates with all its parts locked together • Axis of Rotation (Rotation Axis) • Every point of the body moves in a circle centered on the axis Physics 2111 Fundamentals of Physics**Rotational Variables**Reference Line - fixed in the body, rotating with the body, perpendicular to the rotation axis. Top View: 1 revolution = 360O = 2 p radians 1 radian = 57.3O = 0.159 revolution Units:q is in radians s and r in length units Physics 2111 Fundamentals of Physics**Rotational Variables**All points in the disk move through the same angular displacement, dq, but the distance that a typical point Pi moves, dsi, depends on its distance from the center of rotation. Units:q is in radians 1 revolution = 360O = 2 p radians 1 radian = 57.3O = 0.159 revolution Physics 2111 Fundamentals of Physics**Rotational Variables**Angular Displacement x Angular Acceleration Angular Velocity v a a la Chapter 2 Physics 2111 Fundamentals of Physics**Shoot a long arrow through a narrow rotating gap**• r = .30 m, 8 gaps • = 2.5 rev/s 20 cm arrow minimum speed ? 8 gaps 20 cm Independent of distance from center! Physics 2111 Fundamentals of Physics**Angular Quantities as Vectors?**Right Hand Rule - curl your right hand about the axis of rotation with your fingers pointing in the direction of rotation; your extended thumb points in the direction of the angular velocity vector. The angular velocity vector defines the axis of rotation, not a direction in which something moves. Physics 2111 Fundamentals of Physics**A Right Hand Screw advances in the direction of its angular**velocity. Right-Hand Rule Right Hand Rule - curl your right hand about the axis of rotation with your fingers pointing in the direction of rotation; your extended thumb points in the direction of the angular velocity vector. The length of the angular velocity vector indicates the rate of rotation (radians per second) Angular Acceleration is similarly defined. Physics 2111 Fundamentals of Physics**Angular Vectors?**Angular displacementscannot be treated as vectors. • Vectors can be added in any order; but this is not true for angular displacements. “Rotation operations do not commute.” (more on this in the next chapter) Physics 2111 Fundamentals of Physics**Rotation with Constant Angular Acceleration**Physics 2111 Fundamentals of Physics**A wheel rotating with constant acceleration**Starting from rest: w0 = 0 Constant acceleration: a = 2.00 rad/s2 90 radians in a particular 3 second time interval How long turning before start of interval? Angular velocity at start ~ 14 revolutions Physics 2111 Fundamentals of Physics**Relating Angular & Linear Variables**Velocity: Acceleration: Tangential: Units: (m/s) (rad/s) (m) Radial: Physics 2111 Fundamentals of Physics**Angular Acceleration & Angular Velocity are vectors:**Tangential: Centripetal: If the angular velocity is increasing (spinning faster & faster), the angular acceleration is in the same direction as the angular velocity. If the angular velocity is decreasing, the angular acceleration is . . . Uniform Circular Motion: Physics 2111 Fundamentals of Physics**Measure the speed of light**500 slots r = 5.0 cm L = 500 m c = 3 x 105 km/s w, vt Physics 2111 Fundamentals of Physics**2 wheels connected by a belt**ra = 10 cm rc = 25 cm aa = 1.6 rad/s2 How long for c to reach 100 rev/min? Every point of the belt is moving at the same velocity Physics 2111 Fundamentals of Physics**Kinetic Energy of Rotation**Consider a rotating body as a set of particles with different speeds. Then the kinetic energy of the body is: Or: Rotational K.E. (kg m2) “Moment of Inertia” aka “Rotational Inertia” Physics 2111 Fundamentals of Physics**Moment of Inertia**Uniform rod of length L and mass M about a perpendicular axis through one end: Physics 2111 Fundamentals of Physics**Rotational Inertia:**Uniform disk of radius R and mass M about a perpendicular axis through its center: Uniform hoop of radius R and mass M about a perpendicular axis through its center: Physics 2111 Fundamentals of Physics**Some Moments of Inertia**Physics 2111 Fundamentals of Physics**Calculating Moments of Inertia**Parallel Axis Theorem: Physics 2111 Fundamentals of Physics**Calculating Moments of Inertia**Parallel Axis Theorem: Physics 2111 Fundamentals of Physics**Rank rotational inertia about these axes:**Imax 1 2 4 3 Imin Parallel Axis Theorem: Physics 2111 Fundamentals of Physics**Rotational Inertia = ?**Table 11-2: Parallel Axis Theorem: Physics 2111 Fundamentals of Physics**Torque - a force causes an object to rotate**Physics 2111 Fundamentals of Physics**Vector (Cross) Product**Magnitude: Direction: “the right-hand rule” cx = ay bz - by az cy = az bx - bz ax cz = ax by - bx ay “Anti-commutative”: http://physics.syr.edu/courses/java-suite/crosspro.html Physics 2111 Fundamentals of Physics**The Vector Cross Product**Physics 2111 Fundamentals of Physics**Newton’s 2nd Law for Rotation**Consider a point rotating about an axis: Physics 2111 Fundamentals of Physics**rod is not to turn**Physics 2111 Fundamentals of Physics**Work & Rotational Kinetic Energy**Work – Kinetic Energy Theorem: Consider a point rotating about an axis: Power in rotating an object about a fixed axis: Physics 2111 Fundamentals of Physics**Corresponding Relationships**Physics 2111 Fundamentals of Physics**T**T T Massless cord wrapped around a massive wheel M = 2 kg R = 0.2 m I = 0.05 kg m2 M = 2 kg P = 3 N a, a = ? P = 3 N Physics 2111 Fundamentals of Physics**The box descends after being released**R = 0.20 m I = 0.4 kg m2 KEB = 6 J KEW = ? h = ? Box Kbox = 6 J Physics 2111 Fundamentals of Physics
