1. Using GSM/UMTS forSingle Sign-On 28th October 2003 SympoTIC 2003 Andreas Pashalidis and Chris J. Mitchell

2. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

3. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

4. Why do we need SSO ? Current Situation: Network users interact with multiple service providers.

5. Why do we need SSO ? Problems: Usability, security, privacy…

6. What is SSO ? A mechanism that allows users to authenticate themselves to multiple service providers, using only one identity.

7. SSO – How ? Establish trust relationships, common security infrastructure (e.g. PKI), sign contractual agreements…

8. SSO – some examples • Kerberos • TTP = Kerberos server • 1) Authenticates user (password), issues “ticket”. • 2) User shows ticket to service provider. • Microsoft Passport • TTP = www.passport.com • 1) Authenticates user (password), installs encrypted cookie. • 2) Service Provider reads the cookie. • Liberty Alliance • TTP = “Identity Provider” • 1) Authenticates user, issues “assertion” (XML). • 2) Assertion is shown to service provider.

9. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

10. Review of GSM Security

11. Review of GSM Security

12. Review of GSM Security

13. Review of GSM Security

14. Review of GSM Security

15. Review of GSM Security

16. Review of GSM Security

17. Review of GSM Security

18. Review of GSM Security

19. Review of GSM Security If the visited network can decrypt, then the SIM is authentic (IMSI matches Ki) Encrypted under Kc

20. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

21. Architecture - before

22. Architecture – after (1)

23. Architecture – after (2)

24. Architecture

25. Architecture Service providers form trust relationships with the home network.

26. Architecture Singe Sign-On using SIM (IMSI) !

27. SSO Protocol

28. SSO Protocol

29. SSO Protocol

30. SSO Protocol

31. SSO Protocol

32. SSO Protocol

33. SSO Protocol

34. SSO Protocol

35. SSO Protocol

36. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

37. Replay Attack Attacker could capture this message and replay it later in order to impersonate the user identified by the IMSI.

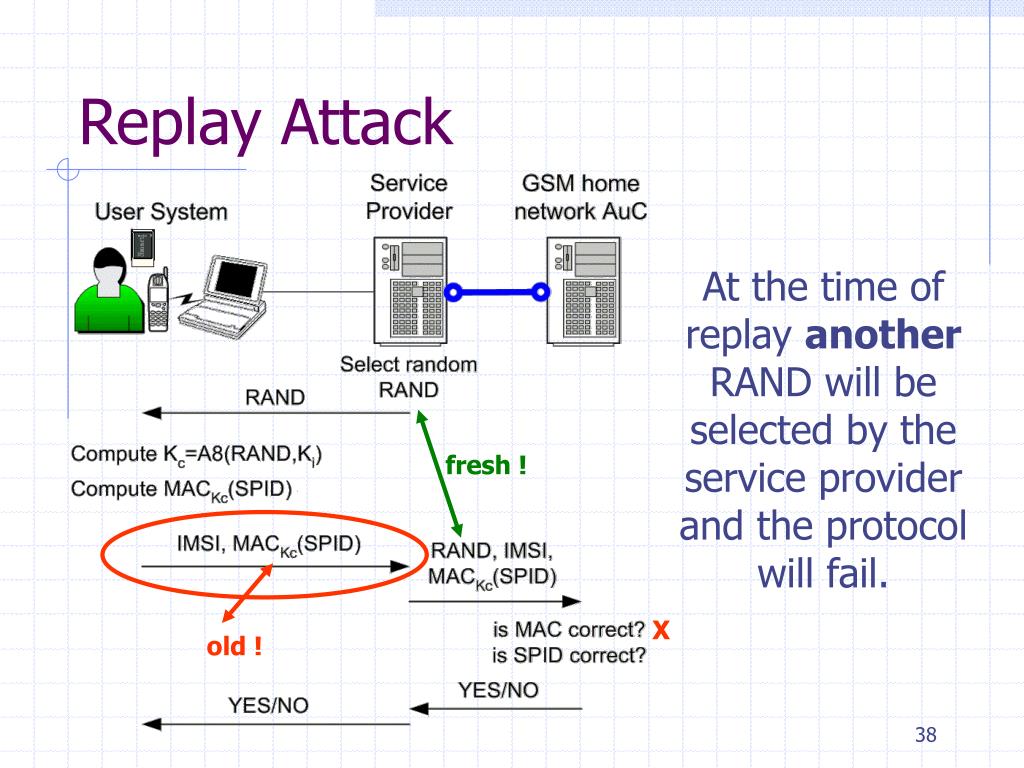

38. Replay Attack At the time of replay another RAND will be selected by the service provider and the protocol will fail. fresh ! X old !

39. Reflection Attack The service provider SP “A” is malicious. It wants to impersonate the user to SP “B”.

40. Reflection Attack

41. Reflection Attack

42. Reflection Attack

43. Reflection Attack

44. Reflection Attack

45. Reflection Attack

46. Reflection Attack X

47. Other Attacks • SIM theft / cloning • SIM PIN is optional! • Need two-factor user authentication. • Home network server is SPoF • Vulnerable to DoS attack. • It is assumed that it is well-protected. • Attacks on the SP-home network link • Link must be integrity-protected and encrypted. • SSL/TLS, VPN, IPSec, etc…

48. Agenda • Introduction to SSO. • Review of GSM security. • How to SSO using GSM. • Some Attacks. • Conclusions.

49. Advantages • no user interaction is required. • protocol can be repeated many times. • simple single logoff. • no sensitive information is sent. • no major computational overheads. • no changes in deployed GSM infrastructure. • fraud management extends to SSO. • can easily be extended to enable LBS.

50. Disadvantages • works only for GSM subscribers. • global identifier (IMSI). • might incur costs for service providers.
