V Series Countertop Line

V Series Countertop Line. CONTACTLESS DUAL COMM. COUNTERTOP DIAL . COUNTERTOP DUAL COMM. V Line Hardware . Processor: 32 bits secure Microprocessor Display: 128 x 64 graphical LC with white backlight SAM: 4 SAM Slots  Peripherals: RS232, USB Host

shen
Télécharger la présentation

V Series Countertop Line

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Confidential: Not for Distribution

  2. V Series Countertop Line CONTACTLESS DUAL COMM. COUNTERTOP DIAL COUNTERTOP DUAL COMM.

  3. V Line Hardware • Processor: 32 bits secure Microprocessor • Display: 128 x 64 graphical LC with white backlight • SAM: 4 SAM Slots  • Peripherals: RS232, USB Host • Key Pad: Standard 15 Keys EMV backlit keypad • Communication: Modem - V.90 bis Fast Connect Modem and Support Sync HDLC Wireless – GSM/GPRS supports 900/1800/850/1900 MHz Ethernet – 10/100 Ethernet ZigBee – Optional RS232 – Communication speed up to 115200 bps) • Memory: Internal Memory – Flash 32M, SDRAM 32M, SRAM:2M (Optional) External Memory – Micro SD Socket • Card Readers: Magnetic Strip - Triple track, Bi directional Smart Card - 1.8V/3V/5V smart card, ISO7816 Class A, B and C Contactless: Milfare®, ISO 14443 Type A/B, Working Frequency 13.56 MHz (optional) • Crypto: TNG, DES, T’DES, AES, RSA, MK/SK, DUKPT, TDES DUKPT • Printer:100 mm/sec Paper Width – 58mm Max paper roll – 40mm • Power: Battery: Li-Polymer 7.2V/1A built in battery charger with protector Base: Input: AC100V/240V 50/60 Hz 2A Adaptor Output: 9V/5V • Dimensions: Handset:175mm(L) x 79mm(W) x 62mm(H) Base: 149mm(L) x 75mm(W) x 40mm

  4. X8 COUNTERTOP Dual Comm COUNTERTOP DUAL COMM. • Compact and Modular • Back Lit Keys and Display • 8Mb of FLASH • 16 Mb SDRAM • Secure EMV PIN Pad • PCI Security • Multiple USB Ports • Ethernet & Dial Comm • Works on Most Digital Phone Lines • External PIN Pad: VeriFone 1000SE (Custom Cable Required)

  5. X 8 Hardware Display: Graphical, 128X64 Pixels , Icons Bar Keypad: PCI Secured, EBS 100 v3 compliant, 18 Keys Security: PCI Certified, PTS, 3DES & RSA Algorithm, M/S & DUKPT Key Management Card Readers: Bi-Directional Mag Stripe reader, Built in EMV 4.0 Smart Card Reader SAM Reader: SAM readers: 4 SIM format OR 3 SIM format+1Full (optional) Communication: V22, V22bis, V32, V32bis (1200, 2400, 9600, 14400 Bps) 10/100 Base-T Ethernet COUNTERTOP DUAL COMM. Hardware Specifications Processor: Dual 32-bit Core architecture Main Processor- 32 bits ARM9 microprocessor - 200 MHz MMU - Secure Processor Memory: • 16 Mbytes SDRAM • 8Mbytes of Flash Peripheral Ports: 1 simple RS232 (Rx, Tx, Ground) 1 RS Pin pad 2 USB Host 1 USB Slave

  6. V Line Hardware Mobile GPRS Contactless Wireless Wireless GPRS or CDMA

  7. V Line Hardware • Processor: 32 bits secure Microprocessor • Display: 128 x 64 graphical LC with white backlight • SAM: 4 SAM Slots  • Peripherals: RS232, USB Host • Key Pad: Standard 15 Keys EMV backlit keypad • Communication: Modem - V.90 bis Fast Connect Modem and Support Sync HDLC Wireless – GSM/GPRS supports 900/1800/850/1900 MHz Ethernet – 10/100 Ethernet ZigBee – Optional RS232 – Communication speed up to 115200 bps) • Memory: Internal Memory – Flash 32M, SDRAM 32M, SRAM:2M (Optional) External Memory – Micro SD Socket • Card Readers: Magnetic Strip - Triple track, Bi directional Smart Card - 1.8V/3V/5V smart card, ISO7816 Class A, B and C Contactless: Milfare®, ISO 14443 Type A/B, Working Frequency 13.56 MHz (optional) • Crypto: TNG, DES, T’DES, AES, RSA, MK/SK, DUKPT, TDES DUKPT • Printer:100 mm/sec Paper Width – 58mm Max paper roll – 40mm • Power: Battery: Li-Polymer 7.2V/1A built in battery charger with protector Base: Input: AC100V/240V 50/60 Hz 2A Adaptor Output: 9V/5V • Dimensions: Handset:175mm(L) x 79mm(W) x 62mm(H) Base: 149mm(L) x 75mm(W) x 40mm

  8. APRIVA - CLASS A CERTIFIED Permanent Connection with GPRS Dual Processors 8 Mb Flash Memory, 16 Mb SDRAM Secure EMV PIN Pad PCI Security Modem, Ethernet & USB Ports on Base (M8) M3 / M8 Hardware – MOBILE GPRS M3 – GPRS Wireless Terminal M8 – GPRS Tri Comm With Base

  9. M Line Hardware – MOBILE GPRS Dejavoo M Line Mobile & Compact Display: Graphical, 128X64 Pixels , Icons Bar Keypad: PCI Secured, EBS 100 v3 compliant, 18 Keys Security: PCI Certified, PTS, 3DES & RSA Algorithm, M/S & DUKPT Key Management Card Readers: Bi-Directional Mag Stripe reader, Built in EMV 4.1 Smart Card Reader SAM Reader: 1 GSM SIM Reader 2 SAM Readers SIM Format Communication: GSM/GPRS Class 10 Processor: Dual 32-bit Core architecture Main Processor- 32 bits ARM9 microprocessor - 200 MHz MMU - Secure Processor Memory: • 16 Mbytes SDRAM • 8Mbytes of Flash Peripheral Ports: On the Handset: 1 USB 2.0 Host (M3 & M8) On the Base: 1 RS232 (Rx, Tx, Ground) (M8) 1 Modem up to V32 Bis (M8 Only) 1 Ethernet 10/100 Base T (M8 Only)

  10. PREPAID DATA PLANS - JASPER M3 & M8 with Jasper Prepaid V9 – Wireless GPRS or CDMA V9 PLUS – Wireless Contactless M3– GPRS Wireless Terminal M8 – GPRS Wireless Terminal with Docking Station for IP and Modem back up options.

  11. F  Favorites F  • 02/01/11 2:03 • Swipe or • Enter Card# Terminal Layout & Navigation • Display • 128X64 Pixels Graphical, Backlit • with Icons Bar • Navigation Buttons • Up Arrow to Scroll Up. • Down Arrow to Scroll Down. • Hot Key to Go to Favorites Menu. • Command Keys • Cancel / Return to idle Prompt • Backspace / Back one menu level • ENTER / Access Core Menu 1 2 3

  12. Terminal Layout & Navigation • Alphanumeric Keypad • Online Help Access • Access On Screen Help for • All processes & Features. NeXt Generation Of POS Terminals 4 5

  13. On Screen Help Help User Arrow keys to change transaction type and input dollar amount. Press ENTER to continue Help Input the tip amount then press ENTER or bypass tip by pressing ENTER. Help Access Value Added Services Such as 3rd party reporting. Press the Green   Example #1 Example #2 Example #3 Built-in User Guide! • At Any Time During any Action on the Terminal You Can Press the 00 Key (Double Zero Key) to Access the On Screen Help Feature. • Terminal Help Provides Information on the Feature Itself as Well as Next Step Directions. Because Manuals Belong on a Bookshelf – Not Your Countertop. Confidential: Not for Distribution

  14. Dejavoo FAVORITES Menu  Daily CR/DBT Report  Presale Ticket  Favorites Settle Daily CR/DBT Batch  Do you want to add a favorite to this item? Favorites Menu Yes No PRESS THE  KEY Designate any menu item from the Dejavoo terminal to be listed in a customized terminal menu for quick and easy access to the features that matter most to the user or as we like to call them – “Favorites”

  15. Loyalty – How to Opt IN Step 1 - Transaction is entered (Swiped or Manual) Step 2 – Upon transaction completion the terminal Prompts for Loyalty Phone Number. Input Existing Loyalty Phone# or New Loyalty Phone # PRESS ENTER This becomes their Loyalty Account Number Loyalty Phone #: 555-555-5555 LOYALTY Step 3 – The terminal prompts the customer to press the up arrow for YES to opt In to the loyalty program (Privacy Act) Confidential: Not for Distribution

  16. Loyalty – How to Opt OUT Step 1 - Transaction is entered (Swiped or Manual) Step 2 – Upon transaction completion the terminal Prompts for Loyalty Phone Number. Press the RED X key Loyalty Phone #: LOYALTY Step 3 – The terminal prompts the customer to press the down arrow for NO to opt Out of the loyalty program (Privacy Act) Confidential: Not for Distribution

  17. Points per Dollar  Points to Free Item  Free Item  Points per Dollar 1 Points to free Item 500 Free Item FREE DINNER LOYALTY LOYALTY LOYALTY LOYALTY Loyalty Setup – From the Terminal Loyalty Menu Options • Can Be Set in download through MMSx • Can be set at the terminal Level • Merchant decides thresholds and rewards • Merchant can run specials, ie: Tuesdays only earn 2pts per $ Merchant can configure loyalty in the setup menu. 3 options to configure: (1) points per dollar, (2) points to free item, (3) free item. To configure points per dollar merchant uses the keypad to set desired value. To configure points threshold to receive loyalty reward merchant uses the keypad to set desired value. Merchant uses alphanumeric keypad to input what he/she desires to print on the reward coupon when the point threshold is met. Confidential: Not for Distribution Confidential: Not for Distribution

  18. ABC STORE • 4534 Any Street • Somewhere, NY 111111 • (555)-777-8888 • - - - - - - - - - - - - - - - - - - - - • 04/07/07 09:00 • Trans #:1 Batch #:1 • S A L E • Acct: ***********5555 • Type: VISA Entry: Card Swiped • Server (2): Lisa • AMOUNT: $50.35 • TIP AMT: $___.___ • ------------------------------- • TOTAL AMT: ___.___ • Tip Sugg. 1: 15% 7.55 • Tip Sugg. 2: 18% 9.06 • Resp: Approved • Code: 123456 • Congratulations you • Have won a • 10% Discount • Your New Points Balance is 10 • Refunds accepted with Receipt • www.abcstore.com • CUSTOMER COPY • ABC STORE • 4534 Any Street • Somewhere, NY 111111 • (555)-777-8888 • - - - - - - - - - - - - - - - - - - - - • 04/07/07 09:00 • Trans #:1 Batch #:1 • S A L E • Acct: ***********5555 • Type: VISA Entry: Card Swiped • Server (2): Lisa • AMOUNT: $50.35 • TIP AMT: $___.___ • -------------------------------- • TOTAL AMT: $___.___ • Tip Sugg. 1: 15% 7.55 • Tip Sugg. 2: 18% 9.06 • Resp: Approved • Code: 123456 • Points Earned: 50 • Points Balance: 350 • Only 150 more points • to receive reward • Refunds accepted with receipt • www.abcstore.com • CUSTOMER COPY Loyalty Receipts Confidential: Not for Distribution Confidential: Not for Distribution

  19. Daily Report Summary Report Detailed Report History Report Report Generator Using a drill down effect make report selections and save as custom report to appear in the report menu. Custom Reports Menu Reports

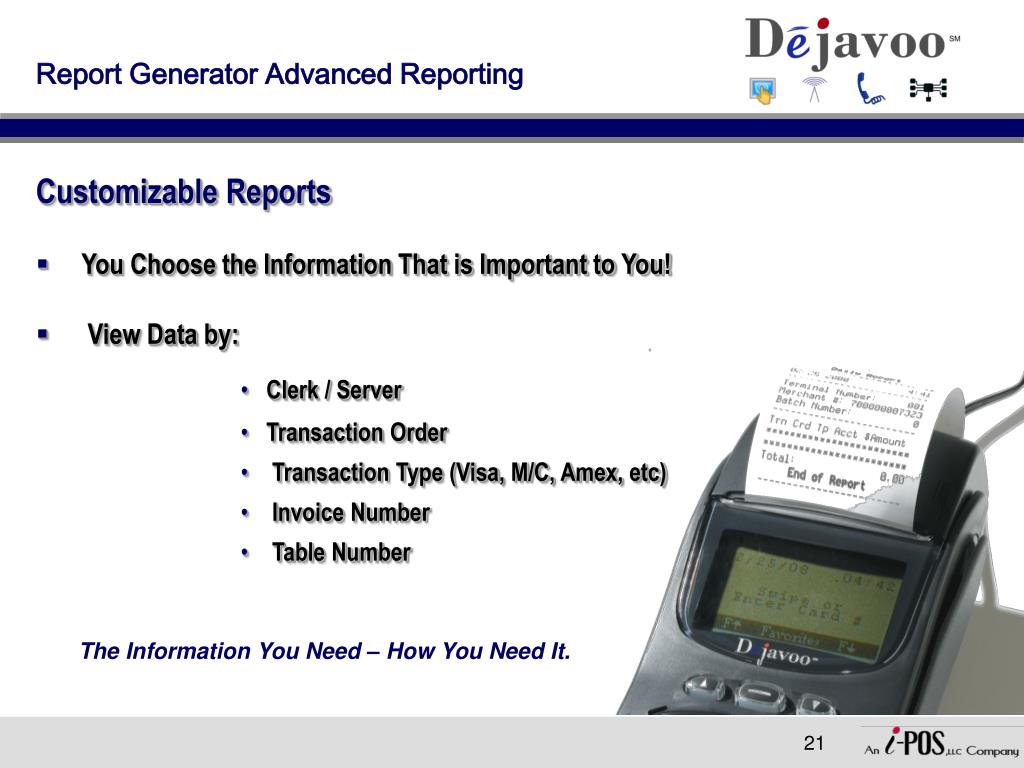

  20. Report Generator Advanced Reporting Customizable Reports • You Choose the Information That is Important to You! • View Data by: • Clerk / Server • Transaction Order • Transaction Type (Visa, M/C, Amex, etc) • Invoice Number • Table Number The Information You Need – How You Need It. 21

  21. Password Security Keep Private Information Private • Require Password Entry for Any Menu or Sub Menu Item. • Require Password Entry for Specific Transaction Types. • Password Can Be Changed at the Terminal. • Password Can Be Retrieved if Forgotten. • Setting Password Security is Optional You Decide Who Gets to See What.. Confidential: Not for Distribution

  22. Batch Settlement Options Auto Dial for Auto Smile.. • Enable or Disable Autodial for Batch Settlement • You Can Have the Terminal Automatically Dial to Settle Your Batch at a Designated Time . Let Your Terminal Work Late – So You Don’t Have To!!

  23. Changing the Default Batch Report Save as Default Batch Report? Reports Yes No • Feature of Report Generator • Create Custom Report • Press the UP ARROW for YES to Save as Default Batch Report

  24. Transaction Prompts Turn Transaction Prompts On/Off • Set up Clerk/Server ID Prompt to View Reports by Clerk/Server. • Enable Invoice Prompt to View Transactions by Invoice #. • Configure AVS, Card Code & Fraud Prevention Settings. Use Transaction Data to Help Manage Your Store Confidential: Not for Distribution

  25. Retail With Tip  Tip Presale Ticket  • Presale Ticket • “Dummy Receipt” • Tip MUST go over as one with transaction • Eliminates need to ask customer for tip • Not a transaction until card is swiped ABC STORE 4534 Any Street Somewhere, NY 111111 (555)-777-8888 - - - - - - - - - - - - - - - - - - - - 07/02/08 09:00 P R E S A L E TICKET AMOUNT: $40.00 TIP AMOUNT: $ __.____ ---------------------------- TOTAL $ __.____ Please Complete and Submit With Your Payment

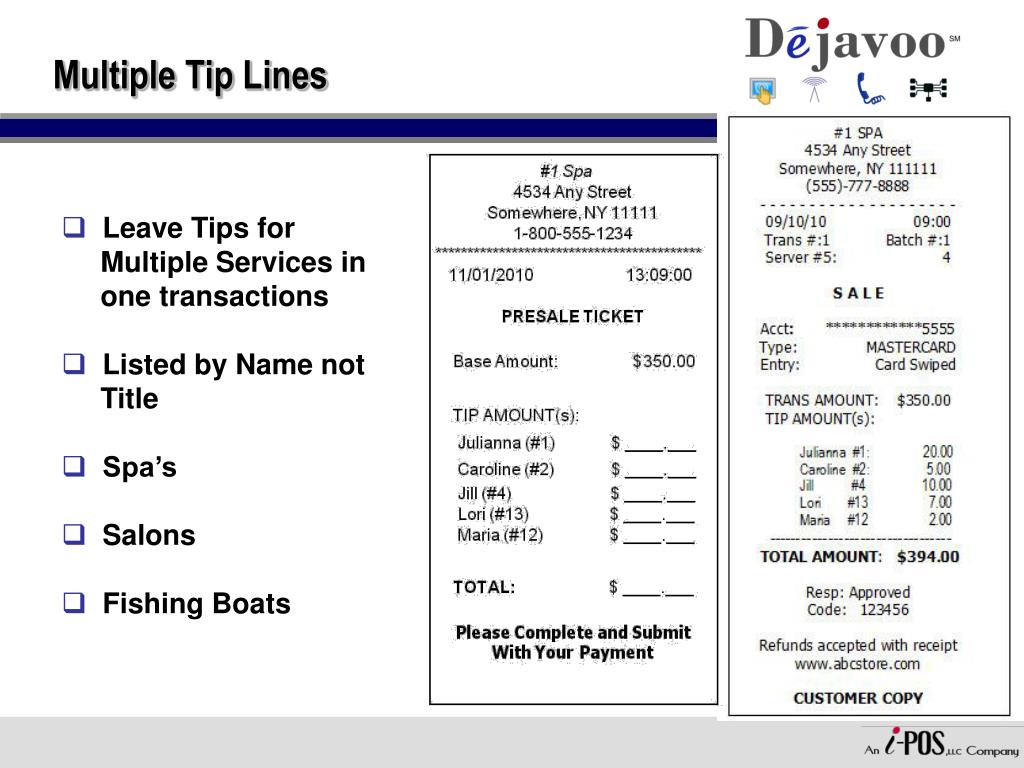

  26. Multiple Tip Lines • Leave Tips for • Multiple Services in • one transactions • Listed by Name not • Title • Spa’s • Salons • Fishing Boats

  27. Restaurant Features • Single Application for Retail & Restaurant • Tips & Tabs Menu • New Automatic Tip Feature • Server Set Up • Suggested Tips • Report Generator

  28. Automatic Tip (Restaurant Only) • ABC STORE • 4534 Any Street • Somewhere, NY 111111 • (555)-777-8888 • _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ • 04/07/07 09:00 • Trans #:1 Batch #:1 • SERVER: (2) Lisa • S A L E • VISA ***********5555 • Card Swiped • Resp: Approved • Code: 123456 • * Party Exceeds 8 • TRANS AMOUNT: $164.38 • GRATUITY 18%: $ 29.58 • ADDITIONAL TIP: $___.___ • ------------------------------ • TOTAL AMOUNT: $___.___ • X___________________________ • Customer Name • MERCHANT COPY Automatically Add Tip for Large Parties • You Configure # of Guest Threshold & Tip % • Additional Tip Line for Customers Giving More! For Example: 18% GRATUITY IS ADDED FOR PARTIES OF 8 OR MORE. You Work Hard for Your Money – We Do Too.. Confidential: Not for Distribution

  29. Suggested Tip Lines (Restaurant Only) Up to 3 Suggested Tip Lines • Configure Tip Suggestions on the Receipt • Enable 1, 2 or all 3 Suggested Tip Lines • Does NOT Automatically Charge Tip, Provides Tip Guide for the Customer. • ABC STORE • 4534 Any Street • Somewhere, NY 111111 • (555)-777-8888 • _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ • 04/07/07 09:00 • Trans #:1 Batch #:1 • SERVER: (2) Lisa • S A L E • VISA ************5555 • Card Swiped • Resp: Approved • Code: 123456 • TRANS AMOUNT: 64.38 • TIP AMOUNT: __.___ • ------------------------------ • 10% = $6.43 • 15% = $9.65 • 18% = $11.58. • TOTAL AMOUNT: __.___ • X________________________ • Customer Name • MERCHANT COPY Customer’s Eat, Drink & Have Fun – Not Do Math! So We Did it For Them. Confidential: Not for Distribution

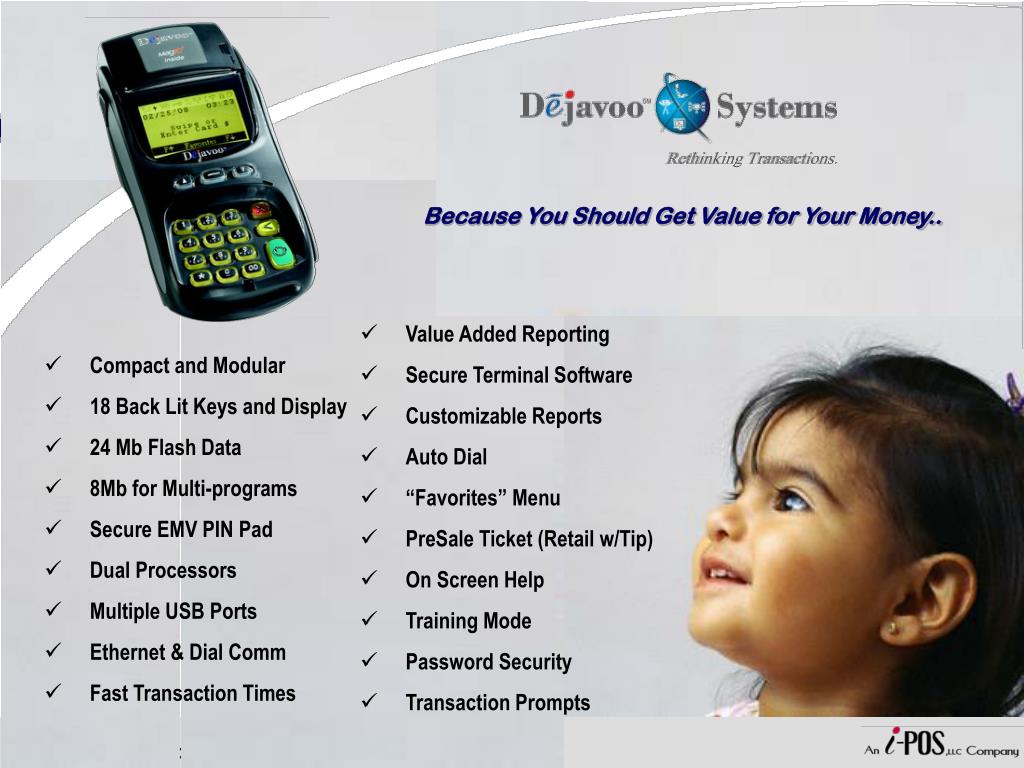

  30. Because You Should Get Value for Your Money.. • Value Added Reporting • Secure Terminal Software • Customizable Reports • Auto Dial • “Favorites” Menu • PreSale Ticket (Retail w/Tip) • On Screen Help • Training Mode • Password Security • Transaction Prompts • Compact and Modular • 18 Back Lit Keys and Display • 24 Mb Flash Data • 8Mb for Multi-programs • Secure EMV PIN Pad • Dual Processors • Multiple USB Ports • Ethernet & Dial Comm • Fast Transaction Times Confidential: Not for Distribution
