Voltage Regulation Specifications: 10kV Input, 5V Output Parameters and Hysteresis

Jan 12, 2026

20 likes | 165 Vues

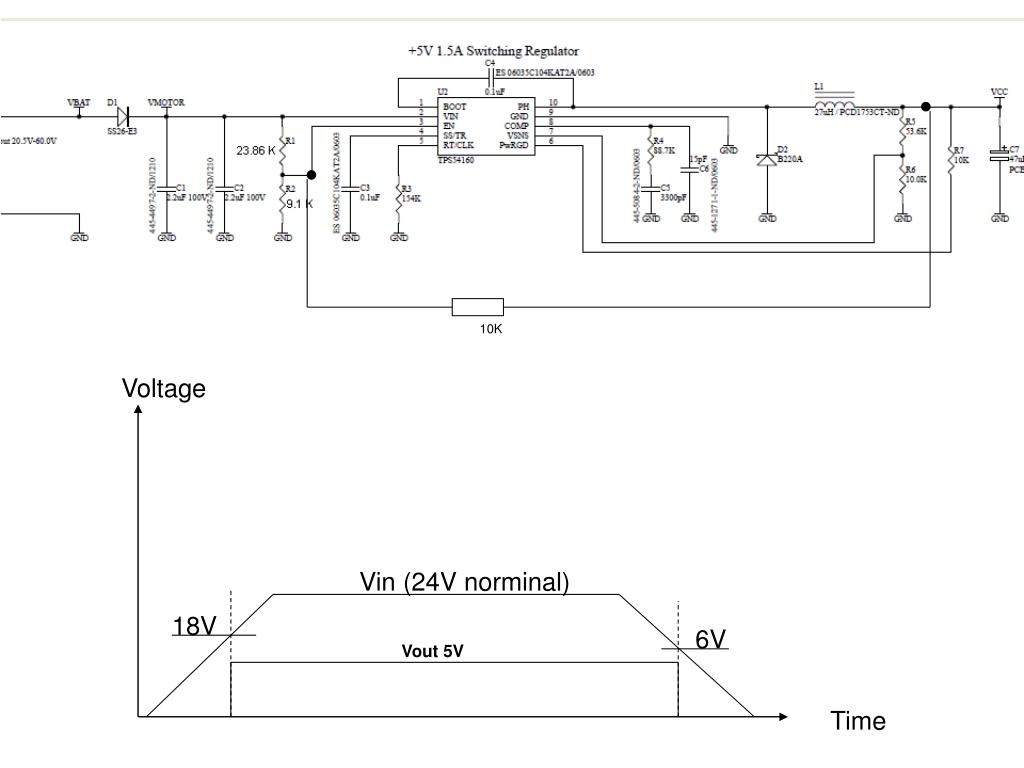

This document outlines the key specifications for a voltage regulation system with a nominal input voltage of 24V and an output of 5V. Key parameters include a hysteresis current (Ihys) of 2.9µA, a VENA of 0.3V, a starting voltage (Vstart) of 18V, and a stopping voltage (Vstop) of 6V. The system is designed for high-efficiency voltage regulation, illustrating critical voltage thresholds for effective operation.
