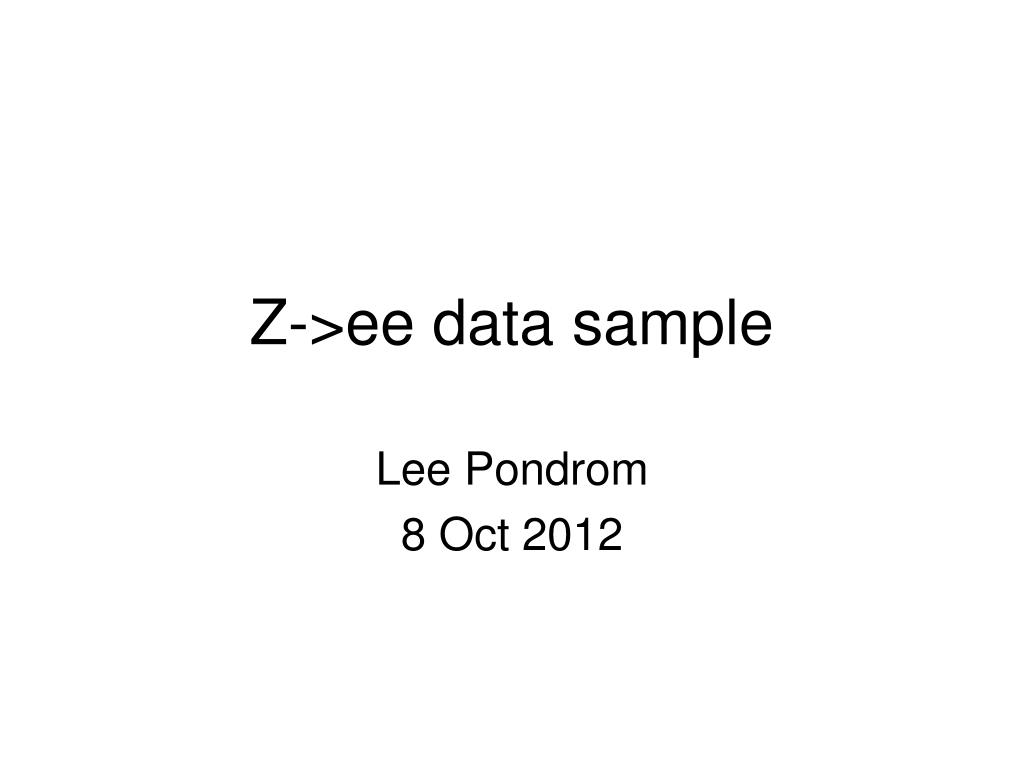

  1. Z->ee data sample Lee Pondrom 8 Oct 2012

  2. First look at electron Stntuples • Fileset files events • bhelbd 881 26 499 561 • bhelbh 774 20 026 640 • bhelbi 1829 40 529 045 • bhelbj 1672 35 279 101 • bhelbk 1873 37 161 882 • bhelap 19095 499 025 652 • 657 E6 total

  3. Stntuple electron filesets • Typical electron fileset is 4X a large as a typical muon fileset. • Use of the CAF is essential. • Total number of Z->ee events ~250,000, matching the total Z->mumu. • Z->ee yield per fileset ~0.0004.

  4. Electron quality cuts • Electromagnetic shower in the CEM plus matching charged track in the COT. • (z,φ) coordinates at radius of CES gives shower location. • ET>25 GeV • Had/Em < 0.055+0.00045*E • Isolation variable: (ET in CEM+CHA in cone of 0.4 around the electron shower, minus the ET of the electron shower)/eleET

  5. Electron quality cuts • Cluster ET/track match pT<2.0 if pT<50GeV • Track pT is generally lower due to radiation • Lshr < 0.2. Lshare is a variable used by CDF since antiquity. It checks that the transverse shower development in the CEM is consistent with that expected from electromagnetic radiation.

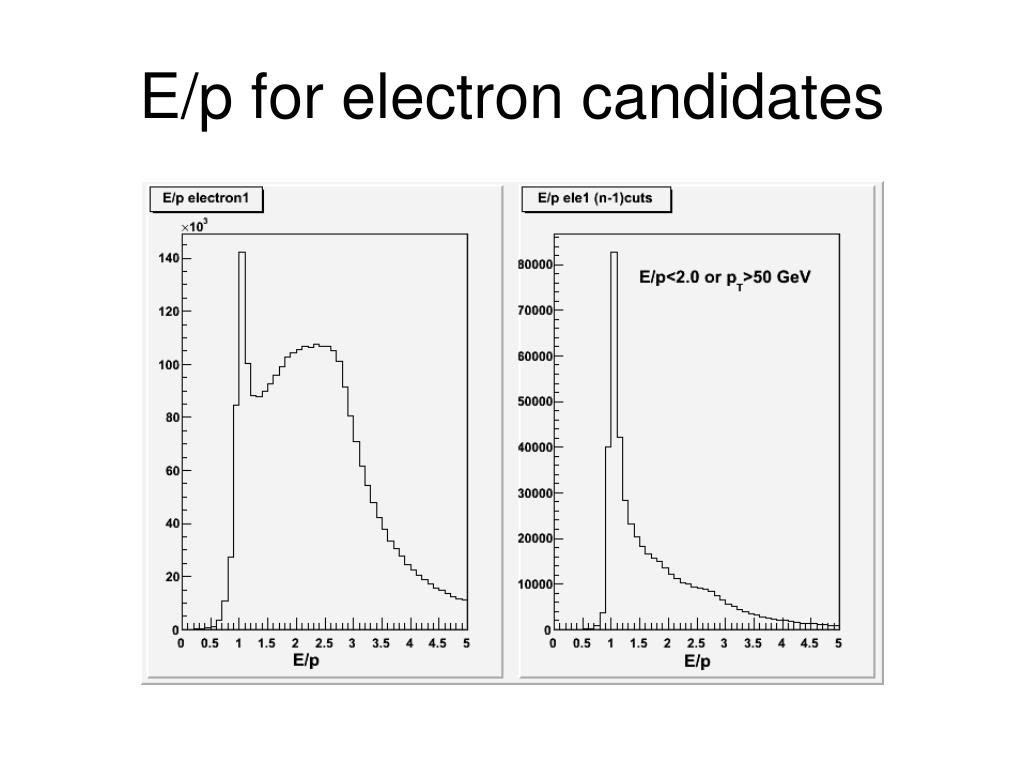

  6. E/p for electron candidates

  7. Had/Em for electron candidates

  8. Lshr for electron candidates

  9. Isolation for electron candidates

  10. Z->ee candidates • Require ET>25 GeV, ||<1, and the 4 quality cuts for electron #1. • Require ET>25 GeV, ||<1. for electron #2 • Require opposite charges.

  11. Z->ee compared to Z->

  12. Quality variables for electron #2

  13. Quality variables electron #2

  14. conclusions • Z yield looks consistent for e’s and ’s. • Z-> mass resolution slightly better. No quality cuts have been made on ele#2. • Cutoff for Z->ee at low mass is from ET>25 GeV. • Look at the transtrack game next.
