Servidor Rack

2583ECU - x3250_M4 Express x3250 M4, Xeon 4C E3-1220v2 69W 3.1GHz/1600MHz/8MB, 1x4GB, O/Bay SS 3.5in SATA, SR C100, Multi-Burner, 300W p/s, Rack Processor : Intel Xeon 4C Processor Model E3-1220v2 69W 3.1GHz/1600MHz/8MB Maximum Processor = 1 Memory :

sheng
Télécharger la présentation

Servidor Rack

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

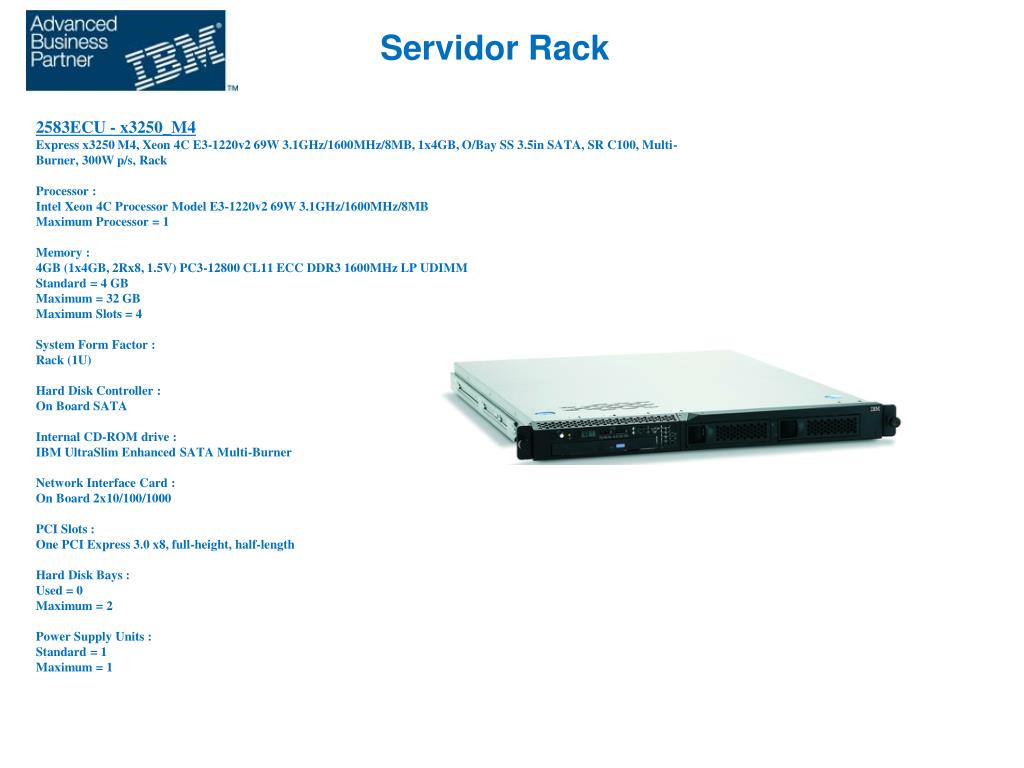

  1. 2583ECU - x3250_M4 Express x3250 M4, Xeon 4C E3-1220v2 69W 3.1GHz/1600MHz/8MB, 1x4GB, O/Bay SS 3.5in SATA, SR C100, Multi-Burner, 300W p/s, Rack Processor : Intel Xeon 4C Processor Model E3-1220v2 69W 3.1GHz/1600MHz/8MB Maximum Processor = 1 Memory : 4GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP UDIMM Standard = 4 GB Maximum = 32 GB Maximum Slots = 4 System Form Factor : Rack (1U) Hard Disk Controller : On Board SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 2x10/100/1000 PCI Slots : One PCI Express 3.0 x8, full-height, half-length Hard Disk Bays : Used = 0 Maximum = 2 Power Supply Units : Standard = 1 Maximum = 1 Servidor Rack

  2. XLSG6CL- x3250_M4 Basado en el PN 2583ECU, x3250 M4, Xeon 4C E3-1220v2 69W 3.1GHz/1600MHz/8MB, 1x4GB, IBM 1TB 7.2K SATA 3.5in Simple-Swap HDD Processor : Intel Xeon 4C Processor Model E3-1220v2 69W 3.1GHz/1600MHz/8MB Maximum Processor = 1 Memory : 4GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP UDIMM Standard = 4 GB Maximum = 32 GB Maximum Slots = 4 System Form Factor : Rack (1U) Hard Disk Controller : On Board SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 2x10/100/1000 PCI Slots : One PCI Express 3.0 x8, full-height, half-length Hard Disk Bays : Used = 1 Maximum = 2 Power Supply Units : Standard = 1 Maximum = 1 Servidor Rack

  3. 7914EAU - x3550_M4 Express x3550 M4, Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB, 1X4GB, O/Bay 2.5in HS SAS/SATA, SR M1115, Multi-Burner, 550W p/s, Rack Processor : Intel Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB Maximum Processor = 2 Memory : 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Standard = 4 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (1U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Slot 1: PCIe x16; low profile, half length Slot 2: PCIe x8 Additional dedicated slot for a ServeRAID adapter. Hard Disk Bays : Used = 0 Maximum = 8 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  4. 7914EDU- x3550_M4 Express x3550 M4, Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB 1X8GB, O/Bay 2.5in HS SAS/SATA, SR M5110, Multi-Burner, 550W p/s, Rack Processor : Intel Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB Maximum Processor = 2 Memory : 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Standard = 8 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (1U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Slot 1: PCIe x16; low profile, half length Slot 2: PCIe x8 Additional dedicated slot for a ServeRAID adapter. Hard Disk Bays : Used = 0 Maximum = 8 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  5. 791432U - x3550_M4 x3550 M4, Xeon 4C E5-2643 130W 3.3GHz/1600MHz/10MB, 1X4GB, O/Bay 2.5in HS SAS/SATA, SR M5110, 750W p/s, Rack Processor : Intel Xeon 4C E5-2643 130W 3.3GHz/1600MHz/10MB Maximum Processor = 2 Memory : 4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Standard = 4 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (1U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : None Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Slot 1: PCIe x16; low profile, half length Slot 2: PCIe x8 Additional dedicated slot for a ServeRAID adapter. Hard Disk Bays : Used = 0 Maximum = 8 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  6. 7915EEU- x3650_M4 Express x3650 M4, Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA,SR M5110e, Multi-Burner, 750W p/s, Rack Processor : Intel Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB Maximum Processor = 2 Memory : 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Standard = 8 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (2U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full height, full length Slot 2: PCIe 3.0 x8; full height, half length Slot 3: PCIe 3.0 x8; full height, half length Slots 4, 5 y 6: Optional, requires second processor and second riser card Hard Disk Bays : Used = 0 Maximum = 16 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  7. 7915ECU - x3650_M4 Express x3650 M4, Xeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, Multi-Burner, 750W p/s, Rack Processor : Intel Xeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB Maximum Processor = 2 Memory : 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Standard = 8 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (2U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full height, full length Slot 2: PCIe 3.0 x8; full height, half length Slot 3: PCIe 3.0 x8; full height, half length Slots 4, 5 y 6: Optional, requires second processor and second riser card Hard Disk Bays : Used = 0 Maximum = 16 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  8. 7915EDU- x3650_M4 Express x3650 M4, Xeon 6C E5-2640 95W 2.5GHz/1333MHz/15MB, 2x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, Multi-Burner, 2x750W p/s, Rack Processor : Intel Xeon 6C E5-2640 95W 2.5GHz/1333MHz/15MB Maximum Processor = 2 Memory : 2 x 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Standard = 16 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (2U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : IBM UltraSlim Enhanced SATA Multi-Burner Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full height, full length Slot 2: PCIe 3.0 x8; full height, half length Slot 3: PCIe 3.0 x8; full height, half length Slots 4, 5 y 6: Optional, requires second processor and second riser card Hard Disk Bays : Used = 0 Maximum = 16 Power Supply Units : Standard = 2 Maximum = 2 Servidor Rack

  9. 791532U- x3650_M4 x3650 M4, Xeon 4C E5-2643 130W 3.3GHz/1600MHz/10MB, 1X4GB, O/Bay 2.5in HS SAS/SATA, SR M5110e, 900W p/s, Rack Processor : Intel Xeon 4C E5-2643 130W 3.3GHz/1600MHz/10MB Maximum Processor = 2 Memory : 4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Standard = 4 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (2U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : None Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full height, full length Slot 2: PCIe 3.0 x8; full height, half length Slot 3: PCIe 3.0 x8; full height, half length Slots 4, 5 y 6: Optional, requires second processor and second riser card Hard Disk Bays : Used = 0 Maximum = 16 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack

  10. 7915B2U- x3650_M4 x3650 M4, Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB, 1x4GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 550W p/s, Rack Processor : Intel Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB Maximum Processor = 2 Memory : 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Standard = 4 GB Maximum = 768 GB Maximum Slots = 24 System Form Factor : Rack (2U) Hard Disk Controller : On Board SAS/SATA Internal CD-ROM drive : None Network Interface Card : On Board 4 x 10/100/1000 PCI Slots : Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full height, full length Slot 2: PCIe 3.0 x8; full height, half length Slot 3: PCIe 3.0 x8; full height, half length Slots 4, 5 y 6: Optional, requires second processor and second riser card Hard Disk Bays : Used = 0 Maximum = 16 Power Supply Units : Standard = 1 Maximum = 2 Servidor Rack
