  1. A Non-local Cost Aggregation Method for Stereo Matching Qingxiong Yang City University of Hong Kong 2012 IEEE Conference on Computer Vision and Pattern Recognition

  2. Outilne • Introduction • Related Works • Method • Experimental Results • Conclusion

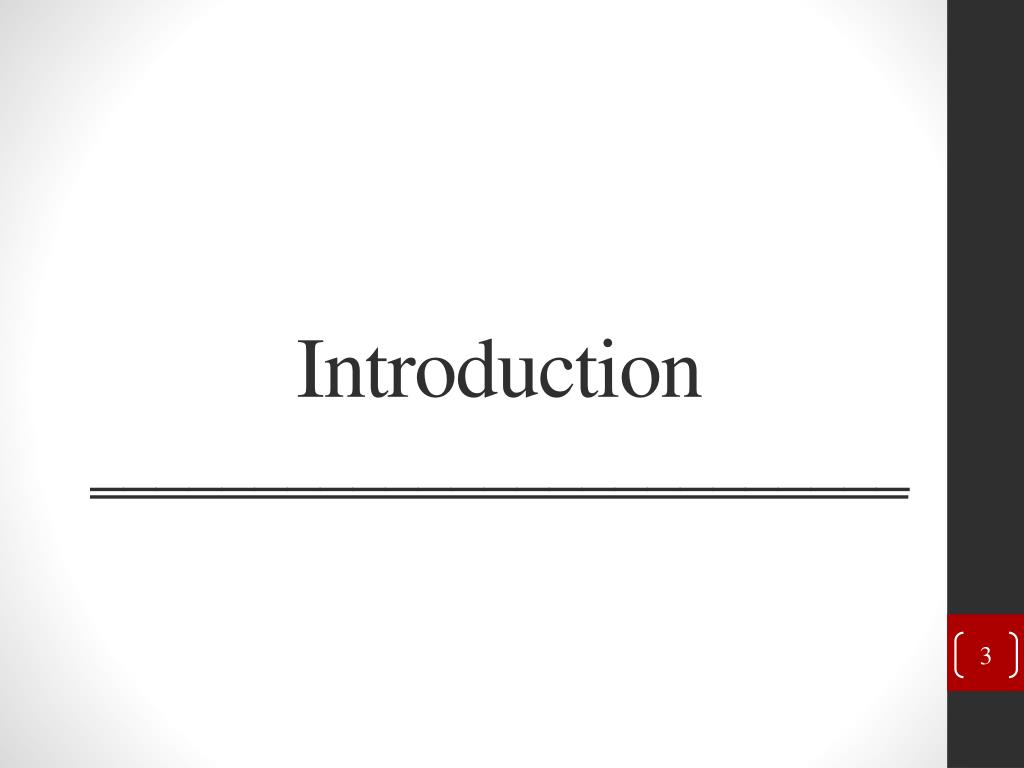

  3. Introduction_________________________

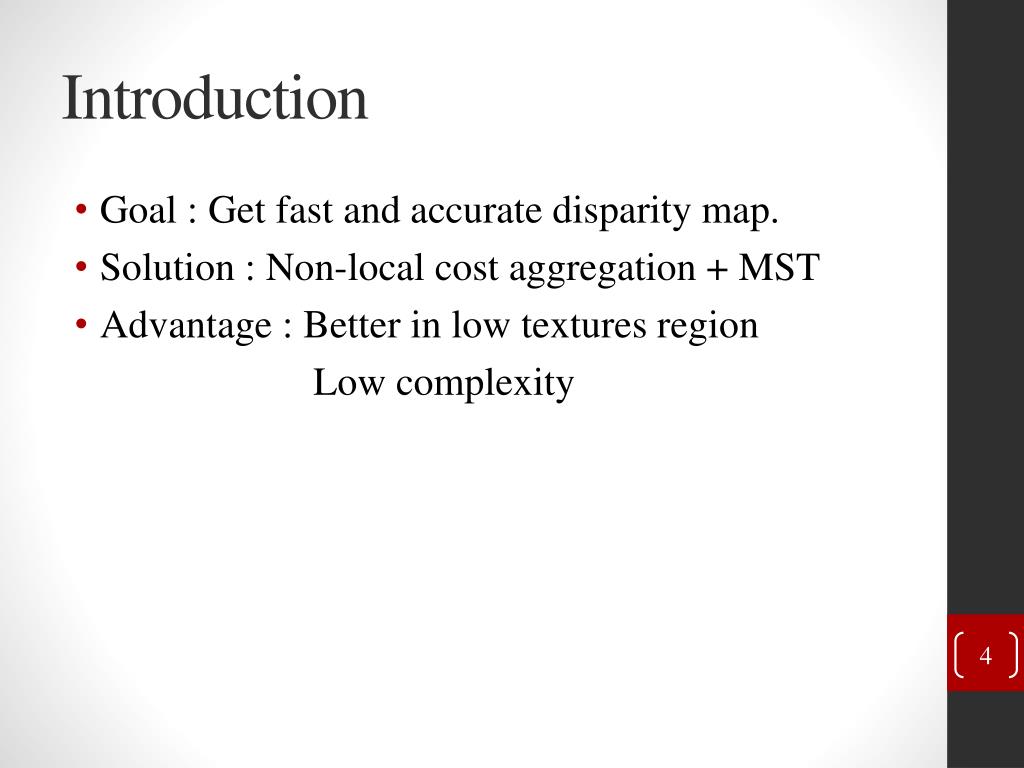

  4. Introduction • Goal : Get fast and accurate disparity map. • Solution : Non-local cost aggregation + MST • Advantage : Better in low textures region Low complexity

  5. Related Works_________________________

  6. Related Works [21] D. Scharstein and R. Szeliski. A taxonomy and evaluation of dense two-frame stereo correspondence algorithms. International Journal of Computer Vision (IJCV), 47:7–42, 2002.

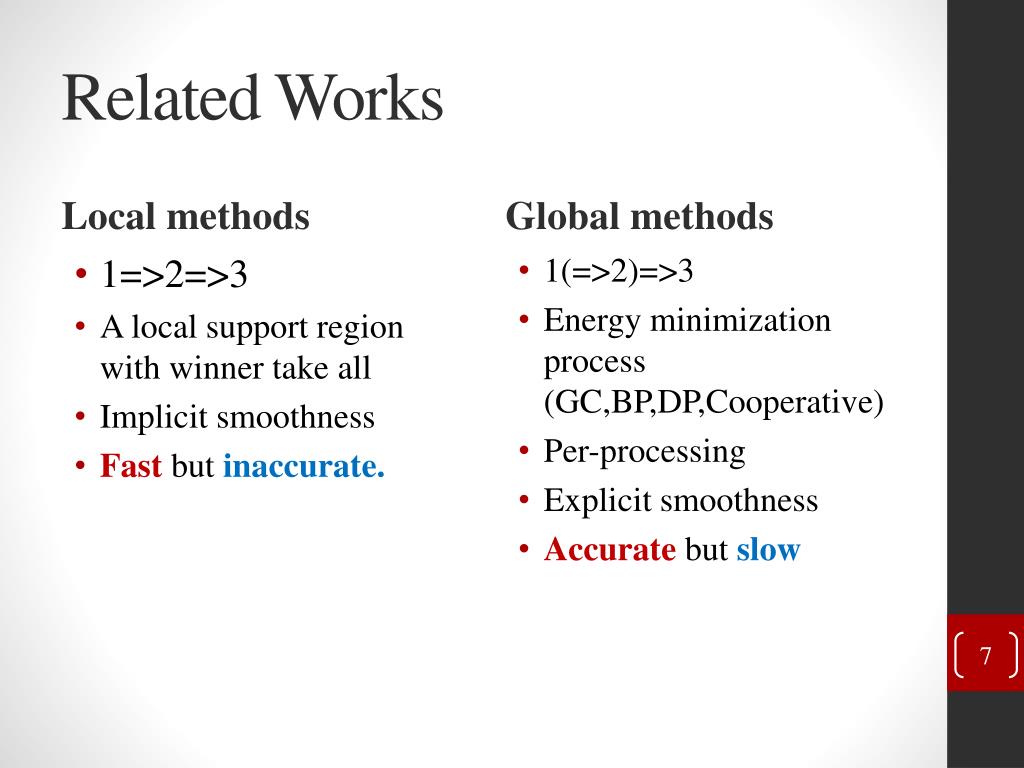

  7. Related Works Local methods Global methods 1(=>2)=>3 Energy minimization process (GC,BP,DP,Cooperative) Per-processing Explicit smoothness Accuratebutslow • 1=>2=>3 • A local support region with winner take all • Implicit smoothness • Fastbutinaccurate.

  8. Comparison (Rank in Middleburry)

  9. Method_________________________

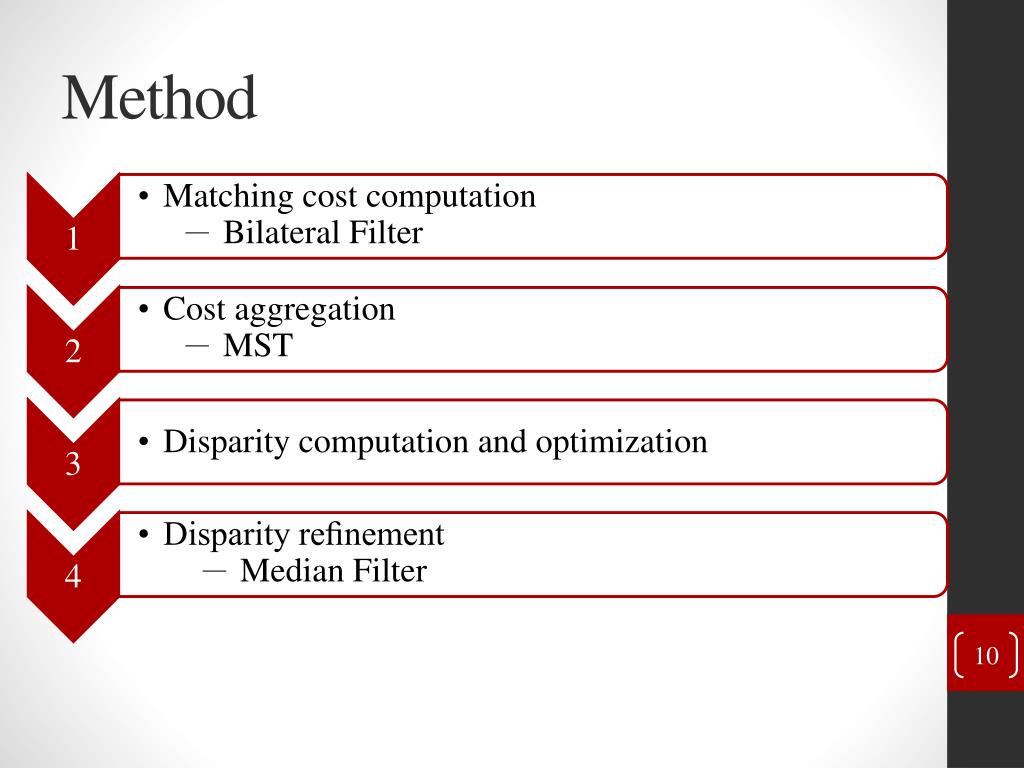

  10. Method

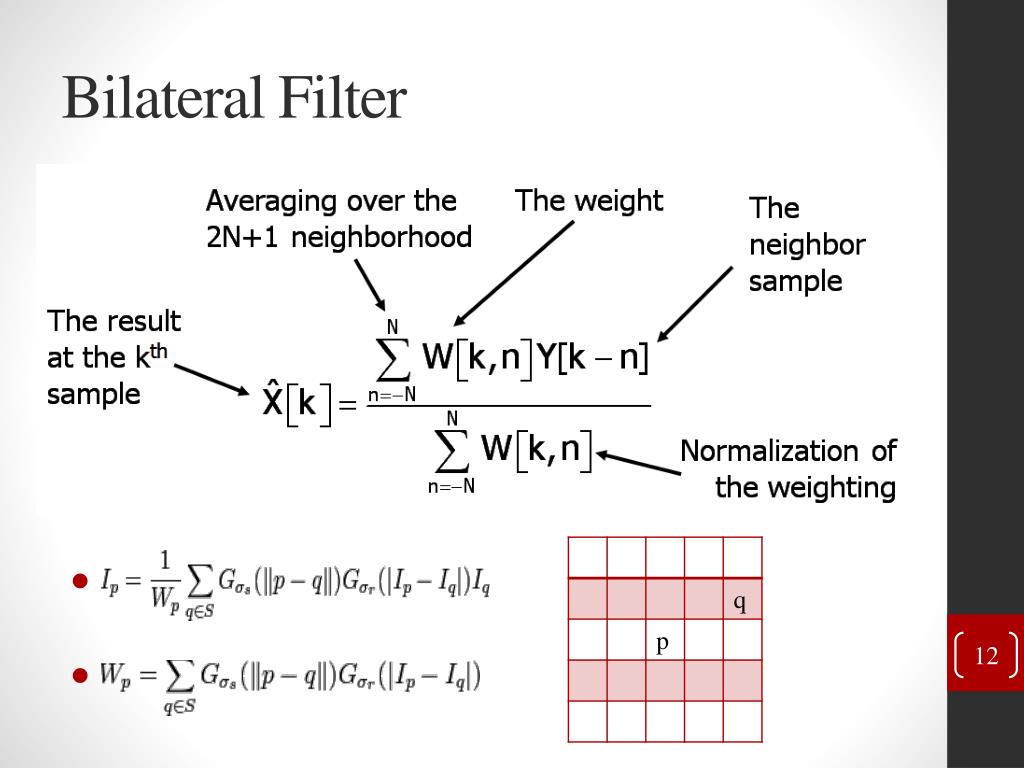

  11. Bilateral Filter • Every sample is replaced by a weighted average of its neighbors. • These weights reflect two forces • How close are the neighbor and the center sample • How similar are the neighbor and the center sample • Edge-preservingand noise reducing smoothing filter

  12. Bilateral Filter

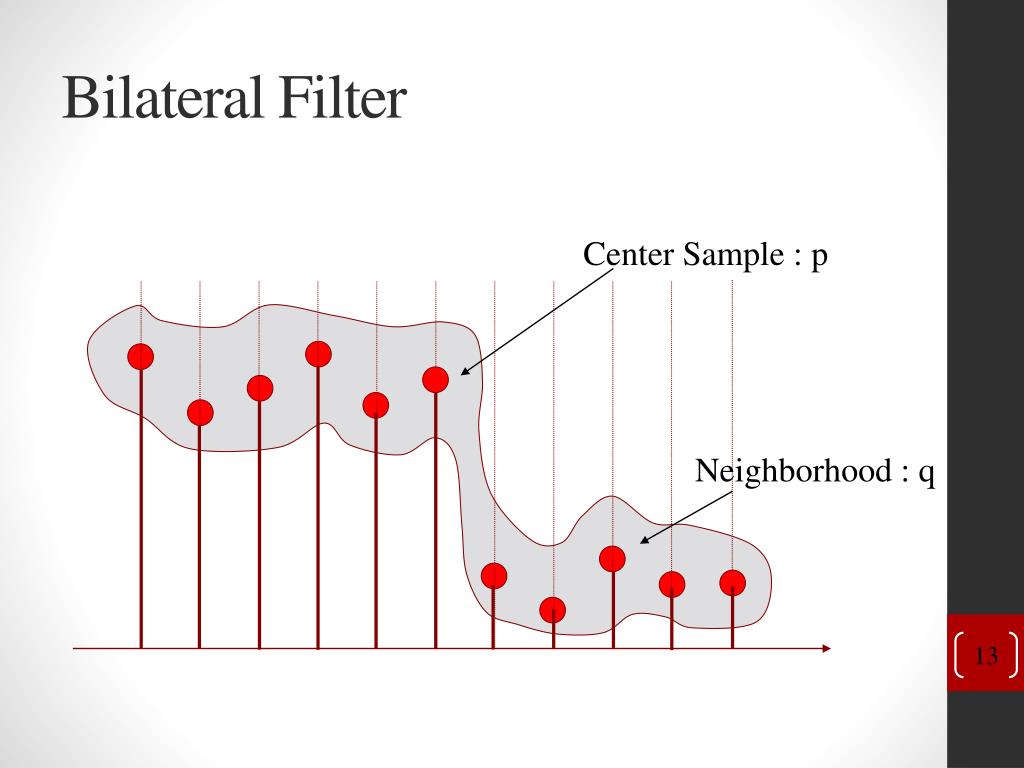

  13. Bilateral Filter Center Sample : p Neighborhood : q

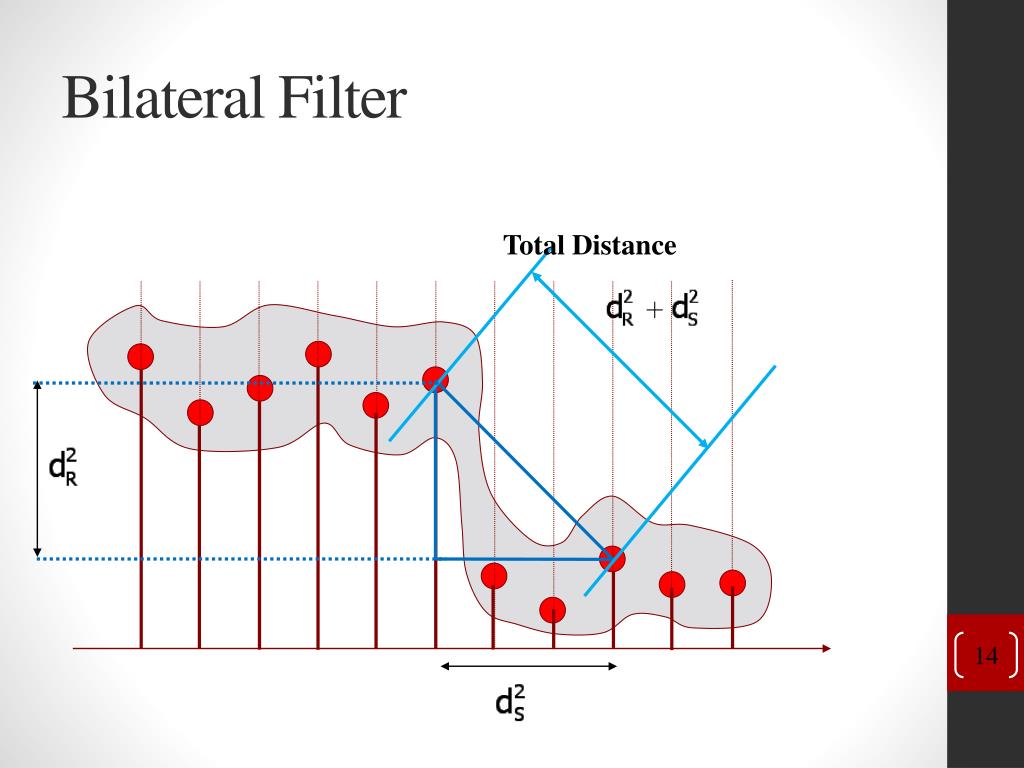

  14. Bilateral Filter Total Distance

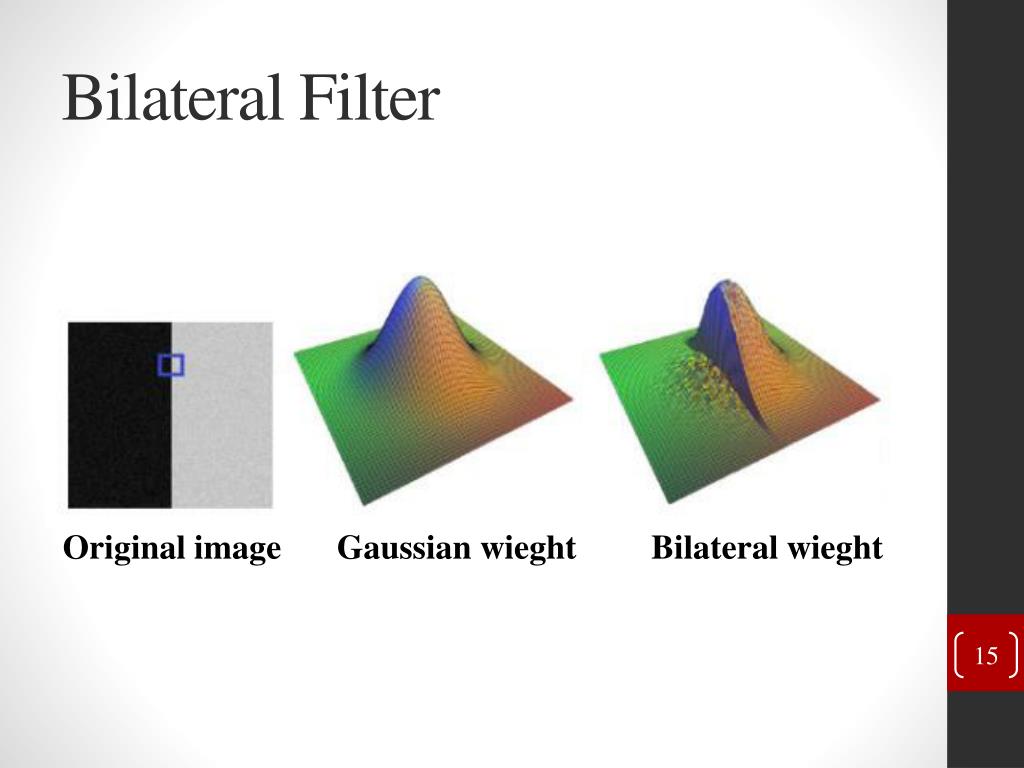

  15. Bilateral Filter Bilateral wieght Original image Gaussian wieght

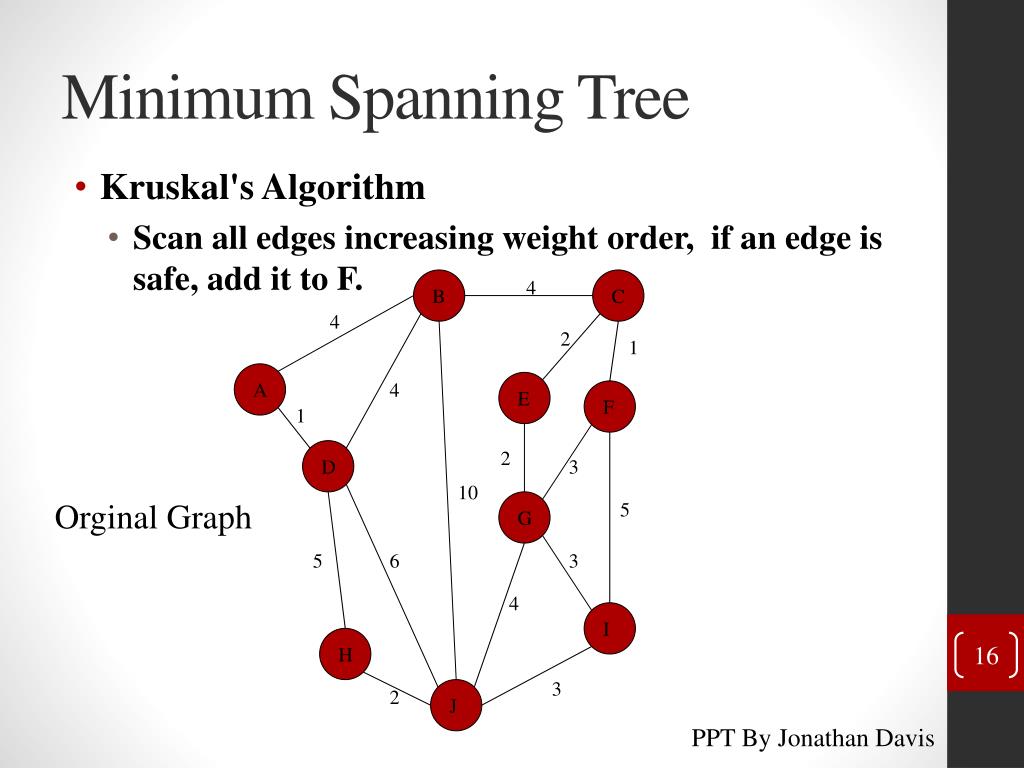

  16. Minimum Spanning Tree • Kruskal's Algorithm • Scan all edges increasing weight order, if an edge is safe, add it to F. 4 B C 4 2 1 A 4 E F 1 2 D 3 10 5 G Orginal Graph 5 6 3 4 I H 3 2 J PPT By Jonathan Davis

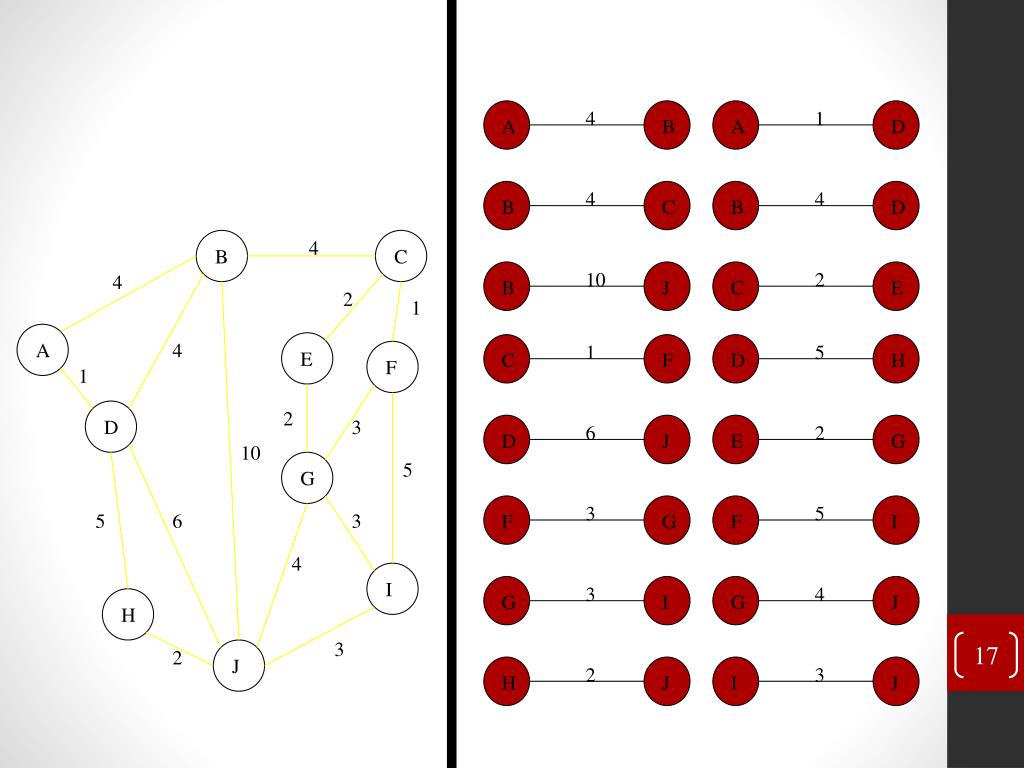

  17. 4 1 A B A D 4 4 B C B D 4 10 2 B C B J C E 4 2 1 1 5 C F D H A 4 E F 1 6 2 2 D J E G D 3 10 5 G 3 5 F G F I 5 6 3 4 3 4 I G I G J H 3 2 J 2 3 H J I J

  18. Sort Edges (in reality they are placed in a priority queue - not sorted - but sorting them makes the algorithm easier to visualize) 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  19. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

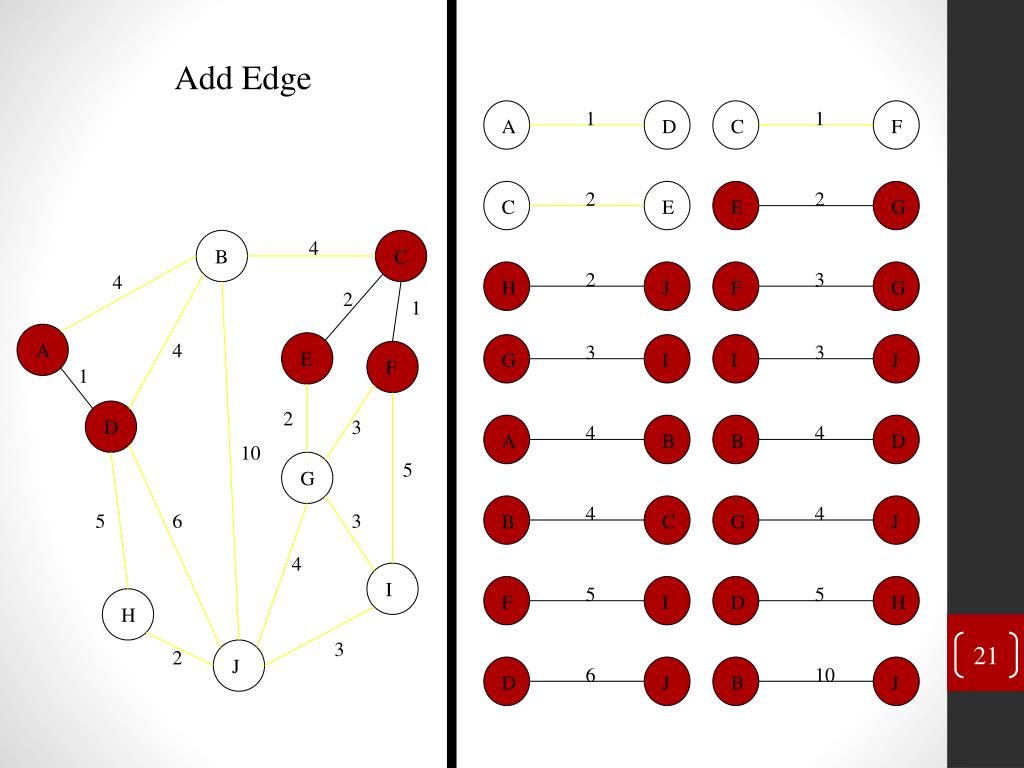

  20. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  21. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

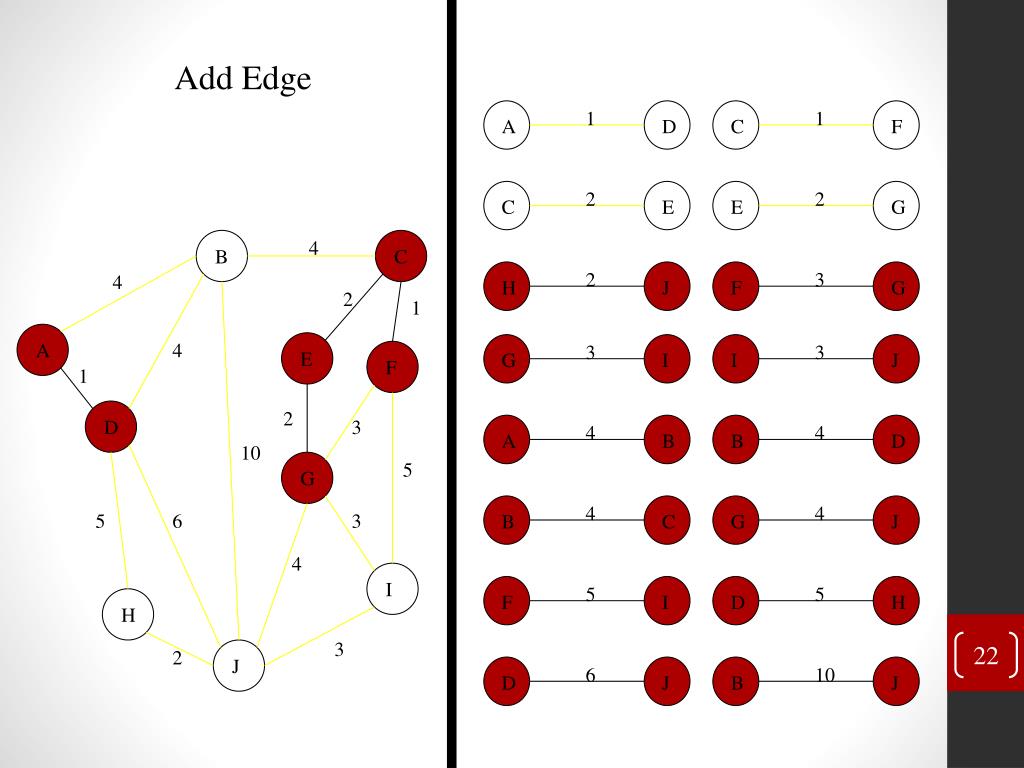

  22. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  23. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

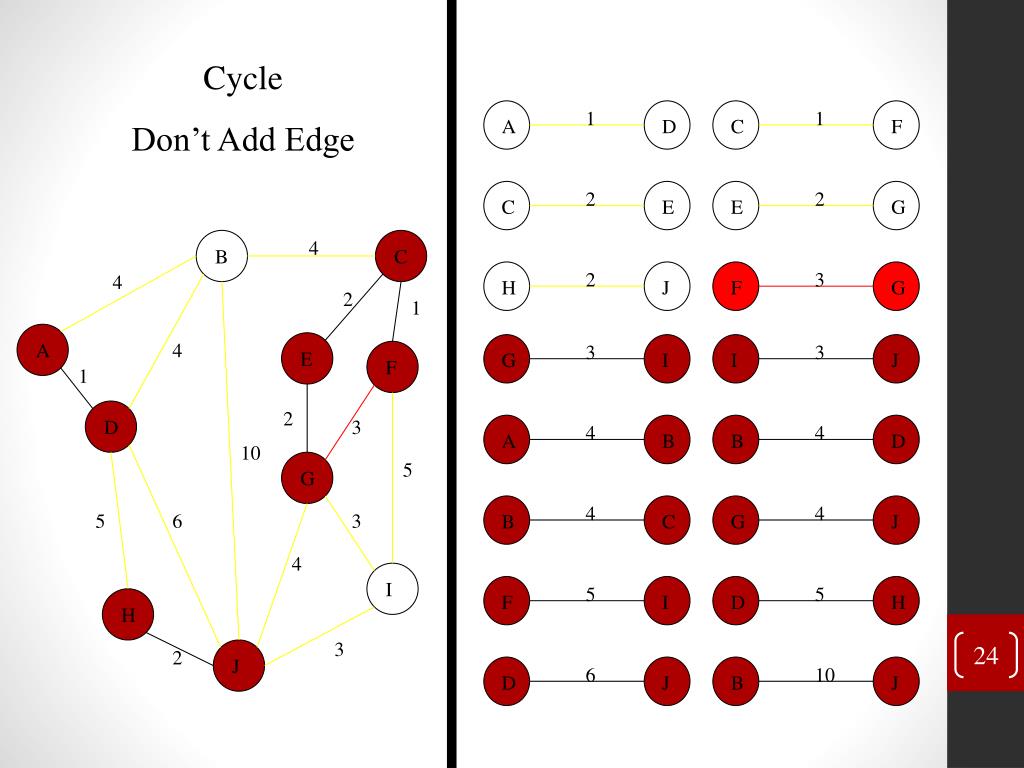

  24. Cycle Don’t Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

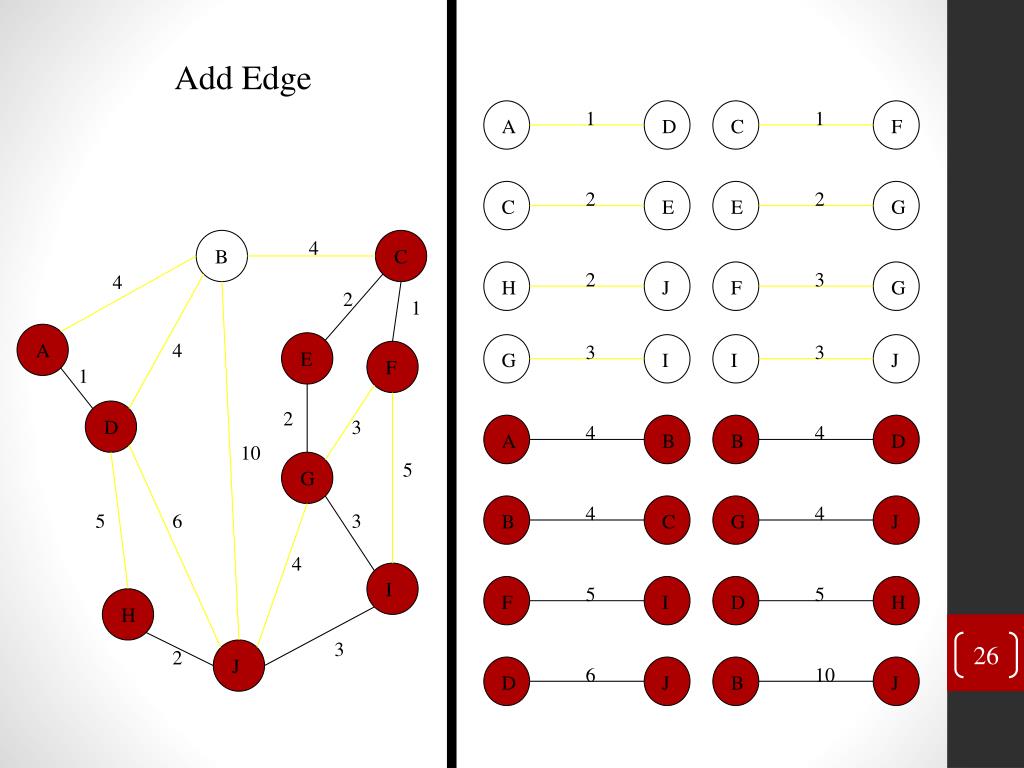

  25. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  26. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

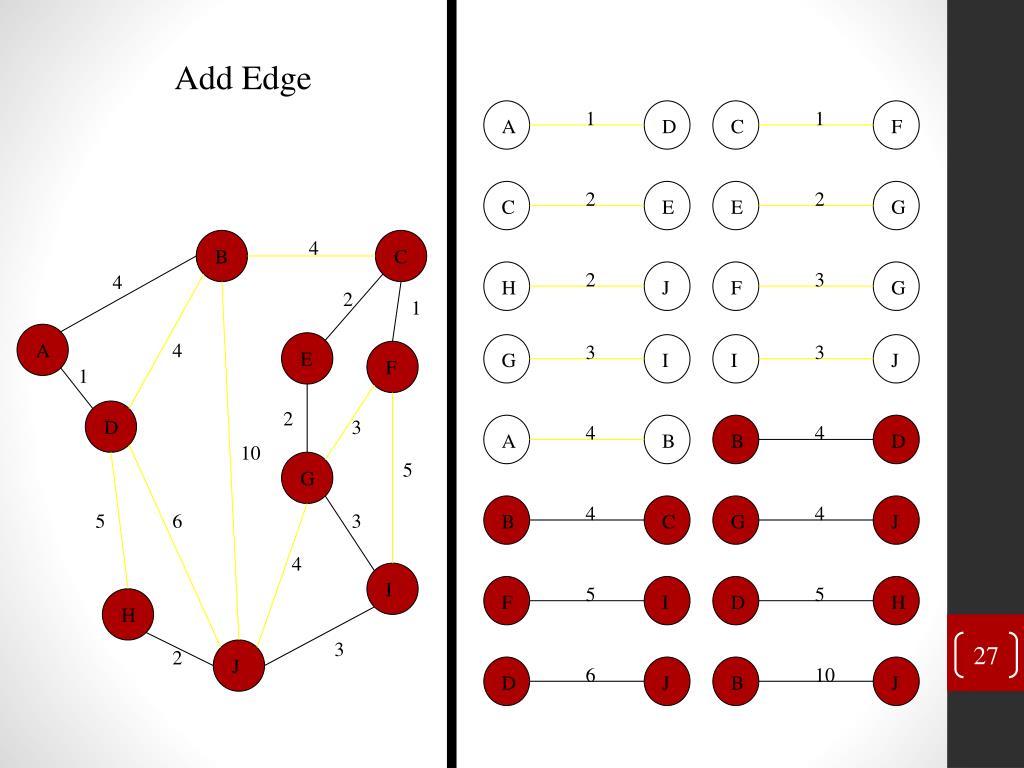

  27. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  28. Cycle Don’t Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

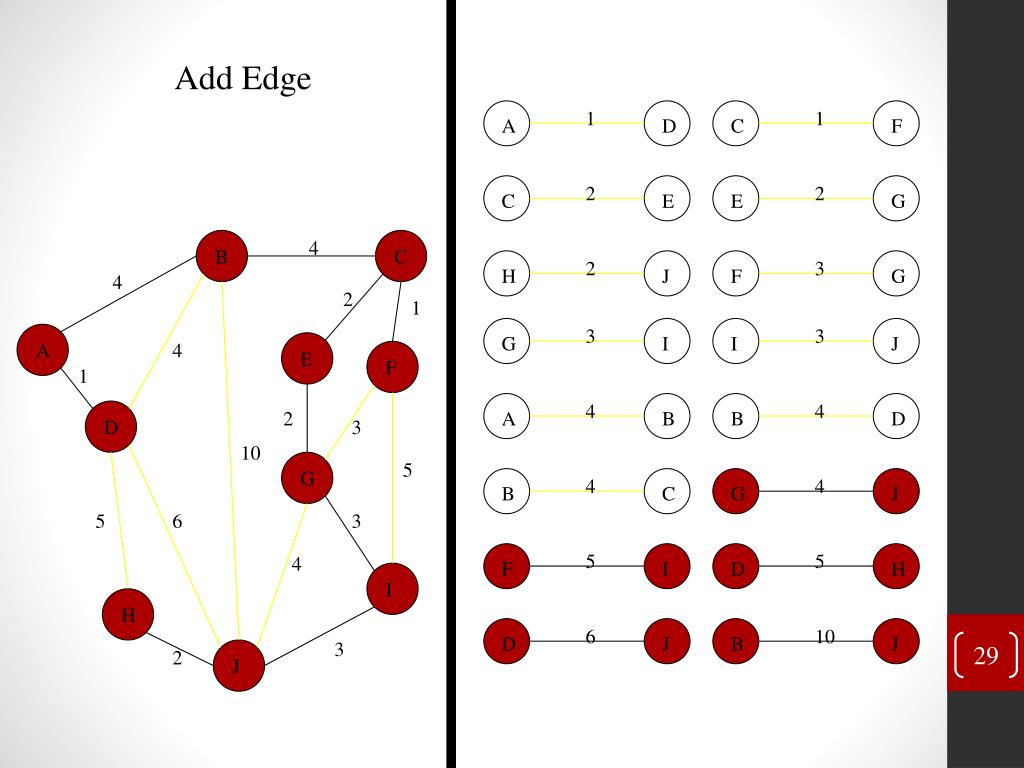

  29. Add Edge 1 1 A D C F 2 2 C E E G 4 2 3 B C H J F G 4 2 1 3 3 G I I J A 4 E F 1 4 4 2 A B B D D 3 10 5 G 4 4 B C G J 5 6 3 4 5 5 I F I D H H 3 2 J 6 10 D J B J

  30. Minimum Spanning Tree Orginal Graph 4 B C 4 B C 4 4 2 1 2 1 A E A 4 F E 1 F 1 2 D 2 D 3 10 G 5 G 3 5 6 3 4 I I H H 3 2 3 J 2 J

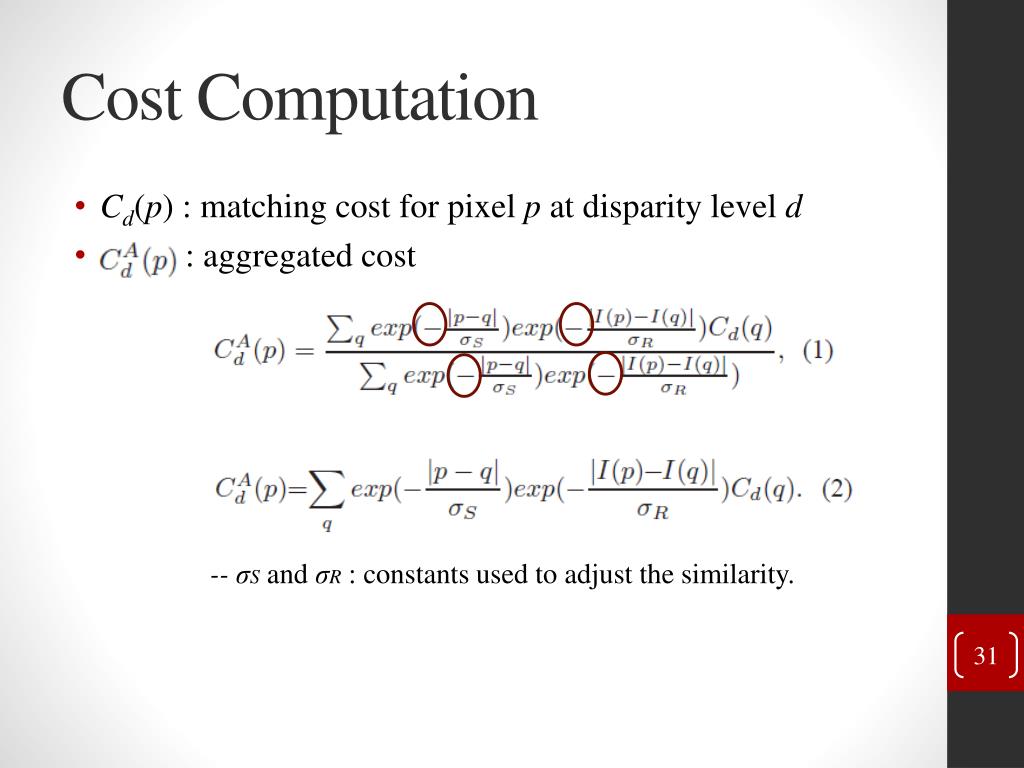

  31. Cost Computation • Cd(p) : matching cost for pixel p at disparity level d • : aggregated cost -- σSand σR: constants used to adjust the similarity.

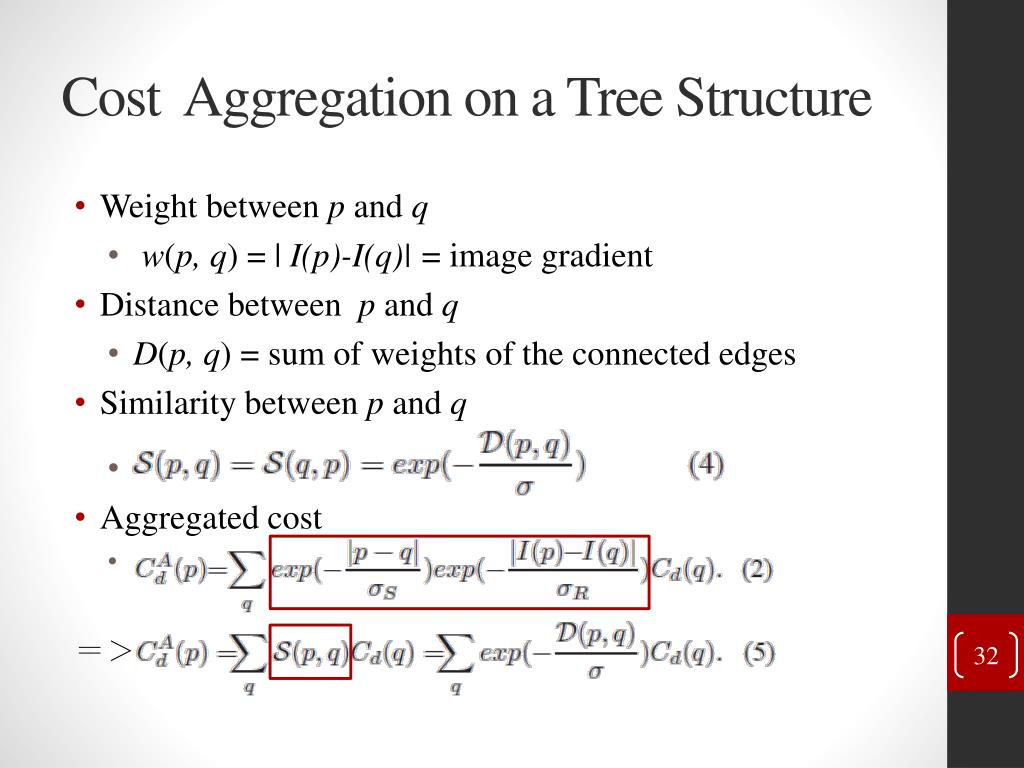

  32. Cost Aggregation on a Tree Structure • Weight between pand q • w(p, q) = | I(p)-I(q)| = image gradient • Distance between p and q • D(p, q) = sum of weights of the connected edges • Similarity between p and q • Aggregated cost ＝＞

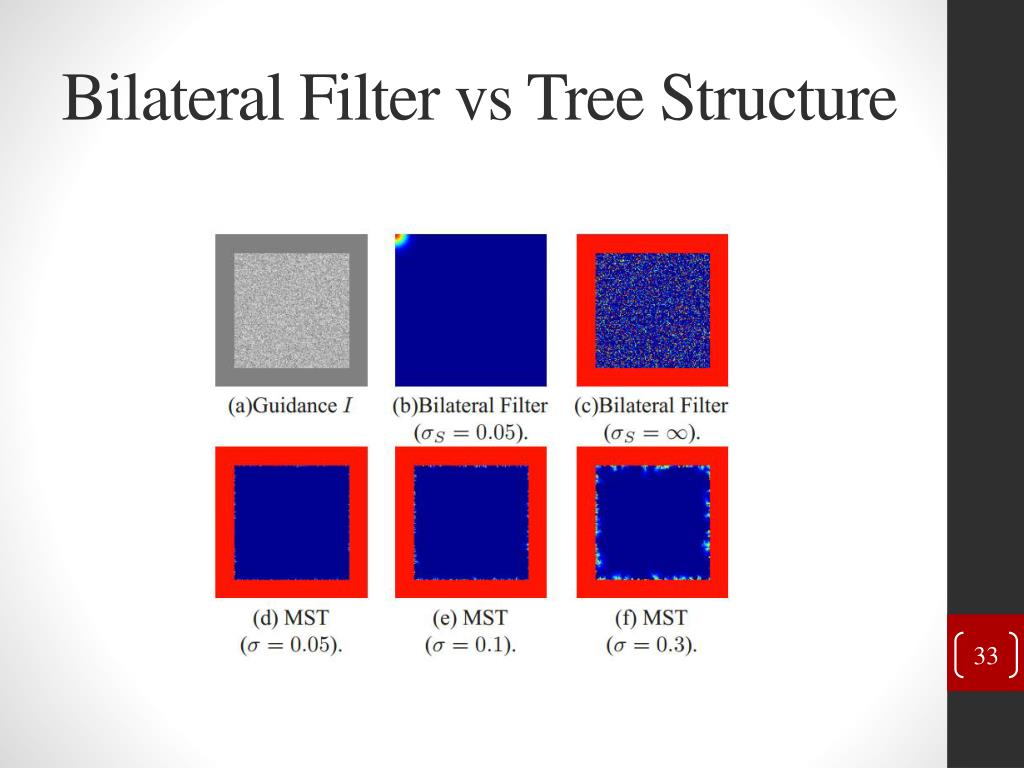

  33. Bilateral Filter vsTree Structure

  34. Cost Aggregation on a MST • Claim 1. Let Tr denote a subtree of a node s and r denote the root node of Tr, then the supports node s received from this subtree is the summation of the supports node s received from r and S(s, r) times the supports node r received from its subtrees. • Supports r = • Supports s = s r Tr

  35. Cost Aggregation on a MST • Aggregated cost => • , if node v is a leaf node • P(vc) denote parent of nodevc

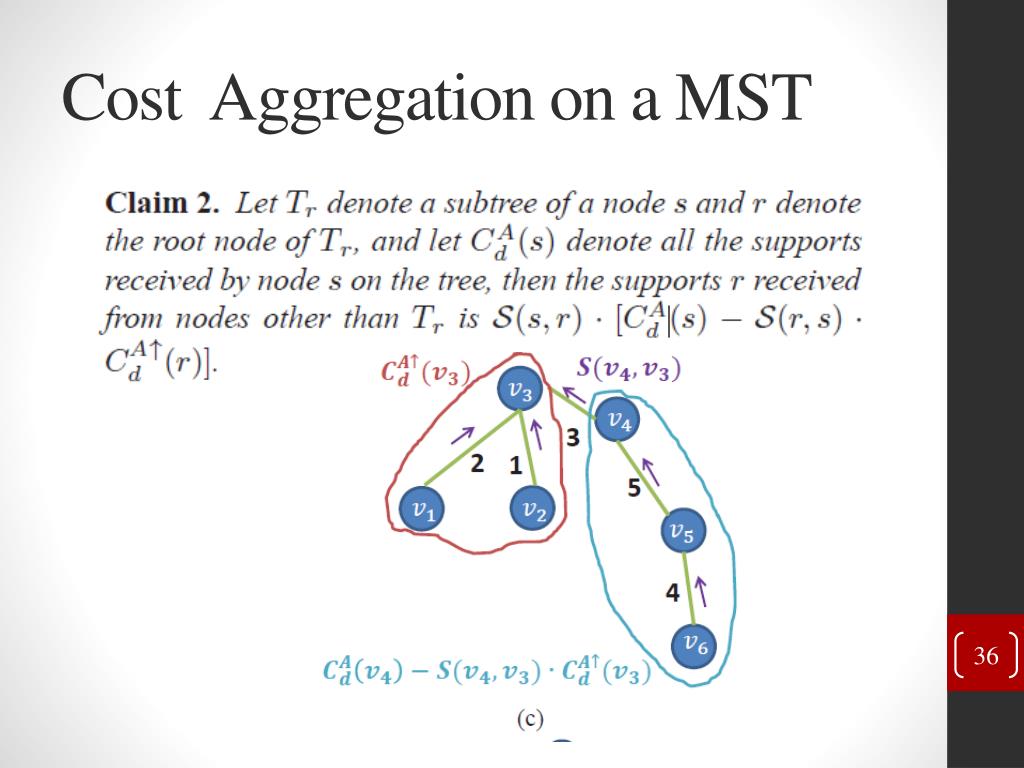

  36. Cost Aggregation on a MST

  37. Cost Aggregation on a MST • Aggregated cost =>

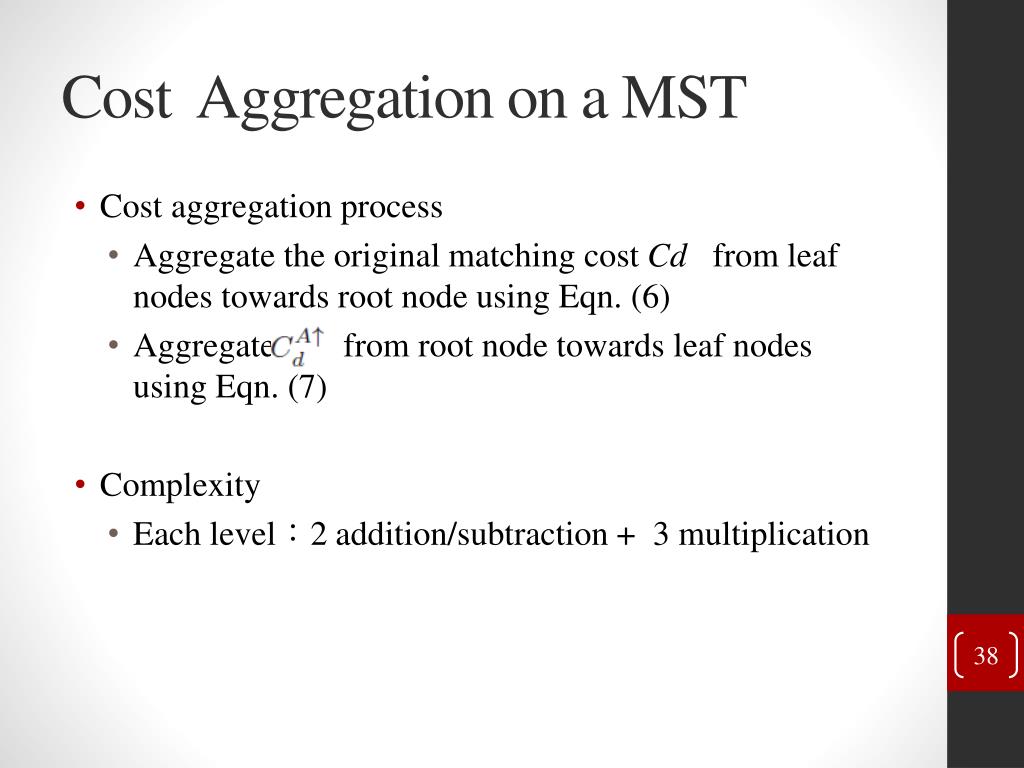

  38. Cost Aggregation on a MST • Cost aggregation process • Aggregate the original matching cost Cd from leaf nodes towards root node using Eqn. (6) • Aggregate from root node towards leaf nodes using Eqn. (7) • Complexity • Each level：2 addition/subtraction + 3 multiplication

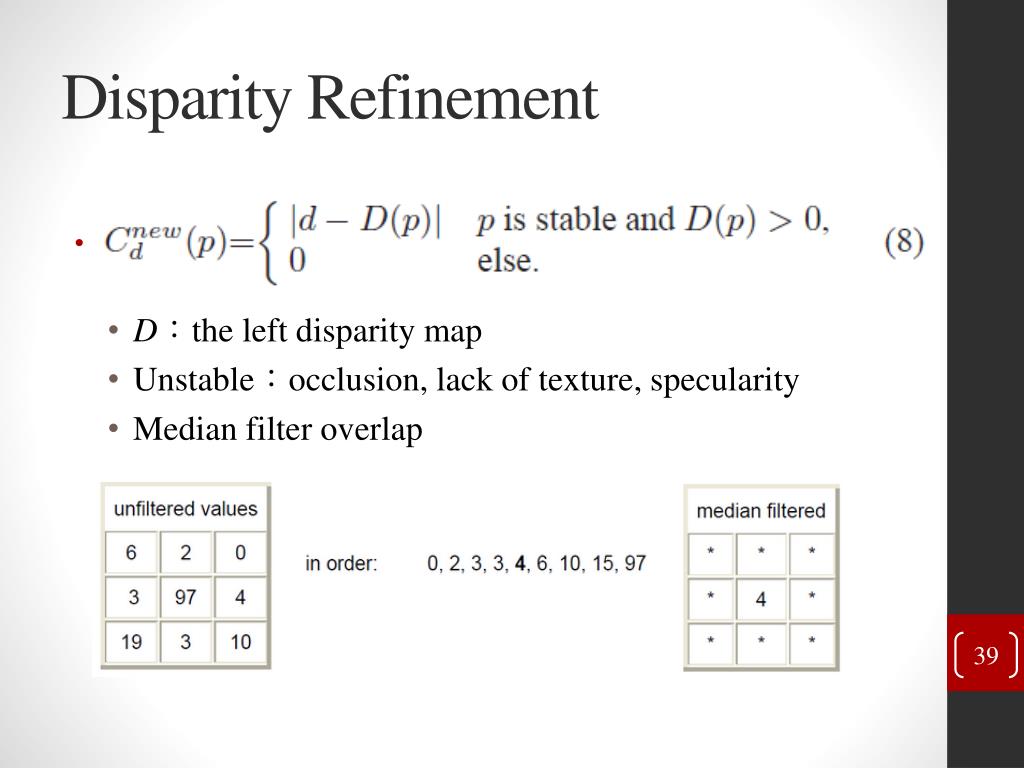

  39. Disparity Refinement • D：the left disparity map • Unstable：occlusion, lack of texture, specularity • Median filter overlap

  40. Experimental Results_________________________

  41. Experimental Results • Device：a MacBook Air laptop computerwith a 1.8 GHz Intel Core i7 CPU and 4 GB memory • Parameter： • σ = 0.1 (non-local cost aggregation) • Source : Middlebury http://vision.middlebury.edu/stereo/ HHI database(book arrival) Microsofy i2i database(Ilkay)

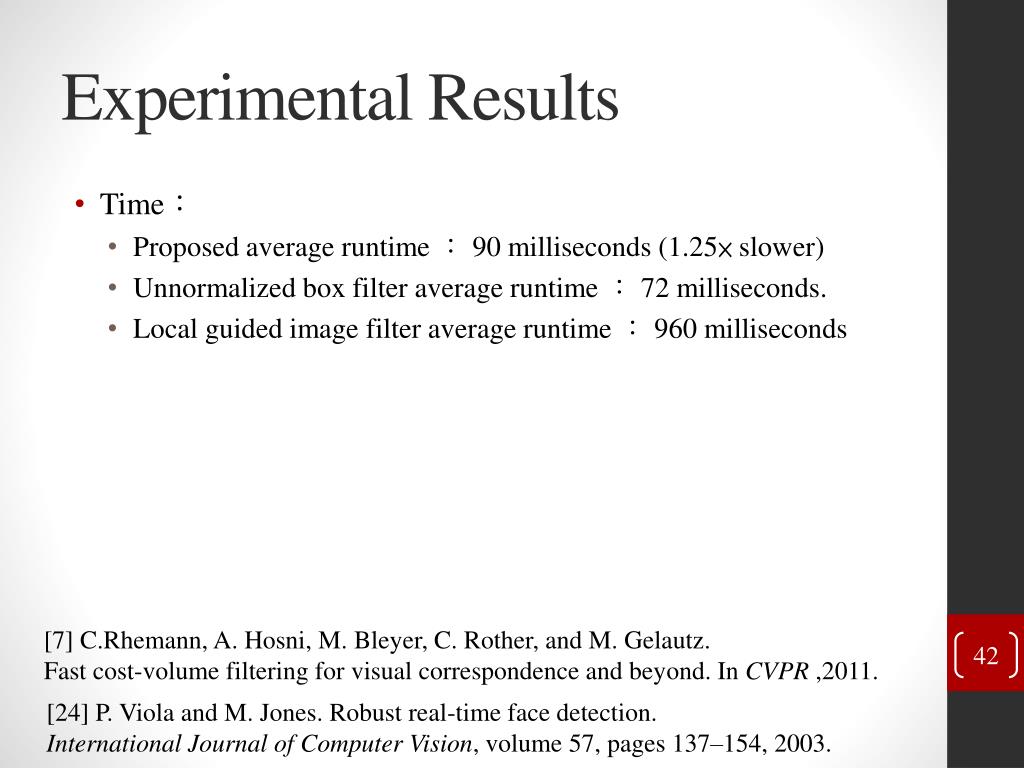

  42. Experimental Results • Time： • Proposed average runtime ： 90 milliseconds (1.25× slower) • Unnormalizedbox filter average runtime ： 72 milliseconds. • Local guided image filter average runtime ： 960 milliseconds [7] C.Rhemann, A. Hosni, M. Bleyer, C. Rother, and M. Gelautz. Fast cost-volume filtering for visual correspondence and beyond. In CVPR,2011. [24] P. Viola and M. Jones. Robust real-time face detection. International Journal of Computer Vision, volume 57, pages 137–154, 2003.

  43. [7] C.Rhemann, A. Hosni, M. Bleyer, C. Rother, and M. Gelautz. Fast cost-volume filtering for visual correspondence and beyond. In CVPR,2011.

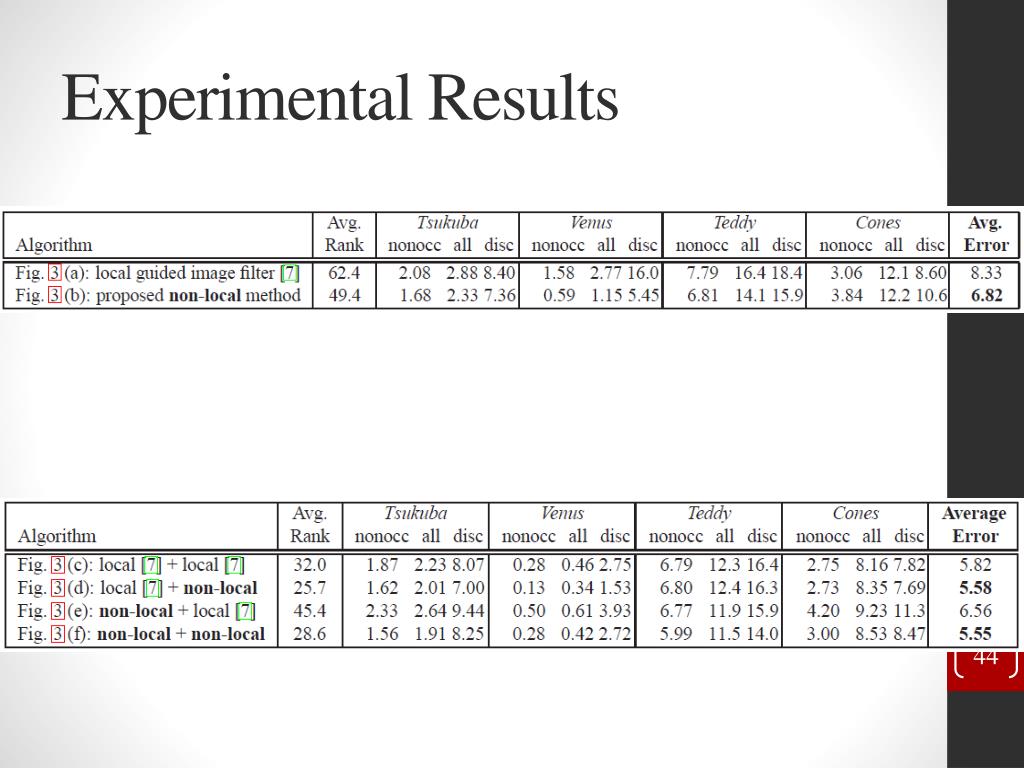

  44. Experimental Results

  45. Experimental Results

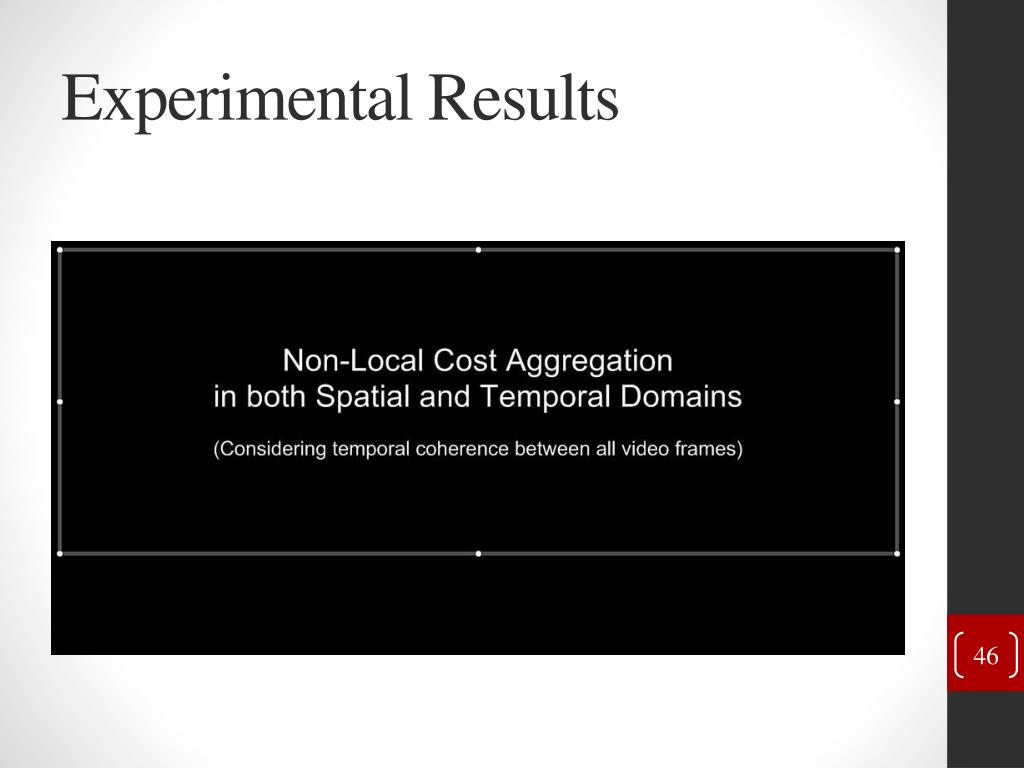

  46. Experimental Results

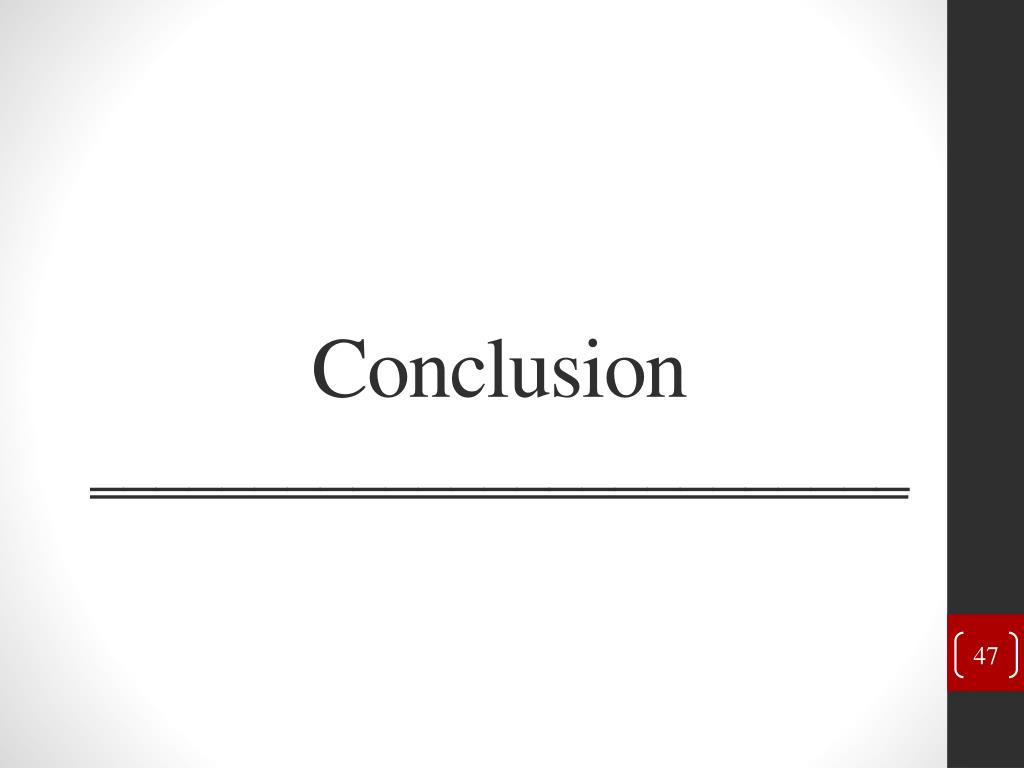

  47. Conclusion_________________________

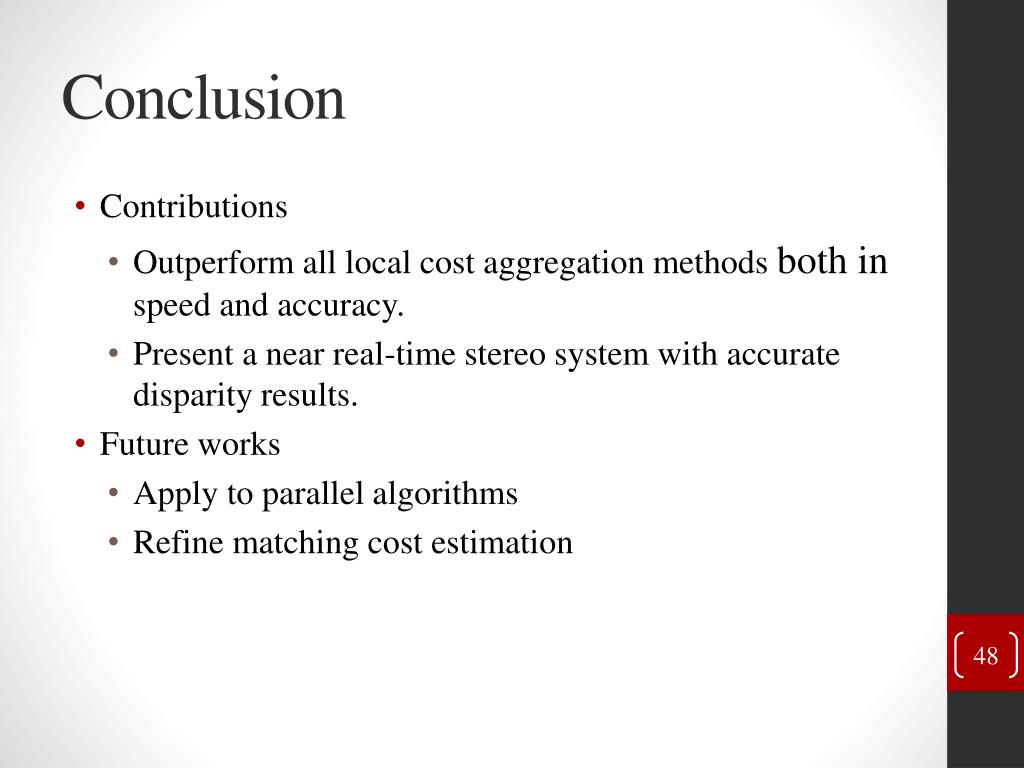

  48. Conclusion • Contributions • Outperform all local cost aggregation methodsboth in speed and accuracy. • Present a near real-time stereo system with accurate disparity results. • Futureworks • Apply to parallel algorithms • Refine matching cost estimation
