A Riddle…

A Riddle…. What do you get when you combine 2 bikes, two foam sticks and 2 idiots?. A Collision!. Conservation of Momentum. What does “conservation” mean?. The TOTAL AMOUNT OF MOMENTUM in a closed system WILL ALWAYS REMAIN CONSTANT. p initial = p final. Elastic Collision.

sheri
Télécharger la présentation

A Riddle…

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

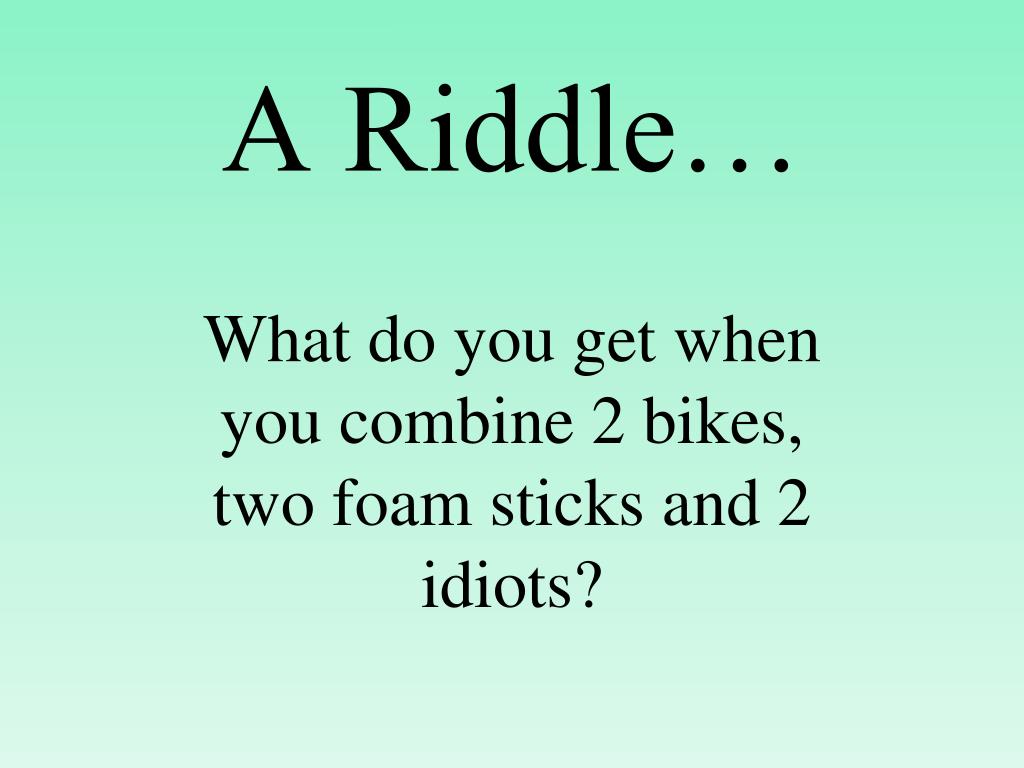

  1. A Riddle… What do you get when you combine 2 bikes, two foam sticks and 2 idiots?

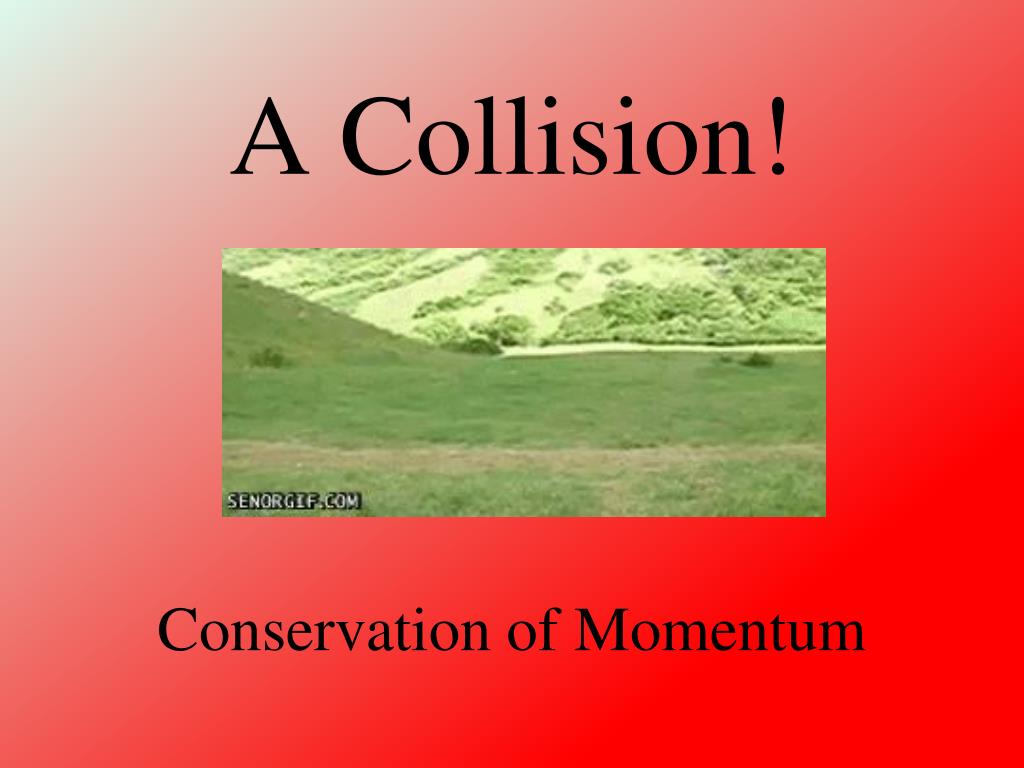

  2. A Collision! Conservation of Momentum

  3. What does “conservation” mean? The TOTAL AMOUNT OFMOMENTUM in a closed system WILL ALWAYS REMAIN CONSTANT pinitial = pfinal

  4. Elastic Collision Two objects collide and SEPARATE without any sticking Animation When the two objects have the same MASS, they TRADE MOMENTUM

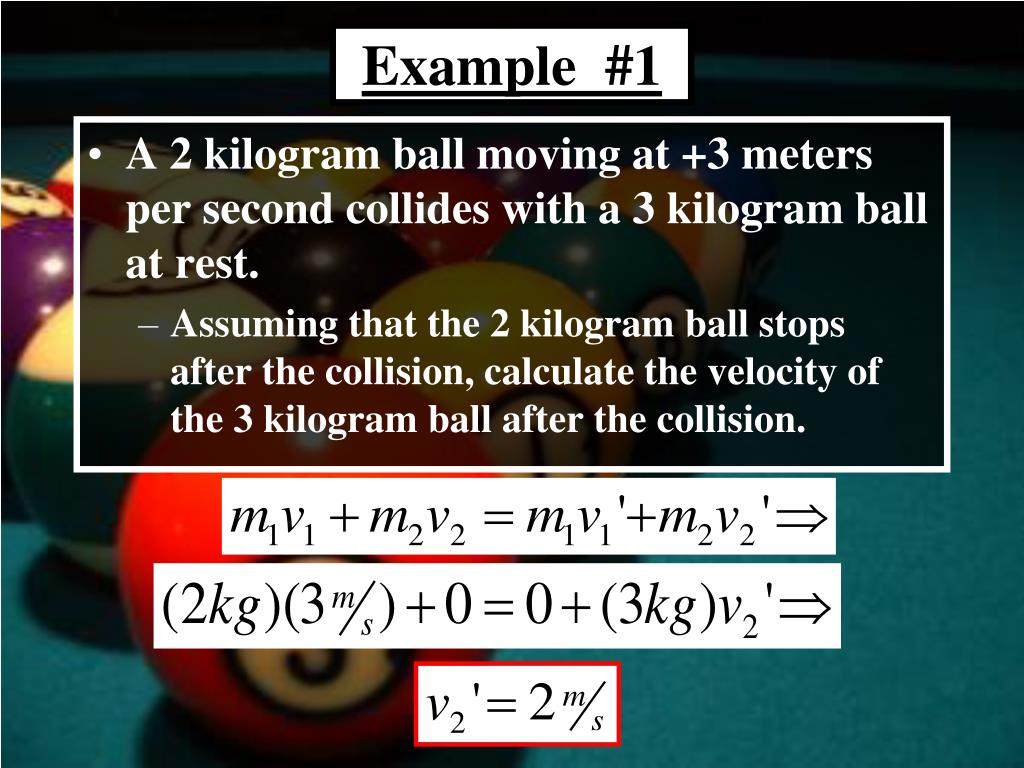

  5. Example #1 • A 2 kilogram ball moving at +3 meters per second collides with a 3 kilogram ball at rest. • Assuming that the 2 kilogram ball stops after the collision, calculate the velocity of the 3 kilogram ball after the collision.

  6. Inelastic Collision Two objects collide and STICK together Animation The MASSES of the objects COMBINE TO FORM A SINGLE MASS

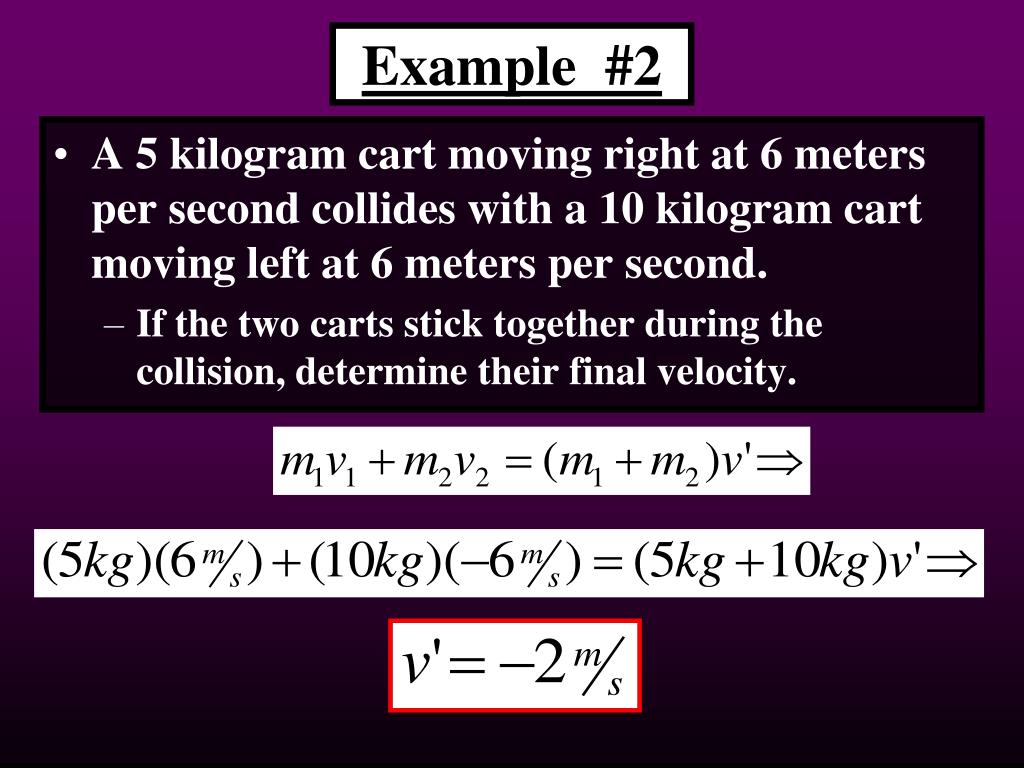

  7. Example #2 • A 5 kilogram cart moving right at 6 meters per second collides with a 10 kilogram cart moving left at 6 meters per second. • If the two carts stick together during the collision, determine their final velocity.

  8. Explosion/Recoil Two objects held together are PUSHED APART Animation Usually this system will BEGIN WITH A MOMENTUM OF ZERO

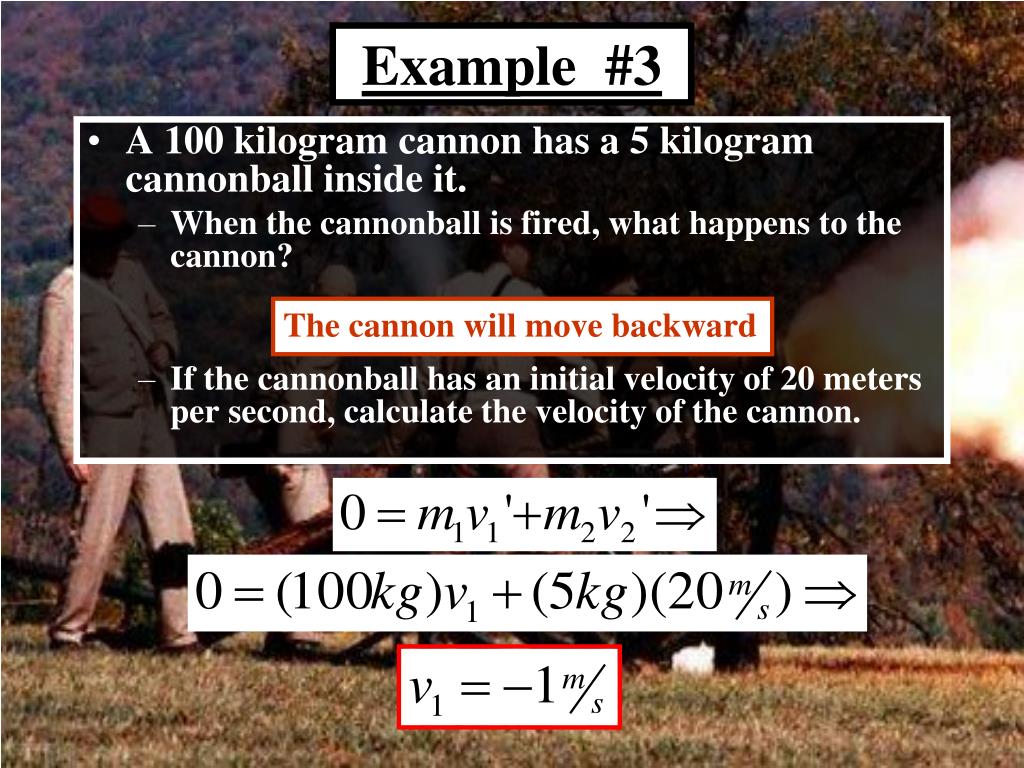

  9. Example #3 • A 100 kilogram cannon has a 5 kilogram cannonball inside it. • When the cannonball is fired, what happens to the cannon? • If the cannonball has an initial velocity of 20 meters per second, calculate the velocity of the cannon. The cannon will move backward

  10. SUMMARY • Define the Law of Conservation of Momentum. • Why does the direction of an object’s motion matter? • Name and describe the three situations where momentum is conserved.
