Origin of the Solar System

Origin of the Solar System. Spiral Galaxy. Star Birth, Orion Nebula. Beta Pictoris. Solar Nebula. Formation of the Universe. Origin of the Solar System. Historically there have been two competing classes of hypotheses for origin of the solar system. 1. Dualistic or Encounter Hypothesis

sherlock_clovis
Télécharger la présentation

Origin of the Solar System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Origin of the Solar System Spiral Galaxy Star Birth, Orion Nebula Beta Pictoris Solar Nebula

  2. Formation of the Universe

  3. Origin of the Solar System Historically there have been two competing classes of hypotheses for origin of the solar system. 1. Dualistic or Encounter Hypothesis Le Clerc (Comte de Buffon) in 1745 T.C. Chamberlain in early 20th century 2. Nebular Hypothesis Descartes 1644 Immanuel Kant 1755 Laplace 1796

  4. Dualistic Hypothesis

  5. Nebular Hypothesis

  6. The Beta Pictoris disk appears to be a young planetary system in the making. This image supports the standard model of solar system birth, which supposes that planets accrete from a disk of dust and gas surrounding a young star. Beta Pictoris is a young star about 20 million years old that is located 63 light years away. Beta Pictoris This false-color image of the disk surrounding Beta Pictoris was obtained at the European Southern Observatory by blocking direct starlight and imaging the near-infrared light from the disk.

  7. At the heart of the Orion Nebula lies a complex of molecular clouds where abundant star formation is occurring today. The clouds are illuminated by a flood of ultraviolet light emitted by four bright stars, collectively called the Trapezium. More than 150 protoplanetary disks have been found in this mosaic of HST images. Orion Nebula, giant stellar nursery ~1600 light years away

  8. At the center of each proplyd (protoplanetary disk) is a T Tauri star. The disks surrounding them are two to eight times the diameter of our solar system.

  9. Solar Nebula with Bipolar Outflow

  10. Nucleosynthesis

  11. Nucleosynthesis Our Sun’s fusion only creates He, need red giant for heavier elements.

  12. Chart of the Nuclides

  13. Nucleosynthesis Elements heavier than Fe created by s- and r-processes in a supernova

  14. Interplanetary Dust Grain In this scanning electron microscope image, all the minerals, organic compounds, and amorphous materials look the same. However, isotopic analysis reveals that some components of this dust actually solidified in interstellar space long before our Sun and its planets formed.

  15. In-falling interstellar gas and dust is focused inward towards the proto-sun.

  16. Chondrules formed from melted dust grains that were flash-heated in the inner solar nebula.

  17. Planetesimal Growth

  18. Proto-planet Formation

  19. Temperature in the Solar Nebula

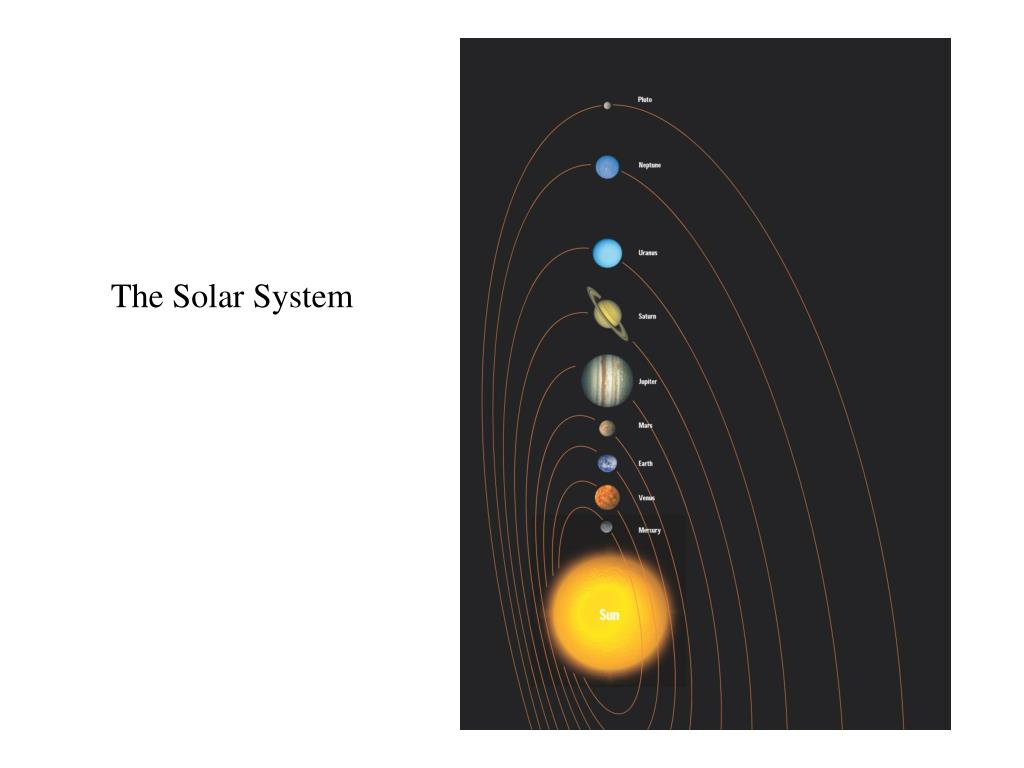

  20. The Solar System

  21. Terrestrial Planets Mercury, Venus, Earth, Mars

  22. Terrestrial Planets

  23. Giant Planets Jupiter, Saturn, Uranus, Neptune

  24. Giant Planets

  25. Habitable Zone in our Solar System
