CON1702 – Enterprise-Proven Private Cloud Migration with Oracle VM

2. CON1702 – Enterprise-Proven Private Cloud Migration with Oracle VM Honglin Su, 苏虹林, Director of Product Management, Oracle Cary Jin, 靳海峰, Principal Sales Consultant, Oracle

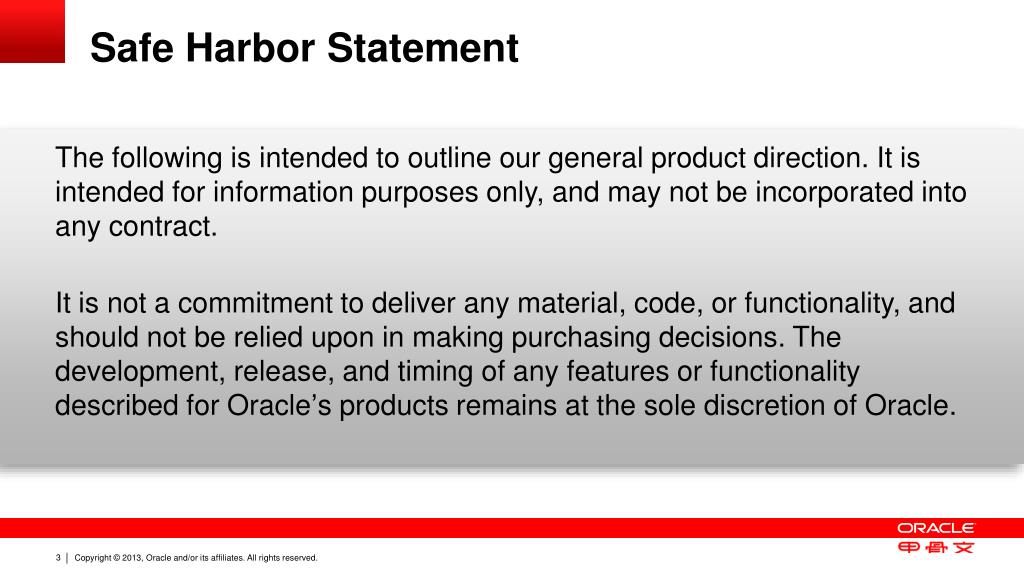

3. Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.

4. Agenda • Oracle Virtualization • Application-Driven Virtualization • Oracle VM Templates • Oracle Virtual Assembly Builder • Pulling it all together with Enterprise Manager

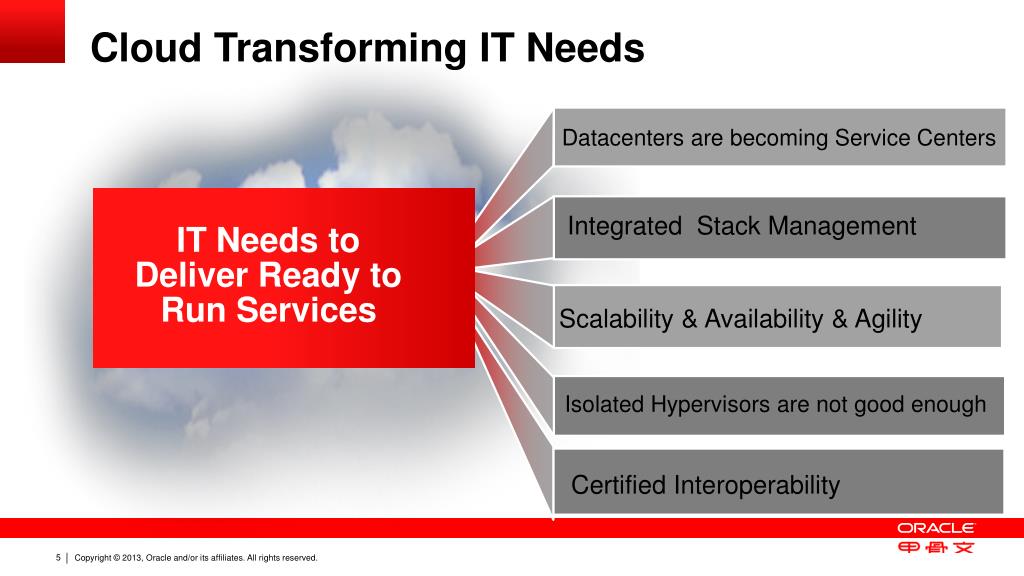

5. Cloud Transforming IT Needs Datacenters are becoming Service Centers Integrated Stack Management IT Needs to Deliver Ready to Run Services Scalability & Availability & Agility Isolated Hypervisors are not good enough Certified Interoperability

6. Application Lifecycle Challenges For The Cloud From Development to Production I need to add new features to our product now. I don’t have time to stand up an entire dev stack Is the new app compatible? I can’t afford the downtime Update/Upgrade Develop QA needs access to new storage, change database configuration…. Too busy to stage a cluster environment to test IT needs to roll out app ASAP. Too many dependencies, how do I ensure the proper application configuration Deploy Test

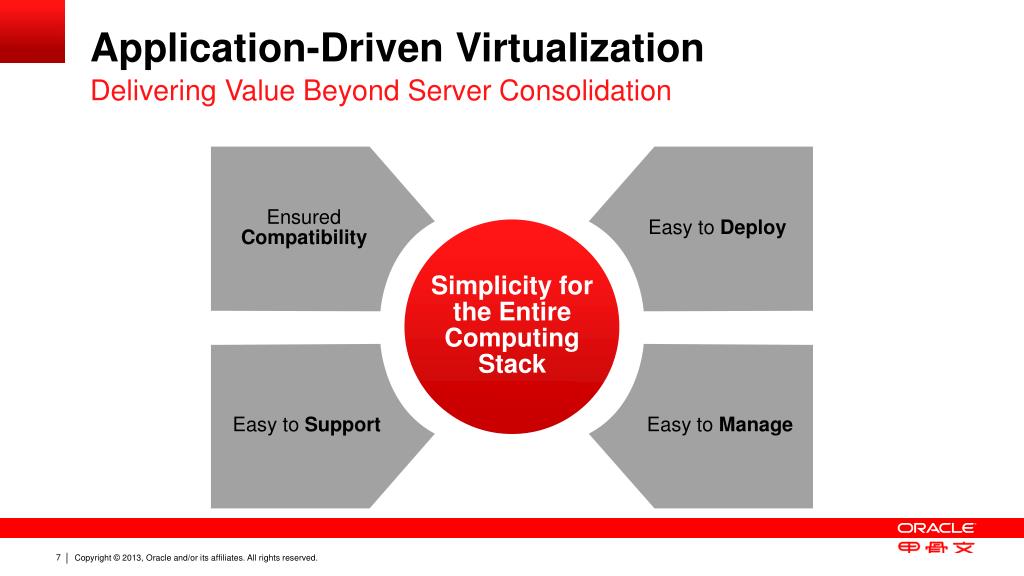

7. Application-Driven Virtualization Delivering Value Beyond Server Consolidation Ensured Compatibility Easy to Deploy Simplicity for the Entire Computing Stack Easy to Support Easy to Manage

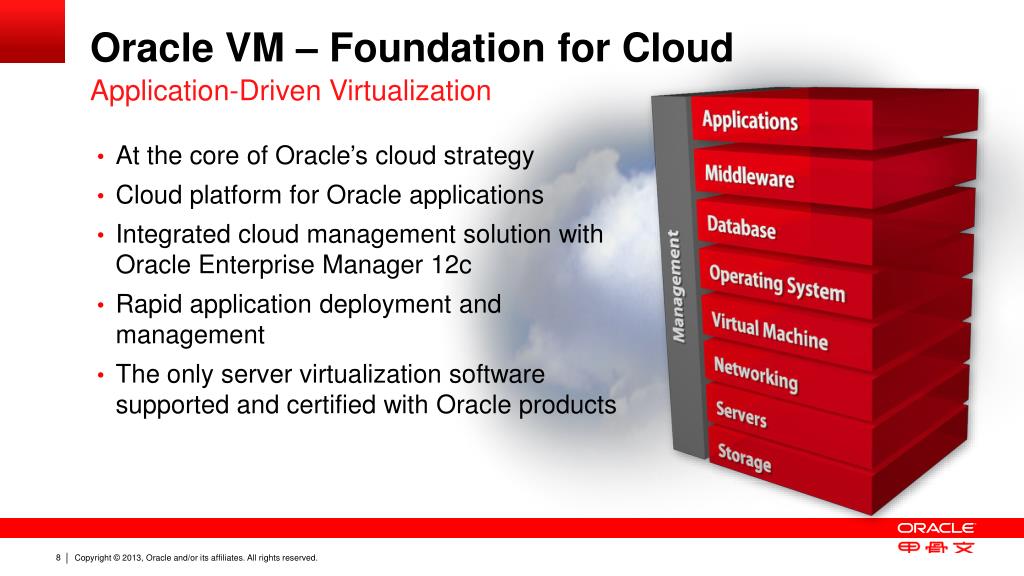

8. Oracle VM – Foundation for Cloud Application-Driven Virtualization • At the core of Oracle’s cloud strategy • Cloud platform for Oracle applications • Integrated cloud management solution with Oracle Enterprise Manager 12c • Rapid application deployment and management • The only server virtualization software supported and certified with Oracle products

9. Rapid Application Virtualization & Deployment • Rapid Application Deployment • Oracle VM Templates • 100 + Pre-defined Oracle VM Templates • Pre-tested production-ready • Oracle Virtual Assembly Builder • Multi-tier application support • Encapsulates best practices

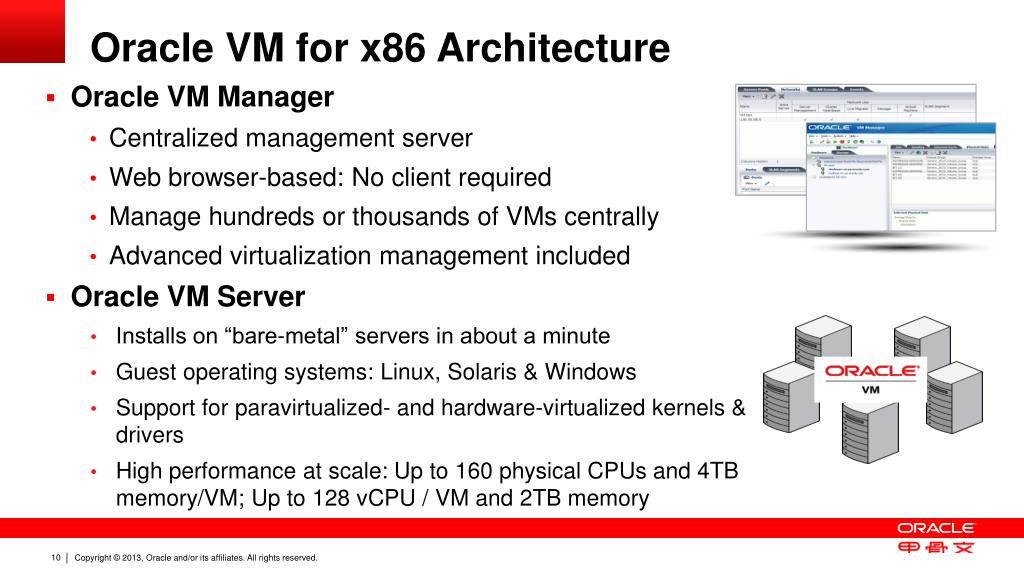

10. Oracle VM for x86 Architecture • Oracle VM Manager • Centralized management server • Web browser-based: No client required • Manage hundreds or thousands of VMs centrally • Advanced virtualization management included • Oracle VM Server • Installs on “bare-metal” servers in about a minute • Guest operating systems: Linux, Solaris & Windows • Support for paravirtualized- and hardware-virtualized kernels & drivers • High performance at scale: Up to 160 physical CPUs and 4TB memory/VM; Up to 128 vCPU / VM and 2TB memory

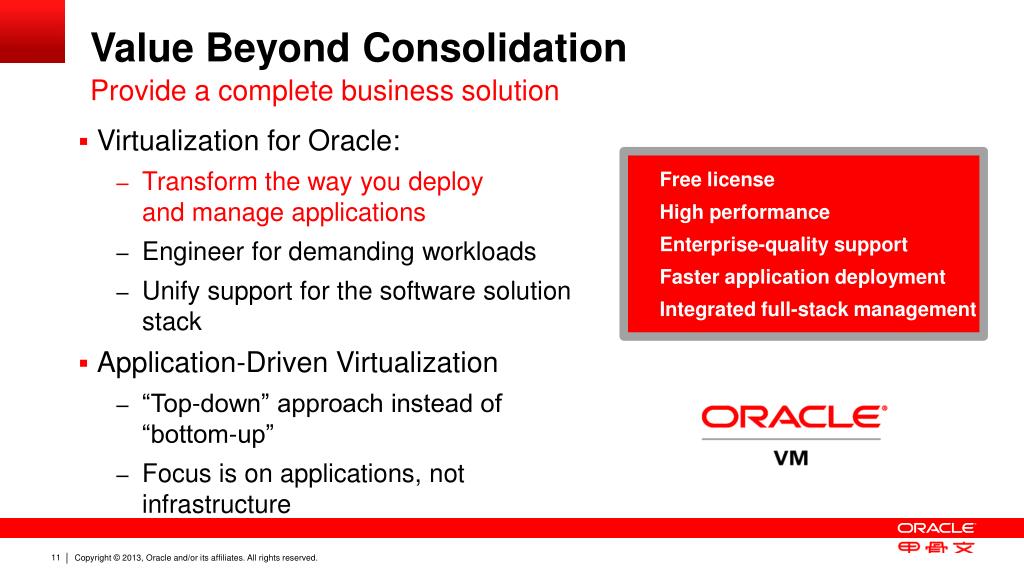

11. Value Beyond Consolidation Provide a complete business solution • Free license • High performance • Enterprise-quality support • Faster application deployment • Integrated full-stack management • Virtualization for Oracle: • Transform the way you deploy and manage applications • Engineer for demanding workloads • Unify support for the software solution stack • Application-Driven Virtualization • “Top-down” approach instead of “bottom-up” • Focus is on applications, not infrastructure

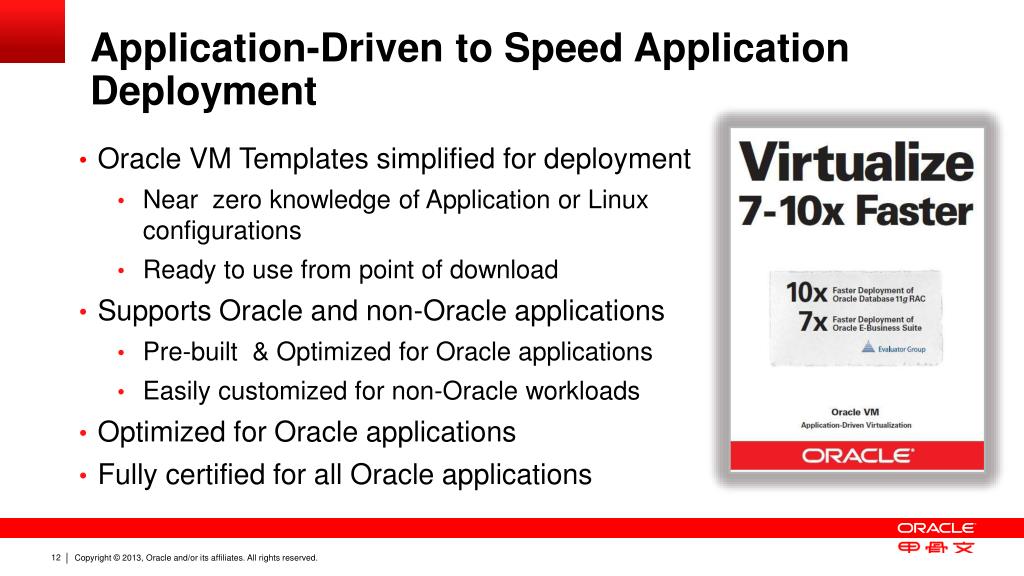

12. Application-Driven to Speed Application Deployment • Oracle VM Templates simplified for deployment • Near zero knowledge of Application or Linux configurations • Ready to use from point of download • Supports Oracle and non-Oracle applications • Pre-built & Optimized for Oracle applications • Easily customized for non-Oracle workloads • Optimized for Oracle applications • Fully certified for all Oracle applications

13. Typical Process for Deploying Applications • 1-3 Weeks From “Go” to Ready Replicate the environment for build, test, deploy Acquire and install new platform components Fine tune the installed environment Create / customize scriptsto “automate” process Configure all platform software Build and Deploy App! Application/DBA Team Platform Team 1-5 Days 1 Day 1-2 Days Start 1-5 Days 1-2 Days

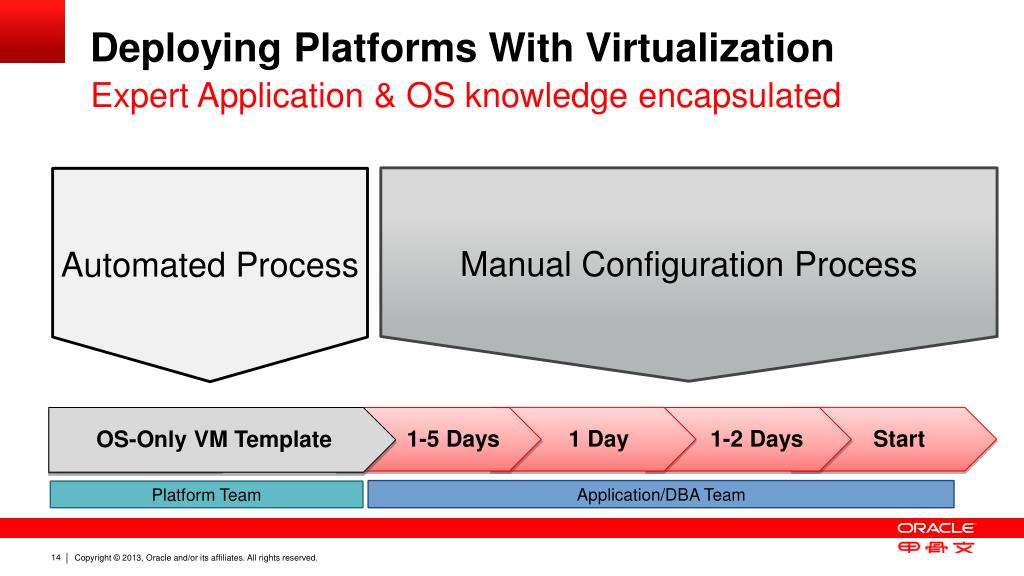

14. Manual Configuration Process Deploying Platforms With Virtualization Automated Process • Expert Application & OS knowledge encapsulated Start 1 Day OS-Only VM Template 1-5 Days 1-2 Days Application/DBA Team Platform Team

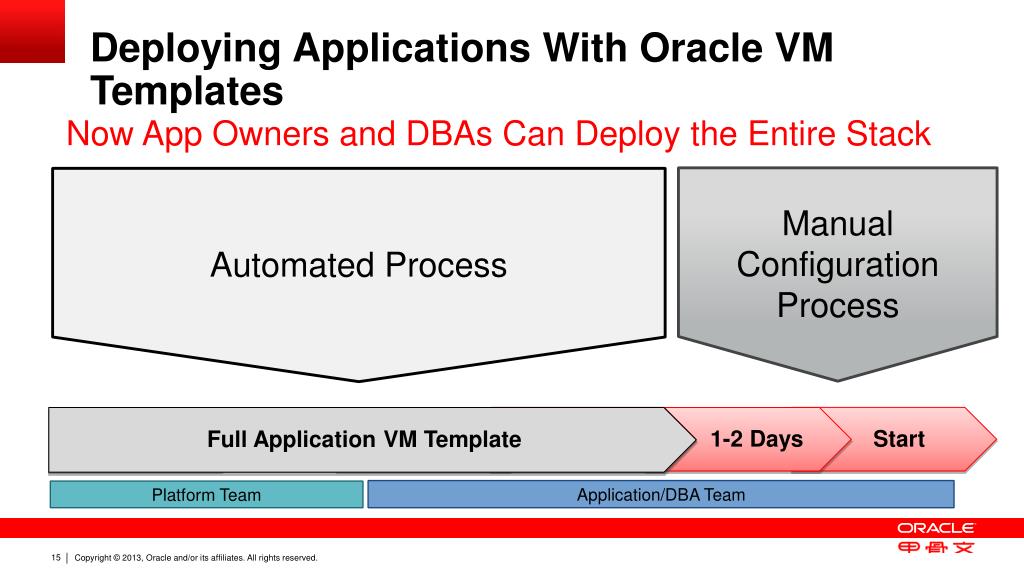

15. Automated Process Deploying Applications With Oracle VM Templates Manual Configuration Process • Now App Owners and DBAs Can Deploy the Entire Stack Start 1 Day Full Application VM Template 1-5 Days 1-2 Days Application/DBA Team Platform Team

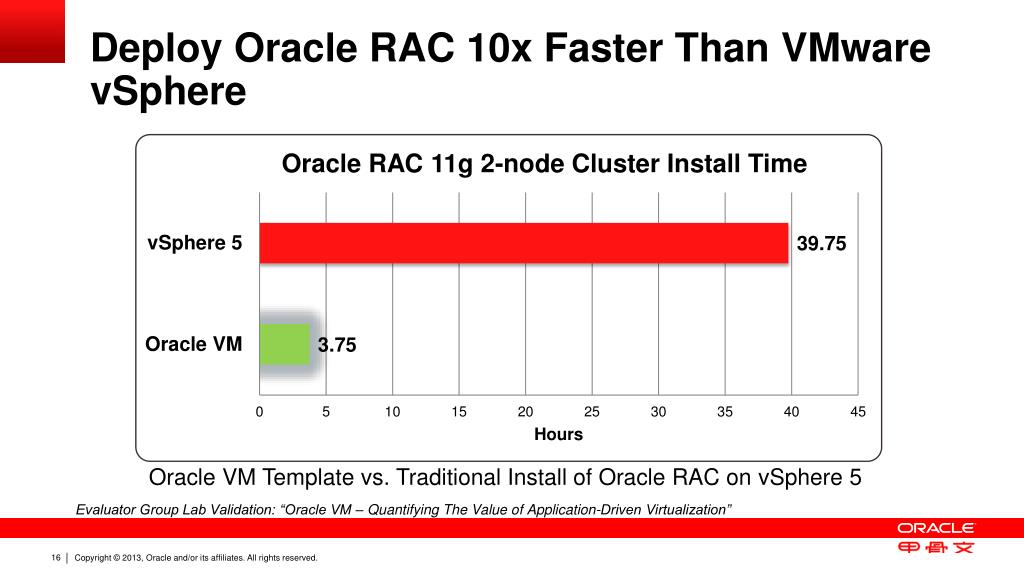

16. Deploy Oracle RAC 10x Faster Than VMware vSphere Oracle VM Template vs. Traditional Install of Oracle RAC on vSphere 5 Evaluator Group Lab Validation: “Oracle VM – Quantifying The Value of Application-Driven Virtualization”

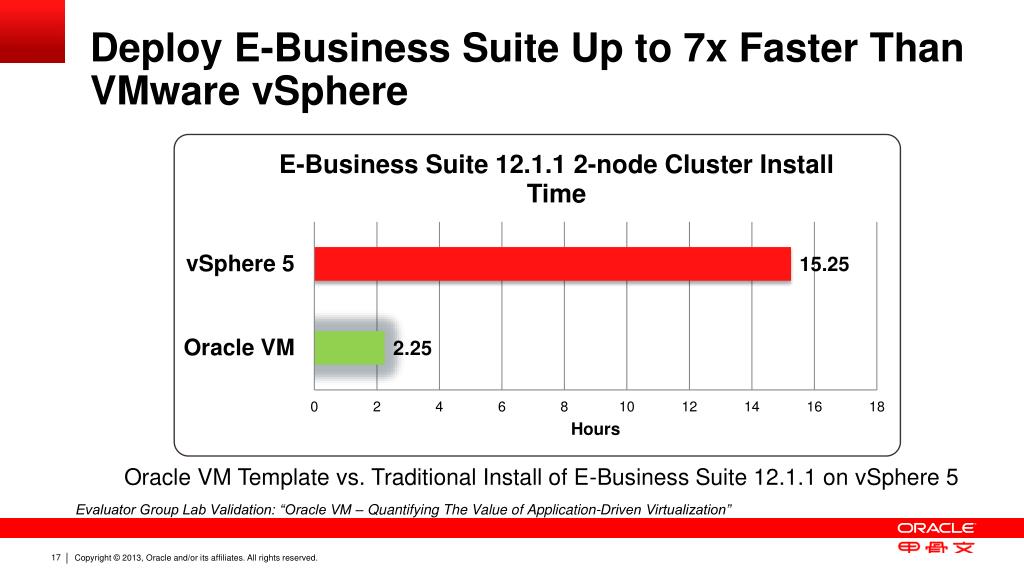

17. Deploy E-Business Suite Up to 7x Faster Than VMware vSphere Oracle VM Template vs. Traditional Install of E-Business Suite 12.1.1 on vSphere 5 Evaluator Group Lab Validation: “Oracle VM – Quantifying The Value of Application-Driven Virtualization”

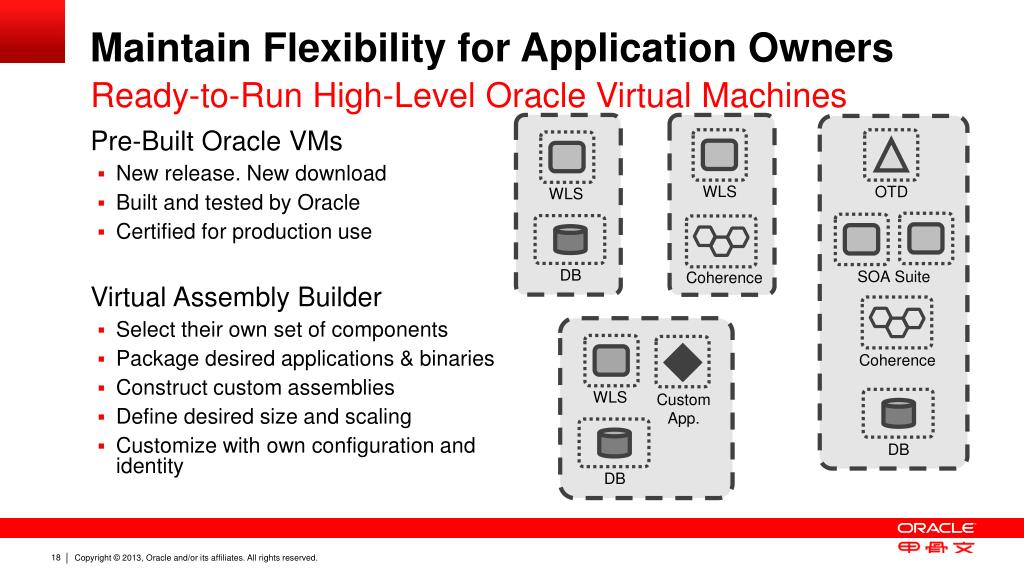

18. Maintain Flexibility for Application Owners Pre-Built Oracle VMs • New release. New download • Built and tested by Oracle • Certified for production use Virtual Assembly Builder • Select their own set of components • Package desired applications & binaries • Construct custom assemblies • Define desired size and scaling • Customize with own configuration and identity • Ready-to-Run High-Level Oracle Virtual Machines WLS OTD WLS DB SOA Suite Coherence Coherence WLS CustomApp. DB DB

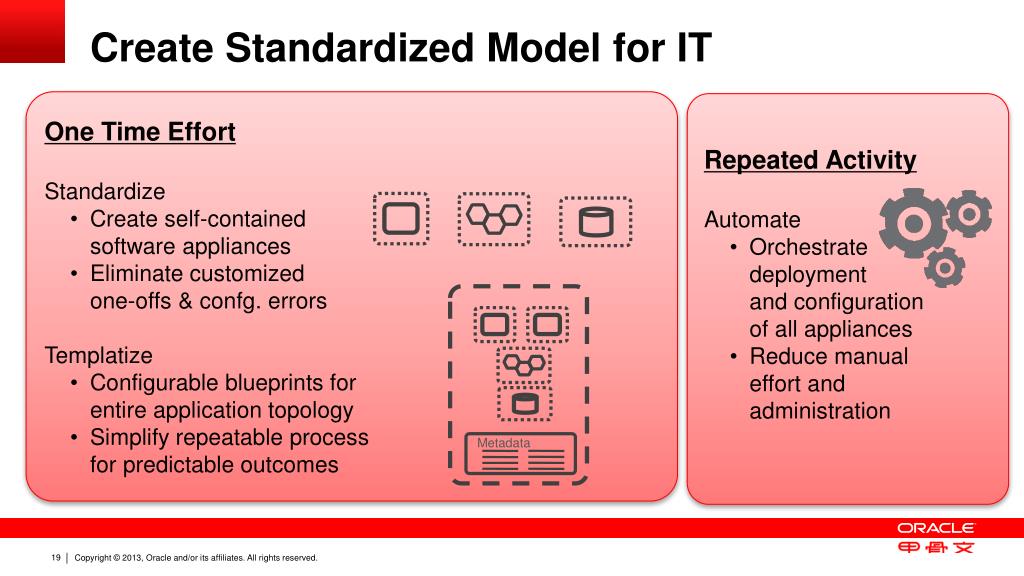

19. Create Standardized Model for IT • Repeated Activity • Automate • Orchestratedeploymentand configurationof all appliances • Reduce manual effort and administration • One Time Effort • Standardize • Create self-containedsoftware appliances • Eliminate customizedone-offs & confg. errors • Templatize • Configurable blueprints forentire application topology • Simplify repeatable processfor predictable outcomes Metadata

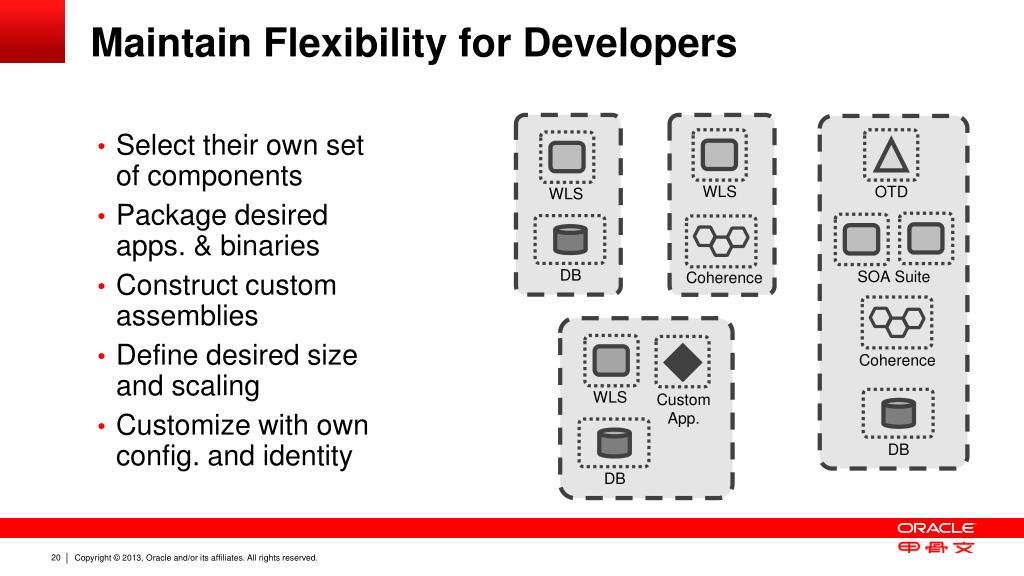

20. Select their own set of components Package desired apps. & binaries Construct custom assemblies Define desired size and scaling Customize with own config. and identity Maintain Flexibility for Developers WLS OTD WLS DB SOA Suite Coherence Coherence WLS CustomApp. DB DB

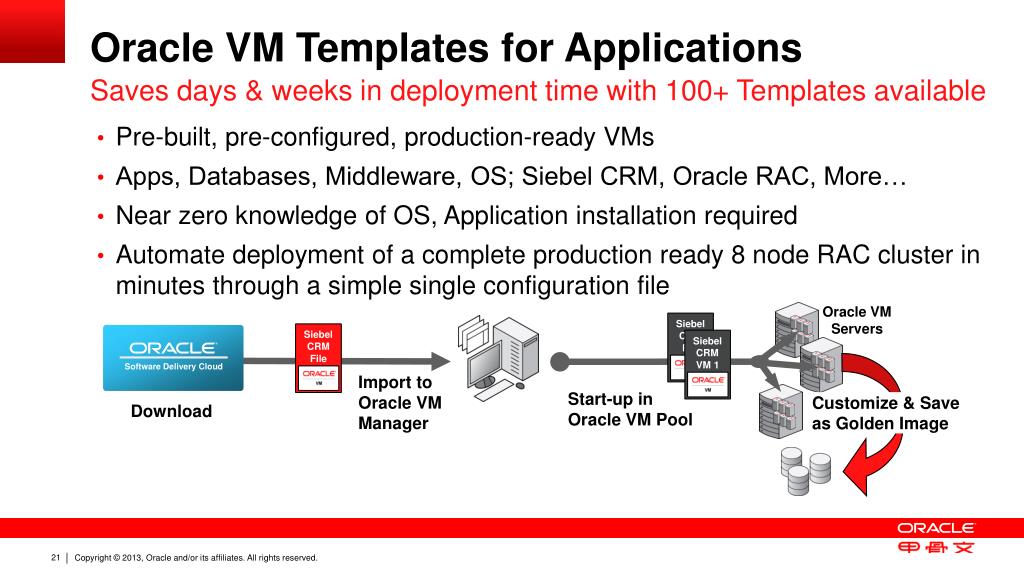

21. Software Delivery Cloud Siebel CRM File Oracle VM Templates for Applications Saves days & weeks in deployment time with 100+ Templates available • Pre-built, pre-configured, production-ready VMs • Apps, Databases, Middleware, OS; Siebel CRM, Oracle RAC, More… • Near zero knowledge of OS, Application installation required • Automate deployment of a complete production ready 8 node RAC cluster in minutes through a simple single configuration file Oracle VM Servers Siebel CRM File Siebel CRM VM 1 Server Pool 2 Import to Oracle VM Manager Start-up in Oracle VM Pool Customize & Save as Golden Image Download

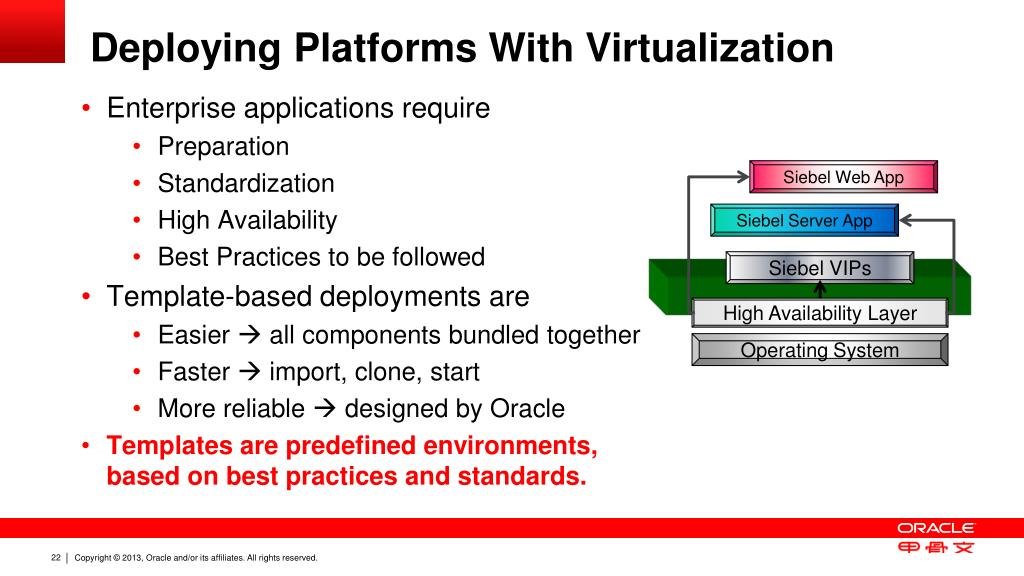

22. Deploying Platforms With Virtualization • Enterprise applications require • Preparation • Standardization • High Availability • Best Practices to be followed • Template-based deployments are • Easier  all components bundled together • Faster  import, clone, start • More reliable  designed by Oracle • Templates are predefined environments,based on best practices and standards. Siebel Web App Siebel Server App Siebel VIPs High Availability Layer Operating System Virtual Node

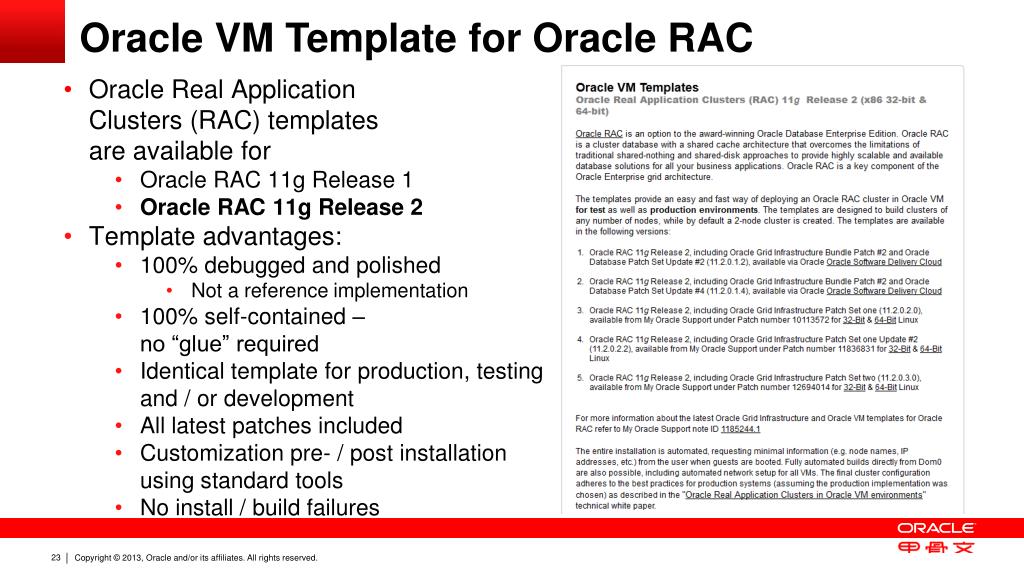

23. Oracle VM Template for Oracle RAC • Oracle Real Application Clusters (RAC) templates are available for • Oracle RAC 11g Release 1 • Oracle RAC 11g Release 2 • Template advantages: • 100% debugged and polished • Not a reference implementation • 100% self-contained – no “glue” required • Identical template for production, testing and / or development • All latest patches included • Customization pre- / post installation using standard tools • No install / build failures

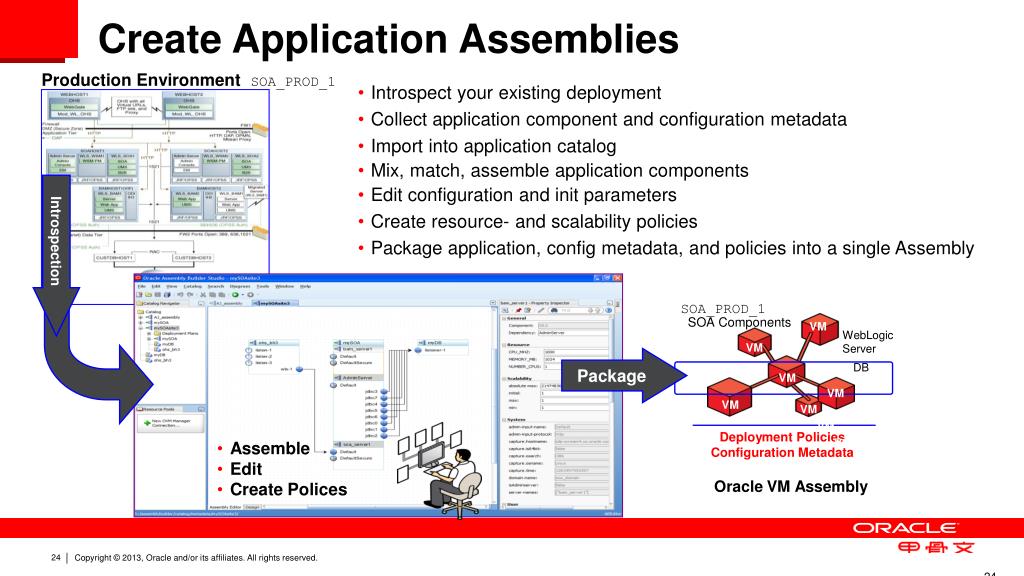

24. Create Application Assemblies Production Environment SOA_PROD_1 • Introspect your existing deployment • Collect application component and configuration metadata • Import into application catalog • Mix, match, assemble application components • Edit configuration and init parameters • Create resource- and scalability policies • Package application, config metadata, and policies into a single Assembly Introspection SOA_PROD_1 SOA Components VM WebLogic Server VM VM Package DB VM VM VM VM VM Deployment Policies Configuration Metadata VM • Assemble • Edit • Create Polices Oracle VM Assembly 24

25. Oracle Virtual Assembly Builder Automate Deployment Into OVM Pool Capture Complete Application Topology Package Into Single Assembly • Standardize Configurations, Automated Provisioning Oracle Enterprise Manager HTTP HTTP OVM OVM WLS OVM DB Metadata OVM Oracle VM 3 Resource Pool • Along with application data, deployment, management instructions and best practices are also captured • Deploy assembly onto Oracle VM pool with automated configuration and late-binding parameters

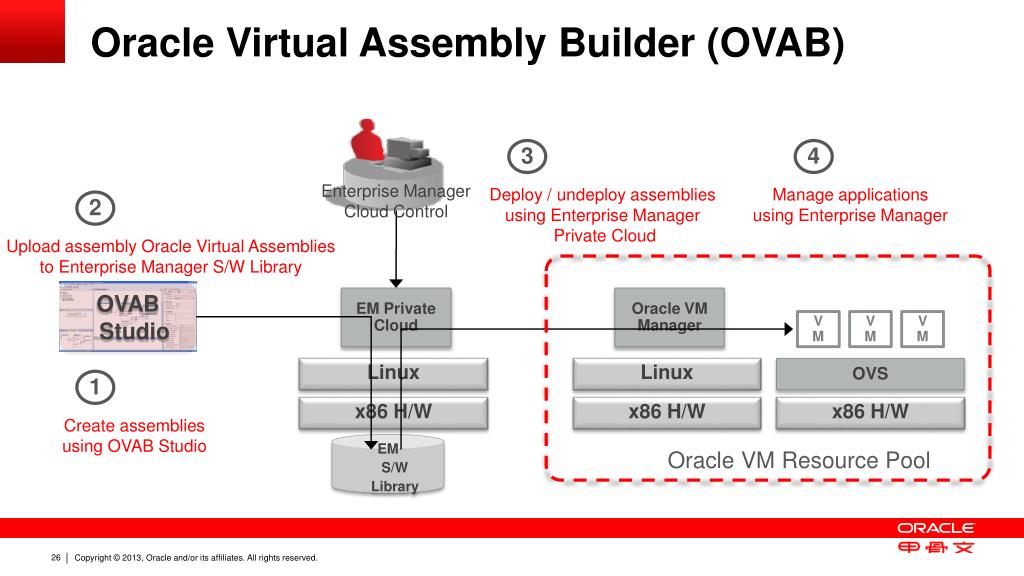

26. Oracle Virtual Assembly Builder (OVAB) 3 4 Enterprise Manager Cloud Control Deploy / undeploy assembliesusing Enterprise Manager Private Cloud Manage applicationsusing Enterprise Manager 2 Upload assembly Oracle Virtual Assembliesto Enterprise Manager S/W Library OVABStudio EM Private Cloud Oracle VM Manager VM VM VM Linux Linux OVS 1 x86 H/W x86 H/W x86 H/W Create assembliesusing OVAB Studio EMS/W Library Oracle VM Resource Pool

27. Business-Driven Clouds Application-aware clouds that automatically adapt to business services and activities Complete Cloud Lifecycle Solution Manage all phases of the cloud lifecycle Unified and Automated Management Across the entire cloud stack, and across all cloud services - from a single product Oracle Enterprise Manager 12c Lifecycle ManagementTotal Cloud Control Plan Optimize Setup Meter & Charge • Applications and • Business Services Build Manage • Platform as a Service • Database as a Service • Infrastructure as a Service Test Monitor Deploy

28. “If I had to operate without Oracle VM I would be spending up to 87 percent more on just the hardware and the Oracle Database licenses than what I'm spending with OVM. “ Nate Auwerda Director Website Operations Overstock.com Corporation

29. “"Our ultimate goal was to improve application deployment time, increase performance and save on IT costs,” said GianGiacomo Ferraris, CEO of Versace. “The support that we have received from Oracle has helped us dramatically reduce licensing and management costs, while ensuring our architecture can scale to meet the changing dynamics of our growing business.” GianGiacomo Ferraris CEO of Versace

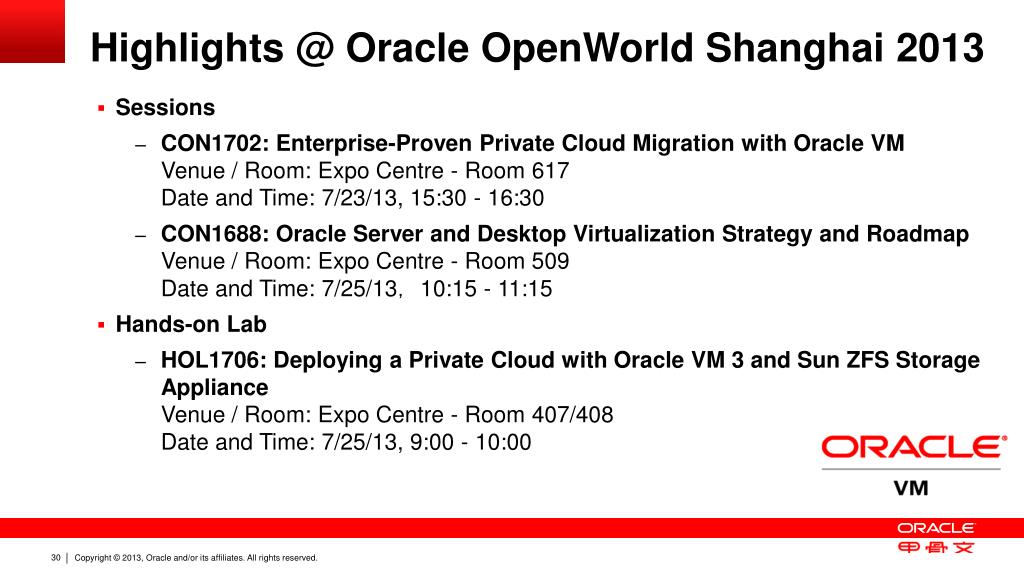

30. Highlights @ Oracle OpenWorld Shanghai 2013 • Sessions • CON1702: Enterprise-Proven Private Cloud Migration with Oracle VMVenue / Room: Expo Centre - Room 617Date and Time: 7/23/13, 15:30 - 16:30 • CON1688: Oracle Server and Desktop Virtualization Strategy and RoadmapVenue / Room: Expo Centre - Room 509Date and Time: 7/25/13，10:15 - 11:15 • Hands-on Lab • HOL1706: Deploying a Private Cloud with Oracle VM 3 and Sun ZFS Storage ApplianceVenue / Room: Expo Centre - Room 407/408Date and Time: 7/25/13, 9:00 - 10:00

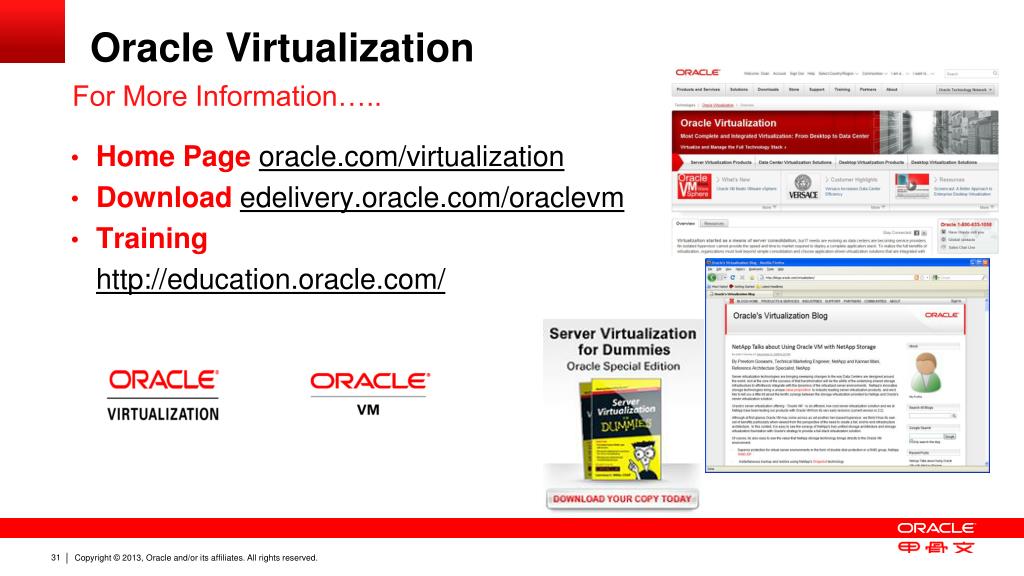

31. Oracle Virtualization For More Information….. • Home Page oracle.com/virtualization • Downloadedelivery.oracle.com/oraclevm • Training http://education.oracle.com/

32. Join the conversation @ORCL_Virtualize facebook.com/OracleVirtualization youtube.com/OracleVirtualization
