  1. TMDLs on the Clearwater River Fecal Coliform Impairment of the Trout Stream Portion of the Clearwater River By Corey Hanson Water Quality Coordinator Red Lake Watershed District

  2. Explanation of Impairment • The trout stream reach of the Clearwater River is impaired by fecal coliform, begins at the Clearwater/Beltrami County Line, and ends at Clearwater Lake. • Listed on the 2002 303(d) List and remains listed on the 2004 303(d) List of Impaired Waters

  3. RLWD Role in TMDL Study • Fiscal Agent • Project Administration • Monitoring • Water quality data collection and analysis • Water quality modeling using FLUX • Load allocation • Report writing

  4. Characteristics of the Impaired Reach • Land Use • Runoff • Physical Characteristics of the stream • Possible Sources of fecal coliform

  5. Land Use • 32% Forest • 27% Grass/Pasture • 19% Ag • 11% Water/Wetland • 8% Urban/Rural Development • 3% Other

  6. Runoff Potential

  7. Physical Characteristics • The gradient and velocity of the stream increase prior to the trout stream reach. • Fecal coliform suitability decreases. Upstream of the Trout Stream Reach Trout Stream Reach

  8. Weighted Average Fecal Coliform Levels from FLUX Modeling

  9. Possible Sources of Fecal Coliform Bacteria • High Probability • Overflows from Bagley Sewage Treatment Facility (Has been improved to eliminate overflows) • Stormwater from the City of Bagley (Stormwater ponds have been constructed to reduce amount of pollutants entering river) • Wildlife • Low Probability/Unknown • City of Bagley wastewater Treatment (Not a large contribution) • Feedlots • Hydrologic Modification • Fecal Coliform deposited in calcareous fens/bogs (under investigation) • Sampling Techniques

  10. Monitoring Conducted for use in the TMDL Project • Clearwater Nonpoint Study – 1992-93 • Clearwater Lake Water Quality Model Study • 2002 - 6 stream sites, bi-weekly monitoring • RLWD Long Term District Monitoring • Quarterly monitoring since mid-80’s • Data entry into STORET just recently completed, not in time for 2004 303(d) list • Clearwater Soil and Water Conservation District • Intensive fecal coliform monitoring for this TMDL Project from August 2002 – October 2002 • Samples analyzed by Minnesota Department of Health, data is currently available in STORET

  11. Clearwater Lake Water Quality Model Monitoring Sites

  12. RLWD District Monitoring Sites in the Cleawater Lake Watershed

  13. SWCD/MDH Monitoring Sites CR #24 (inlet) CR #22 3-Mile Road Hwy #2 CR #25

  14. Methods for Determination of Impairment • From the MPCA Guidance Manual for Assessing the Quality of Minnesota Surface Waters for Determination of Impairment – 305(b) Report and 303(d) List. • Section VIII. Assessment Based on Numeric Standard for Protection of Recreation • For Class 2A waters (trout streams) • Pollutant – Fecal Coliform • Affects swimming and other forms of recreation that involve contact with the water

  15. Methods for Determination of Impairment – Fecal Coliform • Standard = 200 organisms per 100 ml of water • Geometric mean of 5 + samples in one month, or • If information from #2. is not available, find % of samples exceeding the standard within the most recent 10 years (at least 10 data points). If >10%, the stream is considered potentially impaired and moves on to the next step of the assessment process • Data aggregated by month. • If geometric mean for >2 months exceed 200 col/100ml, reach placed on 305(b) not supporting list and placed on the 303(d) impaired list.

  16. Data used for original impairment • Clearwater Nonpoint Study Data • Impairment found at Clearwater Lake Inlet Monitoring Site • Samples taken April 1992-May 1993 • 36.84% of samples were >200col/ml • Geometric Means of 3 months were > 200col/ml • Only 1 yr of sampling • Less than 5 samples per aggregate month

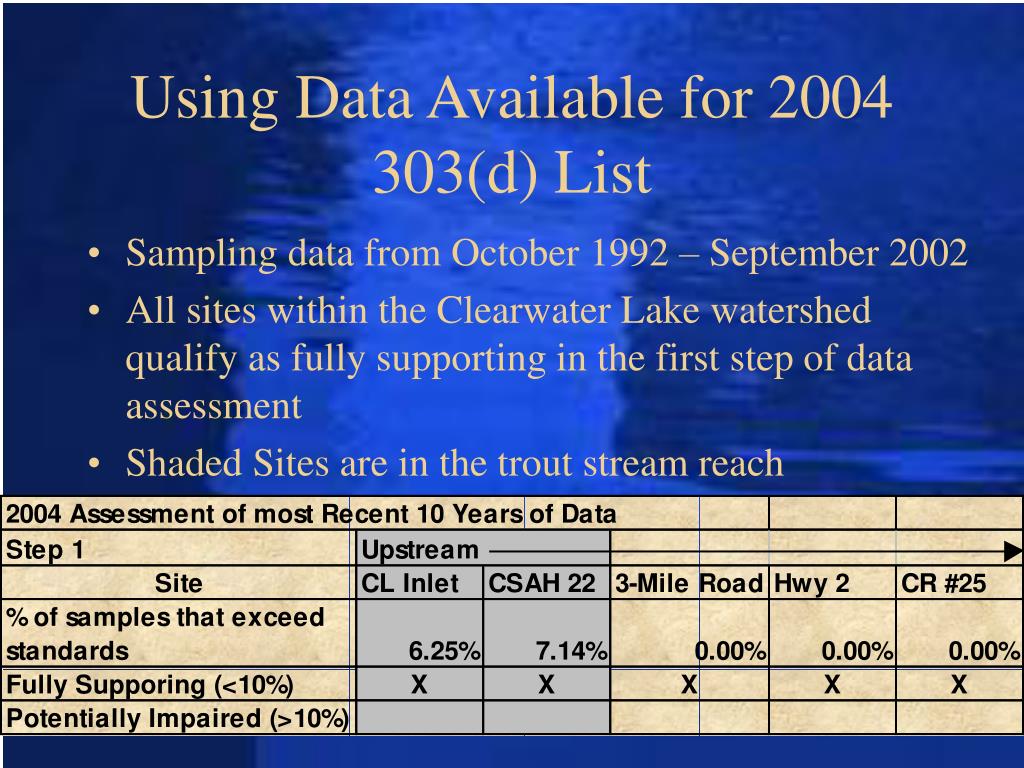

  17. Using Data Available for 2004 303(d) List • Sampling data from October 1992 – September 2002 • All sites within the Clearwater Lake watershed qualify as fully supporting in the first step of data assessment • Shaded Sites are in the trout stream reach

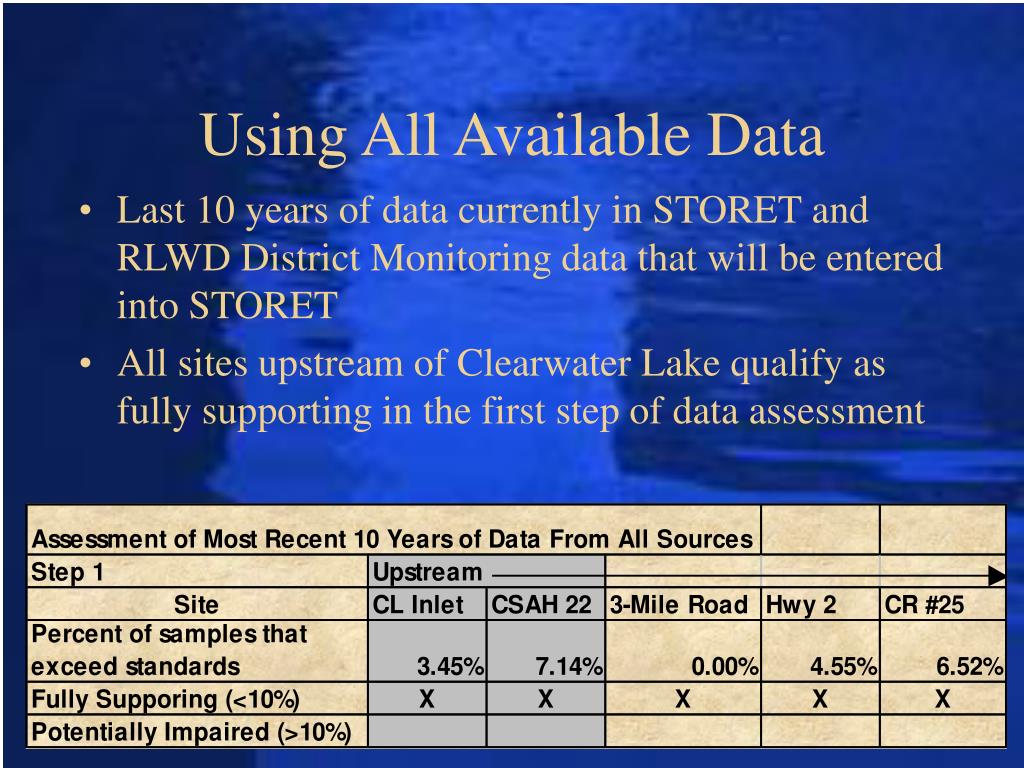

  18. Using All Available Data • Last 10 years of data currently in STORET and RLWD District Monitoring data that will be entered into STORET • All sites upstream of Clearwater Lake qualify as fully supporting in the first step of data assessment

  19. Why there is no longer an impairment • Improvements to the Bagley Sewage Treatment Facility • Stormwater Treatment Pond Construction • Best Management Practices

  20. Next Steps • Include load allocations, etc. in order to prevent the reach from becoming impaired in the future • Write TMDL Report • Delisting of the reach • Published TMDL

  21. The End
