  1. Working with XHTML Tutorial 9 Creating a Well-Formed Valid Document New Perspectives on Creating Web Pages with HTML, XHTML, and XML

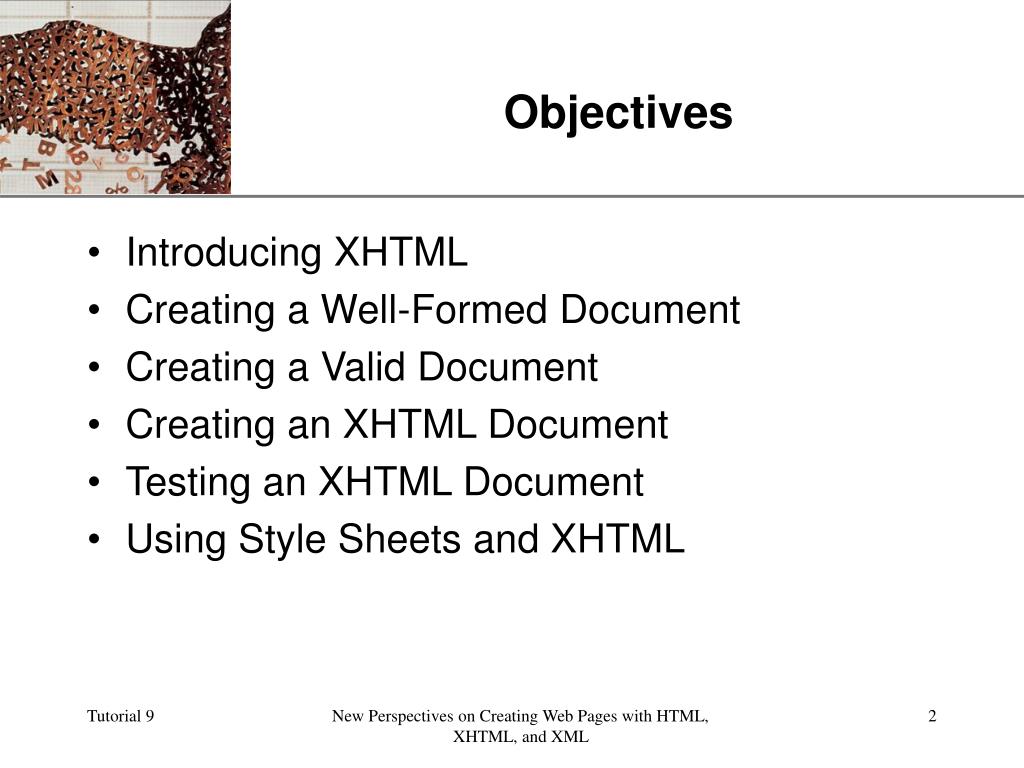

  2. Objectives • Introducing XHTML • Creating a Well-Formed Document • Creating a Valid Document • Creating an XHTML Document • Testing an XHTML Document • Using Style Sheets and XHTML New Perspectives on Creating Web Pages with HTML, XHTML, and XML

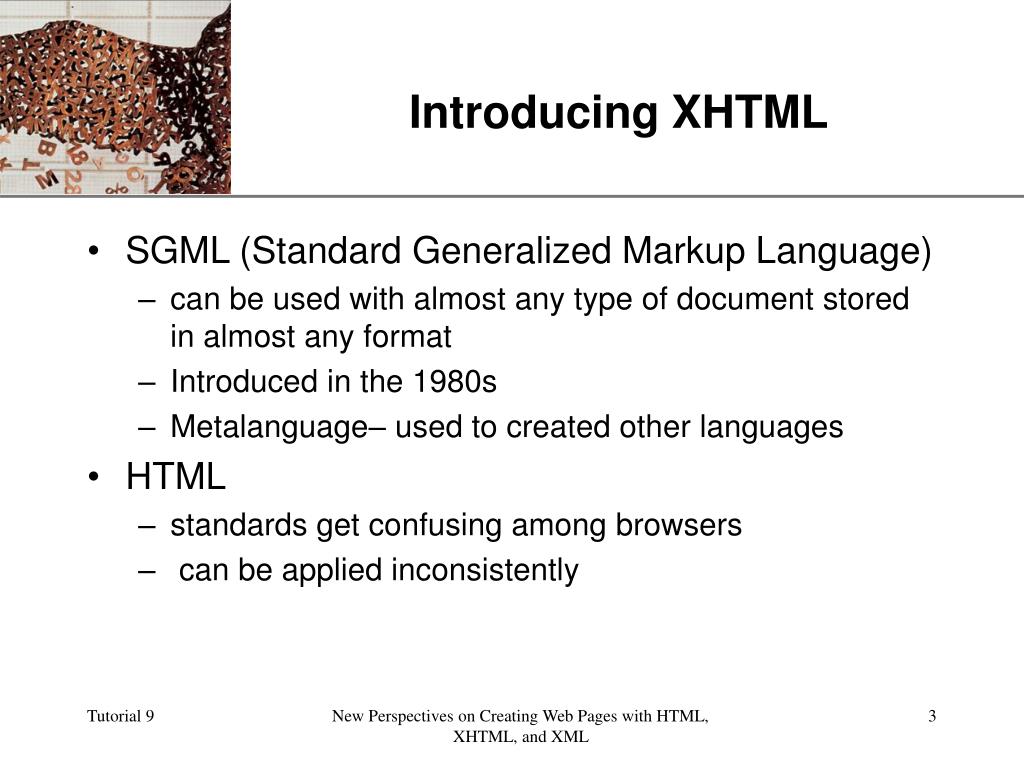

  3. Introducing XHTML • SGML (Standard Generalized Markup Language) • can be used with almost any type of document stored in almost any format • Introduced in the 1980s • Metalanguage– used to created other languages • HTML • standards get confusing among browsers • can be applied inconsistently New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  4. Introducing XHTML • XML (Extensible Markup Language) • used to design markup languages • XML documents must be evaluated with an XML parser • An XML document with correct syntax is a well-formed document • A well-formed document with correct content and structure is a valid document • DTD specifies correct content and structure New Perspectives on Creating Web Pages with HTML, XHTML, and XML

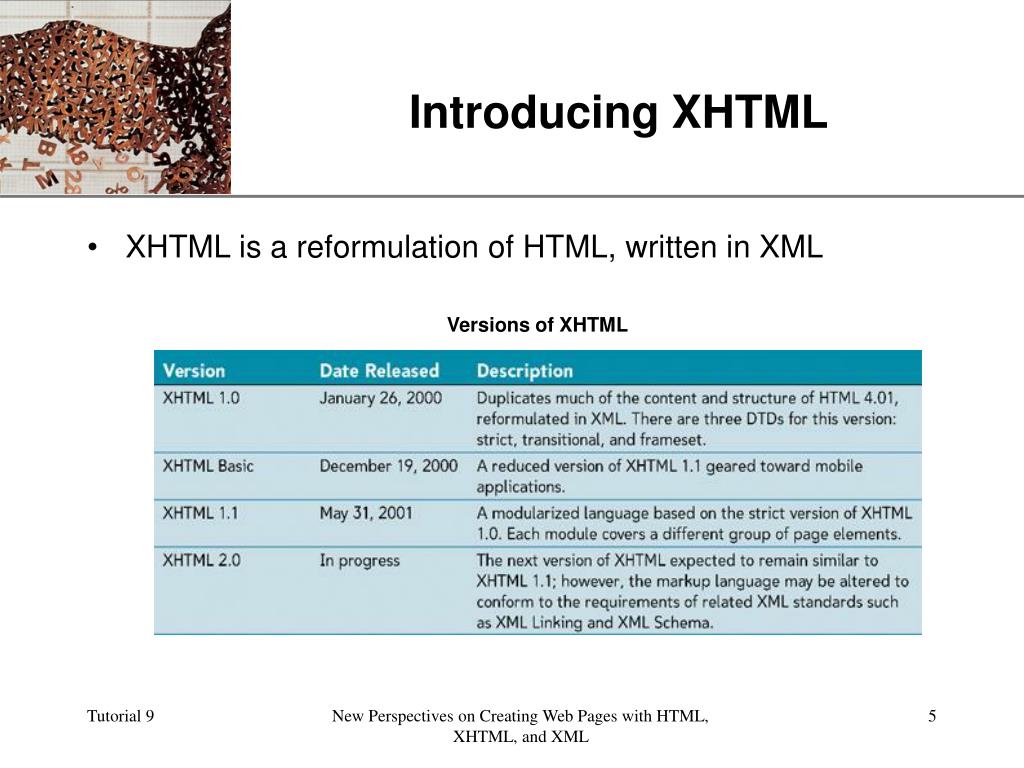

  5. Introducing XHTML • XHTML is a reformulation of HTML, written in XML Versions of XHTML New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  6. DTDs associated with XHTML 1.0 - transitional: supports many of the presentational features of HTML, including the deprecated elements and attributes Best used for older documents that contain deprecated features New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  7. DTDs associated with XHTML 1.0 - frameset: used for documents containing frames, and also supports deprecated elements and attributes New Perspectives on Creating Web Pages with HTML, XHTML, and XML

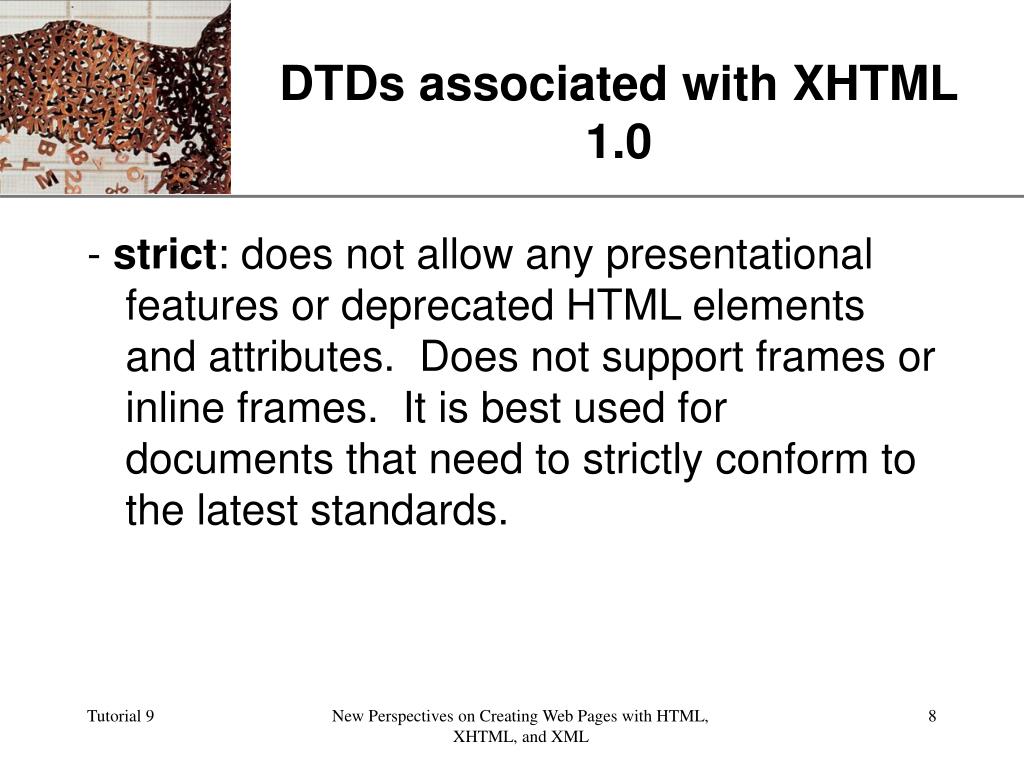

  8. DTDs associated with XHTML 1.0 - strict: does not allow any presentational features or deprecated HTML elements and attributes. Does not support frames or inline frames. It is best used for documents that need to strictly conform to the latest standards. New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  9. Creating a Well-Formed Document Rules for well-formed XHTML documents New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  10. Creating a Well-Formed Document • XHTML documents must also include a single root element that contains all other elements • For XHTML, that root element is the html element • Attribute minimization is when some attributes lack attribute values • XHTML doesn’t allow attribute minimization New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  11. Attribute minimization in HTML and XHTML New Perspectives on Creating Web Pages with HTML, XHTML, and XML

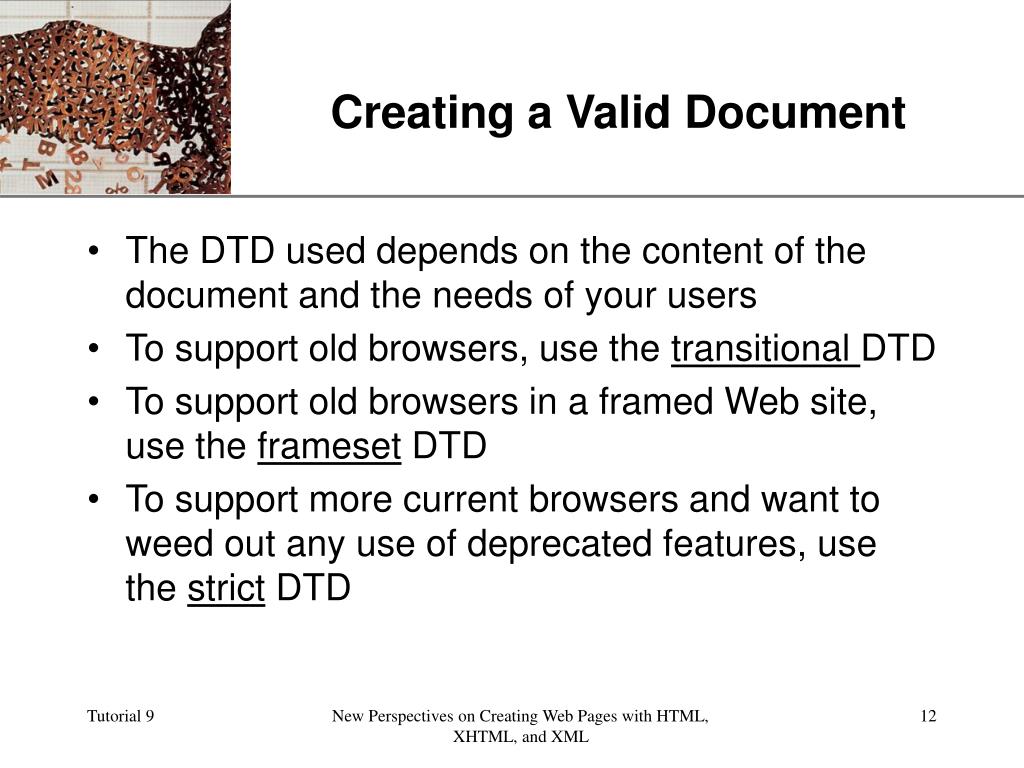

  12. Creating a Valid Document • The DTD used depends on the content of the document and the needs of your users • To support old browsers, use the transitional DTD • To support old browsers in a framed Web site, use the frameset DTD • To support more current browsers and want to weed out any use of deprecated features, use the strict DTD New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  13. Creating a Valid Document • Elements not allowed under the strict DTD: • applet - isindex • basefont - menu • center - s • dir - strike • font - u • iframe New Perspectives on Creating Web Pages with HTML, XHTML, and XML

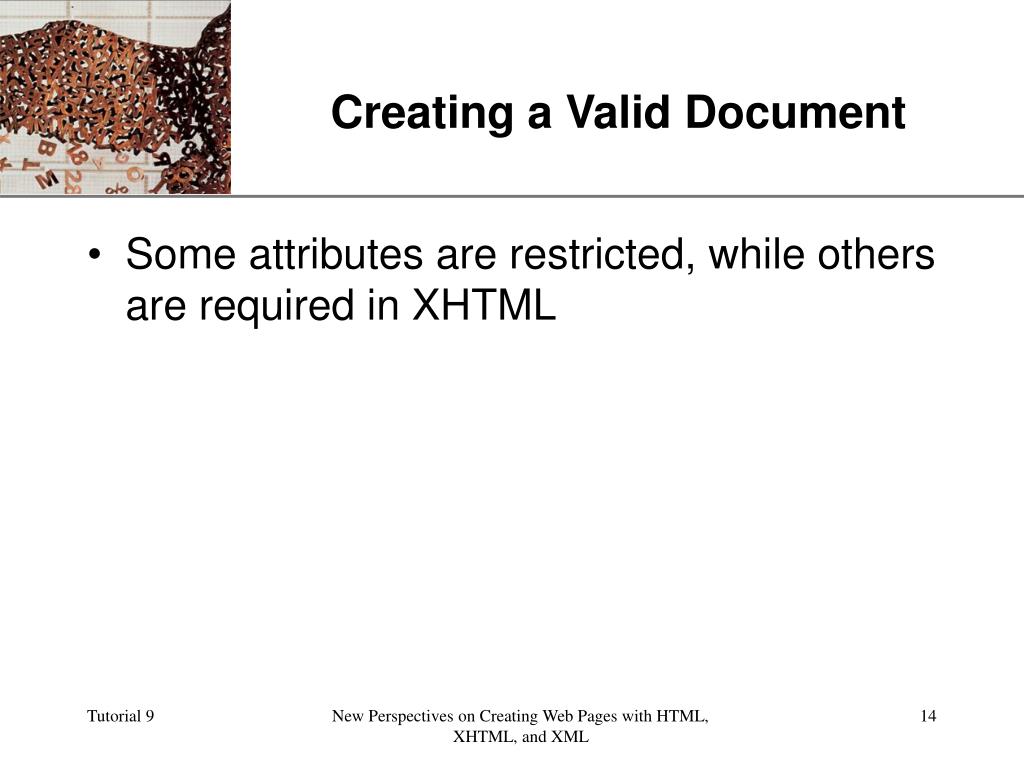

  14. Creating a Valid Document • Some attributes are restricted, while others are required in XHTML New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  15. Attributes prohibited in the strict DTD New Perspectives on Creating Web Pages with HTML, XHTML, and XML

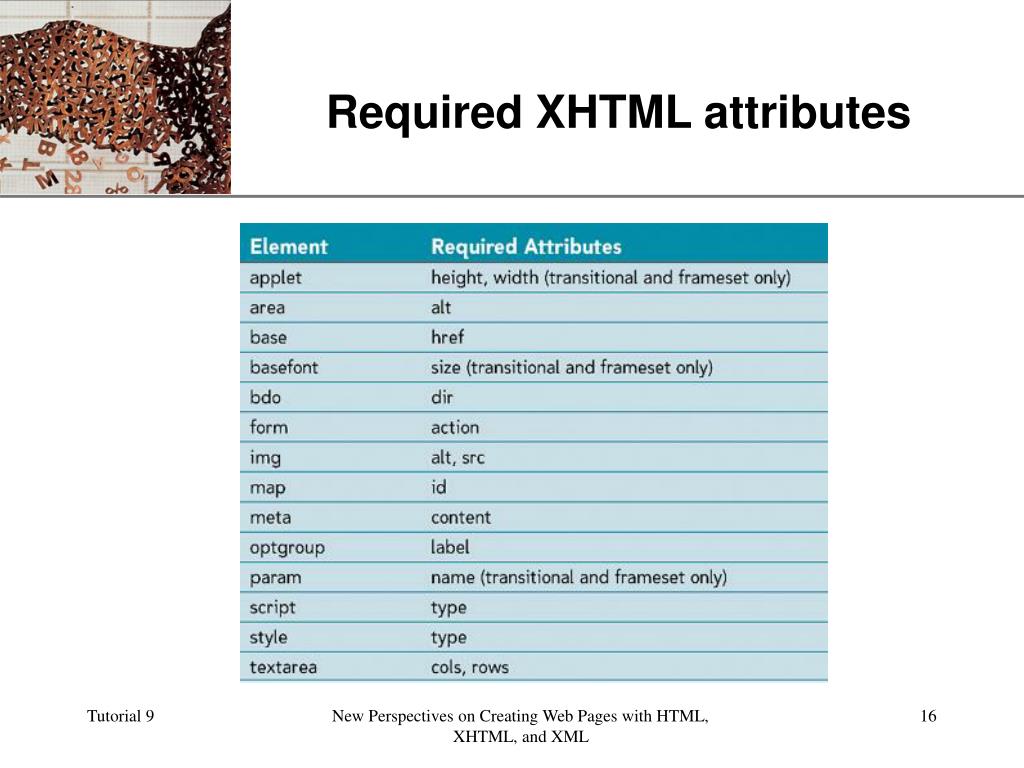

  16. Required XHTML attributes New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  17. Creating an XHTML Document • The first line of an XTHML document should contain a declaration indicating that the document adheres to the rules and syntax of XML • XML (and thus XHTML) documents are based on a character set • A character set is a set of abstract symbols matched to code numbers New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  18. Character Sets • Universal Character Set (UCS) • Unicode • Character encoding is the process in which bytes are translated back into characters (when a document is sent across the Internet) New Perspectives on Creating Web Pages with HTML, XHTML, and XML

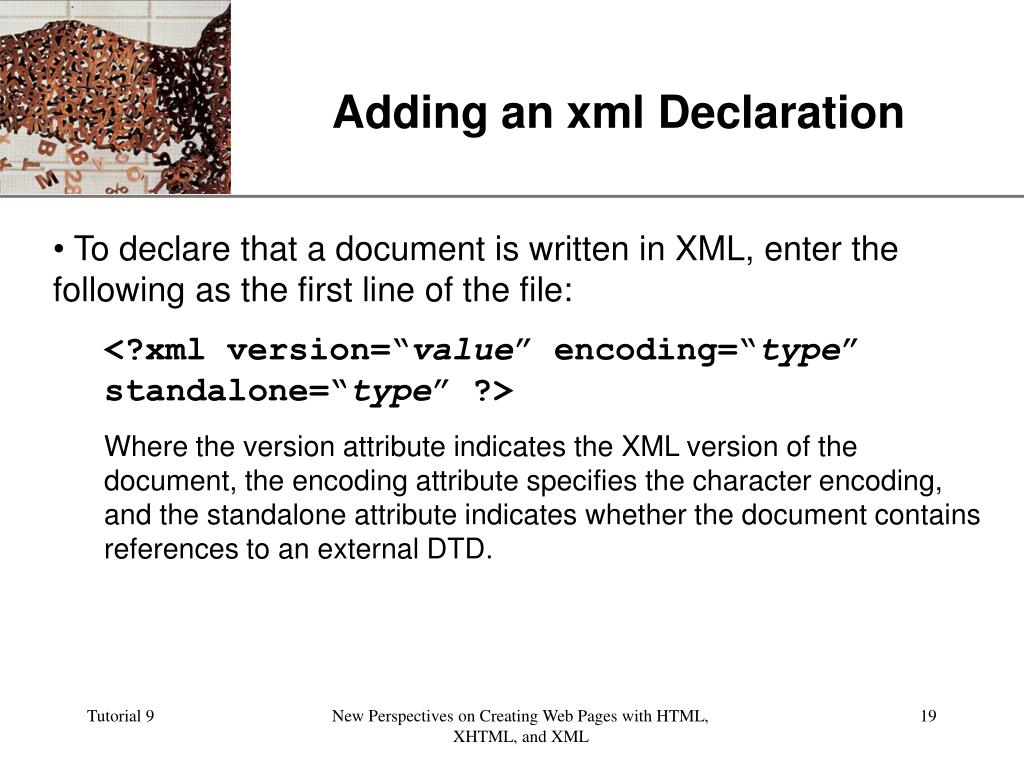

  19. Adding an xml Declaration • To declare that a document is written in XML, enter the following as the first line of the file: • <?xml version=“value” encoding=“type” standalone=“type” ?> • Where the version attribute indicates the XML version of the document, the encoding attribute specifies the character encoding, and the standalone attribute indicates whether the document contains references to an external DTD. New Perspectives on Creating Web Pages with HTML, XHTML, and XML

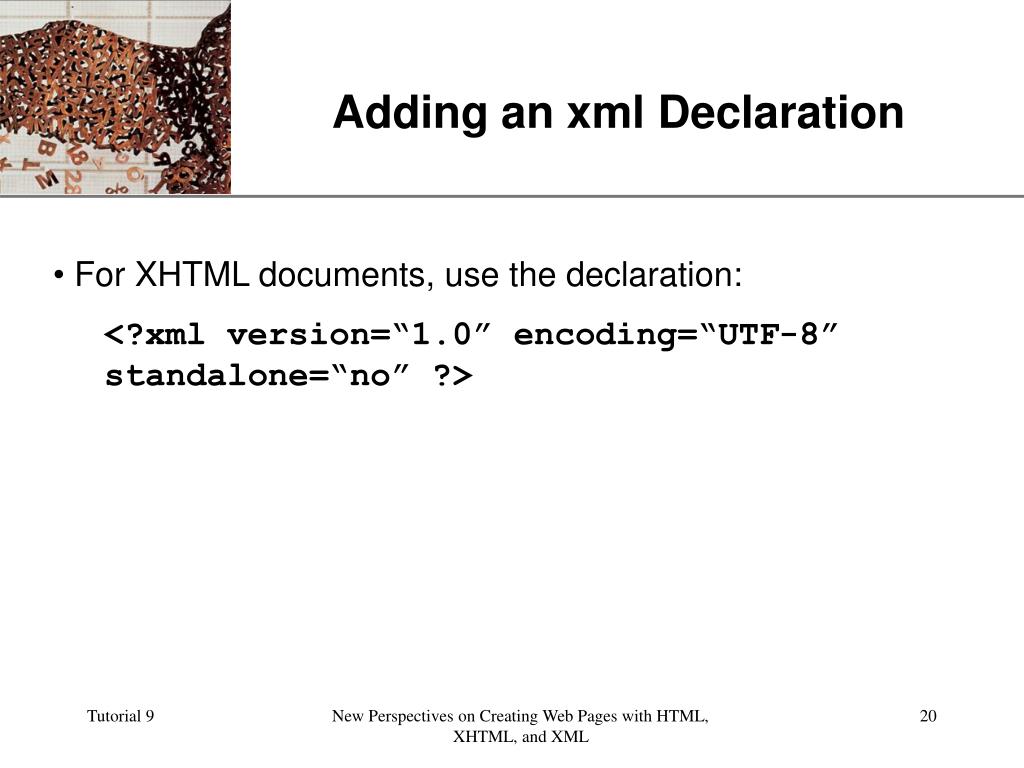

  20. Adding an xml Declaration • For XHTML documents, use the declaration: • <?xml version=“1.0” encoding=“UTF-8” standalone=“no” ?> New Perspectives on Creating Web Pages with HTML, XHTML, and XML

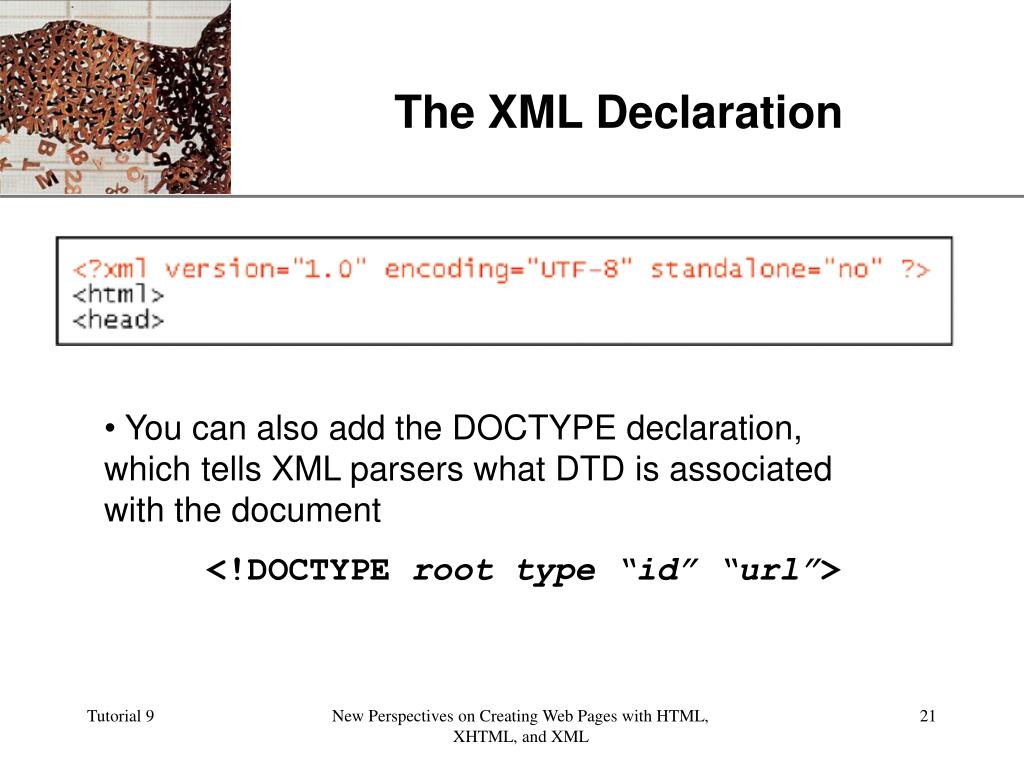

  21. The XML Declaration • You can also add the DOCTYPE declaration, which tells XML parsers what DTD is associated with the document • <!DOCTYPE root type “id” “url”> New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  22. The xml Namespace • A namespace is a unique identifier for elements and attributes originating from a particular document type (like XHTML or MathML) • Two types of namespaces: • default: applied to a root element and any element within it • <root xmlns=“namespace”> New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  23. The xml Namespace • local: applies to only select elements • - Each element in the local namespace is marked by a prefix attached to the element name • xmlns: prefix=“namespace” • Identify any element belonging to that namespace by modifying the element name in the tag: • prefix:element New Perspectives on Creating Web Pages with HTML, XHTML, and XML

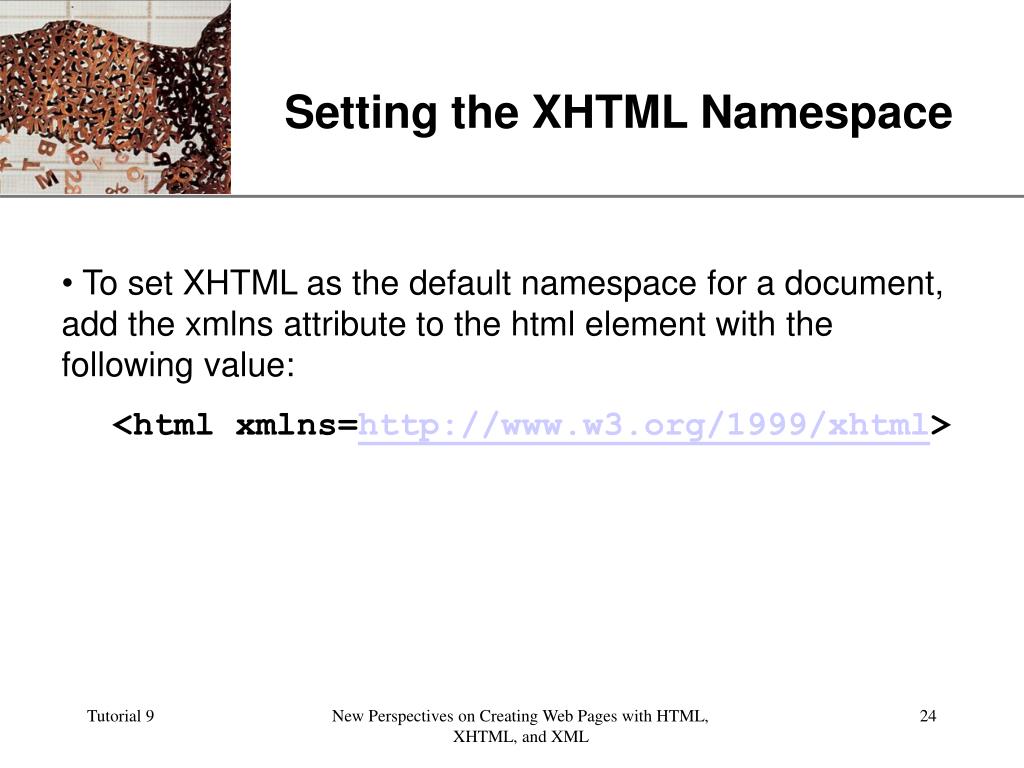

  24. Setting the XHTML Namespace • To set XHTML as the default namespace for a document, add the xmlns attribute to the html element with the following value: • <html xmlns=http://www.w3.org/1999/xhtml> New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  25. Testing an XHTML Document • To test your document, you need to send the file to an XML parser or an XHTML validator • Sometimes the same mistake results in several errors are noted in the report • - fixing one mistake can solve several errors New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  26. Fixing the errors in the paragraph elements New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  27. Report showing a successful validation under XHTML 1.0 transitional New Perspectives on Creating Web Pages with HTML, XHTML, and XML

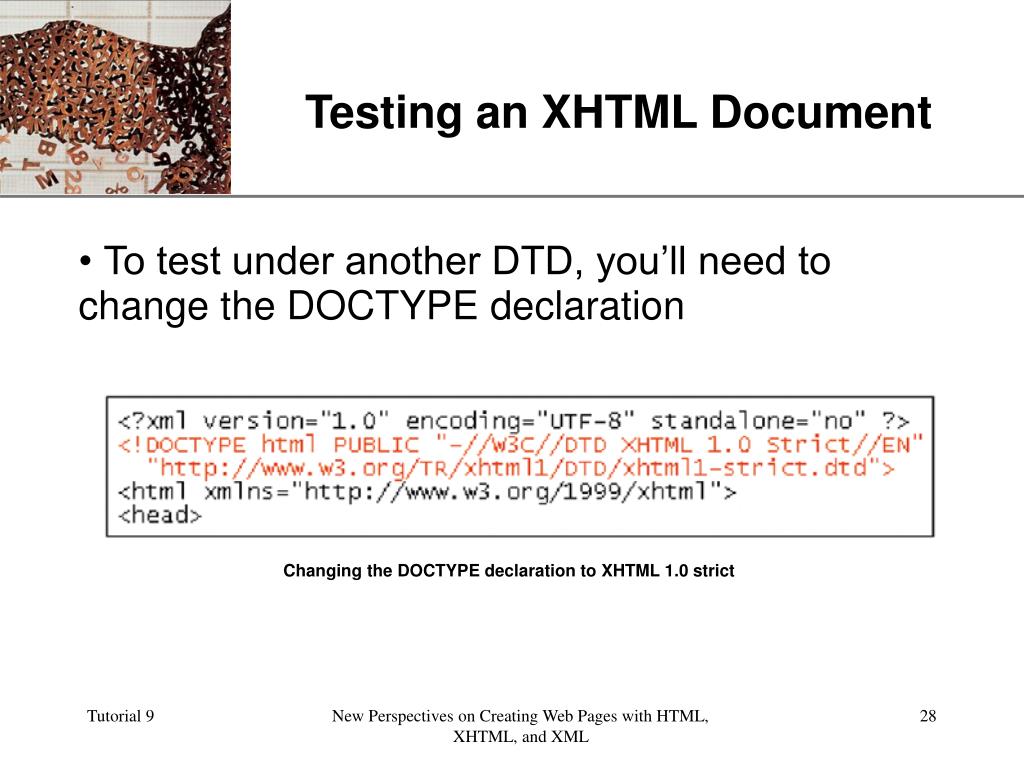

  28. Testing an XHTML Document • To test under another DTD, you’ll need to change the DOCTYPE declaration Changing the DOCTYPE declaration to XHTML 1.0 strict New Perspectives on Creating Web Pages with HTML, XHTML, and XML

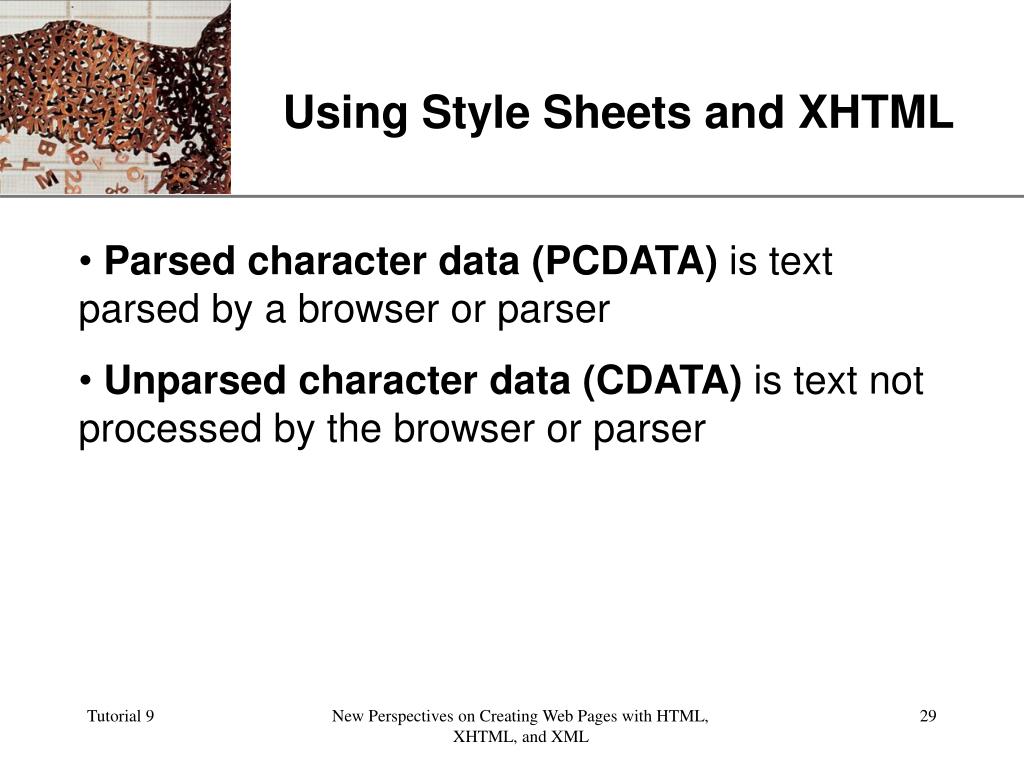

  29. Using Style Sheets and XHTML • Parsed character data (PCDATA) is text parsed by a browser or parser • Unparsed character data (CDATA) is text not processed by the browser or parser New Perspectives on Creating Web Pages with HTML, XHTML, and XML

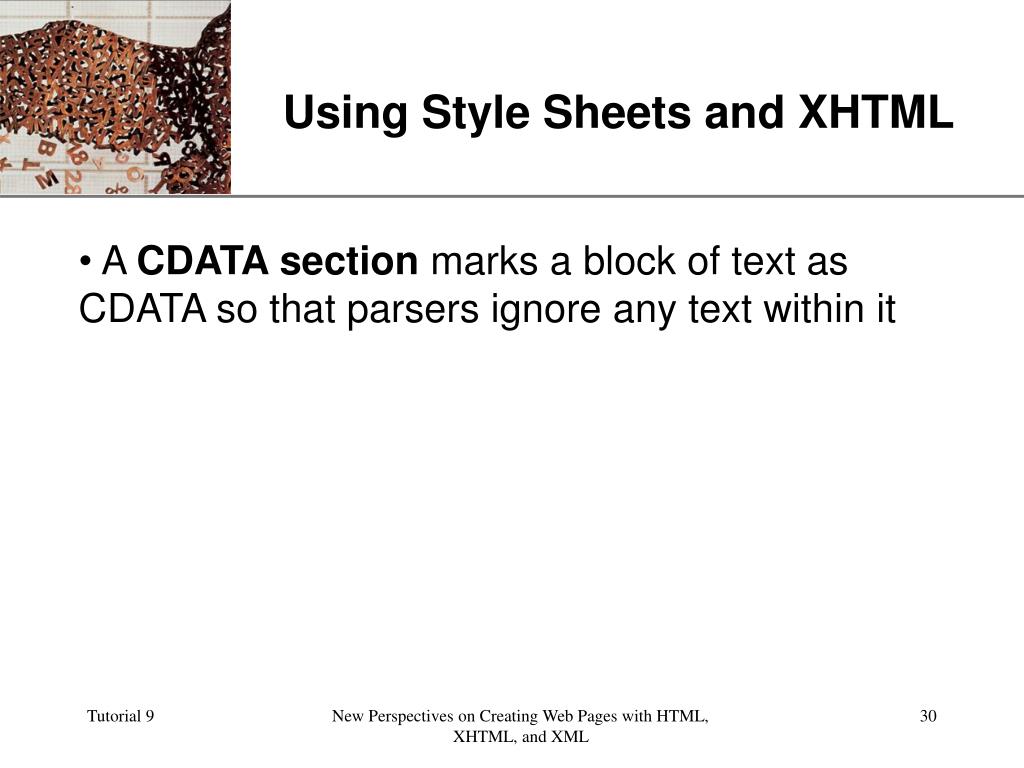

  30. Using Style Sheets and XHTML • A CDATA section marks a block of text as CDATA so that parsers ignore any text within it New Perspectives on Creating Web Pages with HTML, XHTML, and XML

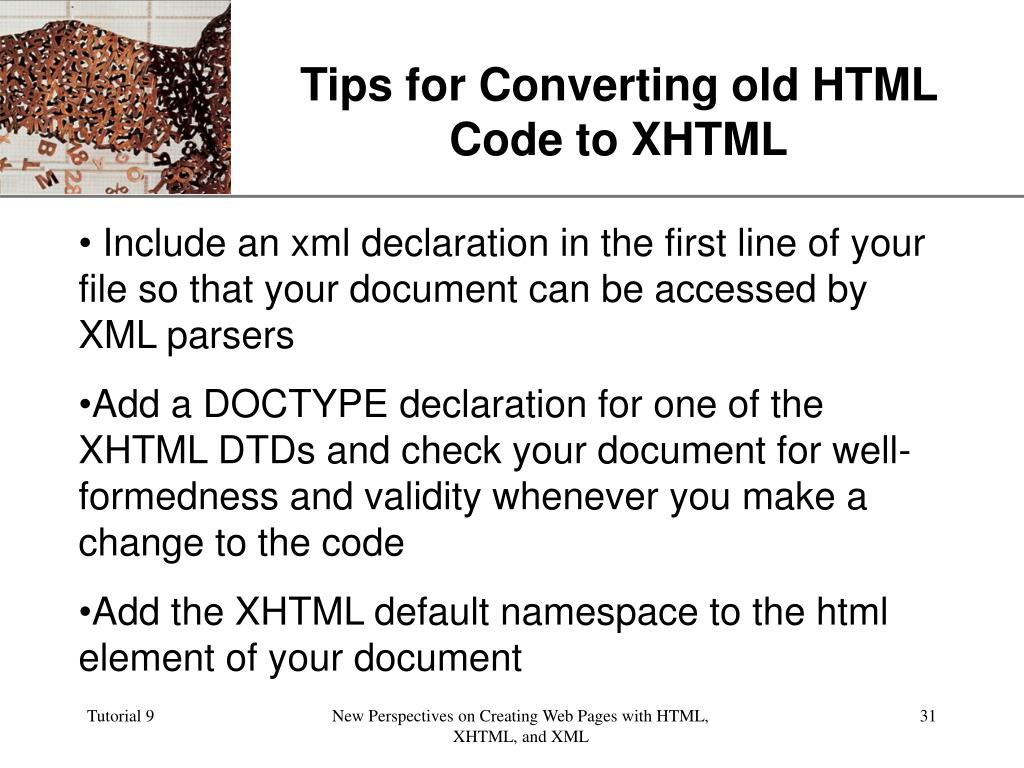

  31. Tips for Converting old HTML Code to XHTML • Include an xml declaration in the first line of your file so that your document can be accessed by XML parsers • Add a DOCTYPE declaration for one of the XHTML DTDs and check your document for well-formedness and validity whenever you make a change to the code • Add the XHTML default namespace to the html element of your document New Perspectives on Creating Web Pages with HTML, XHTML, and XML

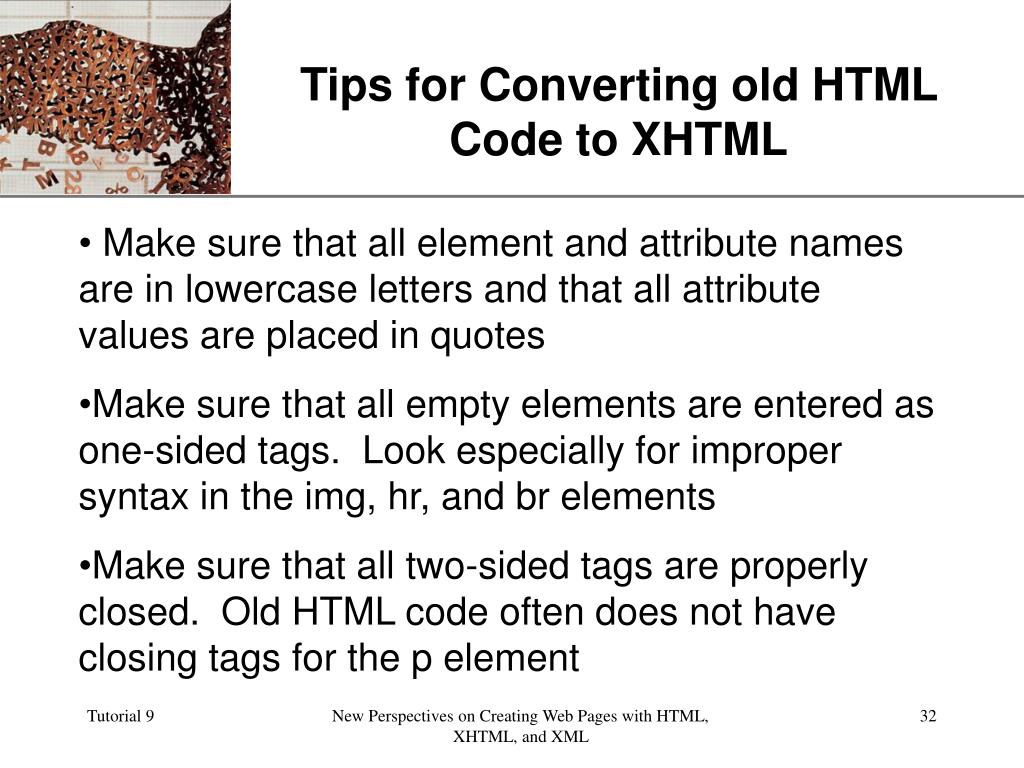

  32. Tips for Converting old HTML Code to XHTML • Make sure that all element and attribute names are in lowercase letters and that all attribute values are placed in quotes • Make sure that all empty elements are entered as one-sided tags. Look especially for improper syntax in the img, hr, and br elements • Make sure that all two-sided tags are properly closed. Old HTML code often does not have closing tags for the p element New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  33. Tips for Converting old HTML Code to XHTML • Make sure that all inline images contain the alt attribute • Look for deprecated attributes such as align, bgcolor, and background, and replace them with the float (or text-align), background-color, and background-image styles • Replace the name attribute with the id attribute • Fix all instances of attribute minimization New Perspectives on Creating Web Pages with HTML, XHTML, and XML

  34. Tips for Converting old HTML Code to XHTML • Replace the use of the font element with either the span element or with a style that applies the same formatting specified by the font element • Replace the use of the width attribute in the td or th element with the width style New Perspectives on Creating Web Pages with HTML, XHTML, and XML
