Presentation Transcript

  1. RFC 4590bis Wednesday, March 21, 2007 draft-ietf-radext-rfc4590bis-00.txt Wolfgang Beck IETF 68 Prague

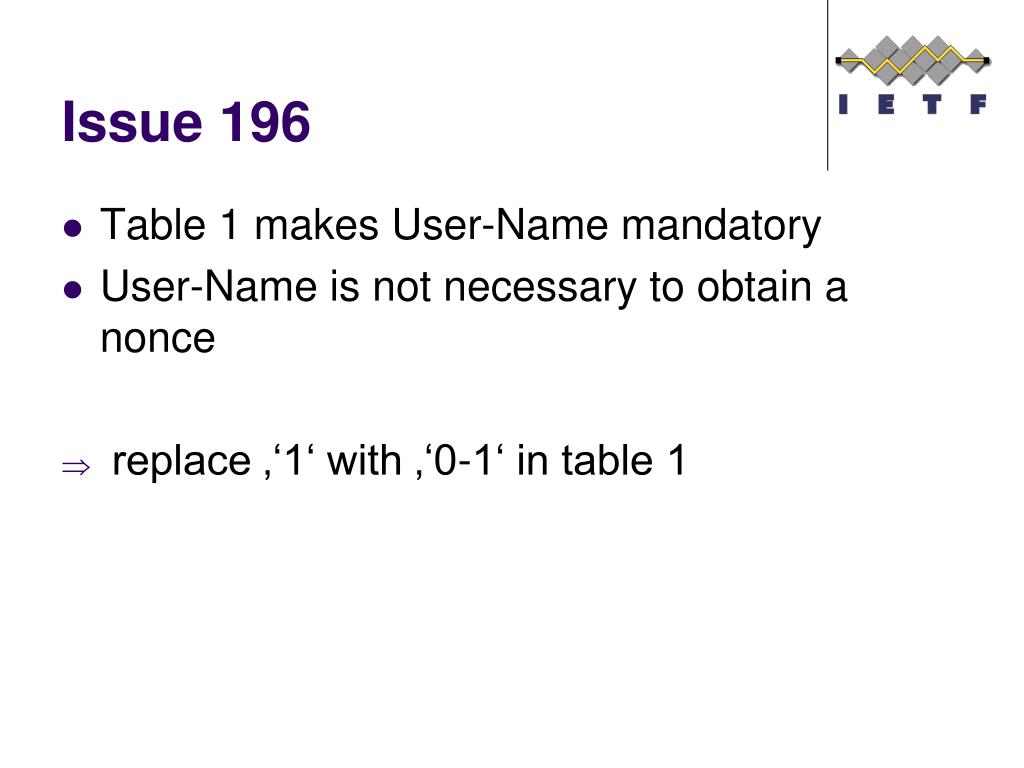

  2. Issue 196 • Table 1 makes User-Name mandatory • User-Name is not necessary to obtain a nonce • replace ‚‘1‘ with ‚‘0-1‘ in table 1

  3. Issue 205, IANA Error • Digest-Nextnonce/Digest-Response-Auth have different values in text and table 2 • 106 Digest-Response-Auth • 107 Digest-Nextnonce

  4. Issue 206 • Table 1 made Digest-Method optional • State attribute usage was not clear • make Digest-Method mandatory • add a State attribute line and some clarifying text to Table 1

  5. Issue 218 • Addition of Accounting-Request entries in the attribute table: Access- Access- Access- Access- Acct- Request Accept Reject Challenge Req # Attribute 0-1 0 0 0 0-1 1 User-Name 0-1 0 0 1 0 24 State [4] 1 1 1 1 0-1 80 Message-Authenticator 0-1 0 0 0 0 103 Digest-Response 0-1 0 0 1 0-1 104 Digest-Realm 0-1 0 0 1 0 105 Digest-Nonce 0 0-1 0 0 0 106 Digest-Response-Auth [1][2] 0 0-1 0 0 0 107 Digest-Nextnonce 1 0 0 0 0-1 108 Digest-Method 0-1 0 0 0 0-1 109 Digest-URI 0-1 0 0 0+ 0-1 110 Digest-Qop 0-1 0 0 0-1 0-1 111 Digest-Algorithm [3] 0-1 0 0 0 0 112 Digest-Entity-Body-Hash 0-1 0 0 0 0 113 Digest-CNonce 0-1 0 0 0 0 114 Digest-Nonce-Count 0-1 0 0 0 0-1 115 Digest-Username 0-1 0 0 0-1 0 116 Digest-Opaque 0+ 0+ 0 0+ 0 117 Digest-Auth-Param 0-1 0 0 0 0 118 Digest-AKA-Auts 0 0 0 0+ 0-1 119 Digest-Domain 0 0 0 0-1 0 120 Digest-Stale 0 0-1 0 0 0 121 Digest-HA1 [1][2] 0-1 0 0 0 0 122 SIP-AOR

  6. Feedback?
